◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11136 - FXZ/GXZ(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶

0-32 — WATER PIPING; ENGINE (#68248) — 116 parça

58 113 58 109 109 24 206 206 33 58 113 58 58 113 58 94 94 31 110 110 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

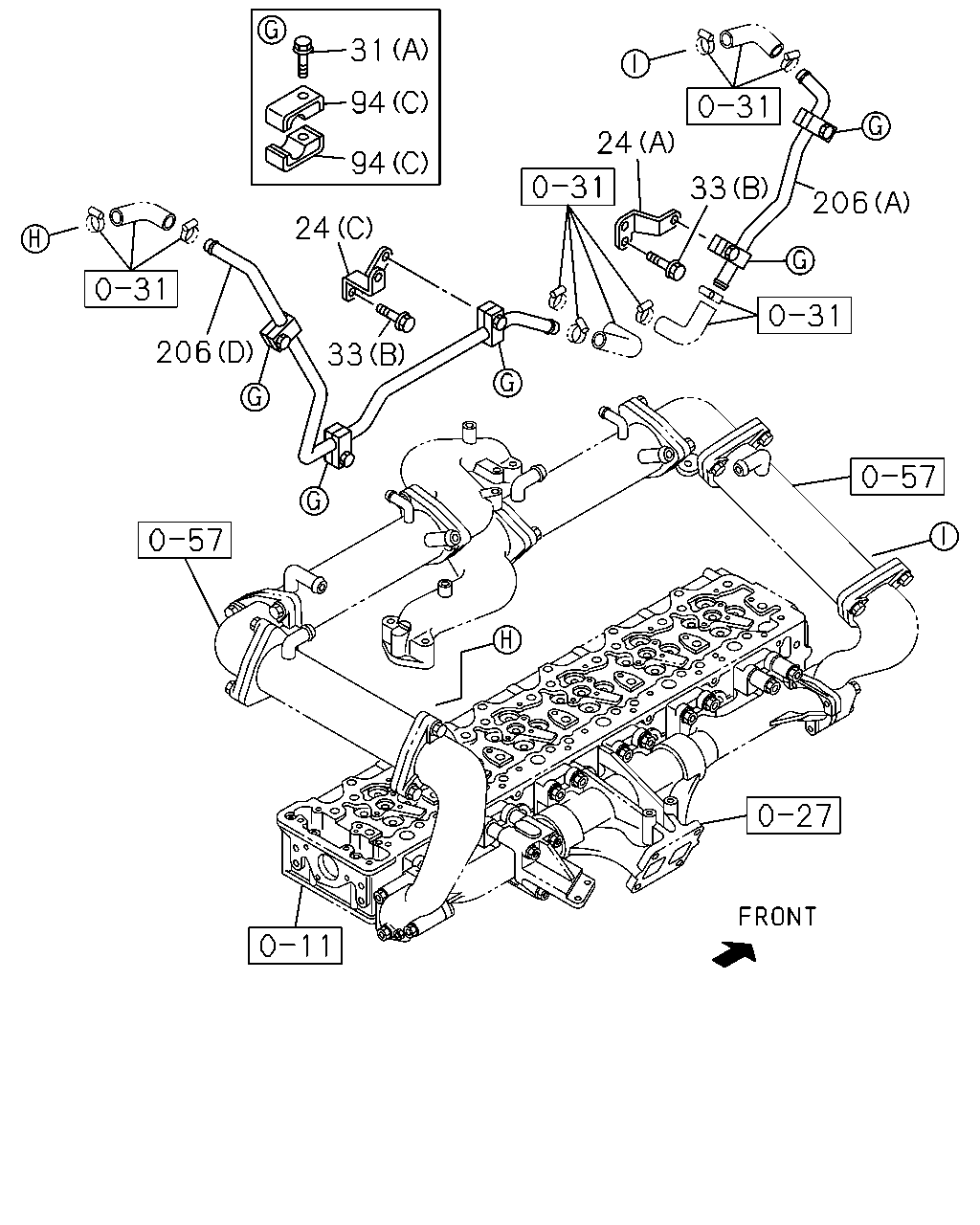

24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	0806-
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	0806-
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	0806-
31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	10	1	0806-1101
31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	08	1	1102-
31	BOLT; CLIP (B) M6X35 FLANGE THA	0-28650-635-0	01	1	0806-
33	BOLT; BRKT (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0806-
33	BOLT; BRKT (B) M10X20 FLANGE THA	0-28151-020-0	06	1	0806-
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	0806-
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	0806-
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	0806-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0806-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0806-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0806-1101
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	16	1	1102-
95	BOLT; CLIP M6X35 FLANGE THA	0-28650-635-0	07	1	0806-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97603-725-0	01	1	0806-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97603-726-1	01	1	0806-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0806-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0806-
113	HOSE; RUBBER,AIR LEAK L=100 SERVICED BY L=3000 THA	0-03559-300-0	02	1	1102-
113	HOSE; RUBBER,AIR LEAK L=280 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1102-
113	HOSE; RUBBER,AIR LEAK L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0806-1005
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000 THA	0-03559-300-0	02	1	0806-1101
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	0806-
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	0806-1101
206	PIPE; WATER,EGR COOLER (E)	8-98172-218-0	01	1	1102-
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	0806-1101
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	0806-

31 94 94 206 33 24 109 109 58 58 113 113 58 58 113 95 110 110 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

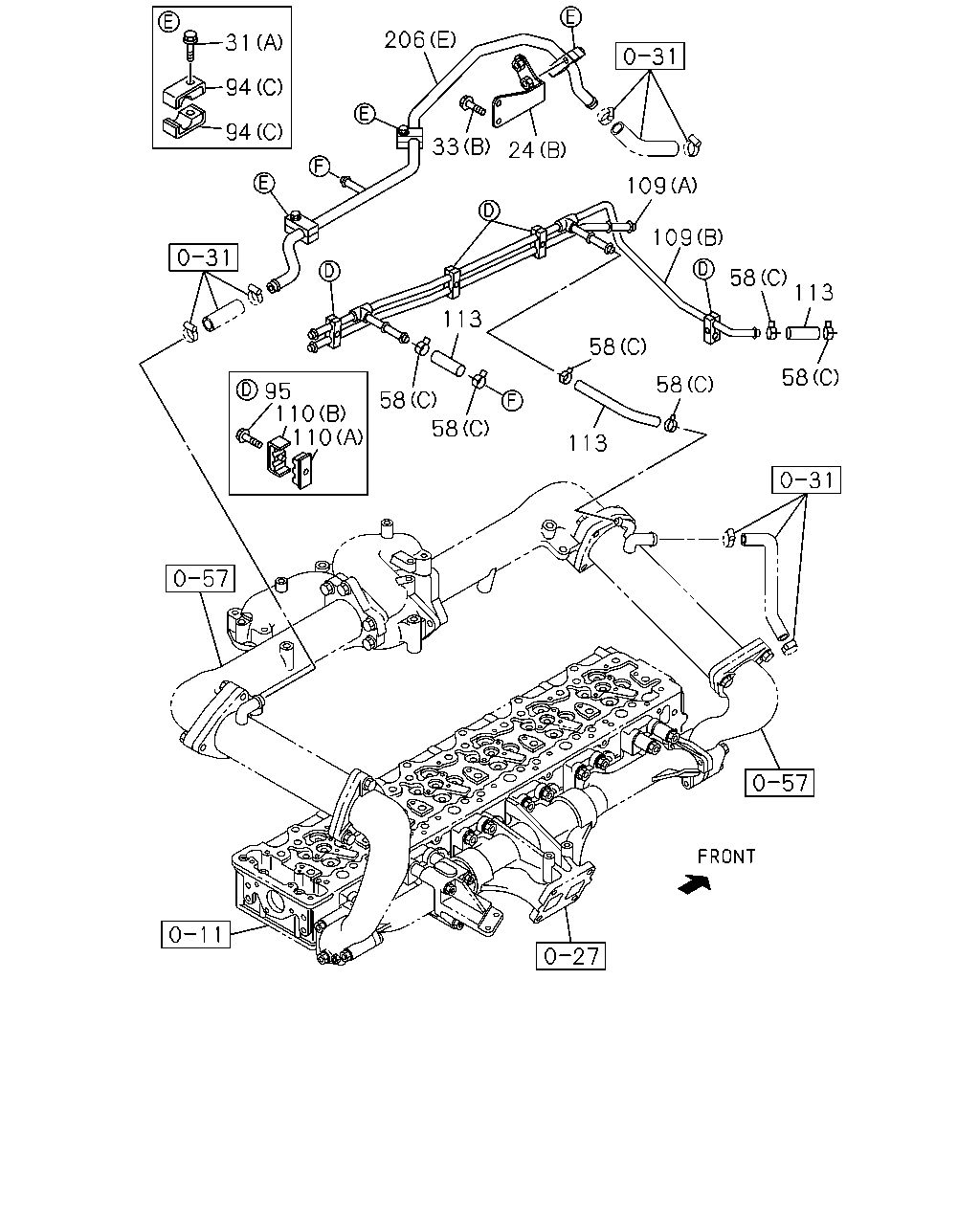

24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	0806-
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	0806-
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	0806-
31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	10	1	0806-1101
31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	08	1	1102-
31	BOLT; CLIP (B) M6X35 FLANGE THA	0-28650-635-0	01	1	0806-
33	BOLT; BRKT (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0806-
33	BOLT; BRKT (B) M10X20 FLANGE THA	0-28151-020-0	06	1	0806-
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	0806-
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	0806-
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	0806-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0806-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0806-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0806-1101
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	16	1	1102-
95	BOLT; CLIP M6X35 FLANGE THA	0-28650-635-0	07	1	0806-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97603-725-0	01	1	0806-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97603-726-1	01	1	0806-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0806-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0806-
113	HOSE; RUBBER,AIR LEAK L=100 SERVICED BY L=3000 THA	0-03559-300-0	02	1	1102-
113	HOSE; RUBBER,AIR LEAK L=280 SERVICED BY L=3000 THA	0-03559-300-0	01	1	1102-
113	HOSE; RUBBER,AIR LEAK L=100 SERVICED BY L=3000 THA	0-03559-300-0	01	1	0806-1005
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000 THA	0-03559-300-0	02	1	0806-1101
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	0806-
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	0806-1101
206	PIPE; WATER,EGR COOLER (E)	8-98172-218-0	01	1	1102-
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	0806-1101
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	0806-

126 126 127 126 127 95 94 95 94 127 126 126 94 33 63 127 126 94 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

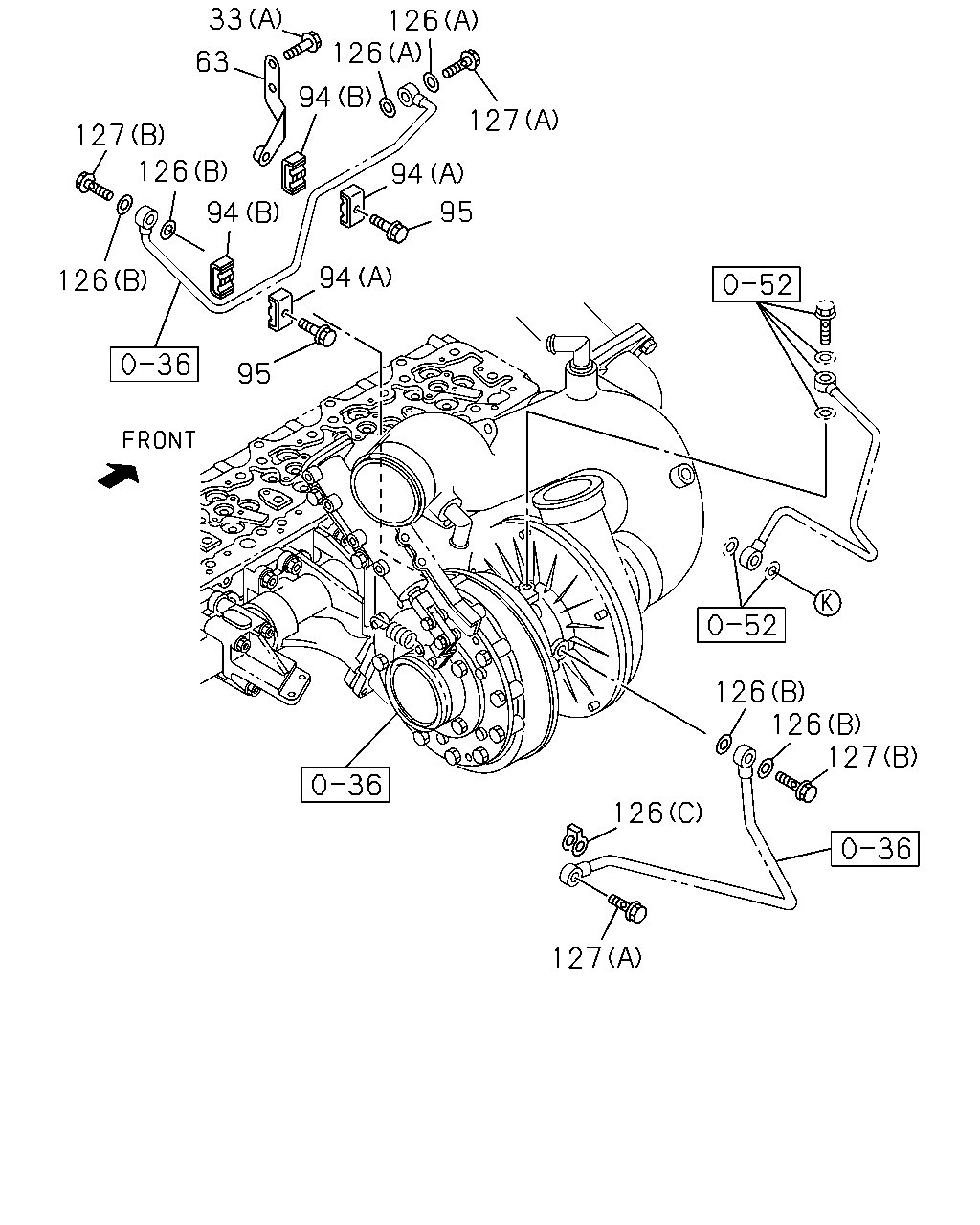

33	BOLT; BRKT (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0806-
33	BOLT; BRKT (B) M10X20 FLANGE THA	0-28151-020-0	06	1	0806-
63	BRACKET; WATER PIPE	8-97615-267-0	01	1	0806-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0806-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0806-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0806-1101
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	16	1	1102-
95	BOLT; CLIP M6X35 FLANGE THA	0-28650-635-0	07	1	0806-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0806-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0806-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=21	8-97251-047-0	01	1	0806-
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	02	1	0806-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0806-

107 104 107 107 108 107 104 107 104 154 115 154 104 154 107 107 154 115 107 115 154 154 180 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

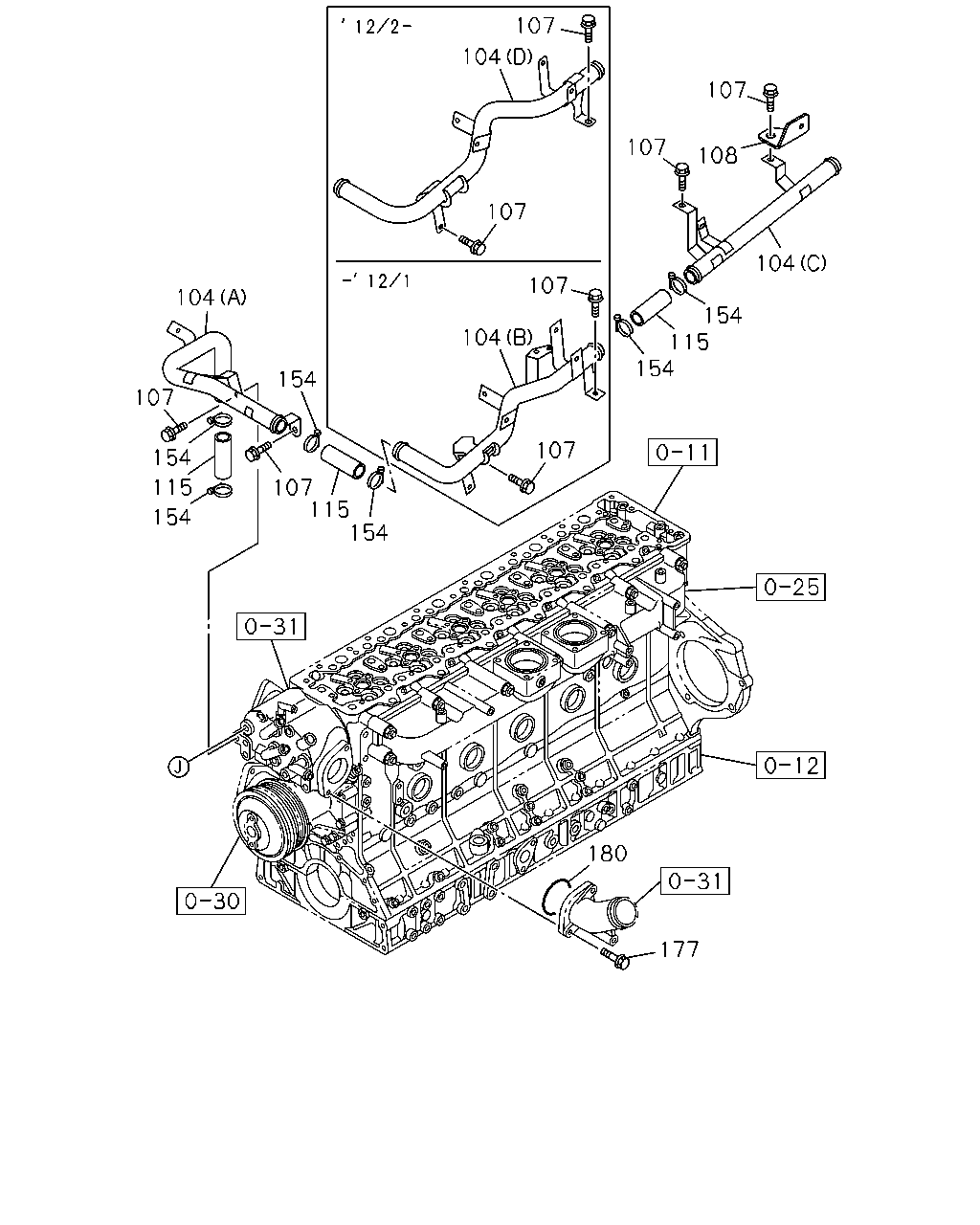

104	PIPE; WATER CHARGE (A)	8-97604-530-0	01	1	0806-
104	PIPE; WATER CHARGE (B)	8-97610-821-0	01	1	0806-1201
104	PIPE; WATER CHARGE (D)	8-98210-201-0	01	1	1202-
104	PIPE; WATER CHARGE (C)	8-97610-822-0	01	1	0806-
107	BOLT; WATER PIPE M10X20 FLANGE THA	0-28151-020-0	06	1	0806-
108	BRACKET; WATER CHARGE	8-97610-823-0	01	1	0806-
115	HOSE; RUBBER L=100 SERVICED BY L=3000	0-03580-300-0	03	1	0806-
154	CLIP; WATER HOSE ID=44	1-09704-077-0	06	1	0806-
177	BOLT; WATER DUCT M8X30 FLANGE THA	0-28650-830-0	02	1	0806-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6	9-09565-271-0	01	1	0806-

31 94 94 24 33 206 24 206 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

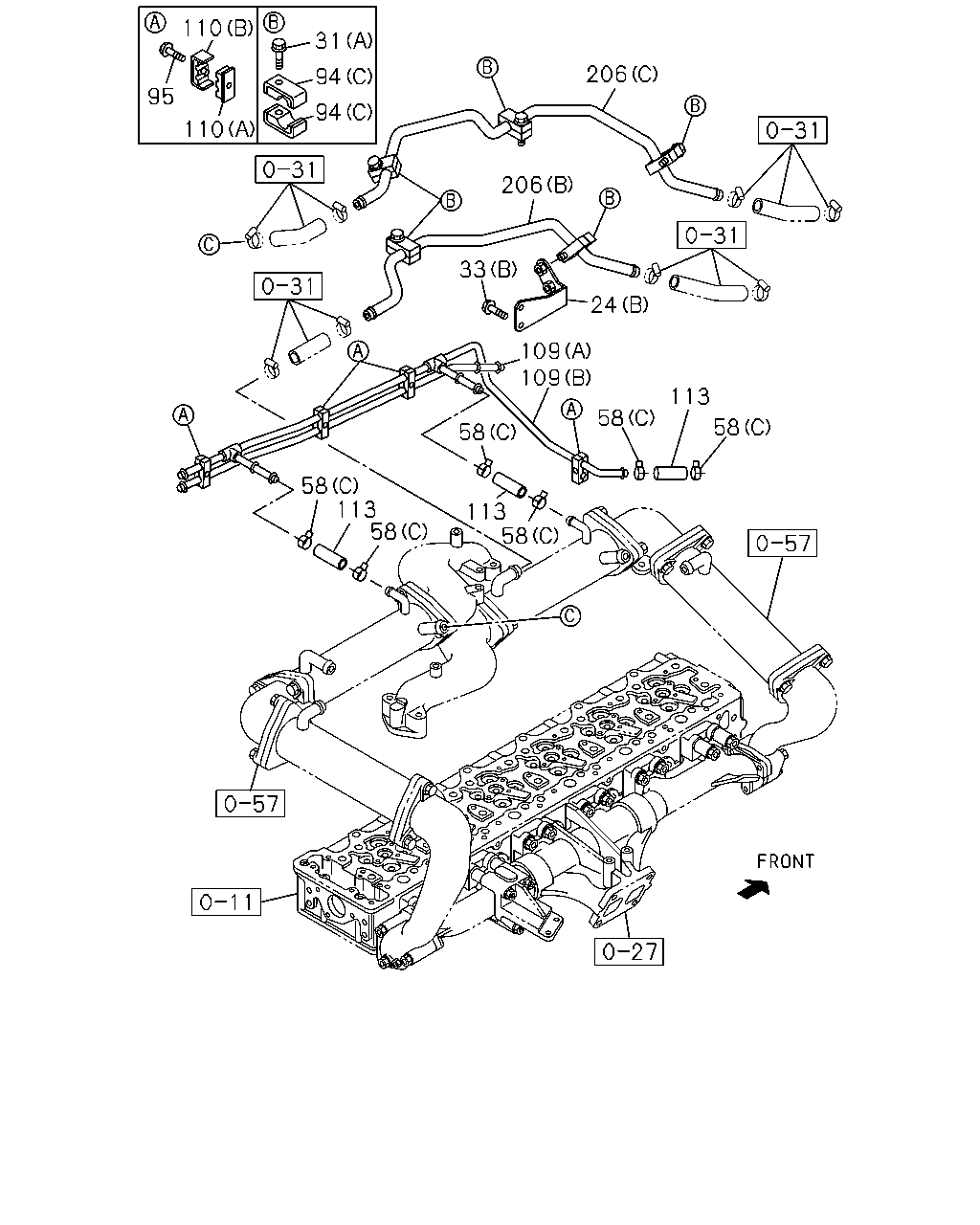

24	BRACKET; WATER PIPE (A)	8-97603-939-1	01	1	0806-
24	BRACKET; WATER PIPE (B)	8-97606-635-0	01	1	0806-
24	BRACKET; WATER PIPE (C)	8-97607-436-0	01	1	0806-
31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	10	1	0806-1101
31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	08	1	1102-
31	BOLT; CLIP (B) M6X35 FLANGE THA	0-28650-635-0	01	1	0806-
33	BOLT; BRKT (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0806-
33	BOLT; BRKT (B) M10X20 FLANGE THA	0-28151-020-0	06	1	0806-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0806-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0806-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0806-1101
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	16	1	1102-
206	PIPE; WATER,EGR COOLER (A)	8-97603-720-1	01	1	0806-
206	PIPE; WATER,EGR COOLER (B)	8-97603-722-1	01	1	0806-1101
206	PIPE; WATER,EGR COOLER (E)	8-98172-218-0	01	1	1102-
206	PIPE; WATER,EGR COOLER (C)	8-97603-723-1	01	1	0806-1101
206	PIPE; WATER,EGR COOLER (D)	8-97607-345-0	01	1	0806-

91 91 90 92 90 91 91 90 91 90 91 91 91 89 58 58 31 94 95 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

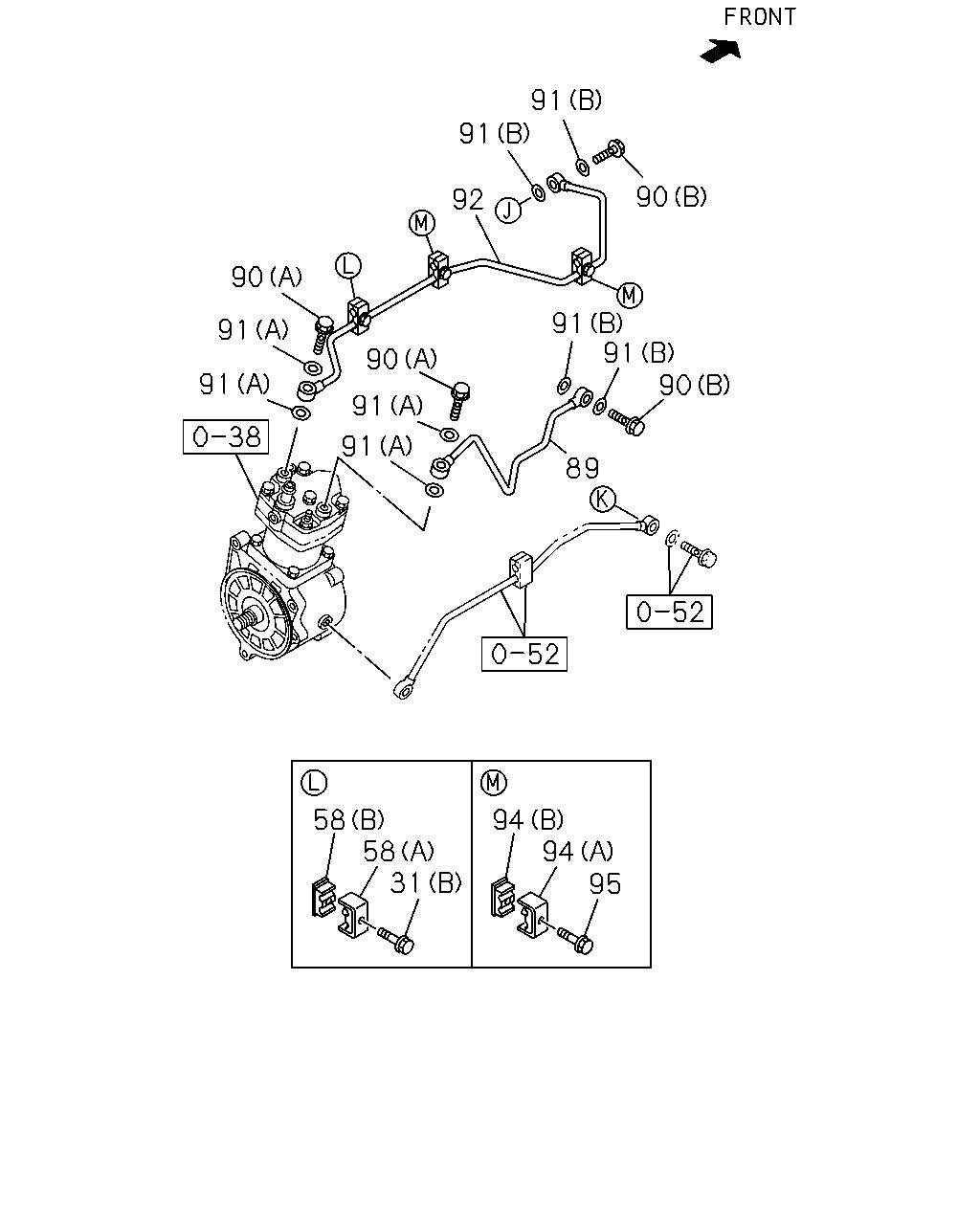

31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	10	1	0806-1101
31	BOLT; CLIP (A) M8X45 FLANGE THA	0-28050-845-0	08	1	1102-
31	BOLT; CLIP (B) M6X35 FLANGE THA	0-28650-635-0	01	1	0806-
58	CLIP; RUBBER HOSE (A) ID=7 & 11 L=28	1-09701-230-1	01	1	0806-
58	CLIP; RUBBER HOSE (B) ID=7 & 11 L=28	1-09701-231-1	01	1	0806-
58	CLIP; RUBBER HOSE (C) ID=14	1-09704-102-0	06	1	0806-
89	PIPE; WATER,AIR CMPR,IN	8-97611-169-0	01	1	0806-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M16X30 FLANGE	1-09675-095-1	02	1	0806-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	0806-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=16.2	1-09630-086-0	04	1	0806-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=25	1-09630-141-0	04	1	0806-
92	PIPE; WATER,AIR CMPR,OUT	8-97611-171-0	01	1	0806-
94	CLIP; WATER PIPE (A) ID=7 & 11 L=28	1-09701-230-1	03	1	0806-
94	CLIP; WATER PIPE (B) ID=7 & 11 L=28	1-09701-231-1	03	1	0806-
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	20	1	0806-1101
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	16	1	1102-
95	BOLT; CLIP M6X35 FLANGE THA	0-28650-635-0	07	1	0806-
