1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#6823) — 479 parça
Tümü
A - 6HE1-TC ENG
B - 6HH1-S ENG
C - 6HK1-TCS ENG
◀

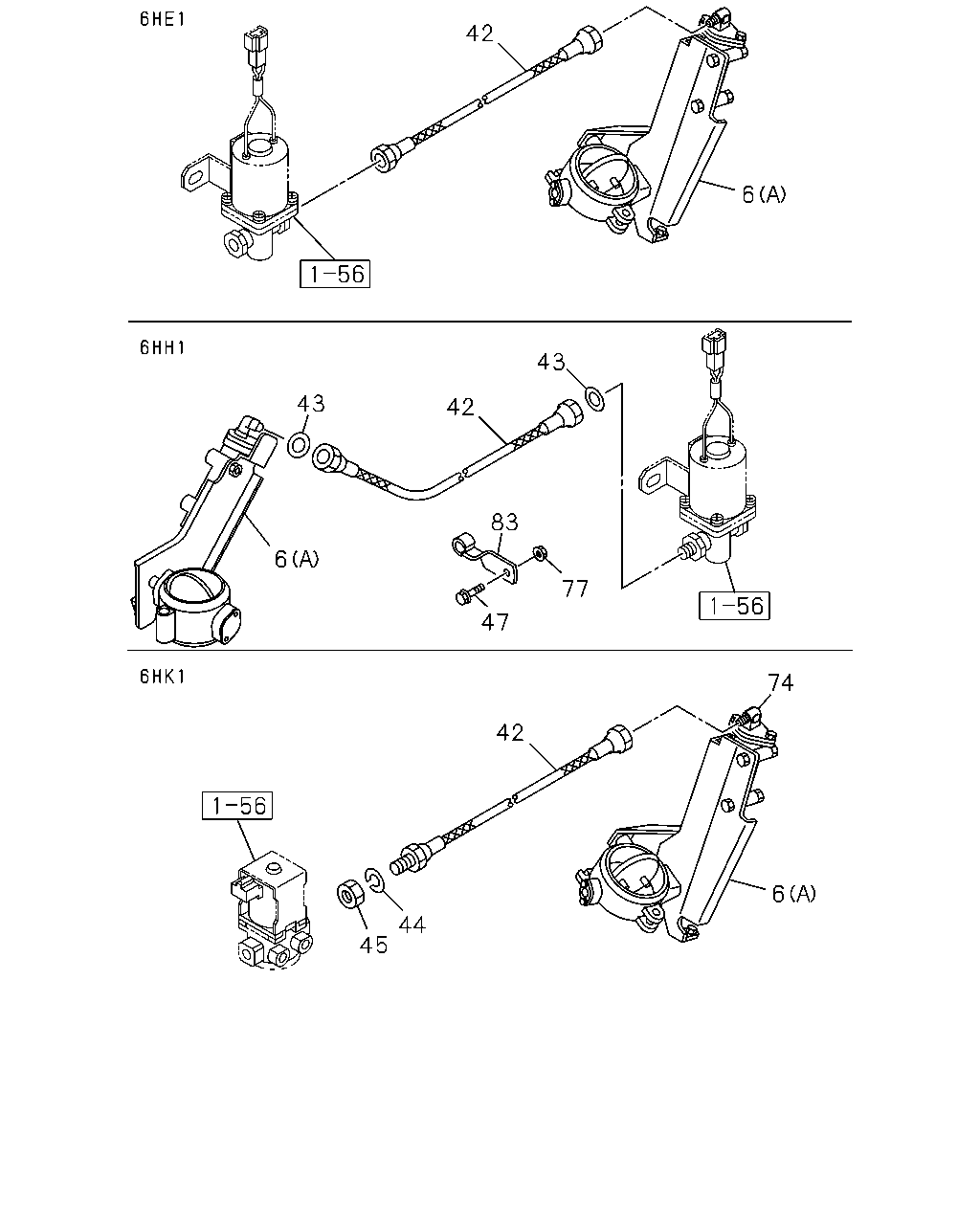

[155A] FLEX HOSE (19 parça)

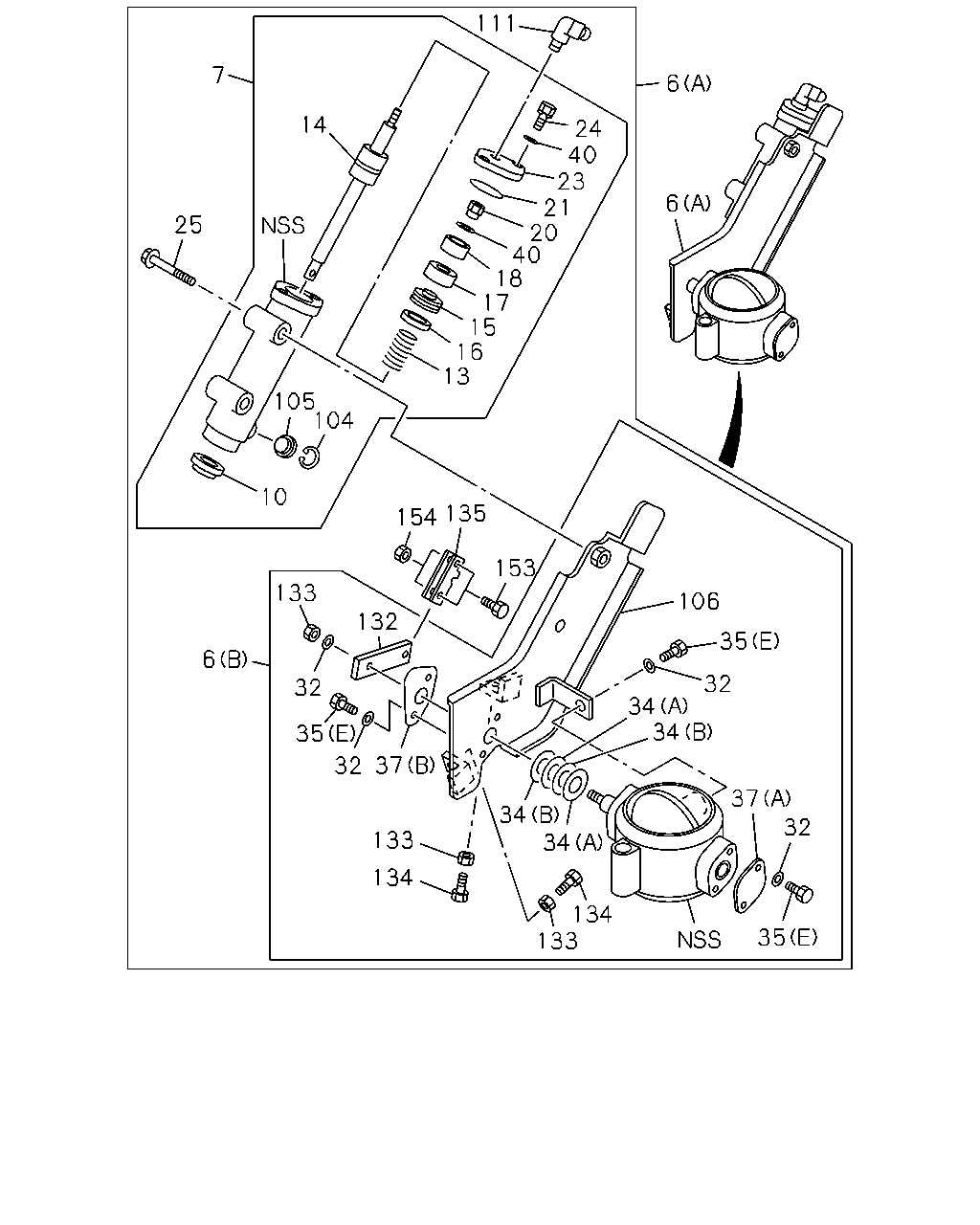

[155A] 6HE1 (127 parça)

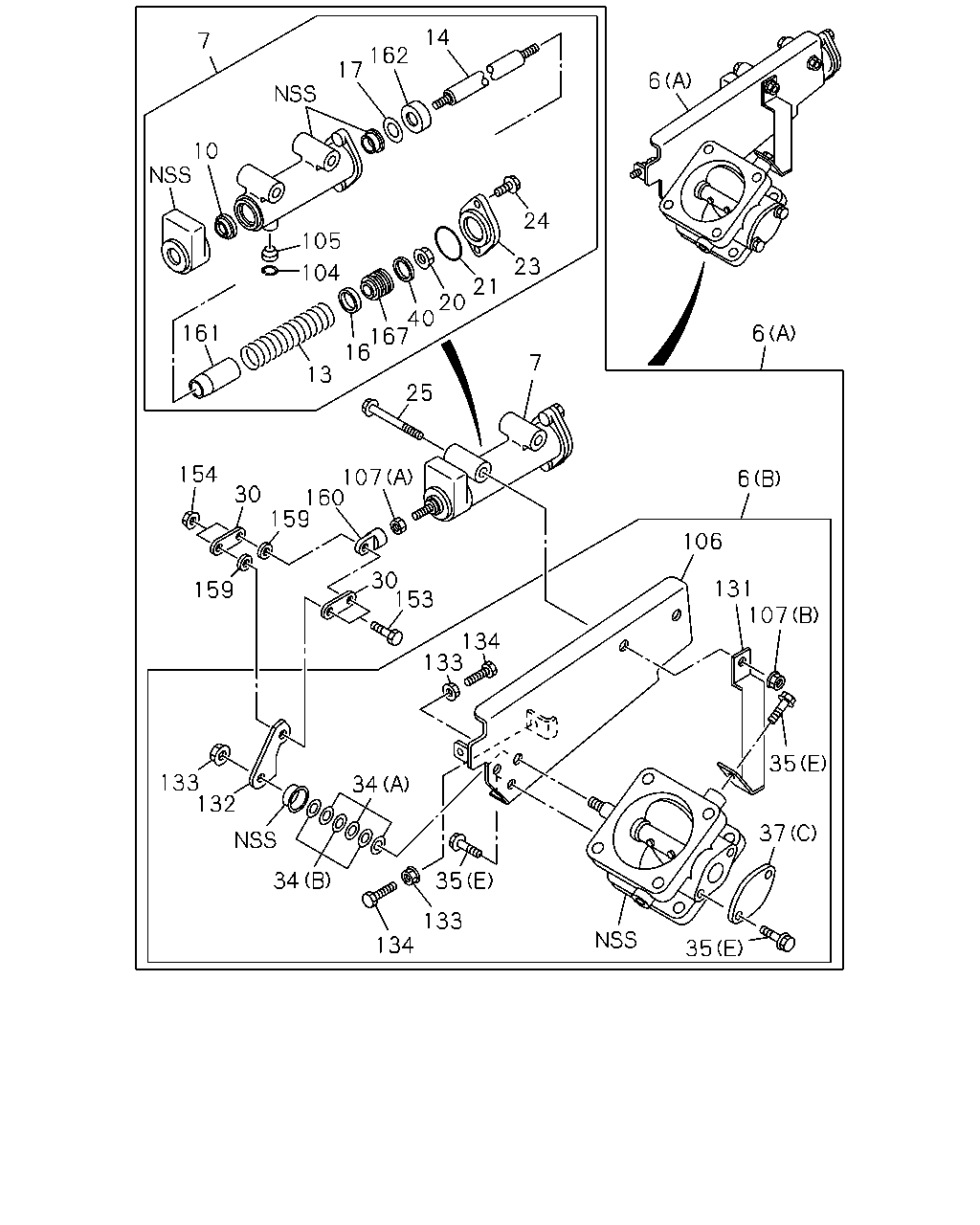

[155A] -'98/9 6HH1 (105 parça)

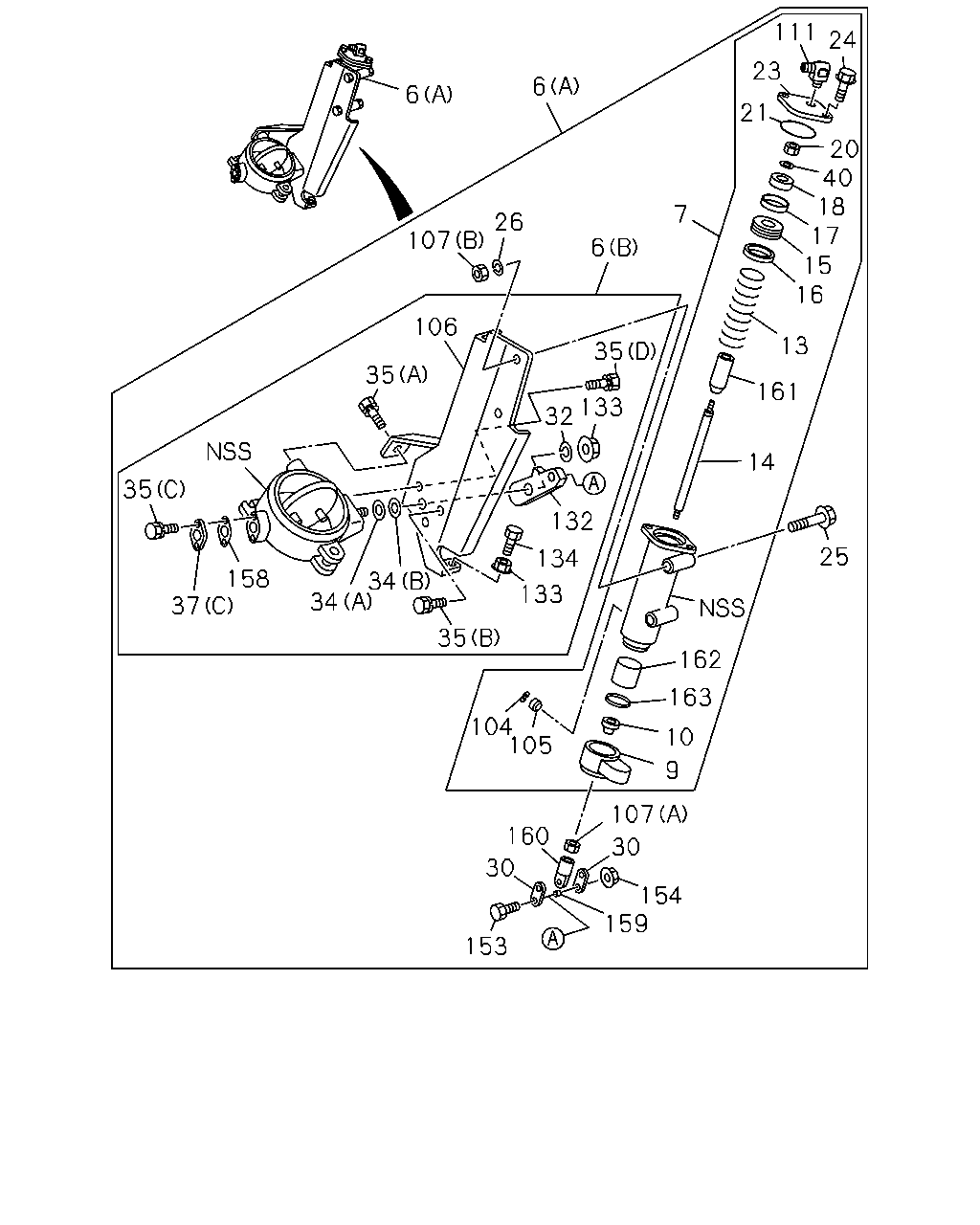

[155A] 6HK1 (115 parça)

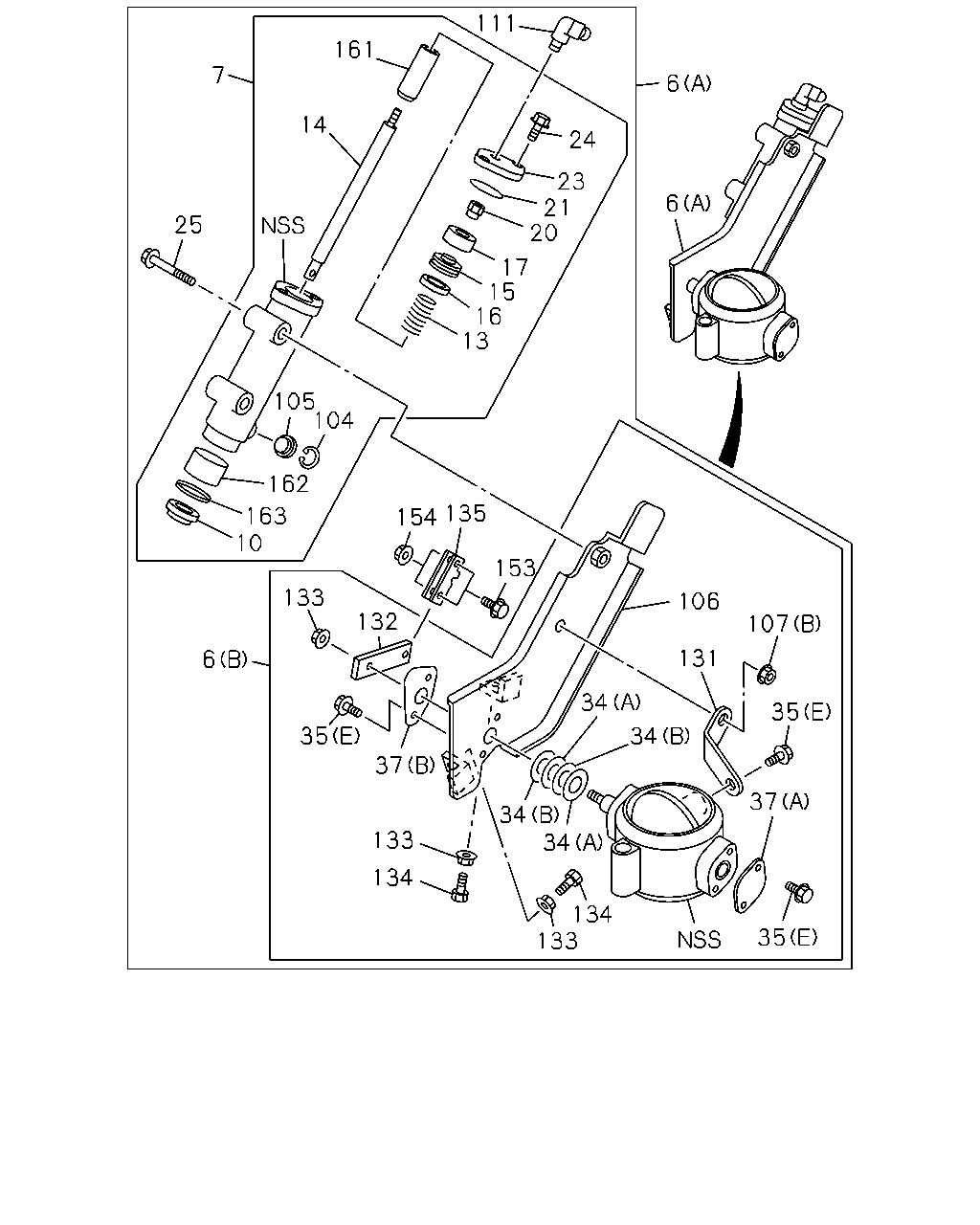

[155A] '98/10- 6HH1 (113 parça)
▶
42
6
43
43
42
83
6
77
47
74
42
6
44
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
VALVE; EXH BRAKE
(B)
1-22181-134-0
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94391-746-1
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94393-930-2
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
1-22180-367-0
01
1
9912-
●
6
VALVE; EXH BRAKE
(B)
8-94394-154-0
01
1
9806-9809
●
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
9810-9911
●
6
VALVE; EXH BRAKE
(B)
1-22181-163-0
01
1
9912-
●
42
HOSE; FLEX,EXH BRK
L=460
1-09363-648-0
01
1
9806-9911
●
42
HOSE; FLEX,EXH BRK
L=630
0-07150-630-0
01
1
9806-9911
●
42
HOSE; FLEX,EXH BRK
L=370
1-09363-621-0
01
1
9912-
●
43
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
9806-9911
●
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
9912-0603
●
44
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0604-
●
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
9912-
●
47
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
01
1
9806-9911
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/8
9-09224-306-2
01
1
9912-0607
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/8
0-92124-306-0
01
1
0608-
●
77
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
9806-9911
●
83
CLIP; FLEX HOSE
ID=13 L=70
1-09700-970-1
01
1
9806-9911
●
111
24
23
6
6
21
20
40
18
17
15
16
7
26
107
6
106
13
35
35
161
133
32
14
35
132
25
134
158
37
34
133
34
35
162
163
104
105
10
9
107
160
30
30
154
159
153
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
VALVE; EXH BRAKE
(B)
1-22181-134-0
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94391-746-1
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94393-930-2
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
1-22180-367-0
01
1
9912-
●
6
VALVE; EXH BRAKE
(B)
8-94394-154-0
01
1
9806-9809
●
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
9810-9911
●
6
VALVE; EXH BRAKE
(B)
1-22181-163-0
01
1
9912-
●
7
CYLINDER ASM; CONT
1-22190-632-0
01
1
9806-9807
●
7
CYLINDER ASM; CONT
1-22190-651-0
01
1
9808-9911
●
7
CYLINDER ASM; CONT
8-94396-813-0
01
1
9806-9809
●
7
CYLINDER ASM; CONT
1-22190-656-0
01
1
9810-9911
●
7
CYLINDER ASM; CONT
1-22190-664-0
01
1
9912-
●
9
COVER; CYL
1-22199-070-0
01
1
9806-9911
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9806-9911
●
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9912-
●
13
SPRING; CONT CYL
1-22199-157-0
01
1
9806-9807
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9808-9809
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9810-9911
●
●
13
SPRING; CONT CYL
1-22199-224-0
01
1
9912-
●
13
SPRING; CONT CYL
1-09580-465-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9806-9911
●
14
SHAFT; CONT CYL
1-22196-302-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-145-0
01
1
9810-9911
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9912-
●
15
PLATE; CONT CYL
1-22199-156-0
01
1
9806-9911
●
15
PLATE; CONT CYL
1-22199-001-0
01
1
9806-9809
●
15
PLATE; CONT CYL
8-97600-316-0
01
1
9810-9911
●
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
9806-9911
●
16
RING; WEAR,CONT CYL
1-22199-002-0
01
1
9806-9809
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9810-9911
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9912-
●
17
GASKET; CONT CYL
1-22199-103-0
01
1
9806-9911
●
17
GASKET; CONT CYL
1-22199-110-0
01
1
9806-9809
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9810-9911
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9912-
●
18
RETAINER; CONT CYL
9-88510-324-0
01
1
9806-9809
●
●
18
RETAINER; CONT CYL
9-88510-324-0
01
1
9810-9911
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9806-9809
●
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9912-
●
21
GASKET; COVER
1-22199-072-0
01
1
9806-9911
●
●
21
GASKET; COVER
1-22199-072-0
01
1
9912-
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9806-9809
●
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9810-9911
●
23
COVER; CONT CYL
8-97600-319-0
01
1
9810-9911
●
23
COVER; CONT CYL
1-22199-226-0
01
1
9912-
●
24
BOLT; COVER
1-22199-155-0
02
1
9806-9911
●
24
BOLT; COVER
M8X20
9-01000-820-0
02
1
9806-9809
●
24
BOLT; COVER
1-22199-174-0
02
1
9810-9911
●
24
BOLT; COVER
1-22199-174-0
02
1
9912-
●
25
BOLT; CONT CYL
M10X60
9-01056-060-0
02
1
9806-9807
●
25
BOLT; CONT CYL
M10X60 FLANGE
0-28081-060-0
02
1
9808-9911
●
25
BOLT; CONT CYL
M10X55 FLANGE
8-94399-863-0
02
1
9806-9809
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9810-9911
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9912-
●
26
WASHER; LK,CONT CYL
ID=10.2
9-09150-510-0
02
1
9806-9807
●
30
ROD; LINK,CONT CYL
1-22199-124-0
02
1
9806-9911
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
9912-
●
32
WASHER; LK
ID=10.2
9-09150-510-0
01
1
9806-9807
●
32
WASHER; LK
ID=8.4 OD=18
9-09164-608-0
01
1
9806-9807
●
32
WASHER; LK
ID=8.2
9-09150-508-0
06
1
9806-9809
●
34
RING; SEAL
(A) ID=15
8-94397-184-0
02
1
9806-9911
●
●
34
RING; SEAL
(A)
1-22189-353-0
03
1
9912-
●
34
RING; SEAL
(B) ID=13.7
9-22189-124-0
02
1
9806-9911
●
●
34
RING; SEAL
(B)
1-22189-354-0
03
1
9912-
●
35
BOLT; PLATE FIX
(D) M8X16 W/LK WASHER
0-50040-816-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(C)
1-22199-174-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(B)
1-22199-188-0
01
1
9808-9911
●
35
BOLT; PLATE FIX
(E) M8X16
9-02050-816-0
05
1
9806-9809
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
05
1
9810-9911
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
06
1
9912-
●
35
BOLT; PLATE FIX
(A) M10X20
0-28021-020-0
01
1
9808-9911
●
37
COVER; BODY
(C)
1-22189-274-0
01
1
9806-9807
●
37
COVER; BODY
(C)
1-22189-327-0
01
1
9808-9911
●
37
COVER; BODY
(B)
1-22199-130-0
01
1
9806-9911
●
37
COVER; BODY
(C)
1-22189-344-0
01
1
9912-
●
37
COVER; BODY
(A)
9-22189-160-0
01
1
9806-9911
●
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
01
1
9806-9911
●
40
WASHER; LK,COVER
1-22199-148-0
01
1
9912-
●
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
03
1
9806-9809
●
104
RING; RET
9-88510-331-0
01
1
9806-9911
●
●
104
RING; RET
9-88510-331-0
01
1
9912-
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9806-9911
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9912-
●
106
BRACKET; CONT CYL
8-94395-578-0
01
1
9806-9911
●
106
BRACKET; CONT CYL
8-94394-155-0
01
1
9806-9809
●
106
BRACKET; CONT CYL
8-97600-869-0
01
1
9810-9911
●
106
BRACKET; CONT CYL
1-22186-155-0
01
1
9912-
●
107
NUT; CONT CYL
(B)
9-83315-080-0
02
1
9806-9807
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
02
1
9808-9911
●
107
NUT; CONT CYL
(A)
9-83315-085-0
01
1
9806-9911
●
107
NUT; CONT CYL
(A)
9-83315-085-0
01
1
9912-
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
01
1
9810-9911
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
02
1
9912-
●
111
ELBOW; CONT CYL
1-09650-358-1
01
1
9806-9911
●
111
ELBOW; CONT CYL
8-94393-086-1
01
1
9806-9911
●
132
LEVER; BRK VLV
1-22196-342-0
01
1
9806-9911
●
132
LEVER; BRK VLV
8-94397-185-0
01
1
9806-9911
●
132
LEVER; BRK VLV
1-22196-354-0
01
1
9912-
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9806-9809
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9810-9911
●
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9912-
●
133
NUT; LK
8-94311-428-0
03
1
9806-9809
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9806-9911
●
●
134
BOLT; STOPPER
1-22199-121-0
02
1
9912-
●
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
9806-9911
●
153
BOLT; CLEVIS,CONT CYL
M6X30
1-09000-559-0
02
1
9806-9809
●
153
BOLT; CLEVIS,CONT CYL
8-97600-320-0
02
1
9810-9911
●
153
BOLT; CLEVIS,CONT CYL
M8X25
9-02050-825-0
02
1
9912-
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9806-9911
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
02
1
9806-9809
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
04
1
9810-9911
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9912-
●
158
GASKET; COVER
1-22189-286-0
01
1
9806-9911
●
159
COLLAR; CONT CYL
1-22199-138-0
02
1
9806-9911
●
159
COLLAR; CONT CYL
1-22197-151-0
02
1
9912-
●
160
JOINT; CONT CYL
1-22199-137-0
01
1
9806-9911
●
160
JOINT; CONT CYL
1-22199-163-0
01
1
9912-
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9806-9809
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9810-9911
●
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9912-
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9806-9809
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9810-9911
●
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9912-
●
163
WASHER; CONT CYL
1-22199-148-0
01
1
9806-9809
●
163
WASHER; CONT CYL
1-22199-148-0
01
1
9810-9911
●
●
111
7
6
14
24
40
23
21
20
40
18
17
15
16
13
6
25
105
104
10
154
135
153
133
106
132
35
6
32
32
34
34
35
37
32
37
32
34
34
133
134
134
133
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
VALVE; EXH BRAKE
(B)
1-22181-134-0
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94391-746-1
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94393-930-2
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
1-22180-367-0
01
1
9912-
●
6
VALVE; EXH BRAKE
(B)
8-94394-154-0
01
1
9806-9809
●
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
9810-9911
●
6
VALVE; EXH BRAKE
(B)
1-22181-163-0
01
1
9912-
●
7
CYLINDER ASM; CONT
1-22190-632-0
01
1
9806-9807
●
7
CYLINDER ASM; CONT
1-22190-651-0
01
1
9808-9911
●
7
CYLINDER ASM; CONT
8-94396-813-0
01
1
9806-9809
●
7
CYLINDER ASM; CONT
1-22190-656-0
01
1
9810-9911
●
7
CYLINDER ASM; CONT
1-22190-664-0
01
1
9912-
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9806-9911
●
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9912-
●
13
SPRING; CONT CYL
1-22199-157-0
01
1
9806-9807
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9808-9809
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9810-9911
●
●
13
SPRING; CONT CYL
1-22199-224-0
01
1
9912-
●
13
SPRING; CONT CYL
1-09580-465-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9806-9911
●
14
SHAFT; CONT CYL
1-22196-302-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-145-0
01
1
9810-9911
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9912-
●
15
PLATE; CONT CYL
1-22199-156-0
01
1
9806-9911
●
15
PLATE; CONT CYL
1-22199-001-0
01
1
9806-9809
●
15
PLATE; CONT CYL
8-97600-316-0
01
1
9810-9911
●
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
9806-9911
●
16
RING; WEAR,CONT CYL
1-22199-002-0
01
1
9806-9809
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9810-9911
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9912-
●
17
GASKET; CONT CYL
1-22199-103-0
01
1
9806-9911
●
17
GASKET; CONT CYL
1-22199-110-0
01
1
9806-9809
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9810-9911
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9912-
●
18
RETAINER; CONT CYL
9-88510-324-0
01
1
9806-9809
●
●
18
RETAINER; CONT CYL
9-88510-324-0
01
1
9810-9911
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9806-9809
●
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9912-
●
21
GASKET; COVER
1-22199-072-0
01
1
9806-9911
●
●
21
GASKET; COVER
1-22199-072-0
01
1
9912-
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9806-9809
●
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9810-9911
●
23
COVER; CONT CYL
8-97600-319-0
01
1
9810-9911
●
23
COVER; CONT CYL
1-22199-226-0
01
1
9912-
●
24
BOLT; COVER
1-22199-155-0
02
1
9806-9911
●
24
BOLT; COVER
M8X20
9-01000-820-0
02
1
9806-9809
●
24
BOLT; COVER
1-22199-174-0
02
1
9810-9911
●
24
BOLT; COVER
1-22199-174-0
02
1
9912-
●
25
BOLT; CONT CYL
M10X60
9-01056-060-0
02
1
9806-9807
●
25
BOLT; CONT CYL
M10X60 FLANGE
0-28081-060-0
02
1
9808-9911
●
25
BOLT; CONT CYL
M10X55 FLANGE
8-94399-863-0
02
1
9806-9809
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9810-9911
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9912-
●
32
WASHER; LK
ID=10.2
9-09150-510-0
01
1
9806-9807
●
32
WASHER; LK
ID=8.4 OD=18
9-09164-608-0
01
1
9806-9807
●
32
WASHER; LK
ID=8.2
9-09150-508-0
06
1
9806-9809
●
34
RING; SEAL
(A) ID=15
8-94397-184-0
02
1
9806-9911
●
●
34
RING; SEAL
(A)
1-22189-353-0
03
1
9912-
●
34
RING; SEAL
(B) ID=13.7
9-22189-124-0
02
1
9806-9911
●
●
34
RING; SEAL
(B)
1-22189-354-0
03
1
9912-
●
35
BOLT; PLATE FIX
(D) M8X16 W/LK WASHER
0-50040-816-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(C)
1-22199-174-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(B)
1-22199-188-0
01
1
9808-9911
●
35
BOLT; PLATE FIX
(E) M8X16
9-02050-816-0
05
1
9806-9809
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
05
1
9810-9911
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
06
1
9912-
●
35
BOLT; PLATE FIX
(A) M10X20
0-28021-020-0
01
1
9808-9911
●
37
COVER; BODY
(C)
1-22189-274-0
01
1
9806-9807
●
37
COVER; BODY
(C)
1-22189-327-0
01
1
9808-9911
●
37
COVER; BODY
(B)
1-22199-130-0
01
1
9806-9911
●
37
COVER; BODY
(C)
1-22189-344-0
01
1
9912-
●
37
COVER; BODY
(A)
9-22189-160-0
01
1
9806-9911
●
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
01
1
9806-9911
●
40
WASHER; LK,COVER
1-22199-148-0
01
1
9912-
●
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
03
1
9806-9809
●
104
RING; RET
9-88510-331-0
01
1
9806-9911
●
●
104
RING; RET
9-88510-331-0
01
1
9912-
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9806-9911
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9912-
●
106
BRACKET; CONT CYL
8-94395-578-0
01
1
9806-9911
●
106
BRACKET; CONT CYL
8-94394-155-0
01
1
9806-9809
●
106
BRACKET; CONT CYL
8-97600-869-0
01
1
9810-9911
●
106
BRACKET; CONT CYL
1-22186-155-0
01
1
9912-
●
111
ELBOW; CONT CYL
1-09650-358-1
01
1
9806-9911
●
111
ELBOW; CONT CYL
8-94393-086-1
01
1
9806-9911
●
132
LEVER; BRK VLV
1-22196-342-0
01
1
9806-9911
●
132
LEVER; BRK VLV
8-94397-185-0
01
1
9806-9911
●
132
LEVER; BRK VLV
1-22196-354-0
01
1
9912-
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9806-9809
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9810-9911
●
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9912-
●
133
NUT; LK
8-94311-428-0
03
1
9806-9809
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9806-9911
●
●
134
BOLT; STOPPER
1-22199-121-0
02
1
9912-
●
135
CLEVIS; CONT CYL
1-22199-053-0
01
1
9806-9911
●
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
9806-9911
●
153
BOLT; CLEVIS,CONT CYL
M6X30
1-09000-559-0
02
1
9806-9809
●
153
BOLT; CLEVIS,CONT CYL
8-97600-320-0
02
1
9810-9911
●
153
BOLT; CLEVIS,CONT CYL
M8X25
9-02050-825-0
02
1
9912-
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9806-9911
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
02
1
9806-9809
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
04
1
9810-9911
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9912-
●
14
7
162
17
6
10
24
105
23
104
21
20
40
167
16
161
6
7
13
25
154
107
160
159
6
30
106
30
153
131
107
159
134
133
35
133
132
34
37
34
35
133
134
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
VALVE; EXH BRAKE
(B)
1-22181-134-0
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94391-746-1
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94393-930-2
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
1-22180-367-0
01
1
9912-
●
6
VALVE; EXH BRAKE
(B)
8-94394-154-0
01
1
9806-9809
●
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
9810-9911
●
6
VALVE; EXH BRAKE
(B)
1-22181-163-0
01
1
9912-
●
7
CYLINDER ASM; CONT
1-22190-632-0
01
1
9806-9807
●
7
CYLINDER ASM; CONT
1-22190-651-0
01
1
9808-9911
●
7
CYLINDER ASM; CONT
8-94396-813-0
01
1
9806-9809
●
7
CYLINDER ASM; CONT
1-22190-656-0
01
1
9810-9911
●
7
CYLINDER ASM; CONT
1-22190-664-0
01
1
9912-
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9806-9911
●
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9912-
●
13
SPRING; CONT CYL
1-22199-157-0
01
1
9806-9807
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9808-9809
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9810-9911
●
●
13
SPRING; CONT CYL
1-22199-224-0
01
1
9912-
●
13
SPRING; CONT CYL
1-09580-465-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9806-9911
●
14
SHAFT; CONT CYL
1-22196-302-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-145-0
01
1
9810-9911
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9912-
●
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
9806-9911
●
16
RING; WEAR,CONT CYL
1-22199-002-0
01
1
9806-9809
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9810-9911
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9912-
●
17
GASKET; CONT CYL
1-22199-103-0
01
1
9806-9911
●
17
GASKET; CONT CYL
1-22199-110-0
01
1
9806-9809
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9810-9911
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9912-
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9806-9809
●
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9912-
●
21
GASKET; COVER
1-22199-072-0
01
1
9806-9911
●
●
21
GASKET; COVER
1-22199-072-0
01
1
9912-
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9806-9809
●
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9810-9911
●
23
COVER; CONT CYL
8-97600-319-0
01
1
9810-9911
●
23
COVER; CONT CYL
1-22199-226-0
01
1
9912-
●
24
BOLT; COVER
1-22199-155-0
02
1
9806-9911
●
24
BOLT; COVER
M8X20
9-01000-820-0
02
1
9806-9809
●
24
BOLT; COVER
1-22199-174-0
02
1
9810-9911
●
24
BOLT; COVER
1-22199-174-0
02
1
9912-
●
25
BOLT; CONT CYL
M10X60
9-01056-060-0
02
1
9806-9807
●
25
BOLT; CONT CYL
M10X60 FLANGE
0-28081-060-0
02
1
9808-9911
●
25
BOLT; CONT CYL
M10X55 FLANGE
8-94399-863-0
02
1
9806-9809
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9810-9911
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9912-
●
30
ROD; LINK,CONT CYL
1-22199-124-0
02
1
9806-9911
●
30
ROD; LINK,CONT CYL
1-22199-162-0
02
1
9912-
●
34
RING; SEAL
(A) ID=15
8-94397-184-0
02
1
9806-9911
●
●
34
RING; SEAL
(A)
1-22189-353-0
03
1
9912-
●
34
RING; SEAL
(B) ID=13.7
9-22189-124-0
02
1
9806-9911
●
●
34
RING; SEAL
(B)
1-22189-354-0
03
1
9912-
●
35
BOLT; PLATE FIX
(D) M8X16 W/LK WASHER
0-50040-816-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(C)
1-22199-174-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(B)
1-22199-188-0
01
1
9808-9911
●
35
BOLT; PLATE FIX
(E) M8X16
9-02050-816-0
05
1
9806-9809
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
05
1
9810-9911
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
06
1
9912-
●
35
BOLT; PLATE FIX
(A) M10X20
0-28021-020-0
01
1
9808-9911
●
37
COVER; BODY
(C)
1-22189-274-0
01
1
9806-9807
●
37
COVER; BODY
(C)
1-22189-327-0
01
1
9808-9911
●
37
COVER; BODY
(B)
1-22199-130-0
01
1
9806-9911
●
37
COVER; BODY
(C)
1-22189-344-0
01
1
9912-
●
37
COVER; BODY
(A)
9-22189-160-0
01
1
9806-9911
●
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
01
1
9806-9911
●
40
WASHER; LK,COVER
1-22199-148-0
01
1
9912-
●
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
03
1
9806-9809
●
104
RING; RET
9-88510-331-0
01
1
9806-9911
●
●
104
RING; RET
9-88510-331-0
01
1
9912-
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9806-9911
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9912-
●
106
BRACKET; CONT CYL
8-94395-578-0
01
1
9806-9911
●
106
BRACKET; CONT CYL
8-94394-155-0
01
1
9806-9809
●
106
BRACKET; CONT CYL
8-97600-869-0
01
1
9810-9911
●
106
BRACKET; CONT CYL
1-22186-155-0
01
1
9912-
●
107
NUT; CONT CYL
(B)
9-83315-080-0
02
1
9806-9807
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
02
1
9808-9911
●
107
NUT; CONT CYL
(A)
9-83315-085-0
01
1
9806-9911
●
107
NUT; CONT CYL
(A)
9-83315-085-0
01
1
9912-
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
01
1
9810-9911
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
02
1
9912-
●
131
PLATE; BODY
8-94391-039-0
01
1
9810-9911
●
131
PLATE; BODY
1-22189-356-0
01
1
9912-
●
132
LEVER; BRK VLV
1-22196-342-0
01
1
9806-9911
●
132
LEVER; BRK VLV
8-94397-185-0
01
1
9806-9911
●
132
LEVER; BRK VLV
1-22196-354-0
01
1
9912-
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9806-9809
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9810-9911
●
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9912-
●
133
NUT; LK
8-94311-428-0
03
1
9806-9809
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9806-9911
●
●
134
BOLT; STOPPER
1-22199-121-0
02
1
9912-
●
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
9806-9911
●
153
BOLT; CLEVIS,CONT CYL
M6X30
1-09000-559-0
02
1
9806-9809
●
153
BOLT; CLEVIS,CONT CYL
8-97600-320-0
02
1
9810-9911
●
153
BOLT; CLEVIS,CONT CYL
M8X25
9-02050-825-0
02
1
9912-
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9806-9911
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
02
1
9806-9809
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
04
1
9810-9911
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9912-
●
159
COLLAR; CONT CYL
1-22199-138-0
02
1
9806-9911
●
159
COLLAR; CONT CYL
1-22197-151-0
02
1
9912-
●
160
JOINT; CONT CYL
1-22199-137-0
01
1
9806-9911
●
160
JOINT; CONT CYL
1-22199-163-0
01
1
9912-
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9806-9809
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9810-9911
●
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9912-
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9806-9809
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9810-9911
●
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9912-
●
167
PISTON; CONT CYL
1-22199-225-0
01
1
9912-
●
111
161
7
6
14
24
23
21
20
6
25
17
15
16
13
105
104
162
154
135
163
10
153
133
106
132
107
131
6
34
35
35
34
37
37
34
34
133
134
134
133
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
VALVE; EXH BRAKE
(B)
1-22181-134-0
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94391-746-1
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
8-94393-930-2
01
1
9806-9911
●
6
VALVE; EXH BRAKE
(A)
1-22180-367-0
01
1
9912-
●
6
VALVE; EXH BRAKE
(B)
8-94394-154-0
01
1
9806-9809
●
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
9810-9911
●
6
VALVE; EXH BRAKE
(B)
1-22181-163-0
01
1
9912-
●
7
CYLINDER ASM; CONT
1-22190-632-0
01
1
9806-9807
●
7
CYLINDER ASM; CONT
1-22190-651-0
01
1
9808-9911
●
7
CYLINDER ASM; CONT
8-94396-813-0
01
1
9806-9809
●
7
CYLINDER ASM; CONT
1-22190-656-0
01
1
9810-9911
●
7
CYLINDER ASM; CONT
1-22190-664-0
01
1
9912-
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9806-9911
●
●
10
SEAL; DUST,CONT
1-22199-071-0
01
1
9912-
●
13
SPRING; CONT CYL
1-22199-157-0
01
1
9806-9807
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9808-9809
●
13
SPRING; CONT CYL
1-09580-517-0
01
1
9810-9911
●
●
13
SPRING; CONT CYL
1-22199-224-0
01
1
9912-
●
13
SPRING; CONT CYL
1-09580-465-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9806-9911
●
14
SHAFT; CONT CYL
1-22196-302-0
01
1
9806-9809
●
14
SHAFT; CONT CYL
1-22199-145-0
01
1
9810-9911
●
14
SHAFT; CONT CYL
1-22199-158-0
01
1
9912-
●
15
PLATE; CONT CYL
1-22199-156-0
01
1
9806-9911
●
15
PLATE; CONT CYL
1-22199-001-0
01
1
9806-9809
●
15
PLATE; CONT CYL
8-97600-316-0
01
1
9810-9911
●
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
9806-9911
●
16
RING; WEAR,CONT CYL
1-22199-002-0
01
1
9806-9809
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9810-9911
●
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
9912-
●
17
GASKET; CONT CYL
1-22199-103-0
01
1
9806-9911
●
17
GASKET; CONT CYL
1-22199-110-0
01
1
9806-9809
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9810-9911
●
17
GASKET; CONT CYL
8-97600-318-0
01
1
9912-
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9806-9809
●
●
20
NUT; CONT CYL
9-83315-085-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9810-9911
●
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
9912-
●
21
GASKET; COVER
1-22199-072-0
01
1
9806-9911
●
●
21
GASKET; COVER
1-22199-072-0
01
1
9912-
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9806-9809
●
●
23
COVER; CONT CYL
1-22199-066-0
01
1
9810-9911
●
23
COVER; CONT CYL
8-97600-319-0
01
1
9810-9911
●
23
COVER; CONT CYL
1-22199-226-0
01
1
9912-
●
24
BOLT; COVER
1-22199-155-0
02
1
9806-9911
●
24
BOLT; COVER
M8X20
9-01000-820-0
02
1
9806-9809
●
24
BOLT; COVER
1-22199-174-0
02
1
9810-9911
●
24
BOLT; COVER
1-22199-174-0
02
1
9912-
●
25
BOLT; CONT CYL
M10X60
9-01056-060-0
02
1
9806-9807
●
25
BOLT; CONT CYL
M10X60 FLANGE
0-28081-060-0
02
1
9808-9911
●
25
BOLT; CONT CYL
M10X55 FLANGE
8-94399-863-0
02
1
9806-9809
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9810-9911
●
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
9912-
●
34
RING; SEAL
(A) ID=15
8-94397-184-0
02
1
9806-9911
●
●
34
RING; SEAL
(A)
1-22189-353-0
03
1
9912-
●
34
RING; SEAL
(B) ID=13.7
9-22189-124-0
02
1
9806-9911
●
●
34
RING; SEAL
(B)
1-22189-354-0
03
1
9912-
●
35
BOLT; PLATE FIX
(D) M8X16 W/LK WASHER
0-50040-816-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(C)
1-22199-174-0
02
1
9808-9911
●
35
BOLT; PLATE FIX
(B)
1-22199-188-0
01
1
9808-9911
●
35
BOLT; PLATE FIX
(E) M8X16
9-02050-816-0
05
1
9806-9809
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
05
1
9810-9911
●
35
BOLT; PLATE FIX
(E)
1-22199-174-0
06
1
9912-
●
35
BOLT; PLATE FIX
(A) M10X20
0-28021-020-0
01
1
9808-9911
●
37
COVER; BODY
(C)
1-22189-274-0
01
1
9806-9807
●
37
COVER; BODY
(C)
1-22189-327-0
01
1
9808-9911
●
37
COVER; BODY
(B)
1-22199-130-0
01
1
9806-9911
●
37
COVER; BODY
(C)
1-22189-344-0
01
1
9912-
●
37
COVER; BODY
(A)
9-22189-160-0
01
1
9806-9911
●
104
RING; RET
9-88510-331-0
01
1
9806-9911
●
●
104
RING; RET
9-88510-331-0
01
1
9912-
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9806-9911
●
●
105
FILTER; CONT CYL
9-88510-330-0
01
1
9912-
●
106
BRACKET; CONT CYL
8-94395-578-0
01
1
9806-9911
●
106
BRACKET; CONT CYL
8-94394-155-0
01
1
9806-9809
●
106
BRACKET; CONT CYL
8-97600-869-0
01
1
9810-9911
●
106
BRACKET; CONT CYL
1-22186-155-0
01
1
9912-
●
107
NUT; CONT CYL
(B)
9-83315-080-0
02
1
9806-9807
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
02
1
9808-9911
●
107
NUT; CONT CYL
(A)
9-83315-085-0
01
1
9806-9911
●
107
NUT; CONT CYL
(A)
9-83315-085-0
01
1
9912-
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
01
1
9810-9911
●
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
02
1
9912-
●
111
ELBOW; CONT CYL
1-09650-358-1
01
1
9806-9911
●
111
ELBOW; CONT CYL
8-94393-086-1
01
1
9806-9911
●
131
PLATE; BODY
8-94391-039-0
01
1
9810-9911
●
131
PLATE; BODY
1-22189-356-0
01
1
9912-
●
132
LEVER; BRK VLV
1-22196-342-0
01
1
9806-9911
●
132
LEVER; BRK VLV
8-94397-185-0
01
1
9806-9911
●
132
LEVER; BRK VLV
1-22196-354-0
01
1
9912-
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9806-9809
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9810-9911
●
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
9912-
●
133
NUT; LK
8-94311-428-0
03
1
9806-9809
●
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
9806-9911
●
●
134
BOLT; STOPPER
1-22199-121-0
02
1
9912-
●
135
CLEVIS; CONT CYL
1-22199-053-0
01
1
9806-9911
●
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
9806-9911
●
153
BOLT; CLEVIS,CONT CYL
M6X30
1-09000-559-0
02
1
9806-9809
●
153
BOLT; CLEVIS,CONT CYL
8-97600-320-0
02
1
9810-9911
●
153
BOLT; CLEVIS,CONT CYL
M8X25
9-02050-825-0
02
1
9912-
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9806-9911
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
02
1
9806-9809
●
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
04
1
9810-9911
●
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
9912-
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9806-9809
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9810-9911
●
●
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
9912-
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9806-9809
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9810-9911
●
●
162
GUIDE; CONT CYL
1-22199-147-0
01
1
9912-
●
163
WASHER; CONT CYL
1-22199-148-0
01
1
9806-9809
●
163
WASHER; CONT CYL
1-22199-148-0
01
1
9810-9911
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
