◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11133 - GVR(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#68229) — 49 parça
çizim 193874
24 34 30 36 72 46 76 74 51 47
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER 8-98039-661-4 01 1 0807-
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 0807-
34 CAP; WASHER TANK 8-97855-140-0 01 1 0807-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0807-
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 0807-
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 0807-
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 0807-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-808-1 01 1 0807-
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 0807-
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 0807-
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 0807-
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 0807-
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 0807-

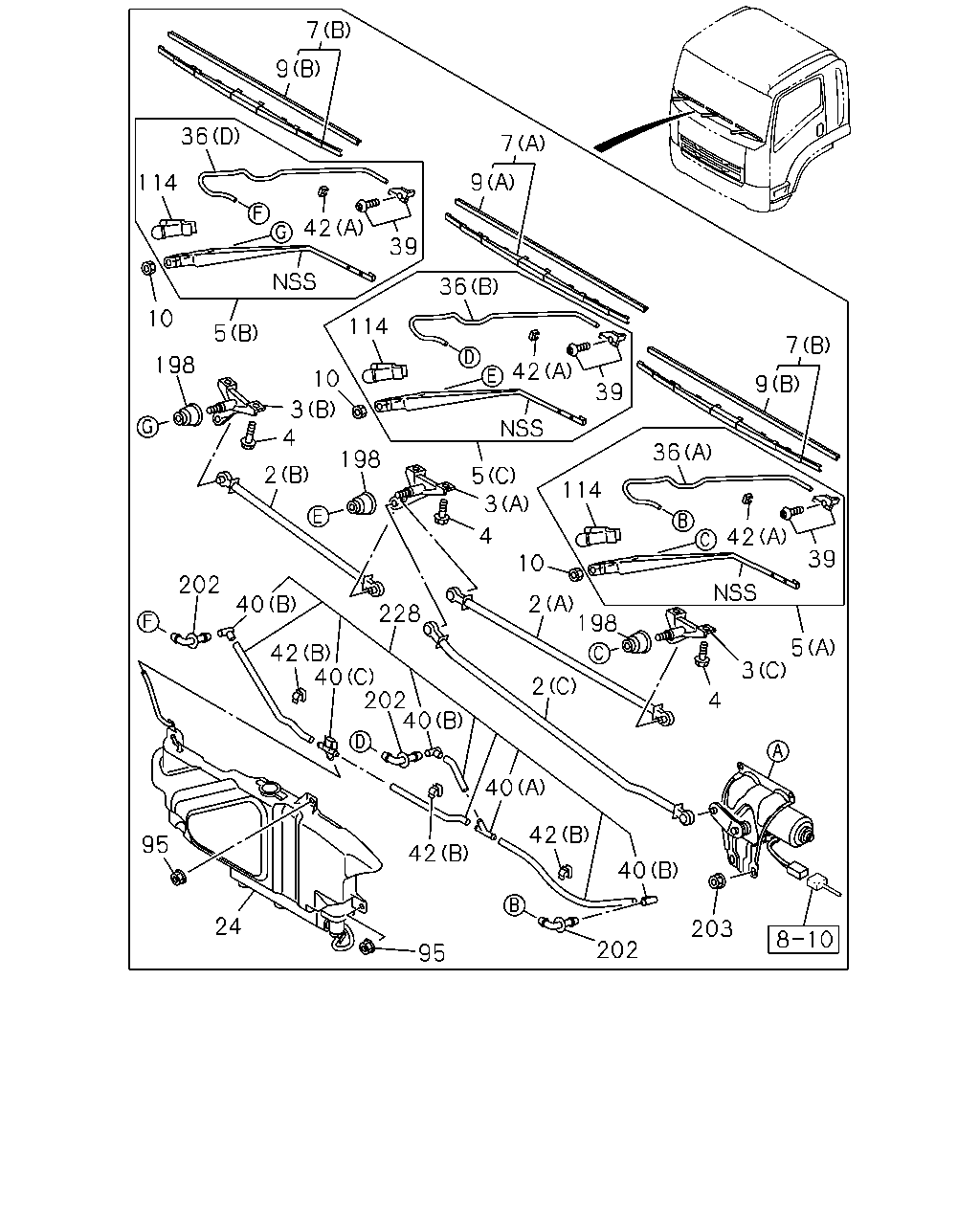

çizim 193878
7 9 7 9 39 42 36 114 10 10 114 5 198 36 42 36 39 9 7 39 42 114 3 5 198 3 4 2 4 10 2 198 4 5 3 40 203 202 42 40 40 2 228 40 202 95 24 95 42 202 40 42
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(A) 		8-98078-812-0 01 1 0807-
2 LINK; FRT WIPER
(B) 		8-98078-813-0 01 1 0807-
2 LINK; FRT WIPER
(C) 		8-98078-814-0 01 1 0807-1401
2 LINK; FRT WIPER
(C) 		8-98257-286-0 01 1 1402-
3 PIVOT ASM; FRT WIPER
(C) 		8-98068-140-1 01 1 0807-
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-817-1 01 1 0807-
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-818-1 01 1 0807-
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE THA 		0-28650-820-0 06 1 0807-
5 ARM; WIPER
(B) 		8-98078-821-1 01 1 0807-
5 ARM; WIPER
(C) 		8-98078-822-1 01 1 0807-
5 ARM; WIPER
(A) 		8-98078-823-1 01 1 0807-
7 BLADE; WIPER
(B) 		1-83315-047-2 02 1 0807-
7 BLADE; WIPER
(A) 		1-83315-048-2 01 1 0807-
7 BLADE; WIPER
(B) BEST VALUE PARTS 		5-87610-034-0 02 1 0807-
9 RUBBER; FRT WIPER BLADE
(B) L=500 		1-83355-015-0 02 1 0807-
9 RUBBER; FRT WIPER BLADE
(A) L=475 		1-83355-016-0 01 1 0807-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0807-
24 TANK ASM; WASHER 8-98039-661-4 01 1 0807-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0807-
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 0807-
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 0807-
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 0807-
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 03 1 0807-
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 0807-
40 JOINT; WASHER HOSE
(C) 		8-97167-258-0 01 1 0807-
40 JOINT; WASHER HOSE
(A) THA 		8-97855-163-0 01 1 0807-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 0807-
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 0807-
95 NUT; WASHER TANK
M6 FLANGE THA 		0-91180-106-0 04 1 0807-
114 COVER; FRT WIPER ARM 1-83318-126-0 03 1 0807-
198 COVER; PIVOT,WIPER 8-98038-892-1 03 1 0807-
202 GROMMET; WIPER 1-86815-003-2 03 1 0807-
203 NUT; WIPER MOTOR
M8 FLANGE THA 		0-91180-208-0 04 1 0807-
228 HOSE ASM; WASHER 8-98039-703-1 01 1 0807-

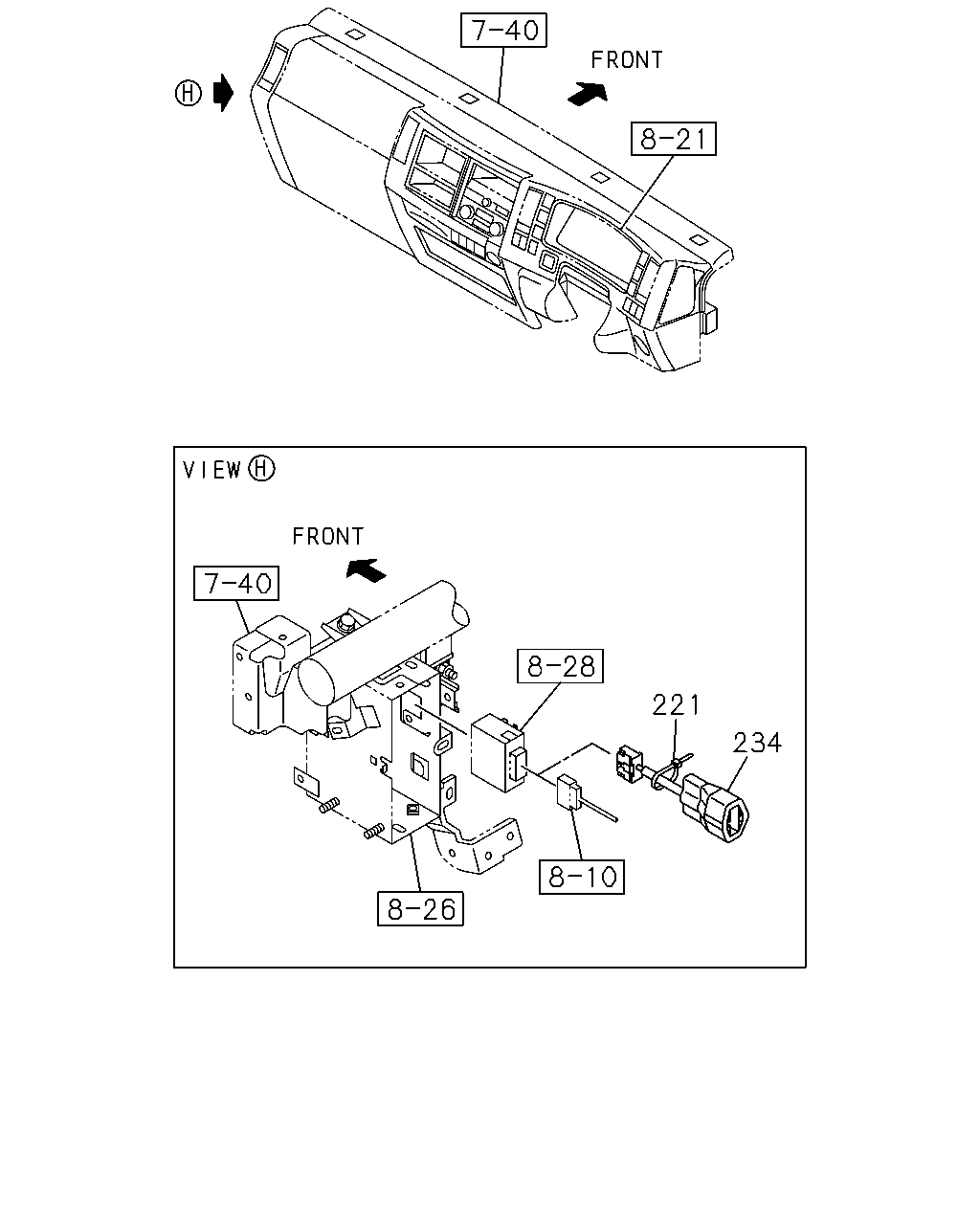

çizim 345946
221 234
BalonParca AdiParca NoAdetTipApplied Date
221 CLIP
L=140 THA 		5-09707-031-1 01 1 1302-1308
234 HARNESS; EXT,WIPER 8-98236-609-0 01 1 1302-1308
