8-75 — CONDENSER (#68228) — 68 parça

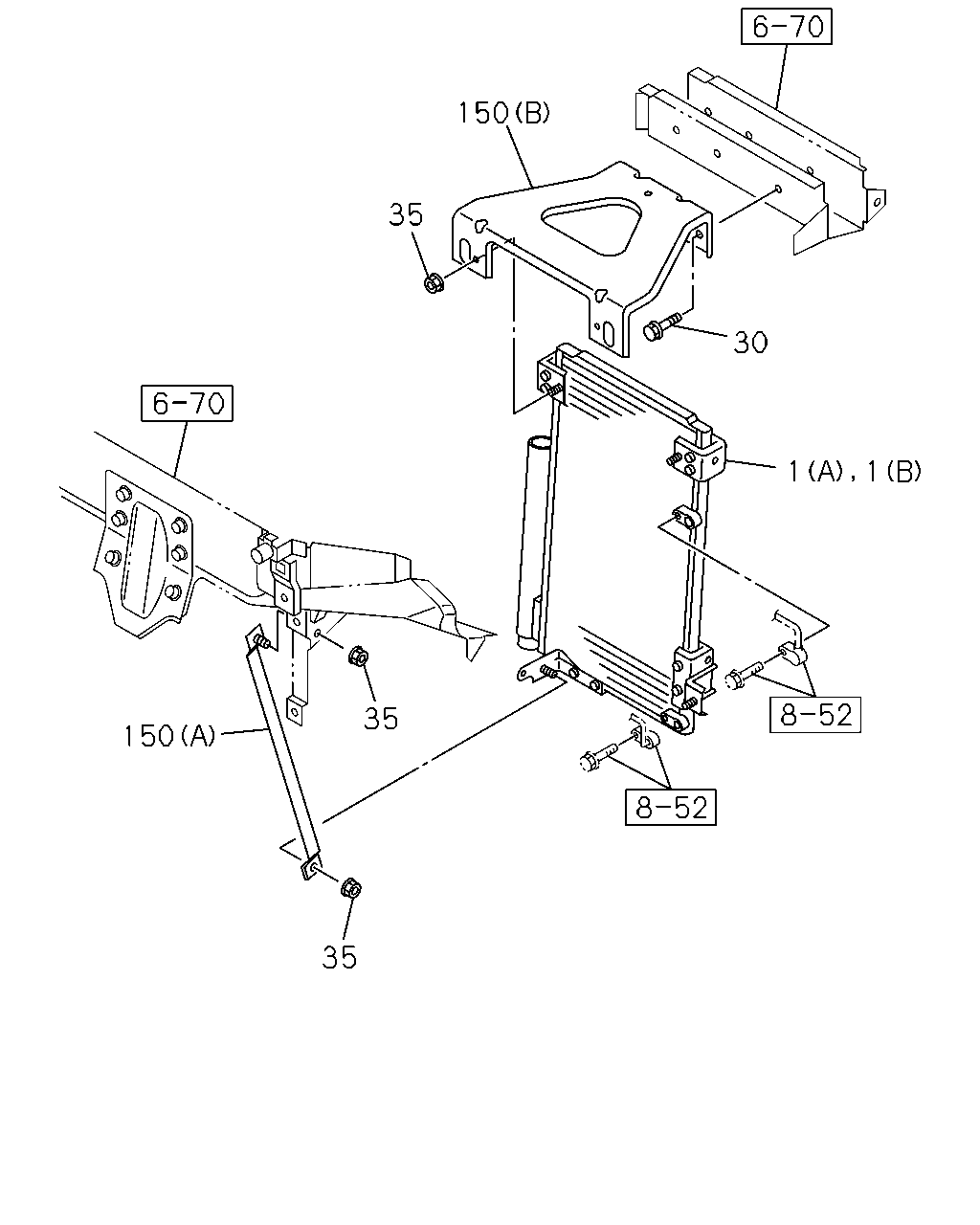

150 35 30 1 1 35 150 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> (B)	8-98164-844-0	01	1	1004-1102
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98164-844-1	01	1	1103-
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98041-320-0	01	1	0807-1003
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98041-320-0	01	1	1004-1102
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA	0-91180-108-0	05	1	0807-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98041-321-0	01	1	0807-1405
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98270-947-0	01	1	1406-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98041-322-0	01	1	0807-1409
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98242-412-0	01	1	1410-

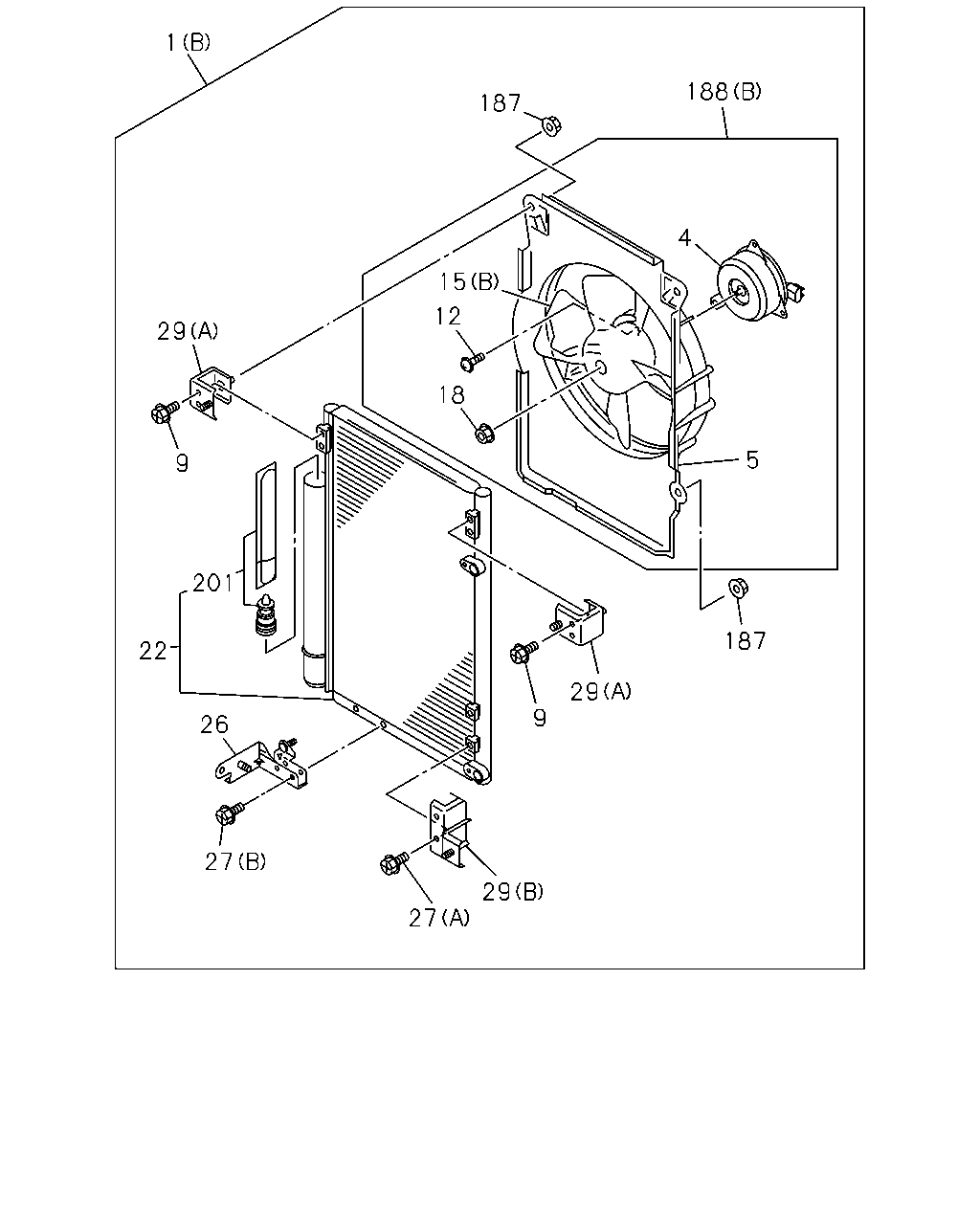

1 188 187 4 15 12 29 18 5 9 201 187 22 29 9 26 27 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> (B)	8-98164-844-0	01	1	1004-1102
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98164-844-1	01	1	1103-
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98041-320-0	01	1	0807-1003
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98041-320-0	01	1	1004-1102
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98076-091-0	01	1	0807-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98076-093-0	01	1	0807-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X14 THA	1-83539-382-0	04	1	0807-
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97180-269-0	03	1	0807-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> (B) THA	8-98152-861-0	01	1	1004-1102
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-98152-861-0	01	1	1103-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98076-092-0	01	1	0807-1003
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98076-092-0	01	1	1004-1102
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5 FLANGE THA	8-94157-075-0	01	1	0807-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83534-261-0	01	1	0807-1409
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98275-189-0	01	1	1410-
26	BRACKET; LOW AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83573-281-0	01	1	0807-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X14 THA	1-83539-382-0	02	1	0807-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M5X25 THA	8-97178-770-0	02	1	0807-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-98065-914-0	02	1	0807-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-98065-915-0	01	1	0807-
187	NUT; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA	1-83539-354-0	04	1	0807-
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> (B)	8-98166-696-0	01	1	1004-1102
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98166-696-0	01	1	1103-
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98065-913-0	01	1	0807-1003
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98065-913-0	01	1	1004-1102
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83535-097-0	01	1	0807-1409
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98282-482-0	01	1	1410-

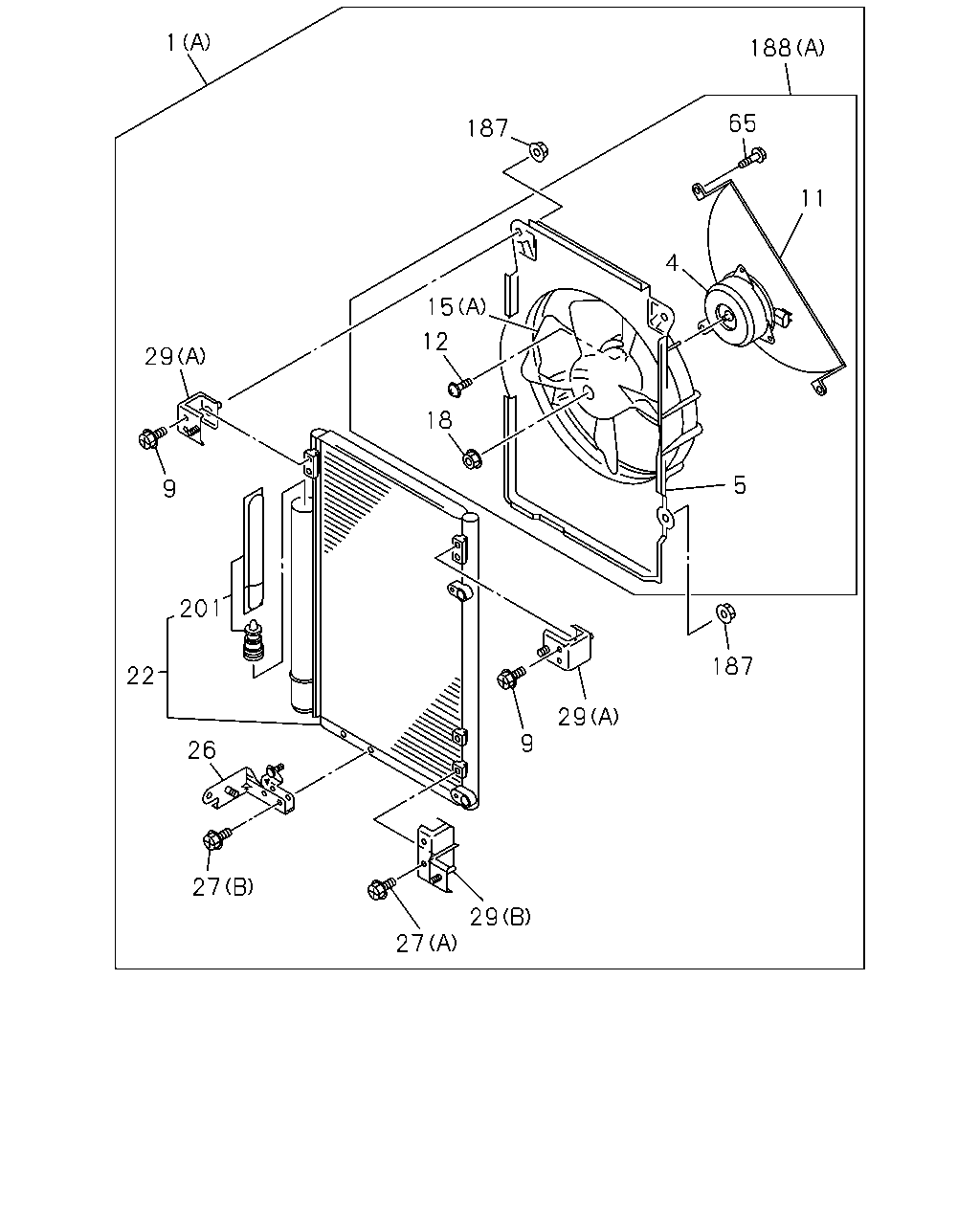

1 188 65 187 11 4 15 12 29 18 5 9 201 187 22 29 9 26 27 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> (B)	8-98164-844-0	01	1	1004-1102
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98164-844-1	01	1	1103-
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98041-320-0	01	1	0807-1003
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98041-320-0	01	1	1004-1102
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98076-091-0	01	1	0807-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98076-093-0	01	1	0807-
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X14 THA	1-83539-382-0	04	1	0807-
11	COVER; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98068-234-0	01	1	0807-1003
11	COVER; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA>	8-98068-234-0	01	1	1004-1102
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97180-269-0	03	1	0807-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> (B) THA	8-98152-861-0	01	1	1004-1102
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-98152-861-0	01	1	1103-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98076-092-0	01	1	0807-1003
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98076-092-0	01	1	1004-1102
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5 FLANGE THA	8-94157-075-0	01	1	0807-
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83534-261-0	01	1	0807-1409
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98275-189-0	01	1	1410-
26	BRACKET; LOW AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83573-281-0	01	1	0807-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X14 THA	1-83539-382-0	02	1	0807-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M5X25 THA	8-97178-770-0	02	1	0807-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-98065-914-0	02	1	0807-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-98065-915-0	01	1	0807-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X16	8-97096-525-0	03	1	0807-1003
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> M6X16	8-97096-525-0	03	1	1004-1102
187	NUT; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA	1-83539-354-0	04	1	0807-
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> VIN MODEL YEAR 2010<VZA> (B)	8-98166-696-0	01	1	1004-1102
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98166-696-0	01	1	1103-
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98065-913-0	01	1	0807-1003
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT WO/HEATER<C65> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98065-913-0	01	1	1004-1102
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83535-097-0	01	1	0807-1409
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98282-482-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
