Sayfa 1-50 - Isuzu EPC

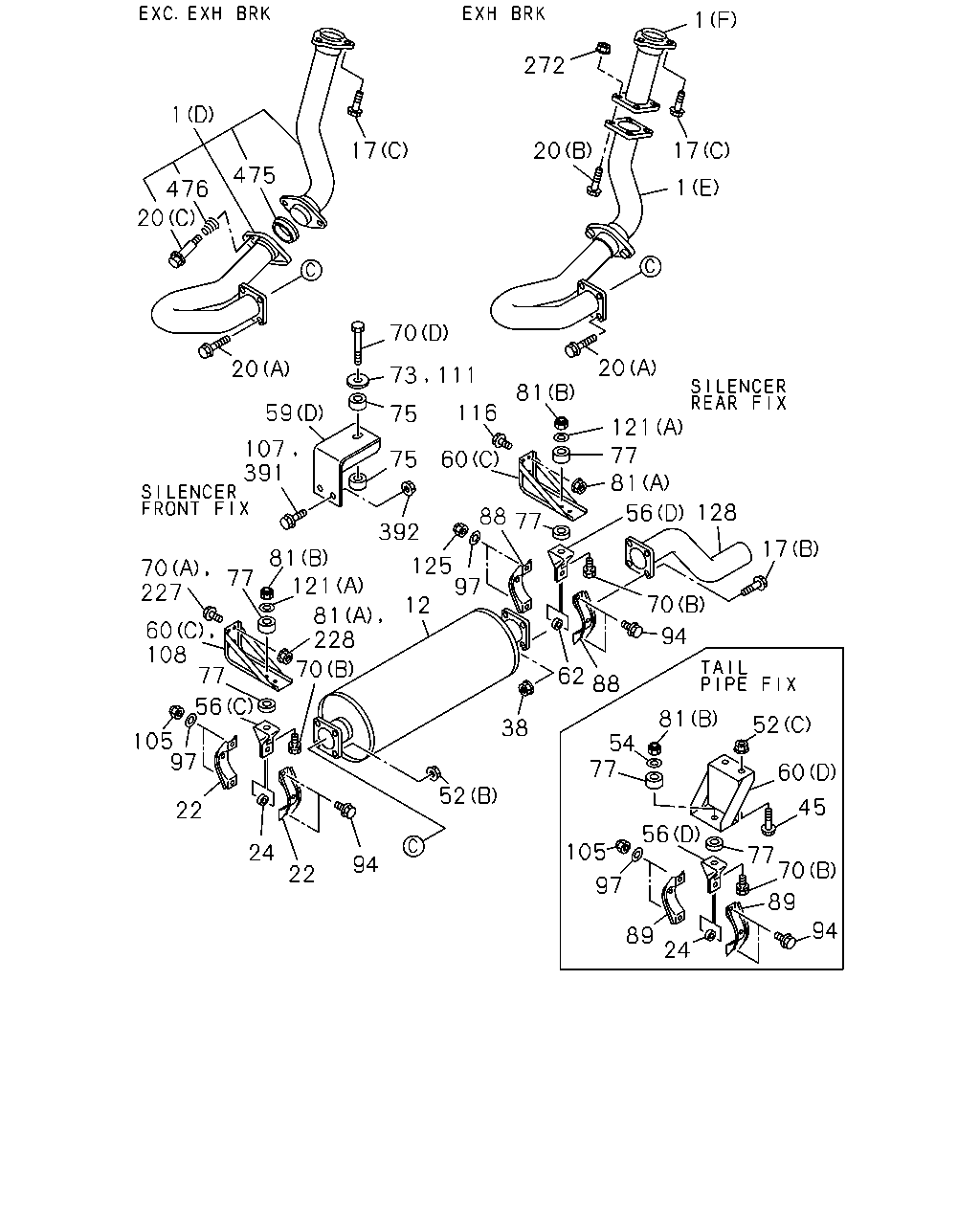

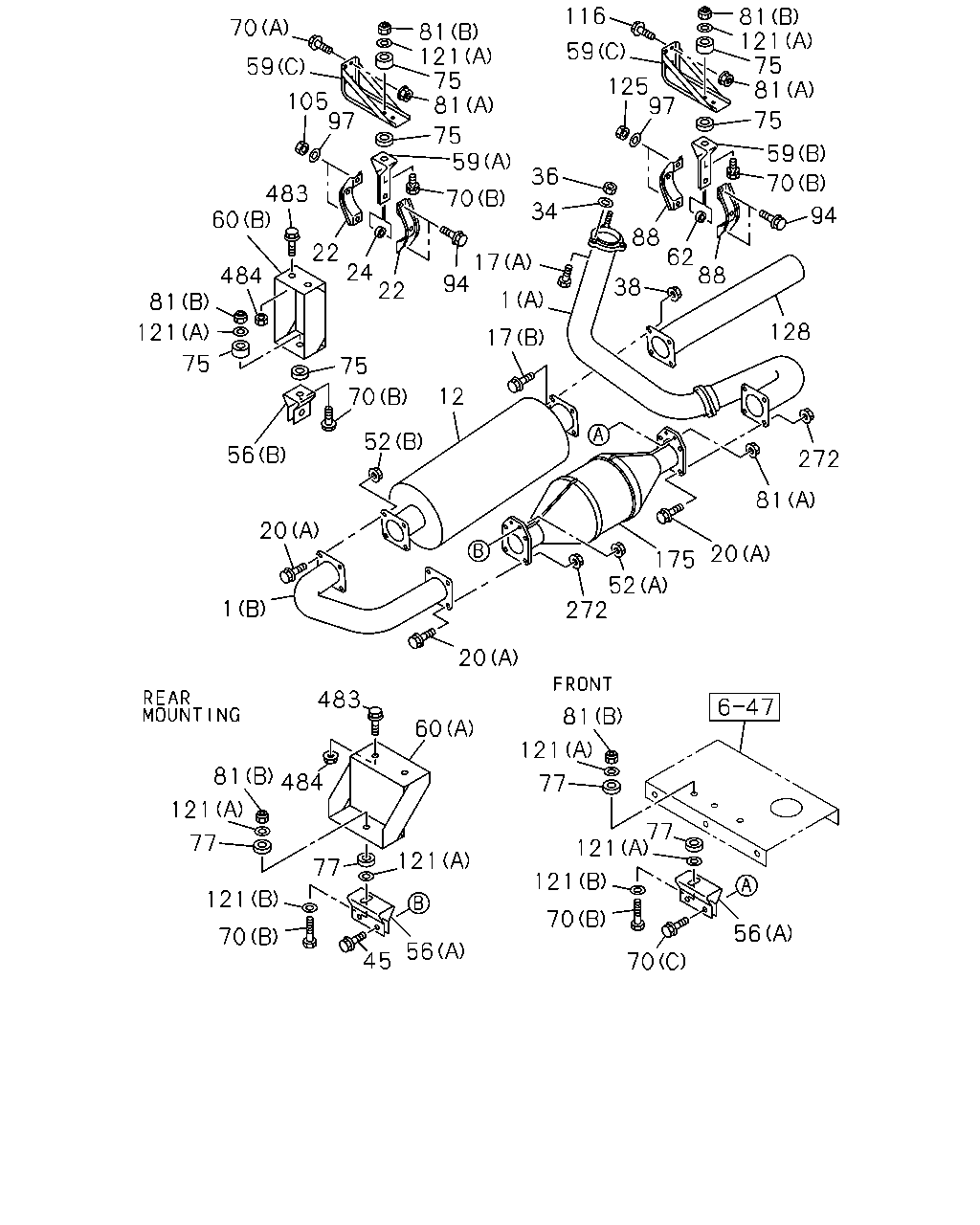

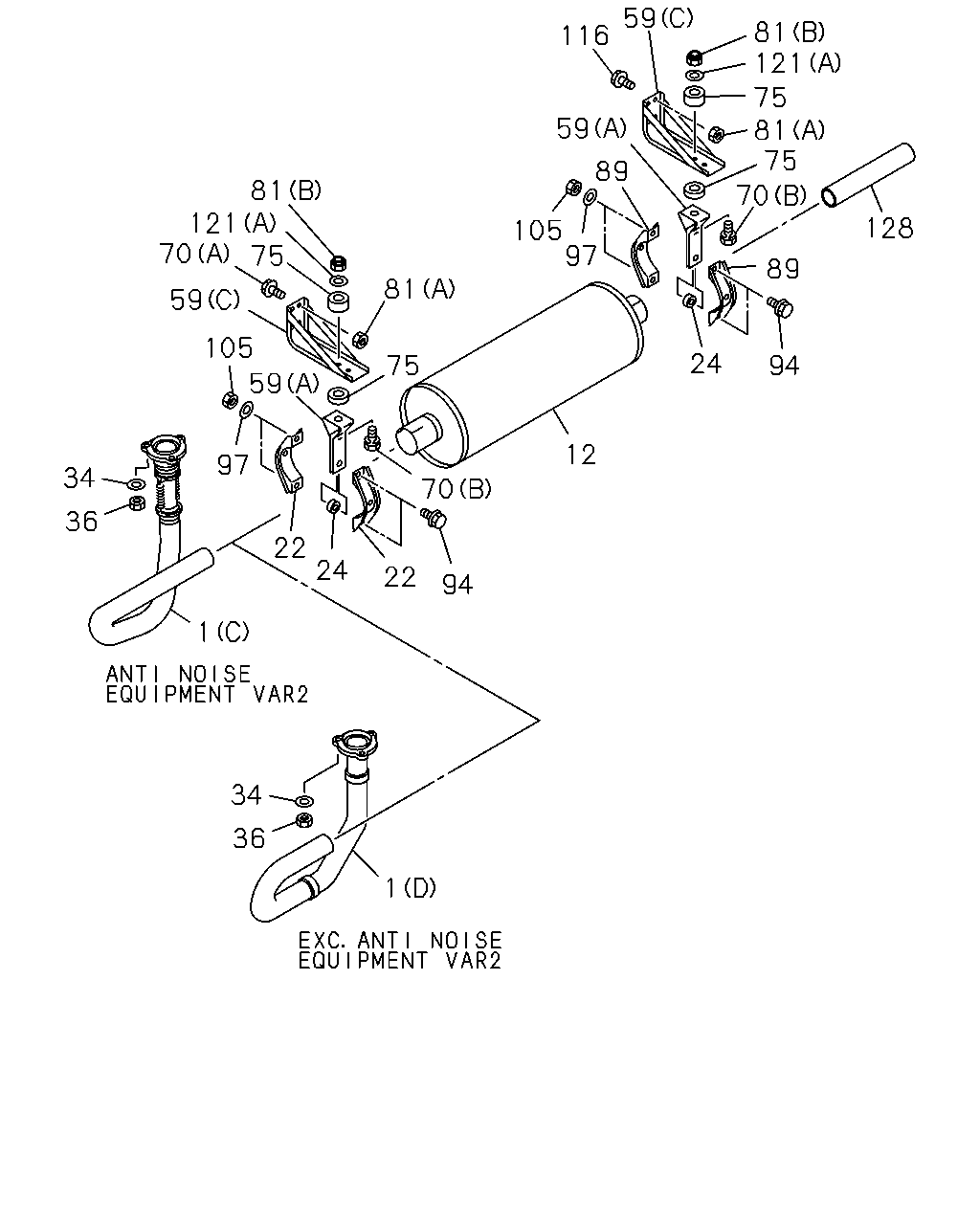

1-50 — EXHAUST PIPE AND SILENCER (#6822) — 332 parça

59 81 121 116 75 81 75 59 89 81 121 70 128 105 97 89 81 59 105 24 75 94 59 12 97 34 70 36 22 24 22 94 1 34 36 1 70 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (A)	1-22123-139-0	01	1	9806-9910	●
1	PIPE; EXH (A)	1-22123-379-0	01	1	9911-9911	●
1	PIPE; EXH EXH BRK<NF8> (F)	1-22123-220-0	01	1	9912-0205		●
1	PIPE; EXH EXH BRK<NF8> (F)	1-22123-628-0	01	1	0206-		●
1	PIPE; EXH (B)	1-22123-140-1	01	1	9806-9911	●
1	PIPE; EXH EXH BRK<NF8> (E)	1-22123-221-1	01	1	9912-0504		●
1	PIPE; EXH EXH BRK<NF8> (E)	1-22123-868-0	01	1	0505-		●
1	PIPE; EXH (C)	1-22122-548-0	01	1	9806-9806			●
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR2<TAK> (C)	1-22122-548-0	01	1	9807-9911			●
1	PIPE; EXH EXC. EXH BRK<NF8> (D)	1-22123-242-1	01	1	9912-0504		●
1	PIPE; EXH EXC. EXH BRK<NF8> (D)	1-22123-867-0	01	1	0505-		●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (D)	1-22122-920-0	01	1	9807-9911			●
12	SILENCER ASM; EXH	1-22140-853-1	01	1	9806-9911	●
12	SILENCER ASM; EXH	1-22140-752-0	01	1	9806-9807			●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	9808-9911			●
12	SILENCER ASM; EXH	1-22140-853-2	01	1	9912-0504		●
12	SILENCER ASM; EXH	1-22140-939-0	01	1	0505-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9806-9911	●		●
22	CLAMP; EXH PIPE	8-97530-213-0	02	1	9912-0504		●
24	COLLAR; DIST,CLAMP L=11	1-22139-026-0	02	1	9806-9911	●		●
24	COLLAR; DIST,CLAMP L=11	1-22139-026-0	02	1	9912-0504		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9806-9911	●		●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (D)	1-22152-168-0	02	1	0505-		●
59	BRACKET; EXH SILENCER,FRT (B) H=89	1-22139-046-0	01	1	9806-9911	●
59	BRACKET; EXH SILENCER,FRT (C)	1-22131-452-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (C)	1-22131-452-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (A) H=100	1-22139-052-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (A) H=100	1-22139-052-0	01	1	9806-9911			●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9806-9911	●		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9806-9911	●		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	03	1	9806-9911	●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	03	1	9912-0504		●
70	BOLT; BRKT (D) M10X50	0-10806-050-0	01	1	0505-0512		●
70	BOLT; BRKT (D) M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X40 FLANGE	0-28681-040-0	02	1	9806-9911	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	9806-9911	●		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	9912-0504		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	0505-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	01	1	9806-9911	●		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	01	1	9806-9911	●		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9806-9911	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	03	1	9806-9911	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	03	1	9912-0504		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	0505-0603		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	0604-		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	9806-9911	●		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	9912-0602		●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0603-		●
89	CLAMP; EXH SILENCER,RR ID=80-84	1-22133-233-0	02	1	9806-9911			●
89	CLAMP; EXH SILENCER,RR ID=94-98	1-22133-237-0	02	1	9912-0504		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9806-9911	●		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9806-9911	●		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9912-0504		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9806-9911	●		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9806-9911	●		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9912-0504		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9806-9911	●		●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9912-0504		●
116	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9806-9911	●		●
116	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9912-0504		●
116	BOLT; BRKT M10X50	0-10806-050-0	01	1	0505-0512		●
116	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-		●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	05	1	9806-9911	●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	02	1	9912-0504		●
121	WASHER; PL,BRKT (B) ID=10.5 OD=18	9-09160-510-0	02	1	9806-9911	●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	9806-9911	●		●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	9806-9911	●		●
128	PIPE; EXH,RR	1-22123-141-0	01	1	9806-9911	●
128	PIPE; EXH,RR	1-22126-293-0	01	1	9912-0504		●
128	PIPE; EXH,RR	1-22126-618-0	01	1	0505-		●
128	PIPE; EXH,RR	1-22112-311-1	01	1	9806-9911			●

116 81 121 75 81 70 81 121 75 81 59 59 125 97 105 97 75 75 59 59 36 70 483 60 70 34 94 88 62 88 22 24 22 17 94 484 38 1 81 128 121 17 75 75 12 70 52 56 272 81 20 20 175 52 272 1 20 483 81 60 121 81 484 77 121 77 77 121 121 77 121 121 70 56 70 56 45 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (A)	1-22123-139-0	01	1	9806-9910	●
1	PIPE; EXH (A)	1-22123-379-0	01	1	9911-9911	●
1	PIPE; EXH EXH BRK<NF8> (F)	1-22123-220-0	01	1	9912-0205		●
1	PIPE; EXH EXH BRK<NF8> (F)	1-22123-628-0	01	1	0206-		●
1	PIPE; EXH (B)	1-22123-140-1	01	1	9806-9911	●
1	PIPE; EXH EXH BRK<NF8> (E)	1-22123-221-1	01	1	9912-0504		●
1	PIPE; EXH EXH BRK<NF8> (E)	1-22123-868-0	01	1	0505-		●
1	PIPE; EXH (C)	1-22122-548-0	01	1	9806-9806			●
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR2<TAK> (C)	1-22122-548-0	01	1	9807-9911			●
1	PIPE; EXH EXC. EXH BRK<NF8> (D)	1-22123-242-1	01	1	9912-0504		●
1	PIPE; EXH EXC. EXH BRK<NF8> (D)	1-22123-867-0	01	1	0505-		●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (D)	1-22122-920-0	01	1	9807-9911			●
12	SILENCER ASM; EXH	1-22140-853-1	01	1	9806-9911	●
12	SILENCER ASM; EXH	1-22140-752-0	01	1	9806-9807			●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	9808-9911			●
12	SILENCER ASM; EXH	1-22140-853-2	01	1	9912-0504		●
12	SILENCER ASM; EXH	1-22140-939-0	01	1	0505-		●
17	BOLT; EXH PIPE (B) M12X40 FLANGE	0-28681-240-0	04	1	9806-9911	●
17	BOLT; EXH PIPE (B) M12X40 FLANGE	0-28681-240-0	04	1	9912-0504		●
17	BOLT; EXH PIPE (B) M12X35 FLANGE	0-28781-235-0	04	1	0505-0512		●
17	BOLT; EXH PIPE (B) M12X35 FLANGE	0-28751-235-0	04	1	0601-		●
17	BOLT; EXH PIPE (A) M12X110	1-09000-290-0	01	1	9806-9911	●
17	BOLT; EXH PIPE (C) M12X50 FLANGE	0-28191-250-0	03	1	9912-0512		●
17	BOLT; EXH PIPE (C) M12X50 FLANGE	0-28161-250-0	03	1	0601-		●
20	BOLT; FLANGE,EXH PIPE EXC. EXH BRK<NF8> (C) M10X51.4	8-94436-943-0	02	1	9912-0412		●
20	BOLT; FLANGE,EXH PIPE EXC. EXH BRK<NF8> (C) M10X49.8	8-97039-586-0	02	1	0501-		●
20	BOLT; FLANGE,EXH PIPE (A) M12X40 FLANGE	0-28681-240-0	12	1	9806-9911	●
20	BOLT; FLANGE,EXH PIPE (A) M12X40 FLANGE	0-28681-240-0	04	1	9912-0504		●
20	BOLT; FLANGE,EXH PIPE (A) M12X35 FLANGE	0-28781-235-0	04	1	0505-0512		●
20	BOLT; FLANGE,EXH PIPE (A) M12X35 FLANGE	0-28751-235-0	04	1	0601-		●
20	BOLT; FLANGE,EXH PIPE EXH BRK<NF8> (B) M10X100 FLANGE	0-28081-000-0	04	1	9912-0512		●
20	BOLT; FLANGE,EXH PIPE EXH BRK<NF8> (B) M10X100 FLANGE	0-28051-000-0	04	1	0601-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9806-9911	●		●
22	CLAMP; EXH PIPE	8-97530-213-0	02	1	9912-0504		●
24	COLLAR; DIST,CLAMP L=11	1-22139-026-0	02	1	9806-9911	●		●
24	COLLAR; DIST,CLAMP L=11	1-22139-026-0	02	1	9912-0504		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9806-9911	●		●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9806-9911	●		●
38	NUT; SILENCER M12 FLANGE	0-91150-212-0	04	1	9806-9911	●
38	NUT; SILENCER M12 FLANGE	0-91150-212-0	04	1	9912-0504		●
38	NUT; SILENCER M12	1-09400-012-0	04	1	0505-		●
45	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9806-9806	●
45	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9807-9911	●
45	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9912-0504		●
52	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9806-9911	●
52	NUT; BRKT (C) M8 FLANGE	0-91150-208-0	02	1	9912-0504		●
52	NUT; BRKT (B) M12	1-09400-012-0	04	1	0505-		●
52	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	04	1	9806-9911	●
52	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	04	1	9912-0504		●
56	BRACKET; CLAMP,EXH PIPE (B) H=135	1-22139-054-0	01	1	9806-9911	●
56	BRACKET; CLAMP,EXH PIPE (D) H=135	1-22139-054-0	02	1	9912-0504		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-123-0	02	1	9806-9911	●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-124-0	01	1	9912-0504		●
59	BRACKET; EXH SILENCER,FRT (D)	1-22152-168-0	02	1	0505-		●
59	BRACKET; EXH SILENCER,FRT (B) H=89	1-22139-046-0	01	1	9806-9911	●
59	BRACKET; EXH SILENCER,FRT (C)	1-22131-452-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (C)	1-22131-452-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (A) H=100	1-22139-052-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (A) H=100	1-22139-052-0	01	1	9806-9911			●
60	BRACKET; FRAME TO BRKT (A)	1-47478-170-0	01	1	9806-9911	●
60	BRACKET; FRAME TO BRKT (C)	8-97530-212-0	02	1	9912-0504		●
60	BRACKET; FRAME TO BRKT (B)	1-47478-171-0	01	1	9806-9911	●
60	BRACKET; FRAME TO BRKT (D)	8-97530-962-0	01	1	9912-0504		●
62	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9806-9911	●
62	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9912-0504		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9806-9911	●		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9806-9911	●		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	03	1	9806-9911	●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	03	1	9912-0504		●
70	BOLT; BRKT (D) M10X50	0-10806-050-0	01	1	0505-0512		●
70	BOLT; BRKT (D) M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X40 FLANGE	0-28681-040-0	02	1	9806-9911	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	9806-9911	●		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	9912-0504		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	0505-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●
77	RUBBER; CUSHION,BRKT OD=30	1-22159-106-1	04	1	9806-9911	●
77	RUBBER; CUSHION,BRKT OD=30	1-22159-106-1	06	1	9912-0504		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	01	1	9806-9911	●		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	01	1	9806-9911	●		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9806-9911	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	03	1	9806-9911	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	03	1	9912-0504		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	0505-0603		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	0604-		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	9806-9911	●		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	9912-0602		●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0603-		●
88	CLAMP; EXH PIPE ID=94-98	1-22133-237-0	02	1	9806-9911	●
88	CLAMP; EXH PIPE ID=94-98	1-22133-237-0	02	1	9912-0504		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9806-9911	●		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9806-9911	●		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9912-0504		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9806-9911	●		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9806-9911	●		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9912-0504		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9806-9911	●		●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9912-0504		●
116	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9806-9911	●		●
116	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9912-0504		●
116	BOLT; BRKT M10X50	0-10806-050-0	01	1	0505-0512		●
116	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-		●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	05	1	9806-9911	●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	02	1	9912-0504		●
121	WASHER; PL,BRKT (B) ID=10.5 OD=18	9-09160-510-0	02	1	9806-9911	●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	9806-9911	●		●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	9806-9911	●		●
125	NUT; CLAMP M10	9-09110-510-0	02	1	9806-9911	●
125	NUT; CLAMP M10	9-09110-510-0	02	1	9912-0504		●
128	PIPE; EXH,RR	1-22123-141-0	01	1	9806-9911	●
128	PIPE; EXH,RR	1-22126-293-0	01	1	9912-0504		●
128	PIPE; EXH,RR	1-22126-618-0	01	1	0505-		●
128	PIPE; EXH,RR	1-22112-311-1	01	1	9806-9911			●
175	CONVERTER; CATALYST	8-94392-448-0	01	1	9806-9911	●
272	NUT; FLANGE M12 FLANGE	0-91150-212-0	08	1	9806-9911	●
272	NUT; FLANGE EXH BRK<NF8> M10 FLANGE	0-91150-210-0	04	1	9912-0602		●
272	NUT; FLANGE EXH BRK<NF8> M10 FLANGE	0-91180-210-0	04	1	0603-		●
483	BOLT; BRKT,HEAT PROTECTOR M10X25 FLANGE	0-28681-025-0	02	1	9806-9911	●
484	NUT; BRKT,HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9806-9911	●

1 272 1 17 20 17 475 1 476 20 70 20 20 73 111 81 116 59 75 121 107 391 77 81 60 75 128 56 88 77 392 17 81 121 125 97 70 227 77 70 12 81 228 60 108 94 70 77 62 88 56 81 52 38 105 97 54 77 60 52 45 22 56 105 24 77 70 94 22 97 89 94 89 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (A)	1-22123-139-0	01	1	9806-9910	●
1	PIPE; EXH (A)	1-22123-379-0	01	1	9911-9911	●
1	PIPE; EXH EXH BRK<NF8> (F)	1-22123-220-0	01	1	9912-0205		●
1	PIPE; EXH EXH BRK<NF8> (F)	1-22123-628-0	01	1	0206-		●
1	PIPE; EXH (B)	1-22123-140-1	01	1	9806-9911	●
1	PIPE; EXH EXH BRK<NF8> (E)	1-22123-221-1	01	1	9912-0504		●
1	PIPE; EXH EXH BRK<NF8> (E)	1-22123-868-0	01	1	0505-		●
1	PIPE; EXH (C)	1-22122-548-0	01	1	9806-9806			●
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR2<TAK> (C)	1-22122-548-0	01	1	9807-9911			●
1	PIPE; EXH EXC. EXH BRK<NF8> (D)	1-22123-242-1	01	1	9912-0504		●
1	PIPE; EXH EXC. EXH BRK<NF8> (D)	1-22123-867-0	01	1	0505-		●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (D)	1-22122-920-0	01	1	9807-9911			●
12	SILENCER ASM; EXH	1-22140-853-1	01	1	9806-9911	●
12	SILENCER ASM; EXH	1-22140-752-0	01	1	9806-9807			●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	9808-9911			●
12	SILENCER ASM; EXH	1-22140-853-2	01	1	9912-0504		●
12	SILENCER ASM; EXH	1-22140-939-0	01	1	0505-		●
17	BOLT; EXH PIPE (B) M12X40 FLANGE	0-28681-240-0	04	1	9806-9911	●
17	BOLT; EXH PIPE (B) M12X40 FLANGE	0-28681-240-0	04	1	9912-0504		●
17	BOLT; EXH PIPE (B) M12X35 FLANGE	0-28781-235-0	04	1	0505-0512		●
17	BOLT; EXH PIPE (B) M12X35 FLANGE	0-28751-235-0	04	1	0601-		●
17	BOLT; EXH PIPE (A) M12X110	1-09000-290-0	01	1	9806-9911	●
17	BOLT; EXH PIPE (C) M12X50 FLANGE	0-28191-250-0	03	1	9912-0512		●
17	BOLT; EXH PIPE (C) M12X50 FLANGE	0-28161-250-0	03	1	0601-		●
20	BOLT; FLANGE,EXH PIPE EXC. EXH BRK<NF8> (C) M10X51.4	8-94436-943-0	02	1	9912-0412		●
20	BOLT; FLANGE,EXH PIPE EXC. EXH BRK<NF8> (C) M10X49.8	8-97039-586-0	02	1	0501-		●
20	BOLT; FLANGE,EXH PIPE (A) M12X40 FLANGE	0-28681-240-0	12	1	9806-9911	●
20	BOLT; FLANGE,EXH PIPE (A) M12X40 FLANGE	0-28681-240-0	04	1	9912-0504		●
20	BOLT; FLANGE,EXH PIPE (A) M12X35 FLANGE	0-28781-235-0	04	1	0505-0512		●
20	BOLT; FLANGE,EXH PIPE (A) M12X35 FLANGE	0-28751-235-0	04	1	0601-		●
20	BOLT; FLANGE,EXH PIPE EXH BRK<NF8> (B) M10X100 FLANGE	0-28081-000-0	04	1	9912-0512		●
20	BOLT; FLANGE,EXH PIPE EXH BRK<NF8> (B) M10X100 FLANGE	0-28051-000-0	04	1	0601-		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	9806-9911	●		●
22	CLAMP; EXH PIPE	8-97530-213-0	02	1	9912-0504		●
24	COLLAR; DIST,CLAMP L=11	1-22139-026-0	02	1	9806-9911	●		●
24	COLLAR; DIST,CLAMP L=11	1-22139-026-0	02	1	9912-0504		●
38	NUT; SILENCER M12 FLANGE	0-91150-212-0	04	1	9806-9911	●
38	NUT; SILENCER M12 FLANGE	0-91150-212-0	04	1	9912-0504		●
38	NUT; SILENCER M12	1-09400-012-0	04	1	0505-		●
45	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9806-9806	●
45	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9807-9911	●
45	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9912-0504		●
52	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9806-9911	●
52	NUT; BRKT (C) M8 FLANGE	0-91150-208-0	02	1	9912-0504		●
52	NUT; BRKT (B) M12	1-09400-012-0	04	1	0505-		●
52	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	04	1	9806-9911	●
52	NUT; BRKT (B) M12 FLANGE	0-91150-212-0	04	1	9912-0504		●
54	WASHER; LK,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	9912-0504		●
56	BRACKET; CLAMP,EXH PIPE (B) H=135	1-22139-054-0	01	1	9806-9911	●
56	BRACKET; CLAMP,EXH PIPE (D) H=135	1-22139-054-0	02	1	9912-0504		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-123-0	02	1	9806-9911	●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-124-0	01	1	9912-0504		●
59	BRACKET; EXH SILENCER,FRT (D)	1-22152-168-0	02	1	0505-		●
59	BRACKET; EXH SILENCER,FRT (B) H=89	1-22139-046-0	01	1	9806-9911	●
59	BRACKET; EXH SILENCER,FRT (C)	1-22131-452-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (C)	1-22131-452-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (A) H=100	1-22139-052-0	01	1	9806-9911	●		●
59	BRACKET; EXH SILENCER,FRT (A) H=100	1-22139-052-0	01	1	9806-9911			●
60	BRACKET; FRAME TO BRKT (A)	1-47478-170-0	01	1	9806-9911	●
60	BRACKET; FRAME TO BRKT (C)	8-97530-212-0	02	1	9912-0504		●
60	BRACKET; FRAME TO BRKT (B)	1-47478-171-0	01	1	9806-9911	●
60	BRACKET; FRAME TO BRKT (D)	8-97530-962-0	01	1	9912-0504		●
62	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9806-9911	●
62	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9912-0504		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9806-9911	●		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9806-9911	●		●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	03	1	9806-9911	●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	03	1	9912-0504		●
70	BOLT; BRKT (D) M10X50	0-10806-050-0	01	1	0505-0512		●
70	BOLT; BRKT (D) M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X40 FLANGE	0-28681-040-0	02	1	9806-9911	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	9806-9911	●		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	9912-0504		●
73	WASHER; PL ID=10.5 OD=32	9-09164-810-0	01	1	0509-0605		●
73	WASHER; PL ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	0505-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	9806-9911	●
77	RUBBER; CUSHION,BRKT OD=30	1-22159-106-1	04	1	9806-9911	●
77	RUBBER; CUSHION,BRKT OD=30	1-22159-106-1	06	1	9912-0504		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	01	1	9806-9911	●		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	01	1	9806-9911	●		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9806-9911	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	03	1	9806-9911	●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	03	1	9912-0504		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	0505-0603		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	0604-		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	9806-9911	●		●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	04	1	9912-0602		●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0603-		●
88	CLAMP; EXH PIPE ID=94-98	1-22133-237-0	02	1	9806-9911	●
88	CLAMP; EXH PIPE ID=94-98	1-22133-237-0	02	1	9912-0504		●
89	CLAMP; EXH SILENCER,RR ID=80-84	1-22133-233-0	02	1	9806-9911			●
89	CLAMP; EXH SILENCER,RR ID=94-98	1-22133-237-0	02	1	9912-0504		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9806-9911	●		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9806-9911	●		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9912-0504		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9806-9911	●		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	9806-9911	●		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	06	1	9912-0504		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	9806-9911	●		●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9912-0504		●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0505-0512		●
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	8-97530-212-0	02	1	0505-		●
111	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0509-0605		●
111	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
116	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9806-9911	●		●
116	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9912-0504		●
116	BOLT; BRKT M10X50	0-10806-050-0	01	1	0505-0512		●
116	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-		●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	05	1	9806-9911	●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	02	1	9912-0504		●
121	WASHER; PL,BRKT (B) ID=10.5 OD=18	9-09160-510-0	02	1	9806-9911	●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	9806-9911	●		●
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	9806-9911	●		●
125	NUT; CLAMP M10	9-09110-510-0	02	1	9806-9911	●
125	NUT; CLAMP M10	9-09110-510-0	02	1	9912-0504		●
128	PIPE; EXH,RR	1-22123-141-0	01	1	9806-9911	●
128	PIPE; EXH,RR	1-22126-293-0	01	1	9912-0504		●
128	PIPE; EXH,RR	1-22126-618-0	01	1	0505-		●
128	PIPE; EXH,RR	1-22112-311-1	01	1	9806-9911			●
227	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0505-0512		●
227	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
228	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0505-0602		●
228	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●
272	NUT; FLANGE M12 FLANGE	0-91150-212-0	08	1	9806-9911	●
272	NUT; FLANGE EXH BRK<NF8> M10 FLANGE	0-91150-210-0	04	1	9912-0602		●
272	NUT; FLANGE EXH BRK<NF8> M10 FLANGE	0-91180-210-0	04	1	0603-		●
391	BOLT; CLAMP BRKT M10X30 FLANGE	0-28681-030-0	02	1	0505-0512		●
391	BOLT; CLAMP BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
392	NUT; CLAMP BRKT M10 FLANGE	0-91150-210-0	02	1	0505-0602		●
392	NUT; CLAMP BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. EXH BRK<NF8> OD=112	1-22119-294-0	01	1	9912-		●
476	SPRING; VIBNON,EXH PIPE EXC. EXH BRK<NF8>	8-94141-851-0	02	1	9912-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
