Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#68216) — 277 parça

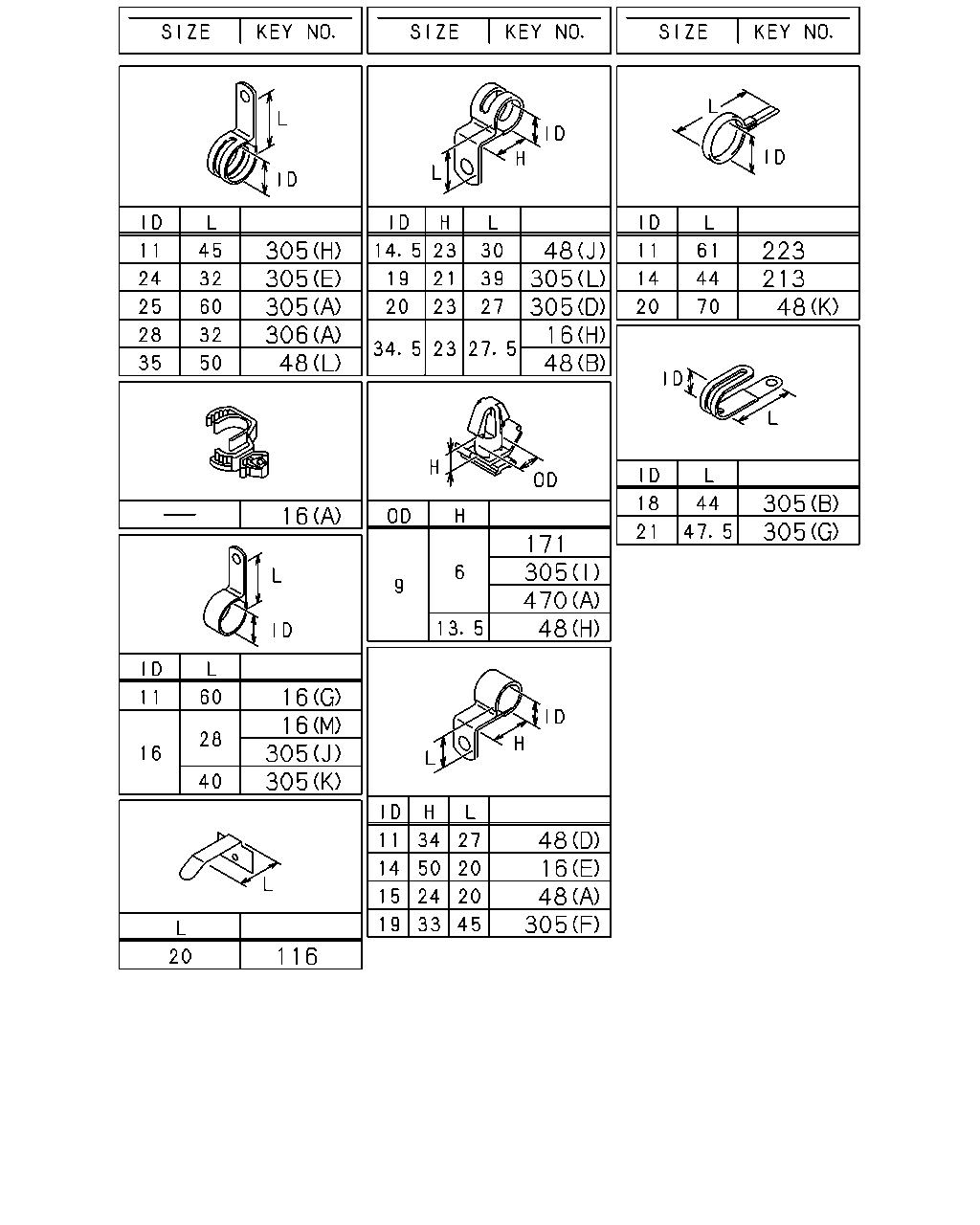

305 305 305 306 48 48 305 305 16 48 223 213 48 305 305 16 171 305 470 48 16 16 305 305 48 16 48 305 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=5-12 L=14.5	1-09987-221-0	01	1	0807-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0807-0807
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0807-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0807-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0807-0808
16	CLIP; HARNESS (M) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (K) W/SPONGE RUBBER	1-09709-150-0	01	1	0807-
16	CLIP; HARNESS (L) ID=10 & 15	1-09709-279-1	01	1	0807-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	02	1	0807-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0807-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-0808
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-0808
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0809-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS (E) ID=16X2 L=50	0-95325-586-0	01	1	0807-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	10	1	0807-0901
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	08	1	0902-
48	CLIP; FRAME HARNESS (A) ID=15 H=24 L=20	1-09700-606-0	06	1	0807-0808
48	CLIP; FRAME HARNESS (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0807-
48	CLIP; FRAME HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0807-
48	CLIP; FRAME HARNESS (D) ID=11 H=34 L=27	1-09701-023-0	03	1	0807-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0807-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0807-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0807-
48	CLIP; FRAME HARNESS (G) ID=13-18 L=14.5	1-09709-290-0	03	1	0807-
48	CLIP; FRAME HARNESS (I) ID=13-18 L=22	1-09709-292-0	01	1	0807-
48	CLIP; FRAME HARNESS (M) ID=13-18 L=26	1-09709-293-0	01	1	0807-
48	CLIP; FRAME HARNESS (N) L=250 THA	5-09707-030-1	04	1	0807-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0807-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0807-
171	CLIP; STARTER HARNESS OD=9 H=6	1-09709-178-0	02	1	0809-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0807-
223	CLIP; AIR TANK HARNESS ID=11 L=61	1-09700-484-0	01	1	0807-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5	8-94178-108-0	01	1	0807-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0807-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0807-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0807-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0807-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0807-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0807-1102
305	CLIP; ENG HARNESS (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1103-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0807-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0807-1102
305	CLIP; ENG HARNESS (M) ID=26 L=27	1-09701-006-0	01	1	1103-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0807-1102
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0807-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0807-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=13-18 L=22	1-09709-292-0	02	1	0807-0808

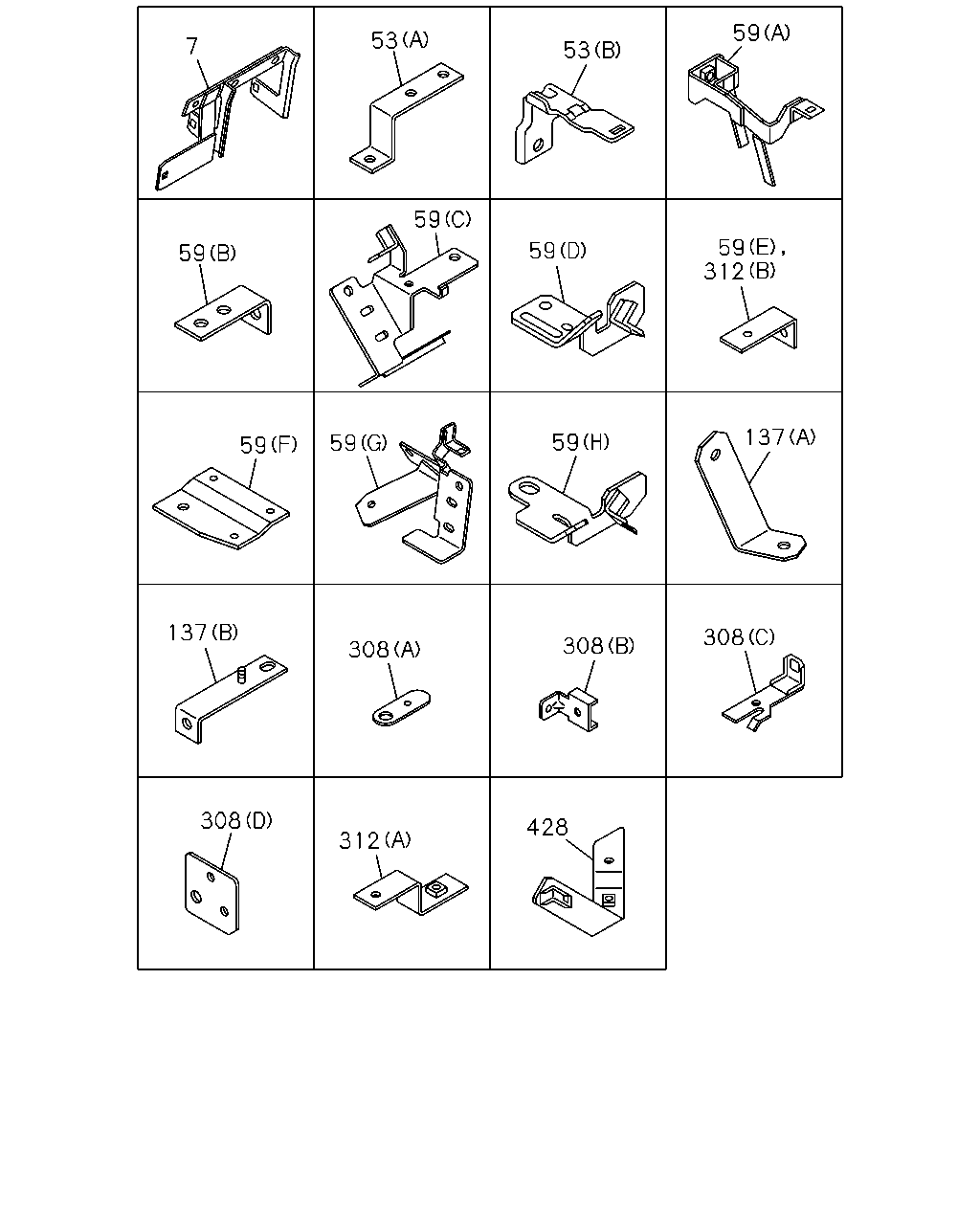

7 53 53 59 59 59 59 59 312 59 59 59 137 137 308 308 308 308 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1205-
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0807-
53	BRACKET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (A)	1-82698-382-0	01	1	0807-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0807-
59	BRACKET; FRAME HARNESS (E) L=55	1-47475-304-0	01	1	0807-0808
59	BRACKET; FRAME HARNESS (B) L=115 H=30	1-47477-715-3	01	1	0807-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	0807-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0807-1502
59	BRACKET; FRAME HARNESS (H)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0807-0905
59	BRACKET; FRAME HARNESS (G)	8-98107-611-0	01	1	0906-
59	BRACKET; FRAME HARNESS (F) THA	8-97924-646-0	01	1	0807-1102
59	BRACKET; FRAME HARNESS (F) THA	8-97924-646-0	01	1	1103-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	0807-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0807-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0807-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-1102
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1103-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0807-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0807-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0807-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0807-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	0807-
428	BRACKET	8-97620-514-0	01	1	0807-

16 16 305 16 16 306 16 305 16 16 48 48 470 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=5-12 L=14.5	1-09987-221-0	01	1	0807-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0807-0807
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0807-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0807-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0807-0808
16	CLIP; HARNESS (M) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (K) W/SPONGE RUBBER	1-09709-150-0	01	1	0807-
16	CLIP; HARNESS (L) ID=10 & 15	1-09709-279-1	01	1	0807-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	02	1	0807-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0807-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-0808
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-0808
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0809-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS (E) ID=16X2 L=50	0-95325-586-0	01	1	0807-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	10	1	0807-0901
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	08	1	0902-
48	CLIP; FRAME HARNESS (A) ID=15 H=24 L=20	1-09700-606-0	06	1	0807-0808
48	CLIP; FRAME HARNESS (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0807-
48	CLIP; FRAME HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0807-
48	CLIP; FRAME HARNESS (D) ID=11 H=34 L=27	1-09701-023-0	03	1	0807-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0807-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0807-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0807-
48	CLIP; FRAME HARNESS (G) ID=13-18 L=14.5	1-09709-290-0	03	1	0807-
48	CLIP; FRAME HARNESS (I) ID=13-18 L=22	1-09709-292-0	01	1	0807-
48	CLIP; FRAME HARNESS (M) ID=13-18 L=26	1-09709-293-0	01	1	0807-
48	CLIP; FRAME HARNESS (N) L=250 THA	5-09707-030-1	04	1	0807-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0807-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5	8-94178-108-0	01	1	0807-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0807-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0807-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0807-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0807-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0807-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0807-1102
305	CLIP; ENG HARNESS (L) ID=19 L=39 H=21	1-09700-972-1	01	1	1103-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0807-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0807-1102
305	CLIP; ENG HARNESS (M) ID=26 L=27	1-09701-006-0	01	1	1103-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0807-1102
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0807-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0807-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0807-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=13-18 L=22	1-09709-292-0	02	1	0807-0808

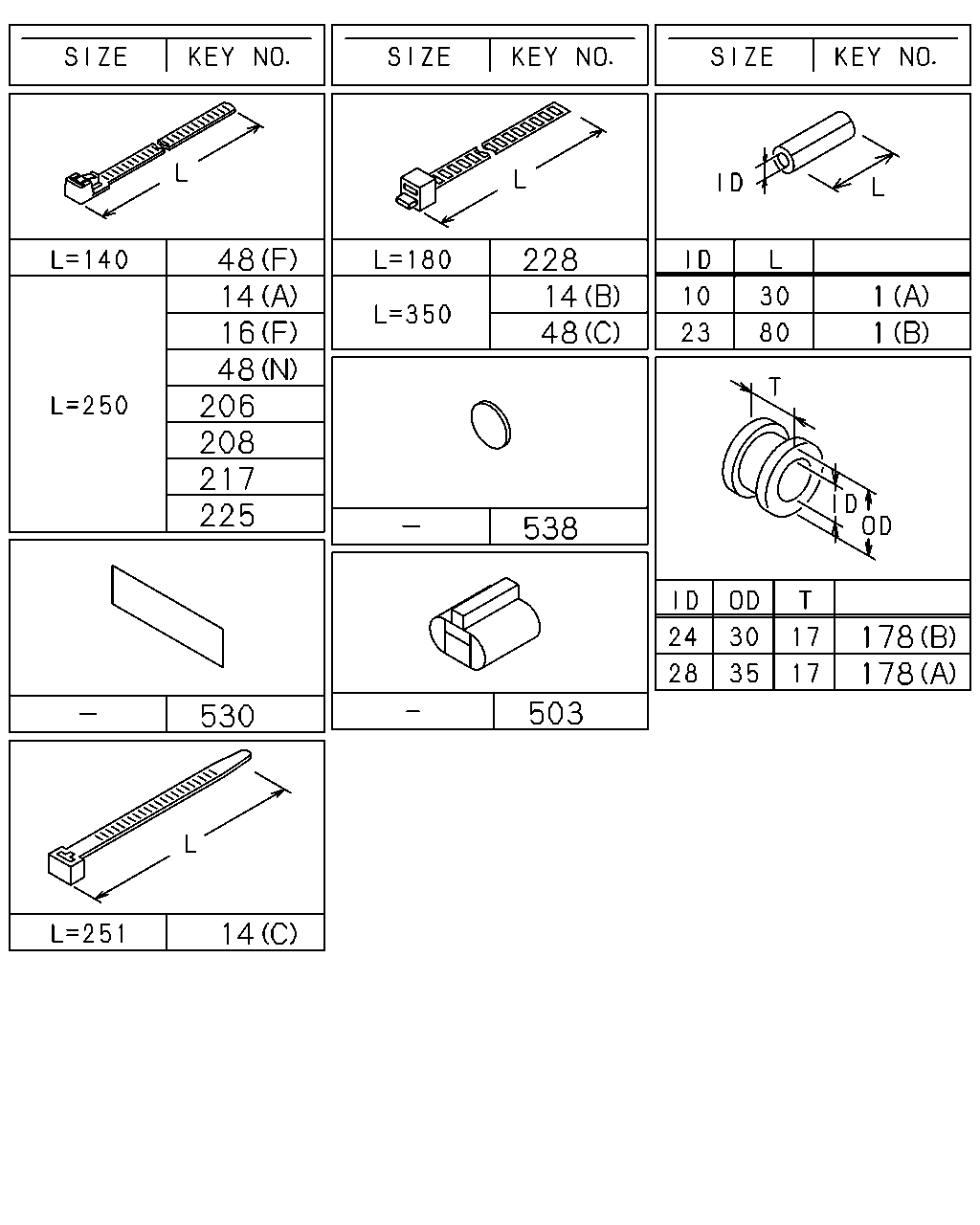

48 14 16 48 206 208 217 225 228 14 48 1 1 538 178 178 503 530 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0807-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0807-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	0910-
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	14	1	0807-0909
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	13	1	0910-1102
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	12	1	1103-1104
14	CLIP; BAND,HARNESS (A) L=250 THA	5-09707-030-1	13	1	1105-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0807-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=5-12 L=14.5	1-09987-221-0	01	1	0807-
16	CLIP; HARNESS (G) ID=11 L=60	0-95235-096-0	01	1	0807-0807
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	0807-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0807-1208
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1209-
16	CLIP; HARNESS (J) ID=15 L=28	1-09701-216-0	02	1	0807-0808
16	CLIP; HARNESS (M) ID=16 L=28	0-95235-556-0	02	1	0809-
16	CLIP; HARNESS (K) W/SPONGE RUBBER	1-09709-150-0	01	1	0807-
16	CLIP; HARNESS (L) ID=10 & 15	1-09709-279-1	01	1	0807-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	02	1	0807-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0807-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-0808
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0807-0808
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	05	1	0809-1102
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1103-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0807-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 THA	8-97229-357-0	02	1	0807-1003
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0807-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS (E) ID=16X2 L=50	0-95325-586-0	01	1	0807-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	10	1	0807-0901
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	08	1	0902-
48	CLIP; FRAME HARNESS (A) ID=15 H=24 L=20	1-09700-606-0	06	1	0807-0808
48	CLIP; FRAME HARNESS (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0807-
48	CLIP; FRAME HARNESS (B) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	0807-
48	CLIP; FRAME HARNESS (D) ID=11 H=34 L=27	1-09701-023-0	03	1	0807-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0807-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	0807-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0807-
48	CLIP; FRAME HARNESS (G) ID=13-18 L=14.5	1-09709-290-0	03	1	0807-
48	CLIP; FRAME HARNESS (I) ID=13-18 L=22	1-09709-292-0	01	1	0807-
48	CLIP; FRAME HARNESS (M) ID=13-18 L=26	1-09709-293-0	01	1	0807-
48	CLIP; FRAME HARNESS (N) L=250 THA	5-09707-030-1	04	1	0807-
48	CLIP; FRAME HARNESS (F) L=140 THA	5-09707-031-1	02	1	0807-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0807-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0807-
178	GROMMET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0807-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0807-0808
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0807-
206	CLIP; FUEL TANK HARNESS L=250 THA	5-09707-030-1	02	1	0807-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> L=250 THA	5-09707-030-1	01	1	0807-
217	CLIP; RR BODY HARNESS L=250 THA	5-09707-030-1	02	1	0807-
225	CLIP; AIR TANK HARNESS L=250 THA	5-09707-030-1	04	1	0807-
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0807-0807
503	CONNECTOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82690-668-0	01	1	0807-1104
503	CONNECTOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82690-668-0	01	1	1105-
503	CONNECTOR VENTILATOR & DEFROSTER WO/HEATER<SAZ>	1-82690-668-0	01	1	1105-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	19	1	0807-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	0807-

304 139 304 304 304 38 304 313 516 377 386 38 38 139 38 150 139 313 150 139 313 139 139 139 184 47 38 38 515 219 524 294 294 525 127

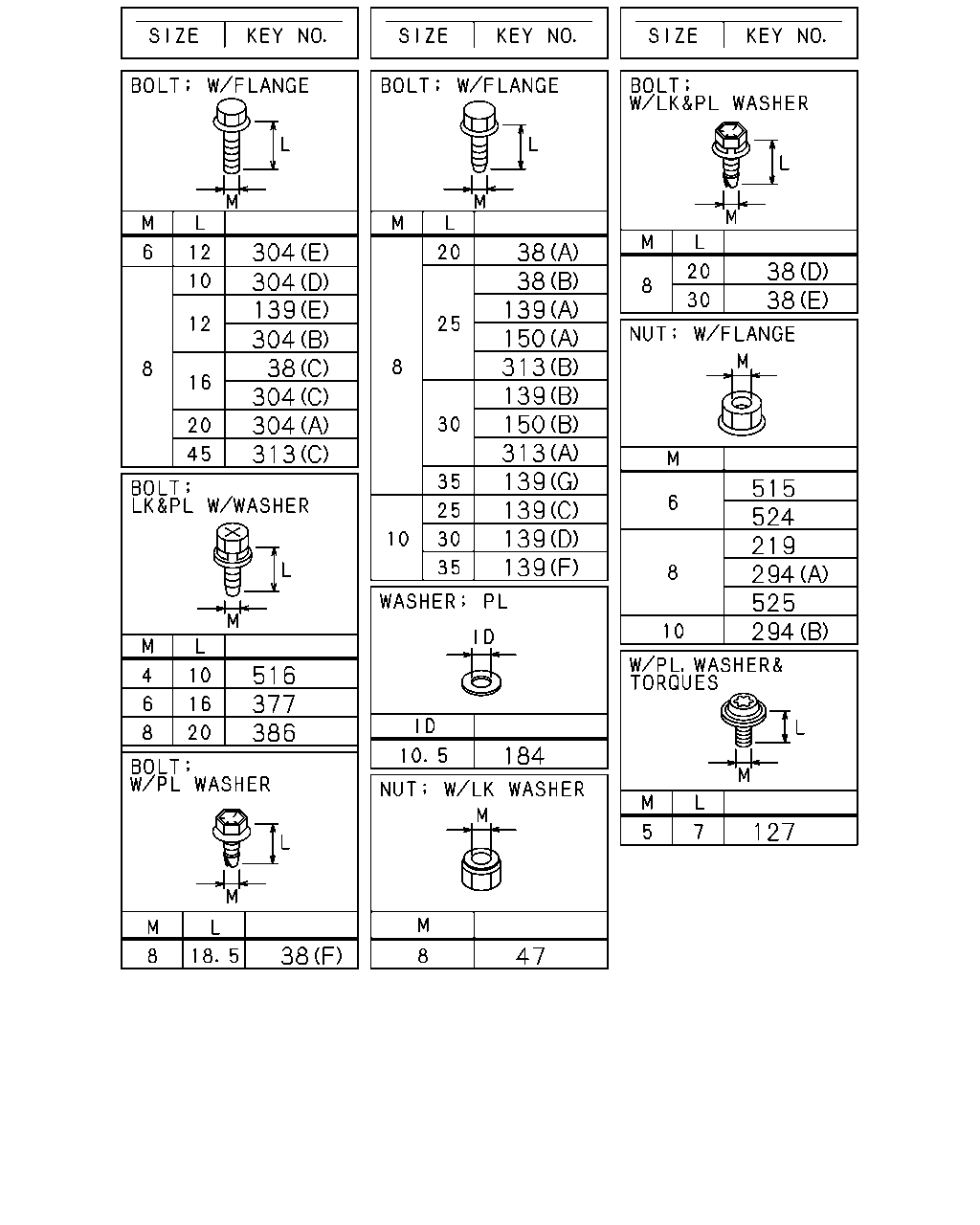

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (E) M8X30 W/LK&PL WASHER THA	0-50640-830-0	01	1	0807-
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0807-1202
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1203-
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	06	1	0807-1207
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1208-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1208-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0807-1102
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0807-1102
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-1103
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0807-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-1102
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-1102
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	0807-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	0807-1102
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0807-
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0807-1102
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1103-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1103-
139	BOLT; BRKT (D) M10X30 FLANGE THA	0-28651-030-0	02	1	0807-1102
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1103-
139	BOLT; BRKT (G) M8X35 FLANGE THA	0-28650-835-0	01	1	0807-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	0807-
150	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0807-
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0807-1102
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	1103-
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	0807-0807
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	0807-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-1102
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-1102
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-1102
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-1102
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-1103
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-1103
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-1103
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1103-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	0807-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	0807-0901
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	0807-0901
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	0902-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE THA	0-28050-612-0	01	1	0807-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	0807-1010
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	1103-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	03	1	0807-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE THA	0-28050-816-0	03	1	0807-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	01	1	0807-1102
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	02	1	1103-
313	BOLT; BRKT (C) M8X45 FLANGE THA	0-28050-845-0	01	1	0807-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
313	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0807-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0807-
386	BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0807-
515	NUT; BRKT M6 FLANGE THA	0-91180-106-0	02	1	0807-0809
516	BOLT; HARNESS M4X10 W/LK&PL WASHER THA	0-36230-410-0	01	1	0807-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	0807-
525	NUT; CLIP T=8.5 M8 FLANGE THA	5-09440-010-0	01	1	0807-1102
525	NUT; CLIP T=8.0 M8 FLANGE THA	0-91180-108-0	01	1	0807-
525	NUT; CLIP T=8.0 M8 FLANGE THA	0-91180-108-0	02	1	0807-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
