◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#6821) — 29 parça

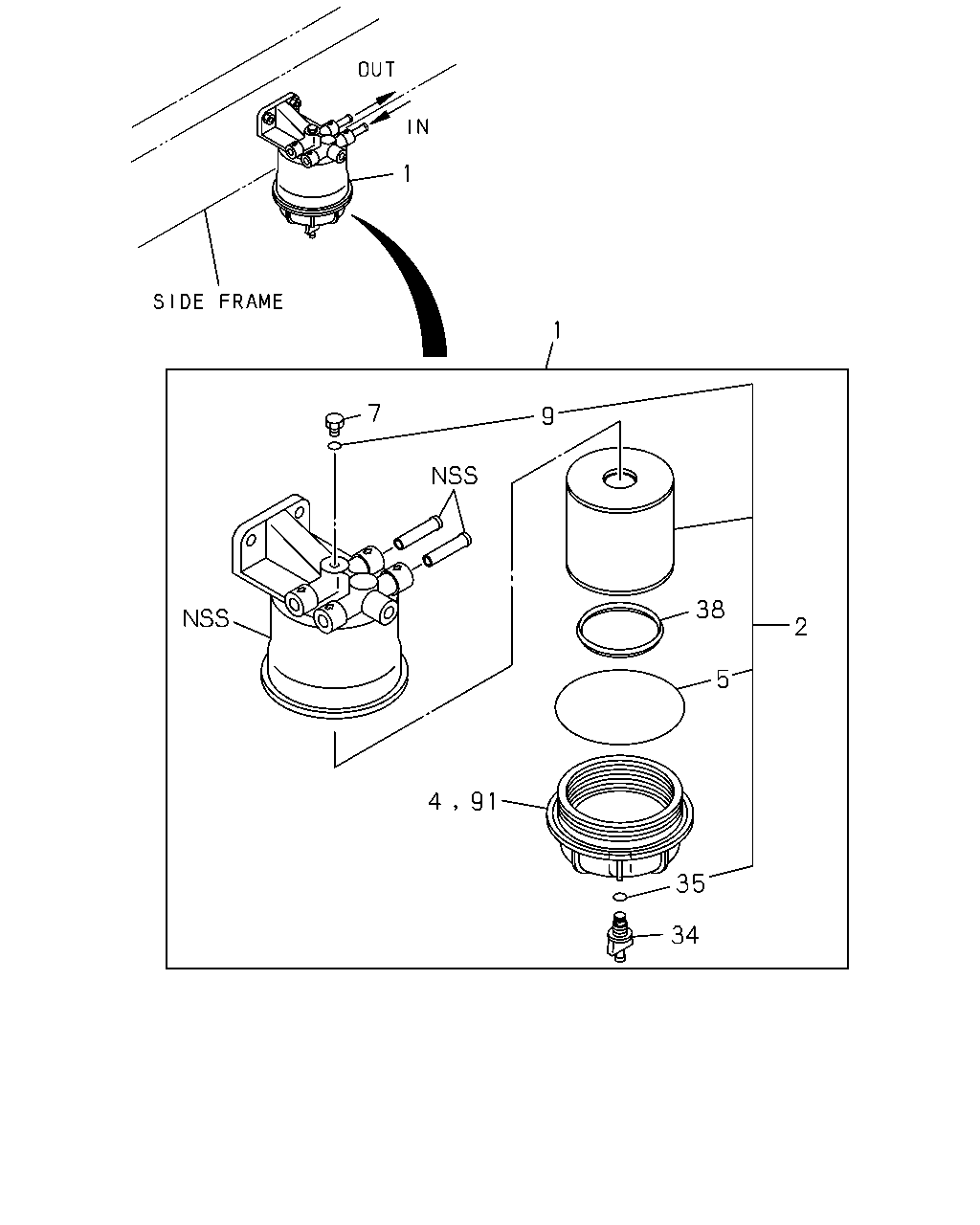

çizim 26268
1 1 7 9 38 2 5 91 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9806-9911 ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9912-0006 ●
1 SEDIMENTER; FUEL 1-13201-015-0 01 1 0007-0504 ●
1 SEDIMENTER; FUEL 8-97605-073-2 01 1 0505- ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9806-9911 ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9912-0504 ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9806-9911 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9806-9911 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9912-0504 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9806-9911 ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9912-0504 ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9806-9911 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9912-0504 ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9806-9911 ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9912-0504 ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9806-9911 ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9912-0504 ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9806-9911 ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9912-0504 ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 9912-0504 ●
çizim 98790
26 1 26 15 57 98
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9806-9911 ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9912-0006 ●
1 SEDIMENTER; FUEL 1-13201-015-0 01 1 0007-0504 ●
1 SEDIMENTER; FUEL 8-97605-073-2 01 1 0505- ●
15 SENSOR ASM; SEDIMENTER 8-97605-127-1 01 1 0505- ●
26 PIPE; FUEL,IN & OUT
(A) OUT 		8-94409-622-0 01 1 0505- ●
26 PIPE; FUEL,IN & OUT
(B) IN 		8-97358-699-0 01 1 0505- ●
57 CARTRIDGE KIT; FUEL FILTER 8-97605-118-1 01 1 0505- ●
98 CAP; FUEL SEDIMENTER 8-97605-126-0 01 1 0505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
