Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#68209) — 242 parça

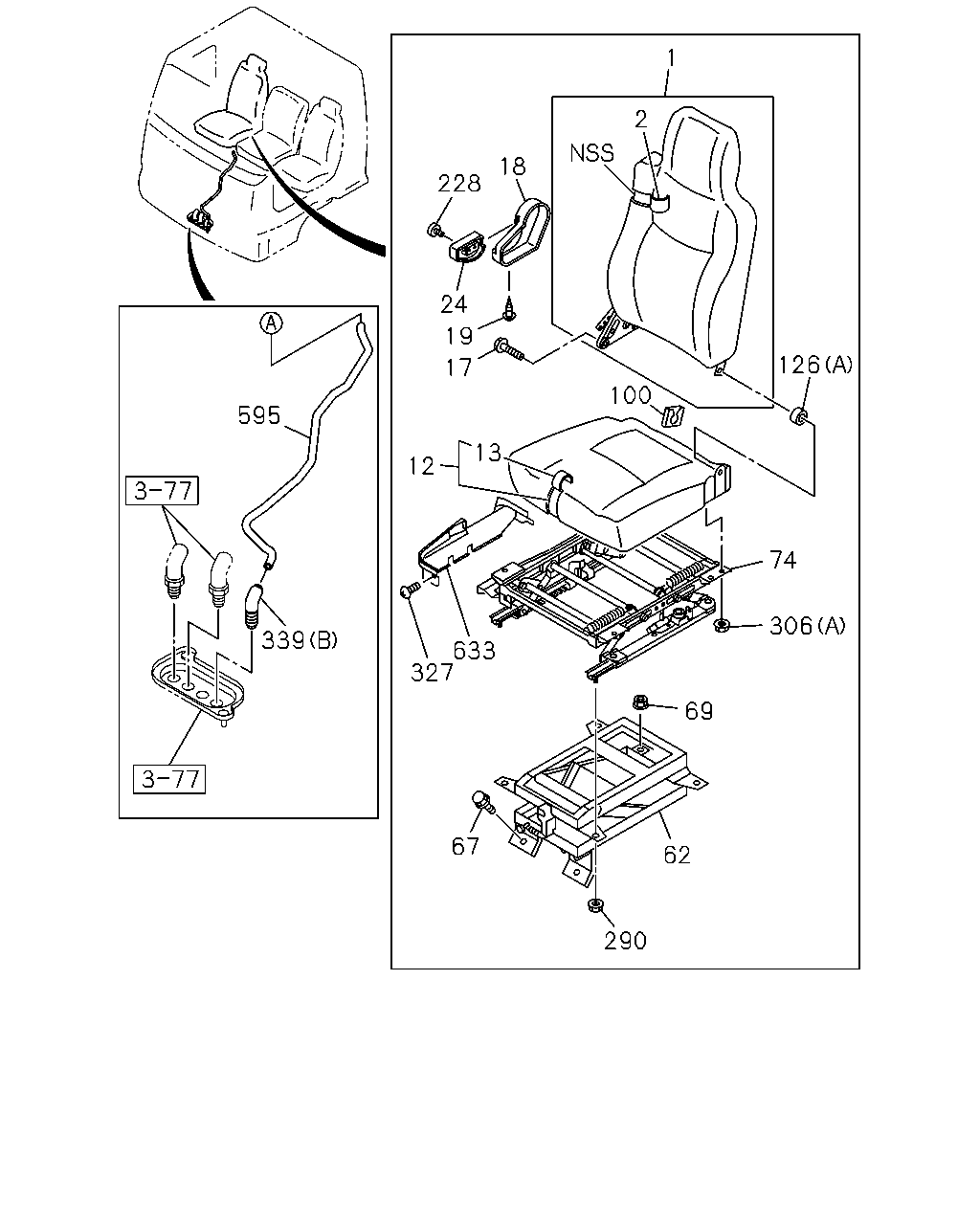

306 69 62 290 67 633 327 13 12 100 126 1 2 18 228 24 17 19 595 339 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1212-
1	BACK ASM; SEAT DARK GRAY	8-97409-955-1	01	1	0807-0808
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	0809-1102
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1212-
2	COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97411-910-0	01	1	0807-0808
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	0809-1102
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1212-
12	CUSHION; SEAT,FRT DARK GRAY	8-97409-954-0	01	1	0807-0808
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	0809-1102
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1212-
13	COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97411-909-0	01	1	0807-0808
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	0809-1102
17	BOLT; RECLINING M10X20 THA	8-98062-661-0	04	1	1212-
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	0807-
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	02	1	0807-1102
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1212-
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	0807-1102
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1212-
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	0807-1102
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1212-
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	0807-1102
62	DAMPER ASM; SEAT SUSP THA	1-75538-183-7	01	1	1212-1507
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1508-
62	DAMPER ASM; SEAT SUSP THA	1-75538-183-7	01	1	0807-1102
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	0807-
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	0807-
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	1212-1507
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98291-640-0	01	1	1508-
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	0807-1102
100	COVER; HINGE	8-98203-070-0	01	1	1110-
126	BUSHING; HINGE,RECLINING (B) THA	8-97917-184-0	01	1	1210-
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1212-
126	BUSHING; HINGE,RECLINING (B) THA	8-97917-184-0	01	1	0807-1102
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	0807-1102
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1212-
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	0807-1102
290	NUT; ADJ TO SUSP M8 FLANGE THA	1-75538-207-0	04	1	1212-
290	NUT; ADJ TO SUSP M8 FLANGE THA	1-75538-207-0	04	1	0807-1102
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1212-
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	0807-
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	0807-1102
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> ID=459	1-09987-273-0	02	1	0807-
339	UNION; DRIVER SEAT (A) THA	1-75538-131-3	01	1	1212-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0807-
339	UNION; DRIVER SEAT (A) THA	1-75538-131-3	01	1	0807-1102
595	TUBE; NYLON	8-98041-300-0	01	1	0807-
633	COVER; ADJ,TILT GRAY THA	8-97409-956-0	01	1	1212-
633	COVER; ADJ,TILT GRAY THA	8-97409-956-0	01	1	0807-1102

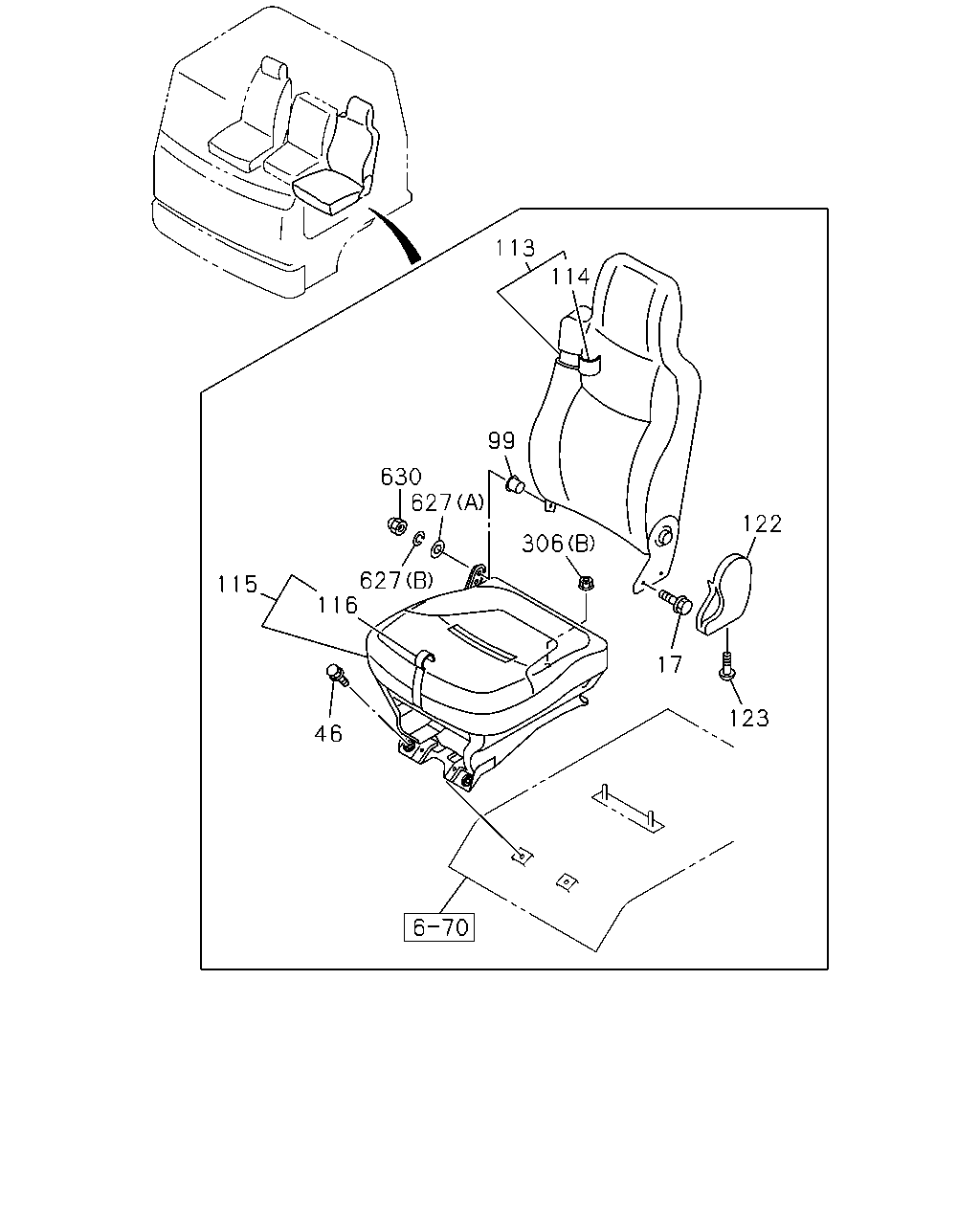

113 114 99 630 627 122 306 627 116 115 17 123 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING M10X20 THA	8-98062-661-0	04	1	1212-
17	BOLT; RECLINING PASSENGER M8X20 THA	8-98092-334-0	02	1	0807-
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	02	1	0807-1102
46	BOLT; STAND TO FLOOR M10X20 FLANGE THA	0-28451-020-0	02	1	0807-
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	0807-
113	BACK ASM; SEAT DARK GRAY	8-97409-966-0	01	1	0807-0808
113	BACK ASM; SEAT THA	8-97924-737-0	01	1	0809-
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97411-916-0	01	1	0807-0808
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97924-761-0	01	1	0809-
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97409-965-0	01	1	0807-0808
115	CUSHION ASM; PASSENGER SEAT THA	8-97924-759-0	01	1	0809-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97411-915-0	01	1	0807-0808
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97924-760-0	01	1	0809-
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	0807-
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	0807-
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1212-
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	0807-
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	0807-1102
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	0807-
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	0807-
630	NUT; CAP M8 THA	8-98063-225-0	01	1	0807-

506 360 175 176 188 16 188 126 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING THA	1-75418-062-1	01	1	1210-
16	ADJUSTER ASM; RECLINING THA	1-75418-062-1	01	1	0807-1102
126	BUSHING; HINGE,RECLINING (B) THA	8-97917-184-0	01	1	1210-
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1212-
126	BUSHING; HINGE,RECLINING (B) THA	8-97917-184-0	01	1	0807-1102
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	0807-1102
175	BACK ASM; PASSENGER CENTER SEAT THA	8-97925-314-0	01	1	1210-
175	BACK ASM; PASSENGER CENTER SEAT VIN MODEL YEAR 2010<VZA> THA	8-97925-314-0	01	1	1004-1102
175	BACK ASM; PASSENGER CENTER SEAT THA	8-97924-455-1	01	1	0807-1003
175	BACK ASM; PASSENGER CENTER SEAT EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-455-1	01	1	1004-1102
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK THA	8-97925-308-0	01	1	1210-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VIN MODEL YEAR 2010<VZA> THA	8-97925-308-0	01	1	1004-1102
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK THA	8-97924-457-0	01	1	0807-1003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-457-0	01	1	1004-1102
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH THA	8-97924-453-0	01	1	1210-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH THA	8-97924-453-0	01	1	0807-1102
182	CUSHION ASM; CENTER SEAT THA	8-97924-451-0	01	1	1210-
182	CUSHION ASM; CENTER SEAT THA	8-97924-451-0	01	1	0807-1102
188	BOLT; BACK TO CUSHION M10X20 THA	8-97924-820-0	04	1	1210-
188	BOLT; BACK TO CUSHION M10X16 FLANGE THA	8-97917-806-0	04	1	0807-0807
188	BOLT; BACK TO CUSHION M10X20 THA	8-97924-820-0	04	1	0808-1102
359	BOX; PARCEL THA	8-97924-469-0	01	1	0807-1003
359	BOX; PARCEL EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-469-0	01	1	1004-1102
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1004-1102
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16	0-70040-416-0	06	1	1004-1102
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1004-1102
360	SCREW; PARCEL (D) M5X20	9-09829-324-1	02	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20	9-09829-324-1	02	1	1004-1102
403	NUT; CENTER SEAT M8 FLANGE THA	0-91180-108-0	04	1	0807-
506	CAP; PARCEL BOX THA	8-97924-470-0	04	1	0807-1003
506	CAP; PARCEL BOX EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-470-0	04	1	1004-1102

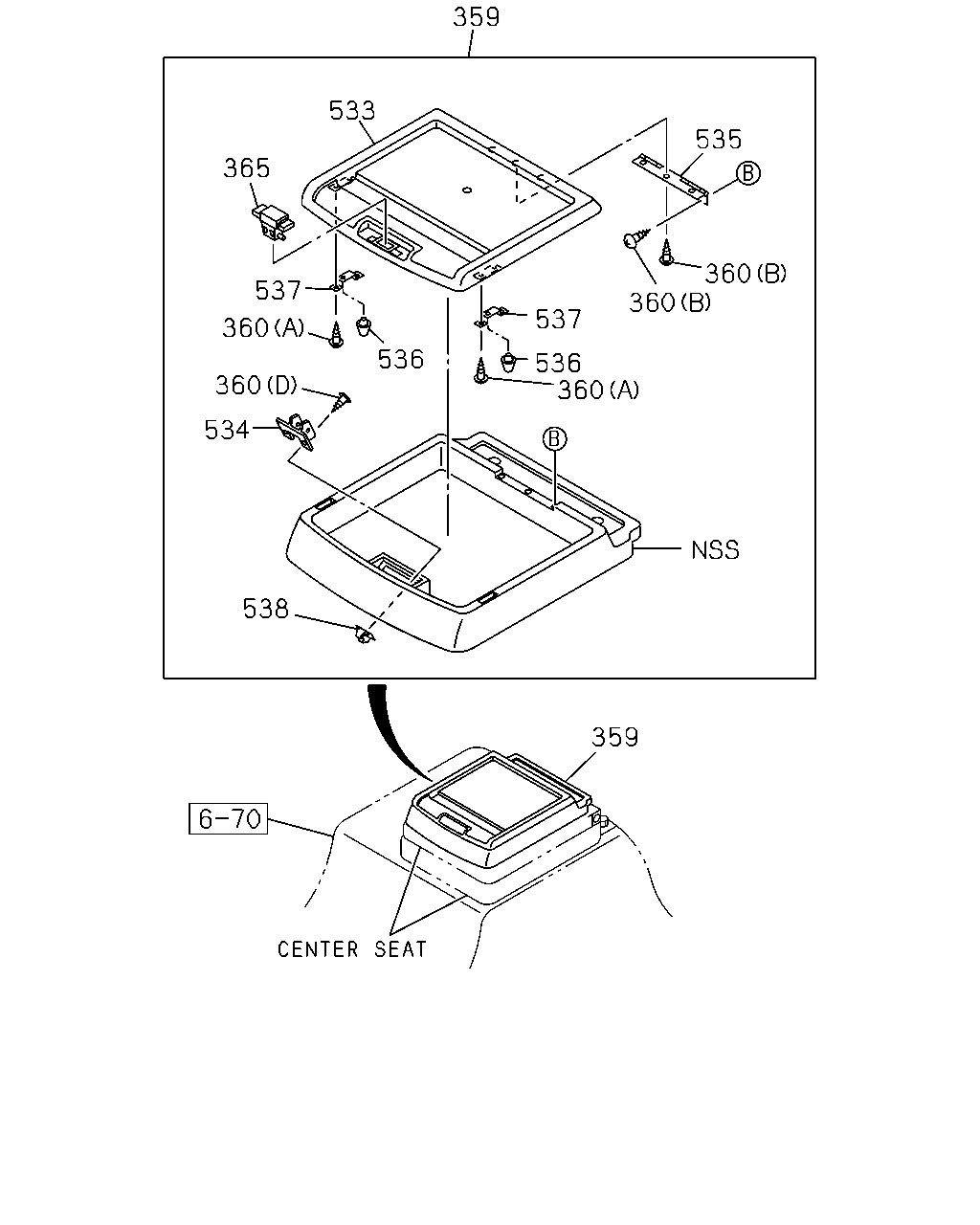

359 533 535 365 360 360 537 537 360 536 536 360 360 534 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL THA	8-97924-469-0	01	1	0807-1003
359	BOX; PARCEL EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-469-0	01	1	1004-1102
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1004-1102
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (B) M4X16	0-70040-416-0	06	1	1004-1102
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (C) M5X16 TAPPING W/PL WASHER THA	0-74360-516-0	04	1	1004-1102
360	SCREW; PARCEL (D) M5X20	9-09829-324-1	02	1	0807-1003
360	SCREW; PARCEL EXC. VIN MODEL YEAR 2010<VZA> (D) M5X20	9-09829-324-1	02	1	1004-1102
365	LOCK ASM; SEAT THA	8-97924-512-0	01	1	0807-1003
365	LOCK ASM; SEAT EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-512-0	01	1	1004-1102
533	LID; PARCEL BOX THA	8-97924-511-0	01	1	0807-1003
533	LID; PARCEL BOX EXC. VIN MODEL YEAR 2010<VZA> THA	8-97924-511-0	01	1	1004-1102
534	STRIKER; PARCEL BOX THA	8-97913-529-0	01	1	0807-1003
534	STRIKER; PARCEL BOX EXC. VIN MODEL YEAR 2010<VZA> THA	8-97913-529-0	01	1	1004-1102
535	HINGE; PARCEL BOX THA	8-97913-533-0	01	1	0807-1003
535	HINGE; PARCEL BOX EXC. VIN MODEL YEAR 2010<VZA> THA	8-97913-533-0	01	1	1004-1102
536	RUBBER; CUSHION THA	8-97914-858-0	02	1	0807-1003
536	RUBBER; CUSHION EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-858-0	02	1	1004-1102
537	BRACKET; RUBBER THA	8-97914-859-0	02	1	0807-1003
537	BRACKET; RUBBER EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-859-0	02	1	1004-1102
538	GROMMET; SCREW THA	8-97914-867-0	02	1	0807-1003
538	GROMMET; SCREW EXC. VIN MODEL YEAR 2010<VZA> THA	8-97914-867-0	02	1	1004-1102

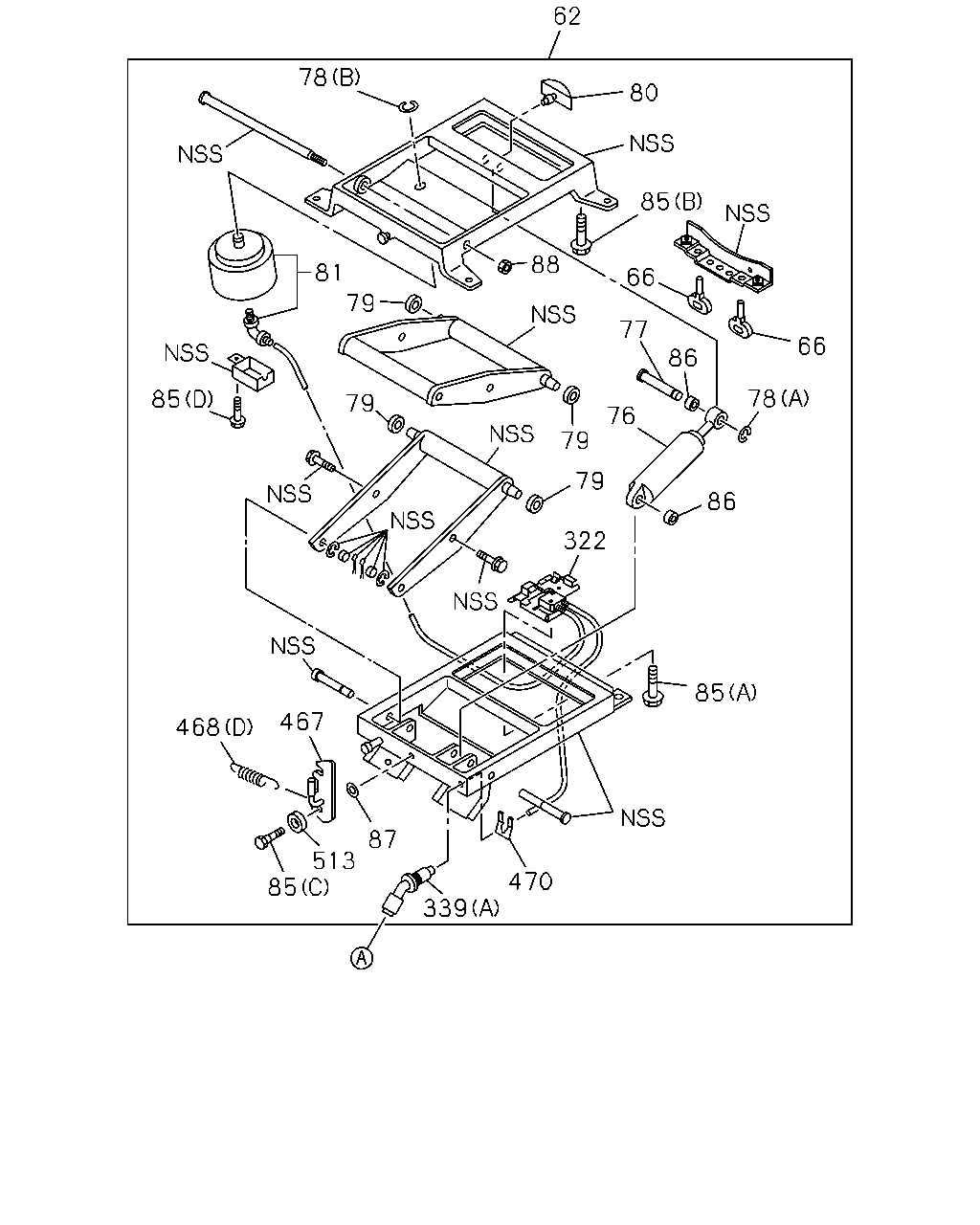

339 87 513 85 467 468 470 85 86 78 66 85 66 86 77 76 79 79 322 79 85 81 62 88 79 78 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP THA	1-75538-183-7	01	1	1212-1507
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1508-
62	DAMPER ASM; SEAT SUSP THA	1-75538-183-7	01	1	0807-1102
66	RUBBER; LWR STOPPER THA	1-75538-145-0	02	1	1212-
66	RUBBER; LWR STOPPER THA	1-75538-145-0	02	1	0807-1102
76	DAMPER; AIR SUSP THA	1-75538-139-0	01	1	1212-
76	DAMPER; AIR SUSP THA	1-75538-139-0	01	1	0807-1102
77	PIN; DAMPER THA	1-75538-138-2	01	1	1212-
77	PIN; DAMPER THA	1-75538-138-2	01	1	0807-1102
78	RING; SNAP (A) ID=8 THA	9-09185-408-0	01	1	1212-
78	RING; SNAP (B) ID=15 THA	9-09185-415-0	01	1	1212-
78	RING; SNAP (A) ID=8 THA	9-09185-408-0	01	1	0807-1102
78	RING; SNAP (B) ID=15 THA	9-09185-415-0	01	1	0807-1102
79	ROLLER ASM; AIR SUSP THA	1-75538-159-0	04	1	1212-1507
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1508-
79	ROLLER ASM; AIR SUSP THA	1-75538-159-0	04	1	0807-1102
80	RUBBER; STOPPER THA	1-09987-123-0	01	1	1212-
80	RUBBER; STOPPER THA	1-09987-123-0	01	1	0807-1102
81	SPRING; AIR THA	1-75538-151-2	01	1	0807-1102
81	SPRING; AIR THA	1-75538-151-2	01	1	1103-1312
81	SPRING; AIR	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1212-
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1212-
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP (C) THA	1-09980-577-0	01	1	0807-1102
85	BOLT; AIR SUSP (A) M6X12 THA	1-75538-208-0	02	1	0807-1102
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	03	1	0807-1102
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	1212-
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	0807-1102
87	WASHER; AIR SUSP ID=8.2 THA	0-91510-508-0	01	1	1212-
87	WASHER; AIR SUSP ID=8.2 THA	0-91510-508-0	01	1	0807-1102
88	NUT; AIR SUSP M10 THA	1-75537-273-1	01	1	1212-
88	NUT; AIR SUSP M10 THA	1-75537-273-1	01	1	0807-1102
322	VALVE; AIR SPRING	1-75538-186-3	01	1	1212-
322	VALVE; AIR SPRING THA	1-75538-186-2	01	1	0807-1102
339	UNION; DRIVER SEAT (A) THA	1-75538-131-3	01	1	1212-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0807-
339	UNION; DRIVER SEAT (A) THA	1-75538-131-3	01	1	0807-1102
467	LEVER; LOCK THA	1-75538-134-0	01	1	1212-
467	LEVER; LOCK THA	1-75538-134-0	01	1	0807-1102
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	1212-
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	1212-
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	1212-
468	SPRING; RETURN (D) THA	1-75538-132-0	01	1	1212-
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	0807-1102
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	0807-1102
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	0807-1102
468	SPRING; RETURN (D) THA	1-75538-132-0	01	1	0807-1102
470	CLIP; HOSE THA	1-75538-137-0	01	1	1212-
470	CLIP; HOSE THA	1-75538-137-0	01	1	0807-1102
513	SPACER; LEVER THA	1-75538-133-0	01	1	1212-
513	SPACER; LEVER THA	1-75538-133-0	01	1	0807-1102

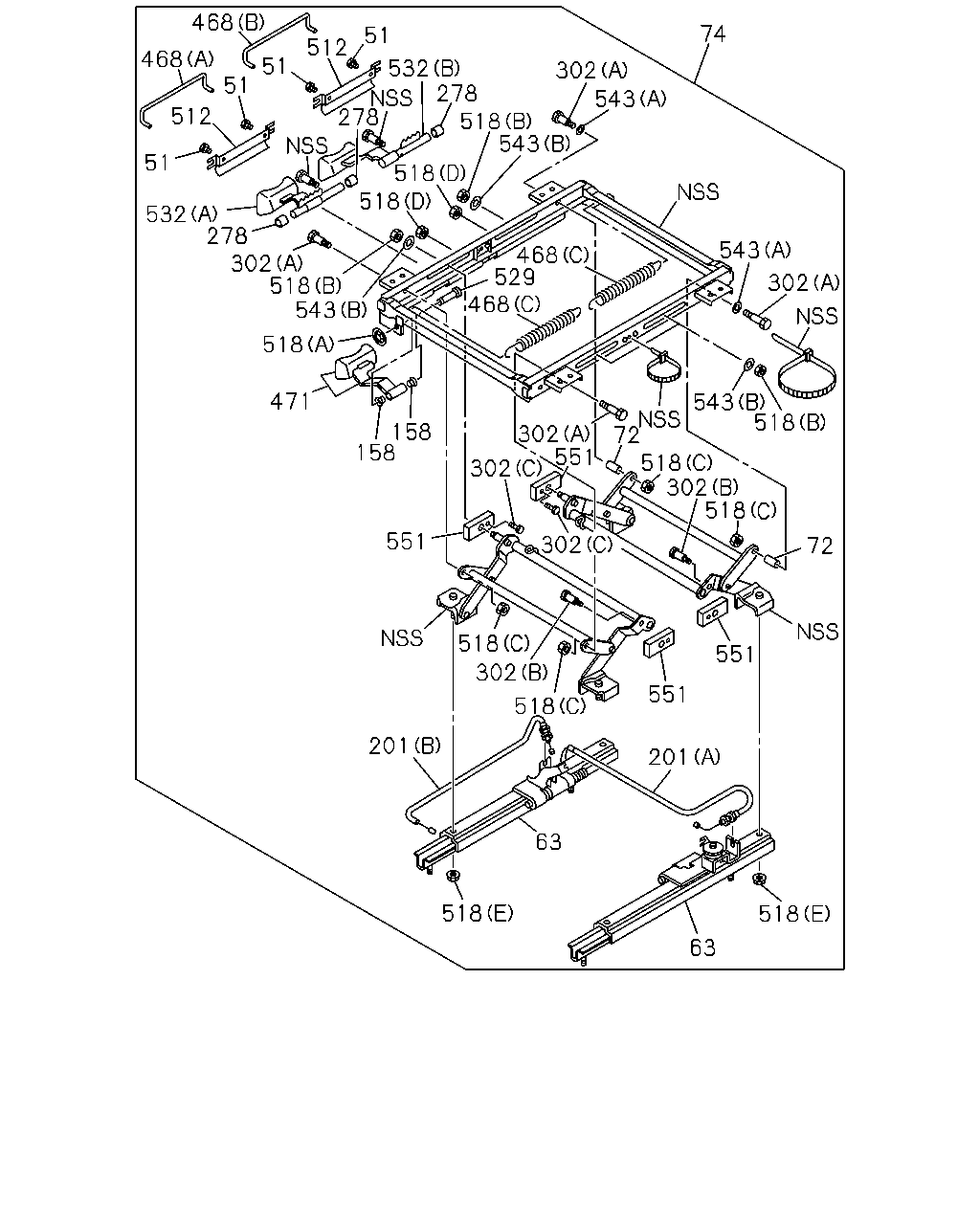

518 63 201 551 551 72 518 518 302 543 543 302 518 72 302 302 518 518 63 518 201 551 302 302 551 74 543 302 543 518 518 518 543 518 471 158 158 518 302 278 532 278 532 278 51 512 51 51 512 51 468 468 468 529 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER THA	1-75518-325-1	04	1	1212-
51	SCREW; COVER THA	1-75518-325-1	04	1	0807-1102
63	ADJUSTER; SEAT SLIDE THA	1-75518-199-1	01	1	1212-
63	ADJUSTER; SEAT SLIDE THA	1-75518-323-0	01	1	1212-
63	ADJUSTER; SEAT SLIDE THA	1-75518-199-1	01	1	0807-1102
63	ADJUSTER; SEAT SLIDE THA	1-75518-323-0	01	1	0807-1102
72	SPACER; SEAT ADJ THA	1-75518-334-1	02	1	1212-1507
72	SPACER; SEAT ADJ THA	8-98291-668-0	02	1	1508-
72	SPACER; SEAT ADJ THA	1-75518-334-1	02	1	0807-1102
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	1212-1507
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98291-640-0	01	1	1508-
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	0807-1102
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1212-
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	0807-1102
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1212-
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1212-
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	0807-1102
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	0807-1102
278	COLLAR; FRT SEAT THA	1-75518-244-0	03	1	1212-
278	COLLAR; FRT SEAT THA	1-75518-244-0	03	1	0807-1102
302	BOLT; ADJ,HEIGHT CONT (B) THA	1-75518-266-2	02	1	1212-
302	BOLT; ADJ,HEIGHT CONT (A) THA	1-75518-270-1	04	1	1212-1507
302	BOLT; ADJ,HEIGHT CONT (A) THA	8-98291-667-0	04	1	1508-
302	BOLT; ADJ,HEIGHT CONT (C) THA	1-75518-336-1	02	1	1212-
302	BOLT; ADJ,HEIGHT CONT (B) THA	1-75518-266-2	02	1	0807-1102
302	BOLT; ADJ,HEIGHT CONT (A) THA	1-75518-270-1	04	1	0807-1102
302	BOLT; ADJ,HEIGHT CONT (C) THA	1-75518-336-1	02	1	0807-1102
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	1212-
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	1212-
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	1212-
468	SPRING; RETURN (D) THA	1-75538-132-0	01	1	1212-
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	0807-1102
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	0807-1102
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	0807-1102
468	SPRING; RETURN (D) THA	1-75538-132-0	01	1	0807-1102
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1212-
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	0807-1102
512	COVER; LEVER THA	1-75518-243-1	02	1	1212-
512	COVER; LEVER THA	1-75518-243-1	02	1	0807-1102
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1212-
518	NUT; TILT ADJ (C) M8 THA	1-75518-264-0	04	1	1212-
518	NUT; TILT ADJ (E) M8 FLANGE THA	1-75538-207-0	04	1	1212-
518	NUT; TILT ADJ (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1212-
518	NUT; TILT ADJ (B) M8 FLANGE THA	8-94152-886-0	04	1	1212-
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	0807-1102
518	NUT; TILT ADJ (C) M8 THA	1-75518-264-0	04	1	0807-1102
518	NUT; TILT ADJ (E) M8 FLANGE THA	1-75538-207-0	04	1	0807-1102
518	NUT; TILT ADJ (D) M6 LOCK NUT THA	5-09984-020-0	02	1	0807-1102
518	NUT; TILT ADJ (B) M8 FLANGE THA	8-94152-886-0	04	1	0807-1102
529	PIN; LINK THA	1-75518-262-0	01	1	1212-
529	PIN; LINK THA	1-75518-262-0	01	1	0807-1102
532	LEVER ASM; TILT (A) THA	1-75518-203-0	01	1	1212-
532	LEVER ASM; TILT (B) THA	1-75518-204-1	01	1	1212-
532	LEVER ASM; TILT (A) THA	1-75518-203-0	01	1	0807-1102
532	LEVER ASM; TILT (B) THA	1-75518-204-1	01	1	0807-1102
543	WASHER; HEIGHT ADJUSTER (A) THA	1-75518-335-0	02	1	1212-1507
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19 THA	8-98291-669-0	02	1	1508-
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4 THA	9-09160-508-0	04	1	1212-
543	WASHER; HEIGHT ADJUSTER (A) THA	1-75518-335-0	02	1	0807-1102
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4 THA	9-09160-508-0	04	1	0807-1102
551	SLIDER; HEIGHT ADJ THA	1-75518-265-0	04	1	1212-
551	SLIDER; HEIGHT ADJ THA	1-75518-265-0	04	1	0807-1102

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
