Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#68208) — 118 parça
◀

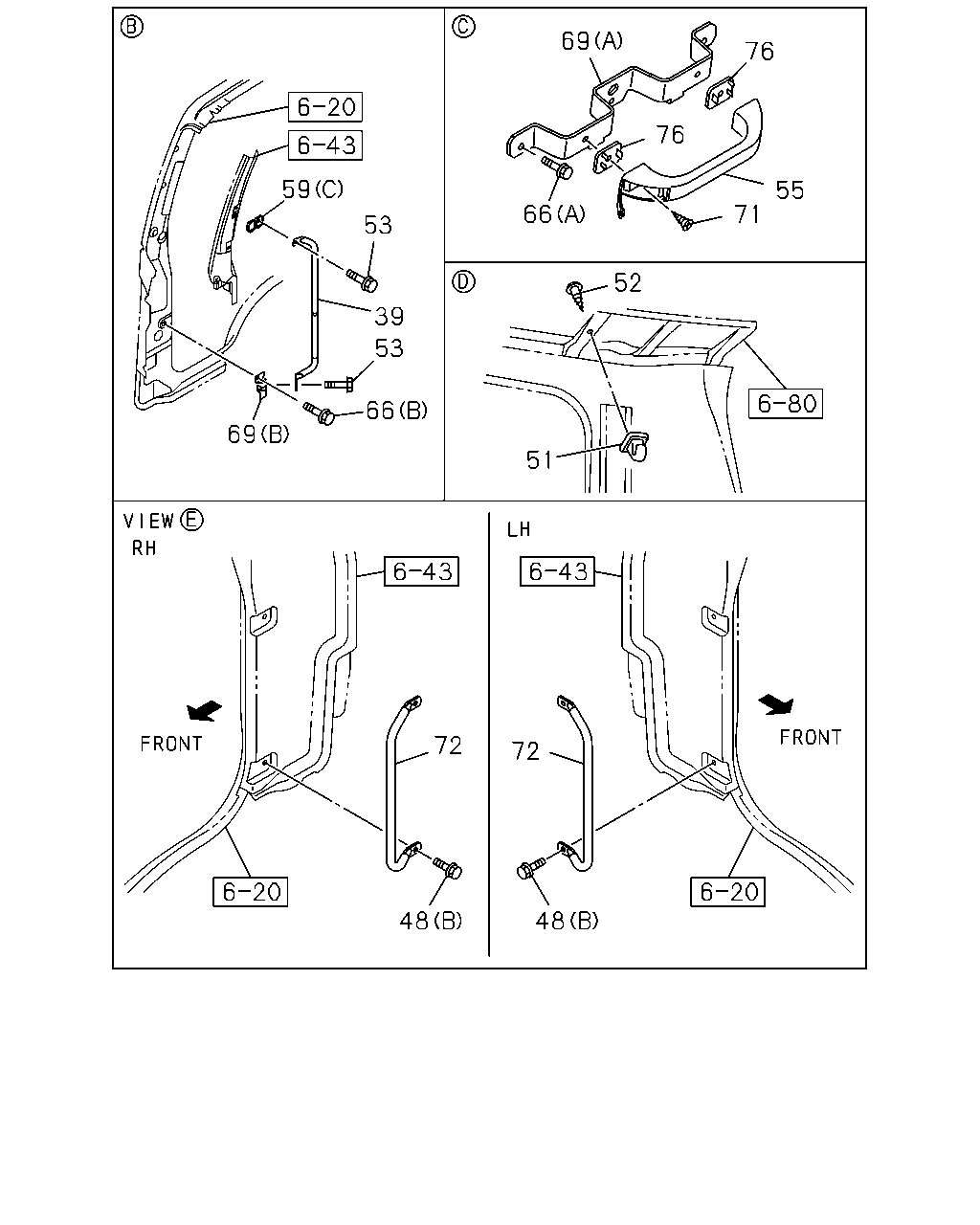

[743A] ASSIST GRIP NO.1 (22 parça)

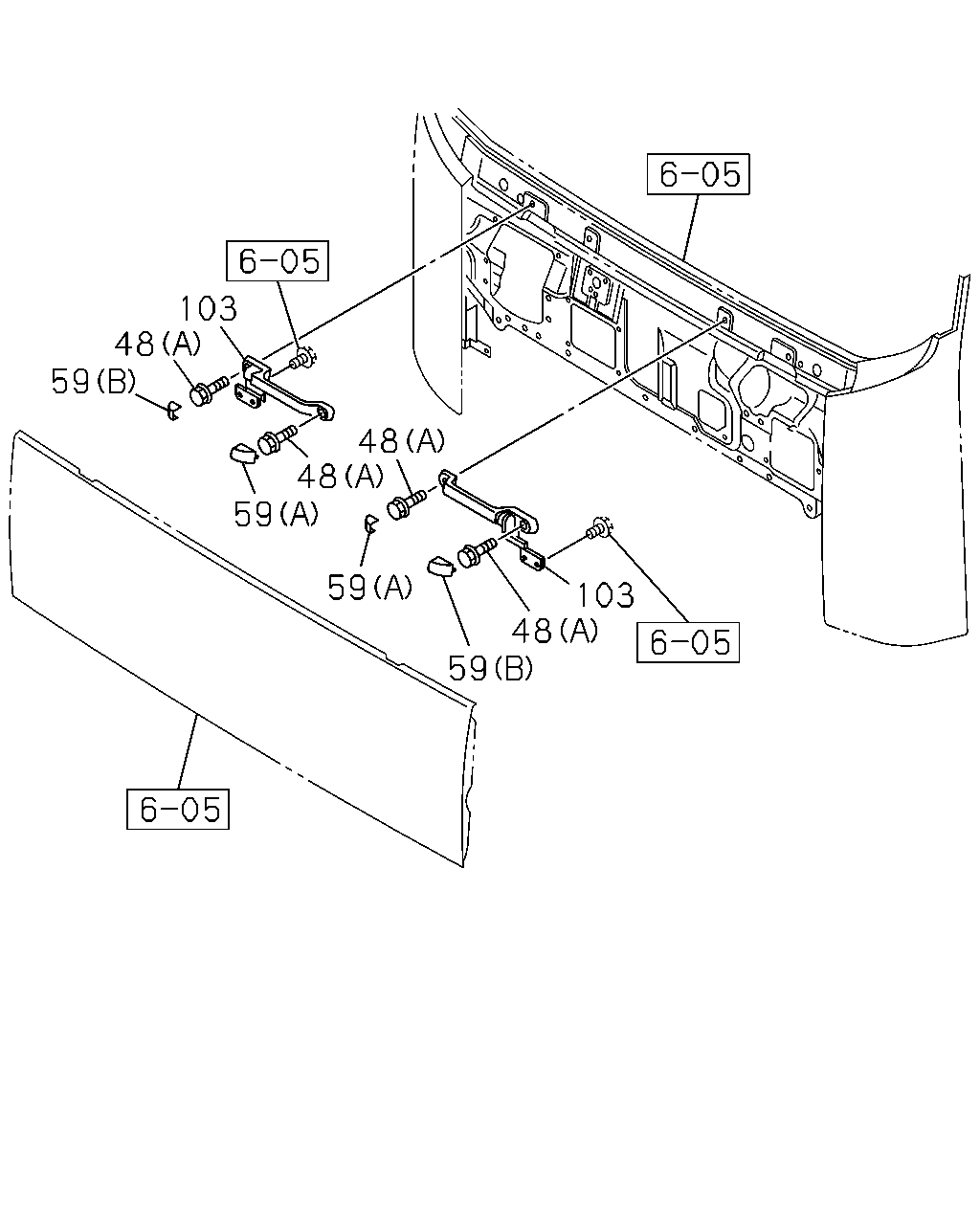

[743A] ASSIST GRIP NO.2 (7 parça)

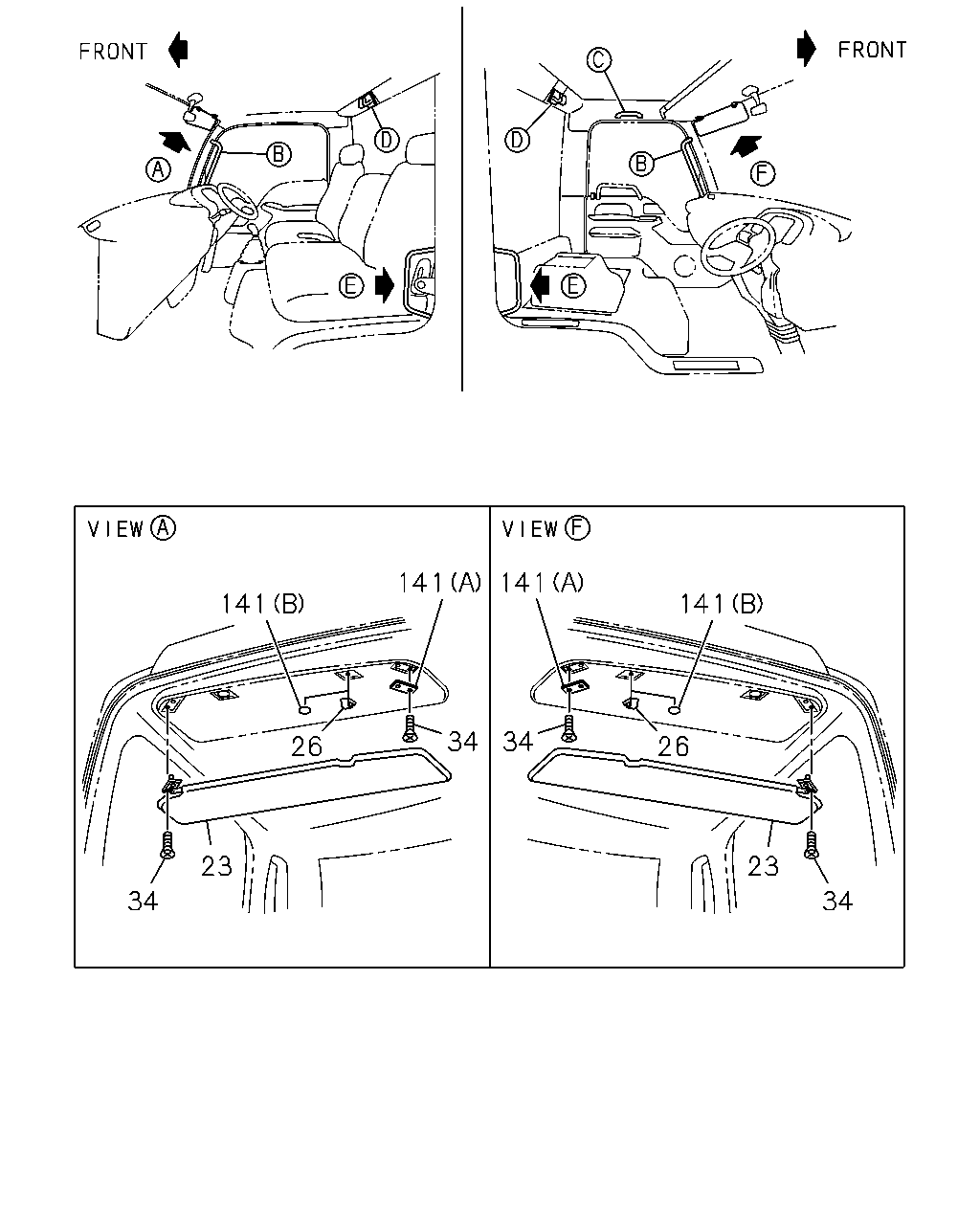

[743A] SUN VISOR (33 parça)

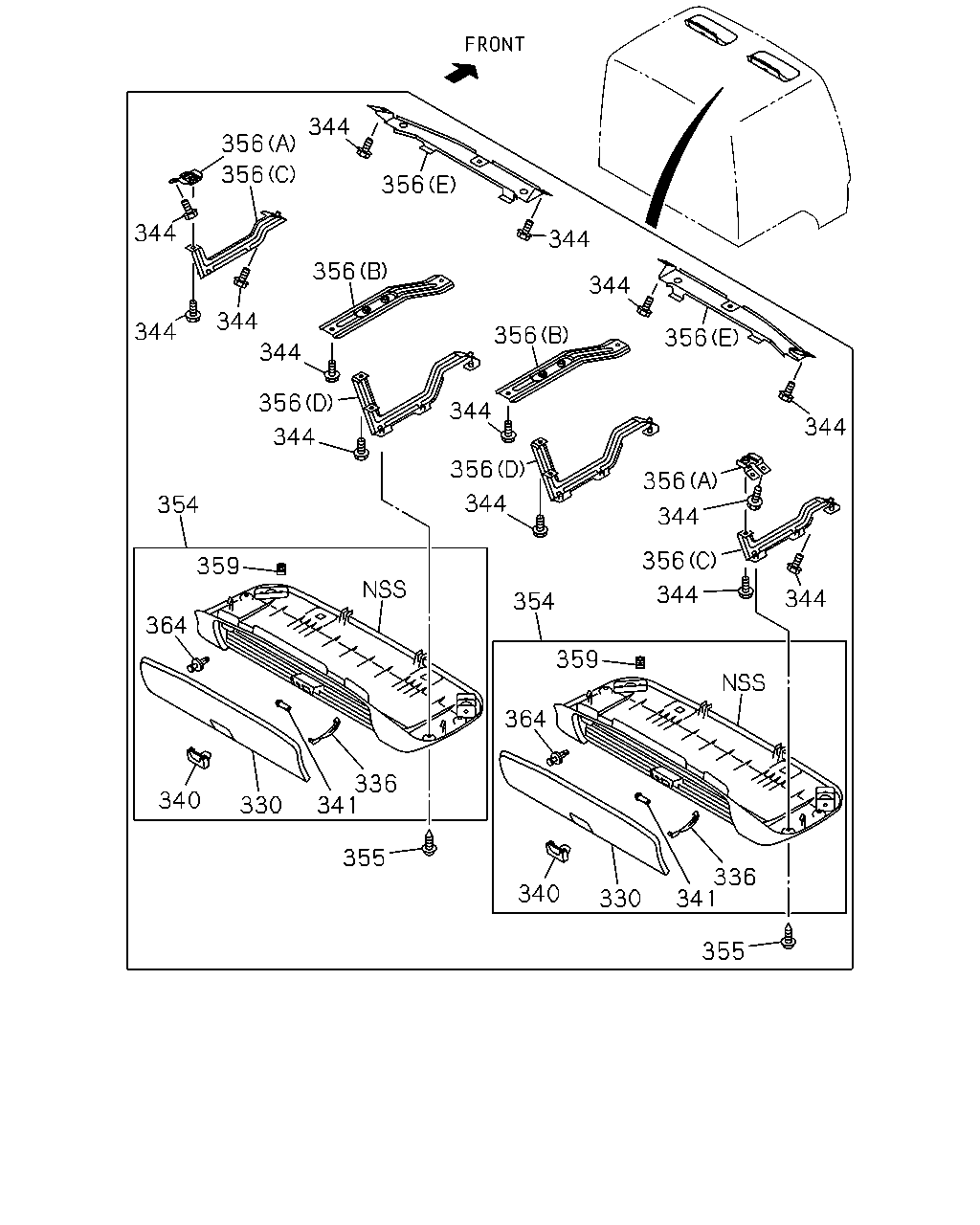

[743A] TRAY;HEADER ROOF (56 parça)
▶
69
76
76
59
55
71
66
53
52
39
53
66
69
51
72
72
48
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-942-2
01
1
0807-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-943-2
01
1
0807-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
0807-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
0807-
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
0807-
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
0807-
53
SCREW; ASSIST HANDLE
M8X20 FLANGE THA
0-28650-820-0
04
1
0807-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
0807-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
0807-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
0807-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
0807-
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE THA
0-28450-612-0
06
1
0807-
66
BOLT; ASSIST GRIP BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
04
1
0807-1102
66
BOLT; ASSIST GRIP BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
04
1
1103-1108
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
04
1
1109-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
0807-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
0807-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
0807-
71
SCREW
M6X28
8-98004-344-0
02
1
0807-
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
1112-
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
0807-
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
0807-
103
48
59
48
48
59
59
103
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
0807-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
0807-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
0807-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
0807-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
0807-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
0807-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
0807-
141
141
141
141
34
34
26
26
23
23
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
DARK GRAY
8-97407-373-2
01
1
0807-
23
SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY THA
8-97405-170-3
01
1
0807-1102
23
SUN VISOR
DARK GRAY THA
8-97405-170-3
01
1
1103-
26
HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY
8-97405-171-0
02
1
0807-1102
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
02
1
1103-
26
HOLDER; SUN VISOR
EXC. SUN VISOR PASSENGER<D20> DARK GRAY
8-97405-171-0
01
1
0807-1102
34
SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
04
1
0807-1102
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
04
1
1103-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
0807-1003
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26
8-98033-674-0
02
1
0807-1003
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
02
1
0807-1003
34
SCREW; SUN VISOR
EXC. SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
02
1
0807-1003
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1004-1102
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26
8-98033-674-0
02
1
1004-1102
34
SCREW; SUN VISOR
EXC. SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
02
1
1004-1102
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1103-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1103-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
0807-1003
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
0807-1003
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
0807-1003
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1004-1102
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1004-1102
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1103-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1103-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
0807-1003
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
0807-1003
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
0807-1003
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1004-1102
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1004-1102
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1103-1401
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1103-1401
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
344
356
356
356
344
344
356
344
344
344
356
356
344
356
344
344
344
356
356
344
354
344
356
359
344
344
354
364
359
364
336
341
340
330
355
336
341
340
330
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1103-
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1103-
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
02
1
0807-1102
330
LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-834-1
02
1
0807-1102
336
STAY; LID
1-72448-379-3
02
1
0807-1102
336
STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-379-3
02
1
0807-1102
336
STAY; LID
1-72448-379-3
02
1
1103-
336
STAY; LID
1-72448-379-3
02
1
1103-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
0807-1102
340
LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-376-0
01
1
0807-1102
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1103-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1103-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1112-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1112-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
0807-1102
341
HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98025-428-2
02
1
0807-1102
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1103-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1103-
344
BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE THA
0-28450-612-0
08
1
0807-1102
344
BOLT; BRKT,FRT
M6X12 FLANGE THA
0-28450-612-0
12
1
1103-
344
BOLT; BRKT,FRT
M6X12 FLANGE THA
0-28450-612-0
12
1
0807-1102
344
BOLT; BRKT,FRT
M6X12 FLANGE THA
0-28450-612-0
08
1
1103-
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
0807-1102
354
TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-386-5
01
1
0807-1102
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1103-1401
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1103-1401
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1402-
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1402-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
0807-1102
355
SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
0807-1102
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1103-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1103-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)
8-98016-871-3
01
1
0807-1102
356
BRACKET; ROOF OUTER
(C)
8-98016-871-3
01
1
1103-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)
8-98042-009-2
01
1
0807-1102
356
BRACKET; ROOF OUTER
(D)
8-98042-009-2
01
1
1103-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
0807-1102
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-97386-874-1
01
1
0807-1102
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1103-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1103-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
0807-1102
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98010-059-0
01
1
0807-1102
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1103-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1103-
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
0807-
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
0807-
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
0807-
356
BRACKET; ROOF OUTER
(E)
8-98042-016-3
01
1
0807-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
0807-1102
359
HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98041-754-0
04
1
0807-1102
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1103-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1103-
364
STOPPER; LID
8-98010-867-1
03
1
0807-1102
364
STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98010-867-1
03
1
0807-1102
364
STOPPER; LID
8-98010-867-1
03
1
1103-
364
STOPPER; LID
8-98010-867-1
03
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
