Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

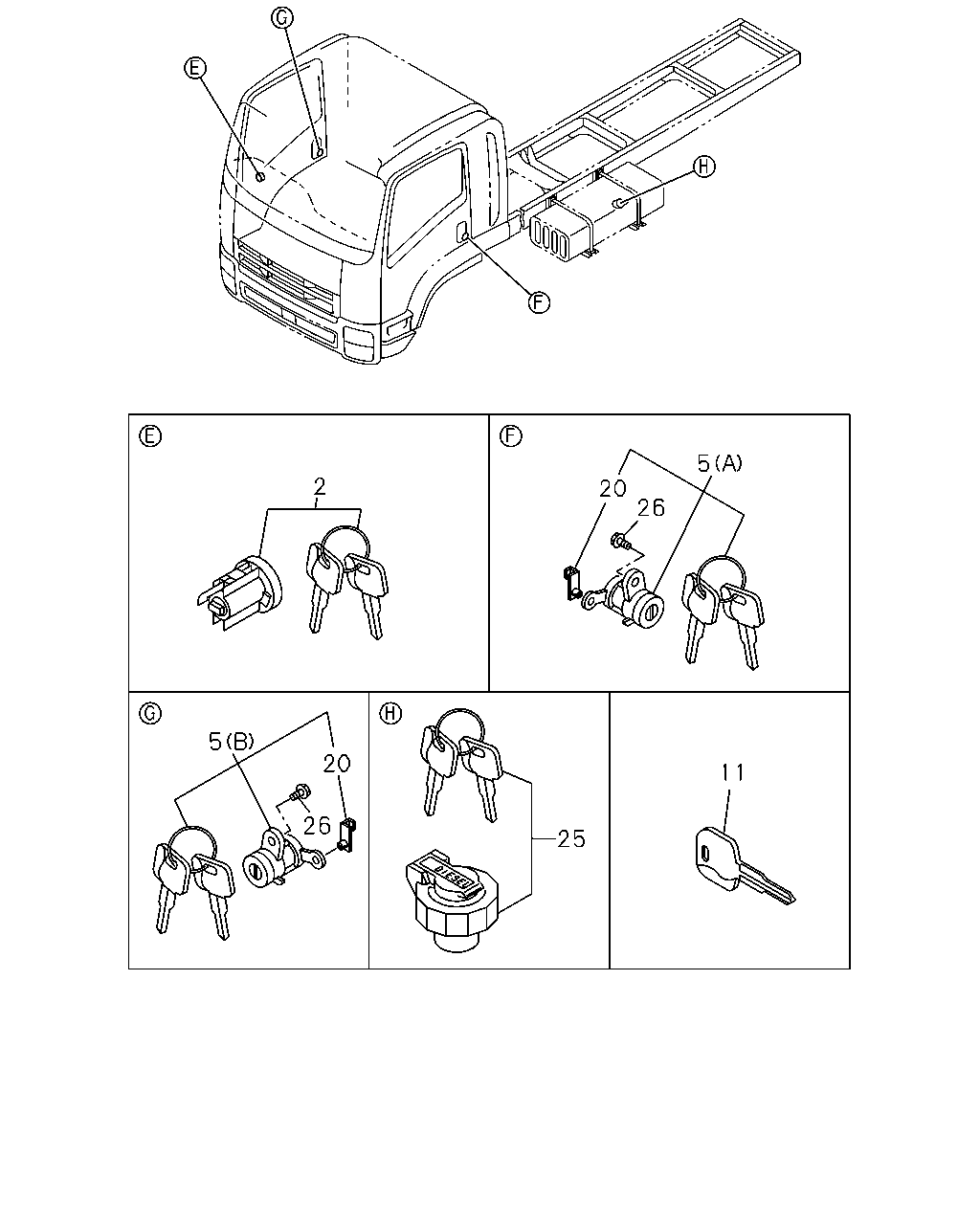

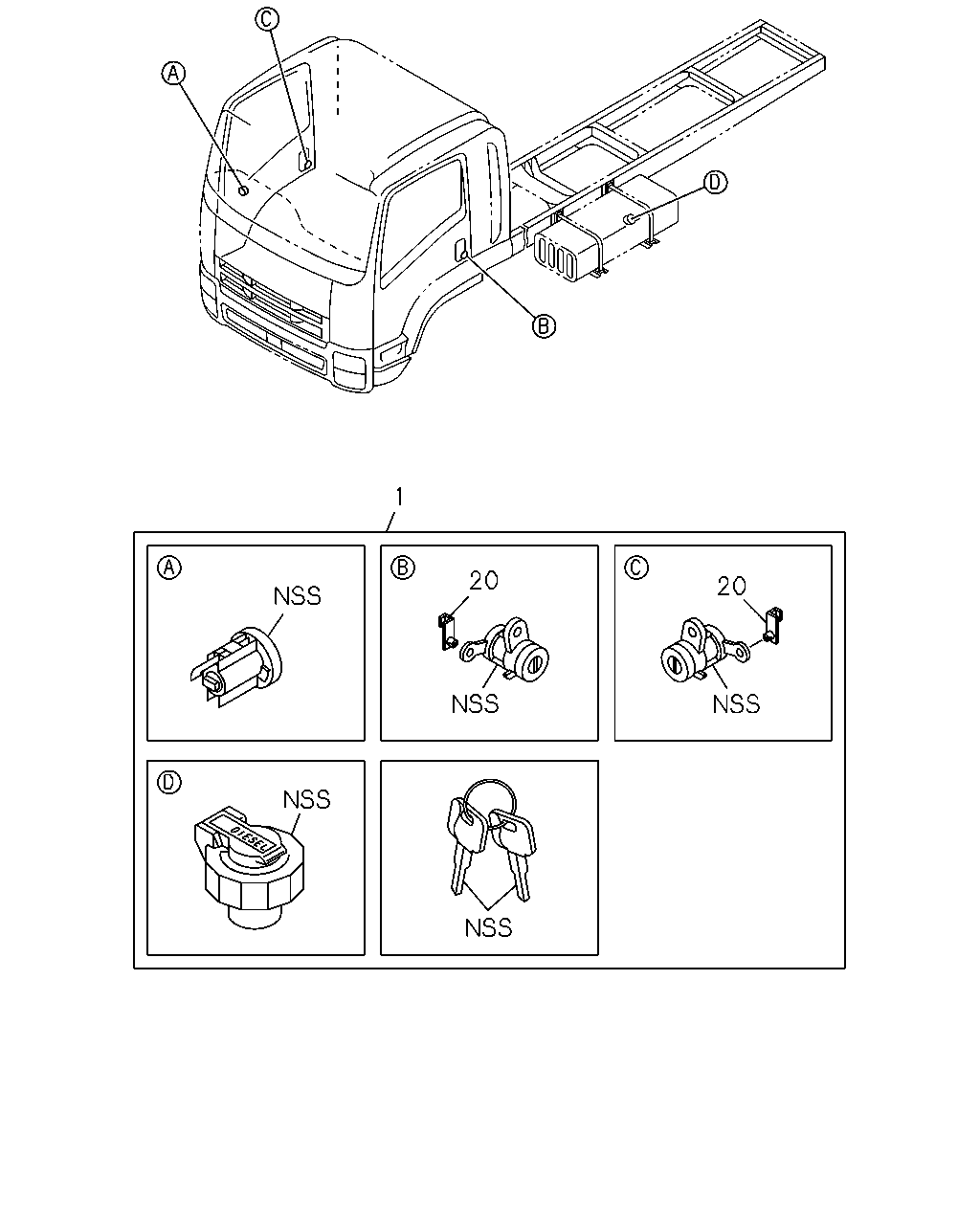

7-30 — LOCK CYLINDER SET
(#68205) — 15 parça
◀
[730A] NO.2 (10 parça)
[730A] NO.1 (5 parça)
▶
5
2
20
26
5
20
11
26
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP KEY LOCK<N05>
8-98055-148-0
01
1
0807-1204
2
BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP KEY LOCK<N05> THA
8-98201-342-0
01
1
1205-
5
CYLINDER ASM; DOOR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) THA
8-98055-150-0
01
1
0807-
5
CYLINDER ASM; DOOR LOCK
FUEL TANK CAP KEY LOCK<N05> (B) THA
8-98055-149-0
01
1
0807-
11
KEY; BLANK
FUEL TANK CAP KEY LOCK<N05> THA
8-98055-170-0
AR
1
0807-
20
SNAP; DOOR LOCK CYL
FUEL TANK CAP KEY LOCK<N05> THA
8-98055-181-0
01
1
0807-
20
SNAP; DOOR LOCK CYL
FUEL TANK CAP KEY LOCK<N05> THA
8-98055-182-0
01
1
0807-
25
CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05>
8-98088-982-0
01
1
0807-0908
25
CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> THA
8-98146-010-0
01
1
0909-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
0807-
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05>
8-98097-265-0
01
1
0807-0908
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> THA
8-98146-008-1
01
1
0909-1204
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> THA
8-97925-261-0
01
1
1205-
20
SNAP; DOOR LOCK CYL
FUEL TANK CAP KEY LOCK<N05> THA
8-98055-181-0
01
1
0807-
20
SNAP; DOOR LOCK CYL
FUEL TANK CAP KEY LOCK<N05> THA
8-98055-182-0
01
1
0807-
