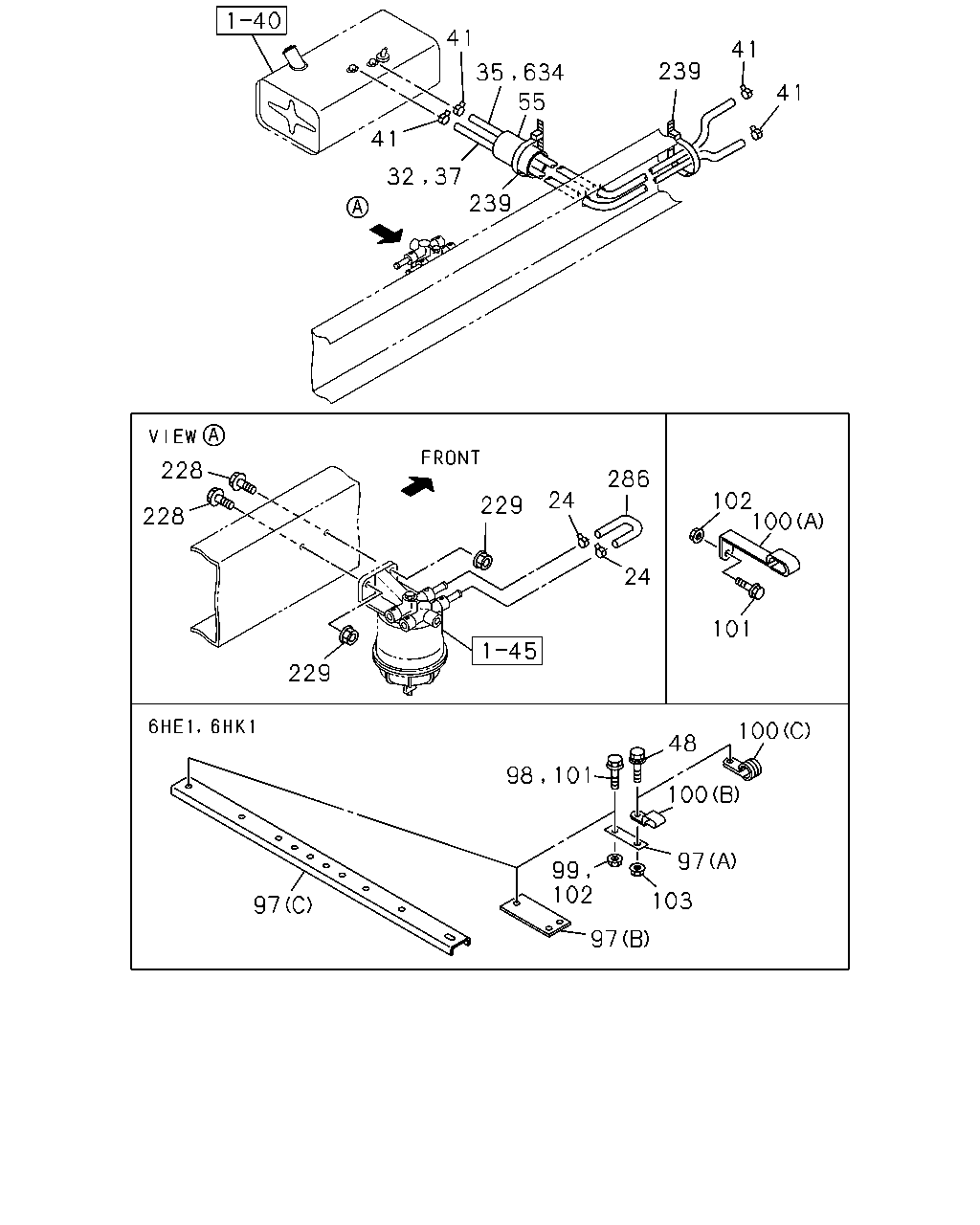

1-41 — FUEL PIPING; CHASSIS (#6820) — 83 parça

41 41 239 41 55 41 239 228 286 24 102 100 229 228 24 101 229 100 48 98 101 100 97 99 102 103 97 97 35 634 32 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	9806-9911	●	●
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	9912-0504			●
32	PIPE; DELIVERY,FUEL TANK L=4000 SERVICED BY L=8000	0-01260-800-0	01	1	0505-			●
32	PIPE; DELIVERY,FUEL TANK SERVICED BY L=5350	0-01262-535-0	01	1	0505-			●
35	PIPE; FUEL TANK,RETURN L=7000 SERVICED BY L=8000	0-01260-800-0	01	1	9806-9911	●	●
37	HOSE; RUBBER DELIVERY L=7000 SERVICED BY L=8000	0-01260-800-0	01	1	9806-9911	●	●
37	HOSE; RUBBER DELIVERY L=7000 SERVICED BY L=8000	0-01260-800-0	01	1	9912-0504			●
41	CLIP; FUEL PIPE,FUEL TANK ID=17.1	8-94122-679-0	02	1	0505-			●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	9806-9911	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	9912-			●
48	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9806-9911	●
48	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9912-0502			●
48	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0503-0512			●
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0505-			●
97	BRACKET; CLIP (A) L=43	1-47475-707-0	01	1	0503-			●
97	BRACKET; CLIP (B)	1-47479-111-0	02	1	0503-			●
97	BRACKET; CLIP (C)	1-47479-555-0	01	1	0503-			●
97	BRACKET; CLIP (A) L=72	1-47475-704-0	01	1	9806-9911	●
97	BRACKET; CLIP (A) L=72	1-47475-704-0	01	1	9912-			●
98	BOLT; BRKT,FUEL PIPE M8X25 FLANGE	0-28680-825-0	04	1	0503-0512			●
98	BOLT; BRKT,FUEL PIPE M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0503-0512			●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91150-108-0	06	1	0503-0602			●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	06	1	0603-			●
100	CLIP; FUEL PIPE (A) ID=14X2 H=85 L=30	1-09701-062-0	10	1	0504-0504			●
100	CLIP; FUEL PIPE (C) ID=37 L=35	1-09701-109-0	01	1	0505-			●
100	CLIP; FUEL PIPE (B) ID=15 & 19 H=33 L=25	1-09701-317-0	05	1	0505-			●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9806-9911	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9912-0504			●
100	CLIP; FUEL PIPE (B) ID=15 & 19 H=50 L=60	1-09701-316-0	05	1	0505-			●
100	CLIP; FUEL PIPE (A) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9912-9912			●
100	CLIP; FUEL PIPE EXC. FUEL TANK 280L<RF4> (A) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9912-0001	●	●	●
100	CLIP; FUEL PIPE (A) ID=14X2 H=85 L=30	1-09701-062-0	01	1	0002-0502			●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9806-9808	●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> EXC. CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9809-9911	●
100	CLIP; FUEL PIPE FUEL TANK 280L<RF4> EXC. CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	01	1	9809-9911		●
100	CLIP; FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X2 H=85 L=30	1-09701-062-0	02	1	9806-9808	●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> EXC. CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	02	1	9806-9808		●
100	CLIP; FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>,CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	02	1	9809-9911	●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> EXC. CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	02	1	9809-9911		●
100	CLIP; FUEL PIPE CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	06	1	9806-9911		●
100	CLIP; FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20>,CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	03	1	9806-9808		●
100	CLIP; FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>,CTR SPLIT FRAME<TLW> (A) ID=14X2 H=85 L=30	1-09701-062-0	03	1	9809-9911		●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 280L<RF4> M8X30 FLANGE	0-28680-830-0	02	1	9912-0001	●	●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	02	1	9806-9911	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20>,CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	03	1	9806-9911	●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 280L<RF4> EXC. CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	01	1	9809-9911	●	●
101	BOLT; CLIP,FUEL PIPE CTR SPLIT FRAME<TLW> M8X30 FLANGE	0-28680-830-0	06	1	9806-9911		●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9912-9912			●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 280L<RF4> M8X30 FLANGE	0-28680-830-0	01	1	9912-0001	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0002-0502			●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28680-830-0	11	1	0503-0512			●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28650-830-0	11	1	0601-			●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 280L<RF4> M8 FLANGE	0-91150-108-0	02	1	9912-0001	●	●	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	02	1	9806-9911	●	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20>,CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	03	1	9806-9911	●	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 280L<RF4> EXC. CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	01	1	9809-9911	●	●
102	NUT; CLIP,FUEL PIPE CTR SPLIT FRAME<TLW> M8 FLANGE	0-91150-108-0	06	1	9806-9911		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9912-9912			●
102	NUT; CLIP,FUEL PIPE FUEL TANK 280L<RF4> M8 FLANGE	0-91150-108-0	01	1	9912-0001	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	0002-0502			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	11	1	0503-0602			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	11	1	0603-			●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9806-9911	●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9912-0502			●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0503-0602			●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	9806-9911	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	9912-0512			●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28651-035-0	02	1	0601-			●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9806-9911	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9912-0602			●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-			●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	9806-9911	●	●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	9912-0303			●
239	CLIP; FUEL PIPE L=300	1-09707-001-1	03	1	0304-0502			●
239	CLIP; FUEL PIPE L=300	1-09707-001-1	06	1	0503-			●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9806-9911	●	●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9912-0403			●
286	PIPE; VINYL SEDIMENTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0404-0504			●
634	HOSE; RUBBER RETURN L=7000 SERVICED BY L=8000	0-01260-800-0	01	1	9912-			●
