Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

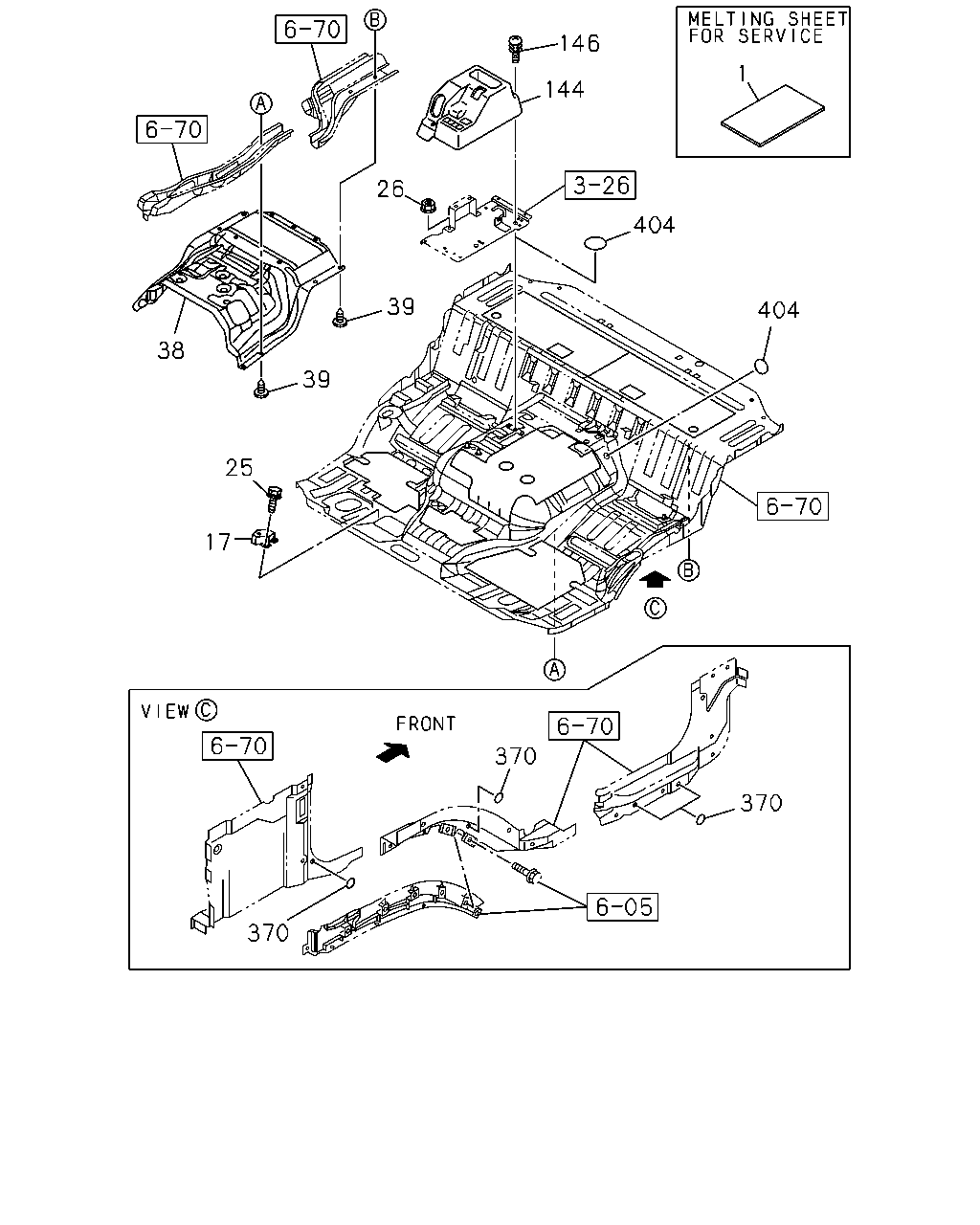

6-76 — FLOOR EQUIPMENT AND SEALING
(#68196) — 15 parça
146
1
144
26
404
39
404
38
39
25
17
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA
8-94262-093-0
AR
1
0807-
17
REST; FOOT,DRIVER
8-98076-322-1
01
1
0807-
25
SCREW; FOOT REST
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0807-
26
NUT; FLANGE
M8 FLANGE THA
0-91180-108-0
02
1
0807-
38
INSULATOR; ENG COVER
8-97586-180-6
01
1
0807-1102
38
INSULATOR; ENG COVER
8-98180-258-0
01
1
1103-1310
38
INSULATOR; ENG COVER
8-98248-305-0
01
1
1311-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4 THA
8-97808-623-0
24
1
0807-1102
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4 THA
8-97808-623-0
17
1
1103-
144
COVER; HAND BRK VLV
GRAY
8-97409-900-0
01
1
0807-
146
BOLT; COVER BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
03
1
0807-
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
0807-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
404
SEAL; FLOOR,HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
0807-
404
SEAL; FLOOR,HOLE
OD=25 BLACK THA
1-76798-019-0
12
1
0807-
