1-40 — FUEL TANK (#6819) — 107 parça

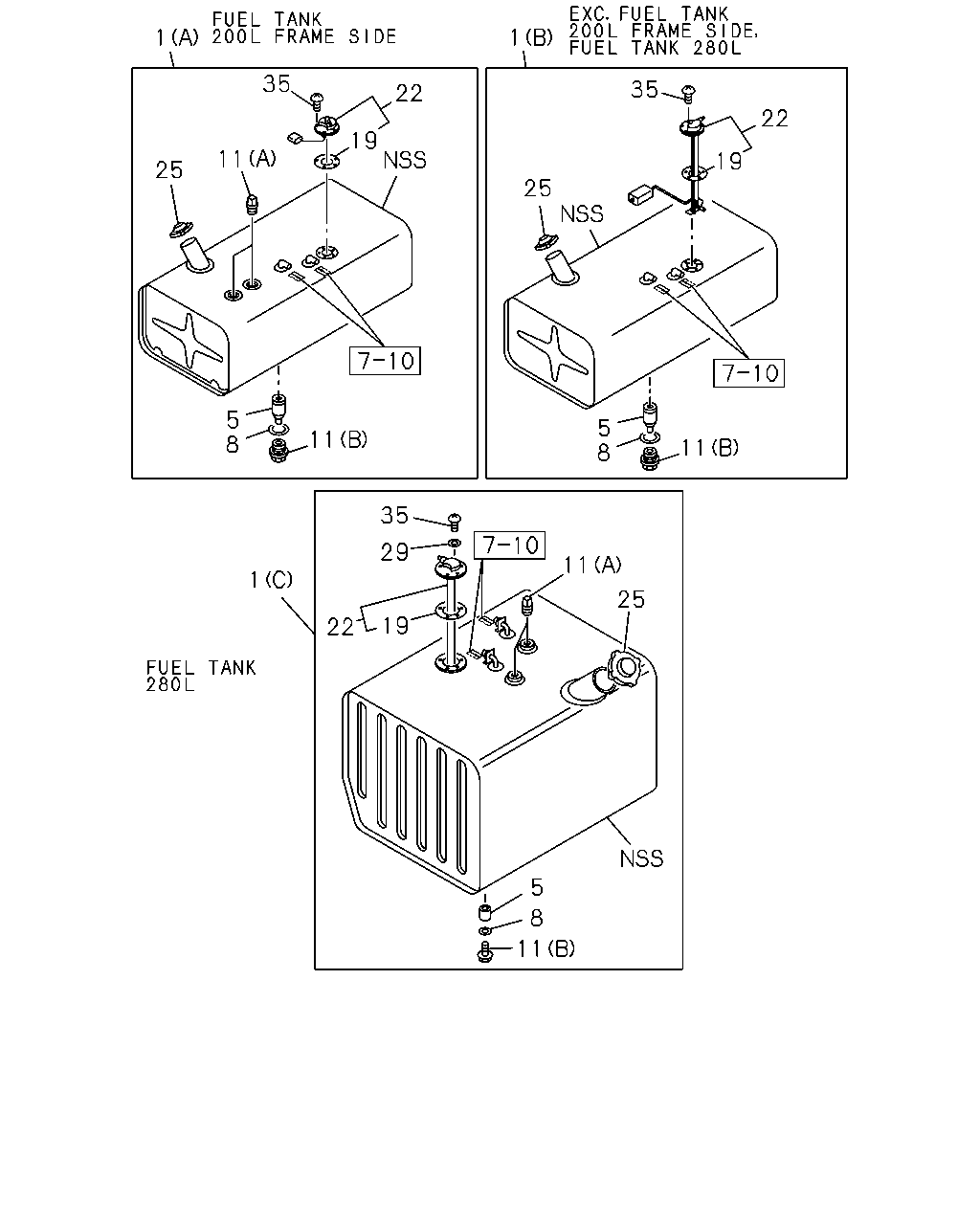

1 1 35 35 22 22 19 11 19 25 25 5 8 5 8 11 11 35 29 11 1 25 19 22 5 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-1	01	1	9806-9911	●	●
1	TANK; FUEL EXC. FUEL TANK 280L<RF4> (A) 1260X532X322 200L	1-22401-087-2	01	1	9912-			●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (B) 914X502X322 137L	1-22400-991-0	01	1	9806-9911	●	●
1	TANK; FUEL FUEL TANK 280L<RF4> (C) 840X649X549 278L	8-94300-186-1	01	1	9806-9808	●	●
1	TANK; FUEL FUEL TANK 280L<RF4> (C) 840X649X549 278L	1-22401-086-0	01	1	9809-9911	●	●
1	TANK; FUEL FUEL TANK 280L<RF4> (C) 840X649X549 278L	1-22401-086-1	01	1	9912-			●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9806-9911	●	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9912-			●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9806-9911	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9912-0509			●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-			●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) PT1/4	9-99204-513-0	02	1	9806-9911	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 280L<RF4> (B)	1-09604-052-0	01	1	9806-9911	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 280L<RF4> (B)	1-09604-052-0	01	1	9912-0003			●
11	PLUG; DRAIN,FUEL TANK (B)	1-09604-052-0	01	1	0004-			●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 280L<RF4> (B)	1-09604-052-0	01	1	9806-9911	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 280L<RF4> (B)	1-09604-052-0	01	1	9912-0003			●
11	PLUG; DRAIN,FUEL TANK (A) PT1/4	9-99204-513-0	02	1	9912-			●
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4>	1-83149-003-0	01	1	9912-			●
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4>	9-83135-003-0	01	1	9806-9911	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4>	9-83135-003-0	01	1	9912-			●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 280L<RF4>	1-83149-003-0	01	1	9809-9911	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 280L<RF4>	9-83135-003-0	01	1	9806-9808	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 280L<RF4>	1-83149-003-0	01	1	9912-			●
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	9-83132-101-0	01	1	9806-9808	●	●
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	1-83141-118-0	01	1	9809-9911	●	●
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	1-83141-118-0	01	1	9912-			●
22	UNIT; FUEL TANK EXC. FUEL TANK 280L<RF4>	1-83141-078-0	01	1	9806-9911	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 280L<RF4>	1-83141-106-0	01	1	9912-			●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-023-1	01	1	9806-9911	●	●
25	CAP; FILLER,FUEL TANK	1-22440-023-1	01	1	9912-			●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-028-0	01	1	9806-9911	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 280L<RF4> ID=4.3	9-09160-504-0	01	1	9806-9911	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 280L<RF4> ID=4.3	9-09160-504-0	01	1	9912-			●
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	9-03920-410-0	05	1	9806-9911	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	9-03920-410-0	05	1	9912-0604			●
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	0-36230-410-0	05	1	0605-			●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 280L<RF4>	1-22419-012-0	05	1	9806-9911	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 280L<RF4>	1-22419-012-0	05	1	9912-			●

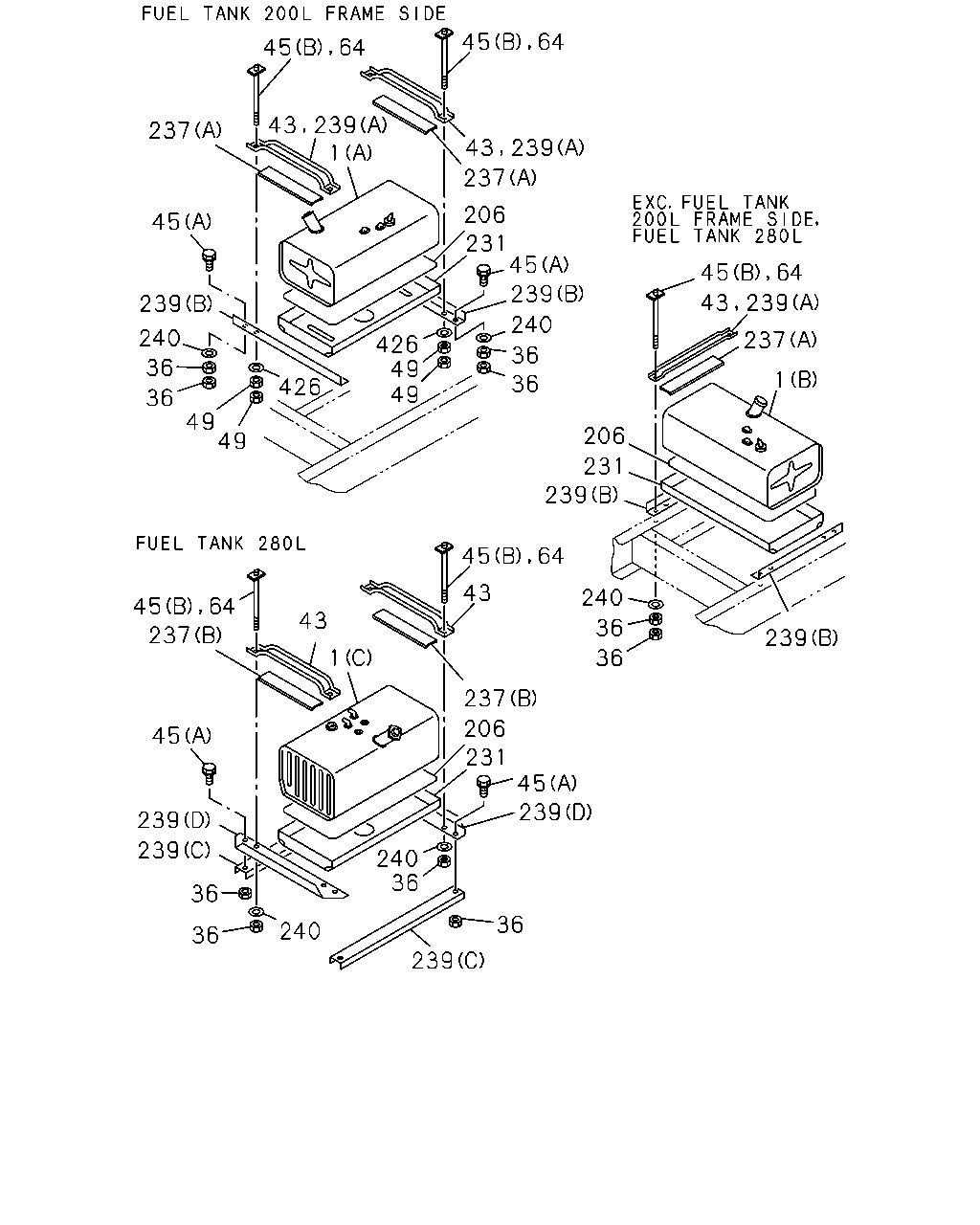

1 237 237 206 231 45 45 239 239 240 240 237 426 49 49 36 36 1 36 426 36 49 49 206 231 239 43 240 43 36 237 239 1 36 237 206 231 45 45 239 239 239 240 36 36 36 240 36 239 45 64 45 64 43 239 43 239 45 64 45 64 43 239 64 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-1	01	1	9806-9911	●	●
1	TANK; FUEL EXC. FUEL TANK 280L<RF4> (A) 1260X532X322 200L	1-22401-087-2	01	1	9912-			●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (B) 914X502X322 137L	1-22400-991-0	01	1	9806-9911	●	●
1	TANK; FUEL FUEL TANK 280L<RF4> (C) 840X649X549 278L	8-94300-186-1	01	1	9806-9808	●	●
1	TANK; FUEL FUEL TANK 280L<RF4> (C) 840X649X549 278L	1-22401-086-0	01	1	9809-9911	●	●
1	TANK; FUEL FUEL TANK 280L<RF4> (C) 840X649X549 278L	1-22401-086-1	01	1	9912-			●
36	NUT; SPACER,FUEL TANK UPPER M12 FLANGE	0-91150-212-0	04	1	0007-0602			●
36	NUT; SPACER,FUEL TANK UPPER M12 FLANGE	0-91180-212-0	04	1	0603-			●
36	NUT; SPACER,FUEL TANK LOWER M12	9-99111-412-0	04	1	9806-9911	●	●
36	NUT; SPACER,FUEL TANK LOWER M12	9-99111-412-0	04	1	9912-0509			●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> UPPER M12	9-99110-512-0	08	1	9806-9911	●	●
36	NUT; SPACER,FUEL TANK UPPER M12	9-99110-512-0	08	1	9912-0006			●
36	NUT; SPACER,FUEL TANK UPPER M12	9-99110-512-0	04	1	0007-0509			●
36	NUT; SPACER,FUEL TANK UPPER,LOWER M12	9-99110-512-0	08	1	0510-0512			●
36	NUT; SPACER,FUEL TANK UPPER,LOWER M12	0-91110-512-0	08	1	0601-			●
36	NUT; SPACER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> UPPER M12	9-99110-512-0	04	1	9806-9911	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22555-005-0	02	1	9806-9911	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 280L<RF4>	8-97530-123-0	02	1	9912-			●
43	BRACKET; FUEL TANK FUEL TANK 280L<RF4>	1-22555-004-0	02	1	9806-9911	●	●
43	BRACKET; FUEL TANK FUEL TANK 280L<RF4>	1-22555-004-0	02	1	9912-			●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M12X359	9-22559-030-2	04	1	9806-9911	●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 280L<RF4> (B) M12X359	9-22559-030-2	04	1	9912-			●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A) M12X40 FLANGE	0-28681-240-0	04	1	9806-9911	●	●
45	BOLT; BRKT,FUEL TANK (A) M12X40 FLANGE	0-28681-240-0	04	1	9912-0106			●
45	BOLT; BRKT,FUEL TANK (A) M12X45 FLANGE	0-28081-245-0	04	1	0107-0512			●
45	BOLT; BRKT,FUEL TANK (A) M12X45 FLANGE	0-28051-245-0	04	1	0601-			●
45	BOLT; BRKT,FUEL TANK FUEL TANK 280L<RF4> (B) M12X594	1-22559-003-1	04	1	9806-9911	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 280L<RF4> (B) M12X594	1-22559-003-1	04	1	9912-			●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> UPPER M12	9-99110-512-0	04	1	9806-9911	●	●
49	NUT; BRKT UPPER M12	9-99110-512-0	04	1	9912-0512			●
49	NUT; BRKT UPPER M12	0-91110-512-0	04	1	0601-			●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> LOWER M12	9-99111-412-0	04	1	9806-9911	●	●
49	NUT; BRKT LOWER M12	9-99111-412-0	04	1	9912-0512			●
49	NUT; BRKT LOWER M12	0-91111-512-0	04	1	0601-			●
64	BOLT; FUEL TANK FUEL TANK 280L<RF4> M12X594	1-22559-003-1	04	1	9806-9911	●	●
64	BOLT; FUEL TANK FUEL TANK 280L<RF4> M12X594	1-22559-003-1	04	1	9912-			●
64	BOLT; FUEL TANK EXC. FUEL TANK 280L<RF4> M12X359	9-22559-030-2	04	1	9806-9911	●	●
64	BOLT; FUEL TANK EXC. FUEL TANK 280L<RF4> M12X359	9-22559-030-2	04	1	9912-			●
206	SLEEPER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22554-095-0	01	1	9806-9902	●	●
206	SLEEPER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22555-018-0	01	1	9903-9911	●	●
206	SLEEPER; FUEL TANK EXC. FUEL TANK 280L<RF4>	1-22555-018-0	01	1	9912-			●
206	SLEEPER; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	9-22554-056-0	01	1	9806-9911	●	●
206	SLEEPER; FUEL TANK FUEL TANK 280L<RF4>	1-22554-002-0	01	1	9806-9911	●	●
206	SLEEPER; FUEL TANK FUEL TANK 280L<RF4>	1-22554-002-0	01	1	9912-			●
231	COVER; UNDER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22557-068-0	01	1	9806-9902	●	●
231	COVER; UNDER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22557-040-0	01	1	9903-9911	●	●
231	COVER; UNDER,FUEL TANK EXC. FUEL TANK 280L<RF4>	1-22557-040-0	01	1	9912-			●
231	COVER; UNDER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	9-22557-052-0	01	1	9806-9911	●	●
231	COVER; UNDER,FUEL TANK FUEL TANK 280L<RF4>	1-22557-003-0	01	1	9806-9911	●	●
231	COVER; UNDER,FUEL TANK FUEL TANK 280L<RF4>	1-22557-003-0	01	1	9912-			●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=540 L=540	1-22553-006-0	02	1	9806-9911	●	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 280L<RF4> (A) L=540 L=540	1-22553-006-0	02	1	9912-			●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 280L<RF4> (B) L=580	1-22553-003-0	02	1	9806-9911	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 280L<RF4> (B) L=580	1-22553-003-0	02	1	9912-			●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9806-9911	●	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 280L<RF4> (A)	8-97530-123-0	02	1	9912-			●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B)	1-22555-015-0	02	1	9806-9911	●	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 280L<RF4> (B)	8-97530-124-0	02	1	9912-			●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A)	9-22555-005-0	04	1	9806-9911	●	●
239	SUPPORT; FUEL TANK FUEL TANK 280L<RF4> (C)	1-22555-004-0	02	1	9806-9911	●	●
239	SUPPORT; FUEL TANK FUEL TANK 280L<RF4> (C)	1-22555-004-0	02	1	9912-			●
239	SUPPORT; FUEL TANK FUEL TANK 280L<RF4> (D)	1-22555-017-0	02	1	9809-9911	●	●
239	SUPPORT; FUEL TANK FUEL TANK 280L<RF4> (D)	1-22555-017-0	02	1	9912-0001			●
239	SUPPORT; FUEL TANK FUEL TANK 280L<RF4> (D)	1-22555-020-1	02	1	0002-			●
240	WASHER; PL,FUEL TANK ID=12.5 OD=26	9-09164-612-0	04	1	9806-9911	●	●
240	WASHER; PL,FUEL TANK ID=12.5 OD=26	9-09164-612-0	04	1	9912-			●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09164-612-0	04	1	9806-9911	●	●
426	WASHER; PL ID=12.5 OD=26	9-09164-612-0	04	1	9912-			●
