Sayfa 6-31 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11133 - GVR(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶

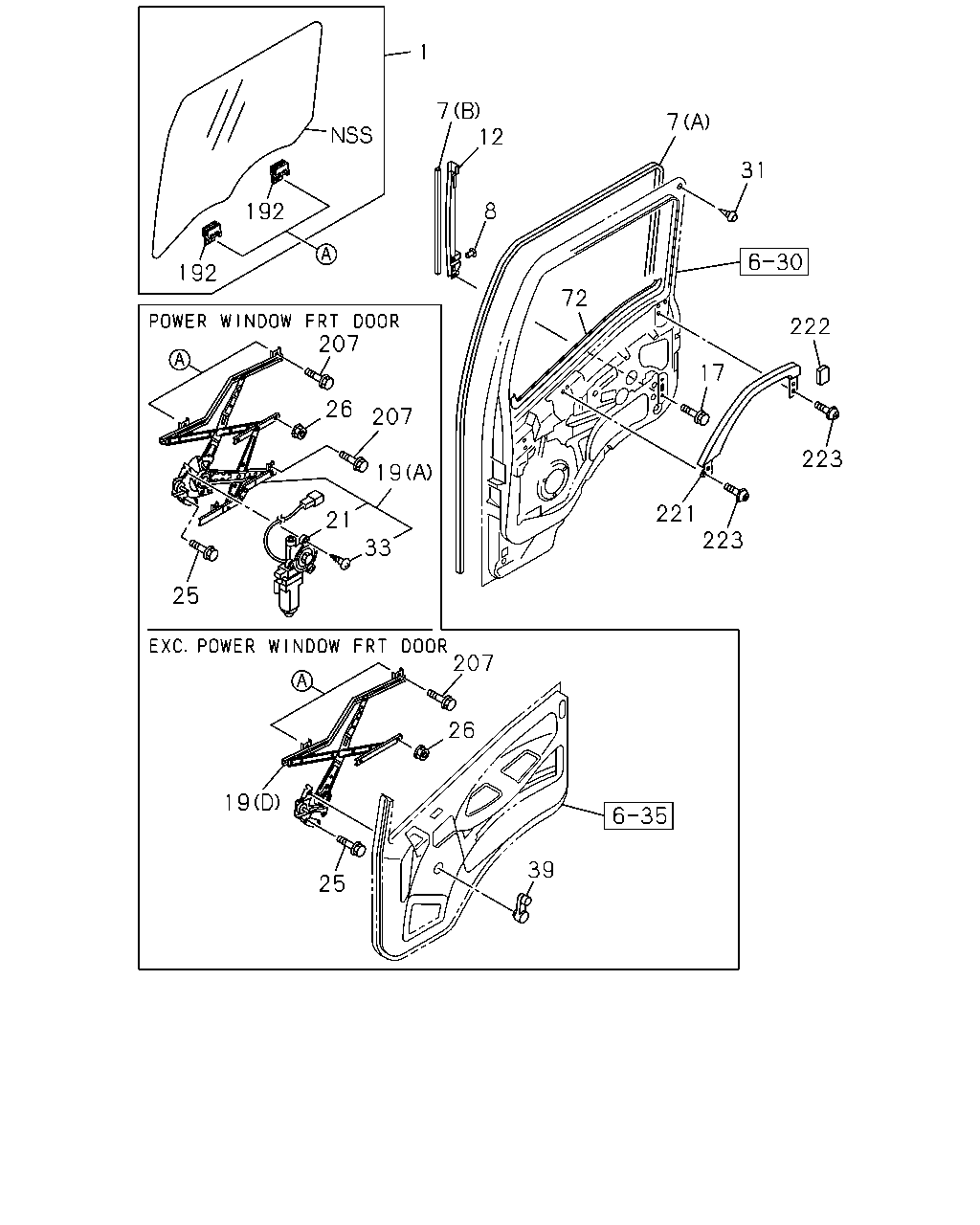

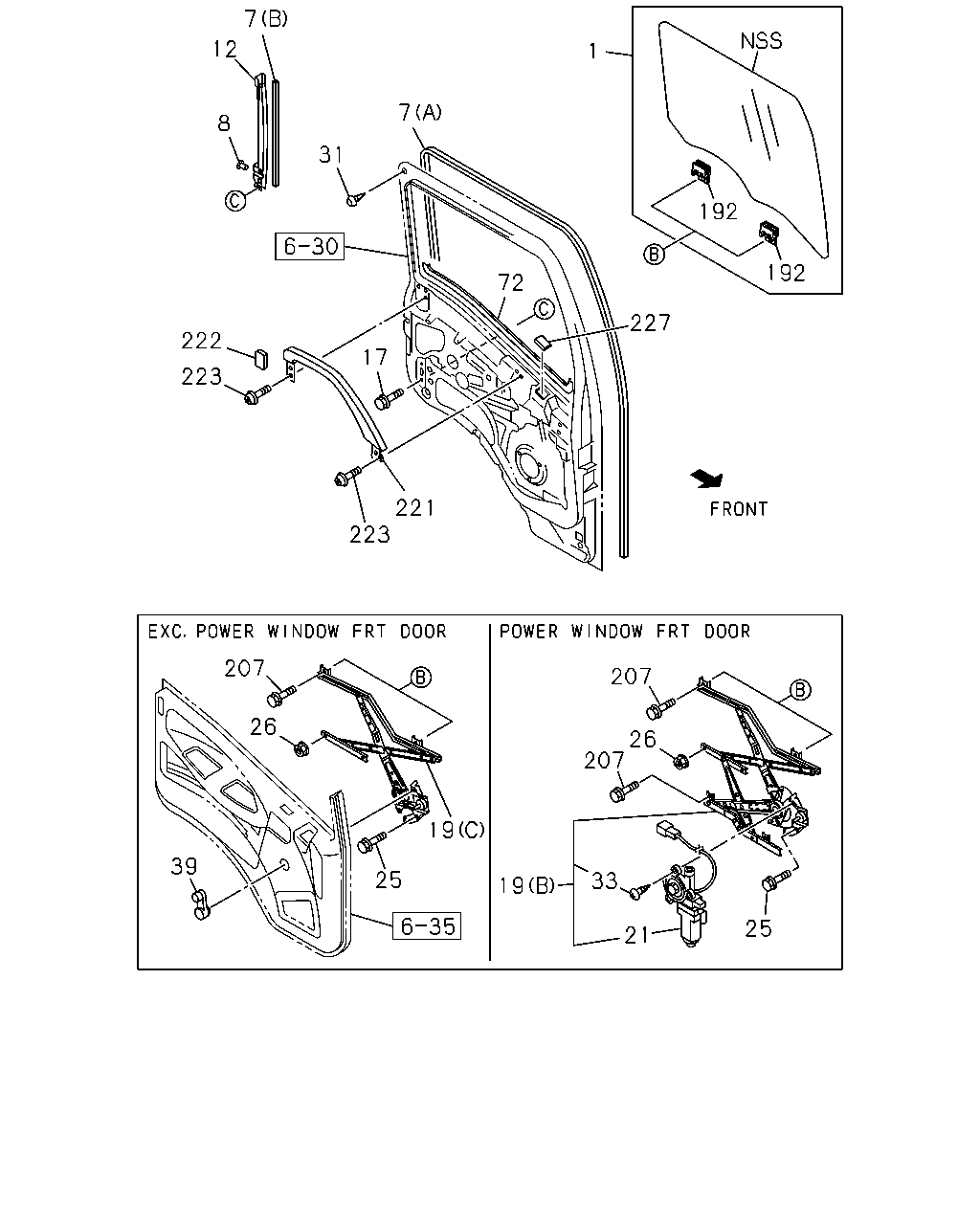

6-31 — FRONT DOOR GLASS AND REGULATOR (#68187) — 80 parça

7 12 1 7 8 31 192 192 72 227 222 17 223 221 223 207 207 26 26 207 19 39 25 33 19 25 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR THA	8-97923-680-3	01	1	0807-
1	GLASS; FRT DOOR THA	8-97923-681-3	01	1	0807-
7	GLASS RUN; FRT DOOR (A)	8-98029-195-3	01	1	0807-
7	GLASS RUN; FRT DOOR (A)	8-98029-196-3	01	1	0807-
7	GLASS RUN; FRT DOOR (B)	8-98031-742-2	02	1	0807-
8	CLIP; GLASS GUIDE	8-98048-796-0	02	1	0807-
12	CHANNEL; GLASS RUN,FRT	8-98024-838-3	01	1	0807-1105
12	CHANNEL; GLASS RUN,FRT	8-98188-418-0	01	1	1106-
12	CHANNEL; GLASS RUN,FRT	8-98024-839-3	01	1	0807-1105
12	CHANNEL; GLASS RUN,FRT	8-98188-419-0	01	1	1106-
17	SCREW; RR CHANNEL BOLT M6X10 FLANGE THA	0-28050-610-0	04	1	0807-
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (A)	8-98029-236-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (B)	8-98029-237-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (C)	8-98029-233-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR (C)	8-98029-233-3	01	1	1004-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (D)	8-98029-234-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR (D)	8-98029-234-3	01	1	1004-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-429-0	01	1	0807-1003
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-430-0	01	1	0807-1003
25	BOLT; WINDOW REG M6X10 FLANGE THA	0-28050-610-0	08	1	0807-
26	NUT; FLANGE,WINDOW REG M6 FLANGE THA	0-91180-106-0	04	1	0807-
31	STOPPER; RUBBER,DOOR INNER THA	8-94358-581-0	04	1	1207-
31	STOPPER; RUBBER,DOOR INNER THA	8-94358-581-0	04	1	0807-
33	SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98058-431-0	06	1	0807-1003
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97405-313-3	02	1	0807-1003
39	HANDLE; WINDOW REG,FRT DOOR GRAY	8-97405-313-3	02	1	1004-
72	SEAL; WAIST,FRT DOOR	8-98029-192-1	01	1	0807-
72	SEAL; WAIST,FRT DOOR	8-98029-193-1	01	1	0807-
192	HOLDER; DOOR GLASS THA	8-97288-022-0	04	1	0807-
207	SCREW; DOOR GLASS BOLT M6X10 FLANGE THA	0-28050-610-0	04	1	0807-
221	BAR ASM; DOOR GLASS GUARD THA	8-97925-103-0	01	1	1206-
221	BAR ASM; DOOR GLASS GUARD THA	8-97925-104-0	01	1	1206-
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-316-2	01	1	0807-
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-317-2	01	1	0807-
222	CAP; GUARD BAR GRAY	8-97405-318-0	01	1	0807-
222	CAP; GUARD BAR GRAY	8-97405-319-0	01	1	0807-
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	0807-1108
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	8-98177-721-0	08	1	1109-1212
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1301-
227	RUBBER; SHUTTER EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY	8-97405-321-0	01	1	0807-1102
227	RUBBER; SHUTTER GRAY	8-97405-321-0	01	1	1103-

1 7 12 7 31 8 192 192 72 207 222 17 26 207 223 19 221 21 223 33 25 207 26 19 39 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR THA	8-97923-680-3	01	1	0807-
1	GLASS; FRT DOOR THA	8-97923-681-3	01	1	0807-
7	GLASS RUN; FRT DOOR (A)	8-98029-195-3	01	1	0807-
7	GLASS RUN; FRT DOOR (A)	8-98029-196-3	01	1	0807-
7	GLASS RUN; FRT DOOR (B)	8-98031-742-2	02	1	0807-
8	CLIP; GLASS GUIDE	8-98048-796-0	02	1	0807-
12	CHANNEL; GLASS RUN,FRT	8-98024-838-3	01	1	0807-1105
12	CHANNEL; GLASS RUN,FRT	8-98188-418-0	01	1	1106-
12	CHANNEL; GLASS RUN,FRT	8-98024-839-3	01	1	0807-1105
12	CHANNEL; GLASS RUN,FRT	8-98188-419-0	01	1	1106-
17	SCREW; RR CHANNEL BOLT M6X10 FLANGE THA	0-28050-610-0	04	1	0807-
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (A)	8-98029-236-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW FRT DOOR<A32> (B)	8-98029-237-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (C)	8-98029-233-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR (C)	8-98029-233-3	01	1	1004-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> (D)	8-98029-234-3	01	1	0807-1003
19	REGULATOR; WINDOW,FRT DOOR (D)	8-98029-234-3	01	1	1004-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-429-0	01	1	0807-1003
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-98058-430-0	01	1	0807-1003
25	BOLT; WINDOW REG M6X10 FLANGE THA	0-28050-610-0	08	1	0807-
26	NUT; FLANGE,WINDOW REG M6 FLANGE THA	0-91180-106-0	04	1	0807-
31	STOPPER; RUBBER,DOOR INNER THA	8-94358-581-0	04	1	1207-
31	STOPPER; RUBBER,DOOR INNER THA	8-94358-581-0	04	1	0807-
33	SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98058-431-0	06	1	0807-1003
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97405-313-3	02	1	0807-1003
39	HANDLE; WINDOW REG,FRT DOOR GRAY	8-97405-313-3	02	1	1004-
72	SEAL; WAIST,FRT DOOR	8-98029-192-1	01	1	0807-
72	SEAL; WAIST,FRT DOOR	8-98029-193-1	01	1	0807-
192	HOLDER; DOOR GLASS THA	8-97288-022-0	04	1	0807-
207	SCREW; DOOR GLASS BOLT M6X10 FLANGE THA	0-28050-610-0	04	1	0807-
221	BAR ASM; DOOR GLASS GUARD THA	8-97925-103-0	01	1	1206-
221	BAR ASM; DOOR GLASS GUARD THA	8-97925-104-0	01	1	1206-
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-316-2	01	1	0807-
221	BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97405-317-2	01	1	0807-
222	CAP; GUARD BAR GRAY	8-97405-318-0	01	1	0807-
222	CAP; GUARD BAR GRAY	8-97405-319-0	01	1	0807-
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	0807-1108
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	8-98177-721-0	08	1	1109-1212
223	SCREW; GUARD BAR T25 M6X25 HEXALOBULAR SOCKET	0-38050-625-0	08	1	1301-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
