1-35 — CHARGE AIR COOLER (#6818) — 15 parça

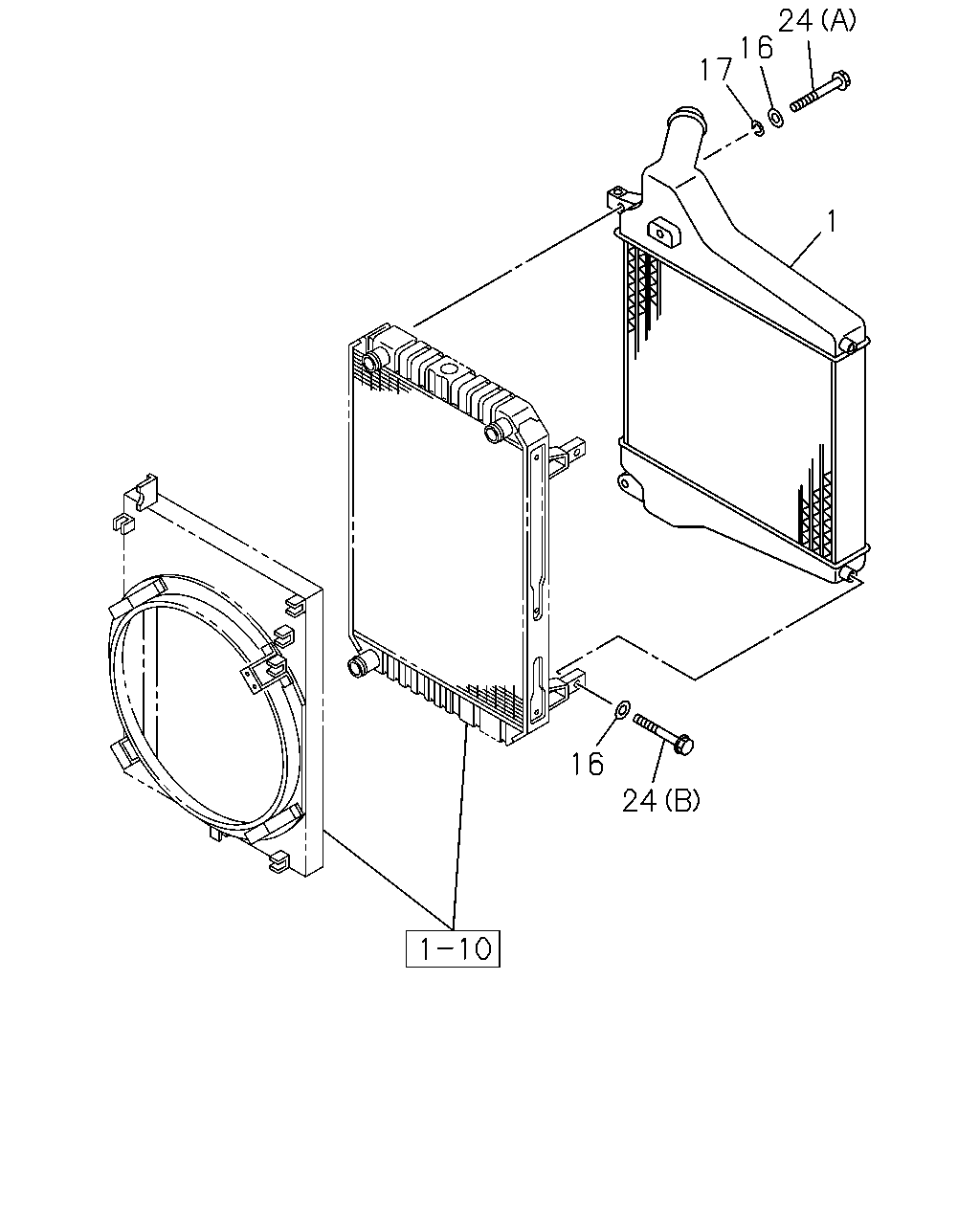

çizim 26188
24 16 17 1 16 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR 8-94394-311-2 01 1 9806-9911 ●
1 COOLER; CHARGE AIR 8-94392-923-2 01 1 9912- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22 		9-09160-610-0 04 1 9806-9911 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9912- ●
17 WASHER; LK,CHARGE AIR COOLER
ID=10.2 		9-09150-510-0 02 1 9806-9911 ●
24 BOLT; COOLER TO RAD
(A) M10X70 FLANGE 		0-28081-070-0 02 1 9806-9911 ●
24 BOLT; COOLER TO RAD
(B) M10X16 FLANGE 		0-28181-016-0 02 1 9806-9911 ●

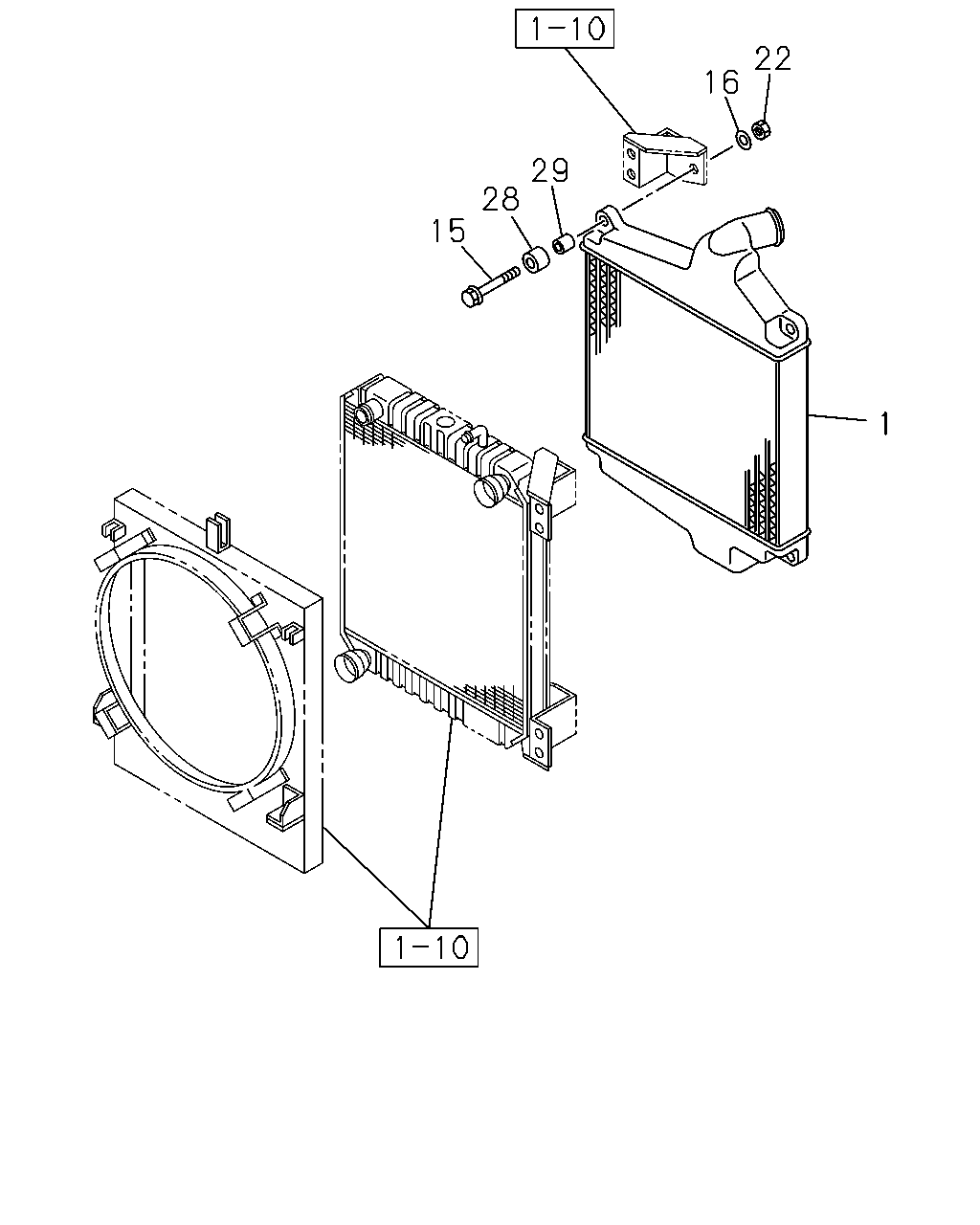

çizim 98788
22 16 29 28 15 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR 8-94394-311-2 01 1 9806-9911 ●
1 COOLER; CHARGE AIR 8-94392-923-2 01 1 9912- ●
15 BOLT; CHARGE AIR COOLER
M8X50 FLANGE 		0-28080-850-0 04 1 9912- ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22 		9-09160-610-0 04 1 9806-9911 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9912- ●
22 NUT
M8 		9-09110-408-0 04 1 9912- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9912- ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9912- ●
