Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#68176) — 48 parça
◀

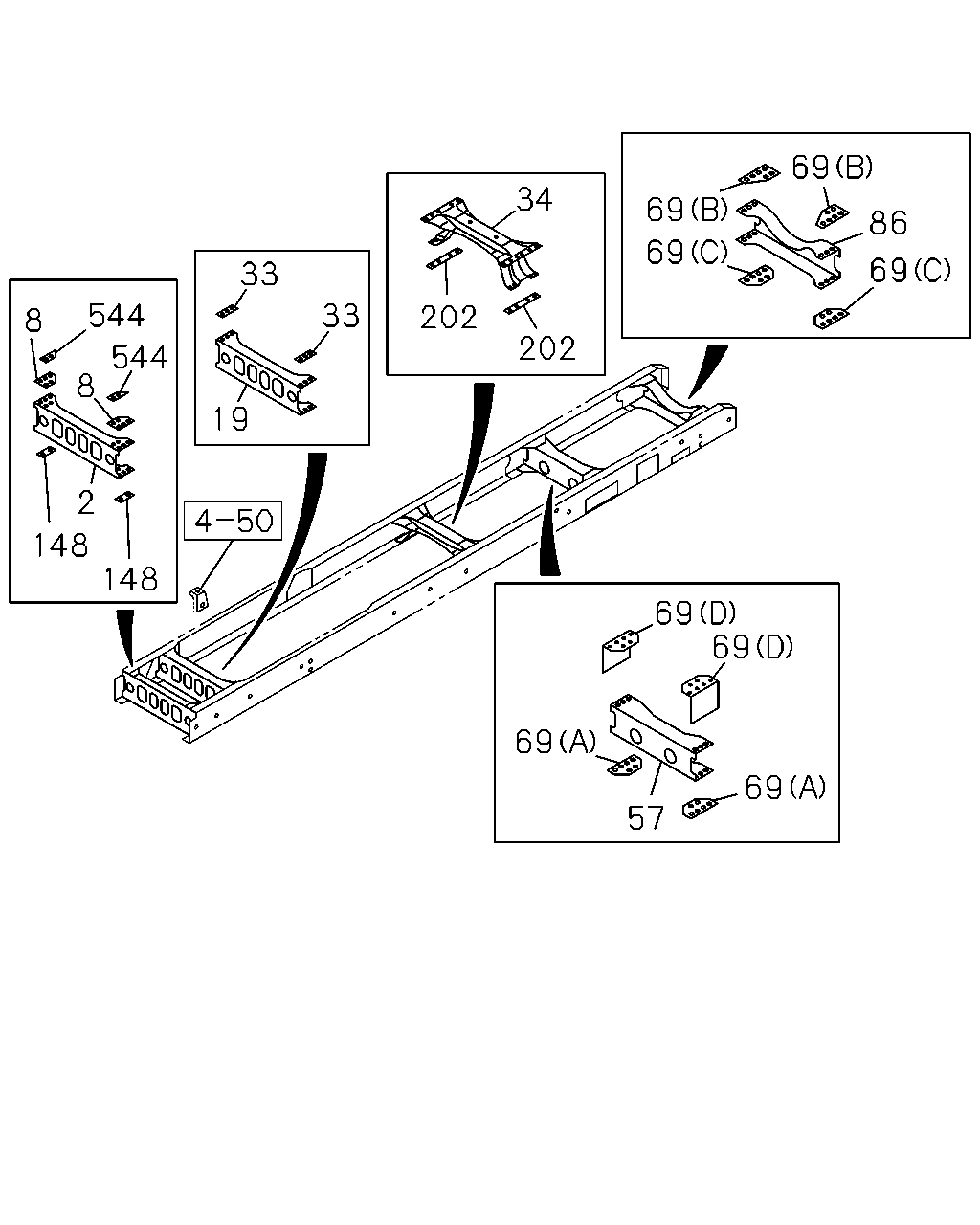

[501A] CROSS MEMBER (15 parça)

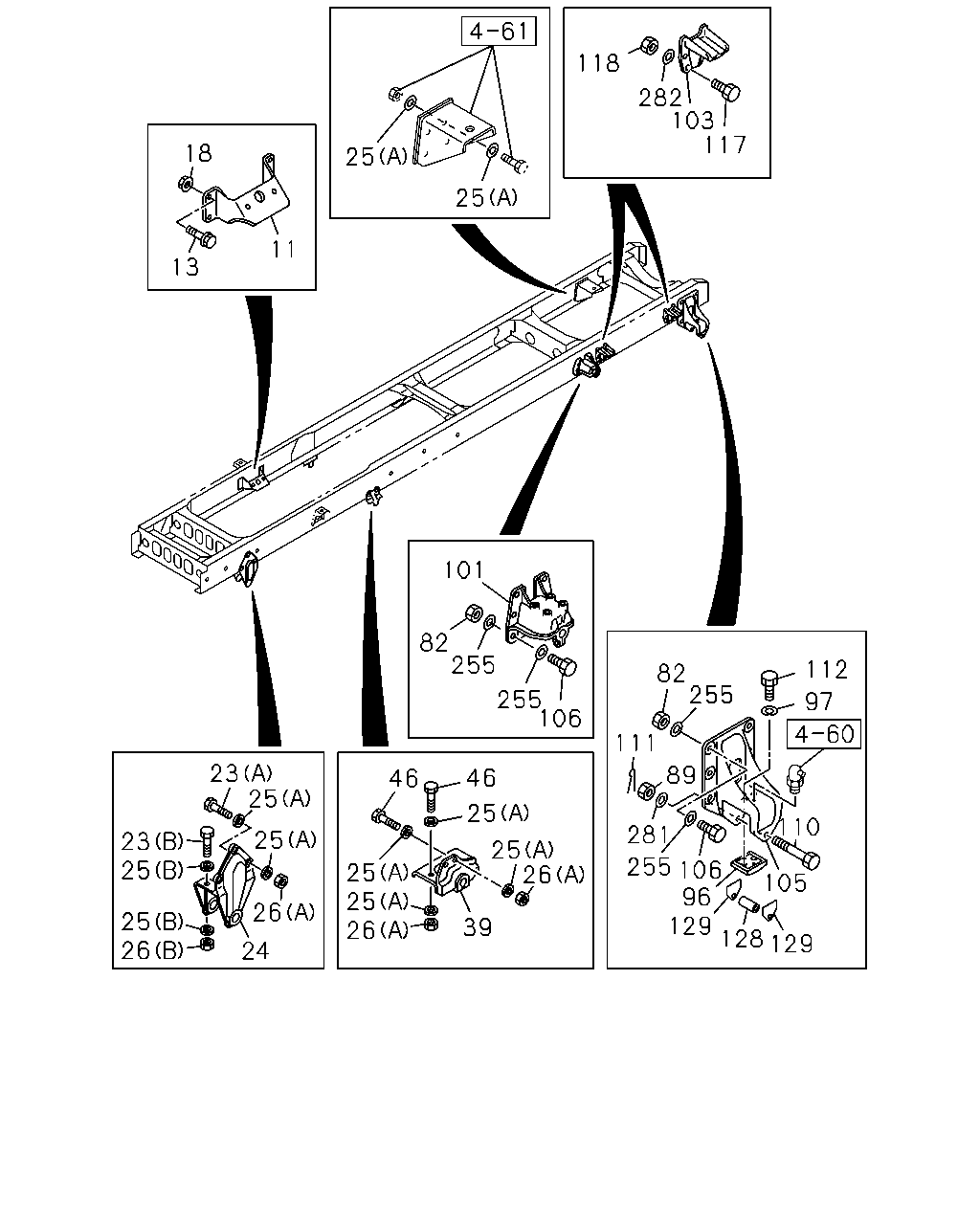

[501A] BRACKET AND OTHER PARTS (33 parça)
▶
69
34
69
69
86
69
33
544
33
202
8
202
544
8
19
2
148
148
69
69
69
69
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-6
01
1
0807-
8
GUSSET; 1ST C/MBR
THA
8-97611-027-0
02
1
0807-
19
MEMBER; CROSS,2ND
8-97610-853-4
01
1
0807-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
0807-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
0807-
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97611-239-2
01
1
0807-
69
GUSSET; RR SUSP,UPR
(B) THA
8-97611-280-0
02
1
0807-
69
GUSSET; RR SUSP,UPR
(C) THA
8-97611-314-0
02
1
0807-
69
GUSSET; RR SUSP,UPR
(A) THA
8-97618-453-0
02
1
0807-
69
GUSSET; RR SUSP,UPR
(D)
8-97628-201-0
01
1
0807-
69
GUSSET; RR SUSP,UPR
(D)
8-97628-202-0
01
1
0807-
86
MEMBER; CROSS,RR SUSP RR
THA
8-97611-312-1
01
1
0807-
148
SPACER; C/MBR
8-97611-039-0
02
1
0807-
202
SPACER; 3RD C/MBR
8-97610-873-0
02
1
0807-
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
0807-
118
282
103
117
18
25
25
11
13
101
82
255
112
82
255
255
106
97
111
23
25
25
89
281
46
46
110
25
23
25
25
26
255
106
96
129
25
25
26
105
26
128
129
25
26
39
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-550-0
02
1
0807-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE IMA
0-28661-240-0
08
1
0807-
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
0807-
23
BOLT; BRKT,SPR
(A) M14X50 THA
0-20951-450-0
06
1
0807-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
0807-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
0807-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
0807-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
0807-
25
WASHER; PL,BRKT
(A) ID=15 THA
8-98010-627-1
44
1
0807-
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
0807-
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
0807-
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
0807-
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
0807-
46
BOLT; BRKT FIX
M14X50 THA
0-20951-450-0
08
1
0807-
82
NUT; BRKT
M14 THA
0-91110-514-0
24
1
0807-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
0807-
96
PAD; RR SPR
1-53359-047-0
02
1
0807-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
0807-
101
BRACKET; RR SPR,FRT
1-53353-081-2
02
1
0807-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
0807-
105
BRACKET; RR SPR,RR
1-53354-073-1
02
1
0807-
106
BOLT; BRKT
M14X50 THA
0-20951-450-0
24
1
0807-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
0807-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
0807-
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
0807-
117
BOLT; STOPPER
M14X50 THA
0-20951-450-0
16
1
0807-
118
NUT; STOPPER
M14 THA
0-91110-514-0
16
1
0807-
128
COLLAR; RUBBER
1-53359-004-0
02
1
0807-
129
SHIM; SIDE
T=4.5
1-53359-061-1
02
1
0807-
129
SHIM; SIDE
T=3.2
1-53359-062-1
02
1
0807-
255
WASHER; PL,BRKT
ID=15 THA
8-98010-627-1
48
1
0807-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
0807-
282
WASHER; PL,STOPPER
ID=15 THA
8-98010-627-1
16
1
0807-
