◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#6817) — 233 parça

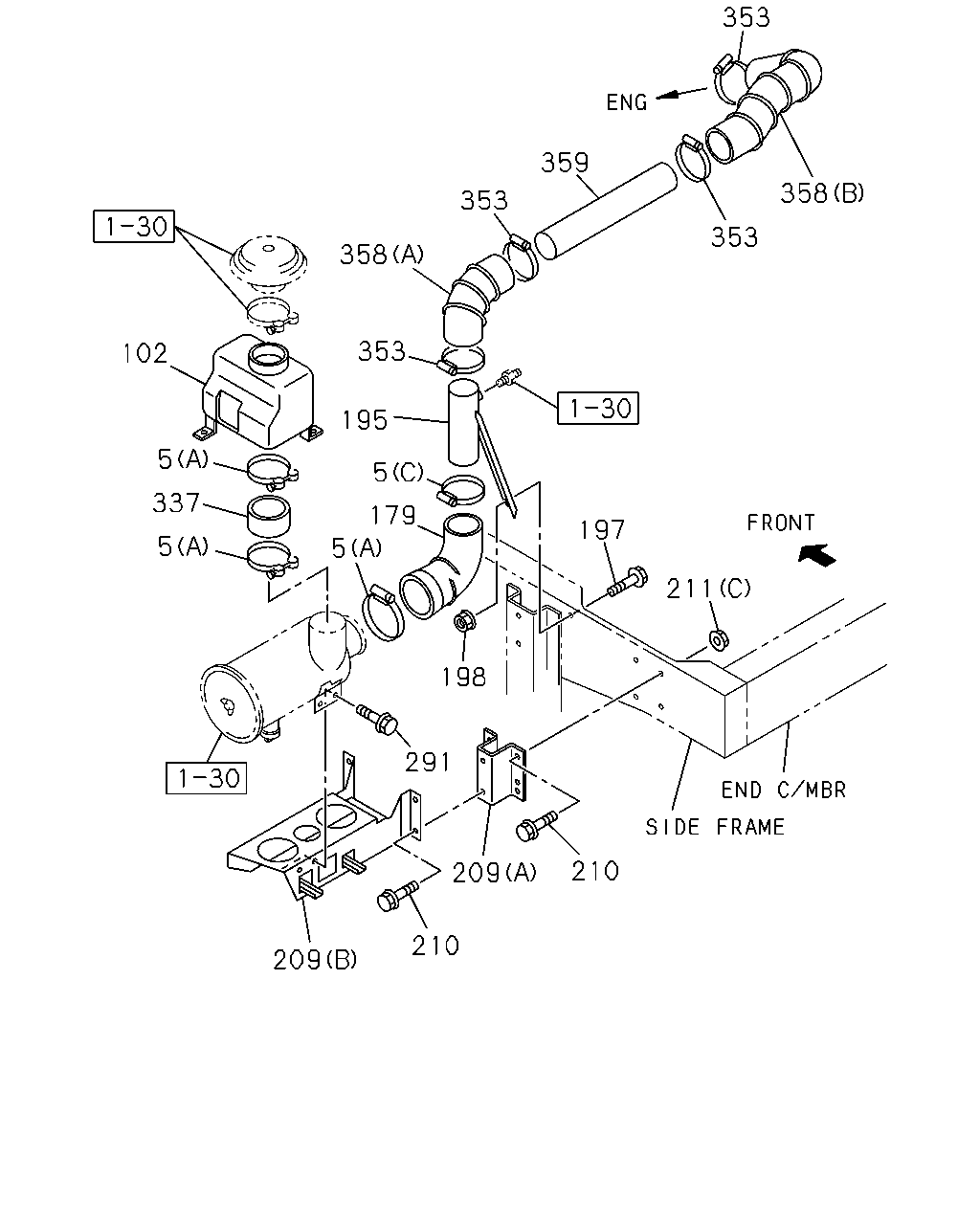

çizim 25980
353 359 358 353 353 358 353 102 195 5 5 337 179 197 5 5 211 198 291 210 209 210 209
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9806-9911 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9912-0306 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 02 1 0307- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9806-9911 ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9912-0306 ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0307- ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-114-0 01 1 9806-9911 ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 03 1 9806-9911 ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-114-0 01 1 9912-0306 ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-198-0 01 1 0307- ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9806-9911 ● ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9912- ●
179 HOSE; AIR INT 1-09360-564-0 01 1 9806-9911 ●
195 PIPE; CONN 1-14121-074-1 01 1 9806-9911 ●
197 BOLT; CLAMP
M10X25 FLANGE 		0-28681-025-0 01 1 9806-9911 ●
198 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 01 1 9806-9911 ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9806-9911 ●
209 BRACKET; ACL
(C) 		1-53497-626-1 01 1 9912- ●
209 BRACKET; ACL
(A) 		1-53497-193-2 01 1 9806-9911 ●
210 BOLT; ACL BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 9806-9911 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9912-0512 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
210 BOLT; ACL BRKT
M10X35 FLANGE 		0-28681-035-0 05 1 9912-0512 ●
210 BOLT; ACL BRKT
M10X35 FLANGE 		0-28651-035-0 05 1 0601- ●
211 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 06 1 9806-9911 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 05 1 9912-0602 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
211 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 9806-9911 ● ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 09 1 9912-0602 ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 09 1 0603- ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9806-9911 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9806-9911 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9912- ●
337 HOSE; CONN,DUCT TO RESONATOR 9-09912-895-1 01 1 9806-9911 ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9806-9911 ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 04 1 9912-0306 ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 04 1 0307- ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 03 1 9806-9911 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 04 1 9912-0306 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 04 1 0307- ●
353 CLIP; RUBBER HOSE
ID=87-116 		1-09707-144-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
(C) 		1-09360-992-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09361-040-0 01 1 9912- ●
358 HOSE; RUBBER,PIPE TO PIPE
(A) 		1-14231-559-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		1-14231-940-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		1-14231-909-0 01 1 9806-9911 ●
359 PIPE; HOSE CONN
EMIS SYSTEM FEDERAL REQUIREMENT<NA5> L=405 		1-14121-125-0 01 1 9806-9911 ●
359 PIPE; HOSE CONN
EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> L=590 		1-14121-073-0 01 1 9806-9911 ●

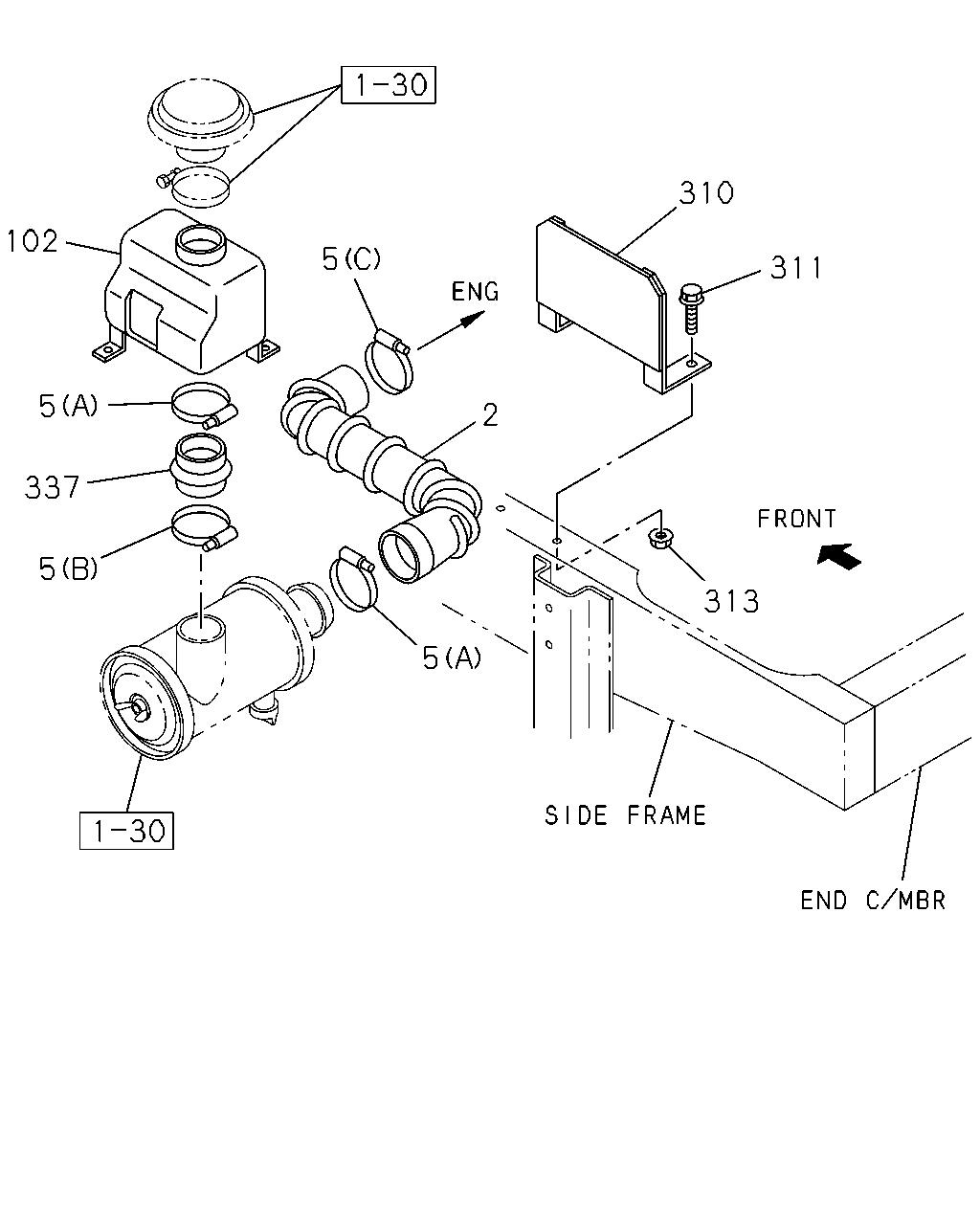

çizim 26018
310 102 5 311 5 2 337 5 313 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL 1-14231-971-0 01 1 9806-9911 ●
2 HOSE; ACL 1-14232-042-0 01 1 9912-0001 ●
2 HOSE; ACL 1-14232-104-0 01 1 0002- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9806-9911 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9912-0306 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 02 1 0307- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9806-9911 ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9912-0306 ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0307- ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-114-0 01 1 9806-9911 ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 03 1 9806-9911 ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-114-0 01 1 9912-0306 ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-198-0 01 1 0307- ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9806-9911 ● ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9912- ●
310 PROTECTOR; HEAT,ACL 1-53219-824-1 01 1 9806-9911 ●
311 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28680-825-0 02 1 9806-9911 ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 02 1 9806-9911 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9806-9911 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9912- ●
337 HOSE; CONN,DUCT TO RESONATOR 9-09912-895-1 01 1 9806-9911 ●

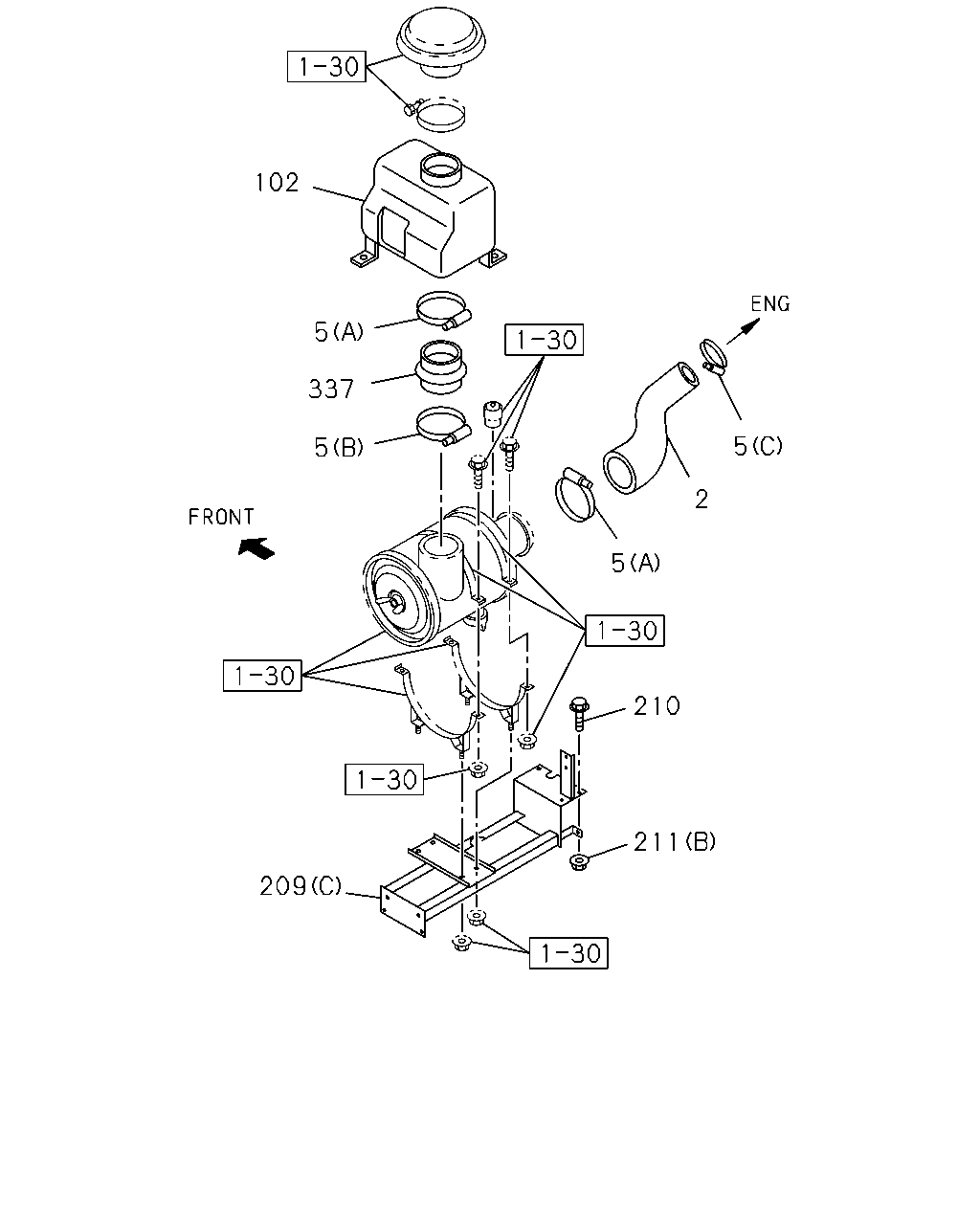

çizim 26490
102 5 337 5 5 2 5 210 211 209
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL 1-14231-971-0 01 1 9806-9911 ●
2 HOSE; ACL 1-14232-042-0 01 1 9912-0001 ●
2 HOSE; ACL 1-14232-104-0 01 1 0002- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9806-9911 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9912-0306 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 02 1 0307- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9806-9911 ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9912-0306 ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0307- ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-114-0 01 1 9806-9911 ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 03 1 9806-9911 ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-114-0 01 1 9912-0306 ●
5 CLIP; AIR DUCT
(C) ID=77-95 		1-09707-198-0 01 1 0307- ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9806-9911 ● ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9912- ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9806-9911 ●
209 BRACKET; ACL
(C) 		1-53497-626-1 01 1 9912- ●
209 BRACKET; ACL
(A) 		1-53497-193-2 01 1 9806-9911 ●
210 BOLT; ACL BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 9806-9911 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9912-0512 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
210 BOLT; ACL BRKT
M10X35 FLANGE 		0-28681-035-0 05 1 9912-0512 ●
210 BOLT; ACL BRKT
M10X35 FLANGE 		0-28651-035-0 05 1 0601- ●
211 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 06 1 9806-9911 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 05 1 9912-0602 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
211 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 9806-9911 ● ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 09 1 9912-0602 ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 09 1 0603- ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9806-9911 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9912- ●
337 HOSE; CONN,DUCT TO RESONATOR 9-09912-895-1 01 1 9806-9911 ●

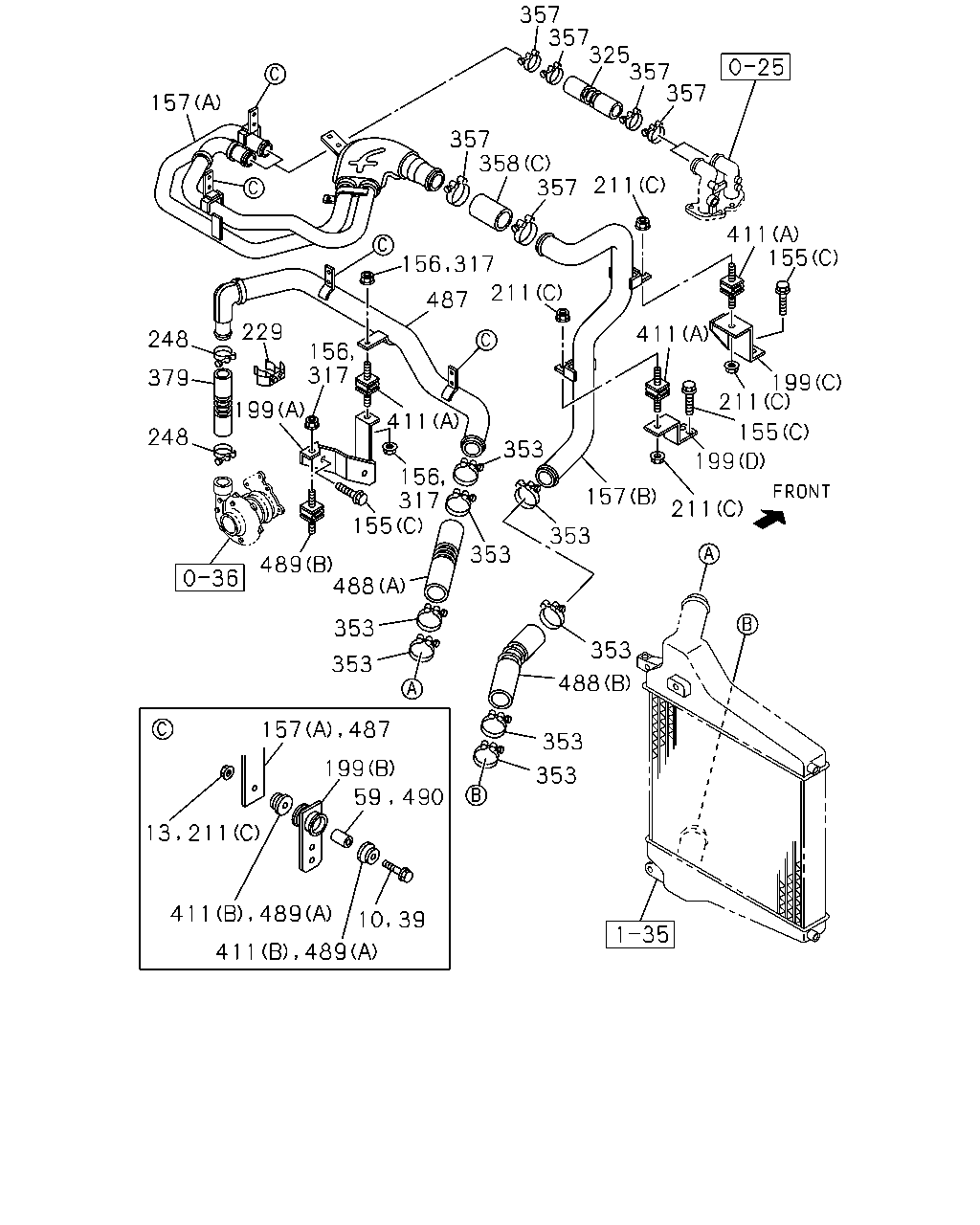

çizim 98791
357 357 325 357 357 157 357 358 357 211 411 155 211 487 229 411 248 156 317 379 199 211 199 411 155 248 353 199 156 317 155 157 211 353 489 488 353 353 353 353 488 157 487 353 199 353 156 317 13 211 411 489 411 489 10 39 59 490
BalonParca AdiParca NoAdetTipApplied Date A B C
10 BOLT; BRKT FIX
M10X60 FLANGE 		0-28081-060-0 02 1 9806-9911 ●
13 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 9806-9911 ●
39 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9806-9911 ●
59 TUBE; DIST,AIR INT DUCT
L=22 		9-22159-024-0 02 1 9806-9911 ●
155 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 11 1 9806-9911 ●
155 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 05 1 9912-0512 ●
155 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0601- ●
155 BOLT; BRKT
(C) M6X16 FLANGE 		0-28680-616-0 04 1 9806-9911 ●
155 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9912-0512 ●
155 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
155 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 02 1 9806-9911 ●
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 9806-9911 ●
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9912-0602 ●
156 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
157 PIPE; AIR
(B) COOLER-PIPE 		1-14121-129-0 01 1 9806-9911 ●
157 PIPE; AIR
(B) 		8-97531-036-0 01 1 9912- ●
157 PIPE; AIR
(A) 		1-14121-130-0 01 1 9806-9911 ●
157 PIPE; AIR
(A) HOSE-ENG 		8-97531-037-0 01 1 9912- ●
199 BRACKET; PIPE
(B) 		1-14239-253-0 04 1 9806-9911 ●
199 BRACKET; PIPE
(E) 		8-97530-823-0 01 1 9912- ●
199 BRACKET; PIPE
(A) 		1-47477-919-1 01 1 9806-9911 ●
199 BRACKET; PIPE
(D) 		1-47477-921-0 01 1 9806-9911 ●
199 BRACKET; PIPE
(C) 		1-47477-990-0 01 1 9806-9911 ●
211 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 06 1 9806-9911 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 05 1 9912-0602 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
211 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 9806-9911 ● ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 09 1 9912-0602 ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 09 1 0603- ●
229 PROTECTOR; HEAT 1-14181-264-0 01 1 9806-9911 ●
248 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 02 1 9806-9911 ●
248 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 01 1 9912-0306 ●
248 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 01 1 0307- ●
248 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 01 1 9912-0306 ●
248 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 01 1 0307- ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 06 1 9806-9911 ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 02 1 9912-0602 ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
325 HOSE; RUBBER,ENG TO PIPE 1-09360-980-0 02 1 9806-9911 ●
325 HOSE; RUBBER,ENG TO PIPE 1-09361-041-0 01 1 9912- ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9806-9911 ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 04 1 9912-0306 ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 04 1 0307- ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 03 1 9806-9911 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 04 1 9912-0306 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 04 1 0307- ●
353 CLIP; RUBBER HOSE
ID=87-116 		1-09707-144-0 01 1 9806-9911 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 06 1 9806-9911 ●
357 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 06 1 9912-0306 ●
357 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 06 1 0307- ●
358 HOSE; RUBBER,PIPE TO PIPE
(C) 		1-09360-992-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09361-040-0 01 1 9912- ●
358 HOSE; RUBBER,PIPE TO PIPE
(A) 		1-14231-559-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		1-14231-940-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		1-14231-909-0 01 1 9806-9911 ●
379 HOSE; RUBBER 1-09360-981-0 01 1 9806-9911 ●
379 HOSE; RUBBER 1-09361-042-0 01 1 9912- ●
411 RUBBER; CUSHION
(B) OD=40 		1-22159-193-0 04 1 9806-9911 ●
411 RUBBER; CUSHION
(A) 		1-22226-002-0 03 1 9806-9911 ●
411 RUBBER; CUSHION
(A) 		1-22226-002-0 01 1 9912-0110 ●
411 RUBBER; CUSHION
(A) 		8-94394-268-1 01 1 0111- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 1-14121-128-0 01 1 9806-9911 ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-97531-035-0 01 1 9912- ●
488 HOSE; RUBBER,PIPE
(A) 		8-94390-035-0 01 1 9806-9911 ●
488 HOSE; RUBBER,PIPE
(B) COOLER-PIPE 		1-09361-043-0 01 1 9912- ●
488 HOSE; RUBBER,PIPE
(B) 		8-94390-043-0 01 1 9806-9911 ●
488 HOSE; RUBBER,PIPE
(B) PIPE-COOLER 		1-09361-044-0 01 1 9912- ●
489 RUBBER; SUPPORT
(A) OD=40 		1-22159-193-0 04 1 9806-9911 ●
489 RUBBER; SUPPORT
(B) 		1-22226-002-0 01 1 9806-9911 ●
490 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9806-9911 ●

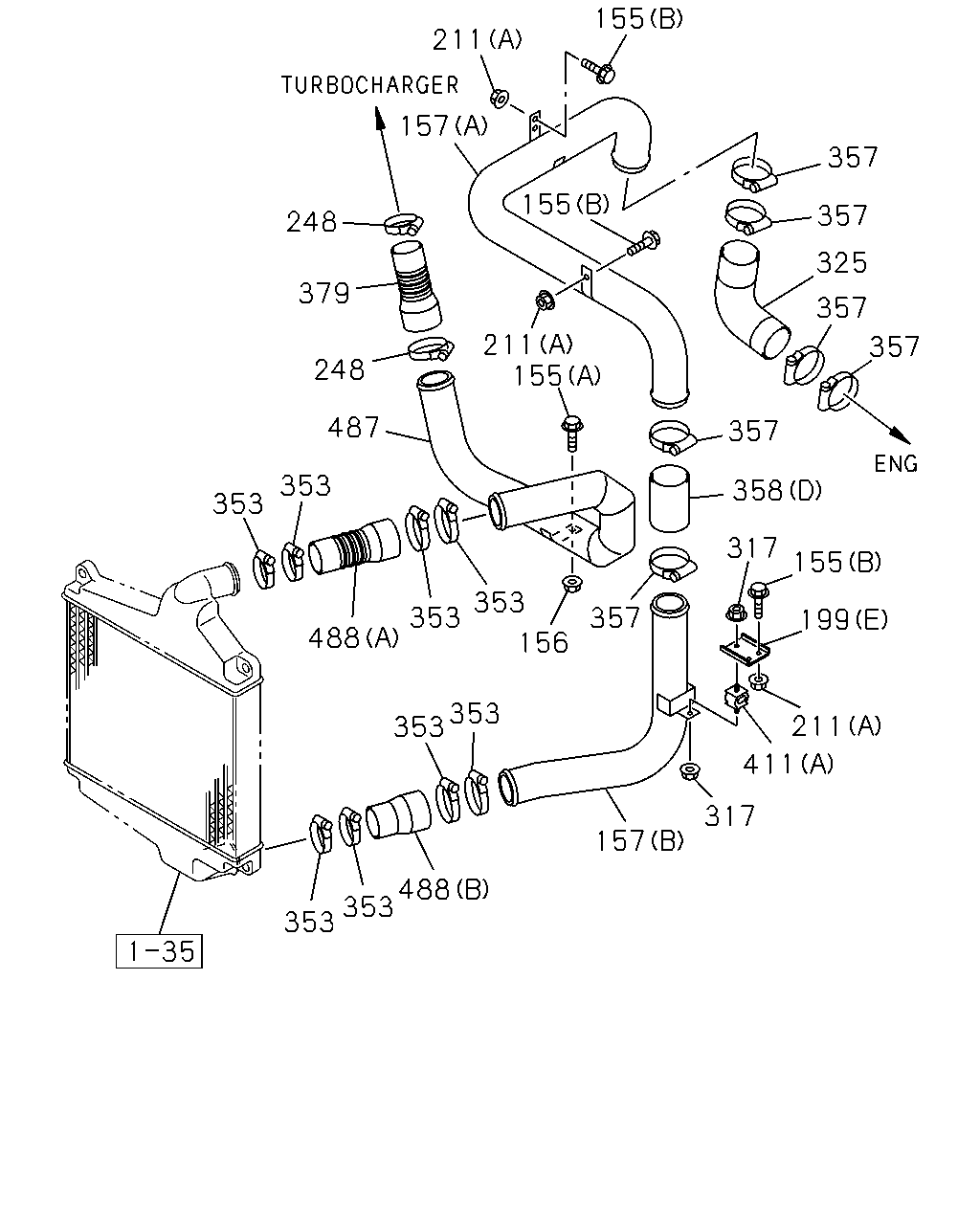

çizim 98796
155 211 157 357 155 357 248 325 379 357 211 155 357 248 487 357 353 358 353 317 155 353 353 357 199 488 156 353 353 211 411 317 157 488 353 353
BalonParca AdiParca NoAdetTipApplied Date A B C
155 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 11 1 9806-9911 ●
155 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 05 1 9912-0512 ●
155 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0601- ●
155 BOLT; BRKT
(C) M6X16 FLANGE 		0-28680-616-0 04 1 9806-9911 ●
155 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9912-0512 ●
155 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
155 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 02 1 9806-9911 ●
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 9806-9911 ●
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9912-0602 ●
156 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
157 PIPE; AIR
(B) COOLER-PIPE 		1-14121-129-0 01 1 9806-9911 ●
157 PIPE; AIR
(B) 		8-97531-036-0 01 1 9912- ●
157 PIPE; AIR
(A) 		1-14121-130-0 01 1 9806-9911 ●
157 PIPE; AIR
(A) HOSE-ENG 		8-97531-037-0 01 1 9912- ●
199 BRACKET; PIPE
(B) 		1-14239-253-0 04 1 9806-9911 ●
199 BRACKET; PIPE
(E) 		8-97530-823-0 01 1 9912- ●
199 BRACKET; PIPE
(A) 		1-47477-919-1 01 1 9806-9911 ●
199 BRACKET; PIPE
(D) 		1-47477-921-0 01 1 9806-9911 ●
199 BRACKET; PIPE
(C) 		1-47477-990-0 01 1 9806-9911 ●
211 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 06 1 9806-9911 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 05 1 9912-0602 ●
211 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
211 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 9806-9911 ● ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 09 1 9912-0602 ●
211 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 09 1 0603- ●
248 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 02 1 9806-9911 ●
248 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 01 1 9912-0306 ●
248 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 01 1 0307- ●
248 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 01 1 9912-0306 ●
248 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 01 1 0307- ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 06 1 9806-9911 ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 02 1 9912-0602 ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
325 HOSE; RUBBER,ENG TO PIPE 1-09360-980-0 02 1 9806-9911 ●
325 HOSE; RUBBER,ENG TO PIPE 1-09361-041-0 01 1 9912- ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9806-9911 ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 04 1 9912-0306 ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 04 1 0307- ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 03 1 9806-9911 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 04 1 9912-0306 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 04 1 0307- ●
353 CLIP; RUBBER HOSE
ID=87-116 		1-09707-144-0 01 1 9806-9911 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 06 1 9806-9911 ●
357 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 06 1 9912-0306 ●
357 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 06 1 0307- ●
358 HOSE; RUBBER,PIPE TO PIPE
(C) 		1-09360-992-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09361-040-0 01 1 9912- ●
358 HOSE; RUBBER,PIPE TO PIPE
(A) 		1-14231-559-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		1-14231-940-0 01 1 9806-9911 ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		1-14231-909-0 01 1 9806-9911 ●
379 HOSE; RUBBER 1-09360-981-0 01 1 9806-9911 ●
379 HOSE; RUBBER 1-09361-042-0 01 1 9912- ●
411 RUBBER; CUSHION
(B) OD=40 		1-22159-193-0 04 1 9806-9911 ●
411 RUBBER; CUSHION
(A) 		1-22226-002-0 03 1 9806-9911 ●
411 RUBBER; CUSHION
(A) 		1-22226-002-0 01 1 9912-0110 ●
411 RUBBER; CUSHION
(A) 		8-94394-268-1 01 1 0111- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 1-14121-128-0 01 1 9806-9911 ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-97531-035-0 01 1 9912- ●
488 HOSE; RUBBER,PIPE
(A) 		8-94390-035-0 01 1 9806-9911 ●
488 HOSE; RUBBER,PIPE
(B) COOLER-PIPE 		1-09361-043-0 01 1 9912- ●
488 HOSE; RUBBER,PIPE
(B) 		8-94390-043-0 01 1 9806-9911 ●
488 HOSE; RUBBER,PIPE
(B) PIPE-COOLER 		1-09361-044-0 01 1 9912- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
