4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#68166) — 57 parça

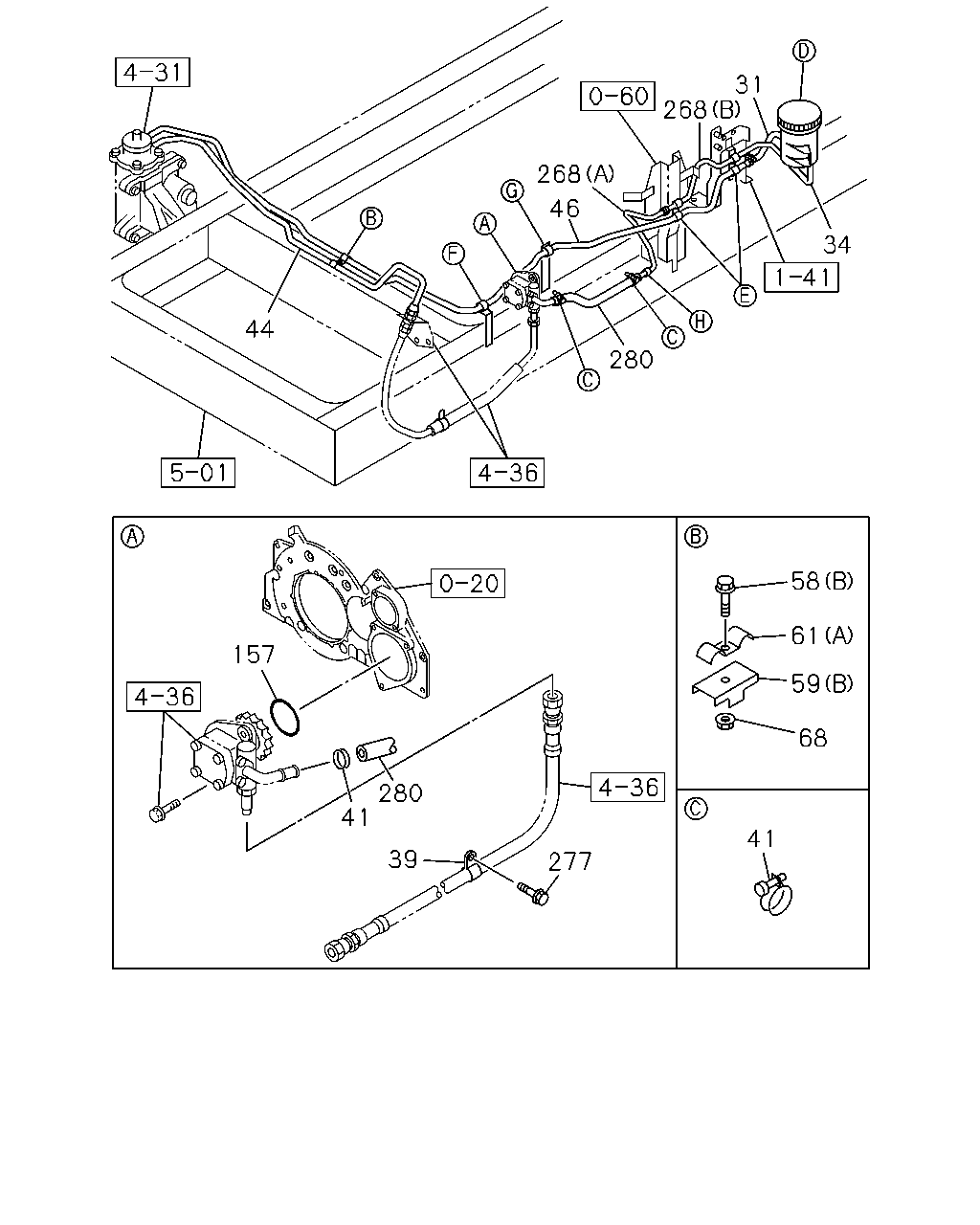

31 268 268 46 34 44 280 58 61 157 59 68 280 41 41 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0807-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0807-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0807-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0807-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	0807-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2771 THA	8-98123-973-0	01	1	0807-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	0807-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0807-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0807-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0807-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	0807-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0807-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0807-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0807-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0807-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0807-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	0807-
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	0807-
280	HOSE; P/S OIL PUMP,INL	8-98081-190-0	01	1	0807-

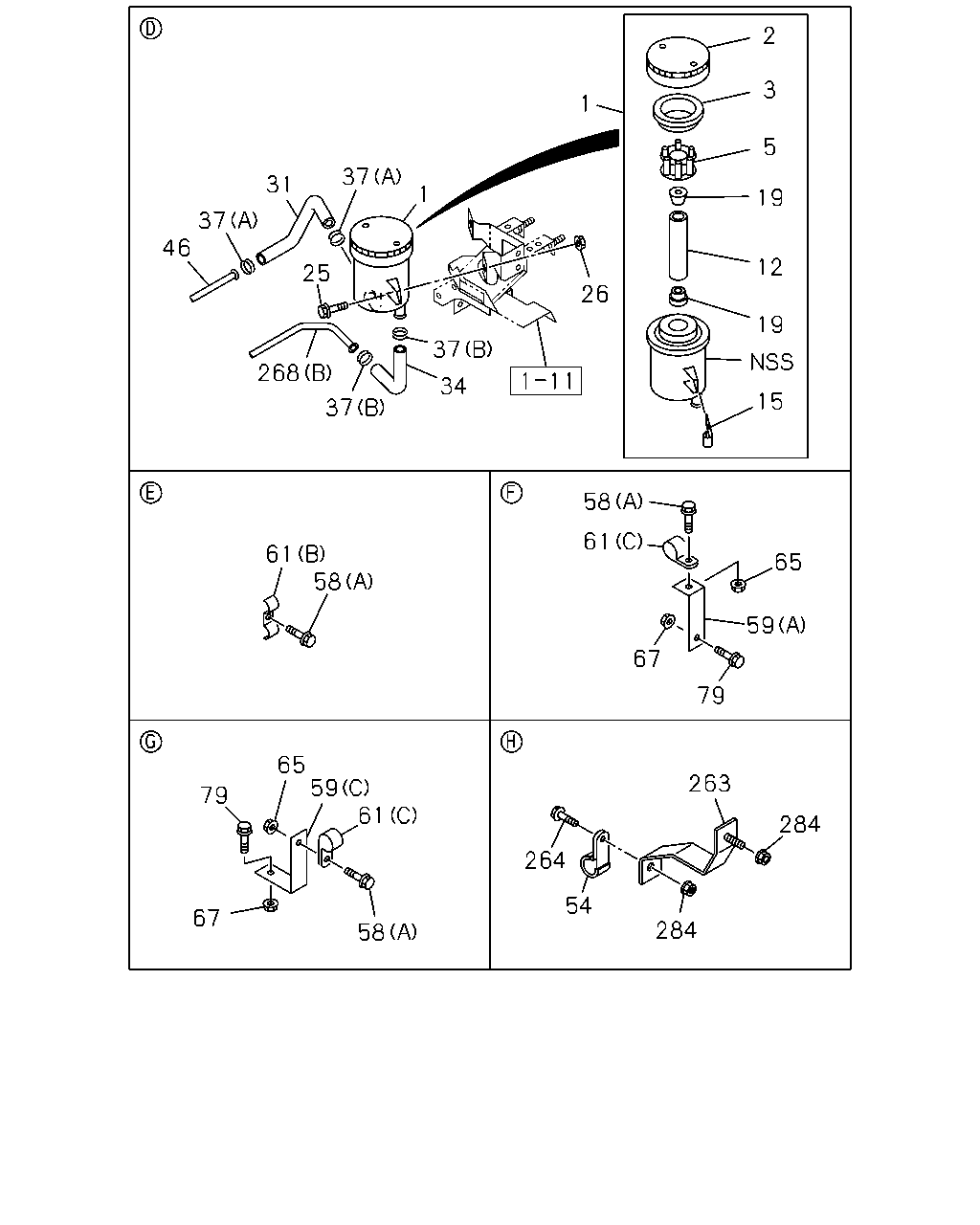

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 268 34 15 37 58 61 61 58 65 59 67 79 65 59 61 263 79 284 264 54 67 284 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0807-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0807-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0807-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0807-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0807-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0807-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0807-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0807-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	0807-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	0807-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0807-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0807-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0807-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2771 THA	8-98123-973-0	01	1	0807-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0807-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	0807-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0807-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0807-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0807-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	0807-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0807-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0807-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0807-
67	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0807-
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0909-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0807-0908
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0909-
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	0807-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	0807-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	0807-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	0807-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	0807-
