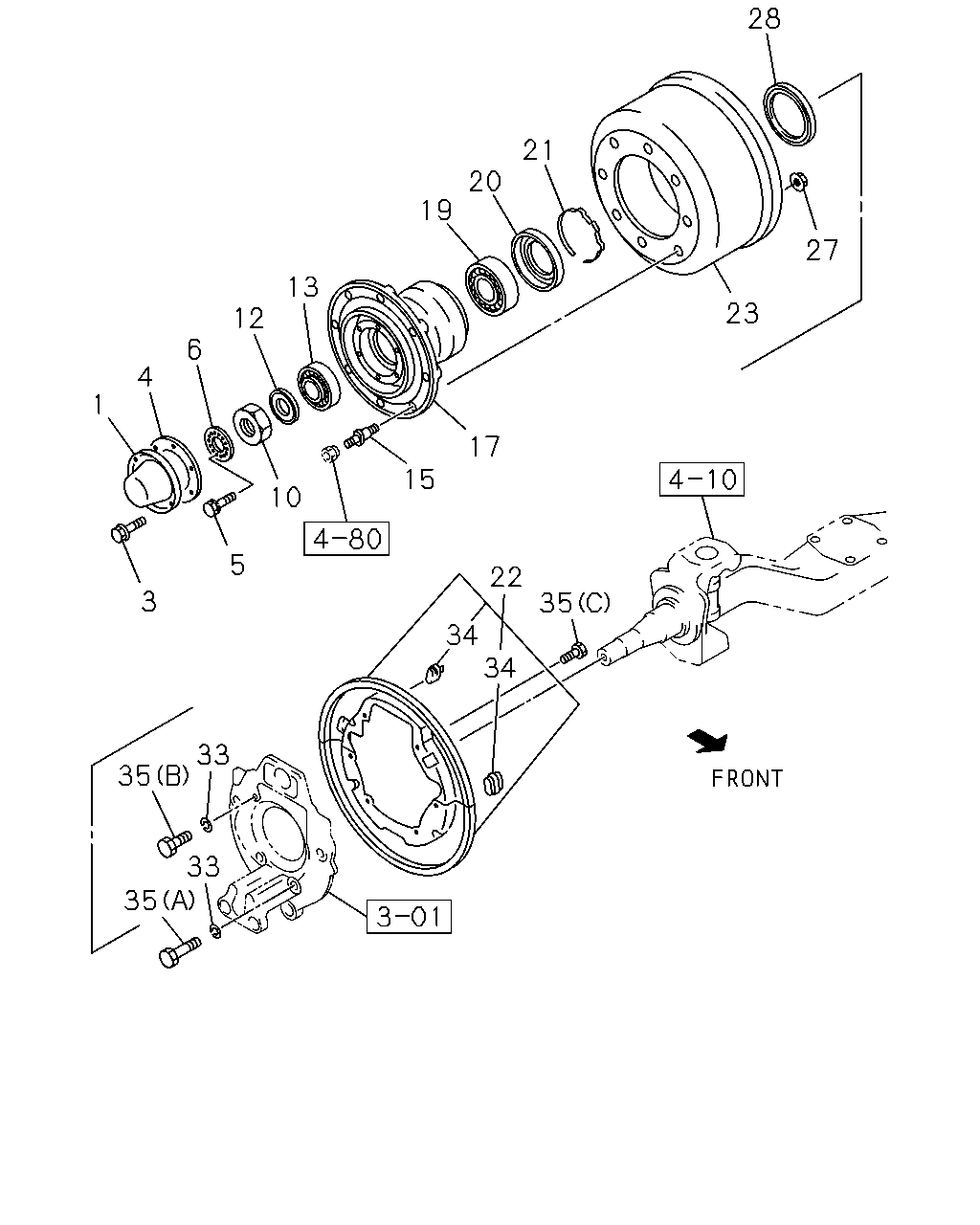

1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
0807- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
THA
|
0-28050-812-0 |
12 |
1 |
1103- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
THA
|
0-28050-812-0 |
12 |
1 |
0807-1102 |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-2 |
02 |
1 |
0807- |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98084-271-0 |
04 |
1 |
0807-1201 |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98200-943-0 |
04 |
1 |
1202- |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
0807- |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
0807- |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
THA
|
1-09533-016-0 |
02 |
1 |
0807-0911 |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
8-98156-755-0 |
02 |
1 |
0912- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
0807- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-1 |
08 |
1 |
1103- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-1 |
08 |
1 |
1103- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.0,M22X57.5 RH THREAD
THA
|
8-97916-068-0 |
08 |
1 |
1210- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.0 LH THREAD,M22X57.5 RH THREAD
THA
|
8-97916-070-0 |
08 |
1 |
1210- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.0,M22X57.5 RH THREAD
THA
|
8-97916-068-0 |
08 |
1 |
0904-1102 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.0 LH THREAD,M22X57.5 RH THREAD
THA
|
8-97916-070-0 |
08 |
1 |
0904-1102 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-1 |
08 |
1 |
0807-0903 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-1 |
08 |
1 |
0807-0903 |
| |
17 |
HUB; FRT AXLE
|
1-42312-151-3 |
02 |
1 |
1103- |
| |
17 |
HUB; FRT AXLE
|
1-42312-151-3 |
02 |
1 |
0807-1102 |
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
1-09812-231-0 |
02 |
1 |
0807- |
| |
20 |
COVER; HUB BRG INNER
|
1-42319-039-0 |
02 |
1 |
0807- |
| |
21 |
RING; SNAP,HUB
|
1-09587-017-0 |
02 |
1 |
0807- |
| |
22 |
COVER SET; FRT BRK DRUM
|
1-87831-225-0 |
02 |
1 |
0807- |
| |
23 |
DRUM; BRK,FRT
THA
|
1-42315-397-0 |
02 |
1 |
1103- |
| |
23 |
DRUM; BRK,FRT
THA
|
1-42315-397-0 |
02 |
1 |
0807-1102 |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
1103- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
THA
|
8-97914-195-0 |
16 |
1 |
1210- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
THA
|
8-97914-195-0 |
16 |
1 |
0904-1102 |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0807-0903 |
| |
28 |
SEAL; OIL,FRT HUB
OD=140
|
1-09625-041-0 |
02 |
1 |
0807- |
| |
33 |
WASHER; LK,DRUM COVER
ID=18.2
|
0-91510-818-0 |
12 |
1 |
0807- |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
THA
|
1-09333-151-0 |
04 |
1 |
0807- |
| |
35 |
BOLT; DRUM COVER
(A)
M18X65
|
1-09000-789-0 |
04 |
1 |
0807- |
| |
35 |
BOLT; DRUM COVER
(B)
M18X45
|
1-09000-790-0 |
08 |
1 |
0807- |
| |
35 |
BOLT; DRUM COVER
(C)
M10X12
THA
|
1-47159-187-0 |
12 |
1 |
0807- |
