1-30 — AIR CLEANER (#6816) — 126 parça

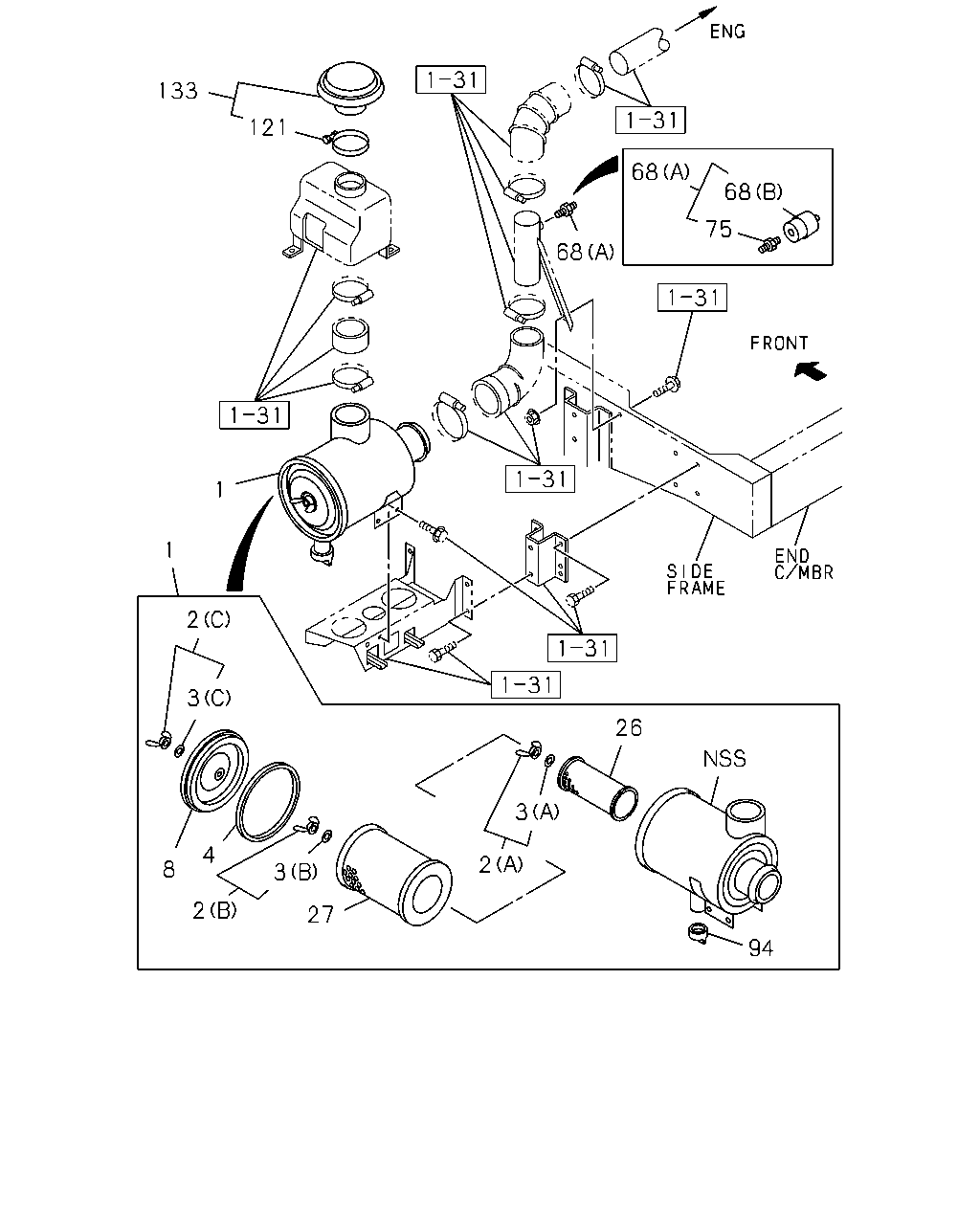

çizim 26019
133 121 68 68 75 68 1 1 2 3 26 3 4 2 8 3 2 27 94
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 1-14210-750-0 01 1 9806-9911 ●
1 CLEANER ASM; AIR 8-97600-038-0 01 1 9912- ●
1 CLEANER ASM; AIR 1-14210-621-1 01 1 9806-9911 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9806-9911 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9912- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9806-9911 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9912- ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9806-9911 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9806-9911 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9806-9911 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9806-9911 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9912- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9806-9911 ●
4 GASKET; COVER TO BODY 1-14218-128-0 01 1 9912- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9806-9911 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9806-9911 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9912- ●
8 COVER ASM; ACL 1-14212-101-0 01 1 9806-9911 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9806-9911 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9912- ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9806-9911 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9912- ●
68 INDICATOR; SERVICE
(B) 		1-14219-212-0 01 1 9806-9911 ● ●
68 INDICATOR; SERVICE
(A) 		9-14219-192-0 01 1 9806-9911 ●
68 INDICATOR; SERVICE
(B) 		1-14219-212-0 01 1 9912- ●
75 NIPPLE; INDICATOR 9-14219-189-0 01 1 9806-9911 ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9806-9911 ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9912- ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9806-9911 ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9912- ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9806-9911 ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9912- ●

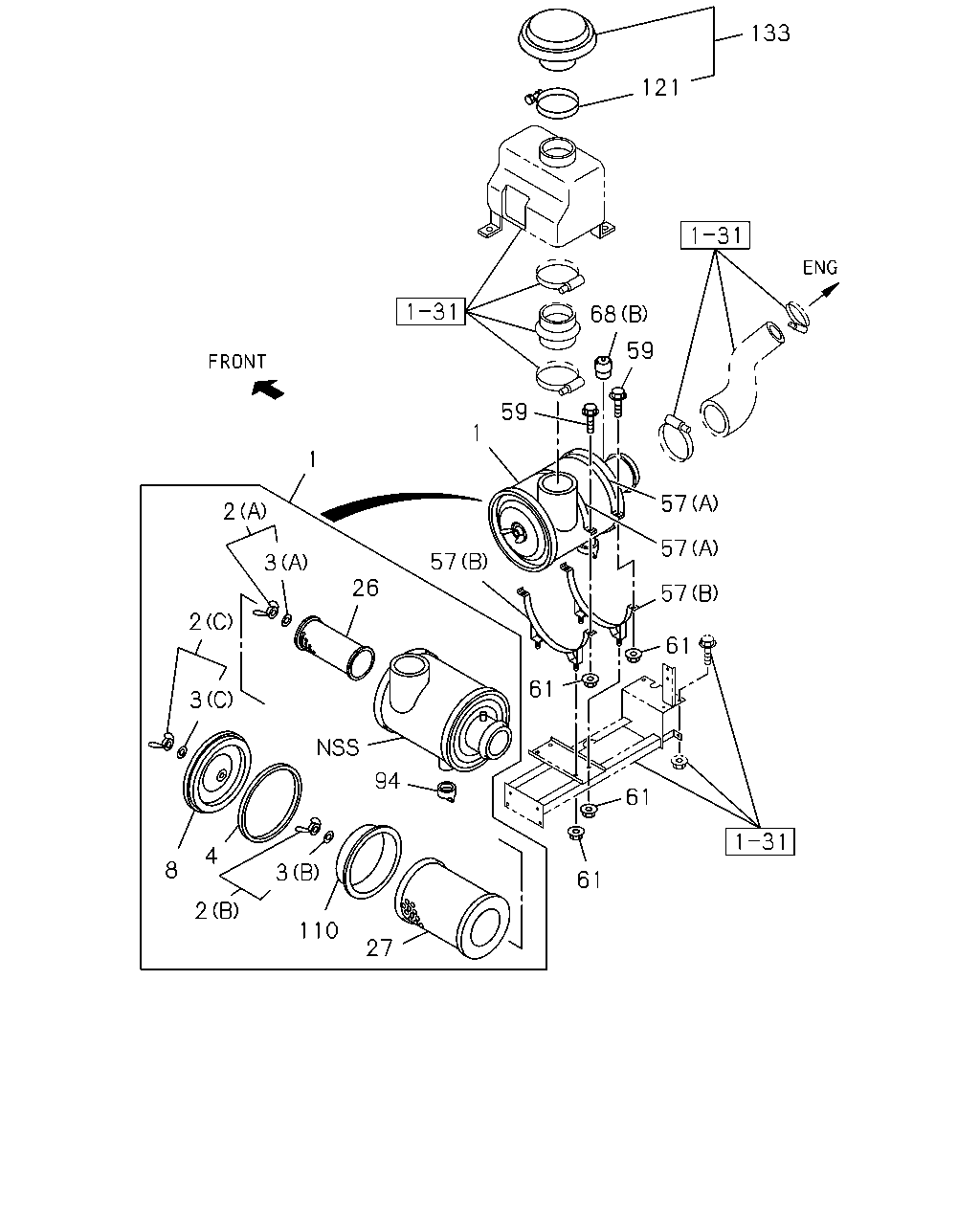

çizim 26397
133 121 68 59 59 1 1 57 2 57 57 3 26 57 2 61 61 3 94 61 4 8 3 61 2 110 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 1-14210-750-0 01 1 9806-9911 ●
1 CLEANER ASM; AIR 8-97600-038-0 01 1 9912- ●
1 CLEANER ASM; AIR 1-14210-621-1 01 1 9806-9911 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9806-9911 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9912- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9806-9911 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9912- ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9806-9911 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9806-9911 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9806-9911 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9806-9911 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9912- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9806-9911 ●
4 GASKET; COVER TO BODY 1-14218-128-0 01 1 9912- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9806-9911 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9806-9911 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9912- ●
8 COVER ASM; ACL 1-14212-101-0 01 1 9806-9911 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 9806-9911 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9912- ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 9806-9911 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9912- ●
57 BAND; ACL
(B) 		1-53419-133-3 02 1 9806-9810 ●
57 BAND; ACL
(B) 		1-53419-249-0 02 1 9811-9911 ●
57 BAND; ACL
(B) 		1-53419-249-0 02 1 9912- ●
57 BAND; ACL
(A) 		1-53419-251-0 02 1 9806-9911 ●
57 BAND; ACL
(A) 		1-53419-251-0 02 1 9912- ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28681-030-0 04 1 9806-9911 ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28681-030-0 04 1 9912-0512 ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
61 NUT; ACL BAND
M10 FLANGE 		0-91150-210-0 08 1 9806-9911 ●
61 NUT; ACL BAND
M10 FLANGE 		0-91150-210-0 08 1 9912-0602 ●
61 NUT; ACL BAND
M10 FLANGE 		0-91180-210-0 08 1 0603- ●
68 INDICATOR; SERVICE
(B) 		1-14219-212-0 01 1 9806-9911 ● ●
68 INDICATOR; SERVICE
(A) 		9-14219-192-0 01 1 9806-9911 ●
68 INDICATOR; SERVICE
(B) 		1-14219-212-0 01 1 9912- ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9806-9911 ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9912- ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9806-9911 ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9912- ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9806-9911 ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9912- ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9806-9911 ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9912- ●

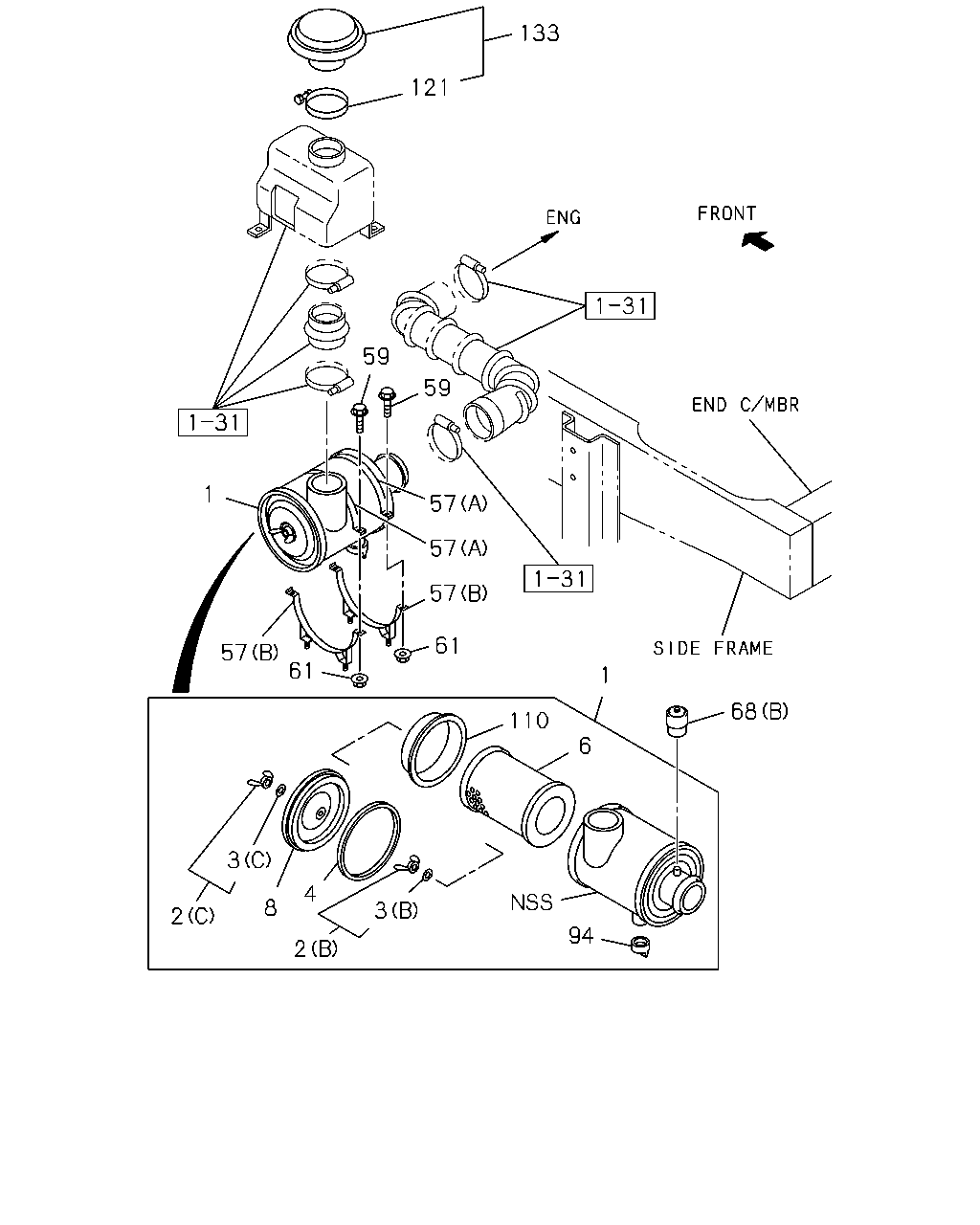

çizim 26621
133 121 59 59 1 57 57 57 61 57 61 1 68 110 6 3 4 8 3 2 94 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 1-14210-750-0 01 1 9806-9911 ●
1 CLEANER ASM; AIR 8-97600-038-0 01 1 9912- ●
1 CLEANER ASM; AIR 1-14210-621-1 01 1 9806-9911 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9806-9911 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9912- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9806-9911 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9912- ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9806-9911 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9806-9911 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9806-9911 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9912- ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9806-9911 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9912- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9806-9911 ●
4 GASKET; COVER TO BODY 1-14218-128-0 01 1 9912- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9806-9911 ●
6 FILTER; ACL 1-14215-182-0 01 1 9806-9911 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9806-9911 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9912- ●
8 COVER ASM; ACL 1-14212-101-0 01 1 9806-9911 ●
57 BAND; ACL
(B) 		1-53419-133-3 02 1 9806-9810 ●
57 BAND; ACL
(B) 		1-53419-249-0 02 1 9811-9911 ●
57 BAND; ACL
(B) 		1-53419-249-0 02 1 9912- ●
57 BAND; ACL
(A) 		1-53419-251-0 02 1 9806-9911 ●
57 BAND; ACL
(A) 		1-53419-251-0 02 1 9912- ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28681-030-0 04 1 9806-9911 ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28681-030-0 04 1 9912-0512 ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
61 NUT; ACL BAND
M10 FLANGE 		0-91150-210-0 08 1 9806-9911 ●
61 NUT; ACL BAND
M10 FLANGE 		0-91150-210-0 08 1 9912-0602 ●
61 NUT; ACL BAND
M10 FLANGE 		0-91180-210-0 08 1 0603- ●
68 INDICATOR; SERVICE
(B) 		1-14219-212-0 01 1 9806-9911 ● ●
68 INDICATOR; SERVICE
(A) 		9-14219-192-0 01 1 9806-9911 ●
68 INDICATOR; SERVICE
(B) 		1-14219-212-0 01 1 9912- ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9806-9911 ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9912- ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9806-9911 ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9912- ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9806-9911 ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9912- ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9806-9911 ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9912- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
