◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11133 - GVR(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#68152) — 72 parça

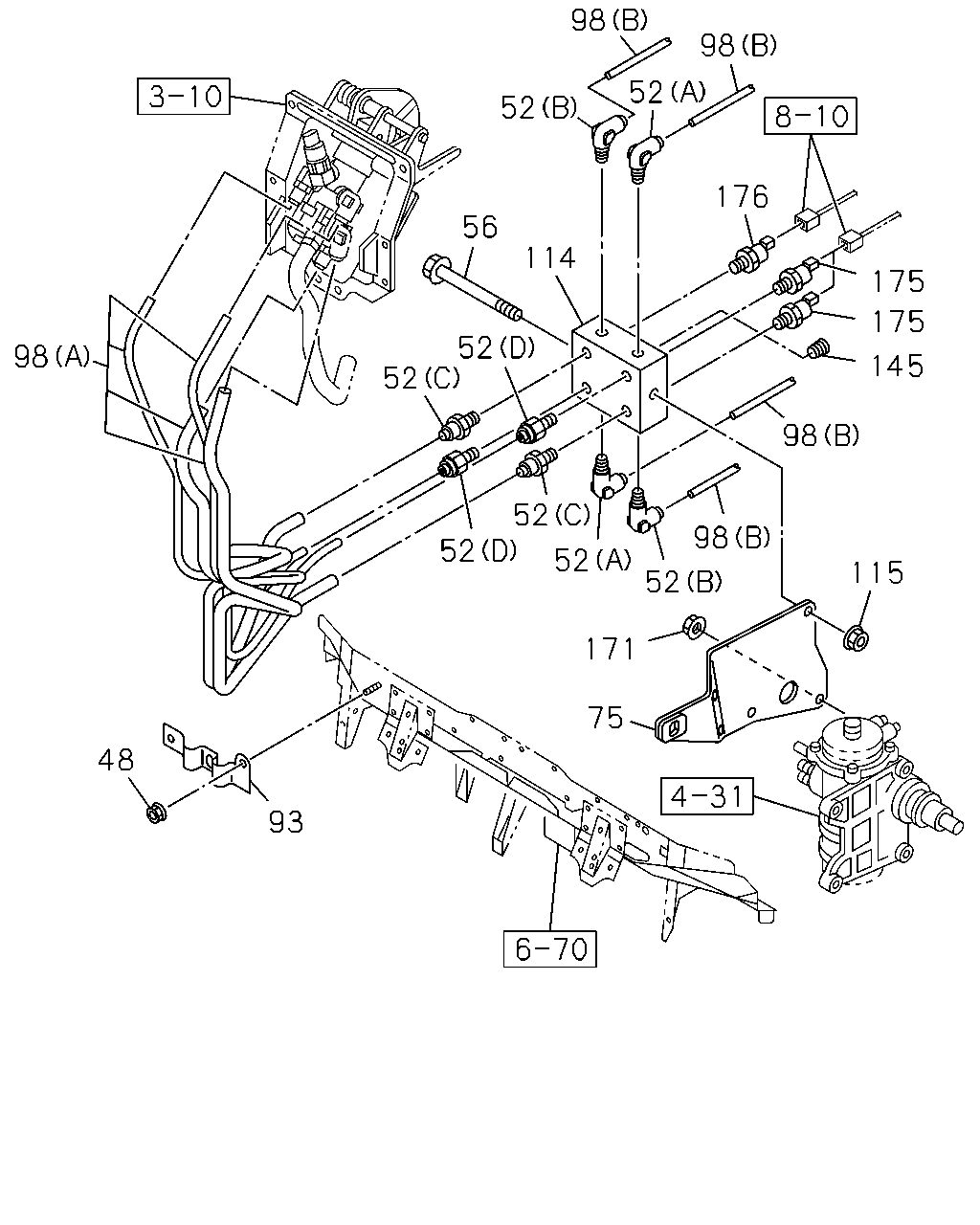

çizim 121750
98 98 52 52 176 56 114 175 175 52 52 98 145 98 52 52 98 52 115 52 171 75 48 93
BalonParca AdiParca NoAdetTipApplied Date
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 0807-
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 1103-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1103-
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1103-
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 0807-1102
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 0807-1102
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0807-1102
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 0807-
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 0807-
75 BRACKET; UNION 8-98099-485-1 01 1 0807-
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 01 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 02 1 0807-0807
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 03 1 0808-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 0807-0808
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 0809-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 0809-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 03 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 02 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 01 1 0807-1102
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 01 1 1103-
98 TUBE; NYLON
(A) THA 		8-98091-308-0 01 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 02 1 0807-1206
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 02 1 0807-1206
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 1103-
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 0807-1102
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 0807-
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 0807-
171 NUT; BRACKET
M10 FLANGE THA 		0-91180-210-0 02 1 0807-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0807-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0807-

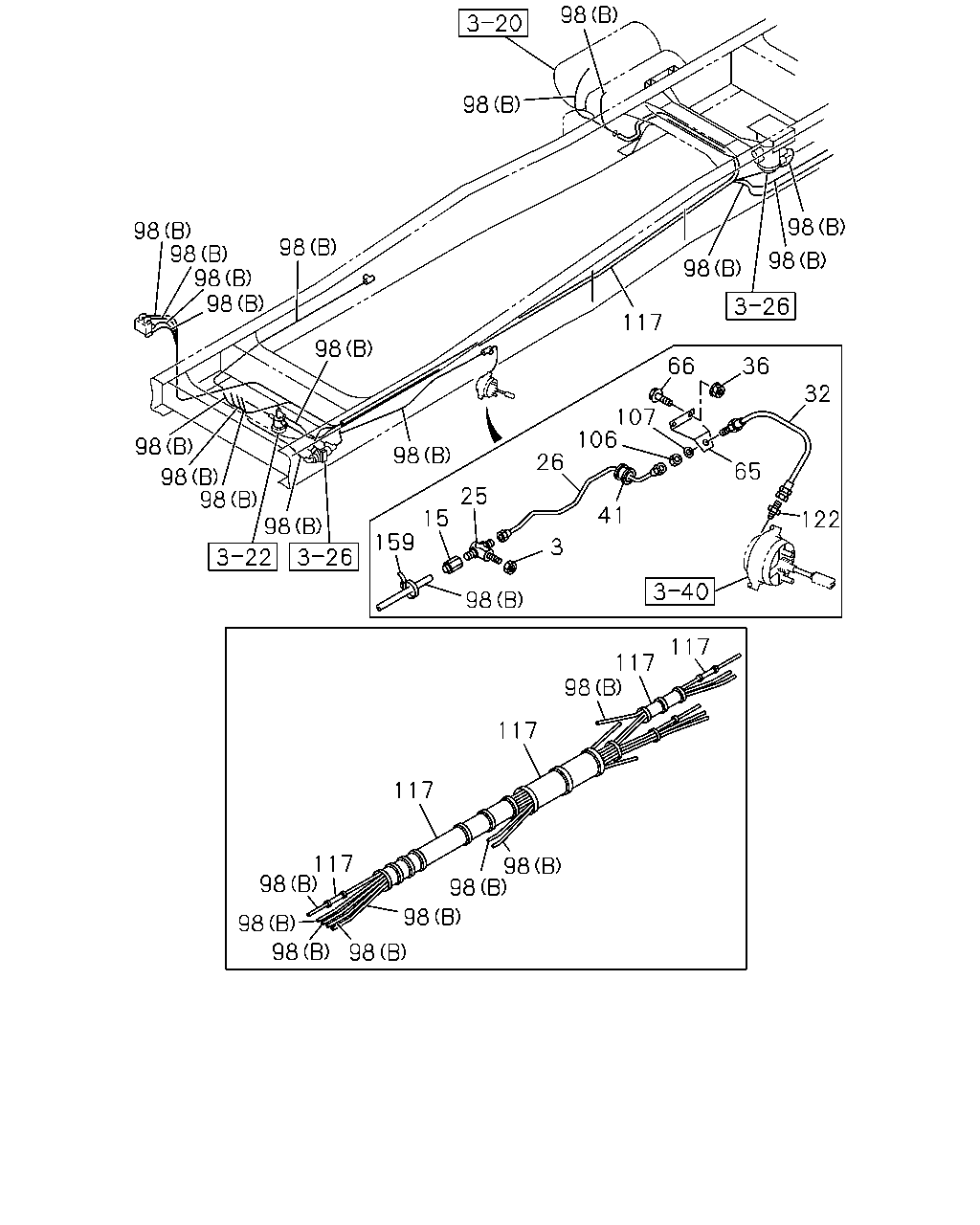

çizim 193822
98 98 98 98 98 98 98 98 98 98 117 98 66 36 32 107 106 98 98 26 65 98 98 98 25 41 15 122 159 3 98 117 117 98 117 117 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0807-
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT THA 		1-09660-876-0 02 1 0807-
25 UNION; AIR PIPE
M16 		1-09654-148-1 02 1 0807-
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 THA 		8-98047-734-0 01 1 0807-
26 PIPE; AIR,UNION TO FLEX HOSE
L=661 THA 		8-98085-122-0 01 1 0807-
32 HOSE; FLEX,FRT 1-09363-892-1 02 1 0807-
36 NUT; HOSE BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 0807-
41 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-2 02 1 0807-
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0807-
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0807-
66 BOLT; HOSE BRKT
M8X30 FLANGE THA 		0-28650-830-0 04 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 01 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 02 1 0807-0807
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 03 1 0808-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 0807-0808
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 0809-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 0809-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 03 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 02 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 01 1 0807-1102
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 01 1 1103-
98 TUBE; NYLON
(A) THA 		8-98091-308-0 01 1 0807-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 02 1 0807-1206
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 02 1 0807-1206
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
106 NUT; FLEX HOSE
M16 THA 		0-91111-516-0 02 1 0807-
107 WASHER; LK,FLEX HOSE
ID=16.2 THA 		0-91510-516-0 02 1 0807-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 01 1 0809-1102
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 01 1 1103-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 01 1 1103-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 01 1 0808-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 04 1 0807-1102
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 05 1 1103-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 01 1 0807-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 THA 		1-87411-035-0 03 1 0807-
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 0807-
159 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0807-0812
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0901-
