3-70 — BRAKE PIPING; AIR,AIR MASTER (#68151) — 114 parça

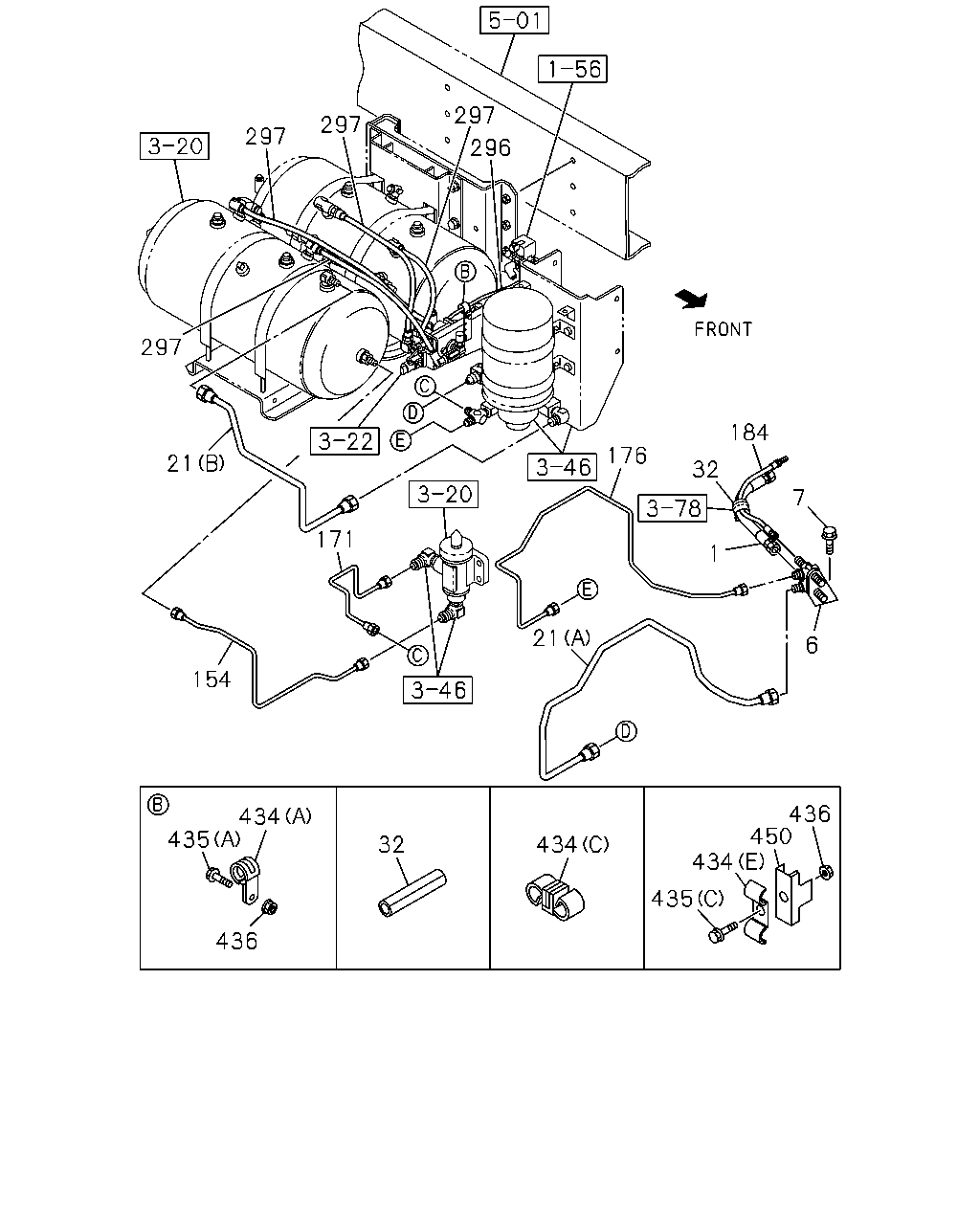

çizim 121250
297 297 297 296 297 184 176 21 32 7 171 1 21 6 154 436 450 434 434 435 32 434 435 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0807-1102
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1103-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 0807-1102
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1103-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA 		0-28650-830-0 02 1 0807-
21 PIPE; AIR,UNION TO AIR DRYER
(B) THA 		8-98173-194-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1941 THA 		8-98130-574-0 01 1 0809-1102
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1827 THA 		8-98173-193-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1903 		8-98088-466-1 01 1 0807-0808
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1103-
32 SLEEVE; RUBBER,AIR PIPE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0807-
154 PIPE; AIR,AIR TANK TO AIR GOV
THA 		8-98173-195-0 01 1 1103-
171 PIPE; AIR,GOV TO AIR DRYER
L=353 THA 		8-98173-196-0 01 1 1103-
176 PIPE; AIR,AIR DRYER TO UNION
L=1873 SERVICED BY L=2000 THA 		1-47428-823-0 01 1 1103-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1103-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 04 1 0807-1109
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 03 1 1110-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 04 1 0807-
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 02 1 1103-1206
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1207-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1207-
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1207-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1103-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 0807-1102
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1103-
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1103-
434 CLIP
(D) ID=7 L=20 		0-95234-635-0 01 1 0807-
434 CLIP
(A) ID=16 L=20 THA 		0-95235-536-0 01 1 0807-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0807-1102
434 CLIP
(E) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1103-
434 CLIP
(C) ID=12 & 15 		1-09709-281-1 01 1 0807-
435 BOLT; CLIP
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0807-1102
435 BOLT; CLIP
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 1103-
435 BOLT; CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-
435 BOLT; CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0807-0807
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0808-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0808-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 0807-0807
450 BRACKET; CLIP 1-47475-427-1 02 1 1103-

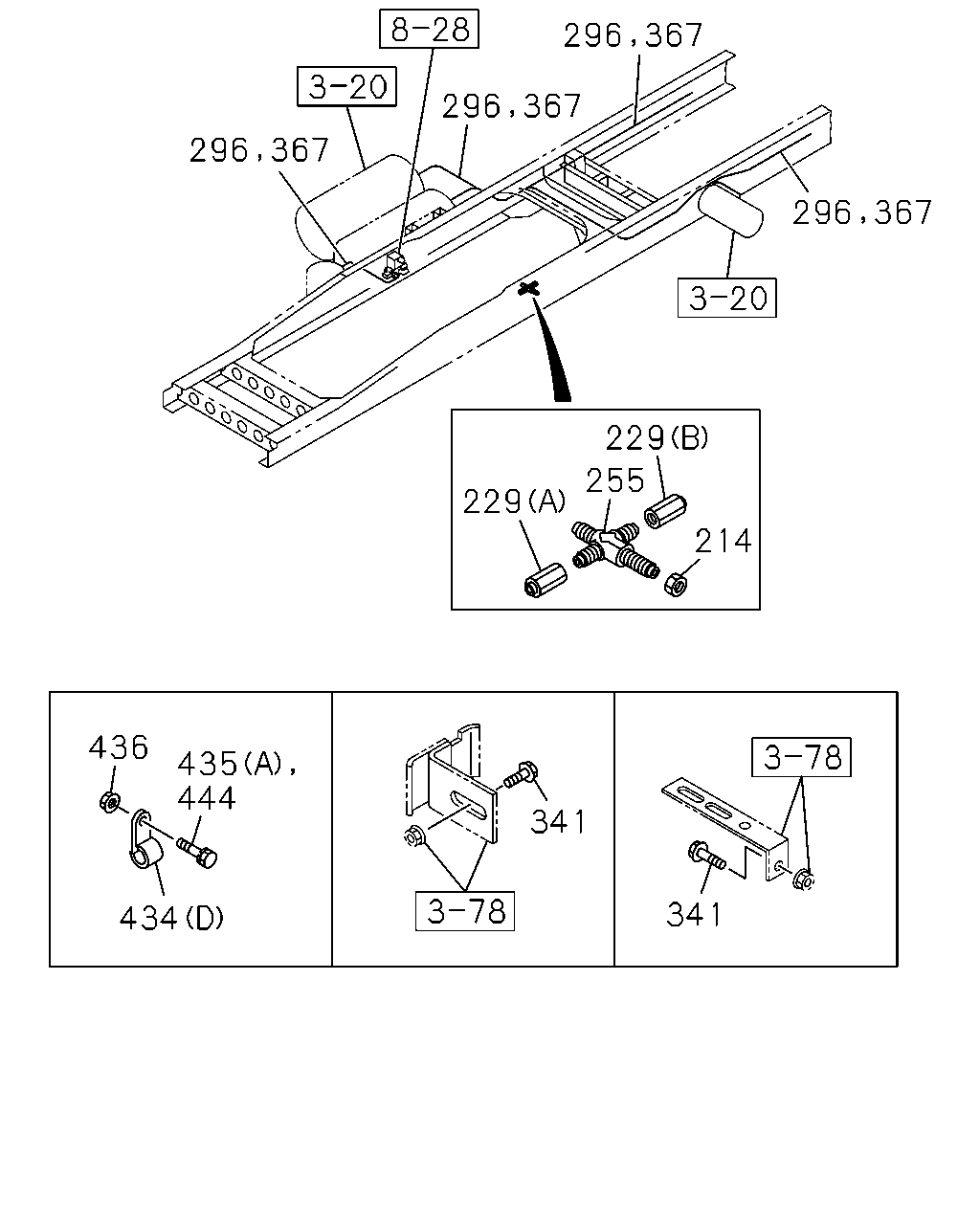

çizim 121390
229 255 229 214 436 435 444 341 341 434 296 367 296 367 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date
214 NUT; UNION,AIR PIPE
M12 THA 		0-91110-512-0 01 1 0807-
229 ADAPTER; NYLON TUBE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0807-
229 ADAPTER; NYLON TUBE
(B) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0807-1004
229 ADAPTER; NYLON TUBE
(B) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0807-1004
229 ADAPTER; NYLON TUBE
(B) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1005-
255 UNION; NYLON TUBE
M12 		0-92138-306-0 01 1 0807-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 04 1 0807-1109
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 03 1 1110-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 04 1 0807-
341 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 04 1 0807-1102
341 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1103-1103
341 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 04 1 1103-
367 TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 02 1 1207-
367 TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 01 1 1103-
367 TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 03 1 1103-1206
367 TUBE; CORRUGATE
PTO CONTROL<SV6> SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 01 1 1207-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 01 1 0807-0807
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 02 1 0808-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 02 1 0807-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 02 1 0807-
434 CLIP
(D) ID=7 L=20 		0-95234-635-0 01 1 0807-
434 CLIP
(A) ID=16 L=20 THA 		0-95235-536-0 01 1 0807-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0807-1102
434 CLIP
(E) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1103-
434 CLIP
(C) ID=12 & 15 		1-09709-281-1 01 1 0807-
435 BOLT; CLIP
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0807-1102
435 BOLT; CLIP
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 1103-
435 BOLT; CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-
435 BOLT; CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0807-0807
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0808-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0808-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 0807-0807
444 BOLT; UNION
M8X25 FLANGE THA 		0-28050-825-0 01 1 0807-1001
çizim 121495
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
BLUE 		1-47465-151-0 01 1 0807-
107 COUPLING; SERVICE
RED 		1-47465-152-0 01 1 0807-

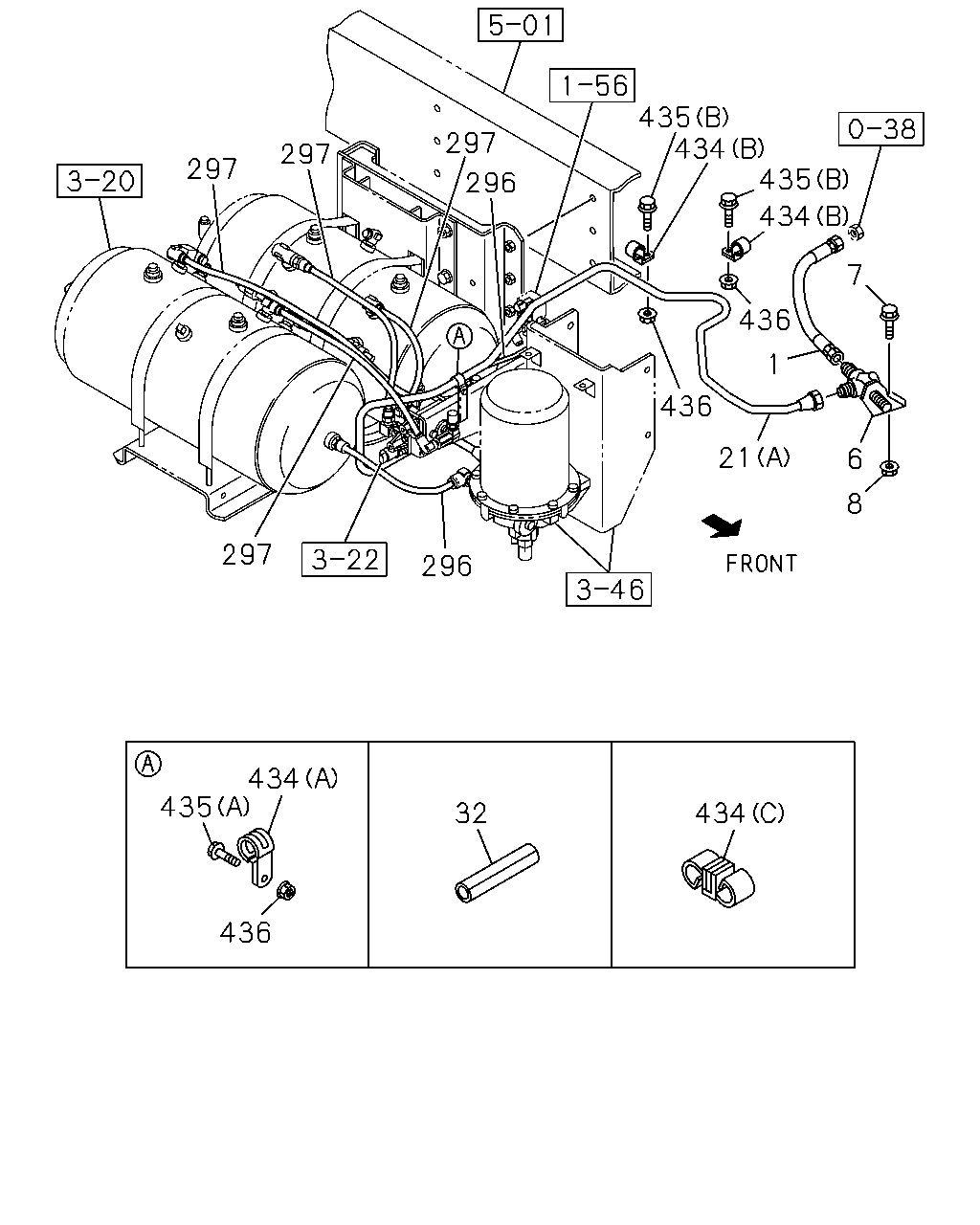

çizim 121558
435 434 435 297 297 297 296 434 7 436 1 436 21 6 8 297 296 434 435 32 434 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0807-1102
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1103-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 0807-1102
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1103-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA 		0-28650-830-0 02 1 0807-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE THA 		0-91180-108-0 02 1 0807-0807
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE THA 		0-91180-108-0 02 1 0807-0807
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE THA 		0-91180-108-0 02 1 0808-0906
21 PIPE; AIR,UNION TO AIR DRYER
(B) THA 		8-98173-194-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1941 THA 		8-98130-574-0 01 1 0809-1102
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1827 THA 		8-98173-193-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1903 		8-98088-466-1 01 1 0807-0808
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1103-
32 SLEEVE; RUBBER,AIR PIPE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0807-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 04 1 0807-1109
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 03 1 1110-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 04 1 0807-
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 02 1 1103-1206
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1207-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1207-
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1207-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1103-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 0807-1102
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1103-
297 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1103-
434 CLIP
(D) ID=7 L=20 		0-95234-635-0 01 1 0807-
434 CLIP
(A) ID=16 L=20 THA 		0-95235-536-0 01 1 0807-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0807-1102
434 CLIP
(E) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1103-
434 CLIP
(C) ID=12 & 15 		1-09709-281-1 01 1 0807-
435 BOLT; CLIP
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 0807-1102
435 BOLT; CLIP
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 1103-
435 BOLT; CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-
435 BOLT; CLIP
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0807-0807
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0808-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0808-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 0807-0807
