1-15 — SWING ARM AND IDLE PULLEY (#6815) — 211 parça

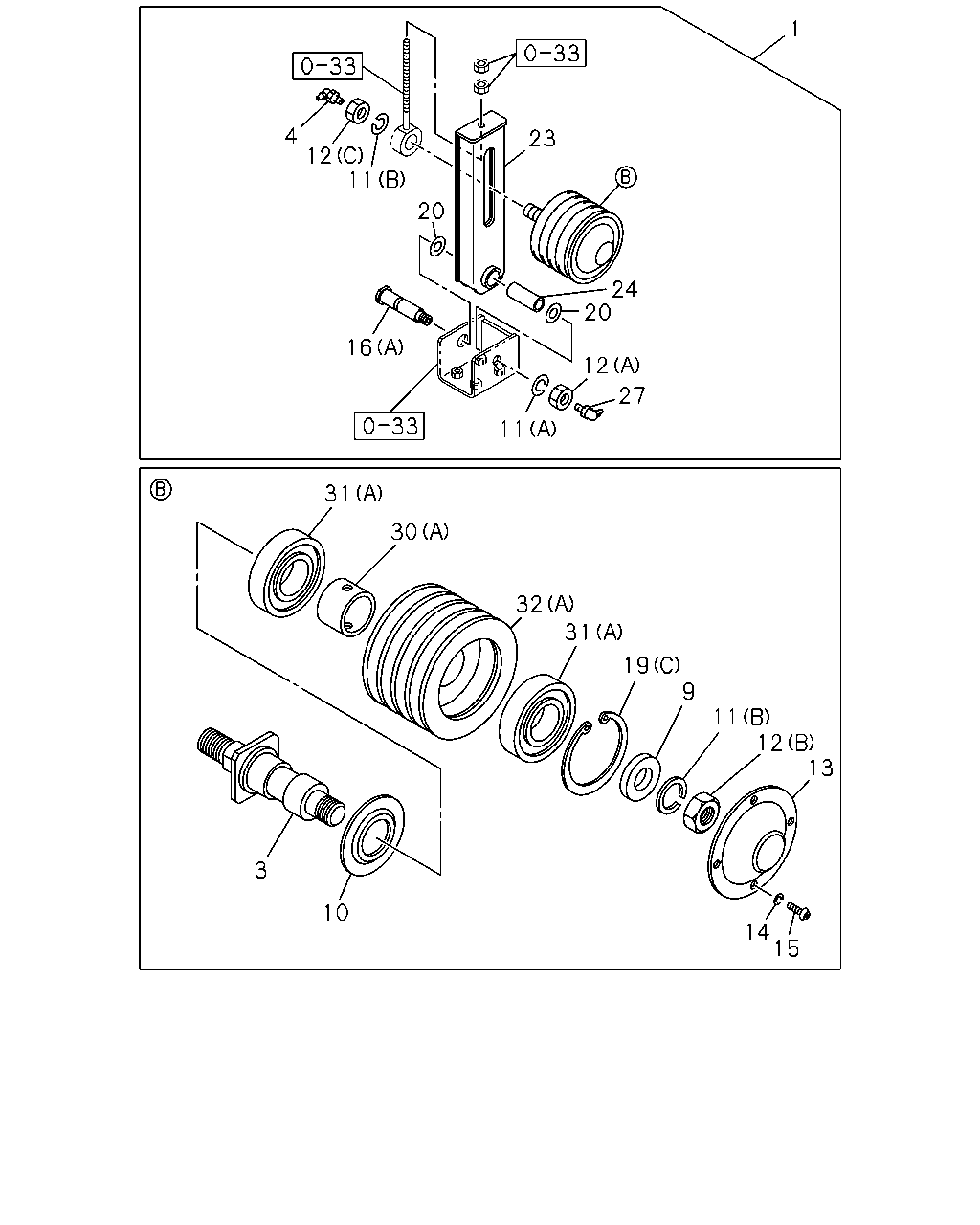

çizim 26267
1 4 23 12 11 20 24 20 16 12 27 11 31 30 32 31 19 9 11 12 13 3 10 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-211-0 01 1 9806-9911 ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-225-1 01 1 9912- ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-026-0 01 1 9806-9911 ● ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-053-0 01 1 9912- ●
4 NIPPLE; GREASE,IDLE PULLEY
H=20.0 		9-83765-012-0 01 1 9806-9911 ● ●
4 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
4 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
9 WASHER; IDLE PULLEY,COOLING FAN 1-21619-003-0 01 1 9806-9911 ● ●
9 WASHER; IDLE PULLEY,COOLING FAN 1-21619-003-0 01 1 9912- ●
10 PLATE; SEAL,IDLE PULLEY 1-21622-003-0 01 1 9806-9911 ● ●
10 PLATE; SEAL,IDLE PULLEY 1-21622-003-0 01 1 9912- ●
11 WASHER; LK,IDLE PULLEY
(B) ID=24.5 		9-09150-524-0 01 1 9806-9911 ● ●
11 WASHER; LK,IDLE PULLEY
(B) ID=24.5 		9-09150-524-0 02 1 9912-0603 ●
11 WASHER; LK,IDLE PULLEY
(B) ID=24.5 		0-91510-524-0 02 1 0604- ●
11 WASHER; LK,IDLE PULLEY
(A) ID=18.2 		9-09150-518-0 01 1 9912-0603 ●
11 WASHER; LK,IDLE PULLEY
(A) ID=18.2 		0-91510-518-0 01 1 0604- ●
12 NUT; IDLE PULLEY TO SPINDLE
(B) M24 		9-09840-264-0 01 1 9806-9911 ● ●
12 NUT; IDLE PULLEY TO SPINDLE
(B) M24 		9-09840-264-0 01 1 9912- ●
12 NUT; IDLE PULLEY TO SPINDLE
(A) M18 		9-99111-518-0 01 1 9912-0512 ●
12 NUT; IDLE PULLEY TO SPINDLE
(A) M18 		0-91111-518-0 01 1 0601- ●
12 NUT; IDLE PULLEY TO SPINDLE
(C) M24 		9-99111-524-0 01 1 9912-0512 ●
12 NUT; IDLE PULLEY TO SPINDLE
(C) M24 		0-91111-524-0 01 1 0601- ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-002-0 01 1 9806-9911 ● ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-002-0 01 1 9912- ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		9-09150-504-0 04 1 9806-9911 ● ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		9-09150-504-0 04 1 9912-0603 ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		0-91510-504-0 04 1 0604- ●
15 SCREW; DUST COVER,IDLE PULLEY
M4X6 		9-93490-406-0 04 1 9806-9911 ● ●
15 SCREW; DUST COVER,IDLE PULLEY
M4X6 		9-93490-406-0 04 1 9912- ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(C) 		1-21611-024-0 01 1 9806-9911 ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(A) 		1-21611-052-1 01 1 9912- ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(C) 		1-21611-034-0 01 1 9806-9911 ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(B) 		1-21611-054-0 01 1 9912- ●
19 RING; SNAP,FAN PULLEY BRG
(B) ID=74.5 		9-09180-480-0 01 1 9806-9911 ● ●
19 RING; SNAP,FAN PULLEY BRG
(C) OD=95.5 		9-09180-590-0 01 1 9912- ●
19 RING; SNAP,FAN PULLEY BRG
(A) ID=57.9 		9-09180-562-0 01 1 9806-9911 ● ●
19 RING; SNAP,FAN PULLEY BRG
(D) ID=57.9 		9-09180-562-0 01 1 9912- ●
20 WASHER; SWING ARM,COOLING FAN DRIVE 1-09503-041-0 02 1 9806-9911 ● ●
20 WASHER; SWING ARM,COOLING FAN DRIVE 1-09503-250-0 02 1 9912- ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-069-0 01 1 9806-9911 ● ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-075-1 01 1 9912- ●
24 BUSHING; SWING ARM 1-09330-005-0 02 1 9806-9911 ● ●
24 BUSHING; SWING ARM
ID=25 		9-51151-032-0 01 1 9912- ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9912-0512 ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9912-0512 ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		0-90301-510-0 01 1 0601- ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		0-90301-510-0 01 1 0601- ●
30 PIECE; DIST,COOLING FAN DRIVE
(B) 		1-21616-008-0 01 1 9806-9911 ● ●
30 PIECE; DIST,COOLING FAN DRIVE
(B) 		1-21616-008-0 01 1 9912- ●
30 PIECE; DIST,COOLING FAN DRIVE
(A) 		1-21616-004-0 01 1 9912- ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(B) 		1-09800-038-0 01 1 9806-9911 ● ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(B) 		1-09800-038-0 01 1 9912- ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(A) 		1-09800-024-0 02 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
(B) 		1-13663-095-0 01 1 9806-9911 ●
32 PULLEY; COOLING FAN DRIVE
A/T<X9D> (B) 		1-13663-095-1 01 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
(B) 		1-13663-094-0 01 1 9806-9911 ●
32 PULLEY; COOLING FAN DRIVE
(A) 		1-13663-093-0 01 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
ISUZU M/T<X9A> (B) 		1-13663-113-1 01 1 9912- ●

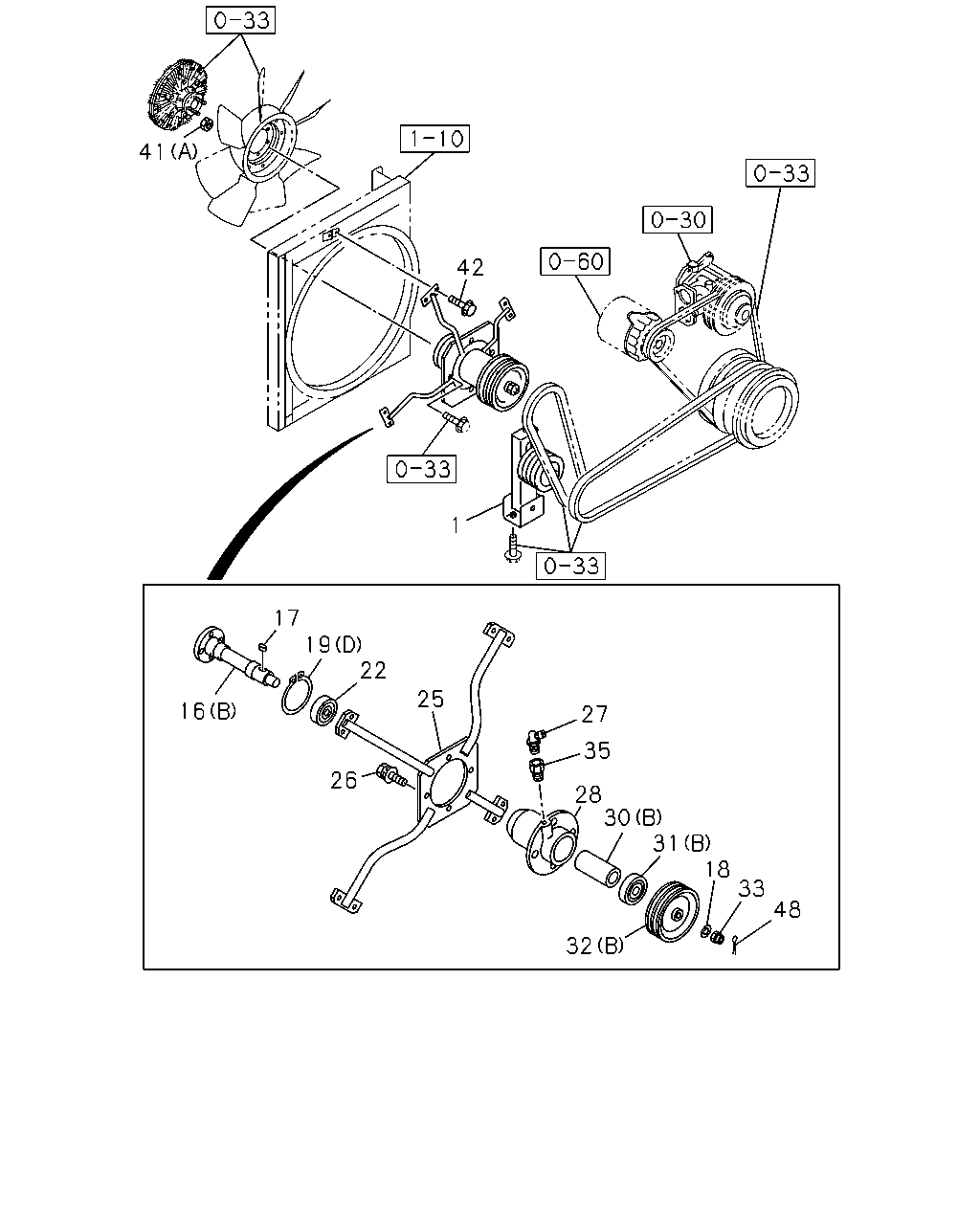

çizim 26447
41 42 1 17 19 22 25 16 27 35 26 28 30 31 18 33 48 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-211-0 01 1 9806-9911 ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-225-1 01 1 9912- ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(C) 		1-21611-024-0 01 1 9806-9911 ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(A) 		1-21611-052-1 01 1 9912- ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(C) 		1-21611-034-0 01 1 9806-9911 ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(B) 		1-21611-054-0 01 1 9912- ●
17 KEY; FAN PULLEY 9-08000-720-0 01 1 9806-9911 ● ●
17 KEY; FAN PULLEY 9-08000-720-0 01 1 9912- ●
18 WASHER; PL,FAN PULLEY
ID=21 		9-09164-520-0 01 1 9806-9911 ● ●
18 WASHER; PL,FAN PULLEY
ID=21 		9-09164-520-0 01 1 9912- ●
19 RING; SNAP,FAN PULLEY BRG
(B) ID=74.5 		9-09180-480-0 01 1 9806-9911 ● ●
19 RING; SNAP,FAN PULLEY BRG
(C) OD=95.5 		9-09180-590-0 01 1 9912- ●
19 RING; SNAP,FAN PULLEY BRG
(A) ID=57.9 		9-09180-562-0 01 1 9806-9911 ● ●
19 RING; SNAP,FAN PULLEY BRG
(D) ID=57.9 		9-09180-562-0 01 1 9912- ●
22 BEARING; FAN SIDE,COOLING FAN DRIVE 1-09800-039-0 01 1 9806-9911 ● ●
22 BEARING; FAN SIDE,COOLING FAN DRIVE 1-09800-039-0 01 1 9912- ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-067-0 01 1 9806-9911 ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-071-1 01 1 9912-0112 ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-085-0 01 1 0201-0304 ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-087-0 01 1 0305- ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-070-0 01 1 9806-9911 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 W/LK WASHER 		0-50051-025-0 04 1 9806-9911 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 FLANGE 		0-28781-025-0 04 1 9912-0304 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28781-030-0 04 1 0305-0512 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28751-030-0 04 1 0601- ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28781-030-0 04 1 9806-9911 ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9912-0512 ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9912-0512 ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		0-90301-510-0 01 1 0601- ●
27 NIPPLE; GREASE,SWING ARM,FAN DRIVE
PT1/8 ELBOW 67.5? 		0-90301-510-0 01 1 0601- ●
28 CASE; DRIVE SHAFT,COOLING FAN 1-21621-004-0 01 1 9806-9911 ● ●
28 CASE; DRIVE SHAFT,COOLING FAN 1-21621-004-0 01 1 9912- ●
30 PIECE; DIST,COOLING FAN DRIVE
(B) 		1-21616-008-0 01 1 9806-9911 ● ●
30 PIECE; DIST,COOLING FAN DRIVE
(B) 		1-21616-008-0 01 1 9912- ●
30 PIECE; DIST,COOLING FAN DRIVE
(A) 		1-21616-004-0 01 1 9912- ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(B) 		1-09800-038-0 01 1 9806-9911 ● ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(B) 		1-09800-038-0 01 1 9912- ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(A) 		1-09800-024-0 02 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
(B) 		1-13663-095-0 01 1 9806-9911 ●
32 PULLEY; COOLING FAN DRIVE
A/T<X9D> (B) 		1-13663-095-1 01 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
(B) 		1-13663-094-0 01 1 9806-9911 ●
32 PULLEY; COOLING FAN DRIVE
(A) 		1-13663-093-0 01 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
ISUZU M/T<X9A> (B) 		1-13663-113-1 01 1 9912- ●
33 NUT; LK,FAN PULLEY
M20 LOCK NUT 		9-09131-420-0 01 1 9806-9911 ● ●
33 NUT; LK,FAN PULLEY
M20 SLOTTED 		9-99116-420-0 01 1 9912- ●
35 ADAPTER; FAN DRIVE
PT1/8 STRAIGHT 		9-09902-238-0 01 1 0305- ●
35 ADAPTER; FAN DRIVE
PT1/8 STRAIGHT 		9-09902-238-0 01 1 9806-9911 ● ●
41 NUT; FLANGE
(A) M10 FLANGE 		0-91150-210-0 04 1 9806-9911 ● ●
41 NUT; FLANGE
(A) M10 FLANGE 		0-91150-210-0 04 1 9912-0602 ●
41 NUT; FLANGE
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
41 NUT; FLANGE
(B) M14 		9-99110-414-0 02 1 9806-9911 ● ●
42 WASHER; LK,FLANGE
ID=14.2 		9-09150-514-0 02 1 9806-9911 ● ●
48 PIN; SPLIT,FAN PULLEY 9-08114-040-0 01 1 9912-0607 ●
48 PIN; SPLIT,FAN PULLEY 0-81124-040-0 01 1 0608- ●

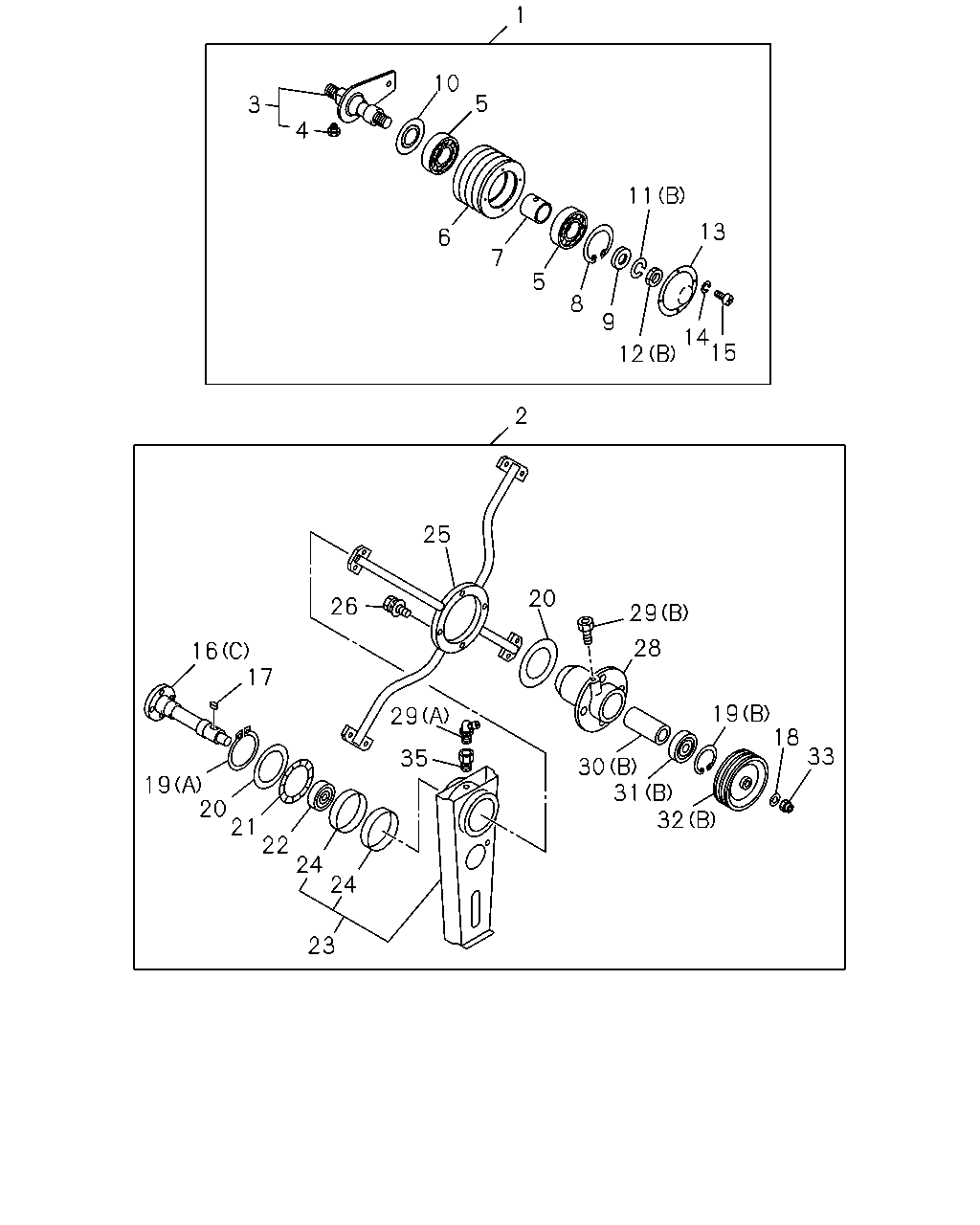

çizim 98740
1 10 5 3 4 11 13 6 7 5 8 9 14 12 15 2 25 20 26 29 28 16 17 19 18 33 29 35 30 31 32 19 20 21 22 24 24 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-211-0 01 1 9806-9911 ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-225-1 01 1 9912- ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-220-0 01 1 9806-9911 ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-208-0 01 1 9806-9911 ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-026-0 01 1 9806-9911 ● ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-053-0 01 1 9912- ●
4 NIPPLE; GREASE,IDLE PULLEY
H=20.0 		9-83765-012-0 01 1 9806-9911 ● ●
4 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 9912-0512 ●
4 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
5 BEARING; IDLE PULLEY,COOLING FAN 1-09800-024-0 02 1 9806-9911 ● ●
6 PULLEY; IDLE,COOLING FAN DRIVE 1-13663-093-0 01 1 9806-9911 ● ●
7 SPACER; IDLE PULLEY BRG 1-21616-004-0 01 1 9806-9911 ● ●
8 RING; SNAP,IDLE PULLEY BRG
OD=95.5 		9-09180-590-0 01 1 9806-9911 ● ●
9 WASHER; IDLE PULLEY,COOLING FAN 1-21619-003-0 01 1 9806-9911 ● ●
9 WASHER; IDLE PULLEY,COOLING FAN 1-21619-003-0 01 1 9912- ●
10 PLATE; SEAL,IDLE PULLEY 1-21622-003-0 01 1 9806-9911 ● ●
10 PLATE; SEAL,IDLE PULLEY 1-21622-003-0 01 1 9912- ●
11 WASHER; LK,IDLE PULLEY
(B) ID=24.5 		9-09150-524-0 01 1 9806-9911 ● ●
11 WASHER; LK,IDLE PULLEY
(B) ID=24.5 		9-09150-524-0 02 1 9912-0603 ●
11 WASHER; LK,IDLE PULLEY
(B) ID=24.5 		0-91510-524-0 02 1 0604- ●
11 WASHER; LK,IDLE PULLEY
(A) ID=18.2 		9-09150-518-0 01 1 9912-0603 ●
11 WASHER; LK,IDLE PULLEY
(A) ID=18.2 		0-91510-518-0 01 1 0604- ●
12 NUT; IDLE PULLEY TO SPINDLE
(B) M24 		9-09840-264-0 01 1 9806-9911 ● ●
12 NUT; IDLE PULLEY TO SPINDLE
(B) M24 		9-09840-264-0 01 1 9912- ●
12 NUT; IDLE PULLEY TO SPINDLE
(A) M18 		9-99111-518-0 01 1 9912-0512 ●
12 NUT; IDLE PULLEY TO SPINDLE
(A) M18 		0-91111-518-0 01 1 0601- ●
12 NUT; IDLE PULLEY TO SPINDLE
(C) M24 		9-99111-524-0 01 1 9912-0512 ●
12 NUT; IDLE PULLEY TO SPINDLE
(C) M24 		0-91111-524-0 01 1 0601- ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-002-0 01 1 9806-9911 ● ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-002-0 01 1 9912- ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		9-09150-504-0 04 1 9806-9911 ● ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		9-09150-504-0 04 1 9912-0603 ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		0-91510-504-0 04 1 0604- ●
15 SCREW; DUST COVER,IDLE PULLEY
M4X6 		9-93490-406-0 04 1 9806-9911 ● ●
15 SCREW; DUST COVER,IDLE PULLEY
M4X6 		9-93490-406-0 04 1 9912- ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(C) 		1-21611-024-0 01 1 9806-9911 ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(A) 		1-21611-052-1 01 1 9912- ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(C) 		1-21611-034-0 01 1 9806-9911 ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE
(B) 		1-21611-054-0 01 1 9912- ●
17 KEY; FAN PULLEY 9-08000-720-0 01 1 9806-9911 ● ●
17 KEY; FAN PULLEY 9-08000-720-0 01 1 9912- ●
18 WASHER; PL,FAN PULLEY
ID=21 		9-09164-520-0 01 1 9806-9911 ● ●
18 WASHER; PL,FAN PULLEY
ID=21 		9-09164-520-0 01 1 9912- ●
19 RING; SNAP,FAN PULLEY BRG
(B) ID=74.5 		9-09180-480-0 01 1 9806-9911 ● ●
19 RING; SNAP,FAN PULLEY BRG
(C) OD=95.5 		9-09180-590-0 01 1 9912- ●
19 RING; SNAP,FAN PULLEY BRG
(A) ID=57.9 		9-09180-562-0 01 1 9806-9911 ● ●
19 RING; SNAP,FAN PULLEY BRG
(D) ID=57.9 		9-09180-562-0 01 1 9912- ●
20 WASHER; SWING ARM,COOLING FAN DRIVE 1-09503-041-0 02 1 9806-9911 ● ●
20 WASHER; SWING ARM,COOLING FAN DRIVE 1-09503-250-0 02 1 9912- ●
21 WASHER; WAVE,SWING ARM,COOLING FAN DRI 1-09550-004-0 01 1 9806-9911 ● ●
22 BEARING; FAN SIDE,COOLING FAN DRIVE 1-09800-039-0 01 1 9806-9911 ● ●
22 BEARING; FAN SIDE,COOLING FAN DRIVE 1-09800-039-0 01 1 9912- ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-069-0 01 1 9806-9911 ● ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-075-1 01 1 9912- ●
24 BUSHING; SWING ARM 1-09330-005-0 02 1 9806-9911 ● ●
24 BUSHING; SWING ARM
ID=25 		9-51151-032-0 01 1 9912- ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-067-0 01 1 9806-9911 ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-071-1 01 1 9912-0112 ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-085-0 01 1 0201-0304 ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-087-0 01 1 0305- ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-070-0 01 1 9806-9911 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 W/LK WASHER 		0-50051-025-0 04 1 9806-9911 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 FLANGE 		0-28781-025-0 04 1 9912-0304 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28781-030-0 04 1 0305-0512 ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28751-030-0 04 1 0601- ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28781-030-0 04 1 9806-9911 ●
28 CASE; DRIVE SHAFT,COOLING FAN 1-21621-004-0 01 1 9806-9911 ● ●
28 CASE; DRIVE SHAFT,COOLING FAN 1-21621-004-0 01 1 9912- ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9806-9911 ● ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
(B) H=20.0 		9-83765-012-0 01 1 9806-9911 ● ●
30 PIECE; DIST,COOLING FAN DRIVE
(B) 		1-21616-008-0 01 1 9806-9911 ● ●
30 PIECE; DIST,COOLING FAN DRIVE
(B) 		1-21616-008-0 01 1 9912- ●
30 PIECE; DIST,COOLING FAN DRIVE
(A) 		1-21616-004-0 01 1 9912- ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(B) 		1-09800-038-0 01 1 9806-9911 ● ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(B) 		1-09800-038-0 01 1 9912- ●
31 BEARING; PULLEY SIDE,FAN DRIVE
(A) 		1-09800-024-0 02 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
(B) 		1-13663-095-0 01 1 9806-9911 ●
32 PULLEY; COOLING FAN DRIVE
A/T<X9D> (B) 		1-13663-095-1 01 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
(B) 		1-13663-094-0 01 1 9806-9911 ●
32 PULLEY; COOLING FAN DRIVE
(A) 		1-13663-093-0 01 1 9912- ●
32 PULLEY; COOLING FAN DRIVE
ISUZU M/T<X9A> (B) 		1-13663-113-1 01 1 9912- ●
33 NUT; LK,FAN PULLEY
M20 LOCK NUT 		9-09131-420-0 01 1 9806-9911 ● ●
33 NUT; LK,FAN PULLEY
M20 SLOTTED 		9-99116-420-0 01 1 9912- ●
35 ADAPTER; FAN DRIVE
PT1/8 STRAIGHT 		9-09902-238-0 01 1 0305- ●
35 ADAPTER; FAN DRIVE
PT1/8 STRAIGHT 		9-09902-238-0 01 1 9806-9911 ● ●

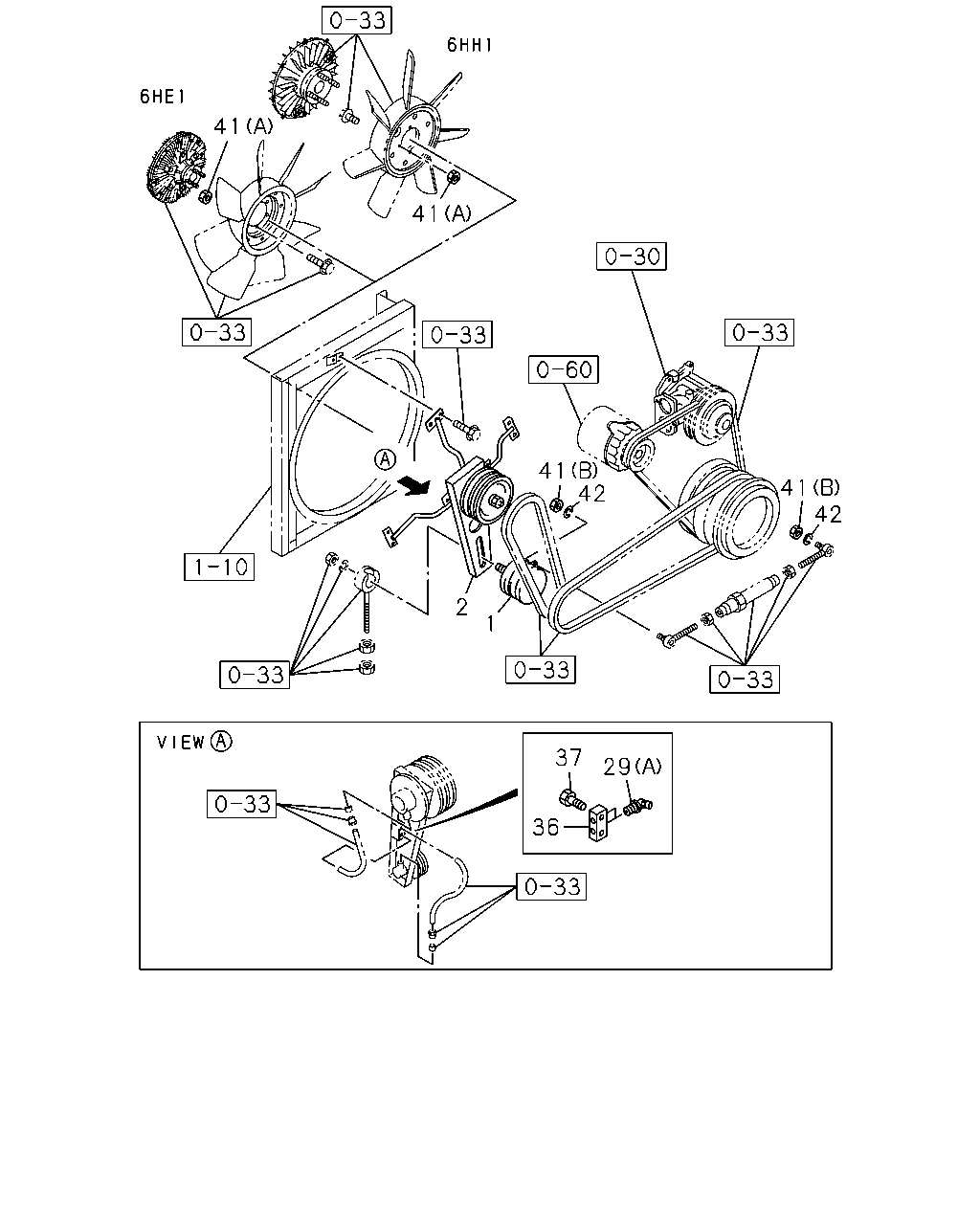

çizim 98793
41 41 41 42 41 42 2 1 29 36 37
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-211-0 01 1 9806-9911 ● ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-225-1 01 1 9912- ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-220-0 01 1 9806-9911 ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-208-0 01 1 9806-9911 ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9806-9911 ● ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
(B) H=20.0 		9-83765-012-0 01 1 9806-9911 ● ●
36 HOLDER; GREASE NIPPLE 1-59469-003-0 01 1 9806-9911 ● ●
37 BOLT; NIPPLE HOLDER
M6X25 W/LK WASHER 		0-50040-625-0 02 1 9806-9911 ●
37 BOLT; NIPPLE HOLDER
M6X25 FLANGE 		0-28680-625-0 02 1 9806-9911 ●
41 NUT; FLANGE
(A) M10 FLANGE 		0-91150-210-0 04 1 9806-9911 ● ●
41 NUT; FLANGE
(A) M10 FLANGE 		0-91150-210-0 04 1 9912-0602 ●
41 NUT; FLANGE
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
41 NUT; FLANGE
(B) M14 		9-99110-414-0 02 1 9806-9911 ● ●
42 WASHER; LK,FLANGE
ID=14.2 		9-09150-514-0 02 1 9806-9911 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
