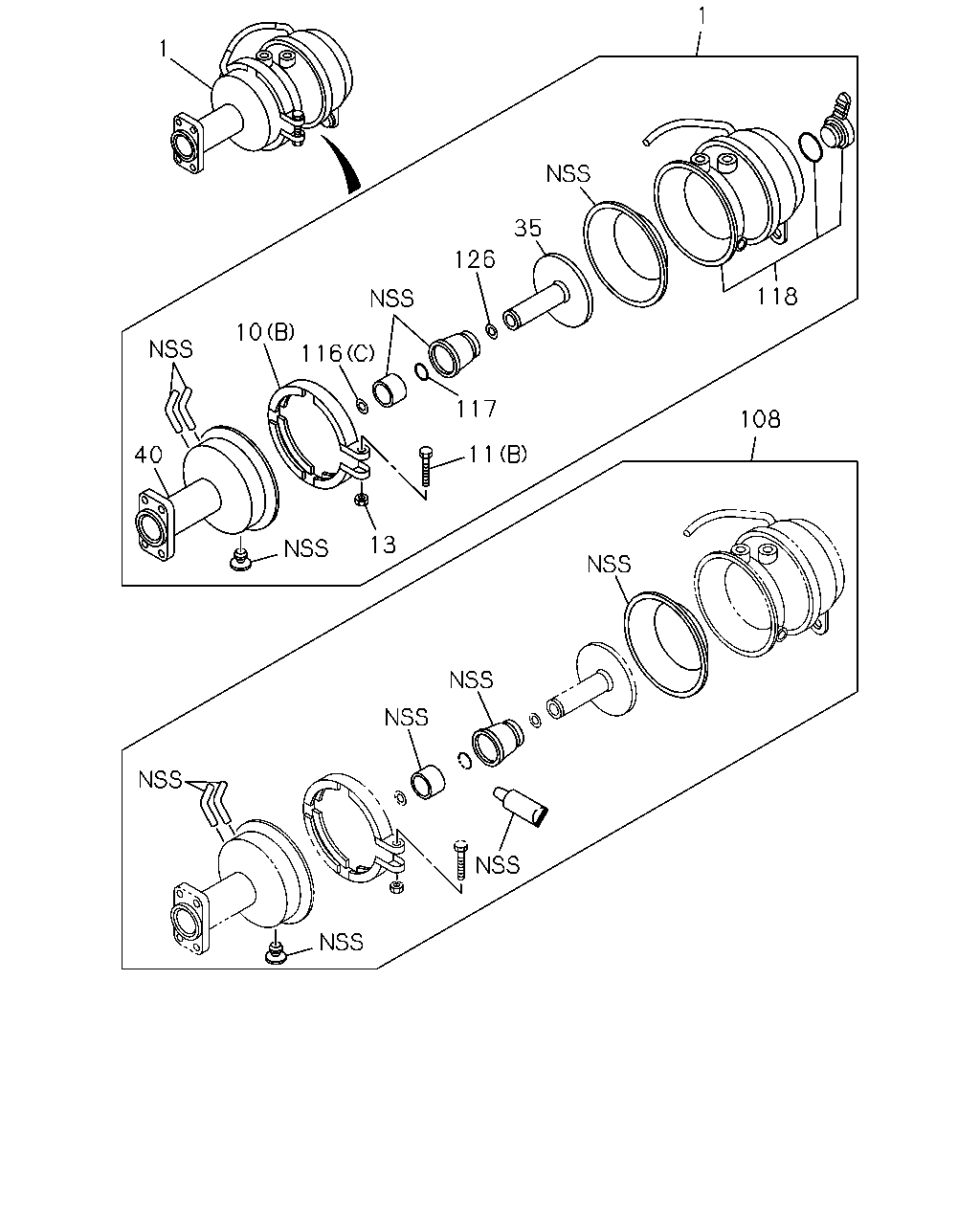

3-41 — REAR BRAKE POWER CHAMBER (#68146) — 85 parça

1 1 35 126 118 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING	1-48250-868-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-698-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-097-0	01	1	1006-
1	CHAMBER ASM; SPRING	1-48250-869-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-699-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-098-0	01	1	1006-
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0807-0901
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	0902-
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0807-0901
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	0902-
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0807-0901
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	0902-
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0807-0910
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-974-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-140-1	01	1	0807-
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-141-1	01	1	0807-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0807-0910
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	0911-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0807-0910
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0807-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0807-0910
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-
118	CHAMBER; PIGGY BACK THA	1-87412-113-0	01	1	1006-
118	CHAMBER; PIGGY BACK THA	1-87412-114-0	01	1	1006-
126	SHIM THA	8-98146-965-0	AR	1	0911-

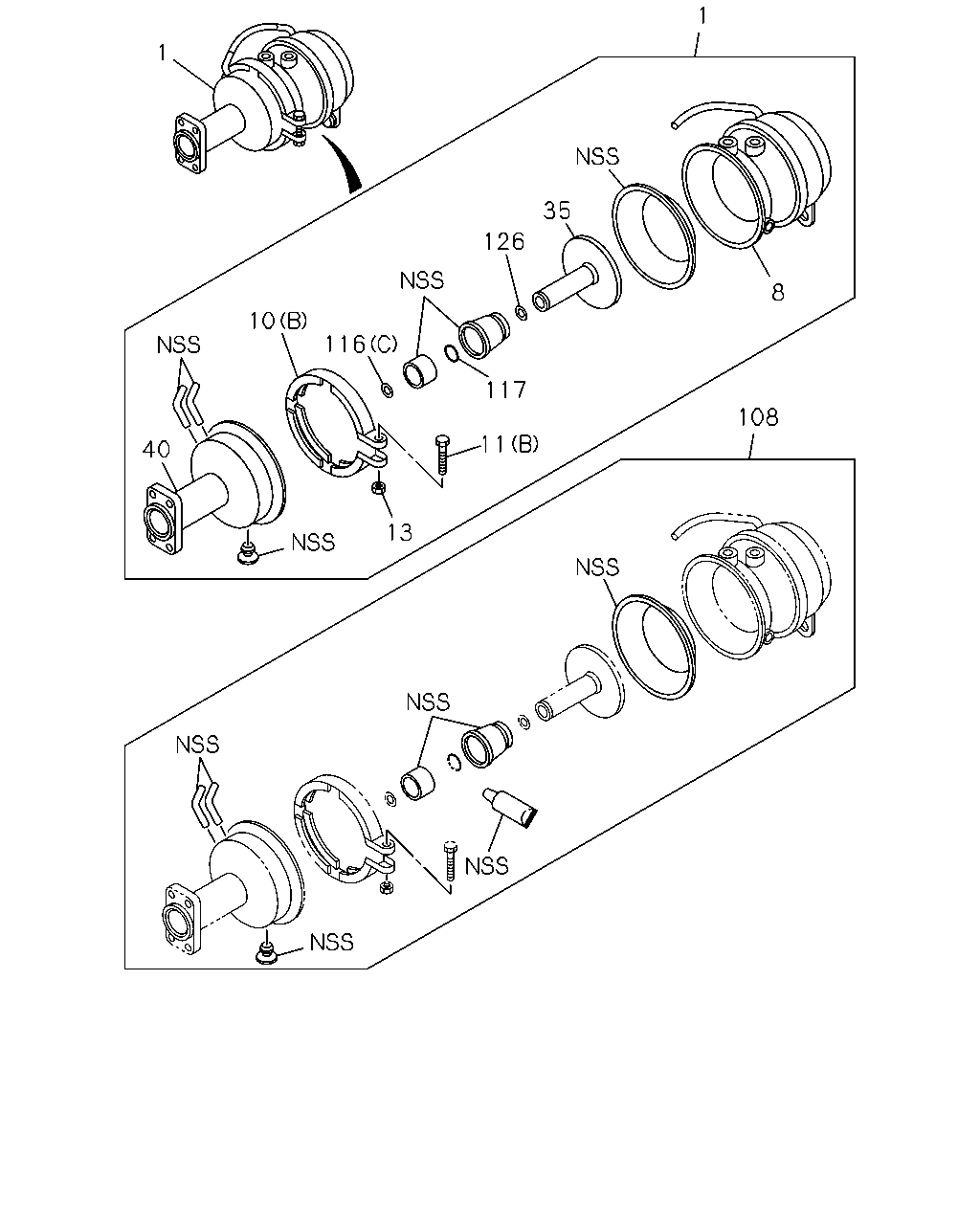

1 1 35 126 8 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING	1-48250-868-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-698-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-097-0	01	1	1006-
1	CHAMBER ASM; SPRING	1-48250-869-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-699-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-098-0	01	1	1006-
8	SHELL; CYL,SPR CHAMBER	1-48251-095-2	01	1	0807-1005
8	SHELL; CYL,SPR CHAMBER	1-48251-097-2	01	1	0807-1005
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0807-0901
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	0902-
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0807-0901
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	0902-
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0807-0901
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	0902-
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0807-0910
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-974-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-140-1	01	1	0807-
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-141-1	01	1	0807-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0807-0910
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	0911-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0807-0910
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0807-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0807-0910
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-
126	SHIM THA	8-98146-965-0	AR	1	0911-

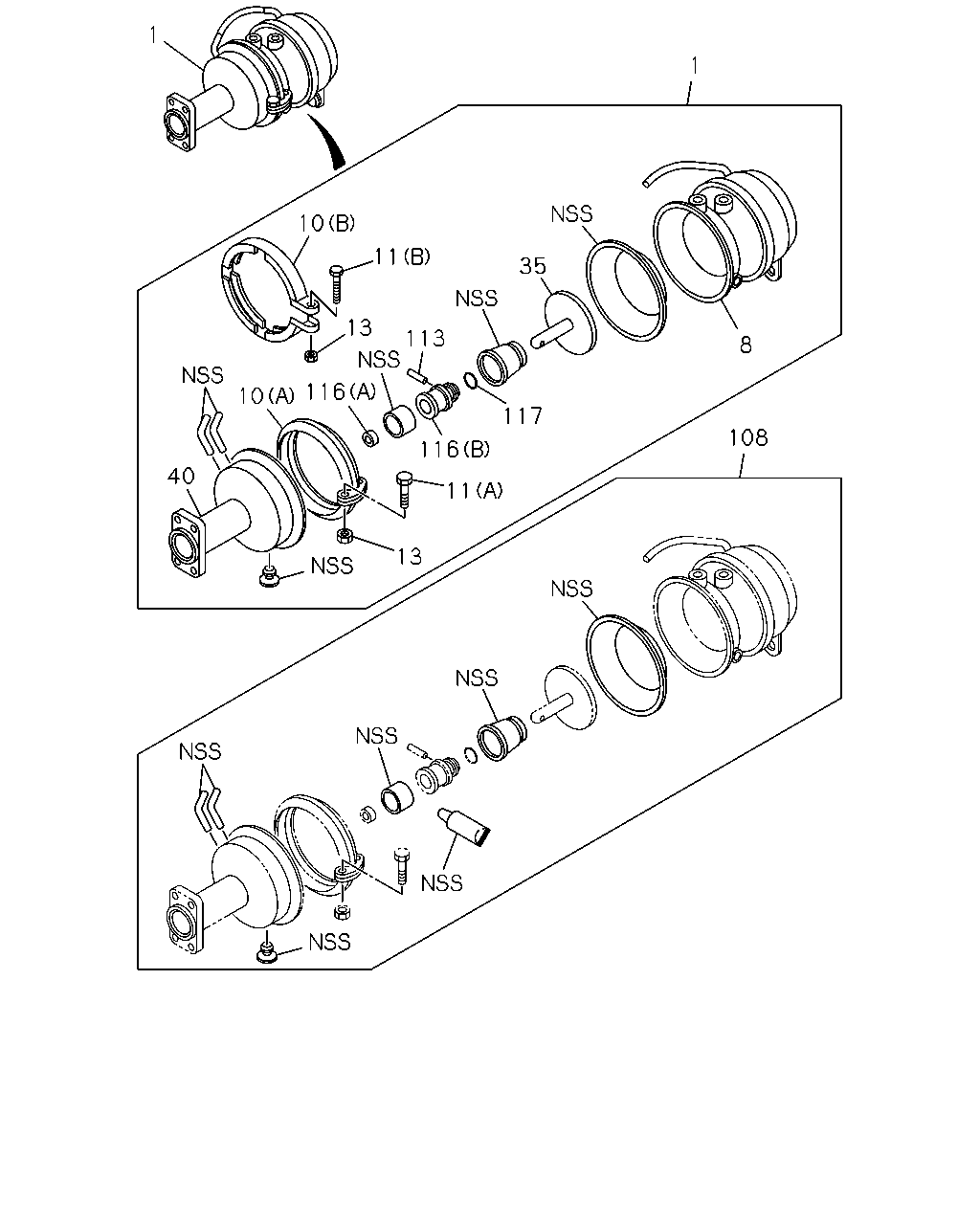

1 1 10 11 35 13 113 8 116 10 117 108 116 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING	1-48250-868-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-698-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-097-0	01	1	1006-
1	CHAMBER ASM; SPRING	1-48250-869-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-699-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-098-0	01	1	1006-
8	SHELL; CYL,SPR CHAMBER	1-48251-095-2	01	1	0807-1005
8	SHELL; CYL,SPR CHAMBER	1-48251-097-2	01	1	0807-1005
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0807-0901
10	RING; CLAMP,SPR CHAMBER (B) THA	1-48269-256-0	02	1	0902-
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0807-0901
11	BOLT; CLAMP RING (B) THA	1-48269-257-0	02	1	0902-
13	NUT; CLAMP RING THA	1-48269-147-0	04	1	0807-0901
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	0902-
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0807-0910
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-974-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-140-1	01	1	0807-
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-141-1	01	1	0807-
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0807-0910
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	0911-
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0807-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0807-0910
116	GUIDE; SPR CHAMBER (C) THA	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0807-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0807-0910
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	0911-

1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING	1-48250-868-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-698-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-097-0	01	1	1006-
1	CHAMBER ASM; SPRING	1-48250-869-3	01	1	0807-0910
1	CHAMBER ASM; SPRING	8-98145-699-0	01	1	0911-1005
1	CHAMBER ASM; SPRING	1-87412-098-0	01	1	1006-
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW THA	1-09660-959-0	04	1	0807-
