3-26 — TRAILER CONTROL (#68143) — 125 parça

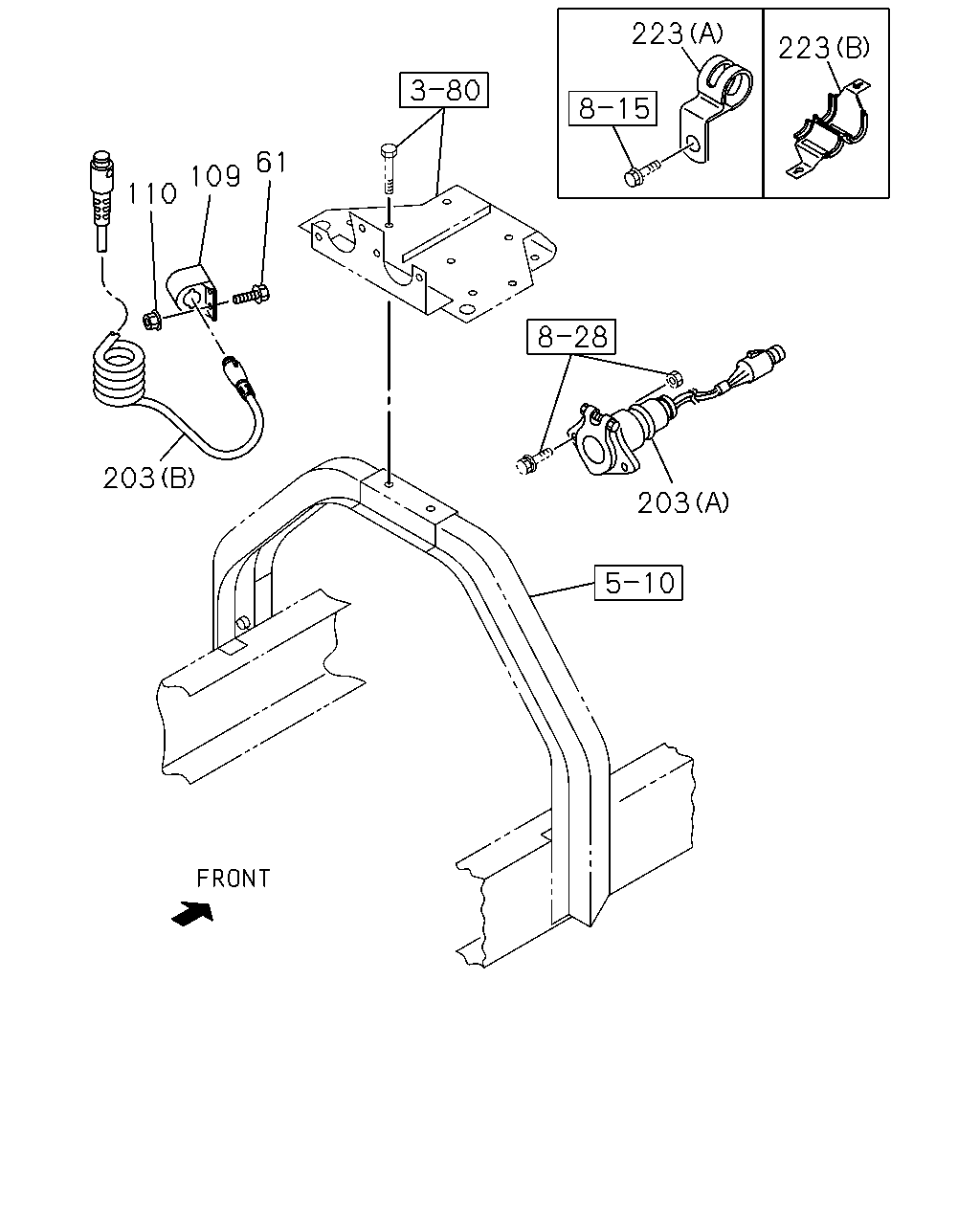

çizim 116881
223 223 61 109 110 203 203
BalonParca AdiParca NoAdetTipApplied Date
61 BOLT; STEP BOARD
M6X16 FLANGE THA 		0-28650-616-0 02 1 0807-0808
61 BOLT; STEP BOARD
M8X30 W/LK&PL WASHER THA 		0-50640-830-0 01 1 0809-
109 BRACKET; HOSE HANGER 1-57550-022-2 01 1 0807-
110 NUT; BRKT TO FRAME
M6 FLANGE THA 		0-91180-106-0 02 1 0807-0807
203 CABLE; JUMPER
(B) L=5500 		8-98107-178-0 01 1 0905-
203 CABLE; JUMPER
(B) L=4500 		8-98107-179-0 01 1 0905-
203 CABLE; JUMPER
(B) L=5000 		8-98107-180-0 01 1 0905-
203 CABLE; JUMPER
(A) 7P 		1-82523-014-0 01 1 0807-
203 CABLE; JUMPER
(B) L=4000 		1-82659-186-2 01 1 0807-0904
203 CABLE; JUMPER
(B) L=4000 		8-98107-177-0 01 1 0905-
223 CLIP; HOSE
(A) ID=18 H=23 L=28 		1-09700-860-0 05 1 0809-
223 CLIP; HOSE
(B) W/SPONGE RUBBER 		1-09709-150-0 01 1 0809-

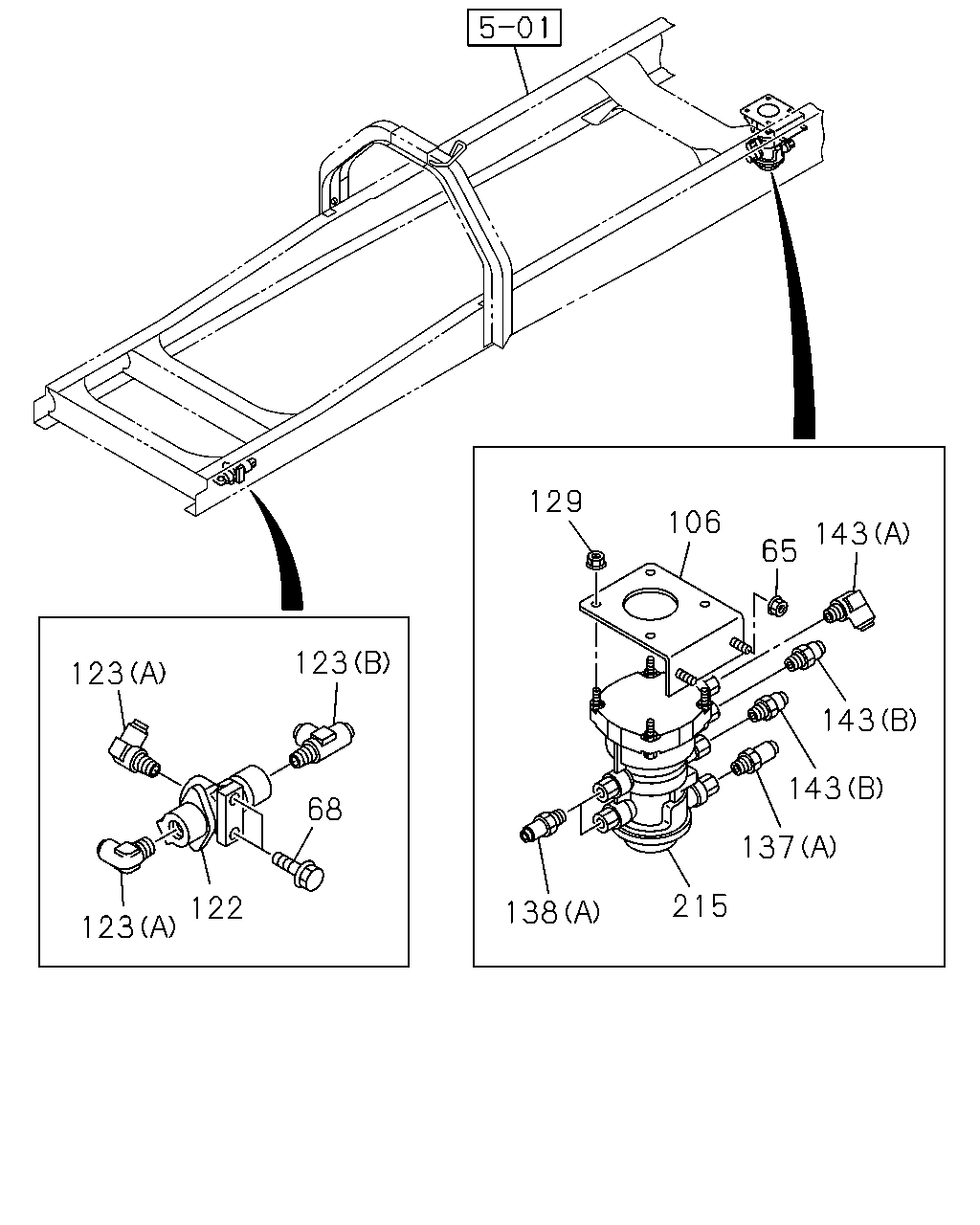

çizim 117126
129 106 143 65 123 123 143 143 68 137 215 122 138 123
BalonParca AdiParca NoAdetTipApplied Date
65 NUT; RELAY VLV
M10 FLANGE THA 		0-91180-210-0 02 1 0807-
68 BOLT; DOUBLE CHECK VLV
M8X20 FLANGE THA 		0-28050-820-0 02 1 0807-
106 BRACKET; VLV 1-48495-168-0 01 1 0807-
122 VALVE ASM; DOUBLE CHECK 1-48410-531-1 01 1 0807-
123 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 02 1 0807-
123 CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & R3/8 3WAY IMA 		1-09660-997-0 01 1 0807-
129 NUT; VLV
M8 FLANGE THA 		0-91180-108-0 04 1 0807-
137 CONNECTOR; SUPPLY
(B) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 0807-1101
137 CONNECTOR; SUPPLY
(C) PT1/4 2WAY THA 		1-09660-693-0 01 1 0807-1101
137 CONNECTOR; SUPPLY
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 0807-
138 CONNECTOR; DELIVERY
(D) M14 		1-09656-391-2 01 1 0807-0808
138 CONNECTOR; DELIVERY
(D) 		1-09660-335-1 01 1 0809-1101
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1102-
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY THA 		1-09660-693-0 03 1 0807-1101
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY THA 		1-09660-693-0 02 1 1102-
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0807-0808
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 0807-
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 0807-0808
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 0809-1101
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 0809-1101
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 0807-
143 CONNECTOR; CONT
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 0807-
143 CONNECTOR; CONT
(B) DIN8 & R3/8 STRAIGHT THA 		1-09660-964-0 02 1 0807-
215 VALVE; TRAILER CONT 8-98091-694-0 01 1 0807-

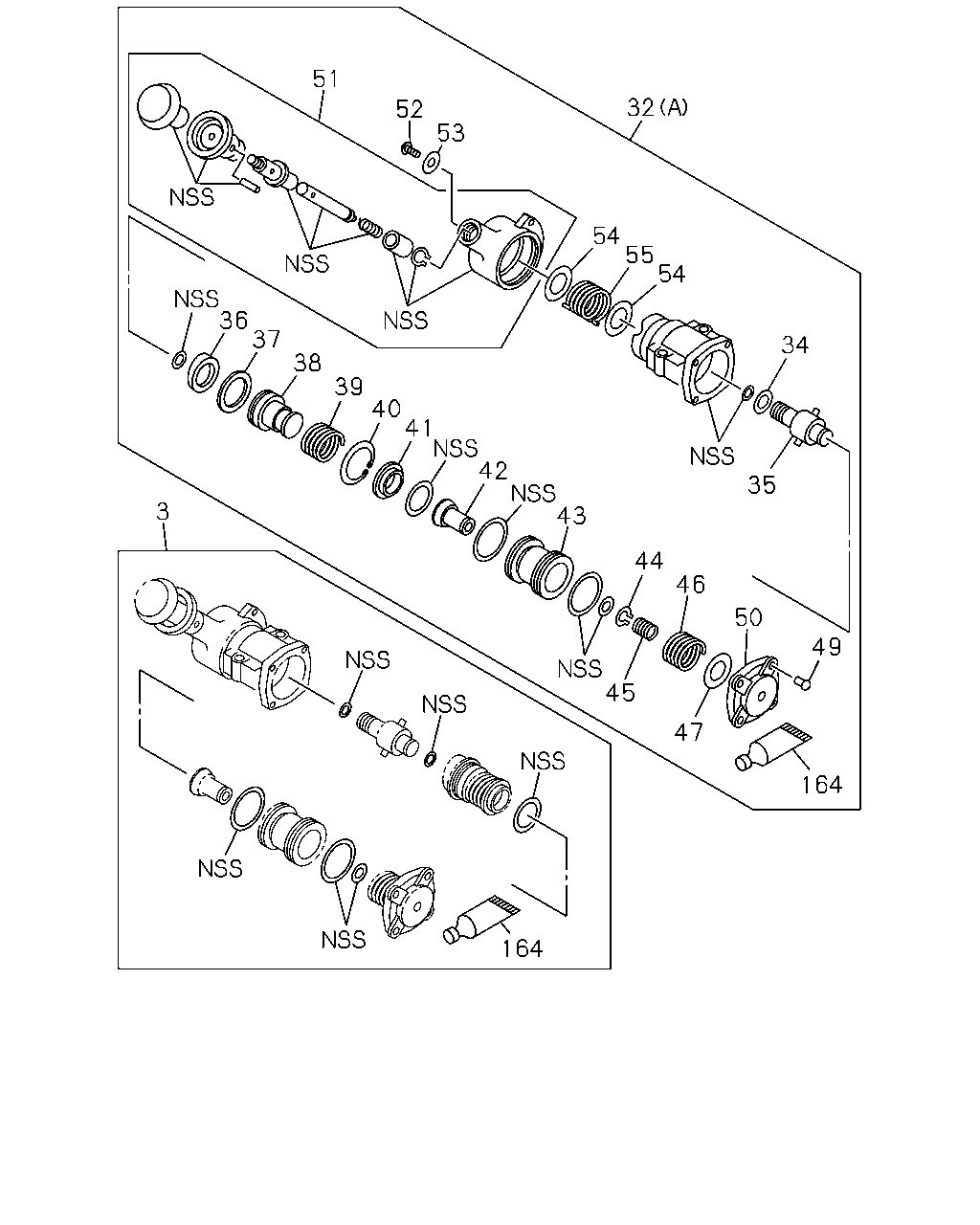

çizim 117204
51 32 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 49 45 47 164 164
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV 1-48469-096-0 01 1 0807-
32 VALVE; BRK,HAND CONT
(B) 		1-48100-674-0 01 1 0807-
32 VALVE; BRK,HAND CONT
(A) 		1-48460-356-0 01 1 0807-
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0807-
35 HOLDER; CAM 1-48469-054-0 01 1 0807-
36 RING; CAM 1-48469-056-0 01 1 0807-
37 GUIDE; CAM RING 1-48469-058-0 01 1 0807-
38 SEAT; EXH VLV 1-48469-057-0 01 1 0807-
39 SPRING; RETURN,CAM RING 1-48469-063-0 01 1 0807-
40 RING; SNAP 1-48469-067-0 01 1 0807-
41 SEAT; FEED VLV 1-48469-066-0 01 1 0807-
42 VALVE; FEED 1-48469-065-0 01 1 0807-
43 PISTON; HAND BRK VLV 1-48469-064-0 01 1 0807-
44 RING; SNAP,FEED VLV 1-48469-068-0 01 1 0807-
45 SPRING; FEED VLV 1-48469-070-0 01 1 0807-
46 SPRING; MAIN,PISTON 1-48469-089-0 01 1 0807-
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0807-
49 SCREW; COVER 1-48469-118-0 04 1 0807-
50 COVER; HAND BRK VLV 1-48469-222-0 01 1 0807-
51 HANDLE ASM; HAND BRK VLV 1-48469-122-0 01 1 0807-
52 SCREW; HANDLE 1-48469-062-0 01 1 0807-
53 WASHER; HANDLE 1-48469-061-0 01 1 0807-
54 SEAT; SPRING 1-48469-082-0 02 1 0807-
55 SPRING; RETURN,HANDLE 1-48469-059-0 01 1 0807-
164 GREASE; HAND BRK VLV 1-48469-084-0 01 1 0807-

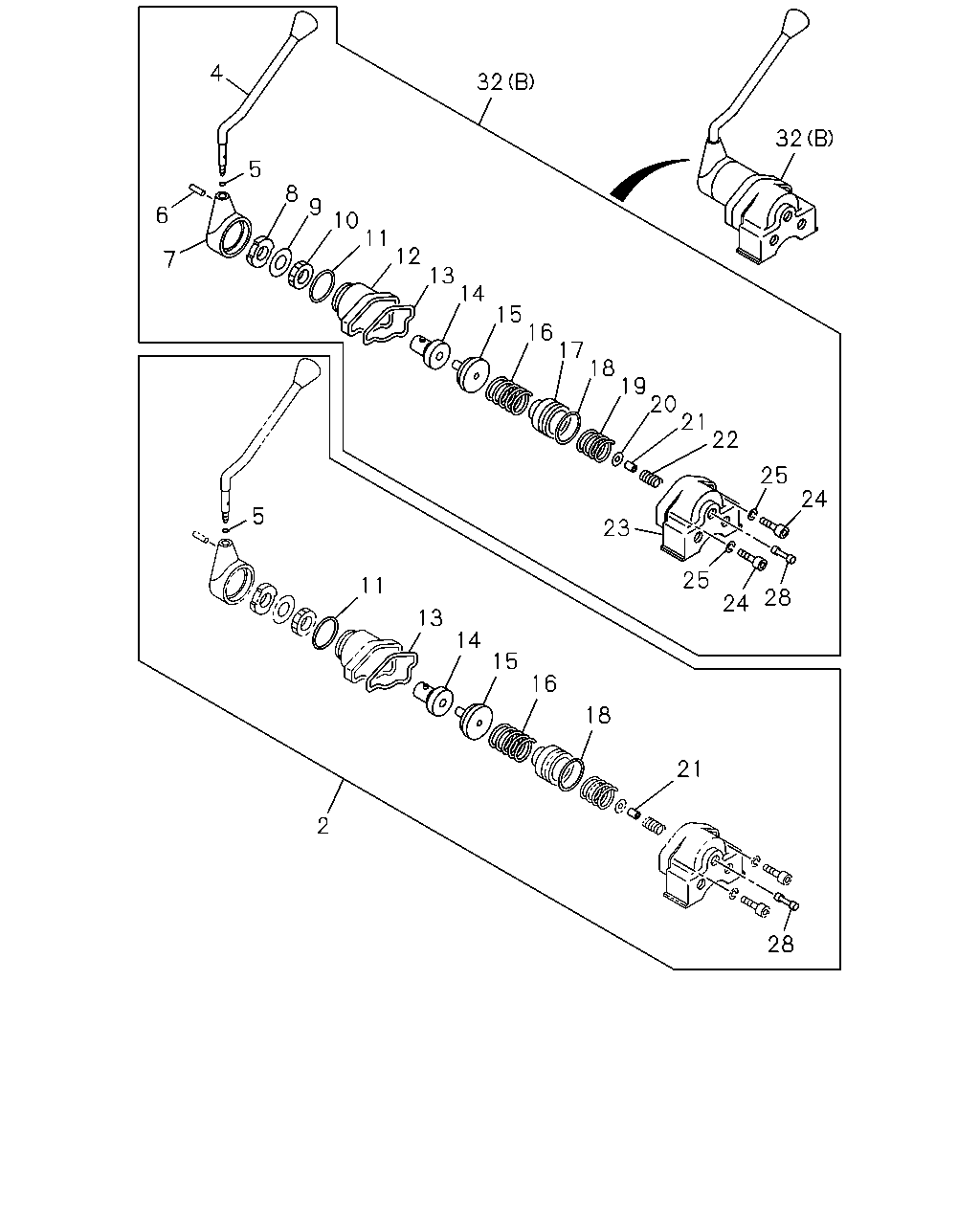

çizim 193812
4 32 32 5 8 9 6 10 11 12 7 13 14 15 16 17 18 19 20 21 22 25 24 5 23 25 11 28 24 13 14 15 16 18 21 2 28
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; HAND BRK VLV 1-85576-180-0 01 1 0807-
4 HANDLE ASM; BRK VLV 1-48119-144-0 01 1 0807-
5 GASKET; HANDLE 1-48119-128-0 01 1 0807-
6 PIN; SPR 1-48119-143-0 01 1 0807-
7 HEAD; BRK VLV 1-48119-131-1 01 1 0807-
8 STOPPER; BRK VLV 1-48119-136-0 01 1 0807-
9 WASHER; LK,ADJ 1-48119-123-0 01 1 0807-
10 RING; ADJ 1-48119-122-0 01 1 0807-
11 GASKET; HD TO COVER 1-48119-130-0 01 1 0807-
12 COVER; BRK VLV 1-48129-097-1 01 1 0807-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0807-
14 FOLLOWER; CAM 1-48129-109-0 01 1 0807-
15 CAM; FOLLOWER 1-48129-110-0 01 1 0807-
16 SPRING; GRUDUATING 1-48129-101-0 01 1 0807-
17 PISTON; SPR 1-48129-095-0 01 1 0807-
18 GASKET; BODY 1-48129-096-0 01 1 0807-
19 SPRING; PISTON 1-48129-094-0 01 1 0807-
20 GUIDE; VLV 1-48129-090-0 01 1 0807-
21 VALVE; IN & EXH 1-48121-017-0 01 1 0807-
22 SPRING; VLV 1-48123-024-0 01 1 0807-
23 BODY; BRK VLV 1-48111-060-1 01 1 0807-
24 BOLT; EXH VLV 1-48129-092-0 02 1 0807-
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 0807-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0807-
32 VALVE; BRK,HAND CONT
(B) 		1-48100-674-0 01 1 0807-
32 VALVE; BRK,HAND CONT
(A) 		1-48460-356-0 01 1 0807-
çizim 193815
180
BalonParca AdiParca NoAdetTipApplied Date
180 REPAIR KIT; RELAY VLV 1-85576-449-0 01 1 0807-

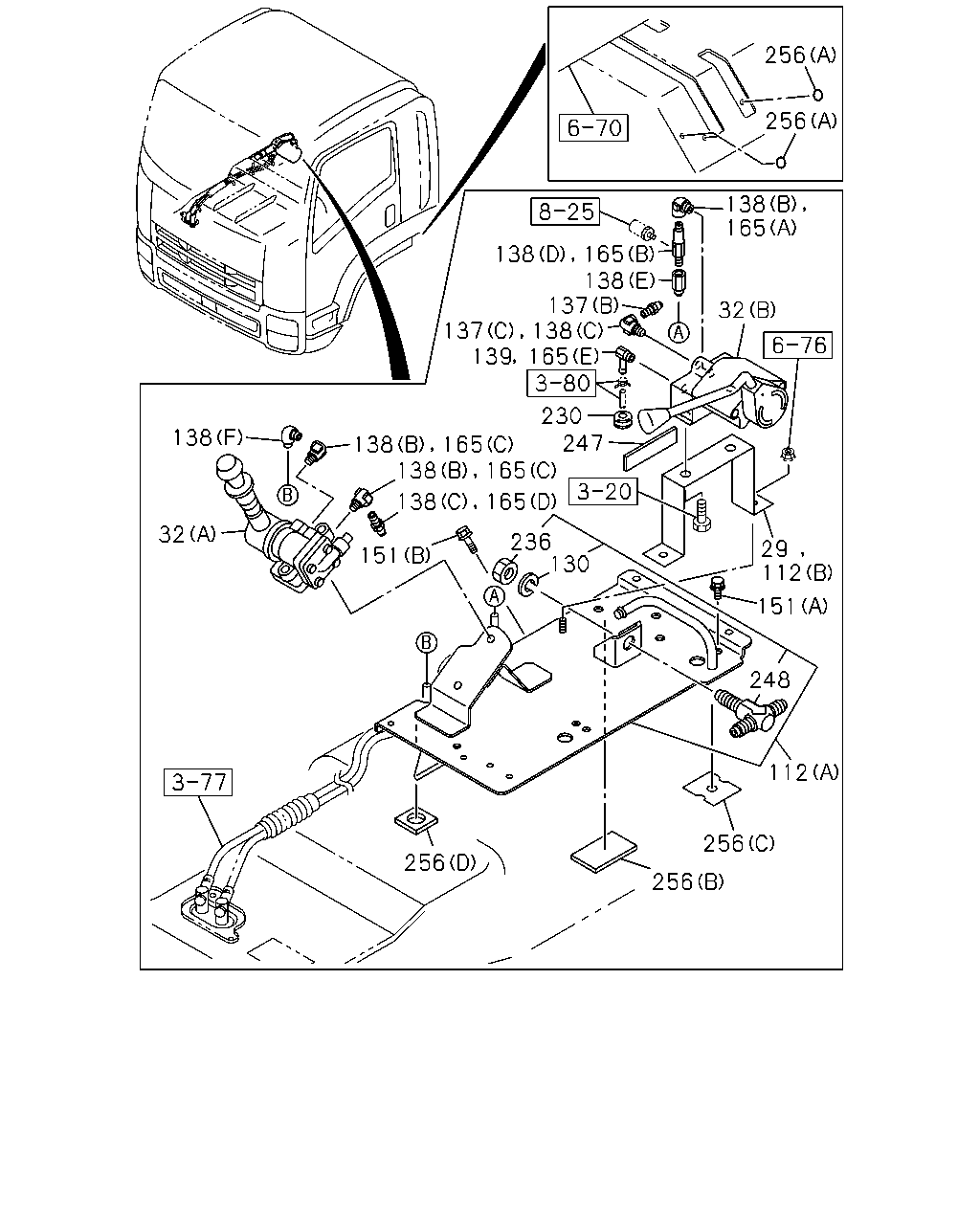

çizim 193818
256 256 138 165 165 138 137 137 138 138 32 230 138 165 247 138 165 138 165 138 32 236 130 29 112 151 151 248 112 256 256 256 139 165
BalonParca AdiParca NoAdetTipApplied Date
29 BRACKET; HAND BRK
THA 		1-73908-268-0 01 1 0807-1101
32 VALVE; BRK,HAND CONT
(B) 		1-48100-674-0 01 1 0807-
32 VALVE; BRK,HAND CONT
(A) 		1-48460-356-0 01 1 0807-
112 BRACKET; CONT VLV
(B) THA 		1-73908-268-0 01 1 1109-
112 BRACKET; CONT VLV
(B) THA 		1-73908-268-0 01 1 1102-
112 BRACKET; CONT VLV
(A) 		8-97610-416-2 01 1 0807-
130 WASHER; LK,VLV
ID=16.2 		0-91510-816-0 01 1 0807-
137 CONNECTOR; SUPPLY
(B) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 0807-1101
137 CONNECTOR; SUPPLY
(C) PT1/4 2WAY THA 		1-09660-693-0 01 1 0807-1101
137 CONNECTOR; SUPPLY
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 0807-
138 CONNECTOR; DELIVERY
(D) M14 		1-09656-391-2 01 1 0807-0808
138 CONNECTOR; DELIVERY
(D) 		1-09660-335-1 01 1 0809-1101
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1102-
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY THA 		1-09660-693-0 03 1 0807-1101
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY THA 		1-09660-693-0 02 1 1102-
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0807-0808
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 0807-
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 0807-0808
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 0809-1101
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 0809-1101
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 0807-
139 CONNECTOR; EXH
THA 		8-97062-077-1 01 1 0807-1101
151 BOLT; VLV BRKT
(A) M6X16 THA 		0-52000-616-0 03 1 0807-
151 BOLT; VLV BRKT
(B) M8X20 W/LK&PL WASHER 		0-52000-820-0 02 1 0807-
165 CONNECTOR; HAND BRK VLV
(A) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 1102-
165 CONNECTOR; HAND BRK VLV
(B) 		1-09660-335-1 01 1 1102-
165 CONNECTOR; HAND BRK VLV
(C) PT1/4 2WAY THA 		1-09660-693-0 02 1 1102-
165 CONNECTOR; HAND BRK VLV
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1102-
165 CONNECTOR; HAND BRK VLV
(E) THA 		8-97062-077-1 01 1 1102-
230 GROMMET; EXH
OD=24 		9-61166-007-0 01 1 0807-1101
236 NUT
M16 THA 		0-91111-516-0 01 1 0807-
247 SEAL; HOSE
100X40 		1-72498-022-1 01 1 0807-
248 UNION
M16 3WAY 		0-92148-610-0 01 1 0807-
256 SEAL
(B) 		1-72497-062-1 01 1 0807-
256 SEAL
(A) OD=25 BLACK THA 		1-76798-019-0 07 1 0807-
256 SEAL
(C) 		1-79996-382-0 01 1 0807-
256 SEAL
(D) 		8-98049-765-0 01 1 0807-
