◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11133 - GVR(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#68141) — 119 parça
çizim 115625
26 27 2 39 39 7 6 6 31 30 32 31 214 30 30 80 46 30 80 31 46 203 46
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
THA 		8-98202-950-0 01 1 1207-
2 TANK; AIR 8-98112-217-1 01 1 0807-1206
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 06 1 1207-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 0812-1102
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 04 1 0808-1102
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 06 1 1103-1203
6 COCK; DRAIN,AIR TANK
(B) W/COVER 		1-48312-004-2 02 1 0807-0811
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0812-1102
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0808-1102
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1103-1203
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 02 1 1207-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 02 1 0807-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 1207-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 0807-
30 BRACKET; AIR TANK,SUB
(C) THA 		1-48316-024-3 01 1 1207-
30 BRACKET; AIR TANK,SUB
(B) THA 		1-48316-026-0 01 1 1207-
30 BRACKET; AIR TANK,SUB
(A) THA 		1-48317-994-2 01 1 1207-
30 BRACKET; AIR TANK,SUB
(D) THA 		8-98136-697-0 01 1 1207-
30 BRACKET; AIR TANK,SUB
(D) THA 		8-98136-697-0 01 1 0812-1203
30 BRACKET; AIR TANK,SUB
(C) THA 		1-48316-024-3 01 1 0807-
30 BRACKET; AIR TANK,SUB
(B) THA 		1-48316-026-0 01 1 0807-
30 BRACKET; AIR TANK,SUB
(A) THA 		1-48317-994-2 01 1 0807-
31 BOLT; BRKT TO FRAME
(A) M14X40 FLANGE 		0-28651-440-0 04 1 0807-
31 BOLT; BRKT TO FRAME
(B) M12X30 FLANGE THA 		0-28661-230-0 04 1 0807-0810
32 NUT; BRKT TO FRAME
M14 THA 		0-91110-514-0 04 1 0807-
39 U-BOLT; AIR TANK
L=303 		1-48317-087-2 02 1 1207-
39 U-BOLT; AIR TANK
L=303 		1-48317-087-2 02 1 0807-1203
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1207-
46 NUT; U-BOLT
M12 FLANGE THA 		0-91180-212-0 01 1 1207-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 0807-1203
46 NUT; U-BOLT
M12 FLANGE THA 		0-91180-212-0 01 1 0812-1203
80 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1207-
80 BOLT; BRKT
M12X30 FLANGE THA 		0-28651-230-0 04 1 1207-
80 BOLT; BRKT
M12X25 FLANGE THA 		0-28651-225-0 04 1 0812-0812
80 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 0812-1203
80 BOLT; BRKT
M12X30 FLANGE THA 		0-28651-230-0 04 1 0812-1203
80 BOLT; BRKT
M12X35 FLANGE THA 		0-28651-235-0 04 1 0807-1102
203 NUT
M12 FLANGE THA 		0-91180-212-0 01 1 0807-0810
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-514-0 04 1 0807-
çizim 193810
241 245 244 245 241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0807-
241 BOLT; SET,CONT VLV
(B) M10X20 FLANGE THA 		0-28051-020-0 02 1 0807-
244 PIPE; VINYL,EXH
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 0807-0911
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 02 1 0807-0911

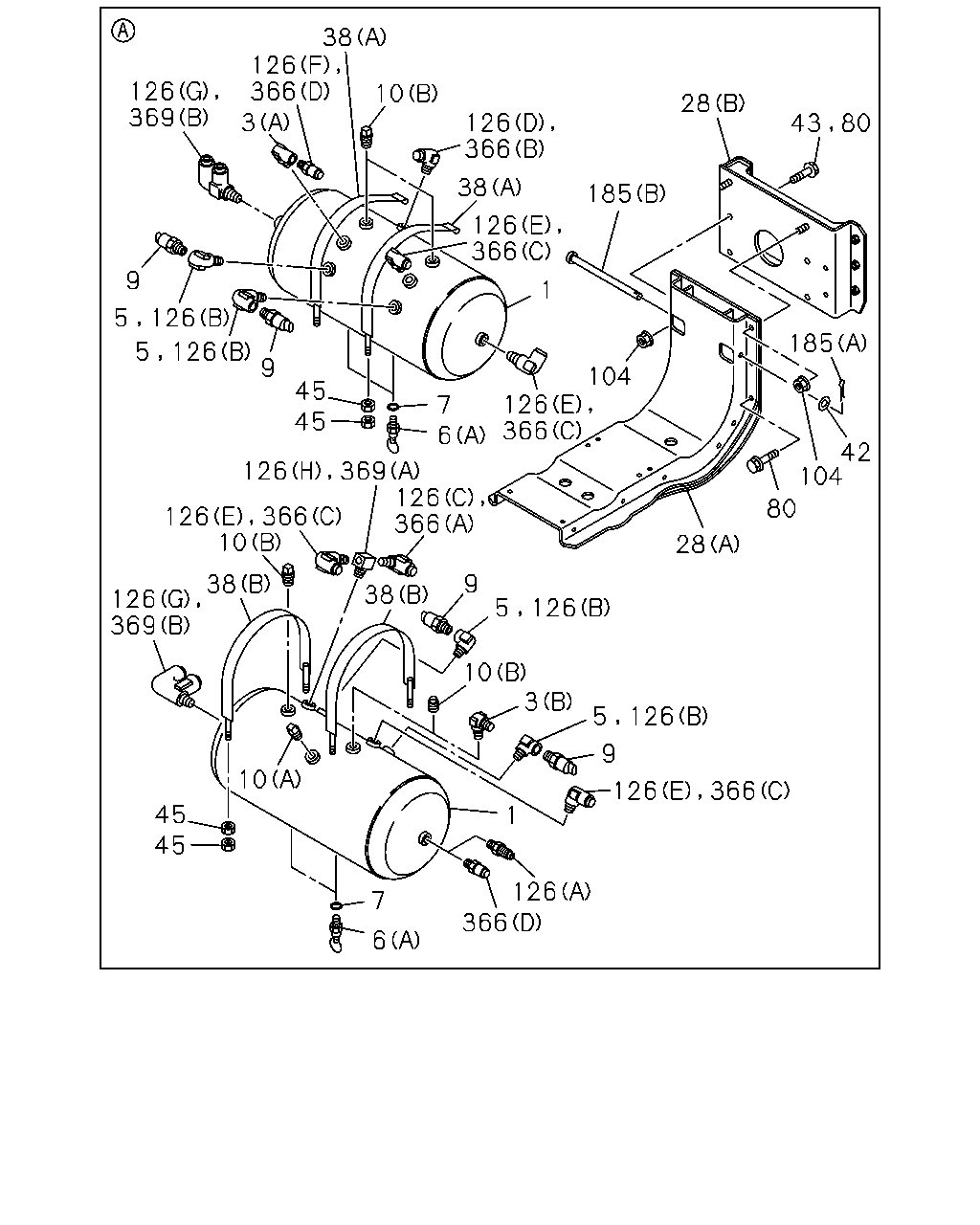

çizim 193816
38 126 366 3 126 369 9 5 126 5 126 9 45 45 126 126 366 10 38 126 369 10 45 45 6 7 366 126 1 126 366 9 5 126 3 10 126 5 9 38 366 126 369 6 7 366 126 104 1 28 80 104 42 185 185 28 43 80 126 366 38 126 366 10
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
THA 		8-98202-945-0 02 1 1207-
1 TANK ASM; AIR 1-48370-181-1 02 1 0807-1203
3 VALVE; CHECK,AIR TANK
(A) THA 		1-48320-031-1 01 1 1207-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1207-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1103-1203
3 VALVE; CHECK,AIR TANK
(A) THA 		1-48320-031-1 01 1 0807-1203
5 UNION; AIR TANK
PT1/4 2WAY THA 		1-09660-693-0 04 1 0807-1102
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 06 1 1207-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 0812-1102
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 04 1 0808-1102
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 06 1 1103-1203
6 COCK; DRAIN,AIR TANK
(B) W/COVER 		1-48312-004-2 02 1 0807-0811
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0812-1102
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0808-1102
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1103-1203
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 04 1 1207-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 04 1 0807-1203
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1207-
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1207-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 0807-1203
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0807-1102
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1103-1203
28 BRACKET; AIR TANK
(A) THA 		8-98048-199-0 01 1 1207-
28 BRACKET; AIR TANK
(B) THA 		8-98048-200-2 01 1 1207-
28 BRACKET; AIR TANK
(A) THA 		8-98048-199-0 01 1 0807-1203
28 BRACKET; AIR TANK
(B) THA 		8-98048-200-2 01 1 0807-1203
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 1207-
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 1207-
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 0807-1203
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 0807-1203
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1207-
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0808-1102
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1103-1203
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0807-0807
43 BOLT; STAY,AIR TANK,MAIN
M12X35 FLANGE THA 		0-28651-235-0 04 1 1207-
43 BOLT; STAY,AIR TANK,MAIN
M12X35 FLANGE THA 		0-28651-235-0 04 1 1103-1203
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 1207-
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 0807-1203
80 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1207-
80 BOLT; BRKT
M12X30 FLANGE THA 		0-28651-230-0 04 1 1207-
80 BOLT; BRKT
M12X25 FLANGE THA 		0-28651-225-0 04 1 0812-0812
80 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 0812-1203
80 BOLT; BRKT
M12X30 FLANGE THA 		0-28651-230-0 04 1 0812-1203
80 BOLT; BRKT
M12X35 FLANGE THA 		0-28651-235-0 04 1 0807-1102
104 NUT; BRKT
M12 FLANGE THA 		0-91180-212-0 02 1 1207-
104 NUT; BRKT
M12 FLANGE THA 		0-91180-212-0 02 1 0807-1203
126 CONNECTOR; ELBOW
(A) 		1-09650-283-1 01 1 1207-
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY THA 		1-09660-693-0 04 1 1207-
126 CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1207-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1207-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1207-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1207-
126 CONNECTOR; ELBOW
(G) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1207-
126 CONNECTOR; ELBOW
(H) IMA 		8-98166-127-0 01 1 1207-
126 CONNECTOR; ELBOW
(A) 		1-09650-283-1 01 1 1103-1203
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY THA 		1-09660-693-0 04 1 1103-1203
126 CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1103-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1103-1203
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1103-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1103-1203
126 CONNECTOR; ELBOW
(G) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1103-1203
126 CONNECTOR; ELBOW
(H) IMA 		8-98166-127-0 01 1 1103-1203
185 PIN; SNAP
(B) 		1-09744-068-0 01 1 1103-
185 PIN; SNAP
(A) L=32.6 		8-98062-280-0 01 1 1207-
185 PIN; SNAP
(A) L=32.6 		8-98062-280-0 01 1 0807-1203
366 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 0807-1102
366 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 0807-1102
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 0807-1102
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 0807-1102
369 CONNECTOR; 3WAY
(A) IMA 		1-09656-708-0 01 1 0807-1102
369 CONNECTOR; 3WAY
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 0807-1102

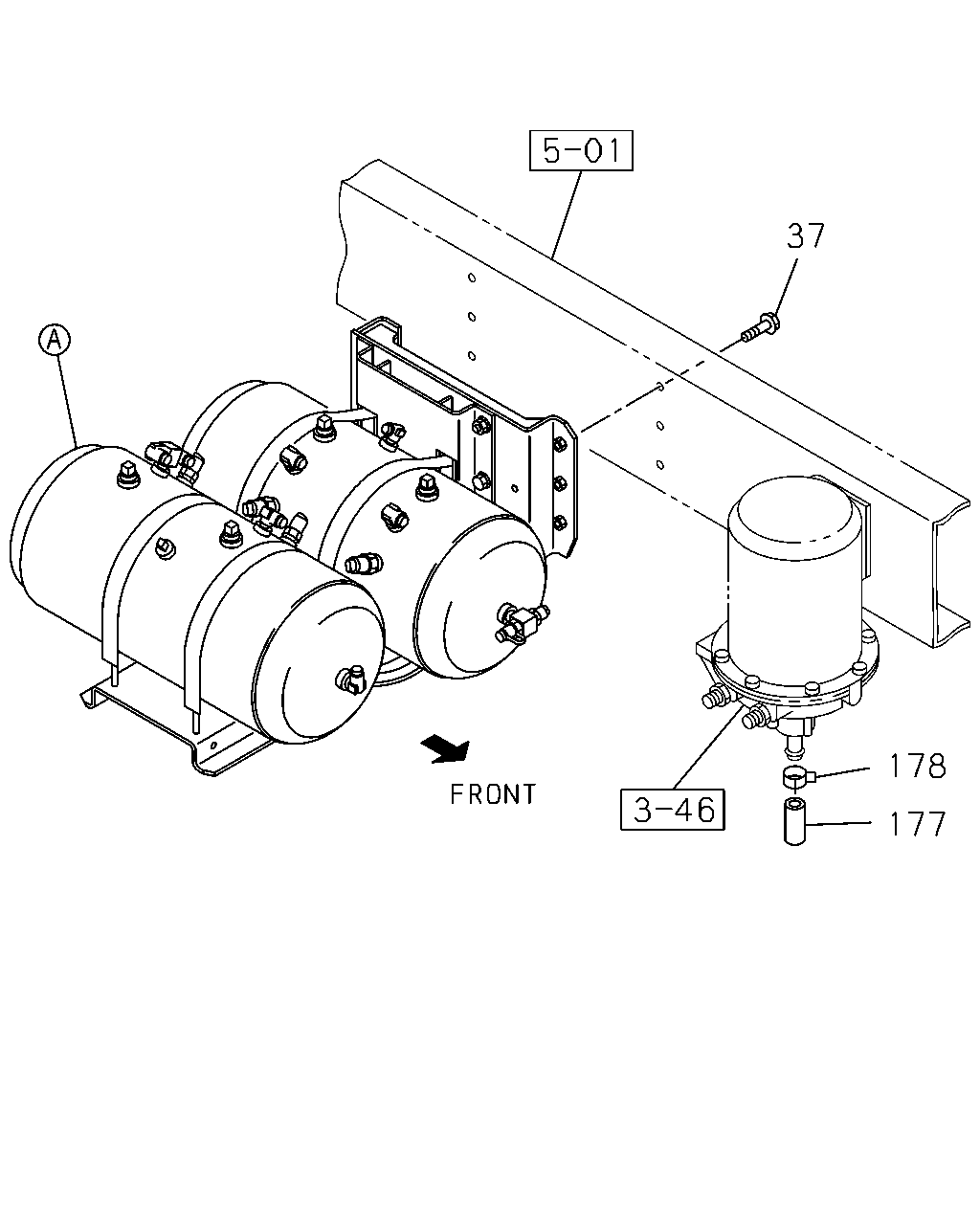

çizim 193823
37 178 177
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE THA 		0-28651-240-0 06 1 0807-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 0807-
178 CLIP; HOSE
ID=22 		8-94382-401-0 01 1 0807-
