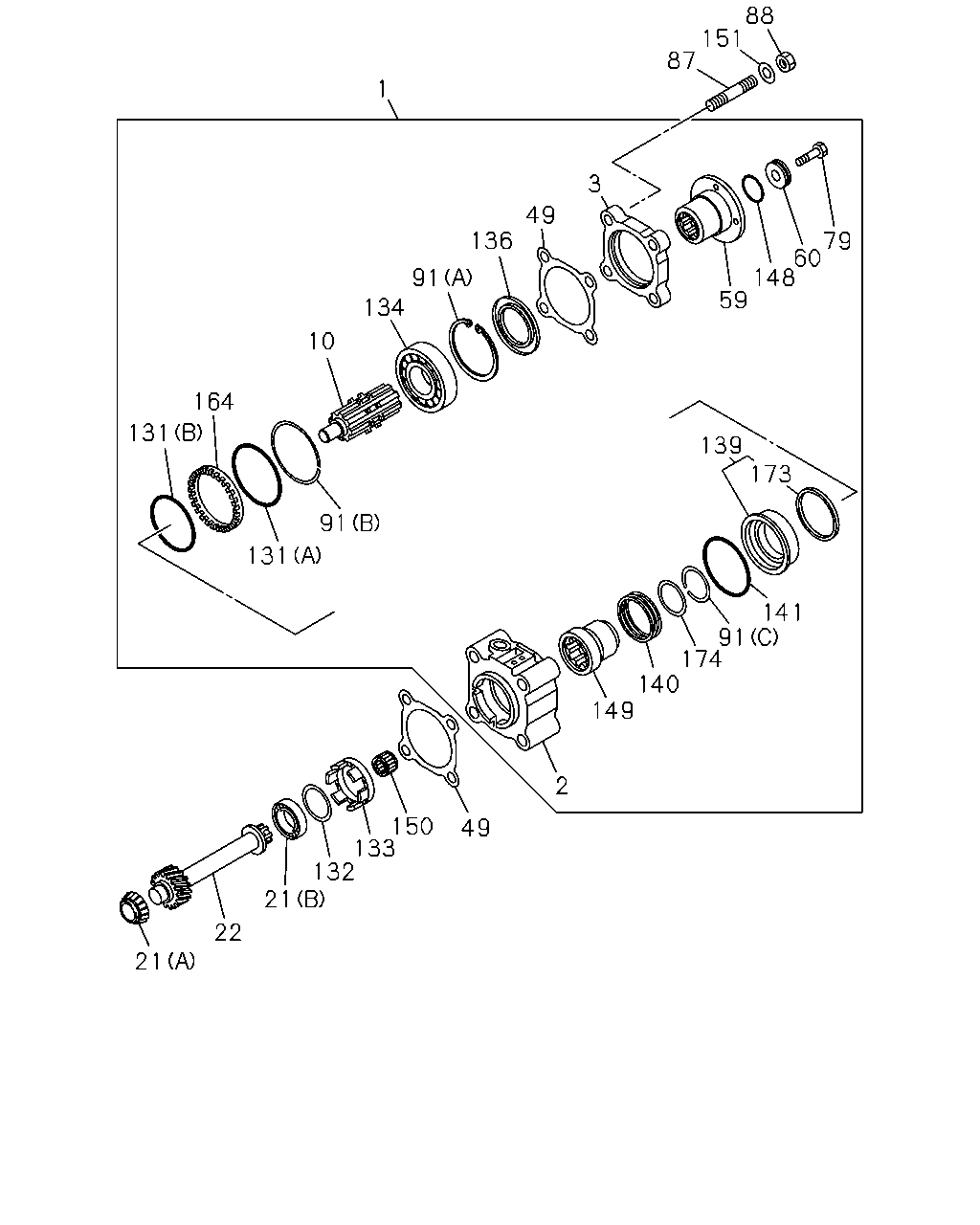

2-82 — POWER TAKE OFF; TRANSMISSION REAR (#68136) — 108 parça

88 151 87 1 3 49 136 79 60 148 59 91 134 10 164 131 139 173 91 131 141 91 174 140 149 2 150 133 132 21 49 22 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS RR PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38000-398-0	01	1	1103-
1	POWER TAKE OFF ASM; TRANS RR PTO ZF TRANS RR<BDM>	1-38000-398-0	01	1	0807-1102
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38111-120-0	01	1	1103-
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38111-120-0	01	1	0807-1102
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> THA	1-38159-009-0	01	1	1302-
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38159-008-0	01	1	1103-1305
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38159-008-0	01	1	0807-1102
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38221-064-0	01	1	1103-
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38221-064-0	01	1	0807-1102
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (A) THA	1-33389-090-0	01	1	1302-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (A)	1-33389-054-0	01	1	1103-1305
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (B)	1-33389-068-0	01	1	1103-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> (A)	1-33389-054-0	01	1	0807-1102
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> (B)	1-33389-068-0	01	1	0807-1102
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-33381-015-0	01	1	1103-
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-33381-015-0	01	1	0807-1102
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-33132-084-0	02	1	1103-
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR<BDM>	1-33132-084-0	02	1	0807-1102
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38229-020-0	01	1	1103-
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38229-020-0	01	1	0807-1102
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38519-021-0	01	1	1103-
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38519-021-0	01	1	0807-1102
79	BOLT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> THA	1-37249-216-0	01	1	1302-
79	BOLT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-37249-184-0	01	1	1103-1305
79	BOLT PTO ZF TRANS RR<BDM>	1-37249-184-0	01	1	0807-1102
87	STUD; GEAR CASE PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> M12X80 THA	1-38119-103-0	04	1	1302-
87	STUD; GEAR CASE PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	8-98080-560-0	04	1	1103-1305
87	STUD; GEAR CASE PTO ZF TRANS RR<BDM>	8-98080-560-0	04	1	0807-1102
88	NUT; COVER PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> THA	1-38119-104-0	04	1	1302-
88	NUT; COVER PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	8-98080-562-0	04	1	1103-1305
88	NUT; COVER PTO ZF TRANS RR<BDM>	8-98080-562-0	04	1	0807-1102
91	RING; SNAP PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (A)	1-38219-017-0	01	1	1103-1305
91	RING; SNAP PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (C)	1-38219-037-0	01	1	1103-
91	RING; SNAP PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (B)	1-38219-038-0	01	1	1103-
91	RING; SNAP PTO ZF TRANS RR<BDM> (A)	1-38219-017-0	01	1	0807-1102
91	RING; SNAP PTO ZF TRANS RR<BDM> (C)	1-38219-037-0	01	1	0807-1102
91	RING; SNAP PTO ZF TRANS RR<BDM> (B)	1-38219-038-0	01	1	0807-1102
131	GASKET; OUTPUT SHAFT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (A)	1-38129-035-0	01	1	1103-
131	GASKET; OUTPUT SHAFT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> (B)	1-38129-036-0	01	1	1103-
131	GASKET; OUTPUT SHAFT PTO ZF TRANS RR<BDM> (A)	1-38129-035-0	01	1	0807-1102
131	GASKET; OUTPUT SHAFT PTO ZF TRANS RR<BDM> (B)	1-38129-036-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.55	1-33389-048-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.45	1-33389-050-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.35	1-33389-052-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.30	1-33389-053-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.20	1-33389-056-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.15	1-33389-057-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.05	1-33389-059-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.00	1-33389-060-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=0.90	1-33389-062-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=0.85	1-33389-063-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=0.75	1-33389-065-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=0.70	1-33389-066-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=0.65	1-33389-067-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=0.80	8-98080-566-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=0.95	8-98080-567-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.10	8-98080-568-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.25	8-98080-569-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.40	8-98080-570-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.50 THA	8-98080-571-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.60 THA	8-98080-572-0	01	1	1103-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.55	1-33389-048-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.45	1-33389-050-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.35	1-33389-052-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.30	1-33389-053-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.20	1-33389-056-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.15	1-33389-057-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.05	1-33389-059-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.00	1-33389-060-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.90	1-33389-062-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.85	1-33389-063-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.75	1-33389-065-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.70	1-33389-066-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.65	1-33389-067-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.80	8-98080-566-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.95	8-98080-567-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.10	8-98080-568-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.25	8-98080-569-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.40	8-98080-570-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.50 THA	8-98080-571-0	01	1	0807-1102
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.60 THA	8-98080-572-0	01	1	0807-1102
133	BUSHING; SHAFT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-33389-046-0	01	1	1103-
133	BUSHING; SHAFT PTO ZF TRANS RR<BDM>	1-33389-046-0	01	1	0807-1102
134	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38219-015-0	01	1	1103-
134	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM>	1-38219-015-0	01	1	0807-1102
136	SEAL; SHAFT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38519-010-0	01	1	1103-1305
136	SEAL; SHAFT PTO ZF TRANS RR<BDM>	1-38519-010-0	01	1	0807-1102
139	PISTON; RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38129-039-0	01	1	1103-
139	PISTON; RR PTO PTO ZF TRANS RR<BDM>	1-38129-039-0	01	1	0807-1102
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> THA	1-38129-042-0	01	1	1302-
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38129-032-0	01	1	1103-1305
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM>	1-38129-032-0	01	1	0807-1102
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38129-035-0	01	1	1103-
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR<BDM>	1-38129-035-0	01	1	0807-1102
148	GASKET; YOKE PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38519-014-0	01	1	1103-
148	GASKET; YOKE PTO ZF TRANS RR<BDM>	1-38519-014-0	01	1	0807-1102
149	SLEEVE; SLIDING PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38229-060-0	01	1	1103-
149	SLEEVE; SLIDING PTO ZF TRANS RR<BDM>	1-38229-060-0	01	1	0807-1102
150	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	8-98080-565-0	01	1	1103-
150	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM>	8-98080-565-0	01	1	0807-1102
151	WASHER; PL,COVER PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	8-98080-563-0	04	1	1103-
151	WASHER; PL,COVER PTO ZF TRANS RR<BDM>	8-98080-563-0	04	1	0807-1102
164	RING; CENTERING,PTO PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38129-038-0	01	1	1103-
164	RING; CENTERING,PTO PTO ZF TRANS RR<BDM>	1-38129-038-0	01	1	0807-1102
173	RING; MAGNET PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38129-034-0	01	1	1103-
173	RING; MAGNET PTO ZF TRANS RR<BDM>	1-38129-034-0	01	1	0807-1102
174	DISK; PRESSURE PTO ZF TRANS RR<BDM> PTO CONTROL<SV6>	1-38129-040-0	01	1	1103-
174	DISK; PRESSURE PTO ZF TRANS RR<BDM>	1-38129-040-0	01	1	0807-1102
