2-26 — MANUAL TRANSMISSION GEAR (#68130) — 489 parça

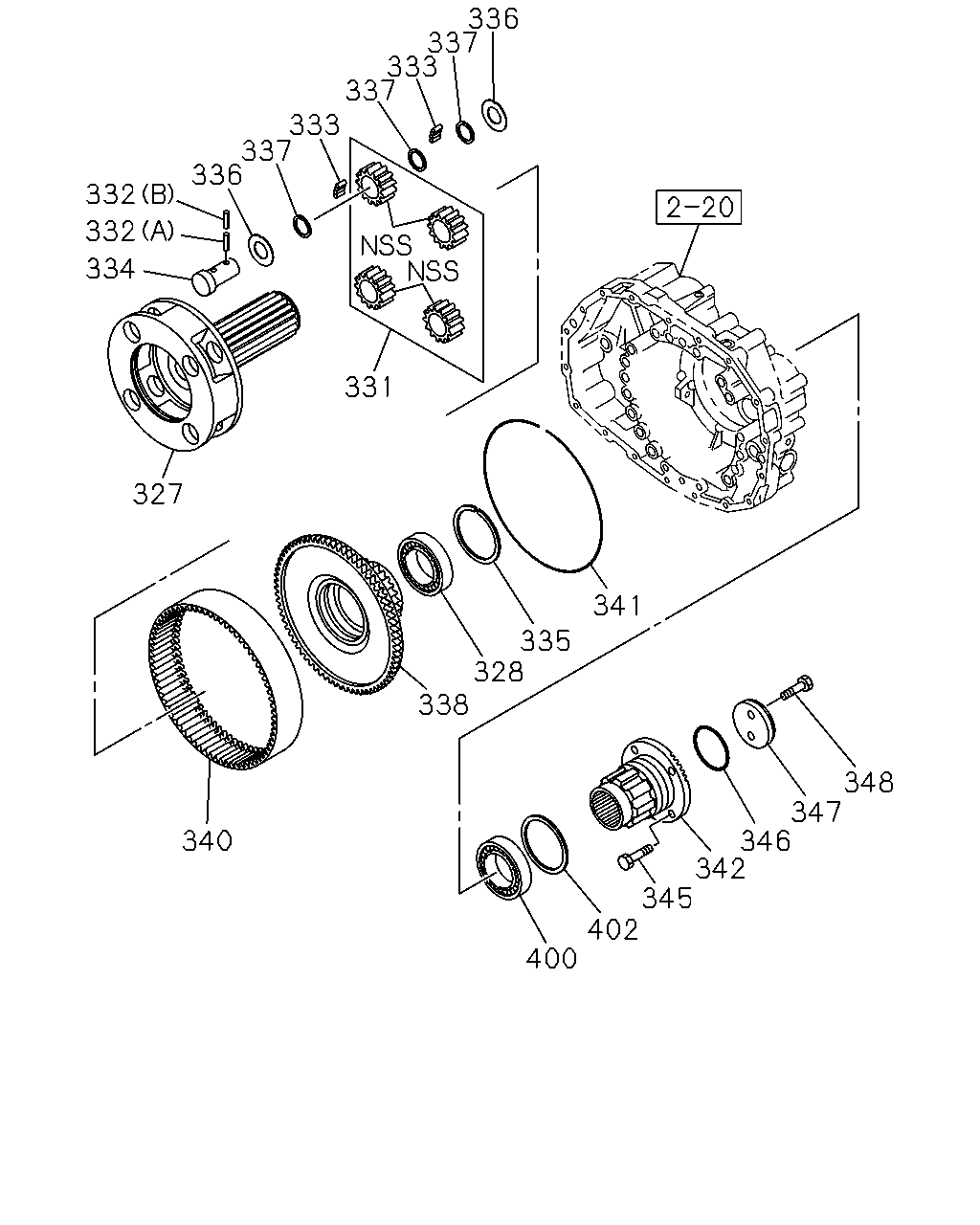

çizim 109746
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1103-
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 0807-1102
328 BEARING; CARRIER 1-33339-094-0 01 1 1103-
328 BEARING; CARRIER 1-33339-094-0 01 1 0807-1102
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1103-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 0807-1102
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1103-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1103-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 0807-1102
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 0807-1102
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0807-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1103-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 0807-1102
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1103-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1103-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1103-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1103-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1103-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1103-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 0807-1102
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 0807-1102
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 0807-1102
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 0807-1102
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 0807-1102
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 0807-1102
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1103-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 0807-1102
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1103-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0807-1102
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1103-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 0807-1102
340 GEAR; RING 1-33339-099-0 01 1 1103-
340 GEAR; RING 1-33339-099-0 01 1 0903-1102
340 GEAR; RING 1-33339-095-0 01 1 0807-0902
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1103-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 0807-1102
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1103-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 0807-1102
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1103-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0807-1102
346 GASKET; FLANGE 1-37249-156-0 01 1 1103-
346 GASKET; FLANGE 1-37249-156-0 01 1 0807-1102
347 WASHER; FLANGE 1-09509-060-0 01 1 1103-
347 WASHER; FLANGE 1-09509-060-0 01 1 0807-1102
348 BOLT; SHAFT
THA 		1-37249-215-0 02 1 1302-
348 BOLT; SHAFT 1-37249-207-0 02 1 1103-1305
348 BOLT; SHAFT 1-37249-207-0 02 1 0807-1102
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1103-
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 0807-1102
402 SHIM
T=2.20 		1-33139-064-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=2.20 		1-33139-064-0 01 1 0903-0912
402 SHIM
T=2.10 		1-33139-065-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=2.10 		1-33139-065-0 01 1 0903-0912
402 SHIM
T=2.00 		1-33139-066-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=2.00 		1-33139-066-0 01 1 0903-0912
402 SHIM
T=1.90 		1-33139-067-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.90 		1-33139-067-0 01 1 0903-0912
402 SHIM
T=1.80 		1-33139-068-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.80 		1-33139-068-0 01 1 0903-0912
402 SHIM
T=1.70 		1-33139-069-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.70 		1-33139-069-0 01 1 0903-0912
402 SHIM
T=1.60 		1-33139-070-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.60 		1-33139-070-0 01 1 0903-0912
402 SHIM
T=1.50 		1-33139-071-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.50 		1-33139-071-0 01 1 0903-0912
402 SHIM
T=1.40 		1-33139-072-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.40 		1-33139-072-0 01 1 0903-0912
402 SHIM
T=1.30 		1-33139-073-0 01 1 0807-0902
402 SHIM
EXC. PTO ZF TRANS RR<BDM> T=1.30 		1-33139-073-0 01 1 0903-0912

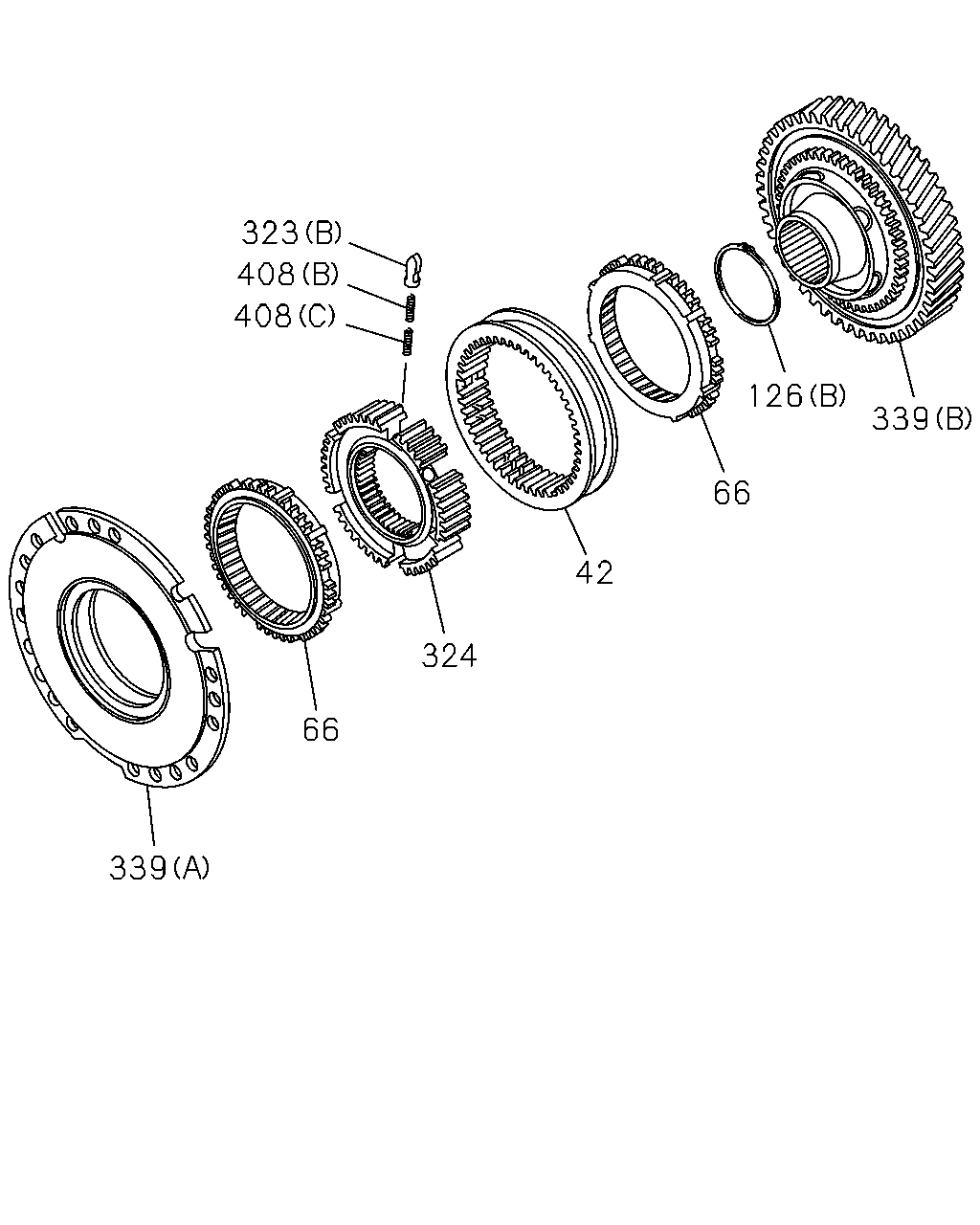

çizim 109886
323 408 408 126 339 66 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1103-
42 SLEEVE 1-33262-195-0 01 1 0807-1102
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1103-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0807-1102
323 INSERT
(B) 		1-33263-027-0 09 1 1103-
323 INSERT
(A) 		1-33263-030-0 06 1 1103-
323 INSERT
(B) 		1-33263-027-0 09 1 0807-1102
323 INSERT
(A) 		1-33263-030-0 06 1 0807-1102
324 HUB; CLU 1-33261-230-0 01 1 1103-
324 HUB; CLU 1-33261-230-0 01 1 0807-1102
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1103-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1103-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0807-1102
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 0807-1102
408 SPRING
(B) 		1-33269-038-0 09 1 1103-
408 SPRING
(C) 		1-33269-039-0 09 1 1103-
408 SPRING
(A) 		1-33269-042-0 06 1 1103-
408 SPRING
(B) 		1-33269-038-0 09 1 0807-1102
408 SPRING
(C) 		1-33269-039-0 09 1 0807-1102
408 SPRING
(A) 		1-33269-042-0 06 1 0807-1102

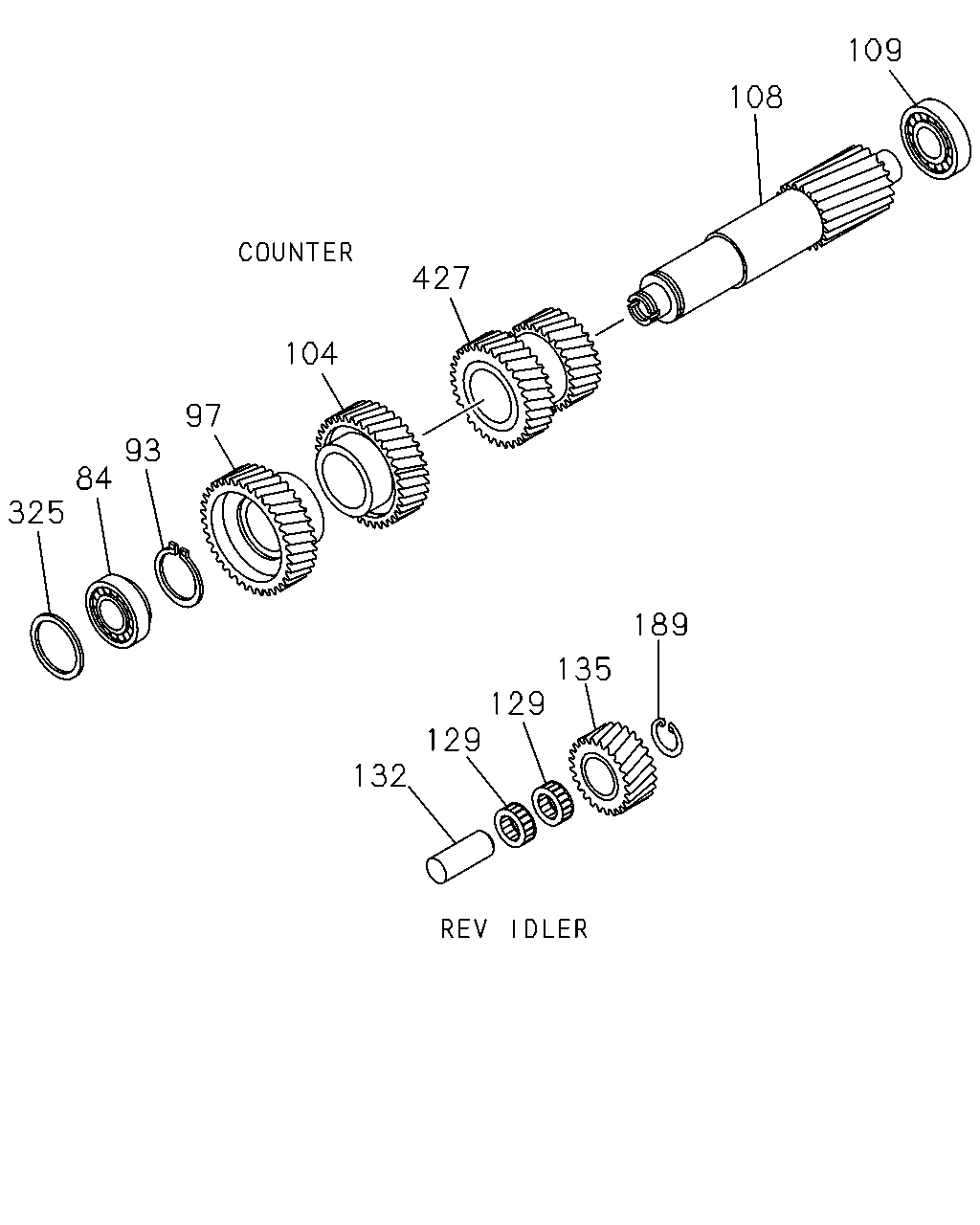

çizim 109927
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1103-
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 0807-1102
93 RING; SNAP,COUNTER FRT BRG
T=2.6 THA 		1-33319-264-0 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1103-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1103-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1103-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1103-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1103-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1103-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 0807-1102
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 0807-1102
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 0807-1102
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 0807-1102
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 0807-1102
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 0807-1102
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1103-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 0807-1102
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1103-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 0807-1102
108 SHAFT; COUNTER 1-33311-347-0 01 1 1103-
108 SHAFT; COUNTER 1-33311-347-0 01 1 0807-1102
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1103-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0807-1102
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1103-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 0903-1102
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0807-0902
132 SHAFT; REV 1-33351-024-0 01 1 1103-
132 SHAFT; REV 1-33351-024-0 01 1 0807-1102
135 GEAR; REV IDLER
IMA 		1-33361-096-0 01 1 1302-
135 GEAR; REV IDLER 1-33361-092-0 01 1 1103-1305
135 GEAR; REV IDLER 1-33361-092-0 01 1 0807-1102
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1103-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM>,PTO CONTROL<SV6> T=1.50 THA 		8-98080-571-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM>,PTO CONTROL<SV6> T=1.60 THA 		8-98080-572-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.60 		1-33389-047-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1103-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.50 		1-33389-049-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.40 		1-33389-086-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.35 		1-33389-087-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.30 		1-33389-088-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.25 		1-33389-089-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.45 		1-33389-050-0 01 1 0903-0912
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.40 		1-33389-051-0 01 1 0903-0912
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0807-1102
427 GEAR; 2ND & 3RD,COUNTER
THA 		1-33332-132-0 01 1 1302-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 1103-1305
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 0807-1102

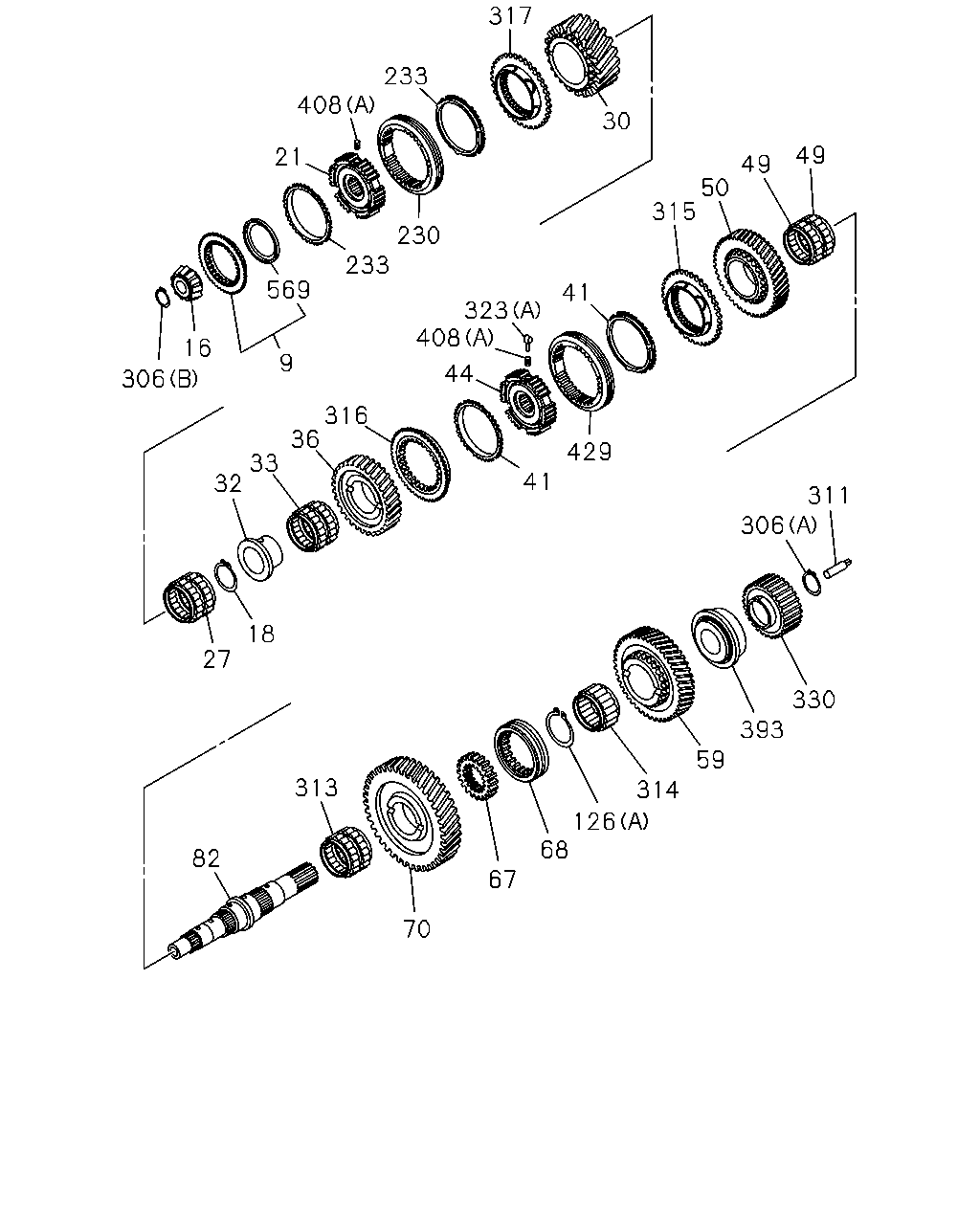

çizim 193807
317 233 408 30 49 21 49 50 315 230 233 569 41 323 408 16 9 44 306 316 36 429 33 32 41 311 306 18 27 330 393 59 313 314 126 68 82 67 70
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1103-
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 0807-1102
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1103-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0807-1102
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1103-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1103-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1103-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1103-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1103-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1103-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0807-1102
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0807-1102
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0807-1102
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0807-1102
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0807-1102
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0807-1102
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1103-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 0807-1102
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1103-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 0903-1102
27 BEARING; 4TH GEAR 1-33259-106-0 02 1 0807-0902
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1103-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 0807-1102
32 COLLAR; 3RD GEAR
THA 		1-33259-140-0 01 1 1302-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1103-1305
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0807-1102
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1103-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 0903-1102
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0807-0902
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1103-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 0807-1102
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1103-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 0807-1102
44 HUB; CLU,2ND & 3RD,MAIN
IMA 		1-33261-303-0 01 1 1302-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 1103-1305
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0807-1102
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1103-
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 0903-1102
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0807-0902
50 GEAR; 2ND,MAINSHAFT
IMA 		1-33251-448-0 01 1 1302-
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 1103-1305
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 0807-1102
59 GEAR; REV MAINSHAFT
IMA 		1-33257-101-0 01 1 1302-
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 1103-1305
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 0807-1102
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1103-
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 0903-1102
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0807-0902
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1103-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0807-1102
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1103-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 0807-1102
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1103-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1103-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1103-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0807-1102
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0807-1102
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1103-
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 0807-1102
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1103-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 1103-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1103-
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 0807-1102
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 0807-1102
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1103-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 0807-1102
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1103-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 0903-1102
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0807-0902
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1103-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 0903-1102
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 0807-0902
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1103-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 0807-1102
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1103-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 0807-1102
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1103-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 0807-1102
323 INSERT
(B) 		1-33263-027-0 09 1 1103-
323 INSERT
(A) 		1-33263-030-0 06 1 1103-
323 INSERT
(B) 		1-33263-027-0 09 1 0807-1102
323 INSERT
(A) 		1-33263-030-0 06 1 0807-1102
330 GEAR; SUN
IMA 		1-33259-134-0 01 1 1302-
330 GEAR; SUN 1-33259-105-0 01 1 1103-1305
330 GEAR; SUN 1-33259-105-0 01 1 0807-1102
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1103-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 0807-1102
408 SPRING
(B) 		1-33269-038-0 09 1 1103-
408 SPRING
(C) 		1-33269-039-0 09 1 1103-
408 SPRING
(A) 		1-33269-042-0 06 1 1103-
408 SPRING
(B) 		1-33269-038-0 09 1 0807-1102
408 SPRING
(C) 		1-33269-039-0 09 1 0807-1102
408 SPRING
(A) 		1-33269-042-0 06 1 0807-1102
429 SLEEVE; 2ND & 3RD
IMA 		1-33262-244-0 01 1 1302-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 1103-1305
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0807-1102
569 DAM; OIL 1-33269-097-0 01 1 1103-
569 DAM; OIL 1-33269-097-0 01 1 0807-1102

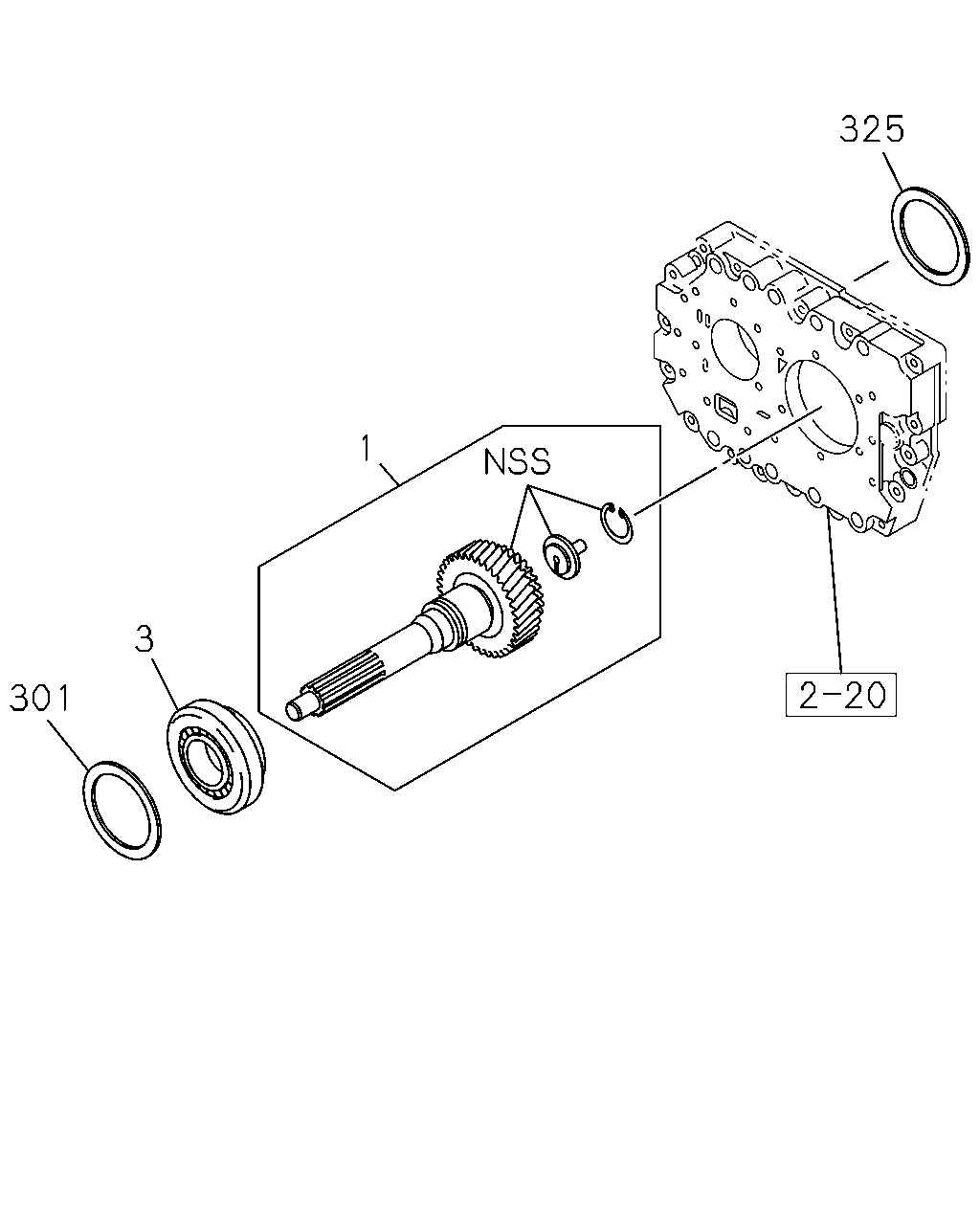

çizim 193817
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1103-
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 0807-1102
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1103-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.20 THA 		1-33139-047-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.10 THA 		1-33139-050-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.15 THA 		1-33139-204-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.25 THA 		1-33139-205-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1103-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=2.30 		1-33139-223-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=2.25 		1-33139-224-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=2.20 		1-33139-225-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=2.15 		1-33139-226-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=2.10 		1-33139-227-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=2.05 		1-33139-228-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=2.00 		1-33139-229-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.95 		1-33139-230-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.90 		1-33139-231-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.85 		1-33139-232-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.75 		1-33139-233-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.65 		1-33139-234-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 0903-1102
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.20 THA 		1-33139-047-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.20 THA 		1-33139-047-0 01 1 0903-0912
301 SHIM; TOP GEAR SHAFT
T=1.10 THA 		1-33139-050-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.10 THA 		1-33139-050-0 01 1 0903-0912
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33139-203-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.05 		1-33139-203-0 01 1 0903-0912
301 SHIM; TOP GEAR SHAFT
T=1.15 THA 		1-33139-204-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.15 THA 		1-33139-204-0 01 1 0903-0912
301 SHIM; TOP GEAR SHAFT
T=1.25 THA 		1-33139-205-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.25 THA 		1-33139-205-0 01 1 0903-0912
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 0807-1102
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33139-207-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=0.90 		1-33139-207-0 01 1 0903-0912
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33139-208-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=0.95 		1-33139-208-0 01 1 0903-0912
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33139-209-0 01 1 0807-0902
301 SHIM; TOP GEAR SHAFT
EXC. PTO ZF TRANS RR<BDM> T=1.00 		1-33139-209-0 01 1 0903-0912
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM>,PTO CONTROL<SV6> T=1.50 THA 		8-98080-571-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM>,PTO CONTROL<SV6> T=1.60 THA 		8-98080-572-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.60 		1-33389-047-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1103-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> PTO CONTROL<SV6> T=1.50 		1-33389-049-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1103-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.40 		1-33389-086-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.35 		1-33389-087-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.30 		1-33389-088-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=2.25 		1-33389-089-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 0903-1102
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.45 		1-33389-050-0 01 1 0903-0912
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 0807-0902
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.40 		1-33389-051-0 01 1 0903-0912
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 0807-1102
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 0807-1102
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
