Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#6813) — 443 parça

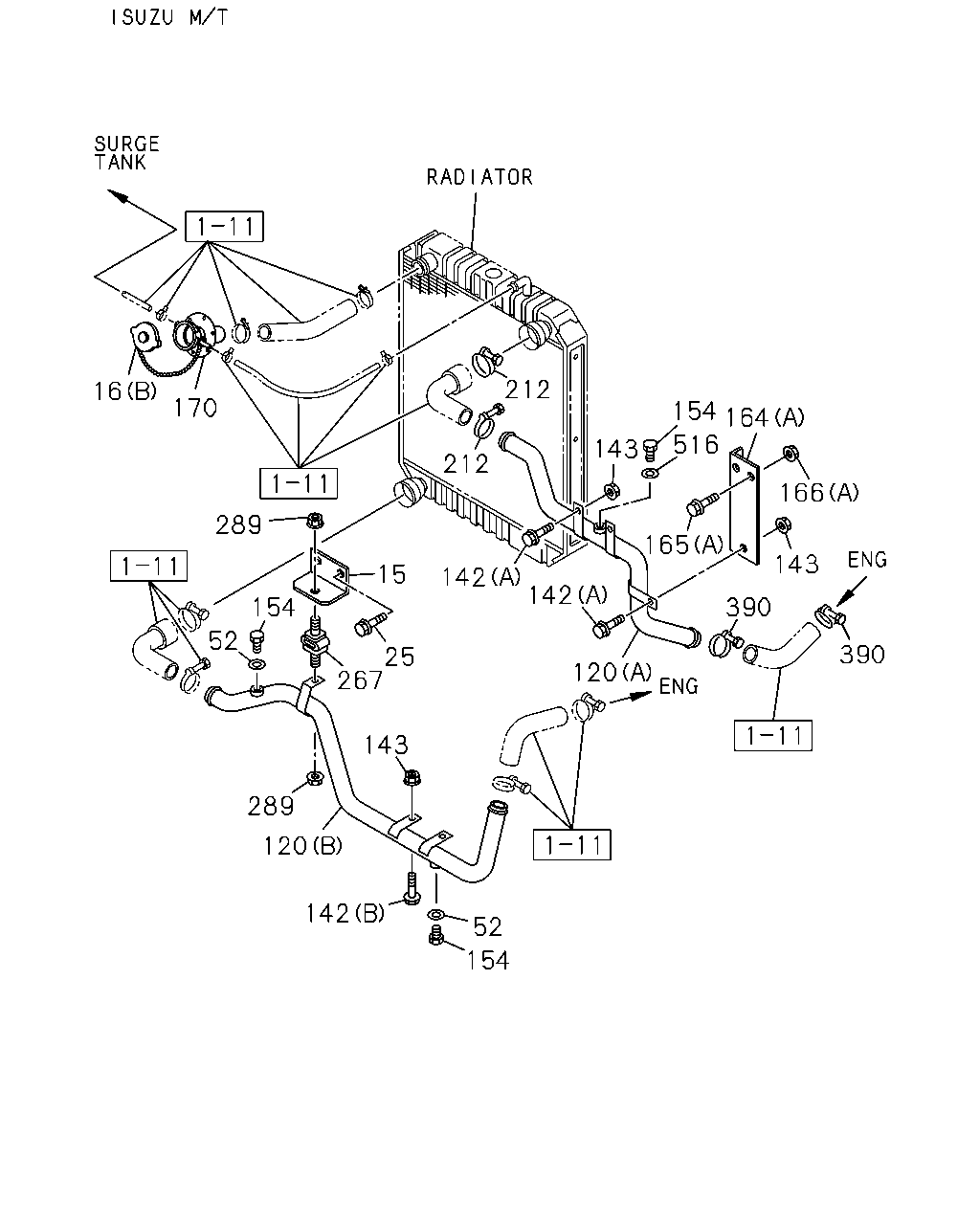

212 16 170 154 164 516 143 212 166 289 165 143 15 142 142 154 390 52 390 25 267 120 143 289 120 142 52 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	BRACKET; PIPE,RAD	8-97530-818-0	01	1	9912-0012	●
15	BRACKET; PIPE,RAD	8-97531-275-0	01	1	0101-	●
16	CAP; RAD (B) W/CHAIN	1-21450-044-2	01	1	9806-9911		●	●
16	CAP; RAD (B) W/CHAIN	1-21450-123-0	01	1	9912-	●
16	CAP; RAD (A) W/CAP	1-21450-090-0	01	1	9806-9911		●	●
25	BOLT; BRKT M10X12 FLANGE	0-28081-012-0	10	1	9806-9911		●
25	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
25	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	08	1	9912-	●
52	GASKET; DRAIN PLUG ID=14.2 OD=20.0	9-09571-414-0	02	1	9912-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (C)	1-21431-267-0	01	1	9806-9911		●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (B)	8-97530-921-0	01	1	9912-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET ISUZU M/T<X9A> (A)	8-97530-919-0	01	1	9912-	●
142	BOLT; PIPE (D) M8X25 FLANGE	0-28680-825-0	04	1	9806-9911		●	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28680-820-0	04	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	03	1	9912-0512	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	04	1	9806-9911		●	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
143	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	9912-0602	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-	●
154	PLUG; SCREW,WATER PIPE M14	8-94399-225-0	02	1	9912-	●
154	PLUG; SCREW,WATER PIPE ISUZU M/T<X9A> M14	8-94399-225-0	01	1	9912-	●
164	BRACKET; RAD PIPE TO C/MBR A/T<X9D> (B)	8-97531-110-0	02	1	9912-	●
164	BRACKET; RAD PIPE TO C/MBR ISUZU M/T<X9A> (A)	8-97530-868-0	01	1	9912-	●
165	BOLT; BRKT TO C/MBR A/T<X9D> (B) M10X25 FLANGE	0-28681-025-0	04	1	9912-0512	●
165	BOLT; BRKT TO C/MBR A/T<X9D> (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
166	NUT; BRKT TO C/MBR A/T<X9D> (B) M10 FLANGE	0-91150-210-0	04	1	9912-0602	●
166	NUT; BRKT TO C/MBR A/T<X9D> (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
166	NUT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
166	NUT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
170	PIPE; FILLER	1-21421-022-0	01	1	9806-9911		●	●
170	PIPE; FILLER	1-21450-125-1	01	1	9912-	●
212	CLIP; HOSE ID=63	1-09704-067-0	04	1	9806-9911		●	●
212	CLIP; HOSE A/T<X9D> ID=63	1-09704-106-0	06	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=72	1-09704-068-0	01	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=63	1-09704-106-0	01	1	9912-	●
267	RUBBER; CUSHION	1-22226-002-0	01	1	9912-0110	●
267	RUBBER; CUSHION	8-94394-268-1	01	1	0111-	●
289	NUT M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
289	NUT M8 FLANGE	0-91180-108-0	02	1	0603-	●
289	NUT A/T<X9D> M8 FLANGE	0-91150-108-0	09	1	9912-0602	●
289	NUT A/T<X9D> M8 FLANGE	0-91180-108-0	09	1	0603-	●
390	CLIP; RUBBER HOSE ID=63	1-09704-106-0	02	1	9912-	●
390	CLIP; RUBBER HOSE A/T<X9D> ID=72	1-09704-068-0	01	1	9912-	●
390	CLIP; RUBBER HOSE A/T<X9D> ID=63	1-09704-106-0	03	1	9912-	●
516	GASKET; PLUG A/T<X9D> ID=14.2 OD=20.0	9-09571-414-0	02	1	9912-	●
516	GASKET; PLUG ISUZU M/T<X9A> ID=14.2 OD=20.0	9-09571-414-0	01	1	9912-	●

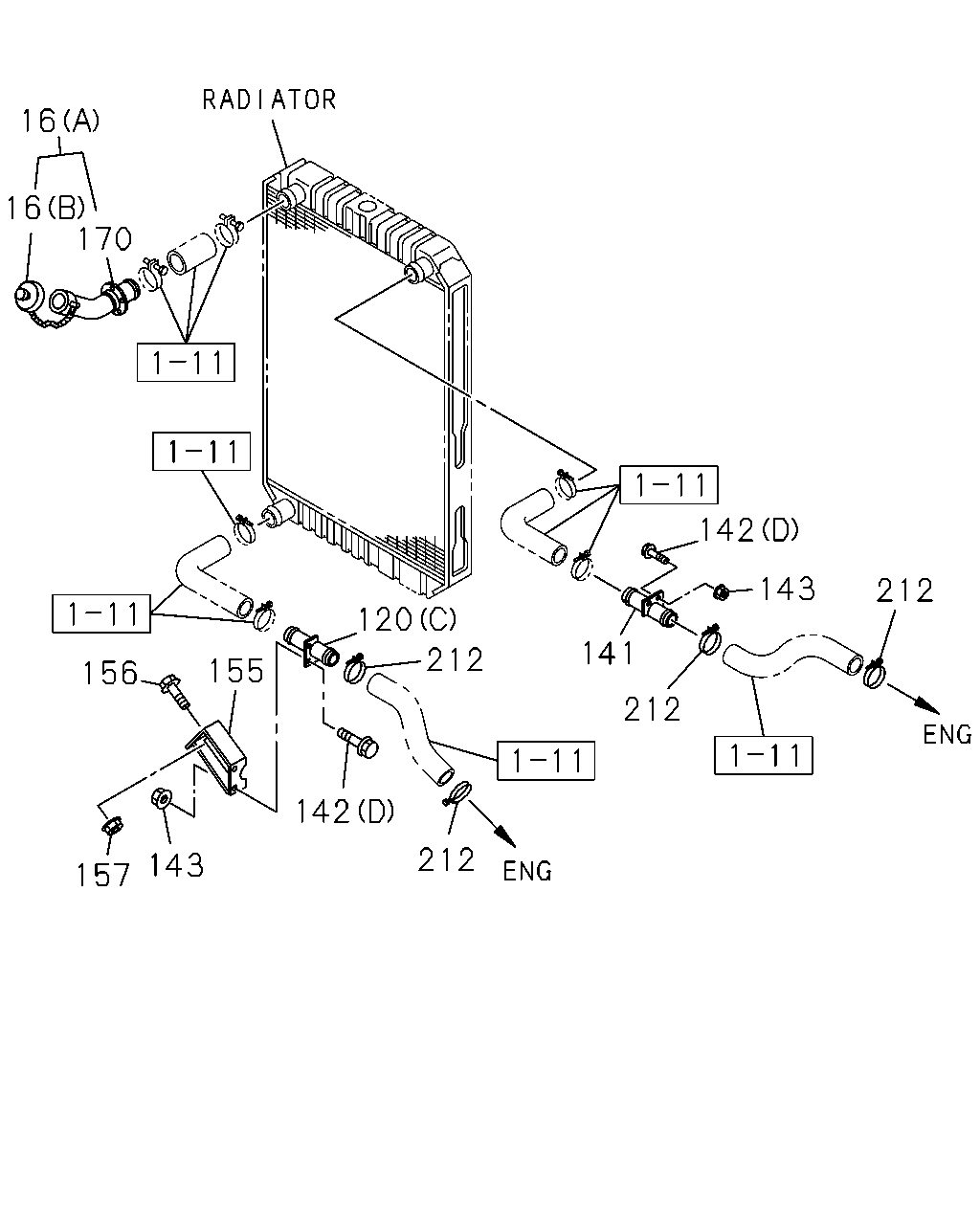

16 16 170 142 143 212 120 141 212 155 156 212 142 212 143 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CAP; RAD (B) W/CHAIN	1-21450-044-2	01	1	9806-9911		●	●
16	CAP; RAD (B) W/CHAIN	1-21450-123-0	01	1	9912-	●
16	CAP; RAD (A) W/CAP	1-21450-090-0	01	1	9806-9911		●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (C)	1-21431-267-0	01	1	9806-9911		●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (B)	8-97530-921-0	01	1	9912-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET ISUZU M/T<X9A> (A)	8-97530-919-0	01	1	9912-	●
141	PIPE; RAD,INL	1-21431-267-0	01	1	9806-9911		●	●
142	BOLT; PIPE (D) M8X25 FLANGE	0-28680-825-0	04	1	9806-9911		●	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28680-820-0	04	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	03	1	9912-0512	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	04	1	9806-9911		●	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
143	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	9912-0602	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-	●
155	BRACKET; RAD PIPE	1-21469-102-0	01	1	9806-9911		●	●
156	BOLT; BRKT TO RAD PIPE M8X25 FLANGE	0-28680-825-0	02	1	9806-9911		●	●
157	NUT; BRKT TO PIPE M8 FLANGE	0-91150-108-0	02	1	9806-9911		●	●
170	PIPE; FILLER	1-21421-022-0	01	1	9806-9911		●	●
170	PIPE; FILLER	1-21450-125-1	01	1	9912-	●
212	CLIP; HOSE ID=63	1-09704-067-0	04	1	9806-9911		●	●
212	CLIP; HOSE A/T<X9D> ID=63	1-09704-106-0	06	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=72	1-09704-068-0	01	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=63	1-09704-106-0	01	1	9912-	●

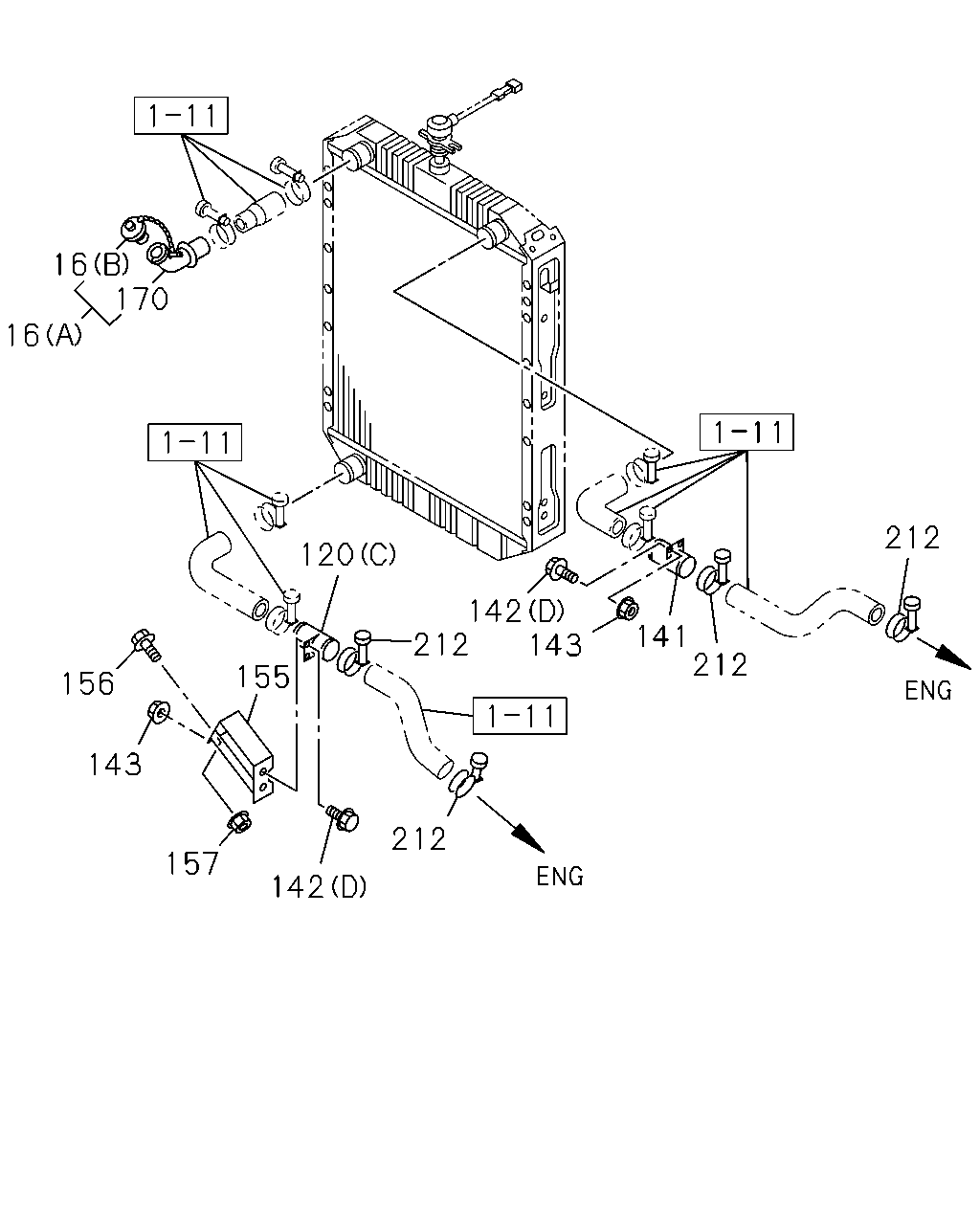

16 170 16 212 120 142 212 143 141 212 155 156 143 212 157 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CAP; RAD (B) W/CHAIN	1-21450-044-2	01	1	9806-9911		●	●
16	CAP; RAD (B) W/CHAIN	1-21450-123-0	01	1	9912-	●
16	CAP; RAD (A) W/CAP	1-21450-090-0	01	1	9806-9911		●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (C)	1-21431-267-0	01	1	9806-9911		●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (B)	8-97530-921-0	01	1	9912-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET ISUZU M/T<X9A> (A)	8-97530-919-0	01	1	9912-	●
141	PIPE; RAD,INL	1-21431-267-0	01	1	9806-9911		●	●
142	BOLT; PIPE (D) M8X25 FLANGE	0-28680-825-0	04	1	9806-9911		●	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28680-820-0	04	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	03	1	9912-0512	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	04	1	9806-9911		●	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
143	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	9912-0602	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-	●
155	BRACKET; RAD PIPE	1-21469-102-0	01	1	9806-9911		●	●
156	BOLT; BRKT TO RAD PIPE M8X25 FLANGE	0-28680-825-0	02	1	9806-9911		●	●
157	NUT; BRKT TO PIPE M8 FLANGE	0-91150-108-0	02	1	9806-9911		●	●
170	PIPE; FILLER	1-21421-022-0	01	1	9806-9911		●	●
170	PIPE; FILLER	1-21450-125-1	01	1	9912-	●
212	CLIP; HOSE ID=63	1-09704-067-0	04	1	9806-9911		●	●
212	CLIP; HOSE A/T<X9D> ID=63	1-09704-106-0	06	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=72	1-09704-068-0	01	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=63	1-09704-106-0	01	1	9912-	●

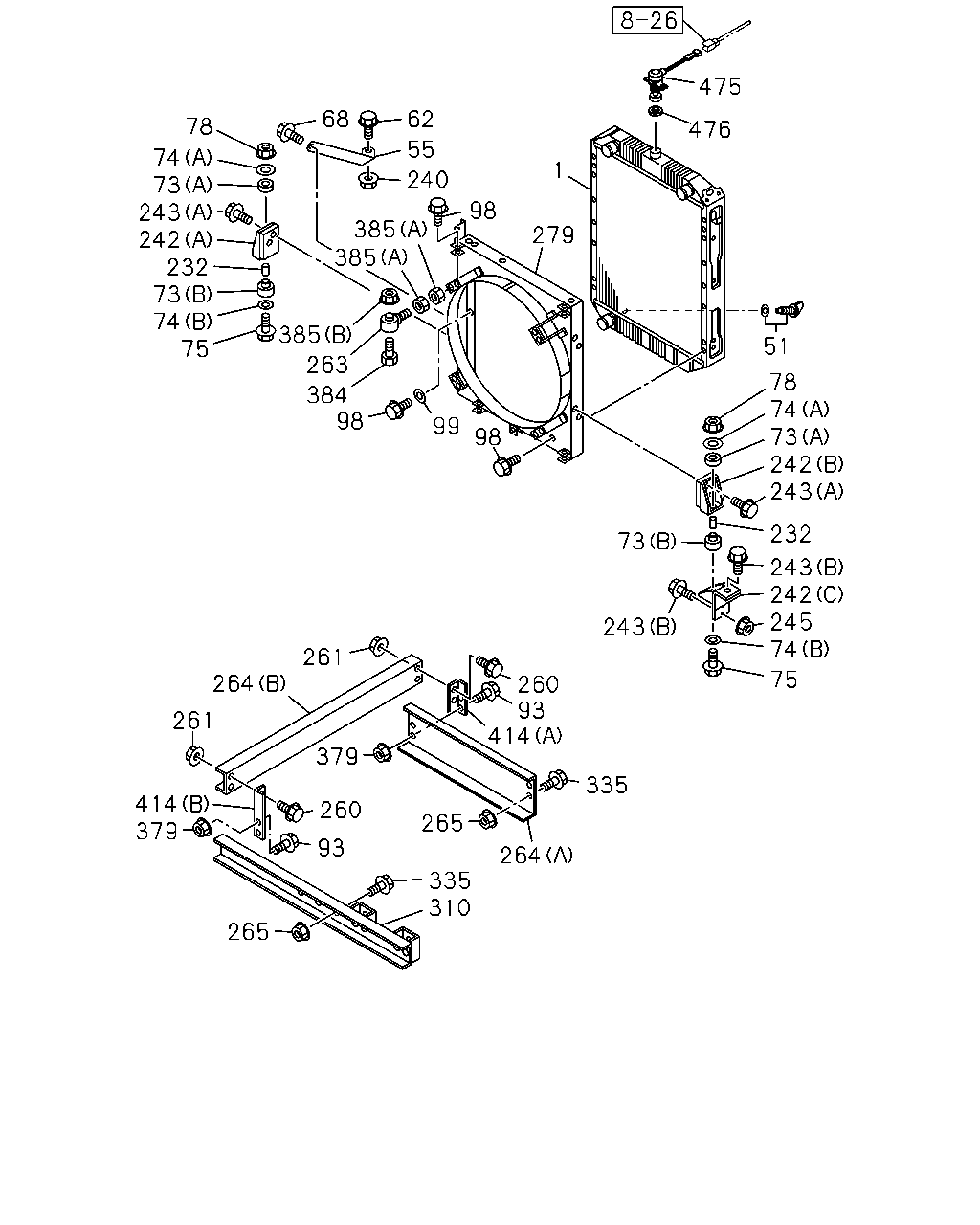

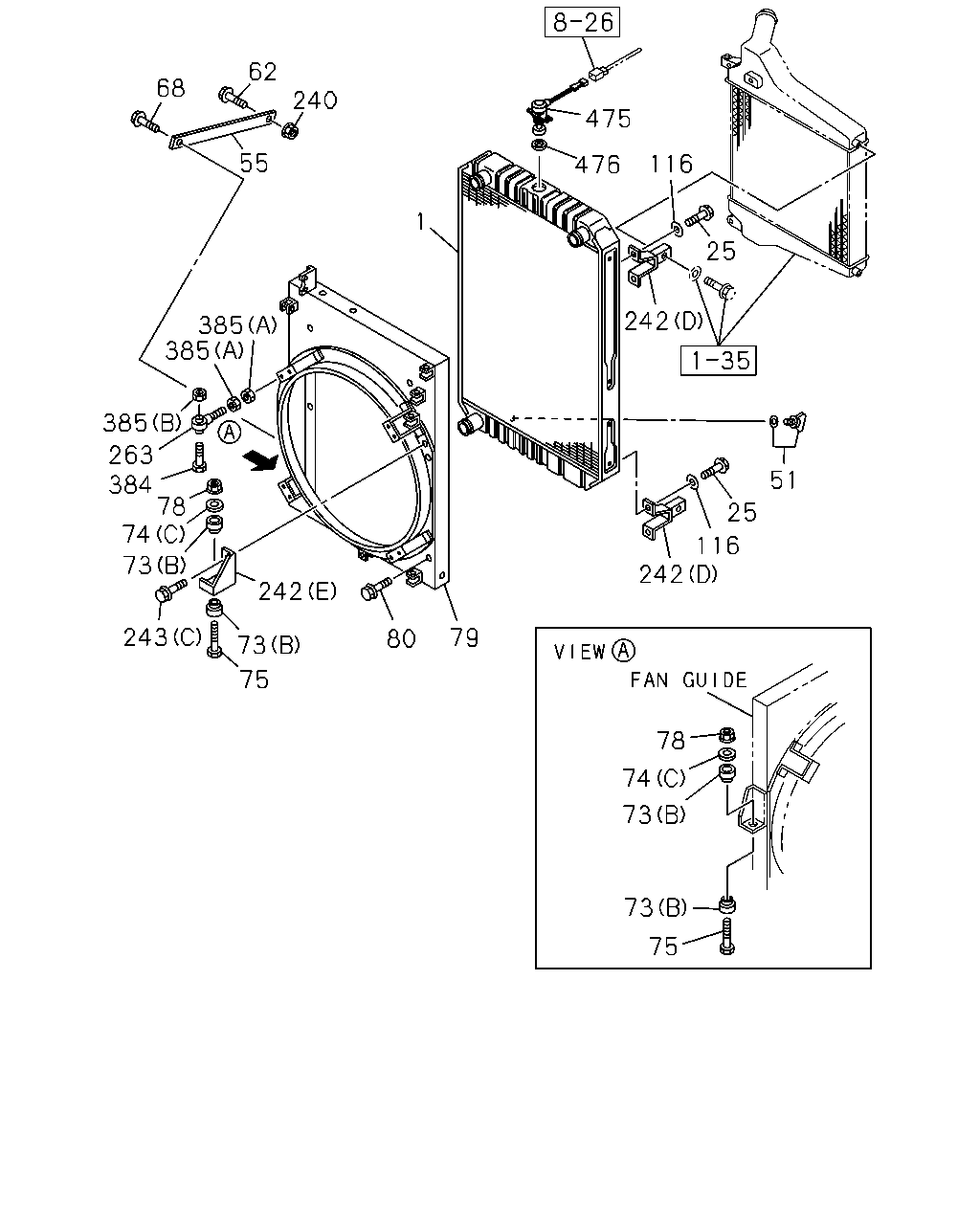

62 68 240 475 55 116 476 1 25 242 385 385 385 263 384 78 74 51 25 116 242 73 242 243 79 80 73 75 78 74 73 73 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-736-1	01	1	9806-9911		●
1	RADIATOR ASM	1-21410-828-0	01	1	9912-	●
1	RADIATOR ASM	1-21410-702-1	01	1	9806-9911			●
25	BOLT; BRKT M10X12 FLANGE	0-28081-012-0	10	1	9806-9911		●
25	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
25	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	08	1	9912-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9806-9911		●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9912-	●
55	STAY; RAD TO UPR MBR	1-21464-519-0	01	1	9806-9911		●
55	STAY; RAD TO UPR MBR	1-21464-502-1	01	1	9806-9911			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9806-9911		●	●
68	BOLT; STAY TO BRKT M10X30 FLANGE	0-28681-030-0	01	1	9806-9911		●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	04	1	9806-9911		●
73	RUBBER; CUSHION,RAD MTG (B)	8-97530-138-0	04	1	9912-	●
73	RUBBER; CUSHION,RAD MTG (A) T=10	1-21467-001-1	02	1	9806-9911			●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9806-9911			●
74	WASHER; PL,CUSHION RUBBER (C) ID=18.5 OD=60	1-09503-262-0	02	1	9806-9911		●
74	WASHER; PL,CUSHION RUBBER (C) ID=18.5 OD=60	1-09503-262-0	02	1	9912-	●
74	WASHER; PL,CUSHION RUBBER (A) ID=10.5 OD=44	1-09503-042-0	02	1	9806-9911			●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9806-9911			●
75	BOLT; CUSHION RUBBER,RAD MTG M12X77	1-09009-162-0	02	1	9806-9911		●
75	BOLT; CUSHION RUBBER,RAD MTG M12X77	1-09009-162-0	02	1	9912-	●
75	BOLT; CUSHION RUBBER,RAD MTG M10X70 FLANGE	0-28081-070-0	02	1	9806-9911			●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	02	1	9806-9911		●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	02	1	9912-0602	●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	02	1	0603-	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9806-9911			●
79	GUIDE; FAN,RAD	1-21570-082-1	01	1	9806-9911		●
79	GUIDE; FAN,RAD	1-21570-088-2	01	1	9912-	●
80	BOLT; FAN GUIDE M10X80 FLANGE	0-28081-080-0	04	1	9806-9911		●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	9912-	●
116	WASHER; PL,BRKT ID=8.4 OD=18	9-09160-608-0	08	1	9912-	●
240	NUT; STAY M10 FLANGE	0-91150-210-0	01	1	9806-9911		●	●
242	BRACKET; RAD (E)	1-21419-066-0	01	1	9806-9911		●
242	BRACKET; RAD (F)	8-97530-888-1	01	1	9912-	●
242	BRACKET; RAD (D) LOWER	1-21464-553-0	02	1	9806-9911		●
242	BRACKET; RAD (D) UPPER	1-21464-554-0	02	1	9806-9911		●
242	BRACKET; RAD (B)	1-21419-041-0	01	1	9806-9911			●
242	BRACKET; RAD (G)	8-97530-889-0	01	1	9912-	●
242	BRACKET; RAD (C)	1-21469-085-0	01	1	9806-9911			●
242	BRACKET; RAD (H)	1-21464-635-0	02	1	9912-	●
242	BRACKET; RAD (A)	1-21469-104-1	01	1	9806-9911			●
242	BRACKET; RAD (I)	1-21464-636-0	02	1	9912-	●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911		●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	04	1	9912-0512	●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
243	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911			●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	03	1	9806-9911			●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	03	1	9912-0512	●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28651-235-0	03	1	0601-	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	04	1	9806-9911		●	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	04	1	9912-0005	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	07	1	0006-	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	04	1	9806-9911		●	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	04	1	9912-0005	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	07	1	0006-	●
384	BOLT; ROD M12X50	0-10811-250-0	08	1	9806-9911		●	●
384	BOLT; ROD M12X50	0-10811-250-0	08	1	9912-0512	●
384	BOLT; ROD M12X50	0-10861-250-0	08	1	0601-	●
385	NUT; ROD (C) M10	9-09111-510-0	06	1	0006-0111	●
385	NUT; ROD (C) M10	9-09111-510-0	05	1	0112-0112	●
385	NUT; ROD (C) M10	9-09111-510-0	03	1	0201-0512	●
385	NUT; ROD (C) M10	0-91111-510-0	03	1	0601-	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	03	1	0006-	●
385	NUT; ROD (B) M12	9-99110-512-0	06	1	0002-0512	●
385	NUT; ROD (B) M12	0-91110-512-0	06	1	0601-	●
385	NUT; ROD (A) M10 FLANGE	0-91150-210-0	08	1	9806-9911		●	●
385	NUT; ROD (A) M10 FLANGE	0-91150-210-0	08	1	9912-0602	●
385	NUT; ROD (A) M10 FLANGE	0-91180-210-0	08	1	0603-	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	08	1	9806-9911		●	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	14	1	9912-0001	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	08	1	0002-0602	●
385	NUT; ROD (B) M12 FLANGE	0-91180-212-0	08	1	0603-	●
385	NUT; ROD (A) M10 LH THREAD	1-09400-025-0	08	1	9806-9911		●	●
385	NUT; ROD (A) M10 LH THREAD	1-09400-025-0	08	1	9912-	●
475	SWITCH; WATER LEVEL	1-82480-071-0	01	1	9806-9807		●	●
475	SWITCH; WATER LEVEL	1-82480-092-0	01	1	9808-9911		●	●
475	SWITCH; WATER LEVEL	1-82480-070-0	01	1	9912-0002	●
475	SWITCH; WATER LEVEL	1-82480-091-1	01	1	0003-	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	9806-9911		●	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	9912-	●

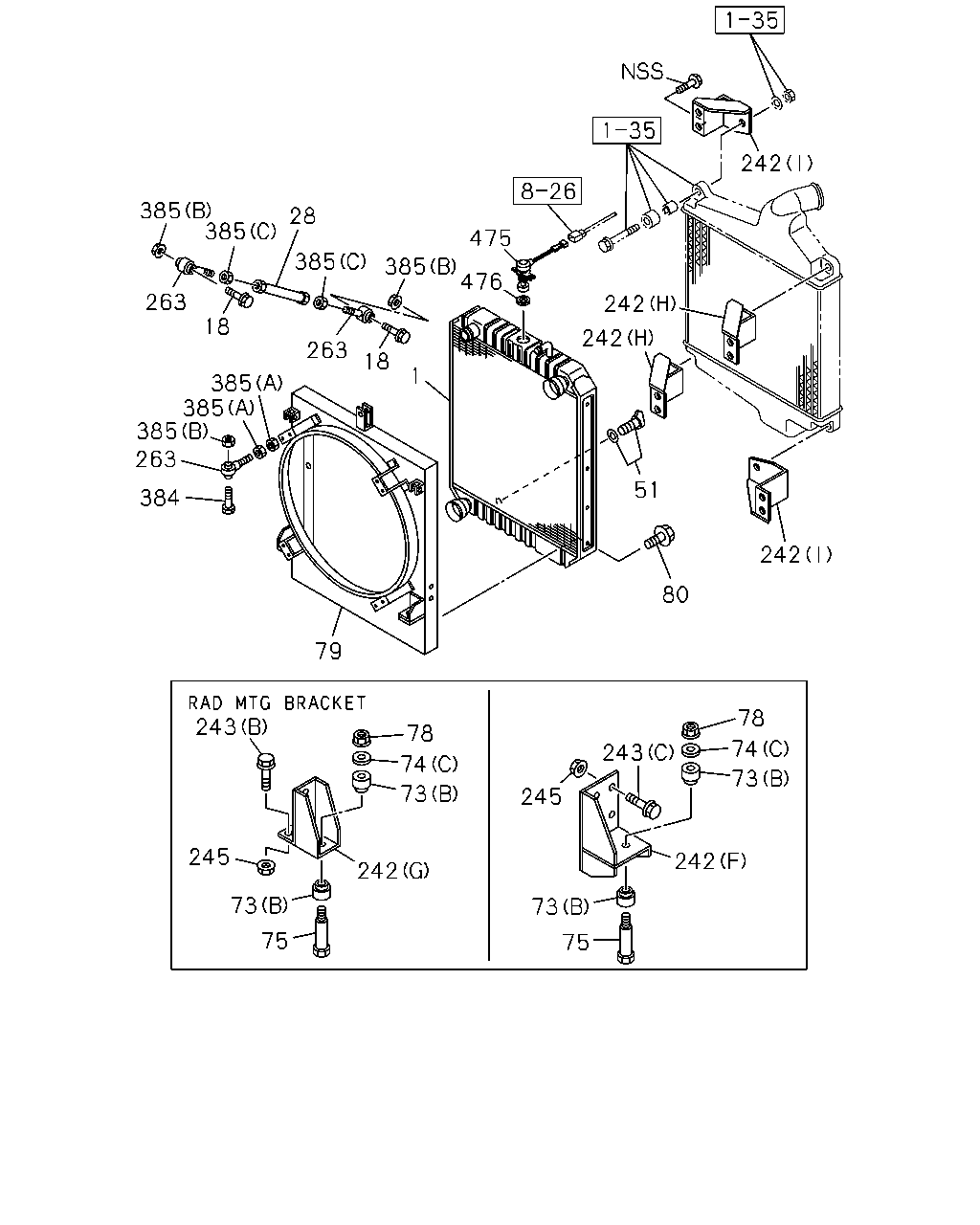

242 385 385 28 475 385 385 476 263 242 18 242 263 18 1 385 385 385 263 51 384 242 80 79 243 78 78 74 243 74 73 73 245 245 242 242 73 73 75 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-736-1	01	1	9806-9911		●
1	RADIATOR ASM	1-21410-828-0	01	1	9912-	●
1	RADIATOR ASM	1-21410-702-1	01	1	9806-9911			●
18	BOLT; RAD M12X45 FLANGE	0-28081-245-0	05	1	9912-0001	●
18	BOLT; RAD M12X45 W/LK WASHER	0-50041-245-0	06	1	0002-	●
18	BOLT; RAD M12X43 FLANGE	8-94241-883-1	01	1	9912-0001	●
28	ROD; RAD L=254	1-21469-120-1	02	1	0006-	●
28	ROD; RAD L=190	1-21469-121-1	01	1	0006-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9806-9911		●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9912-	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	04	1	9806-9911		●
73	RUBBER; CUSHION,RAD MTG (B)	8-97530-138-0	04	1	9912-	●
73	RUBBER; CUSHION,RAD MTG (A) T=10	1-21467-001-1	02	1	9806-9911			●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9806-9911			●
74	WASHER; PL,CUSHION RUBBER (C) ID=18.5 OD=60	1-09503-262-0	02	1	9806-9911		●
74	WASHER; PL,CUSHION RUBBER (C) ID=18.5 OD=60	1-09503-262-0	02	1	9912-	●
74	WASHER; PL,CUSHION RUBBER (A) ID=10.5 OD=44	1-09503-042-0	02	1	9806-9911			●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9806-9911			●
75	BOLT; CUSHION RUBBER,RAD MTG M12X77	1-09009-162-0	02	1	9806-9911		●
75	BOLT; CUSHION RUBBER,RAD MTG M12X77	1-09009-162-0	02	1	9912-	●
75	BOLT; CUSHION RUBBER,RAD MTG M10X70 FLANGE	0-28081-070-0	02	1	9806-9911			●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	02	1	9806-9911		●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	02	1	9912-0602	●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	02	1	0603-	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9806-9911			●
79	GUIDE; FAN,RAD	1-21570-082-1	01	1	9806-9911		●
79	GUIDE; FAN,RAD	1-21570-088-2	01	1	9912-	●
80	BOLT; FAN GUIDE M10X80 FLANGE	0-28081-080-0	04	1	9806-9911		●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	9912-	●
242	BRACKET; RAD (E)	1-21419-066-0	01	1	9806-9911		●
242	BRACKET; RAD (F)	8-97530-888-1	01	1	9912-	●
242	BRACKET; RAD (D) LOWER	1-21464-553-0	02	1	9806-9911		●
242	BRACKET; RAD (D) UPPER	1-21464-554-0	02	1	9806-9911		●
242	BRACKET; RAD (B)	1-21419-041-0	01	1	9806-9911			●
242	BRACKET; RAD (G)	8-97530-889-0	01	1	9912-	●
242	BRACKET; RAD (C)	1-21469-085-0	01	1	9806-9911			●
242	BRACKET; RAD (H)	1-21464-635-0	02	1	9912-	●
242	BRACKET; RAD (A)	1-21469-104-1	01	1	9806-9911			●
242	BRACKET; RAD (I)	1-21464-636-0	02	1	9912-	●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911		●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	04	1	9912-0512	●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
243	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911			●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	03	1	9806-9911			●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	03	1	9912-0512	●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28651-235-0	03	1	0601-	●
245	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9806-9911			●
245	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9912-0602	●
245	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-	●
245	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9912-0602	●
245	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	04	1	9806-9911		●	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	04	1	9912-0005	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	07	1	0006-	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	04	1	9806-9911		●	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	04	1	9912-0005	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	07	1	0006-	●
384	BOLT; ROD M12X50	0-10811-250-0	08	1	9806-9911		●	●
384	BOLT; ROD M12X50	0-10811-250-0	08	1	9912-0512	●
384	BOLT; ROD M12X50	0-10861-250-0	08	1	0601-	●
385	NUT; ROD (C) M10	9-09111-510-0	06	1	0006-0111	●
385	NUT; ROD (C) M10	9-09111-510-0	05	1	0112-0112	●
385	NUT; ROD (C) M10	9-09111-510-0	03	1	0201-0512	●
385	NUT; ROD (C) M10	0-91111-510-0	03	1	0601-	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	03	1	0006-	●
385	NUT; ROD (B) M12	9-99110-512-0	06	1	0002-0512	●
385	NUT; ROD (B) M12	0-91110-512-0	06	1	0601-	●
385	NUT; ROD (A) M10 FLANGE	0-91150-210-0	08	1	9806-9911		●	●
385	NUT; ROD (A) M10 FLANGE	0-91150-210-0	08	1	9912-0602	●
385	NUT; ROD (A) M10 FLANGE	0-91180-210-0	08	1	0603-	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	08	1	9806-9911		●	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	14	1	9912-0001	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	08	1	0002-0602	●
385	NUT; ROD (B) M12 FLANGE	0-91180-212-0	08	1	0603-	●
385	NUT; ROD (A) M10 LH THREAD	1-09400-025-0	08	1	9806-9911		●	●
385	NUT; ROD (A) M10 LH THREAD	1-09400-025-0	08	1	9912-	●
475	SWITCH; WATER LEVEL	1-82480-071-0	01	1	9806-9807		●	●
475	SWITCH; WATER LEVEL	1-82480-092-0	01	1	9808-9911		●	●
475	SWITCH; WATER LEVEL	1-82480-070-0	01	1	9912-0002	●
475	SWITCH; WATER LEVEL	1-82480-091-1	01	1	0003-	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	9806-9911		●	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	9912-	●

371

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
371	GROMMET ID=16	9-09575-116-0	01	1	9806-9911		●	●
371	GROMMET ID=16	9-09575-116-0	01	1	9912-	●
371	GROMMET ID=20	9-09575-520-0	02	1	9806-9911		●	●
371	GROMMET ID=20	9-09575-520-0	02	1	9912-	●

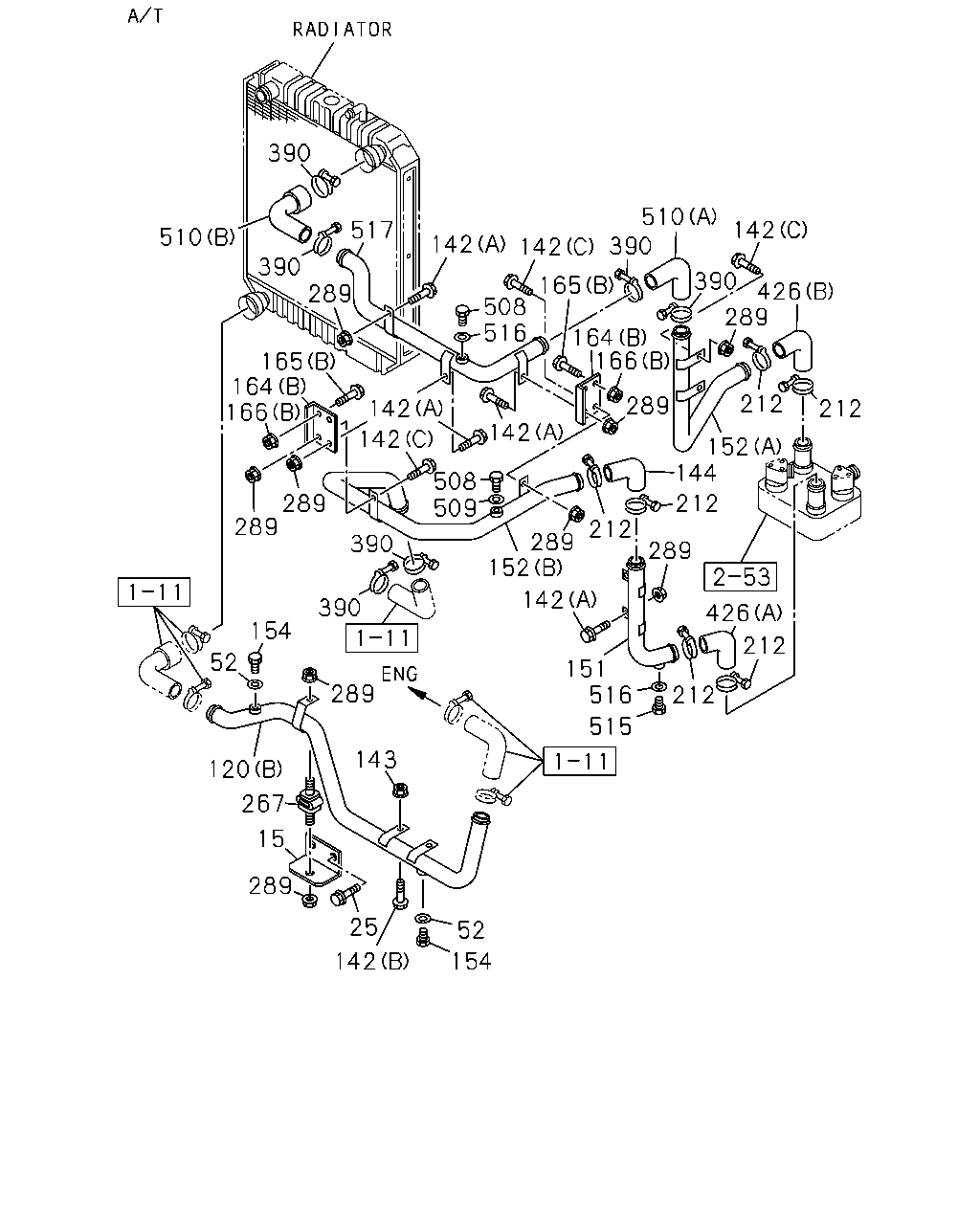

390 510 390 517 142 510 142 142 390 289 390 165 426 289 508 516 164 166 289 165 164 166 212 142 212 152 144 142 142 508 509 212 289 289 212 289 289 152 390 142 390 426 154 52 212 151 516 289 212 143 120 267 15 289 25 52 142 154 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	BRACKET; PIPE,RAD	8-97530-818-0	01	1	9912-0012	●
15	BRACKET; PIPE,RAD	8-97531-275-0	01	1	0101-	●
25	BOLT; BRKT M10X12 FLANGE	0-28081-012-0	10	1	9806-9911		●
25	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
25	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	08	1	9912-	●
52	GASKET; DRAIN PLUG ID=14.2 OD=20.0	9-09571-414-0	02	1	9912-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (C)	1-21431-267-0	01	1	9806-9911		●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET (B)	8-97530-921-0	01	1	9912-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET ISUZU M/T<X9A> (A)	8-97530-919-0	01	1	9912-	●
142	BOLT; PIPE (D) M8X25 FLANGE	0-28680-825-0	04	1	9806-9911		●	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
142	BOLT; PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28680-820-0	04	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28680-825-0	05	1	9912-0512	●
142	BOLT; PIPE A/T<X9D> (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	03	1	9912-0512	●
142	BOLT; PIPE ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	04	1	9806-9911		●	●
143	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
143	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	9912-0602	●
143	NUT; PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-	●
144	HOSE; RUBBER,PIPE A/T<X9D>	1-09360-544-1	01	1	9912-	●
151	PIPE; ENG TO COOLER A/T<X9D>	8-97531-103-0	01	1	9912-	●
152	PIPE; COOLER TO ENG A/T<X9D> (B) ENG-COOLER	8-97531-102-0	01	1	9912-	●
152	PIPE; COOLER TO ENG A/T<X9D> (A) COOLER-PIPE	8-97531-104-0	01	1	9912-	●
154	PLUG; SCREW,WATER PIPE M14	8-94399-225-0	02	1	9912-	●
154	PLUG; SCREW,WATER PIPE ISUZU M/T<X9A> M14	8-94399-225-0	01	1	9912-	●
164	BRACKET; RAD PIPE TO C/MBR A/T<X9D> (B)	8-97531-110-0	02	1	9912-	●
164	BRACKET; RAD PIPE TO C/MBR ISUZU M/T<X9A> (A)	8-97530-868-0	01	1	9912-	●
165	BOLT; BRKT TO C/MBR A/T<X9D> (B) M10X25 FLANGE	0-28681-025-0	04	1	9912-0512	●
165	BOLT; BRKT TO C/MBR A/T<X9D> (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
166	NUT; BRKT TO C/MBR A/T<X9D> (B) M10 FLANGE	0-91150-210-0	04	1	9912-0602	●
166	NUT; BRKT TO C/MBR A/T<X9D> (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●
166	NUT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
166	NUT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
212	CLIP; HOSE ID=63	1-09704-067-0	04	1	9806-9911		●	●
212	CLIP; HOSE A/T<X9D> ID=63	1-09704-106-0	06	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=72	1-09704-068-0	01	1	9912-	●
212	CLIP; HOSE ISUZU M/T<X9A> ID=63	1-09704-106-0	01	1	9912-	●
267	RUBBER; CUSHION	1-22226-002-0	01	1	9912-0110	●
267	RUBBER; CUSHION	8-94394-268-1	01	1	0111-	●
289	NUT M8 FLANGE	0-91150-108-0	02	1	9912-0602	●
289	NUT M8 FLANGE	0-91180-108-0	02	1	0603-	●
289	NUT A/T<X9D> M8 FLANGE	0-91150-108-0	09	1	9912-0602	●
289	NUT A/T<X9D> M8 FLANGE	0-91180-108-0	09	1	0603-	●
390	CLIP; RUBBER HOSE ID=63	1-09704-106-0	02	1	9912-	●
390	CLIP; RUBBER HOSE A/T<X9D> ID=72	1-09704-068-0	01	1	9912-	●
390	CLIP; RUBBER HOSE A/T<X9D> ID=63	1-09704-106-0	03	1	9912-	●
426	HOSE; WATER A/T<X9D> (A) PIPE-COOLER	1-09360-554-1	01	1	9912-	●
426	HOSE; WATER A/T<X9D> (B) COOLER-PIPE	1-09361-038-1	01	1	9912-	●
508	PLUG A/T<X9D> M14	8-94399-225-0	02	1	9912-	●
509	GASKET; JOINT BOLT A/T<X9D> ID=14.2 OD=20.0	9-09571-414-0	01	1	9912-	●
510	HOSE; RUBBER A/T<X9D> (A) PIPE-PIPE	1-09360-554-1	01	1	9912-	●
510	HOSE; RUBBER A/T<X9D> (B) PIPE- RAD	1-21437-774-1	01	1	9912-	●
515	PLUG A/T<X9D> M14	8-94399-225-0	01	1	9912-	●
516	GASKET; PLUG A/T<X9D> ID=14.2 OD=20.0	9-09571-414-0	02	1	9912-	●
516	GASKET; PLUG ISUZU M/T<X9A> ID=14.2 OD=20.0	9-09571-414-0	01	1	9912-	●
517	PIPE; PIPE TO RAD A/T<X9D>	8-97531-105-0	01	1	9912-	●

475 68 62 78 476 55 74 73 243 242 232 73 74 75 1 240 98 385 385 279 385 51 263 78 74 73 242 243 384 98 99 98 232 73 243 242 245 74 243 261 75 264 260 93 414 261 379 335 414 379 260 265 93 264 335 310 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-736-1	01	1	9806-9911		●
1	RADIATOR ASM	1-21410-828-0	01	1	9912-	●
1	RADIATOR ASM	1-21410-702-1	01	1	9806-9911			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9806-9911		●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9912-	●
55	STAY; RAD TO UPR MBR	1-21464-519-0	01	1	9806-9911		●
55	STAY; RAD TO UPR MBR	1-21464-502-1	01	1	9806-9911			●
62	BOLT; STAY M10X30 FLANGE	0-28681-030-0	01	1	9806-9911		●	●
68	BOLT; STAY TO BRKT M10X30 FLANGE	0-28681-030-0	01	1	9806-9911		●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	04	1	9806-9911		●
73	RUBBER; CUSHION,RAD MTG (B)	8-97530-138-0	04	1	9912-	●
73	RUBBER; CUSHION,RAD MTG (A) T=10	1-21467-001-1	02	1	9806-9911			●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9806-9911			●
74	WASHER; PL,CUSHION RUBBER (C) ID=18.5 OD=60	1-09503-262-0	02	1	9806-9911		●
74	WASHER; PL,CUSHION RUBBER (C) ID=18.5 OD=60	1-09503-262-0	02	1	9912-	●
74	WASHER; PL,CUSHION RUBBER (A) ID=10.5 OD=44	1-09503-042-0	02	1	9806-9911			●
74	WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=26	9-09160-710-0	02	1	9806-9911			●
75	BOLT; CUSHION RUBBER,RAD MTG M12X77	1-09009-162-0	02	1	9806-9911		●
75	BOLT; CUSHION RUBBER,RAD MTG M12X77	1-09009-162-0	02	1	9912-	●
75	BOLT; CUSHION RUBBER,RAD MTG M10X70 FLANGE	0-28081-070-0	02	1	9806-9911			●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	02	1	9806-9911		●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	02	1	9912-0602	●
78	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	02	1	0603-	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9806-9911			●
93	BOLT; BRKT FIX M10X30 FLANGE	0-28681-030-0	04	1	9806-9911			●
98	BOLT; RAD FAN GUIDE M10X12 FLANGE	0-28081-012-0	02	1	9806-9911			●
98	BOLT; RAD FAN GUIDE M10X70 FLANGE	0-28081-070-0	04	1	9806-9911			●
99	WASHER; PL ID=10.5 OD=32	9-09164-810-0	04	1	9806-9911			●
232	COLLAR; DIST,CUSHION RUBBER L=37.2	1-14234-078-0	02	1	9806-9911			●
240	NUT; STAY M10 FLANGE	0-91150-210-0	01	1	9806-9911		●	●
242	BRACKET; RAD (E)	1-21419-066-0	01	1	9806-9911		●
242	BRACKET; RAD (F)	8-97530-888-1	01	1	9912-	●
242	BRACKET; RAD (D) LOWER	1-21464-553-0	02	1	9806-9911		●
242	BRACKET; RAD (D) UPPER	1-21464-554-0	02	1	9806-9911		●
242	BRACKET; RAD (B)	1-21419-041-0	01	1	9806-9911			●
242	BRACKET; RAD (G)	8-97530-889-0	01	1	9912-	●
242	BRACKET; RAD (C)	1-21469-085-0	01	1	9806-9911			●
242	BRACKET; RAD (H)	1-21464-635-0	02	1	9912-	●
242	BRACKET; RAD (A)	1-21469-104-1	01	1	9806-9911			●
242	BRACKET; RAD (I)	1-21464-636-0	02	1	9912-	●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	9806-9911		●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	04	1	9912-0512	●
243	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
243	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911			●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	03	1	9806-9911			●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28681-235-0	03	1	9912-0512	●
243	BOLT; BRKT (B) M12X35 FLANGE	0-28651-235-0	03	1	0601-	●
245	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9806-9911			●
245	NUT; BRKT M12 FLANGE	0-91150-212-0	03	1	9912-0602	●
245	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0603-	●
245	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9912-0602	●
245	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●
260	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9806-9911			●
261	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9806-9911			●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	04	1	9806-9911		●	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	04	1	9912-0005	●
263	END ASM; RAD TIE ROD RH THREAD	9-21460-134-1	07	1	0006-	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	04	1	9806-9911		●	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	04	1	9912-0005	●
263	END ASM; RAD TIE ROD LH THREAD	9-21460-135-1	07	1	0006-	●
264	MEMBER; RAD MTG,FRT (A)	1-21469-105-0	01	1	9806-9911			●
264	MEMBER; RAD MTG,FRT (B)	1-21469-110-0	01	1	9806-9911			●
265	NUT; MEMBER M10 FLANGE	0-91150-210-0	06	1	9806-9911			●
265	NUT; MEMBER M12 FLANGE	0-91150-212-0	02	1	9806-9911			●
279	BELL MOUTH	1-21570-075-0	01	1	9806-9911			●
310	MEMBER; RAD MTG MTG RR	1-21469-107-0	01	1	9806-9911			●
335	BOLT; MEMBER M10X30 FLANGE	0-28681-030-0	06	1	9806-9911			●
335	BOLT; MEMBER M12X35 FLANGE	0-28681-235-0	02	1	9806-9911			●
379	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	9806-9911			●
384	BOLT; ROD M12X50	0-10811-250-0	08	1	9806-9911		●	●
384	BOLT; ROD M12X50	0-10811-250-0	08	1	9912-0512	●
384	BOLT; ROD M12X50	0-10861-250-0	08	1	0601-	●
385	NUT; ROD (C) M10	9-09111-510-0	06	1	0006-0111	●
385	NUT; ROD (C) M10	9-09111-510-0	05	1	0112-0112	●
385	NUT; ROD (C) M10	9-09111-510-0	03	1	0201-0512	●
385	NUT; ROD (C) M10	0-91111-510-0	03	1	0601-	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	03	1	0006-	●
385	NUT; ROD (B) M12	9-99110-512-0	06	1	0002-0512	●
385	NUT; ROD (B) M12	0-91110-512-0	06	1	0601-	●
385	NUT; ROD (A) M10 FLANGE	0-91150-210-0	08	1	9806-9911		●	●
385	NUT; ROD (A) M10 FLANGE	0-91150-210-0	08	1	9912-0602	●
385	NUT; ROD (A) M10 FLANGE	0-91180-210-0	08	1	0603-	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	08	1	9806-9911		●	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	14	1	9912-0001	●
385	NUT; ROD (B) M12 FLANGE	0-91150-212-0	08	1	0002-0602	●
385	NUT; ROD (B) M12 FLANGE	0-91180-212-0	08	1	0603-	●
385	NUT; ROD (A) M10 LH THREAD	1-09400-025-0	08	1	9806-9911		●	●
385	NUT; ROD (A) M10 LH THREAD	1-09400-025-0	08	1	9912-	●
414	BRACKET; MEMBER,FRT TO SIDE (A) SIDE-REAR	1-21464-441-0	01	1	9806-9911			●
414	BRACKET; MEMBER,FRT TO SIDE (B) FRONT-SIDE	1-21464-493-0	01	1	9806-9911			●
475	SWITCH; WATER LEVEL	1-82480-071-0	01	1	9806-9807		●	●
475	SWITCH; WATER LEVEL	1-82480-092-0	01	1	9808-9911		●	●
475	SWITCH; WATER LEVEL	1-82480-070-0	01	1	9912-0002	●
475	SWITCH; WATER LEVEL	1-82480-091-1	01	1	0003-	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	9806-9911		●	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	9912-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
