Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#68118) — 206 parça

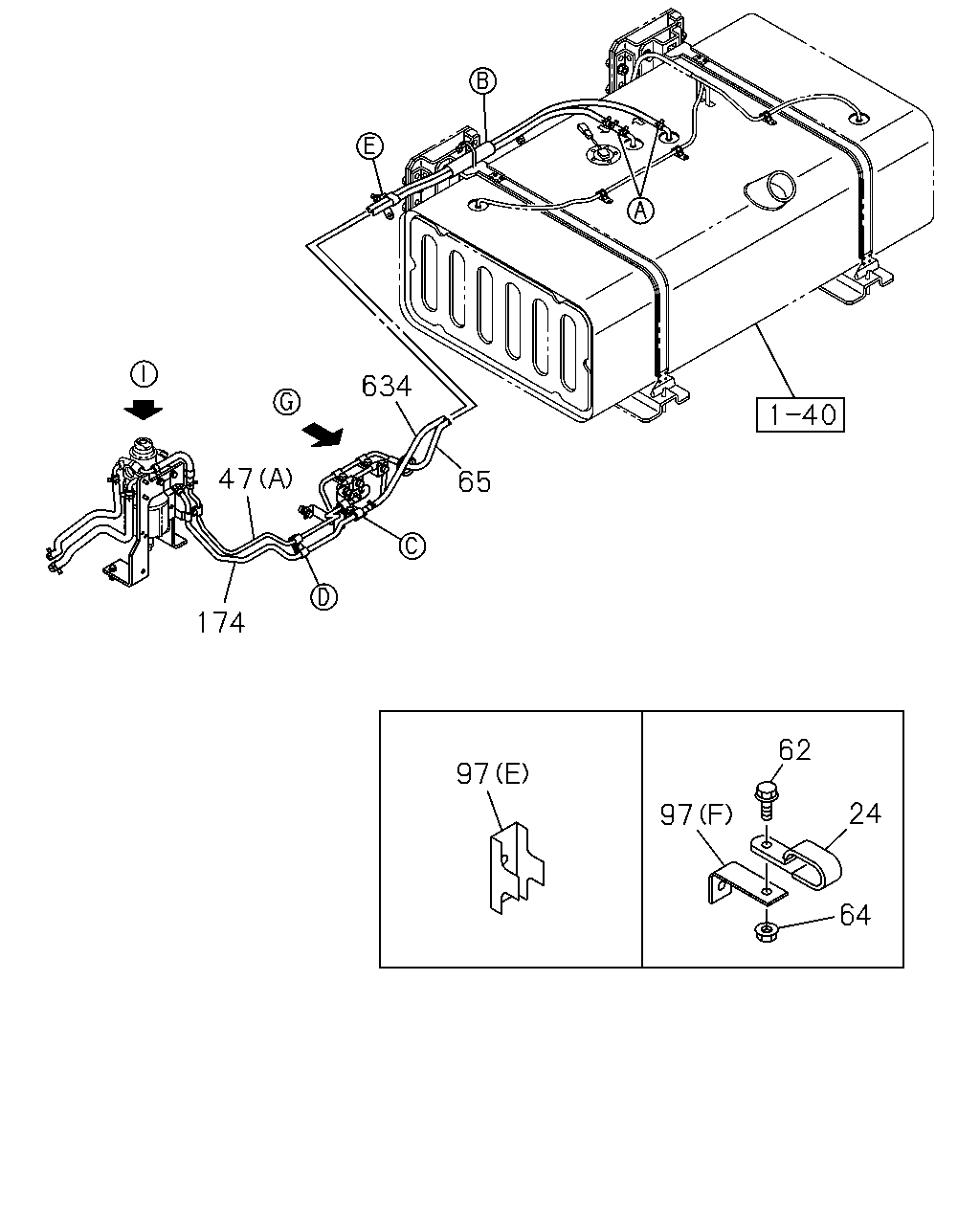

634 47 65 174 62 97 24 97 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
24	CLIP; FUEL HOSE ID=14X29 H=15 L=20	1-09700-744-0	01	1	0807-
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
62	BOLT; CLIP FIX M8X20 FLANGE THA	0-28650-820-0	01	1	0807-
64	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1300 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1950 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE L=1100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	1-47476-200-0	01	1	0807-
97	BRACKET; CLIP (A) L=50 THA	1-47475-299-2	01	1	0807-
97	BRACKET; CLIP (E)	1-47475-427-1	01	1	0807-
97	BRACKET; CLIP (F) L=65	1-47479-064-1	01	1	0807-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0807-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
634	HOSE; RUBBER RETURN L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-

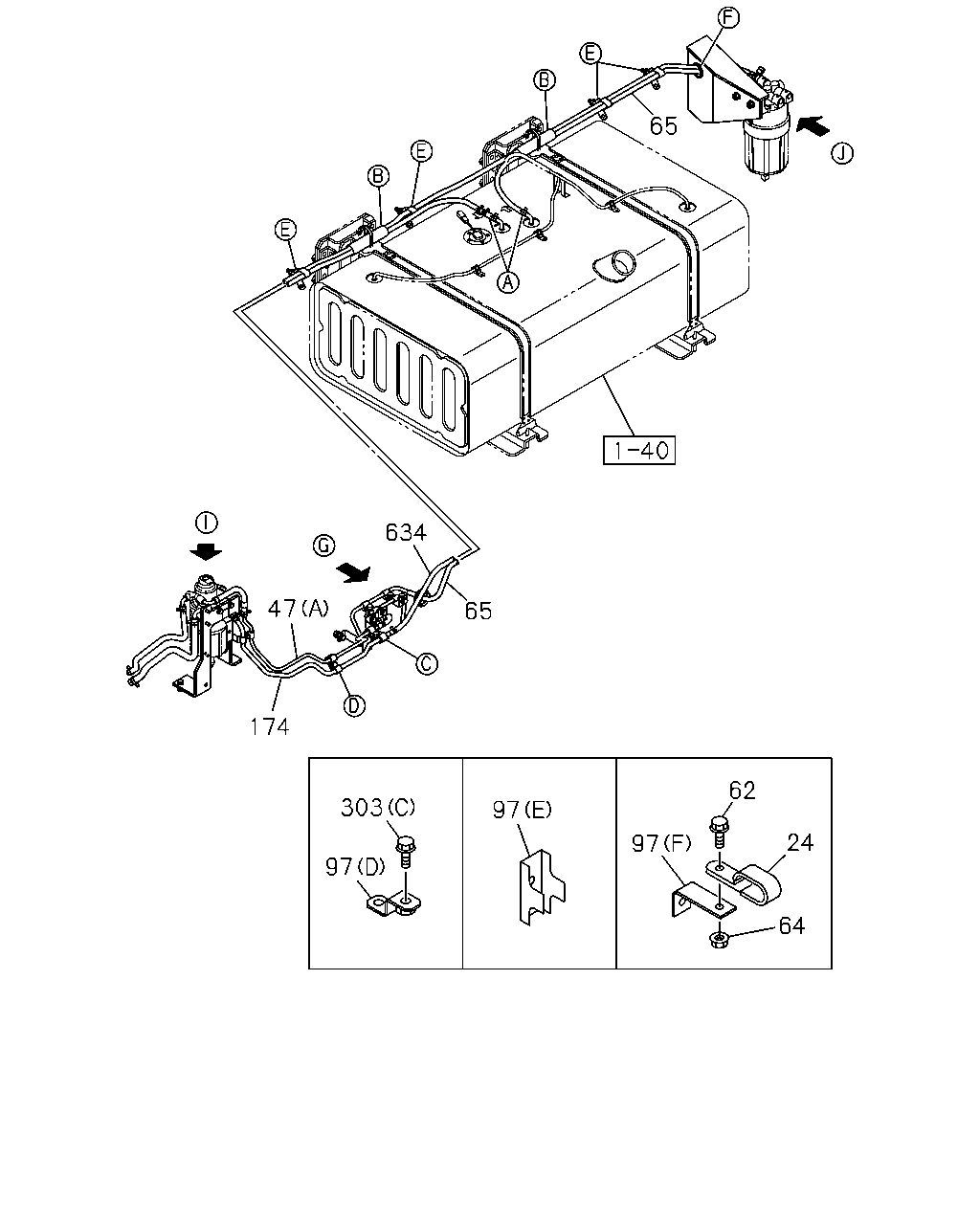

65 634 47 65 174 62 303 97 24 97 97 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
24	CLIP; FUEL HOSE ID=14X29 H=15 L=20	1-09700-744-0	01	1	0807-
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
62	BOLT; CLIP FIX M8X20 FLANGE THA	0-28650-820-0	01	1	0807-
64	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1300 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1950 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE L=1100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	1-47476-200-0	01	1	0807-
97	BRACKET; CLIP (A) L=50 THA	1-47475-299-2	01	1	0807-
97	BRACKET; CLIP (E)	1-47475-427-1	01	1	0807-
97	BRACKET; CLIP (F) L=65	1-47479-064-1	01	1	0807-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0807-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	0807-
303	BOLT; BRKT (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0807-
634	HOSE; RUBBER RETURN L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-

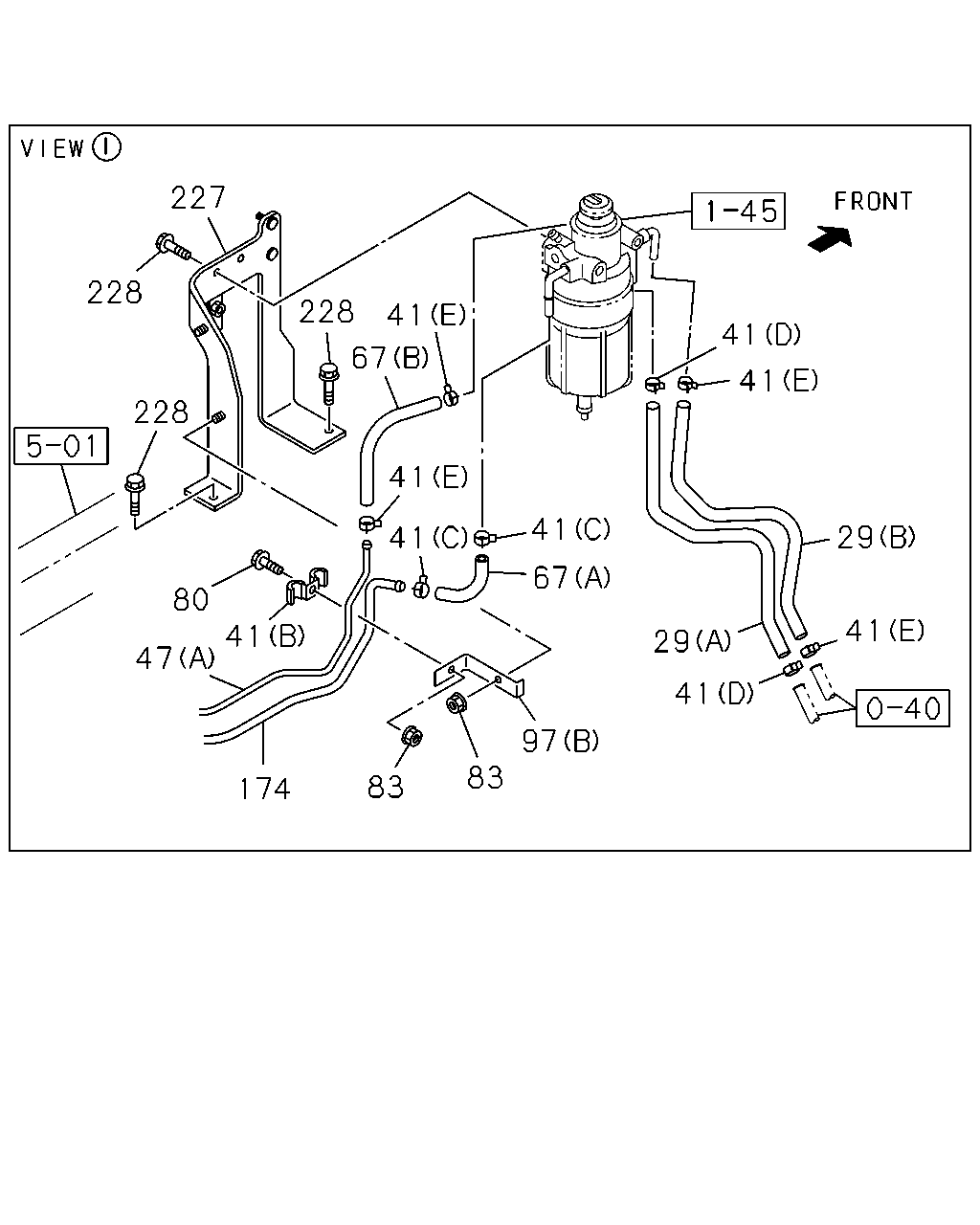

227 228 228 228 80 47 41 174 83 97 83 29 41 41 29 67 41 41 41 41 67 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	0807-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0807-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 THA	8-94238-568-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=13 THA	8-94238-571-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	0807-
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1108-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	04	1	0807-0807
80	BOLT; CLIP,FUEL TANK M8X30 FLANGE THA	0-28650-830-0	04	1	1210-
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0807-0807
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK M8X35 FLANGE THA	0-28650-835-0	01	1	0807-
80	BOLT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	0807-0807
83	NUT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	02	1	0807-
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	06	1	0807-0807
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	0807-
83	NUT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	0807-0807
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0807-0807
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0807-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	1-47476-200-0	01	1	0807-
97	BRACKET; CLIP (A) L=50 THA	1-47475-299-2	01	1	0807-
97	BRACKET; CLIP (E)	1-47475-427-1	01	1	0807-
97	BRACKET; CLIP (F) L=65	1-47479-064-1	01	1	0807-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0807-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0807-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M10X50 FLANGE THA	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M10X50 FLANGE THA	0-28051-050-0	02	1	1103-1212
228	BOLT; BRKT,SEDIMENTER M10X60 FLANGE THA	0-28051-060-0	02	1	0807-0807
228	BOLT; BRKT,SEDIMENTER M10X50 FLANGE THA	0-28051-050-0	02	1	0808-0906
228	BOLT; BRKT,SEDIMENTER M8X30 FLANGE THA	0-28050-830-0	02	1	0807-
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE THA	0-28650-820-0	02	1	0807-

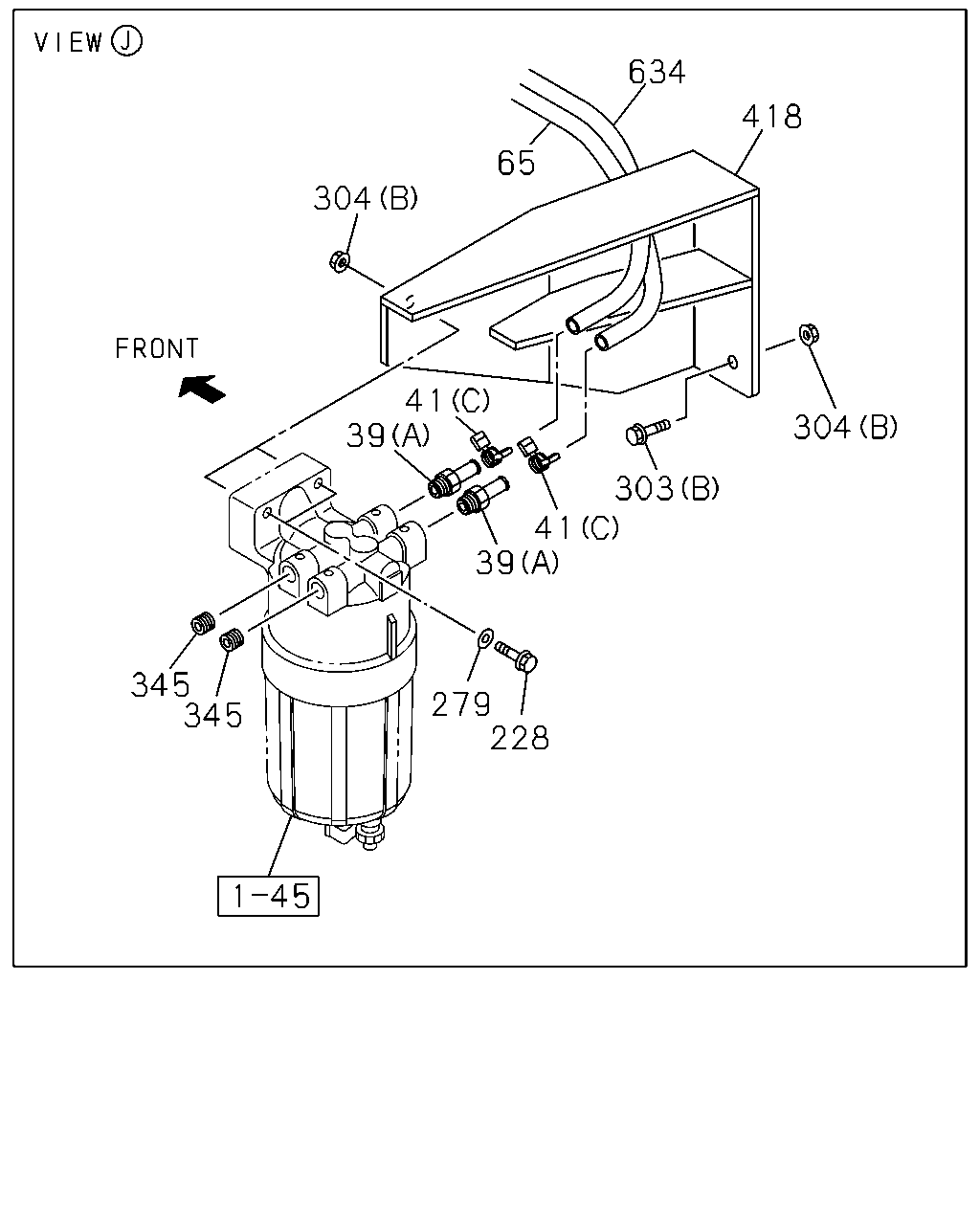

634 418 65 304 41 39 304 303 41 39 345 345 279 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-295-1	02	1	0807-0902
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0903-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 THA	8-94238-568-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=13 THA	8-94238-571-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1300 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1950 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE L=1100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M10X50 FLANGE THA	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M10X50 FLANGE THA	0-28051-050-0	02	1	0907-1102
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M10X50 FLANGE THA	0-28051-050-0	02	1	1103-1212
228	BOLT; BRKT,SEDIMENTER M10X60 FLANGE THA	0-28051-060-0	02	1	0807-0807
228	BOLT; BRKT,SEDIMENTER M10X50 FLANGE THA	0-28051-050-0	02	1	0808-0906
228	BOLT; BRKT,SEDIMENTER M8X30 FLANGE THA	0-28050-830-0	02	1	0807-
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	0807-0906
279	WASHER POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	0907-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	0807-
303	BOLT; BRKT (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0807-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	04	1	0807-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	0807-0807
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-
345	PLUG POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	0807-
418	BRACKET; PRE FUEL FILTER POOR QUALITY DIESEL FUEL<KF0>	8-98091-935-1	01	1	0807-
634	HOSE; RUBBER RETURN L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-

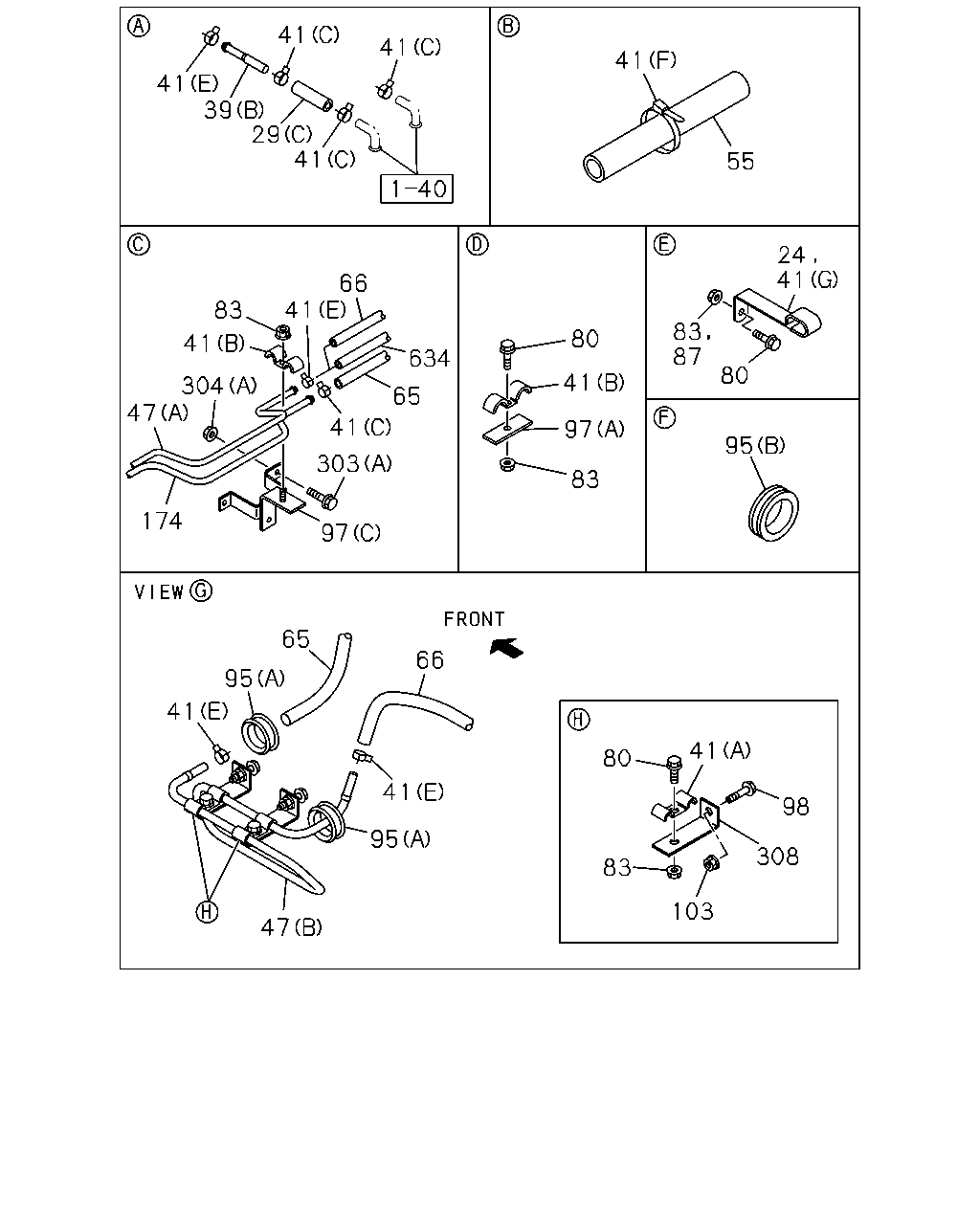

41 41 41 41 39 29 41 55 24 41 66 41 83 83 87 80 41 634 80 41 304 65 47 41 97 95 303 83 174 97 65 66 95 41 41 80 41 98 95 308 83 103 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
24	CLIP; FUEL HOSE ID=14X29 H=15 L=20	1-09700-744-0	01	1	0807-
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	0807-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0807-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0807-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) THA	8-97924-295-1	02	1	0807-0902
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0903-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (G) ID=15 H=24 L=20	1-09700-606-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 THA	8-94238-568-0	02	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=13 THA	8-94238-571-0	08	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	0807-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	0807-
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	0807-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	0807-
55	COVER; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0807-
55	COVER; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1300 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1950 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE L=1100 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	0807-
66	HOSE; FUEL,RETURN PIPE L=160 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1108-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	04	1	0807-0807
80	BOLT; CLIP,FUEL TANK M8X30 FLANGE THA	0-28650-830-0	04	1	1210-
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0807-0807
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	02	1	0807-
80	BOLT; CLIP,FUEL TANK M8X35 FLANGE THA	0-28650-835-0	01	1	0807-
80	BOLT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	0807-0807
83	NUT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	02	1	0807-
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	06	1	0807-0807
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	0807-
83	NUT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	0807-0807
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0807-0807
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	0807-
87	NUT; CLIP,FUEL HOSE M8 FLANGE THA	0-91180-108-0	01	1	0807-
95	BUSHING; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=12	9-09956-725-0	01	1	0807-
95	BUSHING; PIPE,FUEL TANK (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	0807-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	1-47476-200-0	01	1	0807-
97	BRACKET; CLIP (A) L=50 THA	1-47475-299-2	01	1	0807-
97	BRACKET; CLIP (E)	1-47475-427-1	01	1	0807-
97	BRACKET; CLIP (F) L=65	1-47479-064-1	01	1	0807-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	0807-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	0807-
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE THA	0-28650-830-0	02	1	0807-
103	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	0807-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	0807-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	0807-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	0807-
303	BOLT; BRKT (A) M8X20 FLANGE THA	0-28650-820-0	01	1	0807-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	04	1	0807-1203
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1204-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	0807-0807
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	0807-
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0807-
634	HOSE; RUBBER RETURN L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0807-0808
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
