Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

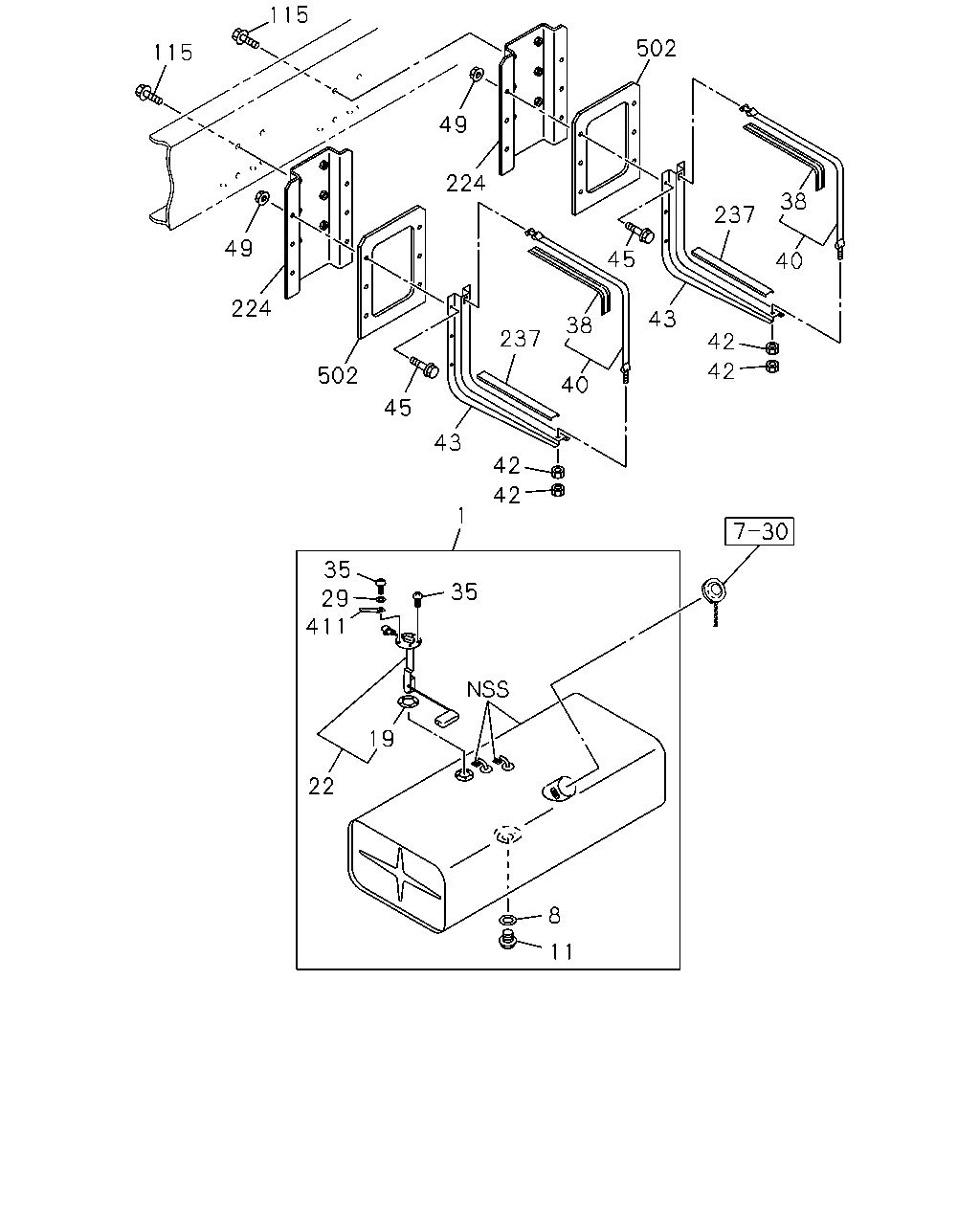

1-40 — FUEL TANK
(#68117) — 25 parça
115
502
115
49
224
38
237
49
45
40
224
43
38
237
42
42
502
40
45
43
42
42
1
35
35
29
411
19
22
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1100X632X322 200L THA
8-97924-531-1
01
1
0807-
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97913-627-0
01
1
1210-
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97913-627-0
01
1
0807-1102
11
PLUG; DRAIN,FUEL TANK
THA
8-97913-628-0
01
1
1210-
11
PLUG; DRAIN,FUEL TANK
THA
8-97913-628-0
01
1
0807-1102
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1210-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0807-1102
22
UNIT; FUEL TANK
1-83141-084-1
01
1
1210-
22
UNIT; FUEL TANK
1-83141-084-1
01
1
0807-1102
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0807-
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
0-36220-510-0
05
1
0807-
38
INSULATION; SUPPORT BELT
THA
8-97922-749-0
02
1
0807-
40
BELT; SUPPORT,FUEL TANK
THA
8-97922-752-0
02
1
0807-
42
NUT; SUPPORT BELT
M10 THA
0-91110-510-0
04
1
0807-
43
BRACKET; FUEL TANK
THA
8-97910-388-2
02
1
0807-
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE THA
0-28051-240-0
12
1
0811-
49
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
12
1
0807-0810
49
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
12
1
0811-1104
49
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
12
1
0811-1104
49
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
12
1
1105-
115
BOLT; BRKT
M12X40 FLANGE THA
0-28051-240-0
12
1
0807-
224
BRACKET; FUEL TANK BRKT TO FRAME
THA
8-97910-886-0
02
1
0807-
237
GASKET; BRKT TO FUEL TANK
L=580 THA
8-97916-877-0
02
1
0807-
411
CLIP; FUEL TANK UNIT HARNESS
L=50 THA
1-09700-416-0
01
1
0807-
502
PLATE; DISTANCE
THA
8-97924-649-0
02
1
0807-
