Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#68115) — 52 parça
◀

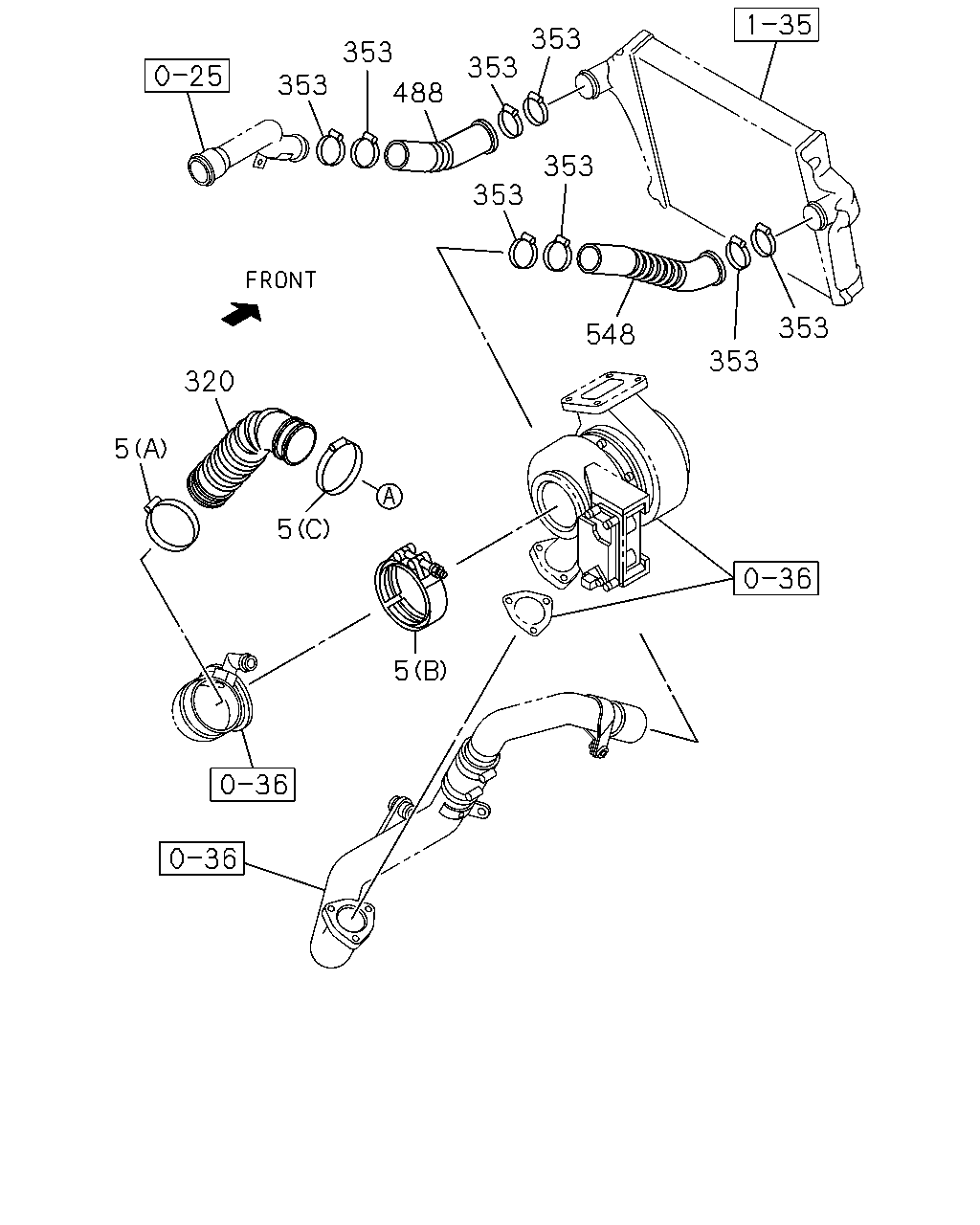

[131A] PIPING (15 parça)
[131A] DUCT FIXING (37 parça)
▶
353
353
353
353
488
353
353
353
548
353
320
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
0807-1102
5
CLIP; AIR DUCT
(C) ID=104-139
1-09707-200-0
01
1
0807-0812
5
CLIP; AIR DUCT
(C) ID=100-120
8-98133-366-0
01
1
0901-1102
5
CLIP; AIR DUCT
(C) ID=90-110
8-98133-365-0
01
1
1103-1507
5
CLIP; AIR DUCT
(C) ID=90-110
8-98308-275-0
01
1
1508-
5
CLIP; AIR DUCT
(A) ID=130-165
1-09707-201-0
01
1
0807-0810
5
CLIP; AIR DUCT
(A) ID=130-150
8-98133-360-0
01
1
0811-1507
5
CLIP; AIR DUCT
(A) ID=130-150
8-98308-278-0
01
1
1508-
320
HOSE; CONN,ACL
8-98021-990-2
01
1
0807-1102
320
HOSE; CONN,ACL
8-98165-424-0
01
1
1103-
353
CLIP; RUBBER HOSE
ID=58-76 THA
1-09707-203-0
08
1
0807-0811
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
0812-1507
353
CLIP; RUBBER HOSE
ID=55-75 THA
8-98141-459-0
08
1
1508-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
0807-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
0807-
558
49
242
58
56
56
49
49
56
56
58
242
242
58
245
61
58
48
560
26
49
450
316
252
543
543
71
368
174
357
543
564
480
379
357
209
296
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
0807-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0807-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
0807-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0807-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
0807-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
0807-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
0807-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0807-
58
SUPPORT; AIR INL DUCT
(B)
1-14119-452-0
01
1
0807-0810
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
0811-
61
BOLT; BRKT,AIR DUCT
M8X20 FLANGE
8-98061-920-0
02
1
0807-
71
CLIP; AIR DUCT
ID=130-165
1-09707-201-0
01
1
0807-0810
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
0811-1507
71
CLIP; AIR DUCT
ID=140-160
8-98308-279-0
01
1
1508-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0807-1102
209
BRACKET; ACL
8-98021-995-1
01
1
0807-
210
BOLT; ACL BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
0807-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0807-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
0807-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
0807-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0807-
252
DUCT; AIR INT
8-98021-989-1
01
1
0807-
296
NUT; ACL
M8 FLANGE THA
0-91180-108-0
04
1
0807-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
0908-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
0807-
368
SENSOR; TEMP
8-98065-377-0
01
1
1103-
379
HOSE; RUBBER
8-98077-470-0
01
1
0807-
450
CLAMP; HOSE
9-09915-504-1
01
1
0807-
480
ADAPTER
8-98086-417-0
01
1
1103-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA
0-36230-412-0
02
1
1103-
543
SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER THA
0-36230-410-0
02
1
0807-1102
543
SCREW; SENSOR
(C) M5X14 W/LK WASHER
0-36220-514-0
01
1
1103-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
0807-
558
CLIP; AIR FLOW SENSOR
L=250 THA
5-09707-030-1
02
1
0807-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1103-
560
FILTER; VERTICAL DUCT
8-98061-675-0
02
1
0807-1102
564
GASKET; ADAPTER
8-98071-416-0
01
1
1103-
