Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

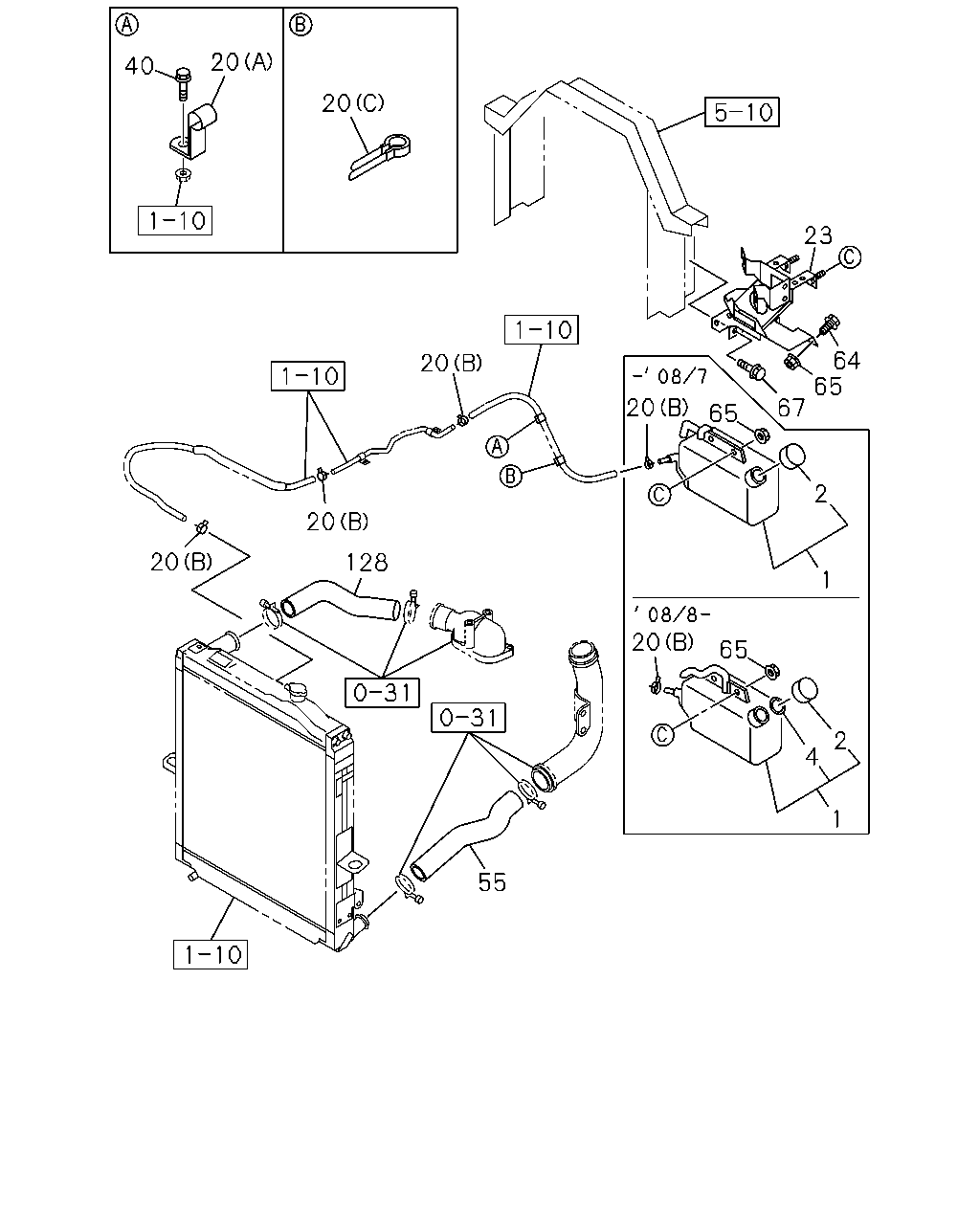

1-11 — RADIATOR HOSE AND SUB TANK
(#68113) — 17 parça
20
40
20
23
64
65
67
20
20
65
2
20
20
128
1
20
65
2
4
1
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98010-309-1
01
1
0807-0807
1
TANK; SURGE,RAD
8-98125-804-0
01
1
0808-1009
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1010-
2
CAP; SURGE TANK
8-97217-796-0
01
1
0807-0807
2
CAP; SURGE TANK
8-98125-843-0
01
1
0808-1009
2
CAP; SURGE TANK
8-98178-074-0
01
1
1010-
4
GASKET; SURGE TANK
D=43 T=1.2
1-21489-093-0
01
1
0808-1009
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
0807-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
0807-
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
0807-
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
0807-
40
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
0807-
55
HOSE; WATER,RAD OUTLET
THA
8-97924-162-0
01
1
0807-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0807-
65
NUT; BRKT,SUB TANK
M8 FLANGE THA
0-91180-108-0
03
1
0807-
67
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
03
1
0807-
128
HOSE; WATER,RAD INL
THA
8-97924-240-0
01
1
0807-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
