0-87 — COUPLING; INJECTION PUMP (#6810) — 48 parça

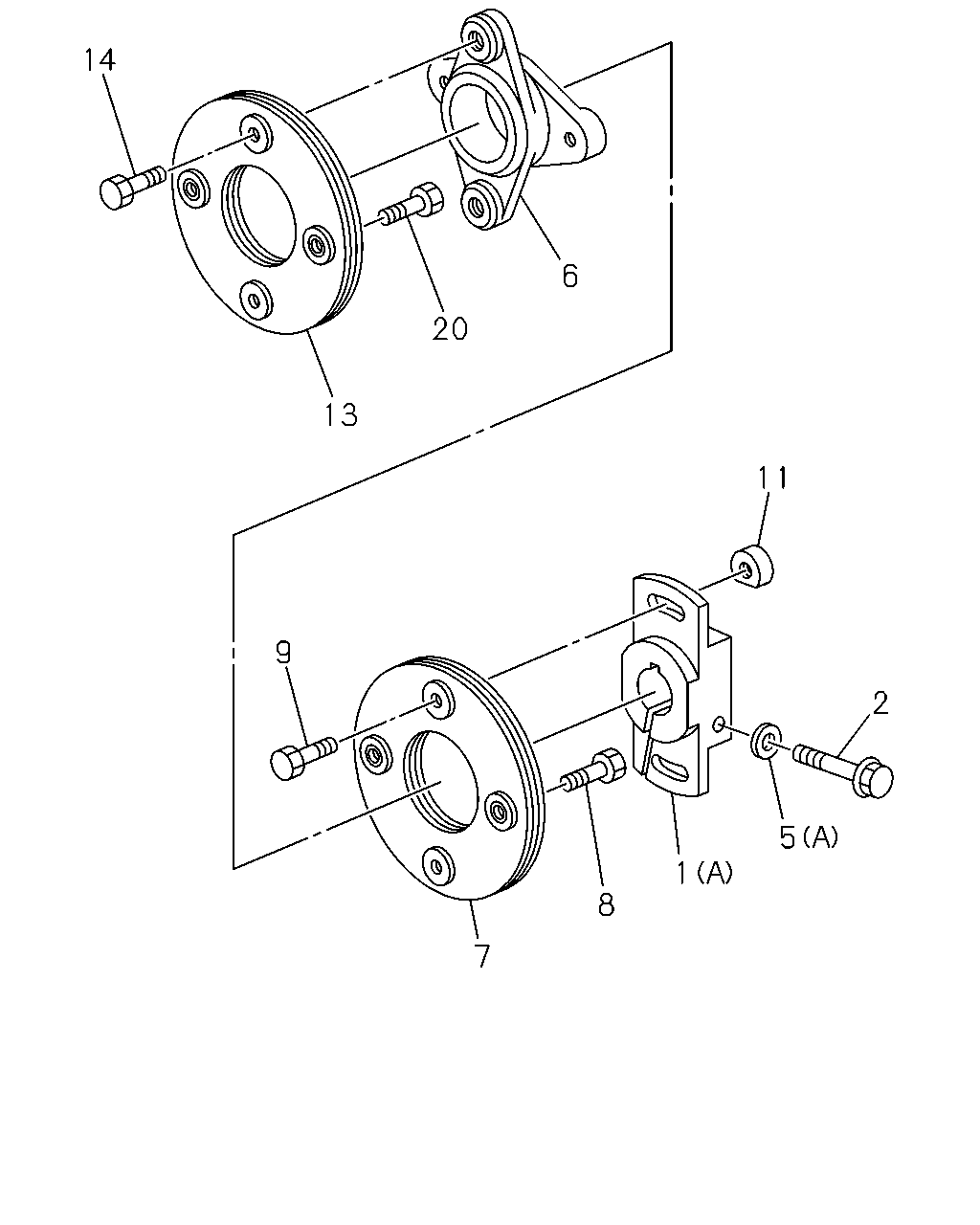

çizim 26395
14 6 20 13 11 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9806-9911 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9806-9911 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9806-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9806-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9806-9911 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9806-9911 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9806-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9806-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9806-9911 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9806-9911 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9806-9911 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9806-9911 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9806-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9806-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9806-9911 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9806-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9806-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9806-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9806-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9806-9911 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9806-9911 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9806-9911 ●

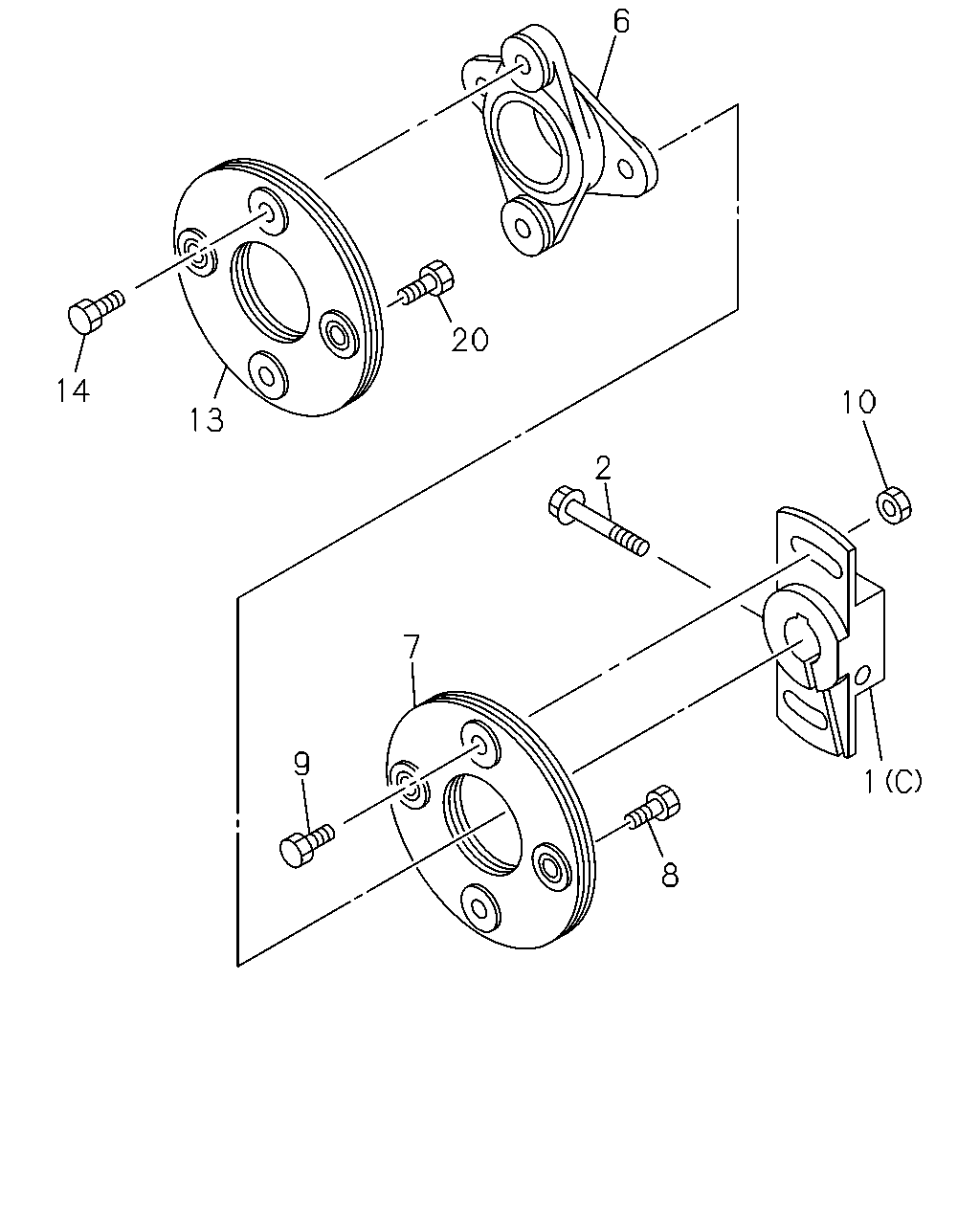

çizim 26526
6 20 14 10 13 2 7 9 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9806-9911 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9806-9911 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9806-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9806-9911 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9806-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9806-9911 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9806-9911 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9806-9911 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9806-9911 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9806-9911 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9806-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9806-9911 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9806-9911 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9806-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9806-9911 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9806-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9806-9911 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9806-9911 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9806-9911 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9806-9911 ●

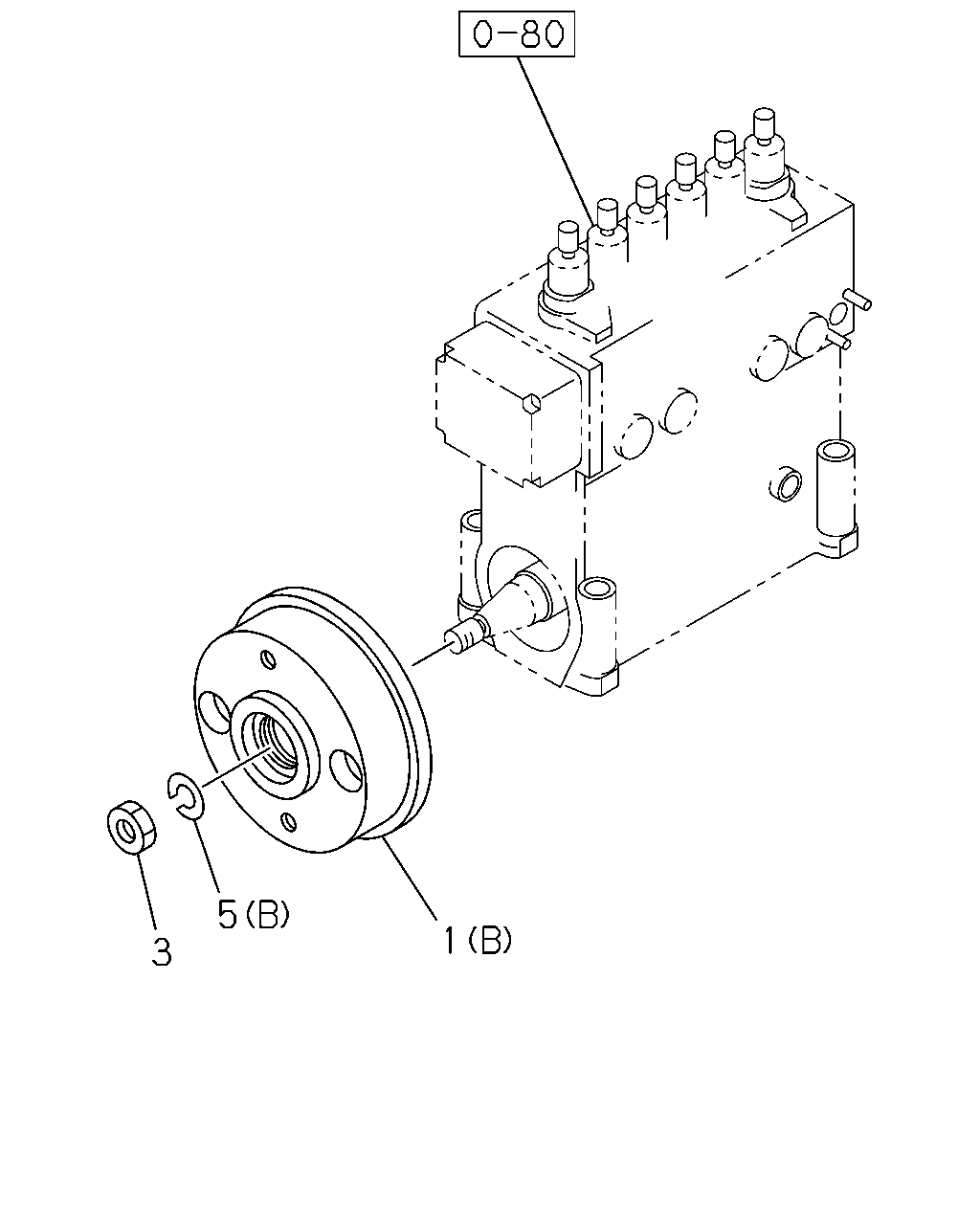

çizim 98728
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 9806-9911 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 9806-9911 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 9806-9911 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 9806-9911 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9806-9911 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9806-9911 ●
