0-28 — VENTILATION SYSTEM (#68091) — 81 parça

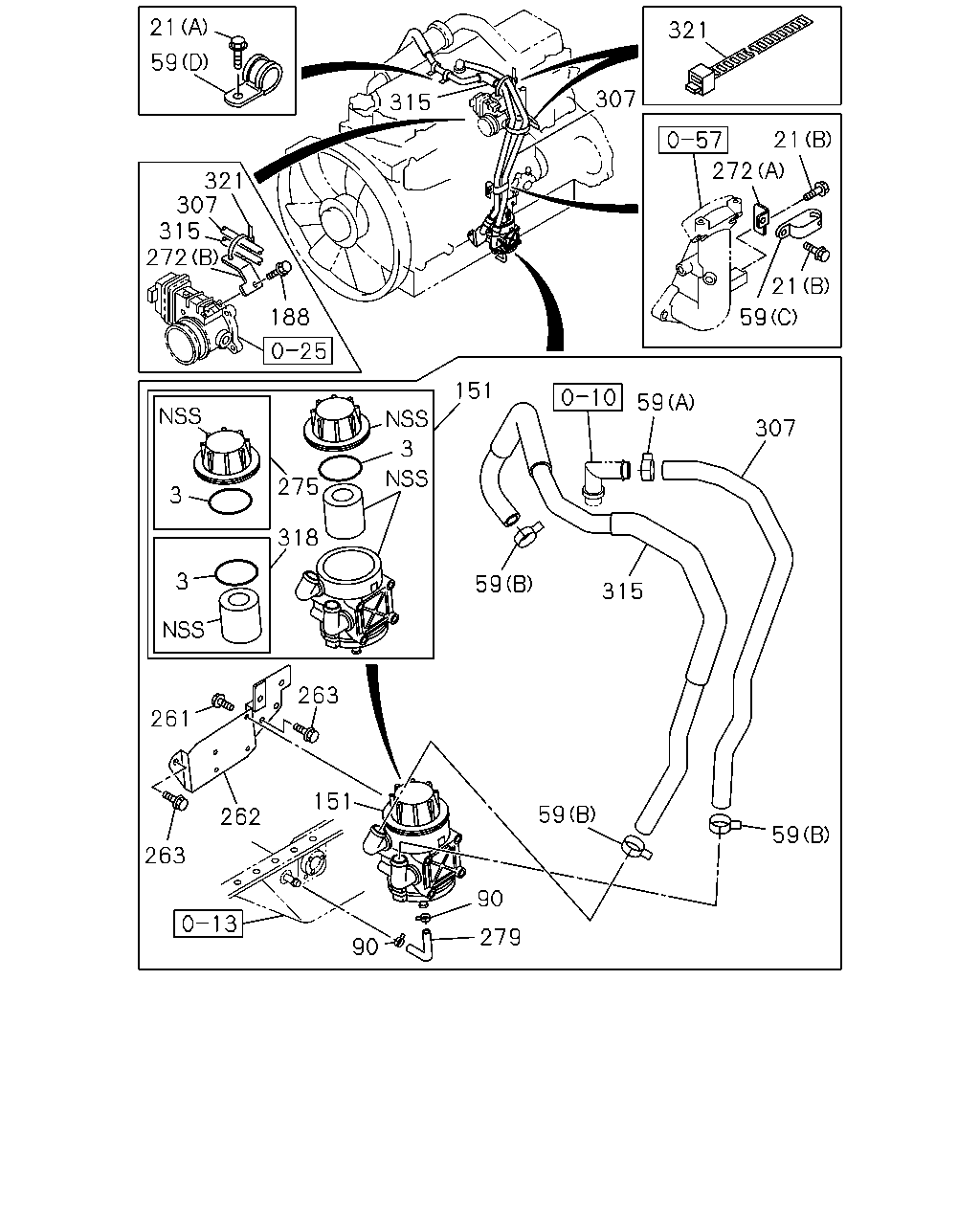

çizim 40515
151 59 315 59 307 59 272 21 21 59 321 315 307 59 21 321 307 315 188 3 275 318 3 3 263 261 262 151 263 59 90 279 90 272
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0807-
21 BOLT; CLIP
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0807-1003
21 BOLT; CLIP
EXC. VIN MODEL YEAR 2010<VZA> (A) M8X12 FLANGE THA 		0-28050-812-0 02 1 1004-1102
21 BOLT; CLIP
(C) M6X12 FLANGE THA 		0-28050-612-0 01 1 1103-
21 BOLT; CLIP
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0807-1102
21 BOLT; CLIP
(B) M8X16 FLANGE THA 		0-28050-816-0 03 1 1103-
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 01 1 1304-
59 CLIP; HOSE
EXC. VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33 		1-09700-945-0 02 1 1004-1102
59 CLIP; HOSE
(D) ID=35 L=33 		1-09700-945-0 02 1 0807-1003
59 CLIP; HOSE
VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33 		1-09700-945-0 01 1 1004-1102
59 CLIP; HOSE
(E) ID=31 H=30 L=35 		1-09700-994-0 02 1 1103-
59 CLIP; HOSE
(C) ID=30X2 L=28 		1-09701-266-0 01 1 0807-1102
59 CLIP; HOSE
(C) ID=30X2 L=28 		1-09701-266-0 02 1 1103-
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 03 1 0807-1102
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 02 1 1103-
59 CLIP; HOSE
(A) ID=31.2 		8-97237-146-0 01 1 0807-1102
59 CLIP; HOSE
(A) ID=33.6 		8-94362-518-0 01 1 1103-1211
59 CLIP; HOSE
(A) ID=33.6 		8-94362-518-0 03 1 1212-
90 CLIP; RUBBER HOSE
ID=28.5 		1-09707-150-0 01 1 1103-1303
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0807-
151 SEPARATOR; OIL,PCV 8-97602-262-2 01 1 0807-
188 BOLT; BRKT
M8X30 FLANGE THA 		0-28050-830-0 03 1 1103-
188 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0807-
261 BOLT; SEPARETOR
M8X16 FLANGE THA 		0-28050-816-0 04 1 0807-
262 BRACKET; OIL SEPARETOR 8-97610-919-1 01 1 0807-
263 BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE THA 		0-28751-025-0 02 1 0807-
272 BRACKET; PIPE
(A) 		8-97607-396-1 01 1 0807-
272 BRACKET; PIPE
(B) 		8-97607-397-0 01 1 0807-1102
272 BRACKET; PIPE
(C) 		8-97616-083-0 01 1 1103-
275 CAP; PCV 8-97606-319-0 01 1 0807-
279 HOSE; RUBBER,OIL DRAIN
L=190 		0-02709-190-0 01 1 0807-
307 HOSE; RUBBER,HEAD COVER TO OIL SEPARAT 8-98054-285-1 01 1 0807-1102
307 HOSE; RUBBER,HEAD COVER TO OIL SEPARAT 8-98167-935-0 01 1 1103-
315 HOSE; RUBBER
VIN MODEL YEAR 2010<VZA> 		8-98165-997-0 01 1 1004-1102
315 HOSE; RUBBER 8-98167-937-1 01 1 1103-
315 HOSE; RUBBER 8-98054-286-1 01 1 0807-1003
315 HOSE; RUBBER
EXC. VIN MODEL YEAR 2010<VZA> 		8-98054-286-1 01 1 1004-1102
318 ELEMENT KIT; PCV 8-97606-318-0 01 1 0807-
321 CLIP; HOSE,SEPARATOR
L=300 		1-09707-001-1 02 1 0807-1102
321 CLIP; HOSE,SEPARATOR
L=300 		1-09707-001-1 01 1 1103-

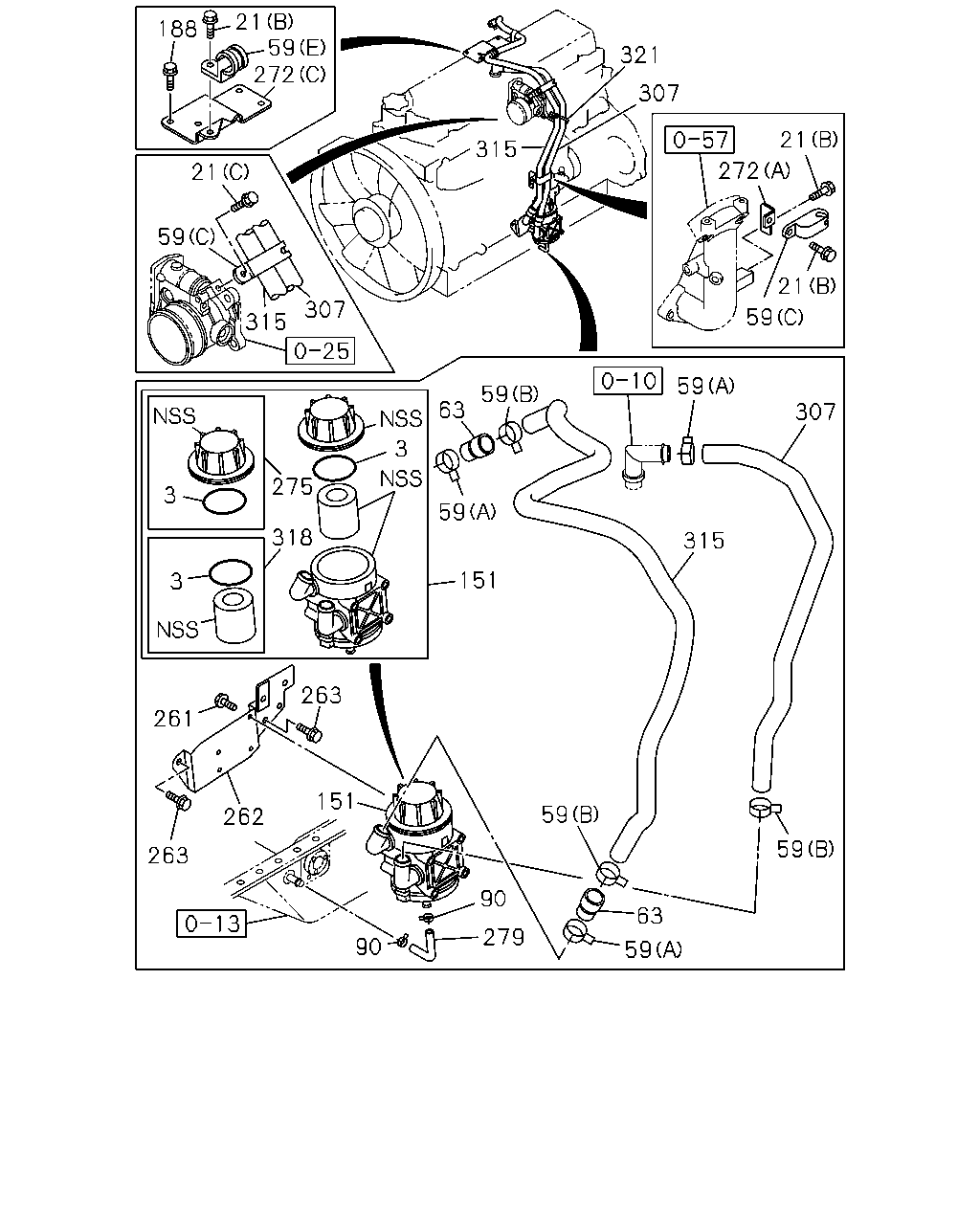

çizim 193886
188 21 272 59 21 59 315 307 315 321 21 272 307 21 59 307 59 315 59 59 63 59 90 279 90 151 262 263 261 3 3 275 318 263 151 59 3 63 59
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0807-
21 BOLT; CLIP
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0807-1003
21 BOLT; CLIP
EXC. VIN MODEL YEAR 2010<VZA> (A) M8X12 FLANGE THA 		0-28050-812-0 02 1 1004-1102
21 BOLT; CLIP
(C) M6X12 FLANGE THA 		0-28050-612-0 01 1 1103-
21 BOLT; CLIP
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0807-1102
21 BOLT; CLIP
(B) M8X16 FLANGE THA 		0-28050-816-0 03 1 1103-
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 01 1 1304-
59 CLIP; HOSE
EXC. VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33 		1-09700-945-0 02 1 1004-1102
59 CLIP; HOSE
(D) ID=35 L=33 		1-09700-945-0 02 1 0807-1003
59 CLIP; HOSE
VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33 		1-09700-945-0 01 1 1004-1102
59 CLIP; HOSE
(E) ID=31 H=30 L=35 		1-09700-994-0 02 1 1103-
59 CLIP; HOSE
(C) ID=30X2 L=28 		1-09701-266-0 01 1 0807-1102
59 CLIP; HOSE
(C) ID=30X2 L=28 		1-09701-266-0 02 1 1103-
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 03 1 0807-1102
59 CLIP; HOSE
(B) ID=28.5 		1-09707-150-0 02 1 1103-
59 CLIP; HOSE
(A) ID=31.2 		8-97237-146-0 01 1 0807-1102
59 CLIP; HOSE
(A) ID=33.6 		8-94362-518-0 01 1 1103-1211
59 CLIP; HOSE
(A) ID=33.6 		8-94362-518-0 03 1 1212-
63 HOSE; RUBBER,AIR BREATHER 1-09360-925-0 02 1 1212-
90 CLIP; RUBBER HOSE
ID=28.5 		1-09707-150-0 01 1 1103-1303
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0807-
151 SEPARATOR; OIL,PCV 8-97602-262-2 01 1 0807-
188 BOLT; BRKT
M8X30 FLANGE THA 		0-28050-830-0 03 1 1103-
188 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0807-
261 BOLT; SEPARETOR
M8X16 FLANGE THA 		0-28050-816-0 04 1 0807-
262 BRACKET; OIL SEPARETOR 8-97610-919-1 01 1 0807-
263 BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE THA 		0-28751-025-0 02 1 0807-
272 BRACKET; PIPE
(A) 		8-97607-396-1 01 1 0807-
272 BRACKET; PIPE
(B) 		8-97607-397-0 01 1 0807-1102
272 BRACKET; PIPE
(C) 		8-97616-083-0 01 1 1103-
275 CAP; PCV 8-97606-319-0 01 1 0807-
279 HOSE; RUBBER,OIL DRAIN
L=190 		0-02709-190-0 01 1 0807-
307 HOSE; RUBBER,HEAD COVER TO OIL SEPARAT 8-98054-285-1 01 1 0807-1102
307 HOSE; RUBBER,HEAD COVER TO OIL SEPARAT 8-98167-935-0 01 1 1103-
315 HOSE; RUBBER
VIN MODEL YEAR 2010<VZA> 		8-98165-997-0 01 1 1004-1102
315 HOSE; RUBBER 8-98167-937-1 01 1 1103-
315 HOSE; RUBBER 8-98054-286-1 01 1 0807-1003
315 HOSE; RUBBER
EXC. VIN MODEL YEAR 2010<VZA> 		8-98054-286-1 01 1 1004-1102
318 ELEMENT KIT; PCV 8-97606-318-0 01 1 0807-
321 CLIP; HOSE,SEPARATOR
L=300 		1-09707-001-1 02 1 0807-1102
321 CLIP; HOSE,SEPARATOR
L=300 		1-09707-001-1 01 1 1103-
