Isuzu WW
▶
TRUCKS
▶
GVR
▶
11133 - GVR(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

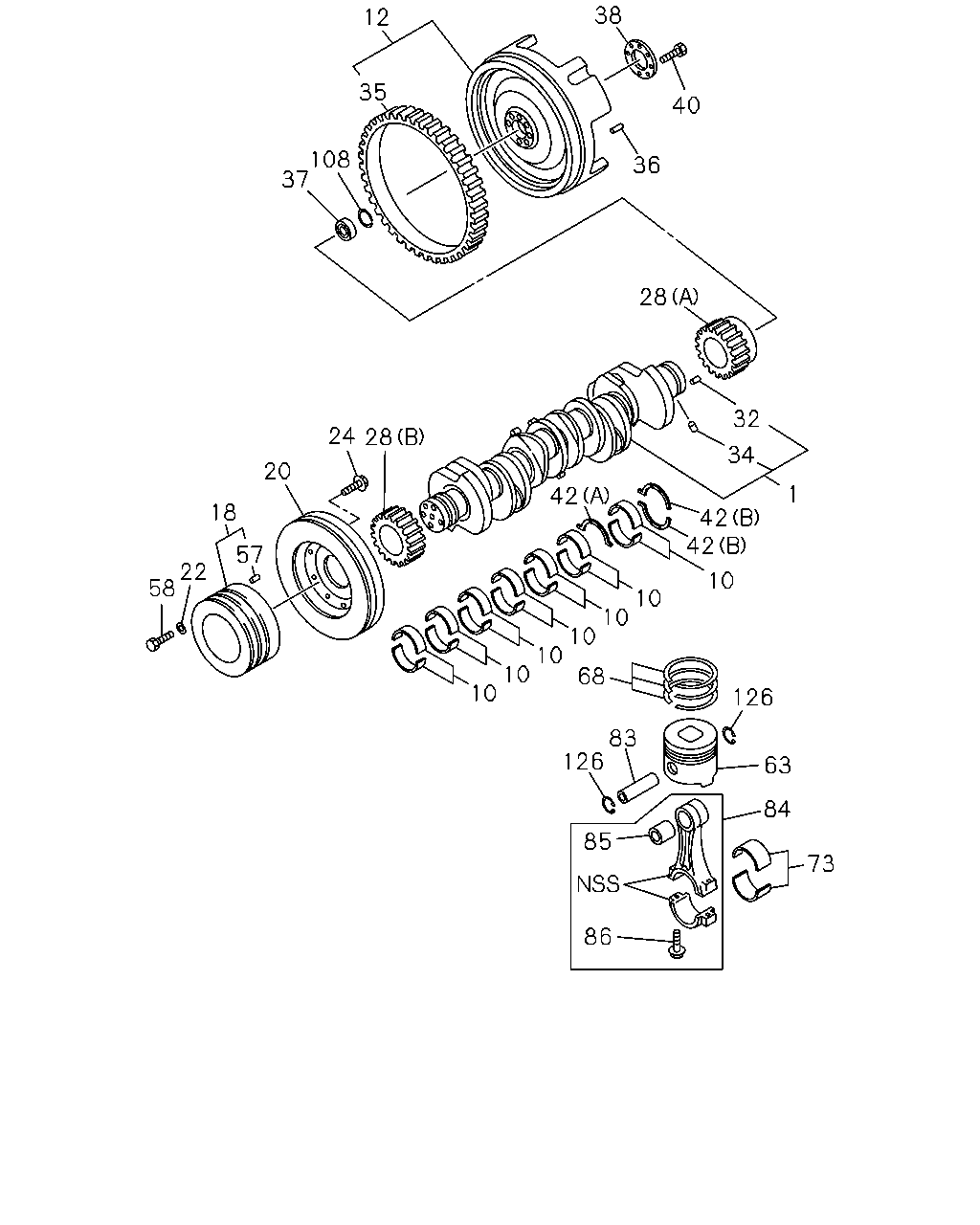

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#68086) — 35 parça
12
35
108
37
38
40
36
28
32
34
42
42
42
10
10
10
10
10
10
10
28
24
20
57
18
22
58
126
63
84
73
68
83
126
85
86
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-004-0
01
1
0807-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
0807-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
0807-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
0807-
12
FLYWHEEL
8-97602-463-2
01
1
0807-
18
PULLEY; CR/SHF
3-GROOVE
8-97606-944-0
01
1
0807-
20
DAMPER; CR/SHF
8-97613-696-1
01
1
0807-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0807-
24
BOLT; DAMPER
M10X16 FLANGE THA
0-28151-016-0
06
1
0807-
28
GEAR; CR/SHF
(A) Z=42
8-94392-255-1
01
1
0807-
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
0807-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
0807-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0807-
35
GEAR; RING
Z=140
8-94396-784-1
01
1
1103-
35
GEAR; RING
Z=140
8-94396-784-1
01
1
0807-1102
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0807-
37
BEARING; PILOT,TOP GEAR SHAFT
8-94392-288-0
01
1
0807-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-157-0
01
1
1103-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
0807-
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
0807-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
0807-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
0807-
57
PIN; PULLEY
OD=8 L=16
8-94391-156-0
01
1
0807-
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
0807-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
06
1
0807-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA
8-98040-125-0
06
1
0807-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-97616-358-0
06
1
0807-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-97616-359-0
06
1
0807-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
06
1
0807-
84
ROD ASM; CONN
8-98018-425-3
06
1
0807-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
06
1
0807-
86
BOLT; CONNROD
M13X57 FLANGE
1-12235-035-0
12
1
0807-1004
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
12
1
1005-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
0807-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
12
1
0807-
