0-84 — FEED PUMP; INJECTION PUMP (#6808) — 40 parça

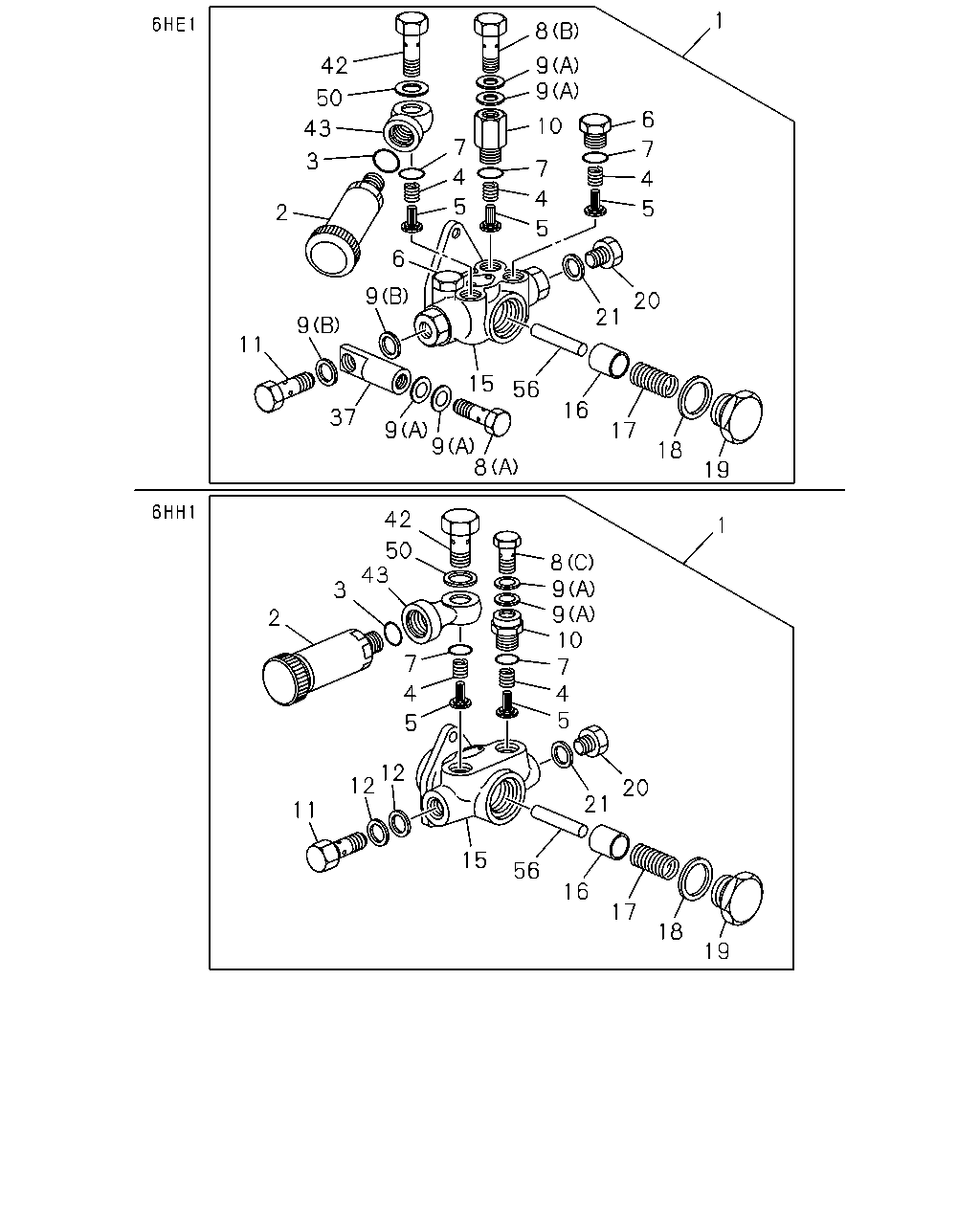

çizim 98736
1 8 42 9 9 50 6 10 43 7 7 3 7 4 4 4 5 5 2 5 6 9 20 21 9 11 15 56 16 37 9 17 9 8 18 19 42 1 50 43 8 9 9 10 7 4 5 3 2 7 4 5 12 12 20 21 11 15 56 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: E = 8-94395-979-4, F = 8-94395-980-4 		1-15750-150-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4 		1-15750-156-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94392-439-0 		1-15750-175-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15761-006-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		9-81351-702-0 04 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		9-81351-702-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15755-002-0 02 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		1-15755-002-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		1-15759-066-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		1-19623-016-0 04 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-19623-016-0 02 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(C) ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(B) ASM PART: A = 8-94392-439-0 		1-15759-051-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
(A), M14X30 ASM PART: A = 8-94392-439-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A), ID=14.2 OD=19.2 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A), ID=14.2 OD=19.2 ASM PART: A = 8-94392-439-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(B) ASM PART: A = 8-94392-439-0 		9-81215-182-0 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-003-0 01 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		1-15759-067-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-94392-439-0 		1-15759-011-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-029-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-09630-085-0 02 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		1-15751-036-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		8-97115-989-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15752-001-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		1-15753-005-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		9-81351-302-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-042-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-004-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-007-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		9-81215-182-0 01 1 -
37 EYE; FUEL OUTLET,FUEL FEED PUMP
ASM PART: A = 8-94392-439-0 		1-15759-050-0 01 1 -
42 BOLT; EYE,PRIMING PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-065-0 01 1 -
43 ADAPTER; PRIMING PUMP
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-064-0 01 1 -
50 GASKET; EYE BOLT
ASM PART: A = 8-94392-439-0, B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4, E = 8-94395-979-4, F = 8-94395-980-4 		1-15759-049-0 01 1 -
56 PUSH ROD
ASM PART: A = 8-94392-439-0 		1-15759-074-0 01 1 -
56 PUSH ROD
ASM PART: E = 8-94395-979-4, F = 8-94395-980-4 		8-97115-990-0 01 1 -
56 PUSH ROD
ASM PART: B = 8-94395-975-3, C = 8-94395-976-3, D = 8-94395-977-4 		8-97115-991-0 01 1 -
