8-80 — WINDSHIELD WIPER AND WASHER (#68076) — 97 parça
çizim 193704
24 34 36 30 46 72 47 51 76 74
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER 8-98039-663-2 01 1 0803-0907 ●
24 TANK ASM; WASHER 8-98039-663-2 01 1 0908- ● ●
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 0803-0907 ●
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 0908- ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0803-0907 ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0908- ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0803-0907 ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0908- ● ●
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0803-0907 ●
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0908- ● ●
36 HOSE; WASHER
(A) 		8-98078-825-0 01 1 0803-0907 ●
36 HOSE; WASHER
(A) 		8-98078-825-0 01 1 0908- ● ●
36 HOSE; WASHER
(D) 		8-98078-826-0 01 1 0803-0907 ●
36 HOSE; WASHER
(D) 		8-98078-826-0 01 1 0908- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-966-1 01 1 0803-0907 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-966-1 01 1 0908- ● ●
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 0803-0907 ●
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 0908- ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 0803-0907 ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 0908- ● ●
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 0803-0907 ●
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 0908- ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 0803-0907 ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 0908- ● ●
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 0803-0907 ●
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 0908- ● ●

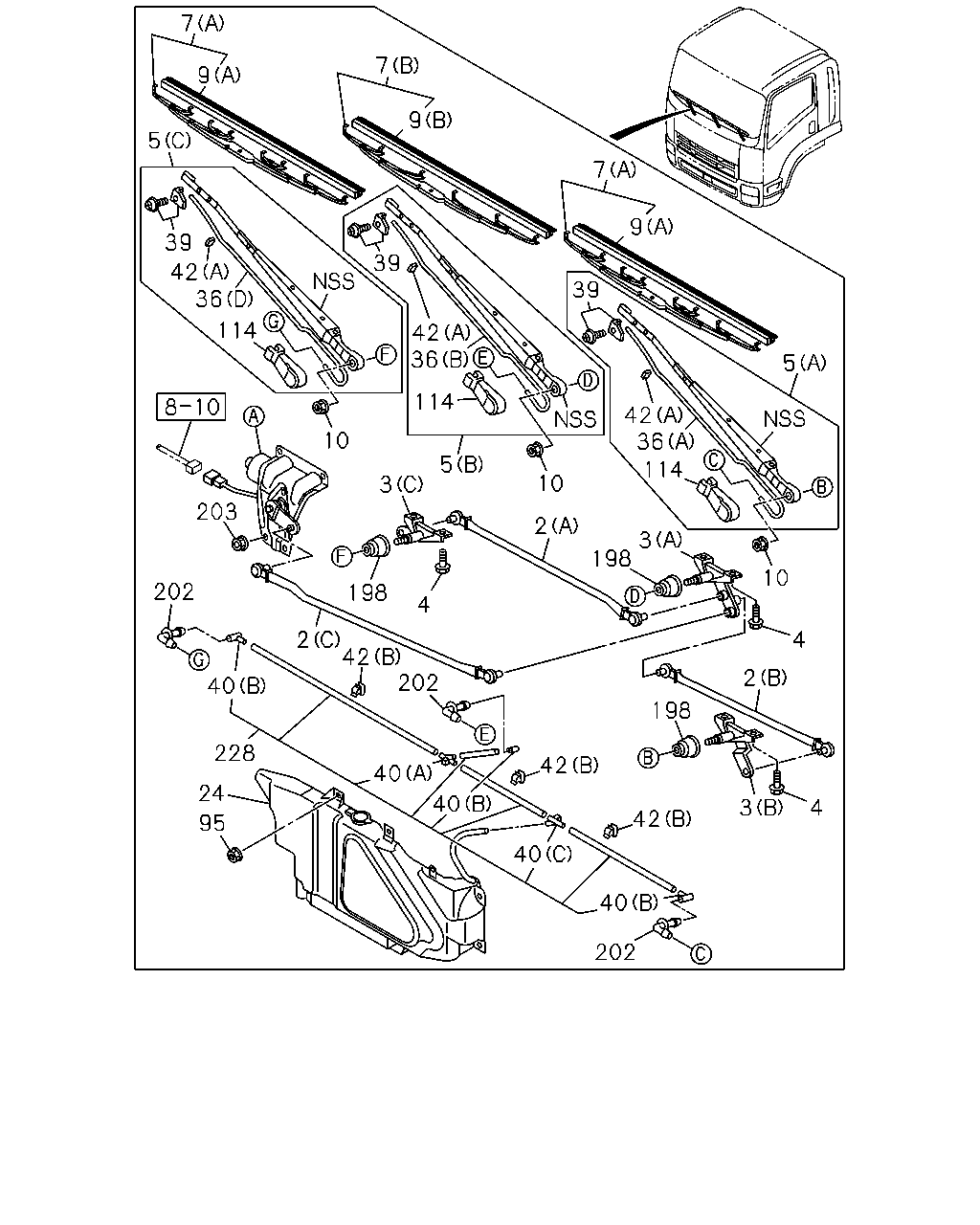

çizim 193732
7 9 7 9 7 9 5 114 36 42 39 114 10 10 5 10 114 36 42 39 36 39 5 42 203 3 198 4 2 3 198 4 2 4 3 198 202 42 2 202 40 40 40 40 40 42 42 202 24 228 95
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
CAUTIONS ARABIAN<WJ7> (B) 		8-98127-402-0 01 1 0809-0907 ●
2 LINK; FRT WIPER
CAUTIONS ARABIAN<WJ7> (B) 		8-98127-402-0 01 1 0908- ● ●
2 LINK; FRT WIPER
(A) 		8-98078-813-0 01 1 0803-0907 ●
2 LINK; FRT WIPER
(A) 		8-98078-813-0 01 1 0908- ● ●
2 LINK; FRT WIPER
(B) 		8-98078-969-0 01 1 0803-0808 ●
2 LINK; FRT WIPER
EXC. CAUTIONS ARABIAN<WJ7> (B) 		8-98078-969-1 01 1 0809-0907 ●
2 LINK; FRT WIPER
EXC. CAUTIONS ARABIAN<WJ7> (B) 		8-98078-969-1 01 1 0908- ● ●
2 LINK; FRT WIPER
(C) 		8-98080-170-0 01 1 0803-0907 ●
2 LINK; FRT WIPER
(C) 		8-98080-170-0 01 1 0908- ● ●
3 PIVOT ASM; FRT WIPER
(C) 		8-98068-140-1 01 1 0803-0907 ●
3 PIVOT ASM; FRT WIPER
(C) 		8-98068-140-1 01 1 0908- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-818-1 01 1 0803-0907 ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-818-1 01 1 0908- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-971-1 01 1 0803-0907 ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-971-1 01 1 0908- ● ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 06 1 0803-0907 ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 06 1 0908- ● ●
5 ARM; WIPER
(A) 		8-98078-974-1 01 1 0803-0907 ●
5 ARM; WIPER
(A) 		8-98078-974-1 01 1 0908- ● ●
5 ARM; WIPER
(B) 		8-98078-975-1 01 1 0803-0907 ●
5 ARM; WIPER
(B) 		8-98078-975-1 01 1 0908- ● ●
5 ARM; WIPER
(C) 		8-98078-976-1 01 1 0803-0907 ●
5 ARM; WIPER
(C) 		8-98078-976-1 01 1 0908- ● ●
7 BLADE; WIPER
(A) 		8-98079-088-0 02 1 0803-0907 ●
7 BLADE; WIPER
(A) 		8-98079-088-0 02 1 0908- ● ●
7 BLADE; WIPER
(B) 		8-98079-089-0 01 1 0803-0907 ●
7 BLADE; WIPER
(B) 		8-98079-089-0 01 1 0908- ● ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-034-0 02 1 0810-0907 ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-034-0 02 1 0908- ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-83355-015-0 02 1 0803-0907 ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-83355-015-0 02 1 0908- ● ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 01 1 0803-0907 ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 01 1 0908- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0803-0907 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0908- ● ●
24 TANK ASM; WASHER 8-98039-663-2 01 1 0803-0907 ●
24 TANK ASM; WASHER 8-98039-663-2 01 1 0908- ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0803-0907 ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0908- ● ●
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0803-0907 ●
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0908- ● ●
36 HOSE; WASHER
(A) 		8-98078-825-0 01 1 0803-0907 ●
36 HOSE; WASHER
(A) 		8-98078-825-0 01 1 0908- ● ●
36 HOSE; WASHER
(D) 		8-98078-826-0 01 1 0803-0907 ●
36 HOSE; WASHER
(D) 		8-98078-826-0 01 1 0908- ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 03 1 0803-0907 ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 03 1 0908- ● ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 0803-0907 ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 0908- ● ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0803-0907 ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0908- ● ●
40 JOINT; WASHER HOSE
(C) 		8-97855-163-0 01 1 0803-0907 ●
40 JOINT; WASHER HOSE
(C) 		8-97855-163-0 01 1 0908- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 0803-0907 ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 0908- ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 0803-0907 ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 0908- ● ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 0803-0907 ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 0908- ● ●
114 COVER; FRT WIPER ARM 1-83318-127-0 03 1 0803-0907 ●
114 COVER; FRT WIPER ARM 1-83318-127-0 03 1 0908- ● ●
198 COVER; PIVOT,WIPER 8-98038-892-1 03 1 0803-0907 ●
198 COVER; PIVOT,WIPER 8-98038-892-1 03 1 0908- ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0803-0907 ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0908- ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 0803-0907 ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 0908- ● ●
228 HOSE ASM; WASHER 8-98039-706-0 01 1 0803-0907 ●
228 HOSE ASM; WASHER 8-98039-706-0 01 1 0908- ● ●

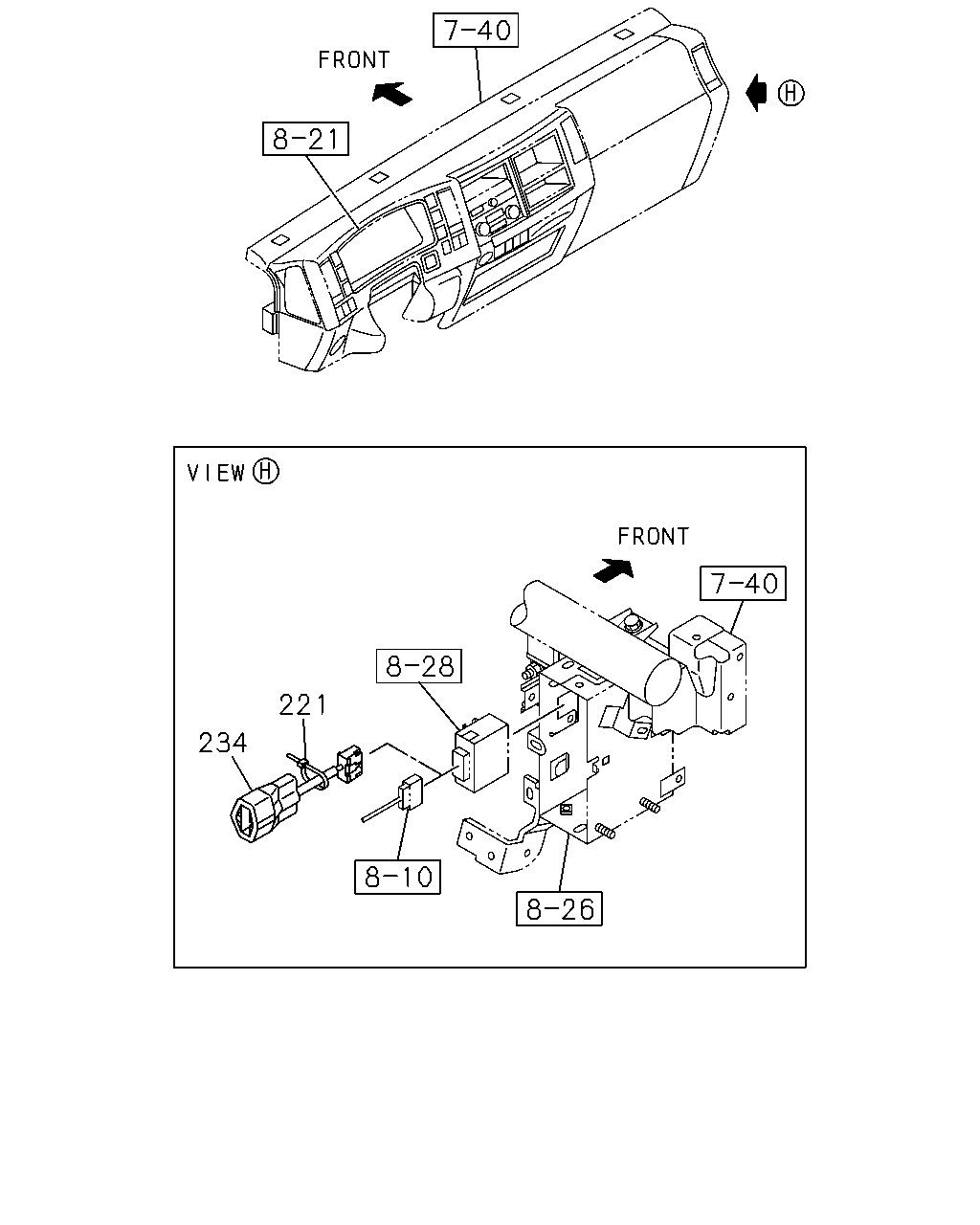

çizim 339201
234 221
BalonParca AdiParca NoAdetTipApplied Date A B
221 CLIP
INTERMITTENT WIPER<C13> L=140 		5-09707-031-1 01 1 1302-1308 ● ●
234 HARNESS; EXT,WIPER
INTERMITTENT WIPER<C13> 		8-98236-609-0 01 1 1302-1308 ● ●
