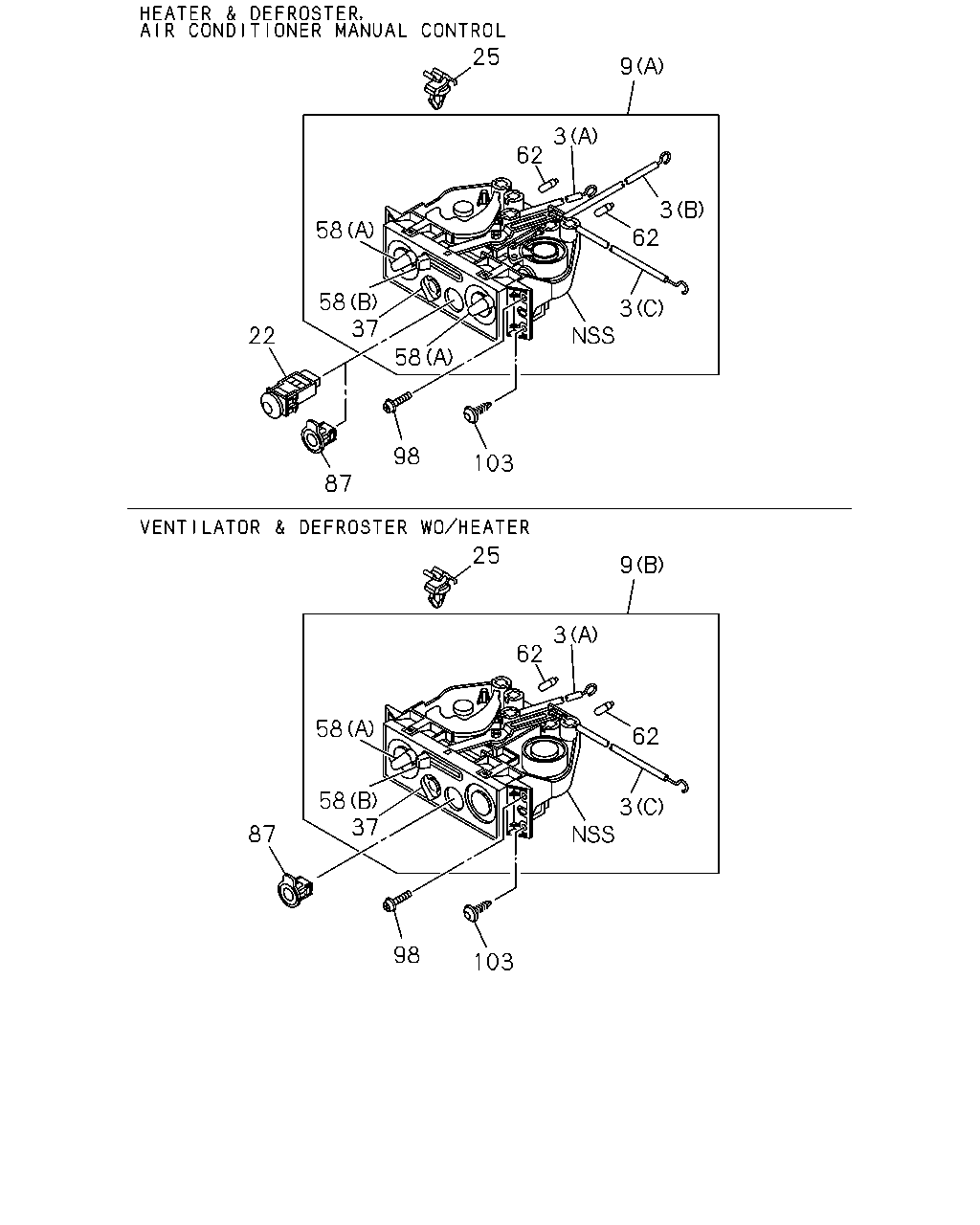

8-65 — CONTROL LEVER; HEATER AND AIR CON (#68072) — 39 parça

25 9 3 62 3 62 3 58 58 58 22 87 98 103 37 9 25 3 62 62 3 103 98 87 37 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) R/F	8-98063-316-2	01	1	0803-0808	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) R/F	8-98063-316-2	01	1	0809-0907	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) R/F	8-98063-316-2	01	1	0908-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) MODE	8-98065-643-0	01	1	0803-0808	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MODE	8-98065-643-0	01	1	0809-0907	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MODE	8-98065-643-0	01	1	0908-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M	8-98065-644-0	01	1	0803-0907	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M	8-98065-644-0	01	1	0908-	●	●
9	LEVER ASM; HTR & A/C CONT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98062-805-2	01	1	0809-0907	●
9	LEVER ASM; HTR & A/C CONT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98062-805-2	01	1	0908-	●	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98062-747-2	01	1	0803-0907	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98062-747-2	01	1	0908-	●	●
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONTROL(C60)	8-98021-982-0	01	1	0803-0907	●
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONTROL(C60)	8-98021-982-0	01	1	0908-	●	●
25	CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=4.8	8-94128-483-0	03	1	0803-0808	●
25	CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8	8-94128-483-0	03	1	0809-0907	●
25	CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8	8-94128-483-0	03	1	0908-	●	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98037-368-0	01	1	0803-0808	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98037-368-0	01	1	0809-0907	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98037-368-0	01	1	0908-	●	●
58	KNOB; LVR,HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98037-369-0	01	1	0809-0907	●
58	KNOB; LVR,HTR CONT LVR VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98037-369-0	01	1	0908-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98037-369-0	02	1	0803-0907	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98037-369-0	02	1	0908-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98037-370-0	01	1	0803-0808	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98037-370-0	01	1	0809-0907	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98037-370-0	01	1	0908-	●	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.1W	8-98037-371-0	02	1	0803-0808	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.1W	8-98037-371-0	02	1	0809-0907	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.1W	8-98037-371-0	02	1	0908-	●	●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	0803-0808	●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98006-089-0	01	1	0809-0907	●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98006-089-0	01	1	0908-	●	●
98	SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0803-0808	●
98	SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0809-0907	●
98	SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	0908-	●	●
103	CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY	8-97098-326-0	01	1	0803-0808	●
103	CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY	8-97098-326-0	01	1	0809-0907	●
103	CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY	8-97098-326-0	01	1	0908-	●	●
