◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#68071) — 332 parça

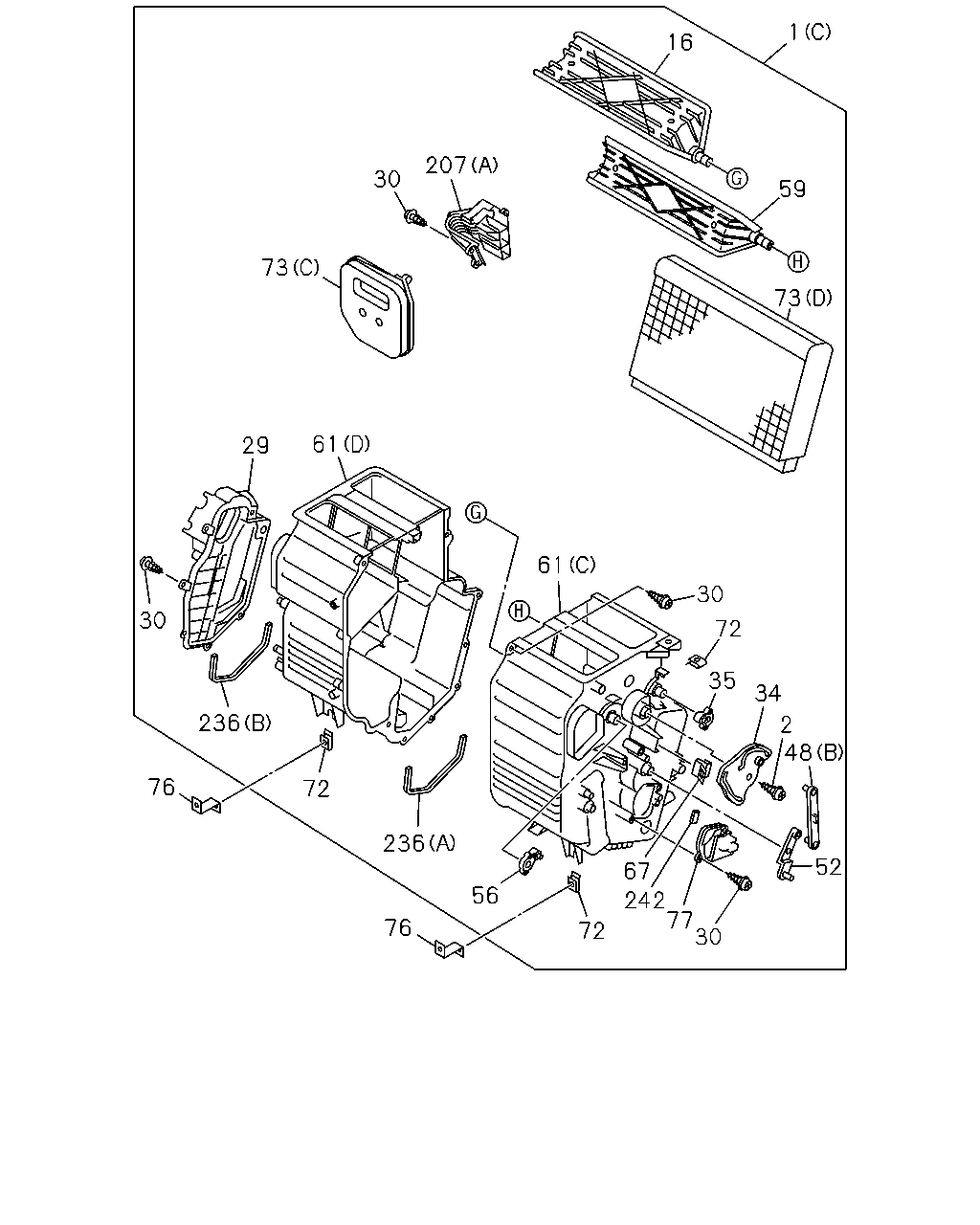

çizim 141031
1 16 59 73 207 30 73 29 61 30 236 76 72 236 56 76 72 30 77 242 67 52 48 2 34 35 72 30 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 0809-0907 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 0908-1301 ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0803-0907 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0908- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0803-0907 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0908- ● ●
2 SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 0809-0907 ●
2 SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 0908-1301 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-387-0 01 1 0803-0808 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 0809-0907 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 0908- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 0803-0808 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 0809-0907 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 0908-1301 ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0809-0907 ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0908-1301 ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0803-0907 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0908- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0803-0907 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0908- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-497-0 01 1 0803-0808 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 0809-0907 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 0908- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-500-0 01 1 0803-0808 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 0809-0907 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 0908- ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 0809-0907 ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 0908- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 0803-0907 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 0908- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-498-0 01 1 0803-0808 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 0809-0907 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 0908- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-501-0 01 1 0803-0808 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 0809-0907 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 0908- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-386-0 01 1 0803-0808 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 0809-0907 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 0908- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 0809-0907 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 0908- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 0809-0907 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 0908- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 0803-0907 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 0908- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 0803-0907 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 0908- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0809-0907 ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0908- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0803-0907 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0908- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 		8-98047-428-0 03 1 0803-0808 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 0809-0907 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 0908- ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 0809-0907 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 0908-1301 ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 0809-0907 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 0908-1301 ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0803-0907 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0908- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0803-0907 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0908- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 02 1 0803-0808 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 0809-0907 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 0908- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-482-0 01 1 0803-0808 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 0809-0907 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 0908- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0803-0907 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0908- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 0803-0808 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 0809-0907 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 0908-1301 ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-420-0 01 1 0803-0808 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 0809-0907 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 0908- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-421-0 01 1 0803-0808 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 0809-0907 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 0908- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 0803-0808 ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 0809-0907 ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 0908-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●

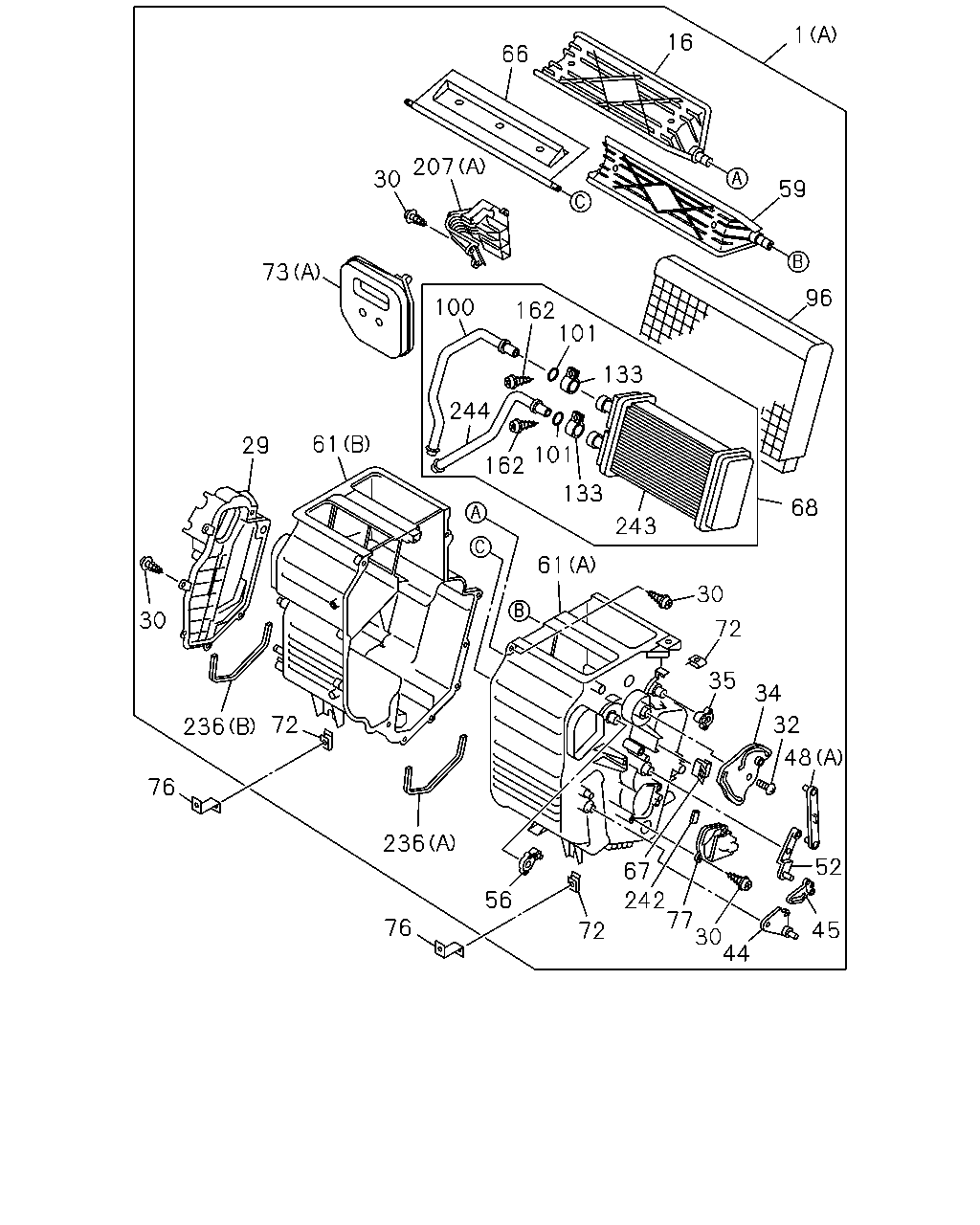

çizim 193703
66 16 1 59 96 207 30 73 100 162 101 133 244 162 101 133 243 68 29 61 30 236 72 236 76 76 56 72 67 242 77 30 44 45 52 48 32 34 35 72 30 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 0809-0907 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 0908-1301 ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0803-0907 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0908- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0803-0907 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0908- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-387-0 01 1 0803-0808 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 0809-0907 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 0908- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 0803-0808 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 0809-0907 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 0908-1301 ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0809-0907 ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0908-1301 ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0803-0907 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0908- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0803-0907 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0908- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1302- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 0803-0907 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 0908- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-497-0 01 1 0803-0808 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 0809-0907 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 0908- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-500-0 01 1 0803-0808 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 0809-0907 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 0908- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 0803-0907 ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 0908- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 0803-0907 ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 0908- ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 0809-0907 ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 0908- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 0803-0907 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 0908- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-498-0 01 1 0803-0808 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 0809-0907 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 0908- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-501-0 01 1 0803-0808 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 0809-0907 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 0908- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-386-0 01 1 0803-0808 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 0809-0907 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 0908- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 0809-0907 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 0908- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 0809-0907 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 0908- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 0803-0907 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 0908- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 0803-0907 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 0908- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 0803-0907 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 0908- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0809-0907 ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0908- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0803-0907 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0908- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 0810-0907 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 0908- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-494-0 01 1 0803-0809 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 		8-98047-428-0 03 1 0803-0808 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 0809-0907 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 0908- ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 0809-0907 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 0908-1301 ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 0809-0907 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 0908-1301 ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0803-0907 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0908- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0803-0907 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0908- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 02 1 0803-0808 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 0809-0907 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 0908- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-482-0 01 1 0803-0808 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 0809-0907 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 0908- ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0803-0907 ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0908- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 0803-0907 ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 0908- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 0803-0907 ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 0908- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 0803-0907 ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 0908- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 0803-0907 ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 0908- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0803-0907 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0908- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 0803-0808 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 0809-0907 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 0908-1301 ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-420-0 01 1 0803-0808 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 0809-0907 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 0908- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-421-0 01 1 0803-0808 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 0809-0907 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 0908- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 0803-0808 ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 0809-0907 ●
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 0908-1411 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 0803-0907 ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 0908- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 0803-0907 ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 0908- ● ●

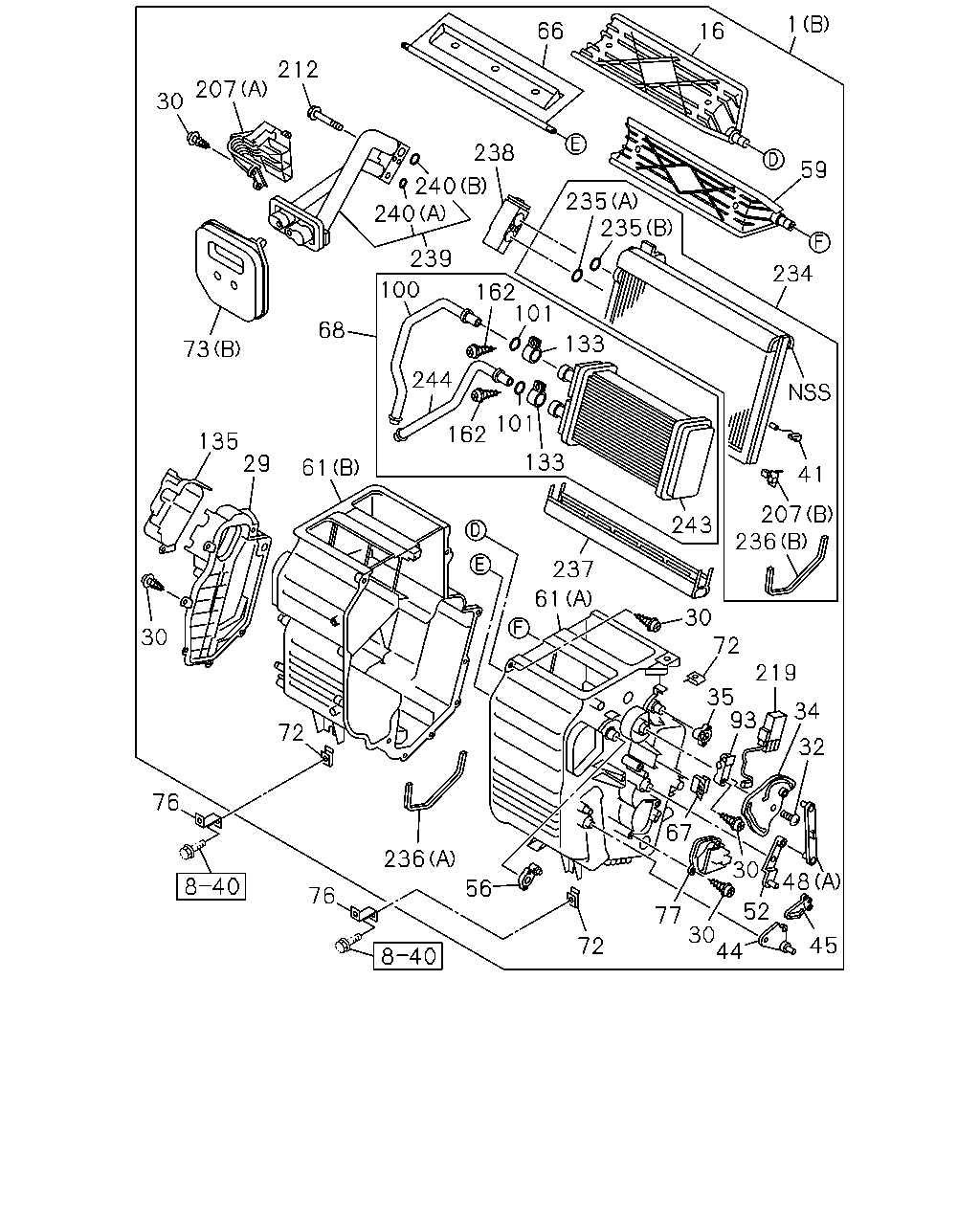

çizim 193740
30 207 212 66 16 1 238 240 240 235 235 239 100 68 73 244 162 101 133 101 162 133 59 234 41 207 236 243 30 72 219 34 32 48 45 52 30 30 44 77 67 35 93 61 237 72 56 236 76 76 72 30 135 29 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 0809-0907 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98062-758-1 01 1 0908-1301 ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98214-401-1 01 1 1302- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0803-0907 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0908- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0803-0907 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0908- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-387-0 01 1 0803-0808 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 0809-0907 ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 0908- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-368-0 01 1 1302- ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 0803-0808 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 0809-0907 ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-480-0 01 1 0908-1301 ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-480-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0809-0907 ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0908-1301 ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0803-0907 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0908- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0803-0907 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0908- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1302- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 0803-0907 ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 0908- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-497-0 01 1 0803-0808 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 0809-0907 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-497-0 01 1 0908- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-500-0 01 1 0803-0808 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 0809-0907 ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-500-0 01 1 0908- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-412-0 01 1 0803-0907 ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-412-0 01 1 0908- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 0803-0907 ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-502-0 01 1 0908- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 0803-0907 ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-503-0 01 1 0908- ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 0809-0907 ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-499-0 01 1 0908- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 0803-0907 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 0908- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-498-0 01 1 0803-0808 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 0809-0907 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-498-0 01 1 0908- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-501-0 01 1 0803-0808 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 0809-0907 ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-501-0 01 1 0908- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-386-0 01 1 0803-0808 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 0809-0907 ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 0908- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 0809-0907 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-424-0 01 1 0908- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 0809-0907 ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-425-0 01 1 0908- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 0803-0907 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-478-0 01 1 0908- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 0803-0907 ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-479-0 01 1 0908- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 0803-0907 ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-385-0 01 1 0908- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0809-0907 ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0908- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0803-0907 ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0908- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 0810-0907 ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-122-0 01 1 0908- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-494-0 01 1 0803-0809 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 		8-98047-428-0 03 1 0803-0808 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 0809-0907 ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 0908- ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 0809-0907 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98048-815-0 01 1 0908-1301 ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 0809-0907 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-421-0 01 1 0908-1301 ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0803-0907 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0908- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0803-0907 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0908- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 02 1 0803-0808 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 0809-0907 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 0908- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-482-0 01 1 0803-0808 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 0809-0907 ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-482-0 01 1 0908- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 0803-0907 ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 0908- ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 0803-0907 ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-532-0 01 1 0908- ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 0803-0907 ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-531-0 02 1 0908- ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 0803-0907 ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-530-0 02 1 0908- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-481-0 01 1 0803-0907 ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-481-0 01 1 0908- ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 0803-0907 ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98072-529-0 02 1 0908- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0803-0907 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0908- ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 0803-0808 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 0809-0907 ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-493-0 01 1 0908-1301 ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-493-0 01 1 1302- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 0803-0907 ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 0908- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 0803-0907 ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 0908- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-120-1 01 1 0803-0907 ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-120-1 01 1 0908- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 0803-0907 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 0908- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 0803-0907 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 0908- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-420-0 01 1 0803-0808 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 0809-0907 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 0908- ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-421-0 01 1 0803-0808 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 0809-0907 ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 0908- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 0803-0907 ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 0908- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 0803-0907 ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 0908- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-504-0 01 1 0803-0907 ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-504-0 01 1 0908- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 0803-0907 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 0908- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 0803-0907 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 0908- ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 0803-0907 ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-508-0 01 1 0908- ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 0803-0907 ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98048-511-0 01 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
