◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#68069) — 46 parça

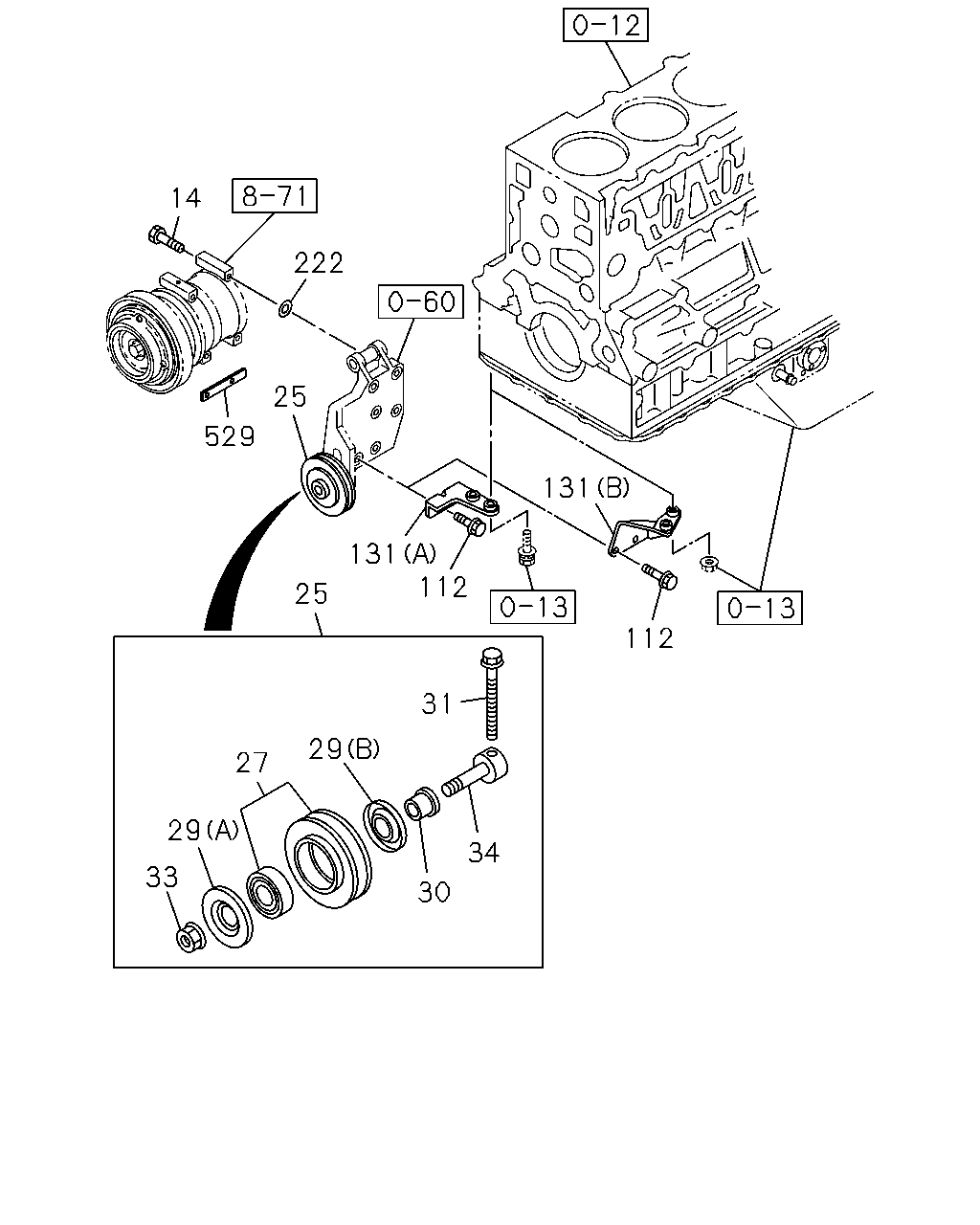

çizim 141364
30 31 34 112 131 112 131 25 27 29 33 29 529 25 222 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0803-0907 ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0908- ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 0803-0907 ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 0908- ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-323-0 01 1 0803-0907 ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-323-0 01 1 0908- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97605-329-0 01 1 0803-0907 ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97605-329-0 01 1 0908- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97605-330-0 01 1 0803-0907 ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97605-330-0 01 1 0908- ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-328-0 01 1 0803-0907 ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-328-0 01 1 0908- ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-325-0 01 1 0803-0907 ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-325-0 01 1 0908- ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-326-0 01 1 0803-0907 ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-326-0 01 1 0908- ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-327-0 01 1 0803-0907 ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-327-0 01 1 0908- ● ●
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 0803-0907 ●
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 0908- ● ●
131 STAY; CMPR BRKT
EURO2 SPECIFICATION<NT2> COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) 		8-97601-869-1 01 1 0909-0910 ●
131 STAY; CMPR BRKT
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) (B) 		8-97601-869-1 01 1 0909-0910 ●
131 STAY; CMPR BRKT
(A) 		8-94393-451-0 01 1 0803-0907 ●
131 STAY; CMPR BRKT
(A) 		8-94393-451-0 01 1 0908- ● ●
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		8-94312-733-0 02 1 0803-0907 ●
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		8-94312-733-0 02 1 0908- ● ●
529 SPACER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-271-0 01 1 0803-0907 ●
529 SPACER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-271-0 01 1 0908- ● ●
çizim 193699
378 378 71 201
BalonParca AdiParca NoAdetTipApplied Date A B
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-235-1 01 1 0803-0808 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-235-1 01 1 0809-0907 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-235-1 01 1 0908-1301 ● ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-235-1 01 1 1302- ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94423-042-0 01 1 0803-0907 ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94423-042-0 01 1 0908- ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98062-954-0 01 1 0803-0808 ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98062-954-0 01 1 0809-0907 ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98062-954-0 01 1 0908- ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-759-0 01 1 0803-0907 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-759-0 01 1 0908-1111 ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1112- ● ●

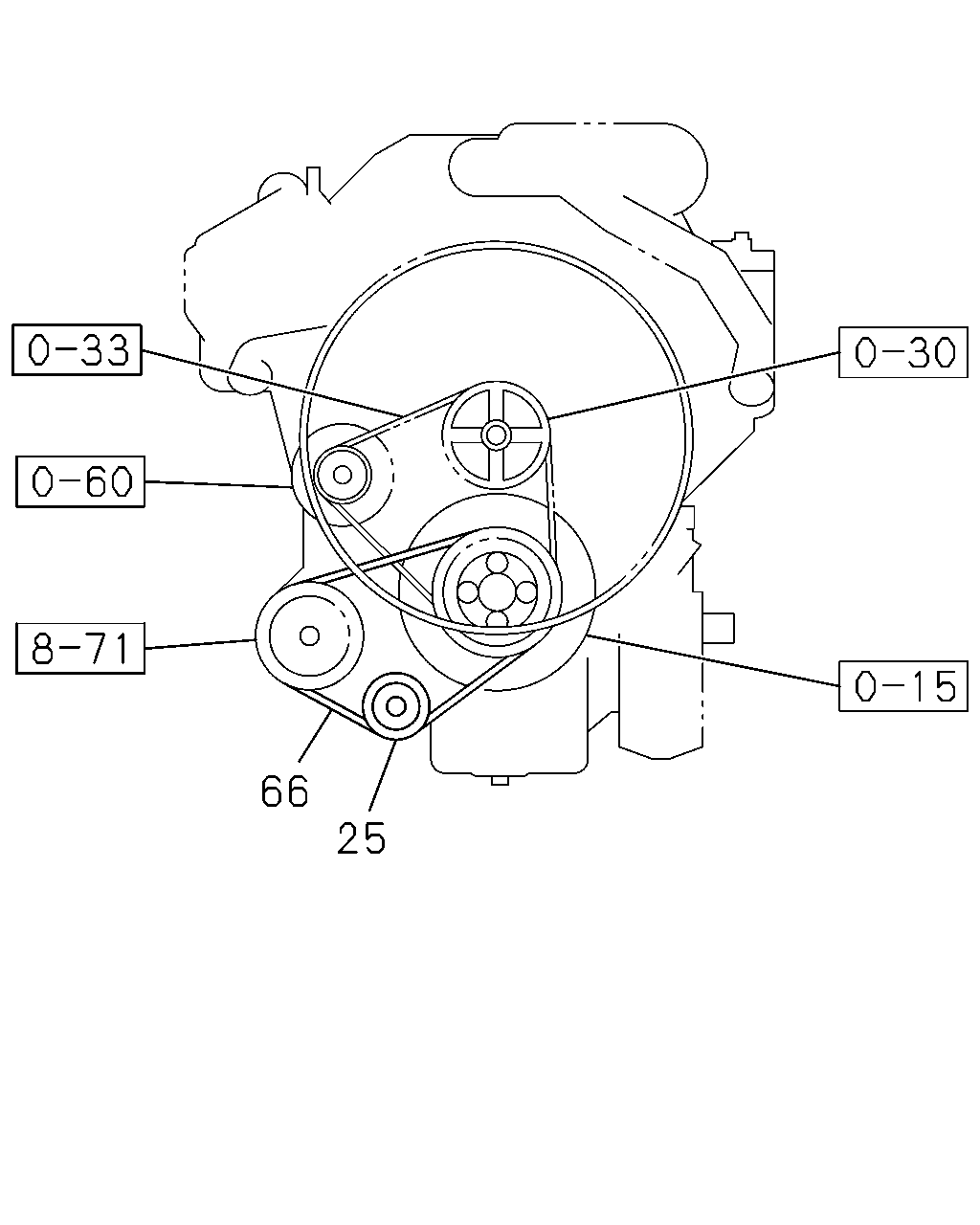

çizim 193702
25 66
BalonParca AdiParca NoAdetTipApplied Date A B
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 0803-0907 ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 0908- ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-104-0 01 1 0810-0907 ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-104-0 01 1 0908- ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1114 		8-97605-102-0 01 1 0803-0907 ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1114 		8-97605-102-0 01 1 0908- ● ●
