Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#68067) — 140 parça

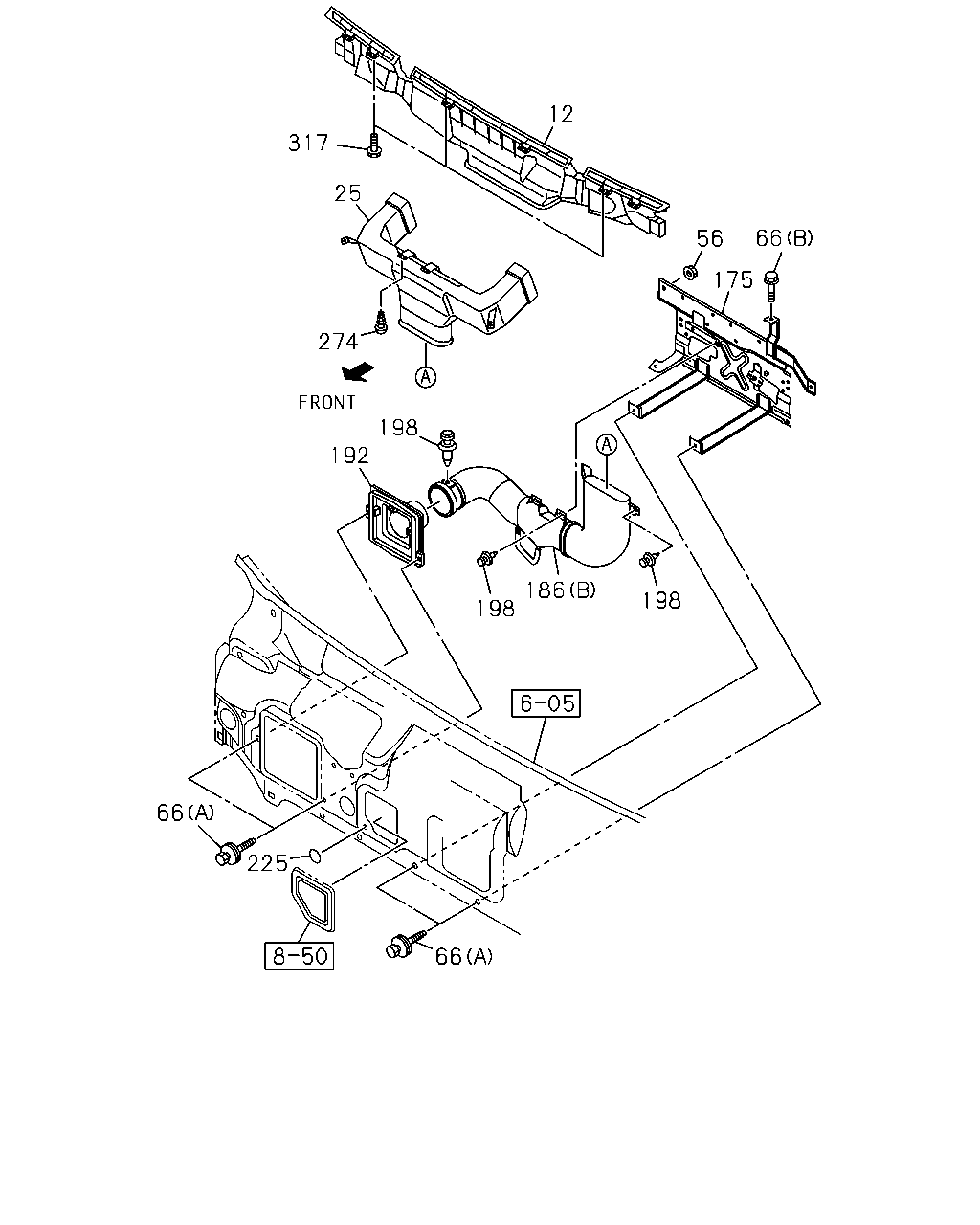

66 56 175 198 192 198 186 198 225 66 66 274 25 317 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-98040-010-2	01	1	0803-0907	●
12	NOZZLE; DEFROSTER	8-98040-010-2	01	1	0908-	●	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98102-122-0	01	1	0803-0808	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98102-122-0	01	1	0809-0907	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98102-122-0	01	1	0908-	●	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	01	1	0803-0808	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0809-0907	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0908-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0803-0808	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0809-0907	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0908-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-0808	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X16 FLANGE	0-28650-616-0	01	1	0809-0907	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X16 FLANGE	0-28650-616-0	01	1	0908-	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98095-351-4	01	1	0803-0808	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98095-351-4	01	1	0809-0907	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98095-351-4	01	1	0908-0908	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98140-758-0	01	1	0909-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98102-130-2	01	1	0803-0808	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-130-2	01	1	0809-0907	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-130-2	01	1	0908-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98011-556-3	01	1	0803-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98011-556-3	01	1	0809-0907	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98011-556-3	01	1	0908-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-573-0	01	1	1411-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98035-580-1	01	1	0803-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98035-580-1	01	1	0809-0907	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98035-580-1	01	1	0908-1007	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98174-736-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-575-0	01	1	1411-	●	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98090-394-2	01	1	0803-0808	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98090-394-2	01	1	0809-0907	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98090-394-2	01	1	0908-	●	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	05	1	0803-0808	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	05	1	0809-0907	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	05	1	0908-	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0803-0808	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	0809-0907	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	0908-1301	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	1302-	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0808	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-0907	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0908-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0808	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-0907	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0908-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0803-0907	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0908-	●	●

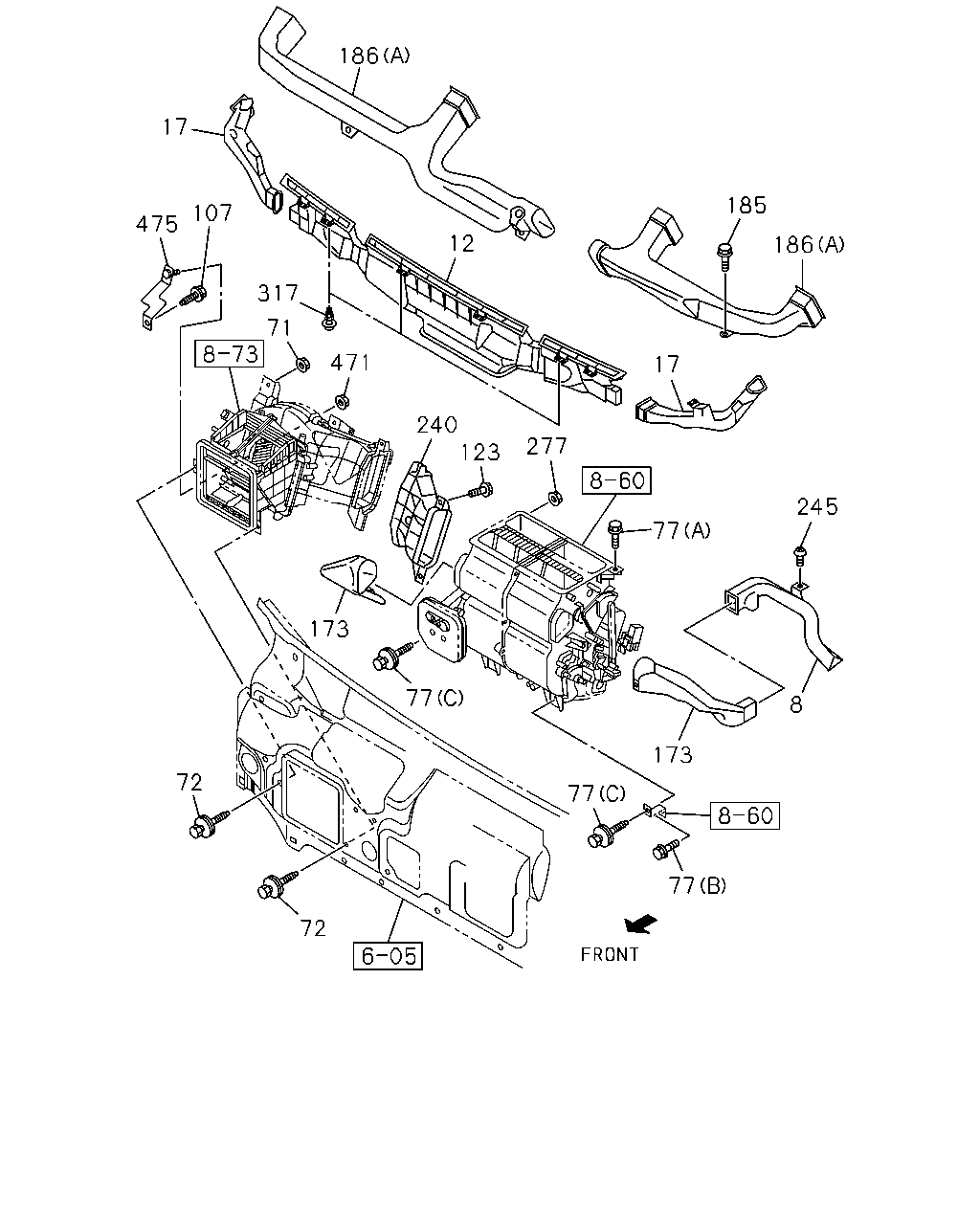

185 17 77 245 8 173 77 77 72 72 173 77 123 277 240 471 12 107 475 17 186 317 71 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98011-567-0	01	1	0803-0808	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98011-567-0	01	1	0809-0907	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98011-567-0	01	1	0908-0910	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98011-567-0	01	1	0911-	●	●
12	NOZZLE; DEFROSTER	8-98040-010-2	01	1	0803-0907	●
12	NOZZLE; DEFROSTER	8-98040-010-2	01	1	0908-	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98040-014-0	01	1	0803-0808	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-014-0	01	1	0809-0907	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-014-0	01	1	0908-	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98040-019-0	01	1	0803-0808	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-019-0	01	1	0809-0907	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-019-0	01	1	0908-	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	02	1	0803-0808	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	02	1	0809-0907	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	02	1	0908-	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0803-0808	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0809-0907	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0908-	●	●
77	BOLT; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1302-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 FLANGE	0-28650-616-0	01	1	0803-0808	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	01	1	0809-0907	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	01	1	0908-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X20 FLANGE	0-28650-620-0	02	1	0803-0808	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X20 FLANGE	0-28650-620-0	02	1	0809-0907	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X20 FLANGE	0-28650-620-0	02	1	0908-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0803-0808	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0809-0907	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0908-1301	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1302-	●	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0803-0808	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0809-0907	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0908-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0803-0808	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0809-0907	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0908-	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97585-508-1	01	1	0803-0808	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97585-508-1	01	1	0809-0907	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97585-508-1	01	1	0908-0910	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97585-508-1	01	1	0911-	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98036-923-1	01	1	0803-0808	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98036-923-1	01	1	0809-0907	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98036-923-1	01	1	0908-0910	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98036-923-1	01	1	0911-	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0803-0808	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0809-0907	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0908-1008	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1009-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98102-130-2	01	1	0803-0808	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-130-2	01	1	0809-0907	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-130-2	01	1	0908-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98011-556-3	01	1	0803-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98011-556-3	01	1	0809-0907	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98011-556-3	01	1	0908-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-573-0	01	1	1411-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98035-580-1	01	1	0803-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98035-580-1	01	1	0809-0907	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98035-580-1	01	1	0908-1007	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98174-736-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-575-0	01	1	1411-	●	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98062-749-1	01	1	0803-0808	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98062-749-1	01	1	0809-0907	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98062-749-1	01	1	0908-	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	03	1	0803-0808	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	03	1	0809-0907	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	03	1	0908-0910	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	03	1	0911-	●	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	01	1	0803-0808	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0809-0907	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0908-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0808	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-0907	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0908-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0803-0907	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0908-	●	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91180-106-0	01	1	0803-0808	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0809-0907	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0908-	●	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98028-309-0	01	1	0803-0808	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98028-309-1	01	1	0809-0907	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98028-309-1	01	1	0908-	●	●

223 50 476 247 407 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR	8-98080-998-1	01	1	0803-0907	●
50	VALVE ASM; HTR	8-98080-998-1	01	1	0908-	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0803-0907	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0908-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0803-0907	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0908-	●	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	0810-0907	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	0908-	●	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-758-0	01	1	0803-0907	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-758-0	01	1	0908-	●	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0803-0907	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0908-	●	●
