8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#68065) — 16 parça

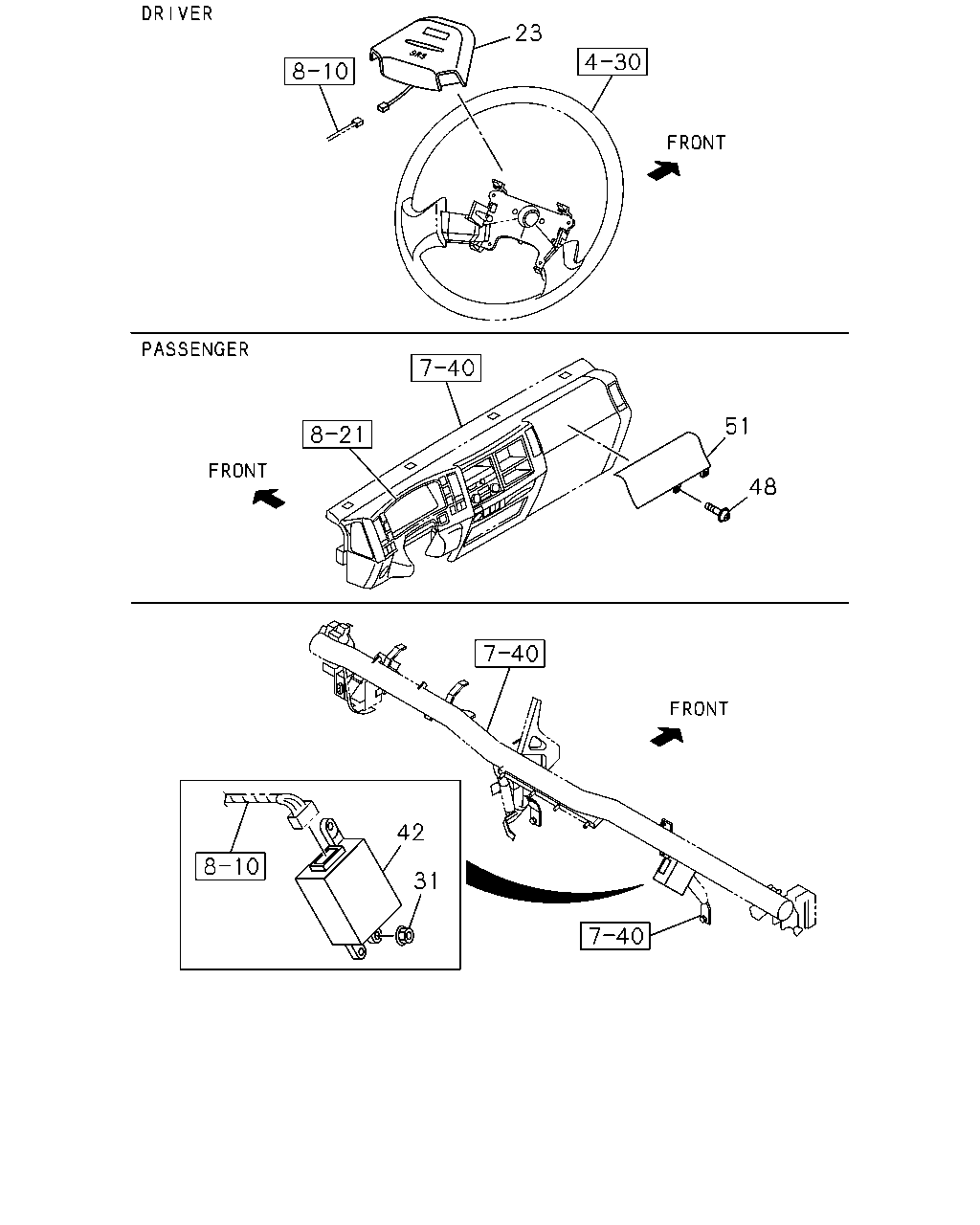

23 51 48 42 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	AIR BAG UNIT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) CHEVROLET BRAND<RWE> DARK GRAY	8-97424-576-1	01	1	1212-	●
23	AIR BAG UNIT AIR BAG DRIVER(AJ3) CHEVROLET BRAND<RWE> DARK GRAY	8-97424-576-1	01	1	1212-		●
23	AIR BAG UNIT AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97418-100-0	01	1	1008-1206	●
23	AIR BAG UNIT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97418-100-0	01	1	1207-1210	●
23	AIR BAG UNIT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY	8-97423-999-0	01	1	1211-1211	●
23	AIR BAG UNIT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. CHEVROLET BRAND<RWE> DARK GRAY	8-97423-999-1	01	1	1212-	●
23	AIR BAG UNIT AIR BAG DRIVER(AJ3) EXC. CHEVROLET BRAND<RWE> DARK GRAY	8-97423-999-1	01	1	1212-		●
31	NUT AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE	0-91180-106-0	03	1	1008-1206	●
31	NUT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE	0-91180-106-0	03	1	1207-1211	●
31	NUT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE	0-91180-106-0	03	1	1212-	●
31	NUT AIR BAG DRIVER(AJ3) M6 FLANGE	0-91180-106-0	03	1	1212-		●
42	CONTROL UNIT; SRS AIR BAG DRIVER(AJ3)	8-98120-072-2	01	1	1207-1211	●
42	CONTROL UNIT; SRS AIR BAG DRIVER(AJ3)	8-98120-072-2	01	1	1212-	●	●
42	CONTROL UNIT; SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98120-073-2	01	1	1008-	●
48	BOLT; INST PNL AIR BAG DRIVER & PASSENGER(AK5) M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	1008-	●
51	AIR BAG ASM; P/S AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97409-783-2	01	1	1008-	●
