◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#68064) — 225 parça

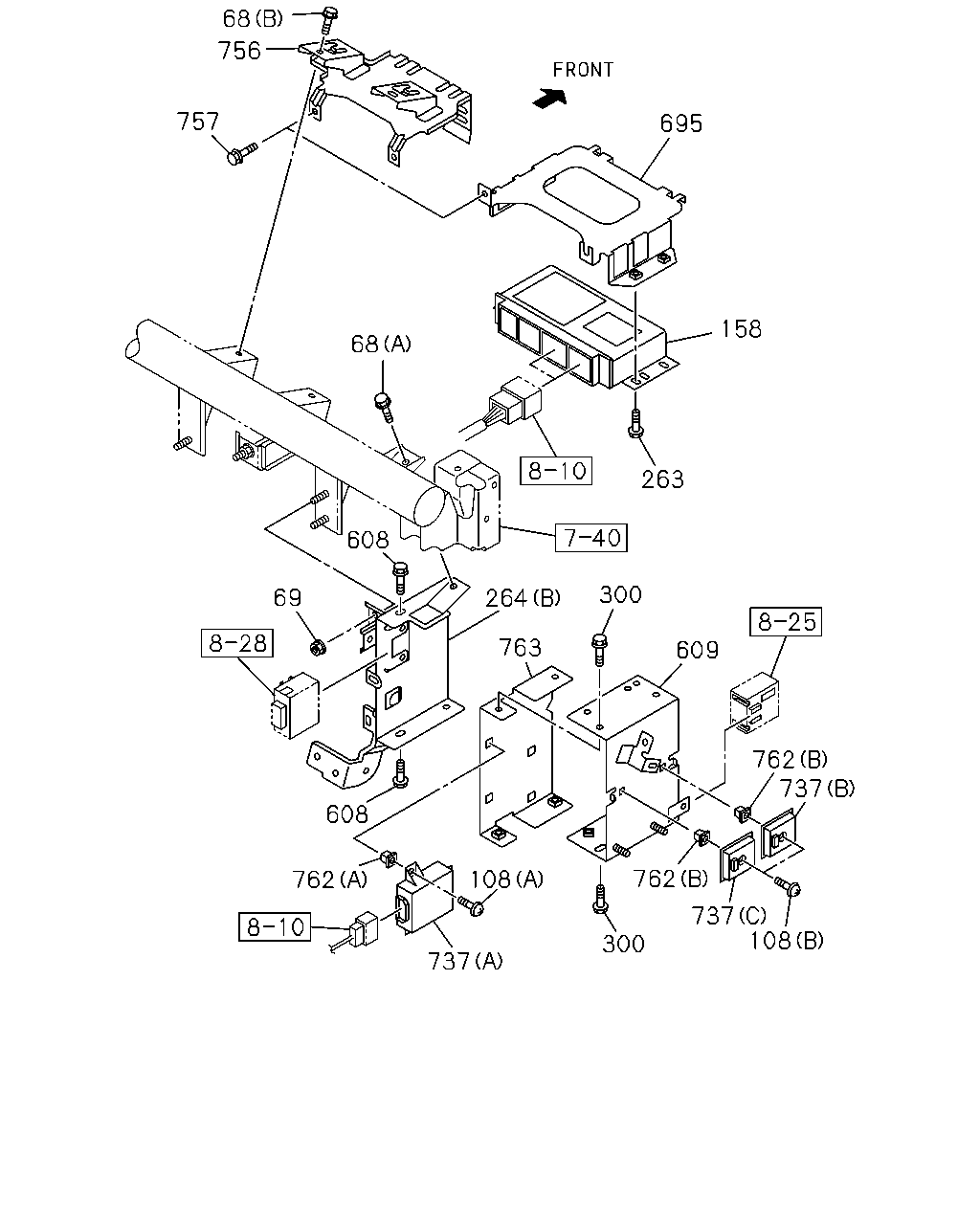

çizim 138114
68 756 757 695 158 263 300 609 264 608 69 608 762 737 108 762 300 108 737 737 762 763 68
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0803-1007 ●
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1008- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0803-0907 ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0908- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0803-0907 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0908- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 0803- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148J RIB CHINA(5E0), TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 12R22.5-152/148K RIB(5K5),TIRE 10.00R-20-16 EXP LUG(5L8),TIR E 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TI RE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1008-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1008-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 12R22.5-152/148K RIB(5K5),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIBEEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIALMIDDLE EAST(89R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1012-1107 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1012-1107 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1108-1109 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1108-1109 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIR E 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1110-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1110-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) KD PREPARATORY PACK<6HF> 		1-80119-229-2 01 1 1008-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) KD PREPARATORY PACK<6HF> 		1-80119-229-2 01 1 1012-1201 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		1-80119-229-2 01 1 0906-1005 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) EXC. KD PREPARATORY PACK<6HF> 		8-98170-647-0 01 1 1008-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) EXC. KD PREPARATORY PACK<6HF> 		8-98170-647-0 01 1 1012-1201 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1202- ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) 		1-80119-261-0 01 1 0803-0808 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE FRT 10.00-20-14 RIB RR 10.00-20-14 LUG(11X), TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-16 RIB(40T) ,TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 10.00-20-16 LUG(51R),TIRE 11.00R-22.5-16 RIB(55N),TIRE 11.00R20-16 GULF RIB(58N),TI RE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R), TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N) 		1-80119-261-0 01 1 0809-0812 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148J RIB CHINA(5E0), TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 11.00R-22.5-16 RIB(55N),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N) 		1-80119-261-0 01 1 0901-0901 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148J RIB CHINA(5E0), TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		1-80119-261-0 01 1 0901-1005 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148J RIB CHINA(5E0), TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98170-648-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148J RIB CHINA(5E0), TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 12R22.5-152/148K RIB(5K5),TIRE 10.00R-20-16 EXP LUG(5L8),TIR E 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TI RE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1008-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1008-1011 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 12R22.5-152/148K RIB(5K5),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIBEEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIALMIDDLE EAST(89R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1012-1107 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1012-1107 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE-FRT,RR 11R22.5 148/145L RIB GULF(5J7),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 GULF RIB(58N),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1108-1109 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1108-1109 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIR E 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1110-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1110-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIR E 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 RIB(85R),TIRE FRT,RR 10.00R20-14 RIB(87N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98170-648-0 01 1 1202-1402 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		8-98170-648-0 01 1 1202-1402 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIR E 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98170-648-0 01 1 1403- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		8-98170-648-0 01 1 1403- ●
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 0803-1007 ●
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 1008- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (C) 		8-98064-901-0 01 1 0908- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 0803- ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0803-0907 ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0908- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 0803- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0803-0808 ●
608 BOLT; CONT UNIT,AIR SUS
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0809-0906 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0809-0906 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0809-0906 ●
608 BOLT; CONT UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0907-0907 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0907-0907 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0907-0907 ●
608 BOLT; CONT UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0908-1211 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0908-1211 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0908-1211 ●
608 BOLT; CONT UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A) AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 0908-1211 ●
608 BOLT; CONT UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1212- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1212- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1212- ●
608 BOLT; CONT UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1212- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98095-336-0 01 1 0803-0808 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0809-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0809-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0809-0906 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0907-0907 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0907-0907 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0907-0907 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0908-1211 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0908-1211 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 0908-1211 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A) AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 0908-1211 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 1212-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 1212-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 1212-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1212-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98226-231-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) AUTO DOOR LOCK<AU4> ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98226-231-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98226-231-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1309- ●
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 0803-1007 ●
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 1008- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0803- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0803- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0803- ●
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98056-411-3 01 1 1008-1010 ●
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98052-797-3 01 1 0803-1010 ●
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98052-797-3 01 1 1011- ● ●
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 0803-1007 ●
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 1008- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0803- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0803- ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 0803- ●

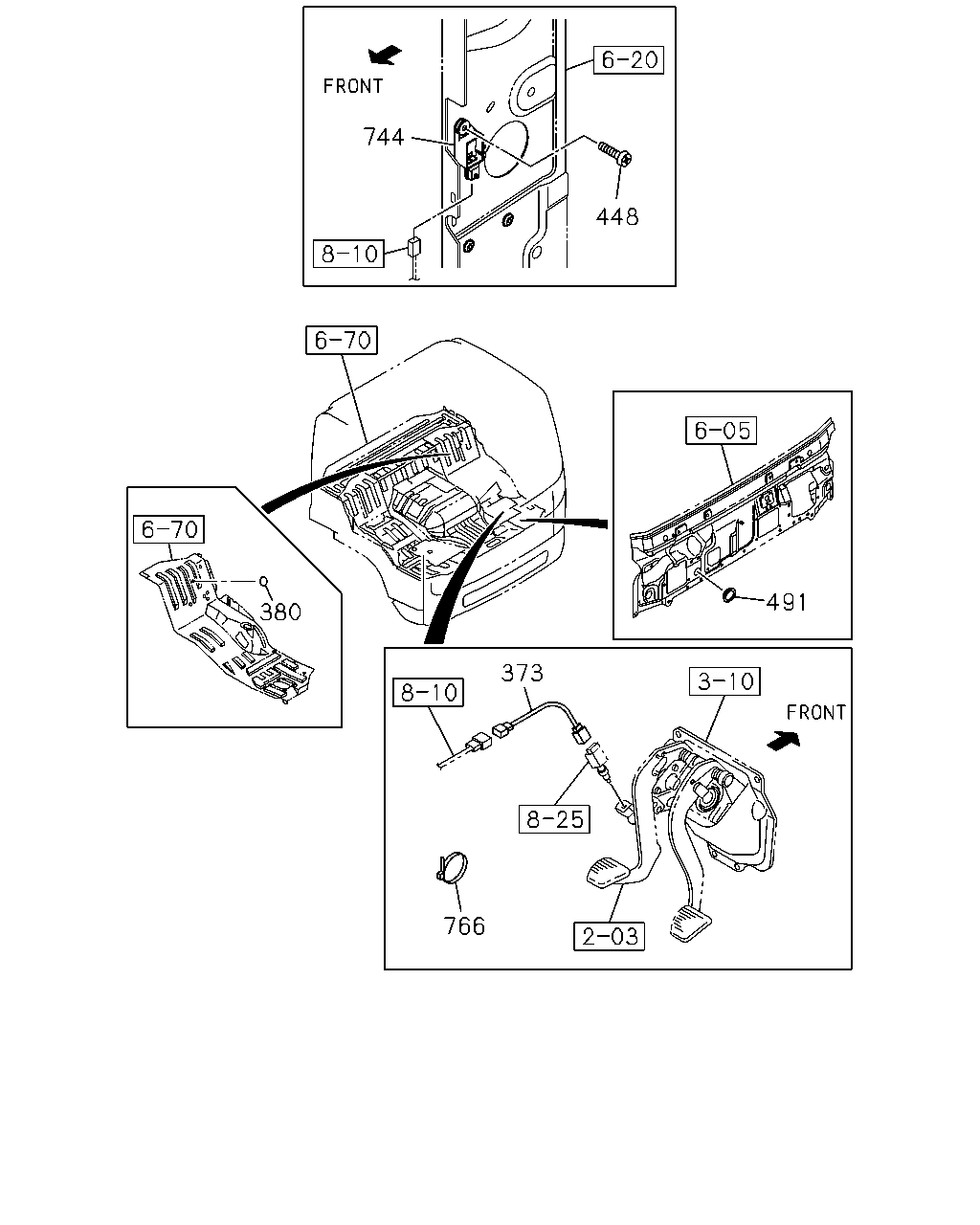

çizim 138122
744 448 491 373 380 766
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 0803-0805 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 0803-0805 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 0806-0906 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 0806-0906 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 0907-0907 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 0907-0907 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 0908-1211 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 0908-1211 ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 0908-1211 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 1212- ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 1212- ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 1212- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0803-0805 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0803-0805 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0806-0906 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0806-0906 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0907-0907 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0907-0907 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0908-1211 ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0908-1211 ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 0908-1211 ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1212- ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1212- ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1212- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98110-722-0 01 1 0803- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98110-721-0 01 1 0803- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0803- ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1008-1206 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1207-1211 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1212- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1212- ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0803-0907 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0908- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1008-1206 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1207-1211 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1212- ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1212- ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0803-0807 ●

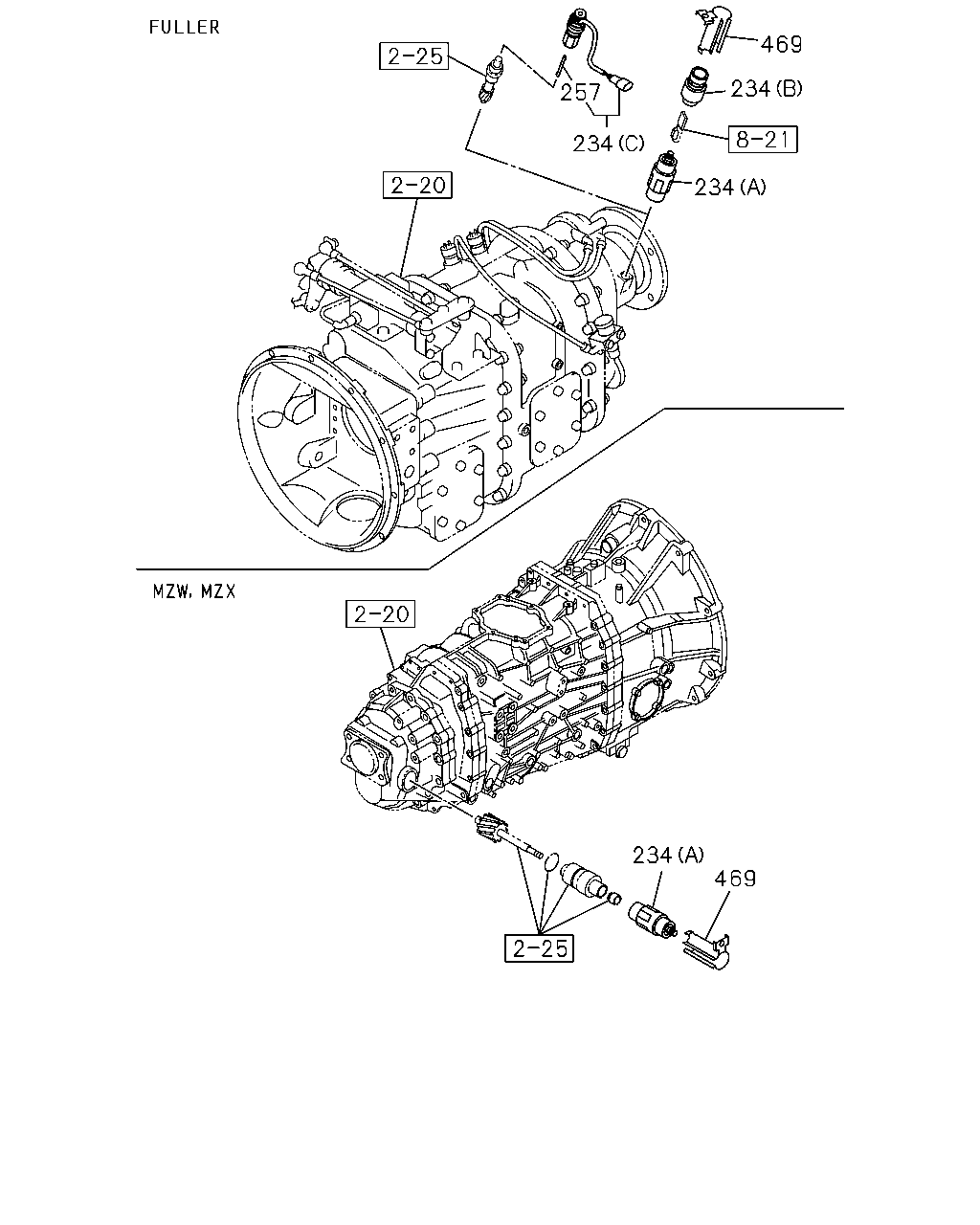

çizim 138188
257 234 469 234 234 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
(C) 25 PULSE 		1-83127-414-1 01 1 0908- ●
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-238-0 01 1 0803-0803 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803-0805 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0806-0906 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0907- ●
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 0908- ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0803-0805 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0806-0808 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0809-0906 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0907- ●

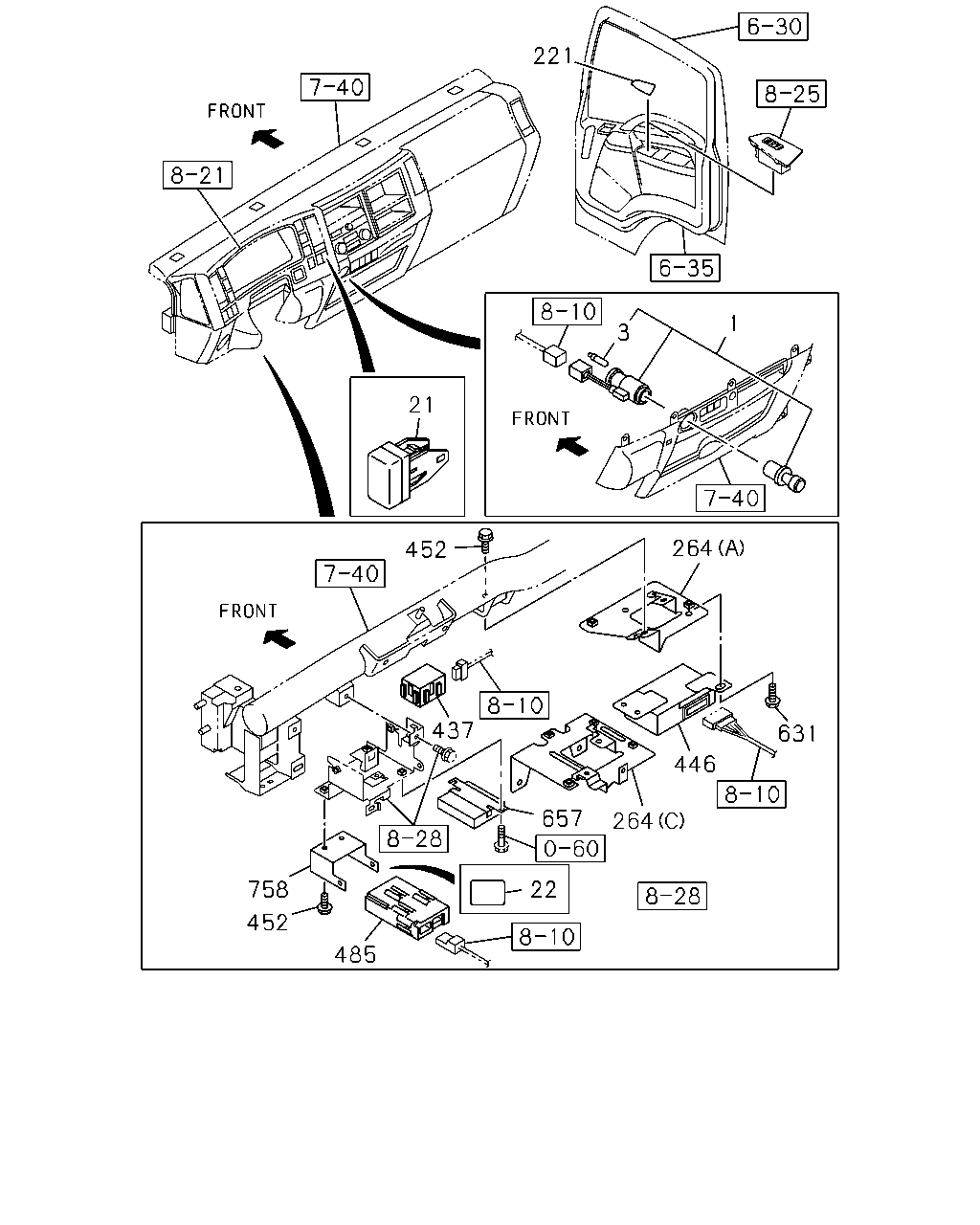

çizim 138342
221 1 3 21 452 264 631 446 264 657 22 437 485 452 758
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0803-0907 ●
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0908-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0803-0907 ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0908-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0803-0907 ●
21 COVER; HOLE 8-98025-954-1 01 1 0908- ● ●
22 SEAL; TAPE
IRAN EQUIPMENT(D8T) SPEED LIMITER 90KM(NMJ) 		1-80199-006-0 02 1 1011-1107 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0809-0907 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0908- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0809-0907 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0908- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (C) 		8-98064-901-0 01 1 0908- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 0803- ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0803-0907 ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 0908- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0803-0907 ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0908- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 0908- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-2 01 1 0803- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0803-0907 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0907 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0908- ● ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 0908- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 0803- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0803-0812 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0907-0907 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0908- ● ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 0803-0907 ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 0908-1401 ● ●
657 CONTROL UNIT; MIMAMORI 8-98260-912-0 01 1 1402- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 0803- ●

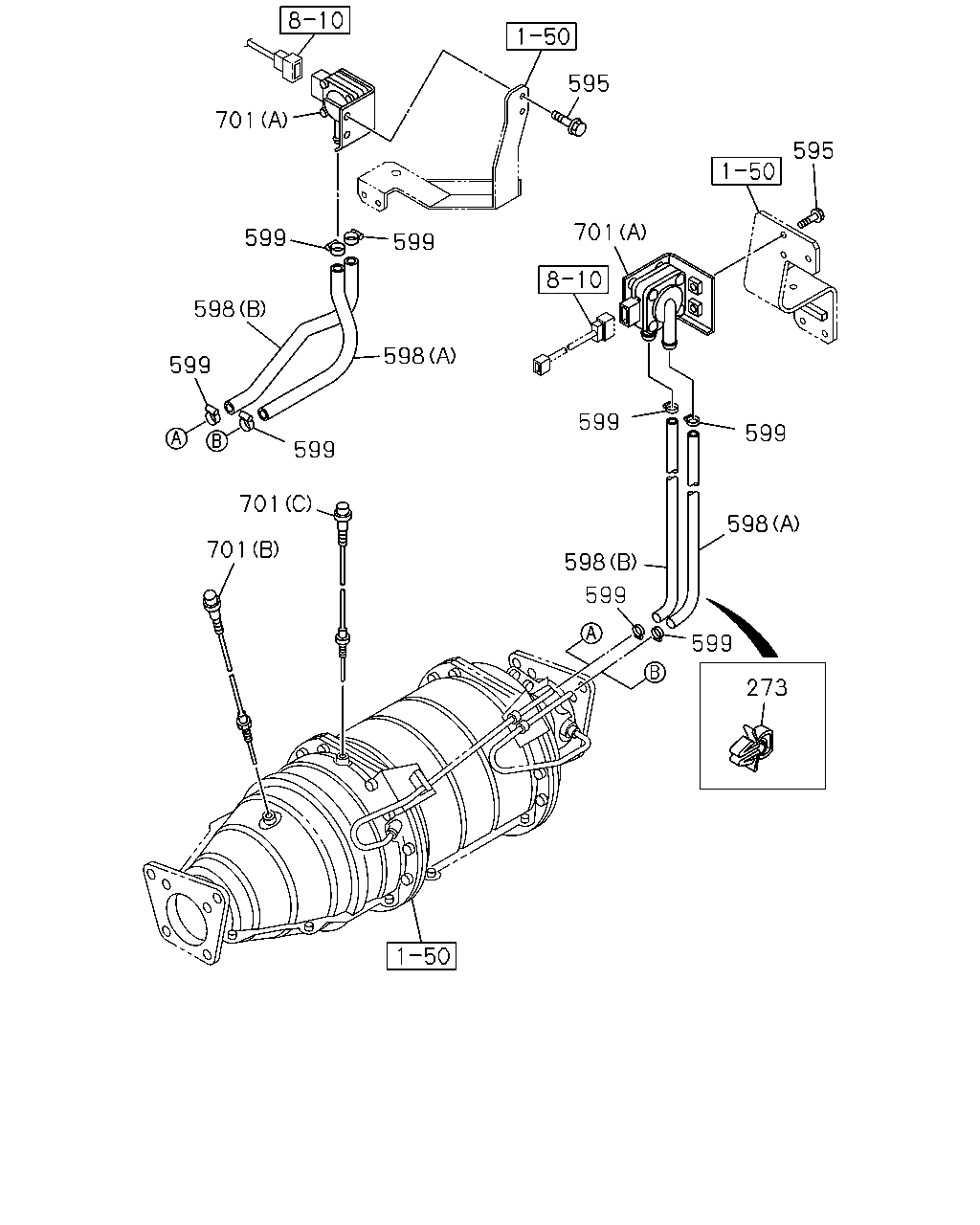

çizim 144018
701 599 599 598 599 599 598 701 701 599 599 598 598 599 599 273 595 595 701
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS
6HK1-TCC ENG(81L) 		8-94225-098-0 01 1 0803-0803 ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0808 ●
595 BOLT; SENSOR
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) 		8-98088-940-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) 		8-98088-941-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) (B) 		8-98072-087-1 01 1 0803-0805 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) (B) 		8-98072-087-1 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) 		8-98072-087-1 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) 		8-98072-087-1 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) (A) 		8-98072-088-0 01 1 0803-0805 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 6000MM(60W) (A) 		8-98072-088-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (A) 		8-98072-088-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (A) 		8-98072-088-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 0803-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-98075-388-0 01 1 0803-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-98075-388-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 0803-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) 		8-98075-389-0 01 1 0803-0805 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) 		8-98075-389-0 01 1 0806-0808 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0907- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0803-0808 ●
599 CLIP; HOSE
EURO4 SPECIFICATION<NT4> ID=13 		8-97329-627-0 04 1 0809- ●
701 SENSOR; DPD
6HK1-TCC ENG(81L) (B) 		8-97359-987-5 01 1 0803-0808 ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 0809- ●
701 SENSOR; DPD
6HK1-TCC ENG(81L) (C) 		8-97359-989-5 01 1 0803-0808 ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 0809- ●
701 SENSOR; DPD
6HK1-TCC ENG(81L) (A) 		8-97360-368-2 01 1 0803-0808 ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 0809- ●
çizim 193694
726 497 497 726 507
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 02 1 1008- ●
507 CONNECTOR
EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE 		0-28050-625-0 04 1 1008- ●

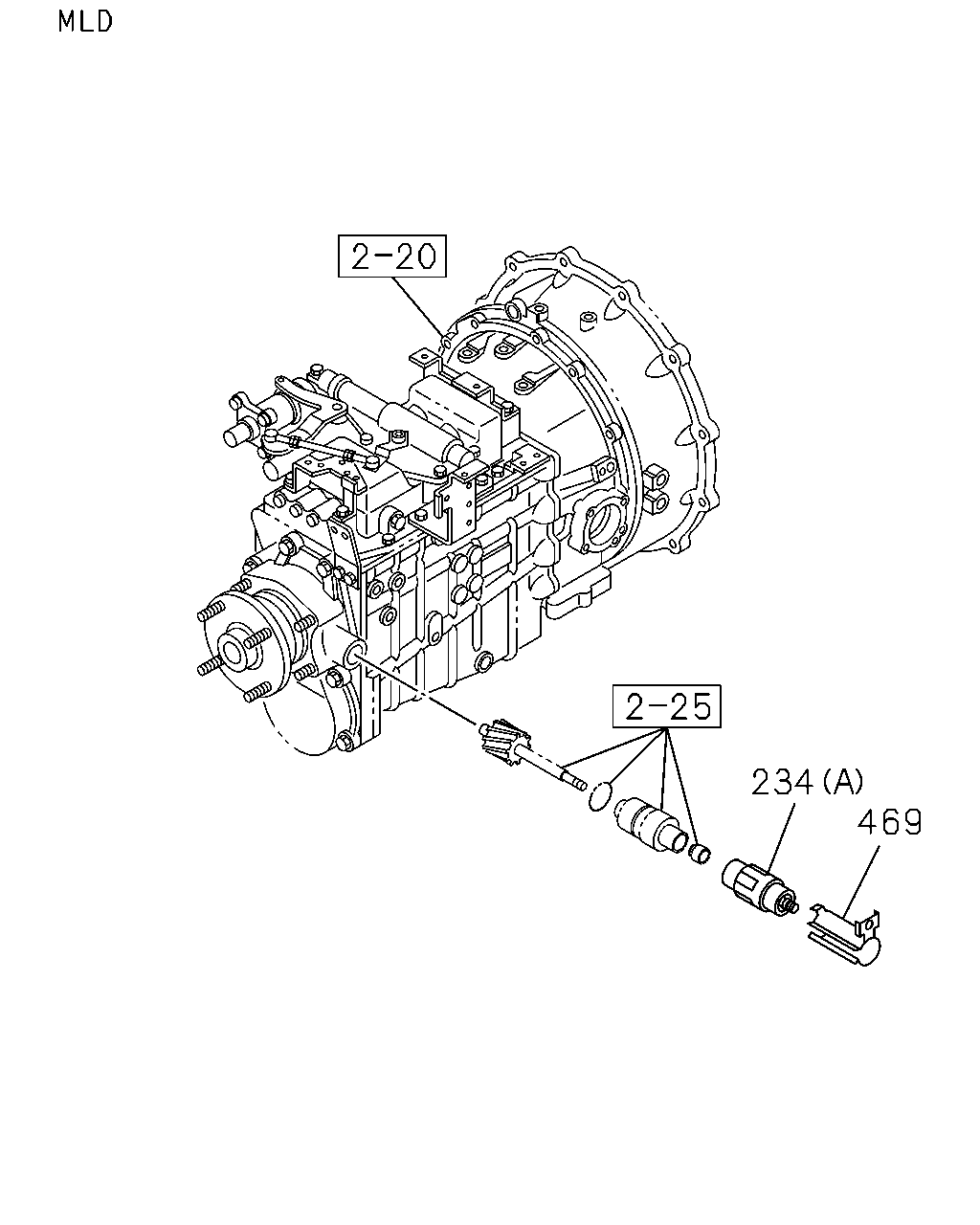

çizim 193706
234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
(C) 25 PULSE 		1-83127-414-1 01 1 0908- ●
234 SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-238-0 01 1 0803-0803 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803-0805 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0806-0906 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0907- ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0803-0805 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-97168-308-0 01 1 0806-0808 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0809-0906 ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
