◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#68063) — 241 parça

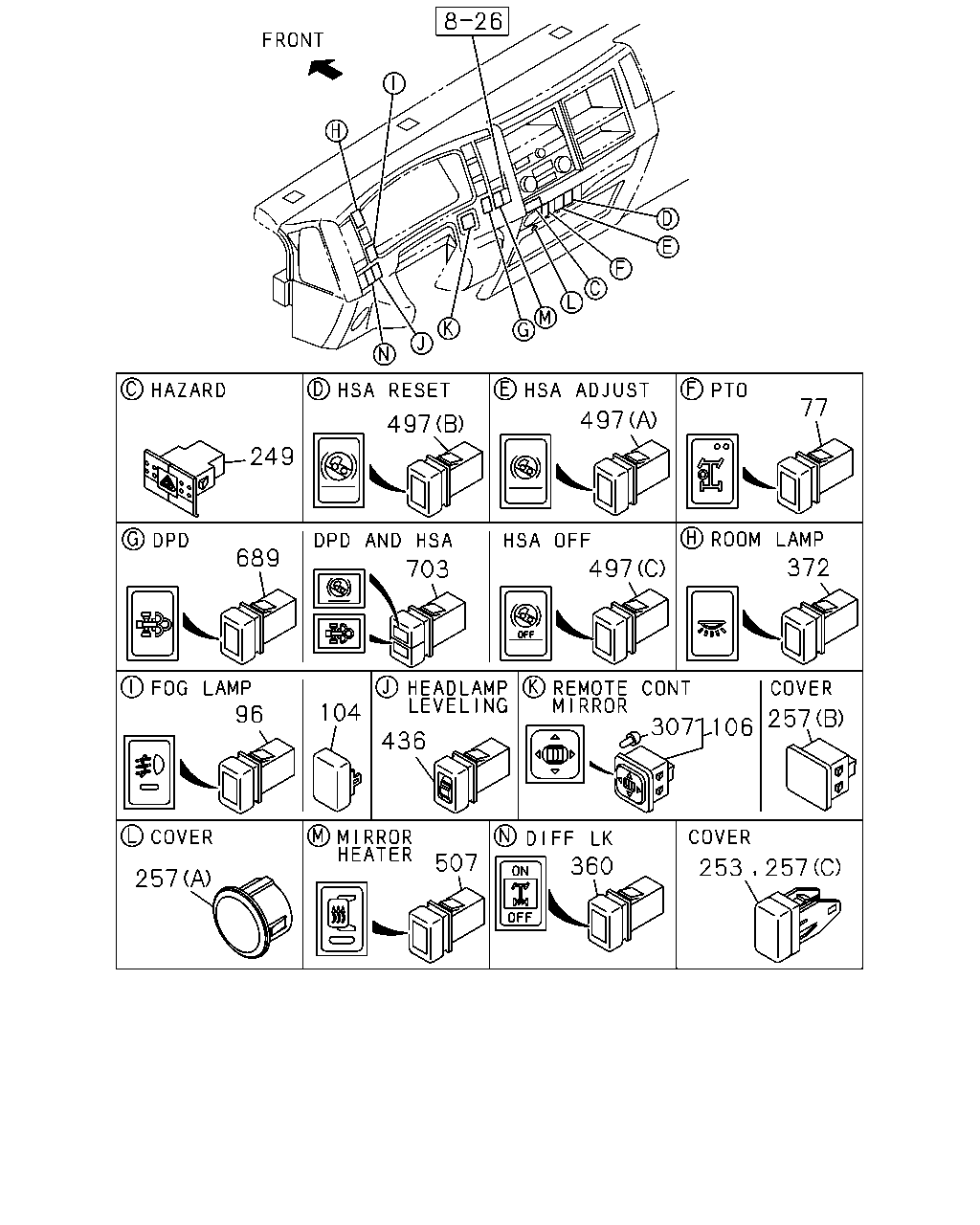

çizim 137968
249 497 497 77 372 497 703 689 96 104 436 307 106 257 257 253 360 507 257
BalonParca AdiParca NoAdetTipApplied Date A B
77 SWITCH; PTO
ZF9S1110 M/T(Y5E) 		8-97615-488-2 01 1 0803- ●
96 SWITCH; FOG LAMP 8-97387-031-3 01 1 0803-0907 ●
96 SWITCH; FOG LAMP 8-97387-031-3 01 1 0908-0908 ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0909- ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 0909- ● ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1008- ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0803-0907 ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0908- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 0803-0907 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0908-1007 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0908-1007 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1008-1107 ● ●
253 COVER; SW HOLE
EXC. DIFF LOCK<C3N> 		8-98025-954-1 01 1 1008-1107 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1008-1107 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1108- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1108- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0803-0907 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0803-0907 ●
253 COVER; SW HOLE 8-98025-954-1 02 1 0908- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 0908- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (D) 		8-98029-917-0 01 1 0908- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0803-0907 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0908- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0803-0907 ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1008- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1008- ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 0803-0907 ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 0908- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1008- ●
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1008- ●
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		8-97613-963-1 01 1 1010-1107 ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0803-0907 ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0908- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0803-0907 ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0908- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) OFF 		8-97386-923-2 01 1 0809-0907 ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) OFF 		8-97386-923-2 01 1 0908- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) OFF 		8-97386-923-2 01 1 0908- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-97386-985-1 01 1 0803-0806 ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0807-0907 ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0908- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-97386-967-2 01 1 0803-0806 ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0807-0907 ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0908- ● ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 1008- ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-1 01 1 0803-0808 ●
689 SWITCH; DPD
CATALYSIS CONTROL WITH DPD<8JM> EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0809- ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-1 01 1 0803-0808 ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD<8JM> 		8-98011-346-2 01 1 0809- ●

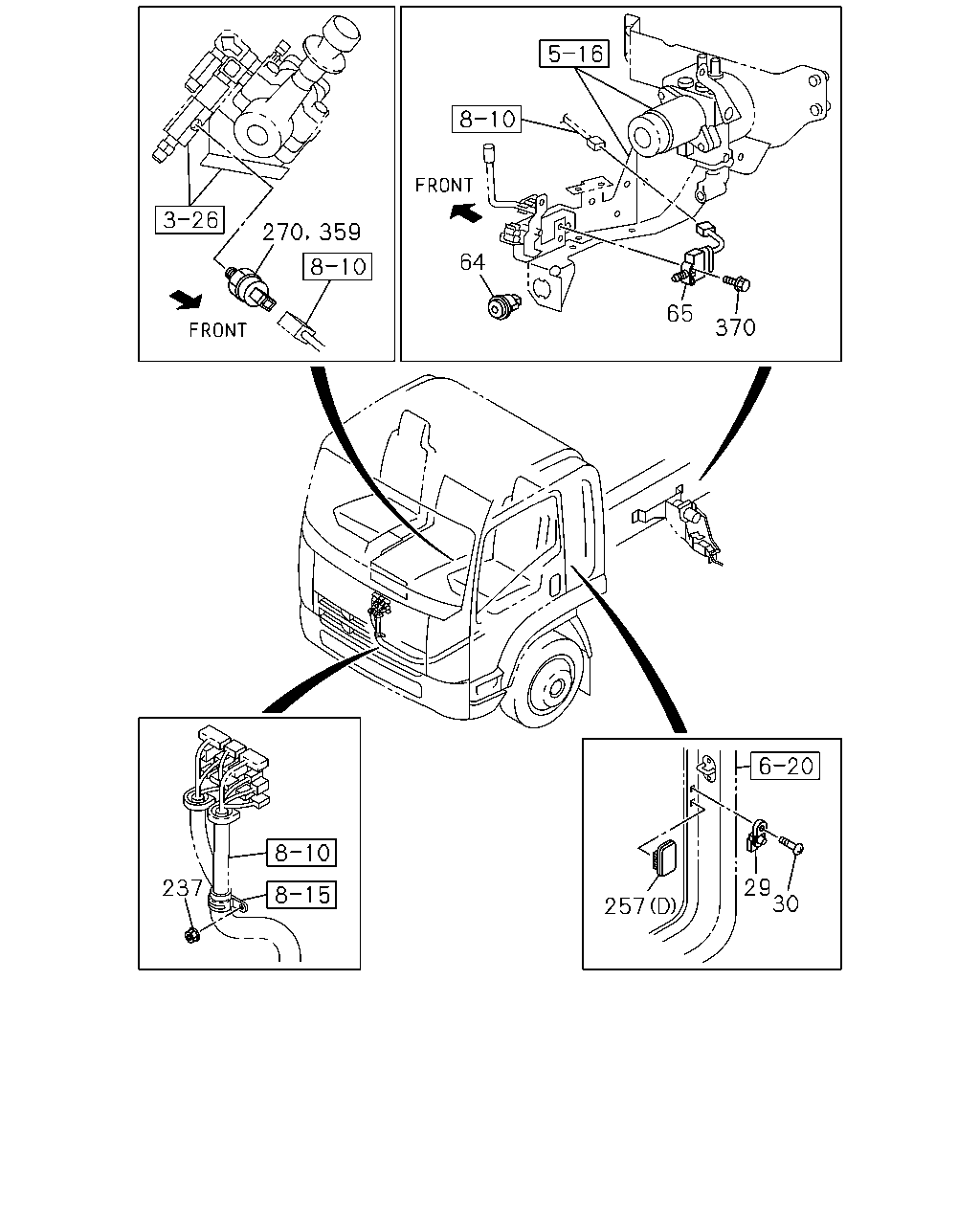

çizim 138192
270 359 64 65 370 30 29 257 237
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0803-0808 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0803-0808 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0809-0907 ●
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 0809-0907 ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 0809-0907 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0908- ● ●
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 0908- ●
29 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> BLACK 		8-98022-211-0 01 1 0908- ●
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> BLACK 		8-98022-211-0 01 1 0908- ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0803-0808 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0803-0808 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0809-0907 ●
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 0809-0907 ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 0809-0907 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0908- ● ●
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 0908- ●
30 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> M5X18 		8-98047-201-0 01 1 0908- ●
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> M5X18 		8-98047-201-0 01 1 0908- ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-173-2 01 1 1008- ●
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 01 1 1008- ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803-0907 ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0908- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (D) 		8-98029-917-0 01 1 0908- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (D) 		8-98029-917-0 01 1 0908- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0803-0907 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0908- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0803-0907 ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1008- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1008- ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 0803-0907 ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 0908- ● ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0803-0808 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0809-0907 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0908-1007 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0908-1007 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1008- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1008- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1008- ●
270 SWITCH; PRESS,WHEEL PARKING
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0 		8-98010-856-2 01 1 0803- ●
359 SWITCH; TRAILER BRAKE
STAMP 0.3 		8-98010-857-0 01 1 0908- ●
370 BOLT; SW
AUTO CAB TILT<WV2> M6X30 FLANGE 		0-28650-630-0 02 1 1008- ●

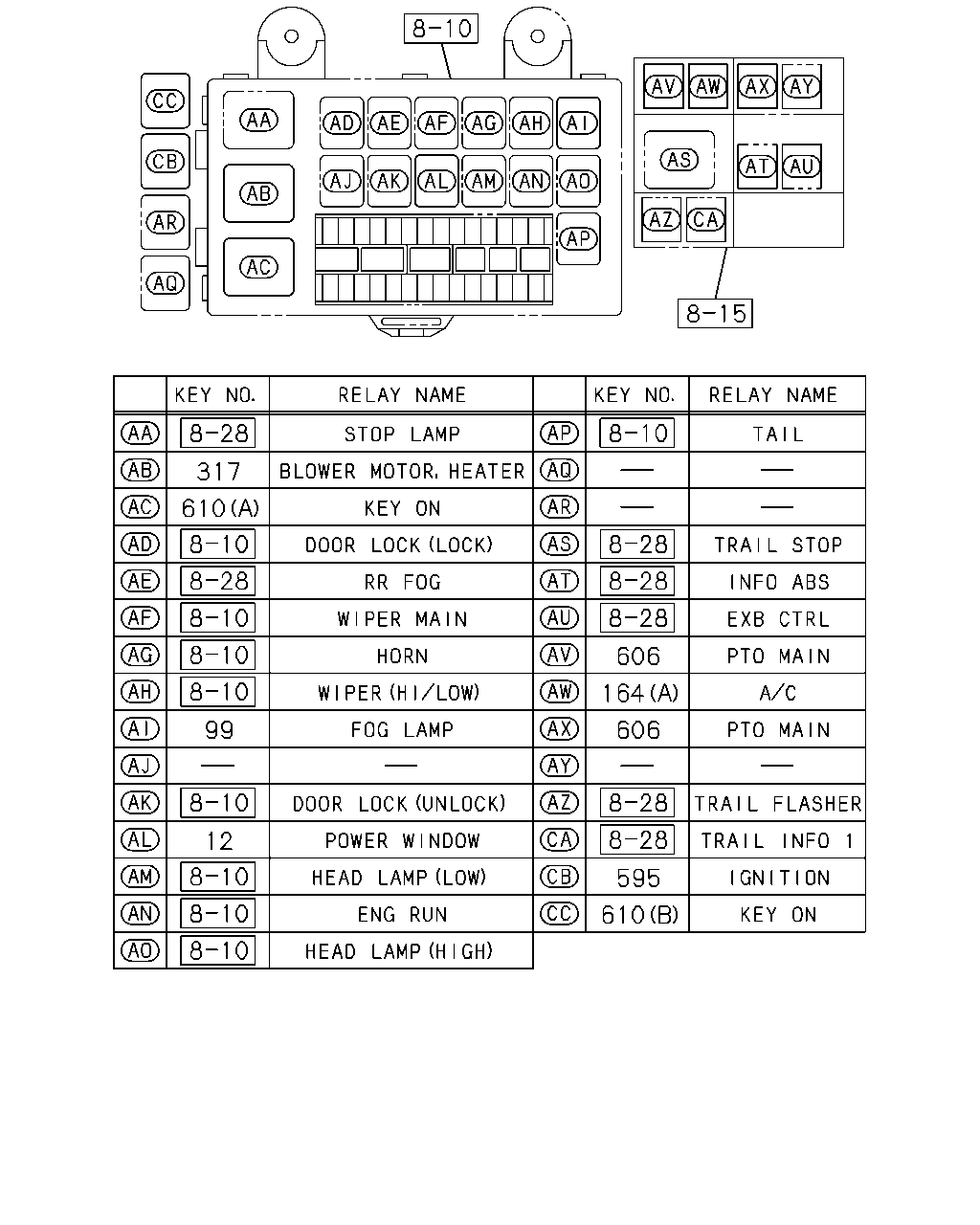

çizim 138327
317 610 99 12 606 164 606 595 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0808 ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0809-0907 ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0908- ● ●
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0907 ●
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 0908-0908 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 0909- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0907 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0908- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0907 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908- ● ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0806 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0807-0808 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0809-0907 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908- ● ●
595 RELAY; IGNITION
AIR BAG DRIVER(AJ3) VENEZUELA COUNTRY(CW5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1212- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803- ●
606 RELAY; PTO MAIN
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 24V 10A PANASONIC 		8-97173-035-1 01 1 0803- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803- ●
610 RELAY; KEY ON
AIR BAG DRIVER(AJ3) VENEZUELA COUNTRY(CW5) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1212- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0907 ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908- ● ●

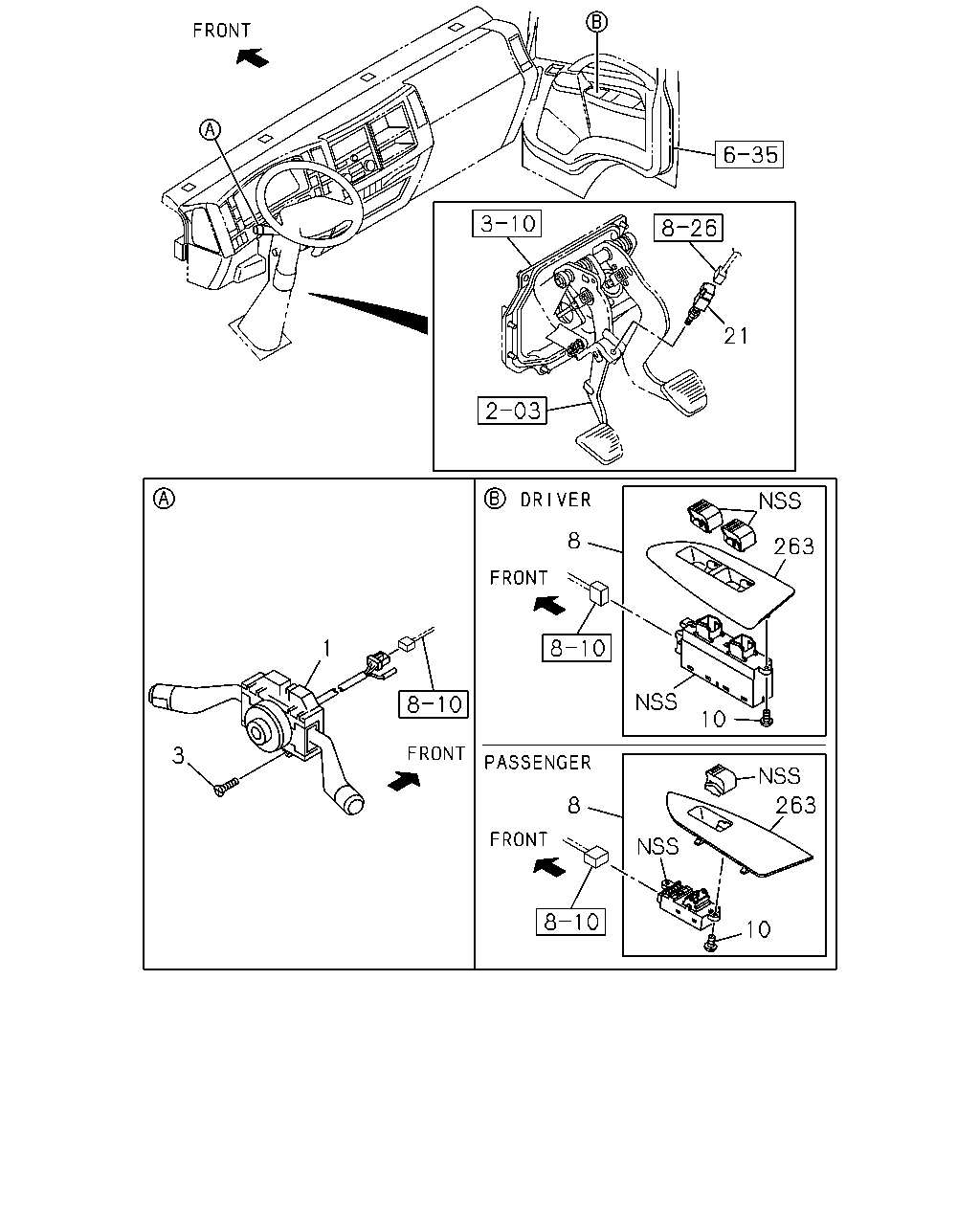

çizim 193691
21 263 10 263 10 8 8 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98217-826-0 01 1 1212-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> 		8-98217-826-0 01 1 1212-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98243-712-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> 		8-98243-712-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98217-828-0 01 1 1212-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. INTERMITTENT WIPER<C13> 		8-98217-828-0 01 1 1212-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-713-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. INTERMITTENT WIPER<C13> 		8-98243-713-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98146-623-0 01 1 1008-1206 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98146-623-0 01 1 1207-1210 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98217-827-0 01 1 1211-1310 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98243-710-0 01 1 1311- ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98064-898-2 01 1 0809-0907 ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98064-898-2 01 1 0908-1007 ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98064-898-2 01 1 0908-1007 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98064-898-2 01 1 1008-1206 ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98064-898-2 01 1 1008-1206 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98064-898-2 01 1 1207-1211 ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98064-898-2 01 1 1207-1211 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98064-898-2 01 1 1212-1310 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),INTERMITTENT WIPER<C13> 		8-98064-898-2 01 1 1212-1310 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-719-0 01 1 1311- ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),INTERMITTENT WIPER<C13> 		8-98243-719-0 01 1 1311- ●
1 SWITCH; COMB
RR FOG LAMP<T79> 		8-98064-766-1 01 1 0803-0808 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98064-766-1 01 1 0809-1007 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98064-766-1 01 1 1008-1206 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98064-766-1 01 1 1207-1310 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98243-717-0 01 1 1311- ●
1 SWITCH; COMB
EXC. RR FOG LAMP<T79> 		8-98064-897-1 01 1 0803-0808 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98064-897-1 01 1 0809-0907 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98064-897-1 01 1 0908-1007 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98064-897-1 01 1 0908-1007 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),RR FOG LAMP<T79> 		8-98064-897-1 01 1 1008-1206 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98064-897-1 01 1 1008-1206 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),RR FOG LAMP<T79> 		8-98064-897-1 01 1 1207-1211 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98064-897-1 01 1 1207-1211 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),RR FOG LAMP<T79> 		8-98064-897-1 01 1 1212-1310 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3) 		8-98064-897-1 01 1 1212-1310 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),RR FOG LAMP<T79> 		8-98243-718-0 01 1 1311- ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3) 		8-98243-718-0 01 1 1311- ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0803-0907 ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0908- ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98001-737-2 01 1 0803-0808 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98001-737-2 01 1 0809-0907 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98001-737-2 01 1 0908- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98003-784-1 01 1 0803-0808 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98003-784-1 01 1 0809-0809 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98129-845-0 01 1 0810-0907 ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98129-845-0 01 1 0908-1001 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-544-0 01 1 1002- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0803-0808 ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 0809-0907 ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 0908- ● ●
21 SWITCH; CLU
ZF9S1110 M/T(Y5E) 		8-94337-761-0 01 1 0803- ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 0803-0907 ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 0908- ●
21 SWITCH; CLU 8-97358-248-0 01 1 0908- ●
263 COVER; SW
DRIVER 		8-98153-838-0 01 1 0803-0808 ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-838-0 01 1 0809-0907 ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-838-0 01 1 0908- ● ●
263 COVER; SW
PASSENGER 		8-98153-843-0 01 1 0803-0808 ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-843-0 01 1 0809-0907 ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-843-0 01 1 0908- ● ●

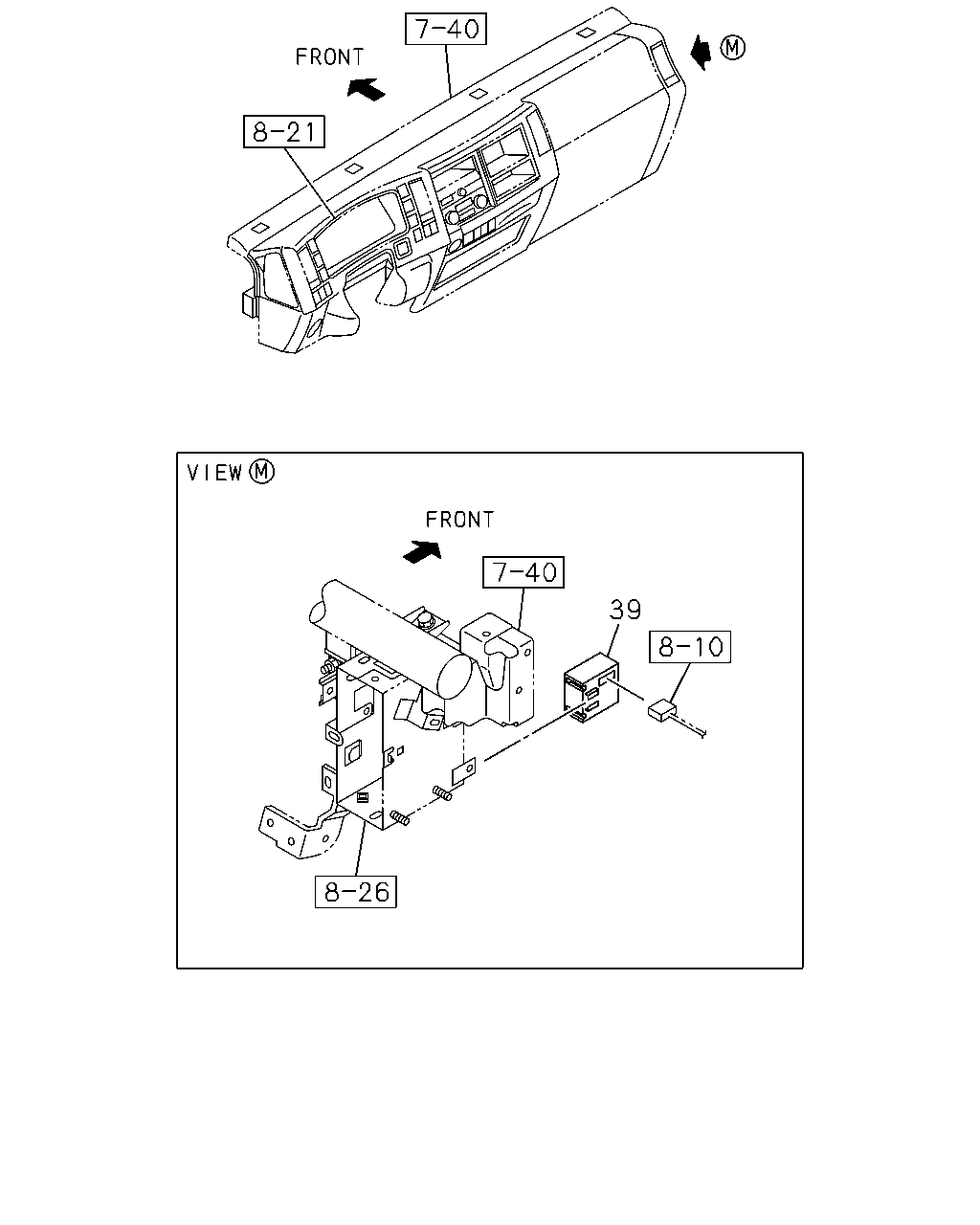

çizim 193701
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0809-0907 ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0908- ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0908- ●
çizim 193753
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0907 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0908- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0803-0907 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
