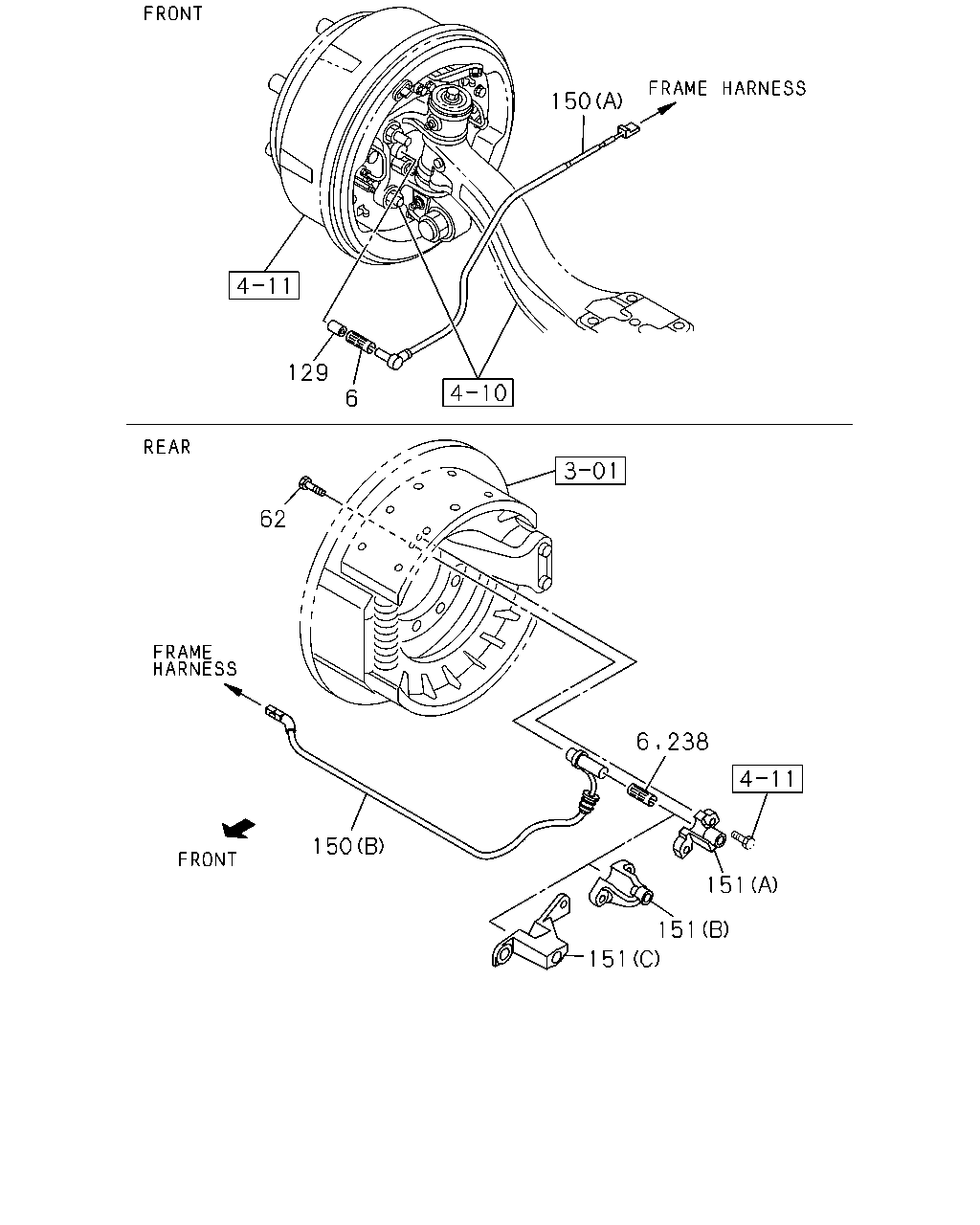

8-20 — METER CABLE (#68061) — 61 parça

150 6 129 62 150 6 238 151 151 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR ANTI LOCK BRAKE<JE5>	1-83129-260-1	02	1	0803-1107	●
6	HOLDER; SPD SENSOR ANTI LOCK BRAKE<JE5>	1-83129-260-1	02	1	0803-1107	●
6	HOLDER; SPD SENSOR ANTI LOCK BRAKE<JE5>	1-83129-260-1	02	1	1108-	●	●
6	HOLDER; SPD SENSOR ANTI LOCK BRAKE<JE5>	1-83129-260-1	02	1	1108-	●	●
62	BOLT; SENSOR BRAKE REGULATION ECE(TDV) M8X16	9-05820-816-0	02	1	0803-0808	●
62	BOLT; SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> M8X16	9-05820-816-0	02	1	0809-1009	●
62	BOLT; SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. IRAN EQUIPMENT(D8T) M8X16	9-05820-816-0	02	1	1010-1107	●
62	BOLT; SENSOR ANTI LOCK BRAKE<JE5> M8X16	9-05820-816-0	02	1	1010-1107		●
62	BOLT; SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> M8X16	9-05820-816-0	02	1	1108-1506	●
62	BOLT; SENSOR ANTI LOCK BRAKE<JE5> M8X16	9-05820-816-0	02	1	1108-1506		●
62	BOLT; SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-	●
62	BOLT; SENSOR ANTI LOCK BRAKE<JE5> M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-		●
129	COLLAR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	0803-0809	●
129	COLLAR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	0810-1007	●
129	COLLAR	1-83129-471-0	02	1	0810-1007		●
129	COLLAR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1008-1009	●
129	COLLAR ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1008-1009		●
129	COLLAR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	1-83129-471-0	02	1	1010-1105	●
129	COLLAR ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1010-1105		●
129	COLLAR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1106-	●
129	COLLAR ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1106-		●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> (A)	8-98073-827-1	02	1	1010-1105	●
150	SENSOR; SPEED,ABS IRAN EQUIPMENT(D8T) (B)	8-98075-750-0	01	1	1010-1107	●
150	SENSOR; SPEED,ABS IRAN EQUIPMENT(D8T) (B)	8-98075-751-0	01	1	1010-1107	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (B)	8-98107-826-0	01	1	1010-		●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (B)	8-98107-827-0	01	1	1010-		●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	0803-0809	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	0810-1007	●
150	SENSOR; SPEED,ABS (A)	1-83227-024-1	02	1	0810-1007		●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	1008-1009	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	1008-1009		●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-83227-024-1	02	1	1010-1105	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	1010-1105		●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	1106-	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (A)	1-83227-024-1	02	1	1106-		●
150	SENSOR; SPEED,ABS BRAKE REGULATION ECE(TDV) (B)	8-98089-383-0	01	1	0803-0808	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B)	8-98089-383-0	01	1	0809-1009	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. IRAN EQUIPMENT(D8T) (B)	8-98089-383-0	01	1	1010-1107	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (B)	8-98089-383-0	01	1	1108-	●
150	SENSOR; SPEED,ABS BRAKE REGULATION ECE(TDV) (B)	8-98089-384-0	01	1	0803-0808	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B)	8-98089-384-0	01	1	0809-1009	●
150	SENSOR; SPEED,ABS BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. IRAN EQUIPMENT(D8T) (B)	8-98089-384-0	01	1	1010-1107	●
150	SENSOR; SPEED,ABS ANTI LOCK BRAKE<JE5> (B)	8-98089-384-0	01	1	1108-	●
151	BRACKET; SPD SENSOR IRAN EQUIPMENT(D8T) (C)	1-42319-218-0	02	1	1010-1107	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-405-0	01	1	1010-1504		●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	8-98299-398-0	01	1	1505-		●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-406-0	01	1	1010-1504		●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	8-98299-399-0	01	1	1505-		●
151	BRACKET; SPD SENSOR BRAKE REGULATION ECE(TDV) (A)	1-83129-403-0	01	1	0803-0808	●
151	BRACKET; SPD SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83129-403-0	01	1	0809-1009	●
151	BRACKET; SPD SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. IRAN EQUIPMENT(D8T) (A)	1-83129-403-0	01	1	1010-1107	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-403-0	01	1	1108-1504	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (B)	8-98299-396-0	01	1	1505-	●
151	BRACKET; SPD SENSOR BRAKE REGULATION ECE(TDV) (A)	1-83129-404-0	01	1	0803-0808	●
151	BRACKET; SPD SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (A)	1-83129-404-0	01	1	0809-1009	●
151	BRACKET; SPD SENSOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> EXC. IRAN EQUIPMENT(D8T) (A)	1-83129-404-0	01	1	1010-1107	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (A)	1-83129-404-0	01	1	1108-1504	●
151	BRACKET; SPD SENSOR ANTI LOCK BRAKE<JE5> (B)	8-98299-397-0	01	1	1505-	●
238	BUSHING; BRKT ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) HUB LUBRICATION OIL BATH<C5K> IRAN EQUIPMENT(D8T) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) BRAKE REGULATION ECE(TDV)	1-42319-213-0	02	1	1010-1105	●
238	BUSHING; BRKT FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/918" ROCKWELL(W8C)	1-42319-213-0	02	1	1010-1105	●
238	BUSHING; BRKT IRAN EQUIPMENT(D8T)	1-42319-213-0	02	1	1106-1107	●
