Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#68053) — 731 parça

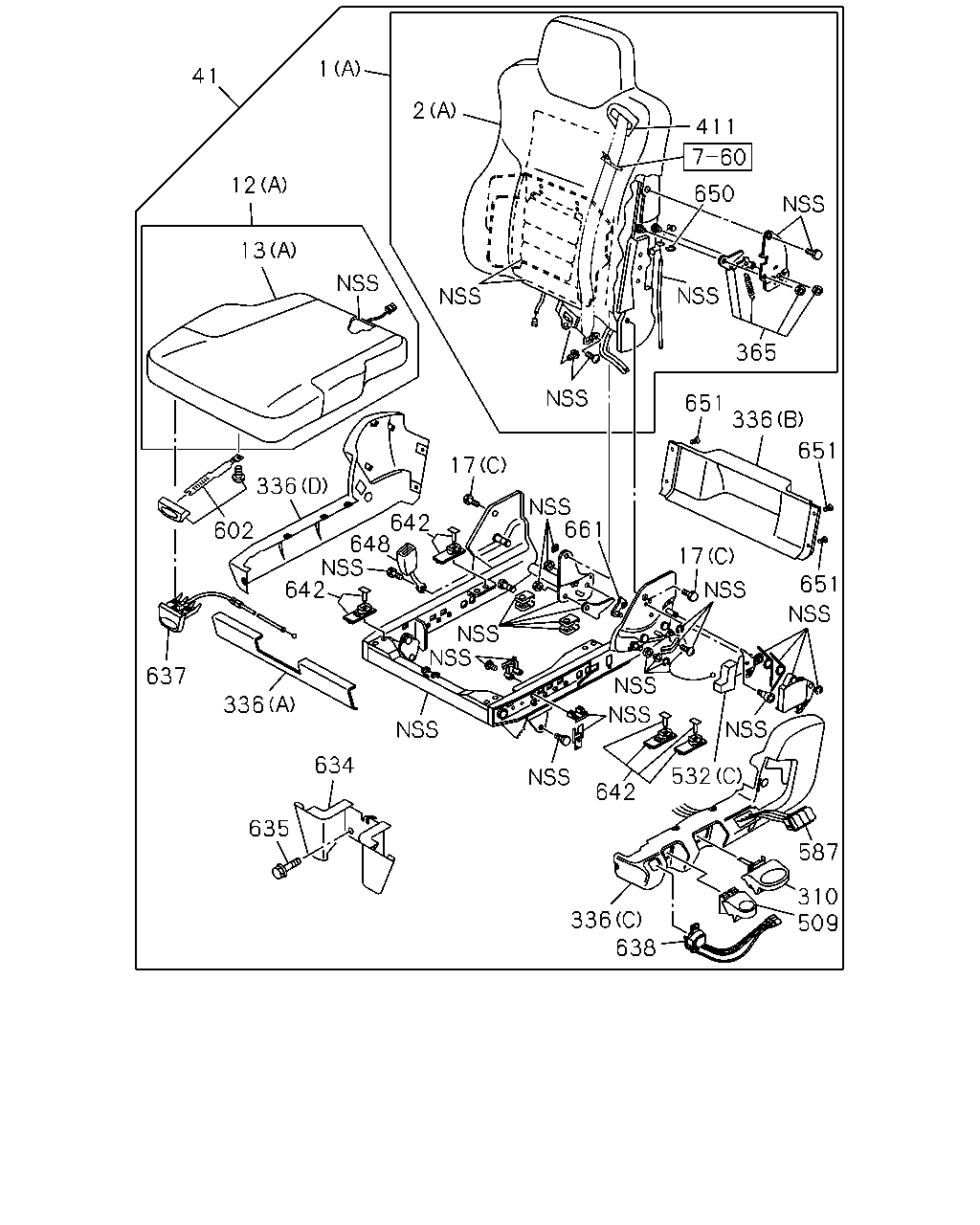

411 650 365 651 336 651 2 1 41 12 13 17 642 336 648 642 602 336 637 634 635 642 661 17 651 532 587 310 509 638 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

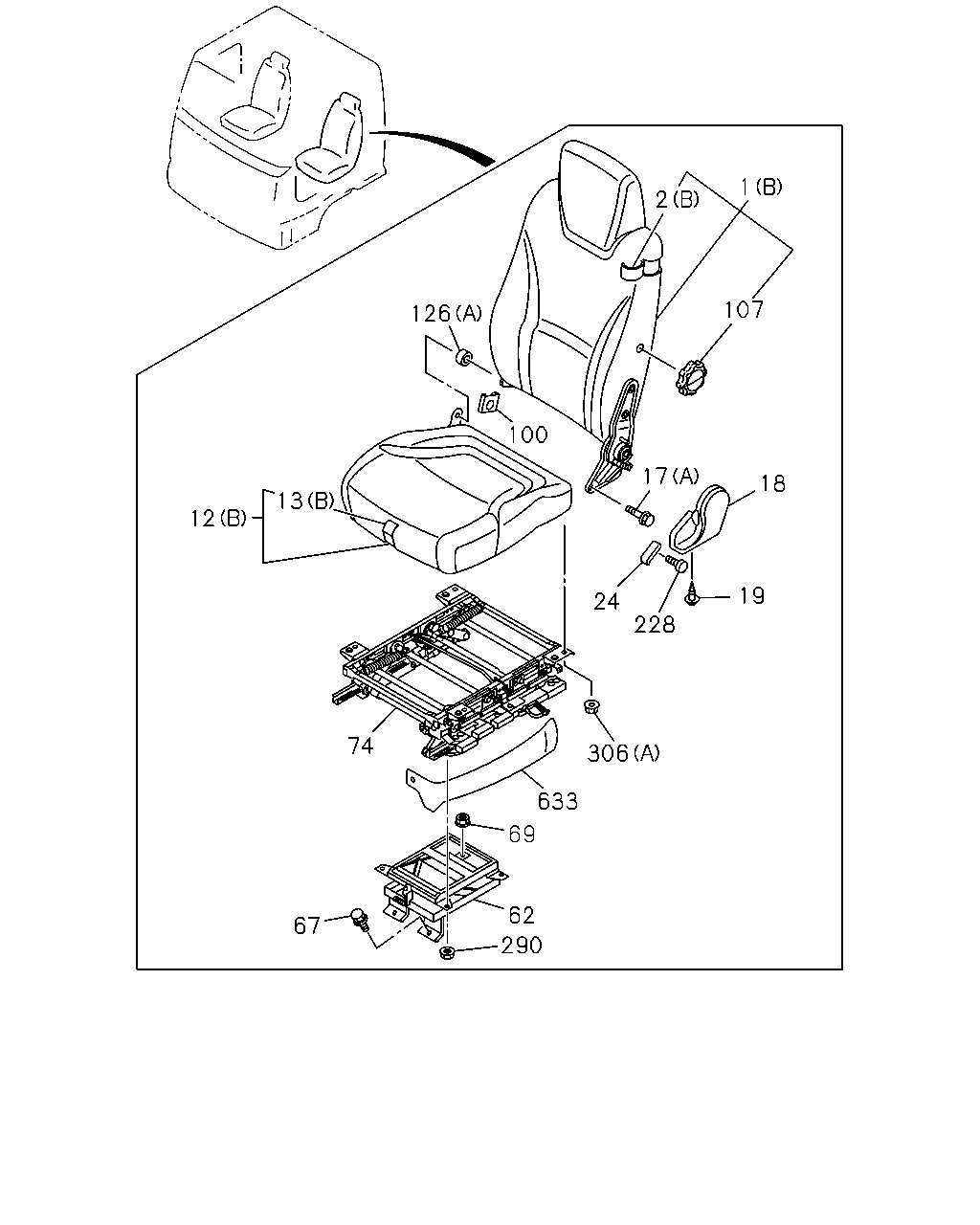

1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-962-0	01	1	1008-1107	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-961-0	01	1	1008-1107	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-204-0	01	1	1001-1009	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-409-1	01	1	1010-	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-116-2	01	1	0803-0902	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-203-0	01	1	0903-0907	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-203-0	01	1	0908-1009	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-408-1	01	1	1010-	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-3	01	1	0803-0907	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-3	01	1	0908-1009	●	●
1	BACK ASM; SEAT VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-5	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-965-0	01	1	1008-1107	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-209-0	01	1	1001-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-414-0	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-117-1	01	1	0803-0902	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-208-0	01	1	0903-0907	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-208-0	01	1	0908-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-413-0	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-1	01	1	0803-0907	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-1	01	1	0908-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-2	01	1	1010-	●	●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-400-2	01	1	1107-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1008-1107	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-114-0	01	1	0803-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-213-1	01	1	0903-0907	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-213-1	01	1	0908-0912	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-213-1	01	1	1001-1009	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-213-1	01	1	1001-1009	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-399-0	01	1	1010-1106	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-399-0	01	1	1010-1106	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-399-2	01	1	1107-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-399-2	01	1	1107-		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-1	01	1	0803-0907	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-1	01	1	0908-1009	●	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-2	01	1	1010-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE<PR2> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-404-2	01	1	1107-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1008-1107	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-115-0	01	1	0803-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-218-0	01	1	0903-0907	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-218-0	01	1	0908-0912	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-218-0	01	1	1001-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-218-0	01	1	1001-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-403-0	01	1	1010-1106	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-403-0	01	1	1010-1106	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-403-2	01	1	1107-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-403-2	01	1	1107-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-0	01	1	0803-0907	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-0	01	1	0908-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-1	01	1	1010-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1008-1107	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0803-0905	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0906-0907	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	0908-0911	●	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0912-	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0803-0907	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0908-	●	●

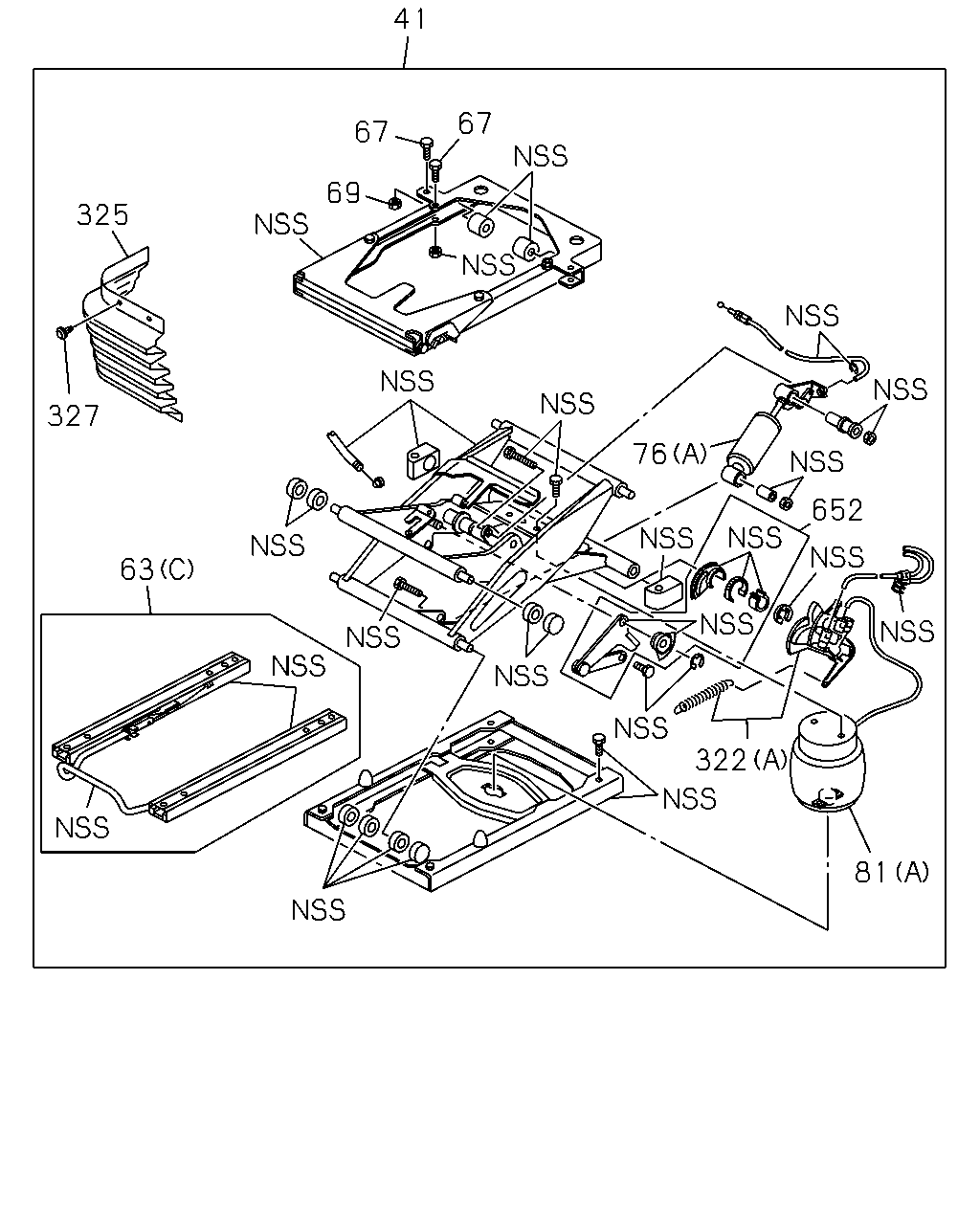

41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	1008-1107	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-537-2	01	1	1008-1107	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-991-0	01	1	1008-1107	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D)	8-98097-977-0	01	1	1008-1107	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-983-0	01	1	1008-1107	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-995-0	01	1	1008-1107	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98097-996-0	01	1	1008-1107	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-972-0	01	1	1008-1107	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0803-0907	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0908-	●	●
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-967-0	01	1	1008-1107	●
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-987-0	01	1	1008-1107	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-981-0	01	1	1008-1107	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	0803-0907	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-221-0	01	1	0908-1009	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1010-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	0803-0907	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-222-1	01	1	0908-1009	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1010-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-985-0	01	1	1008-1107	●
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-008-0	01	1	1008-1107	●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98088-279-0	01	1	1008-1107	●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16	0-52000-616-0	02	1	1008-1107	●
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-989-0	01	1	1008-1107	●
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-993-0	01	1	1008-1107	●
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98192-932-0	04	1	1008-1107	●
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-976-0	01	1	1008-1107	●
650	CABLE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-973-0	01	1	1008-1107	●
651	RIVET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98194-075-0	04	1	1008-1107	●
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-979-0	01	1	1008-1107	●

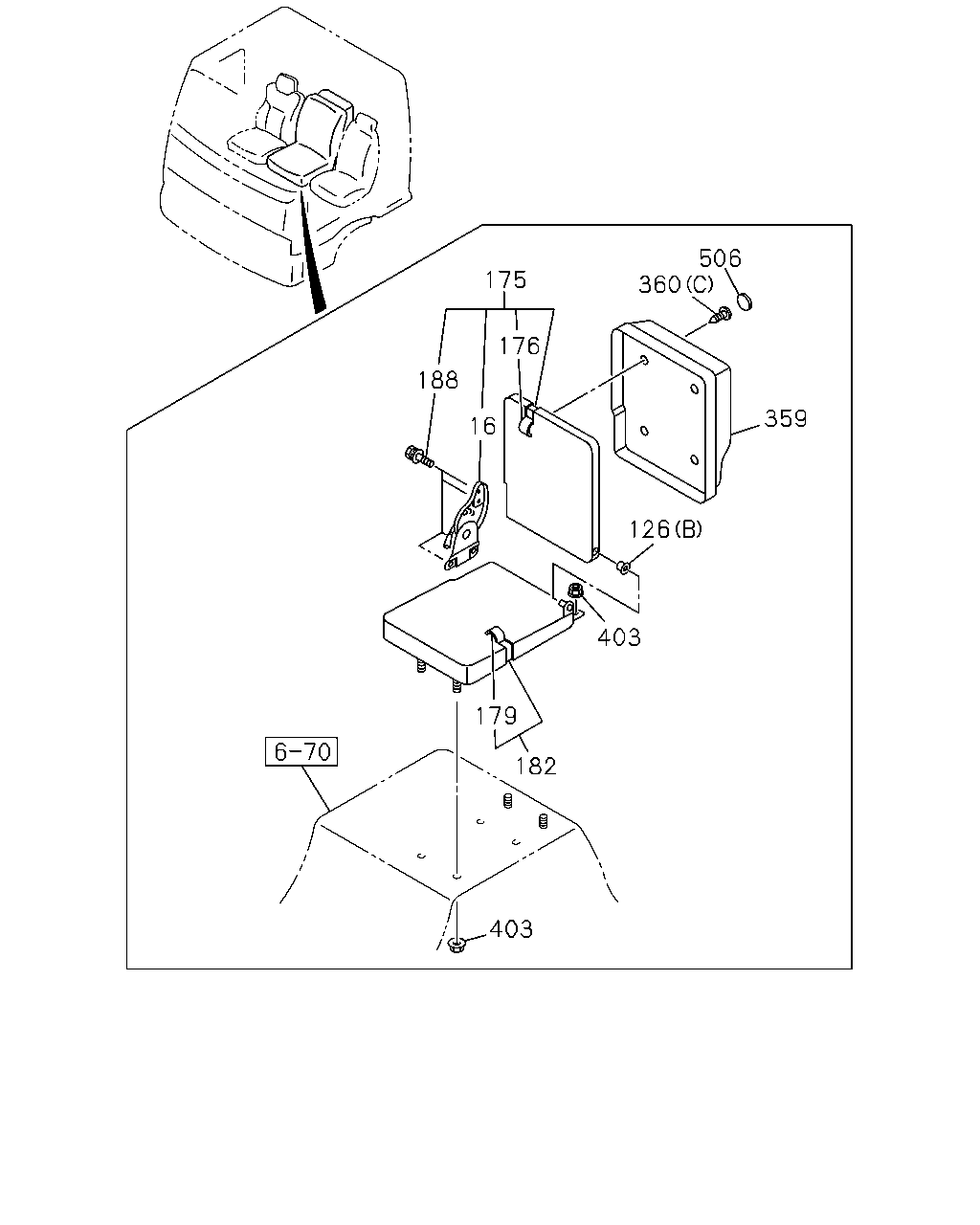

403 182 179 403 126 359 360 506 175 176 188 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0803-0907	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0908-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0803-0905	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0906-0907	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	0908-0911	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0912-	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0803-0907	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0908-	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	0908-	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-0	01	1	0803-0905	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-984-0	01	1	0803-0902	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	0903-0907	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	0908-1009	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1010-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	0908-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-0	01	1	0803-0905	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-985-0	01	1	0803-0902	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	0903-0907	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	0908-1009	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1010-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-1	01	1	0908-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-0	01	1	0803-0905	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97414-691-0	01	1	0803-0902	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-238-0	01	1	0903-0907	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-238-0	01	1	0908-1009	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-433-1	01	1	1010-	●	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-129-3	01	1	0803-0907	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-129-3	01	1	0908-	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97414-131-0	01	1	0803-0902	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-236-0	01	1	0903-0907	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-236-0	01	1	0908-1009	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-431-3	01	1	1010-	●	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0803-0907	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0908-	●	●

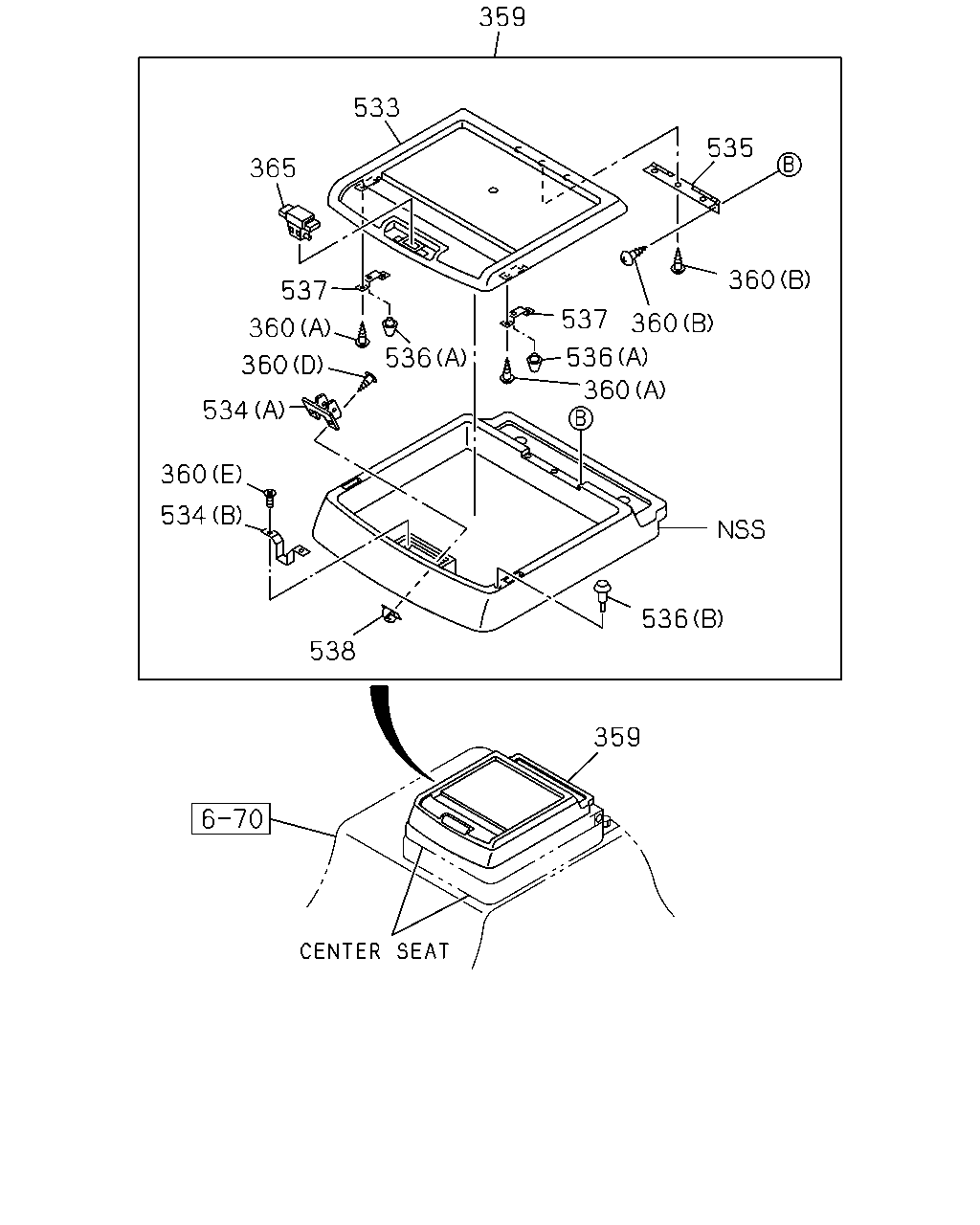

359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0803-0907	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0908-1006	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0908-1009	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0908-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0908-1110	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0908-1009	●	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0803-0907	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0908-	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0803-0907	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0908-1006	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-	●	●

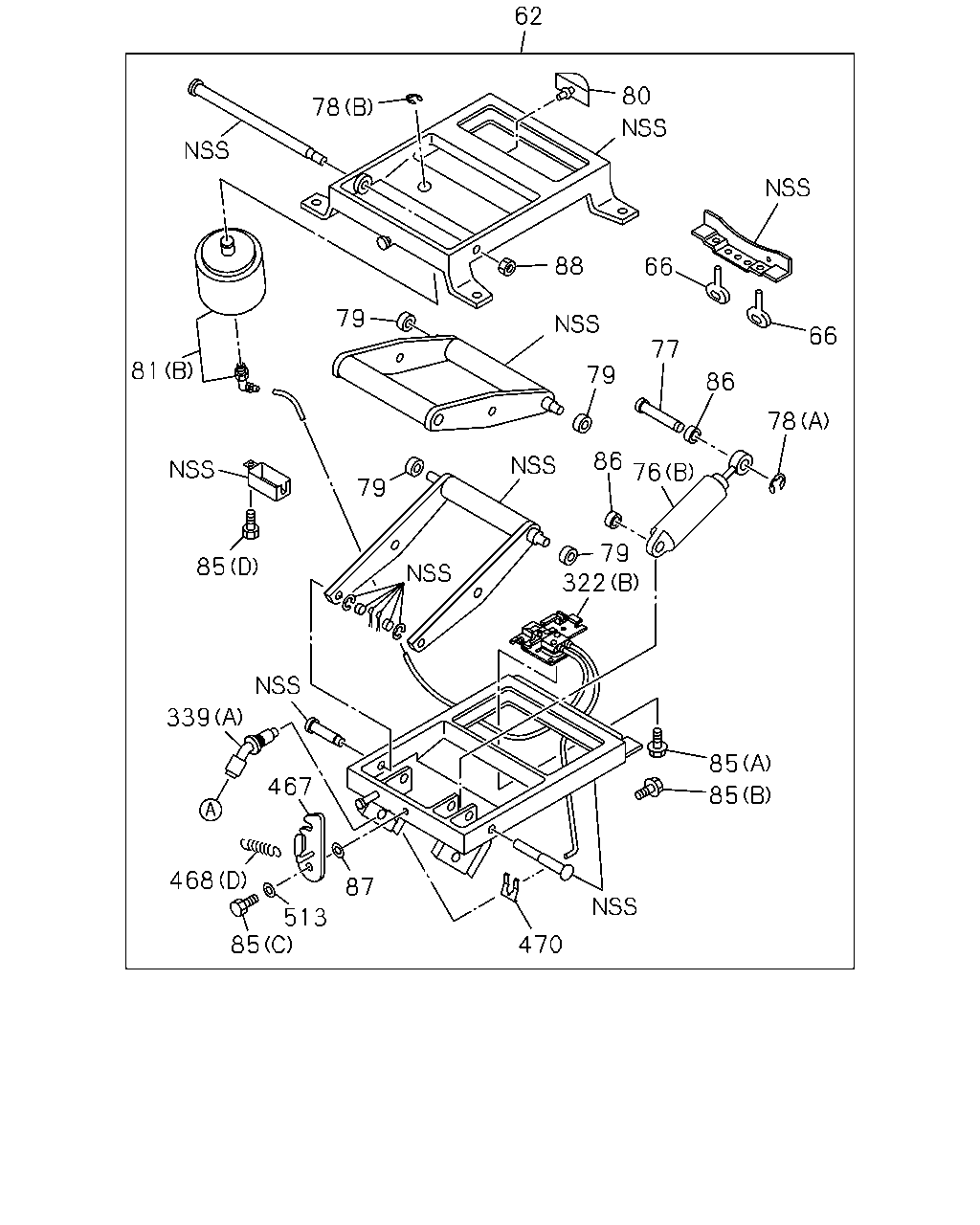

80 62 78 81 85 79 79 77 66 66 78 86 88 79 468 467 87 513 85 470 85 85 322 76 86 79 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-185-7	01	1	0912-1009	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1010-1403	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-7	01	1	0803-0905	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-145-0	02	1	0912-1009	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1010-	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0803-0905	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-139-0	01	1	0912-1009	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1010-	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	1008-1107	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0803-0905	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-138-2	01	1	0912-1009	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1010-	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0803-0905	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	0912-1009	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1010-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	0912-1009	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1010-	●	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	1008-1107	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0803-0905	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0803-0905	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-159-0	04	1	0912-1009	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	1010-1403	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0803-0905	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-123-0	01	1	0912-1009	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1010-	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	0803-0905	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-151-2	01	1	0912-1009	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	1010-1312	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	1008-1107	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0803-0905	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-0	01	1	0912-1009	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1010-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-0	02	1	0912-1009	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1010-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0912-1009	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1010-1312	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-0	01	1	0803-0905	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-0	02	1	0803-0905	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0803-0905	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0912-1009	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1010-	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0803-0905	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2	0-91510-508-0	01	1	0912-1009	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1010-	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0803-0905	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10	1-75537-273-1	01	1	0912-1009	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1010-	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0803-0905	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-187-2	01	1	0912-1009	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1010-	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	1008-1107	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-2	01	1	0803-0905	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	0912-1009	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1010-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0803-0907	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0908-1007	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98014-971-0	01	1	1008-1107	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1008-1107		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1108-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0803-0905	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-134-0	01	1	0912-1009	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1010-	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0803-0905	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	0912-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0803-0907	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	0908-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0803-0907	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	0908-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0803-0907	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	0908-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0803-0905	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-137-0	01	1	0912-1009	●	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1010-	●	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0803-0905	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-133-0	01	1	0912-1009	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1010-	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0803-0905	●

74 302 543 468 468 543 302 278 532 278 518 543 518 532 512 51 51 512 468 468 201 201 551 63 63 518 518 518 518 302 551 302 302 551 302 551 72 518 518 302 72 278 518 543 518 471 529 158 543 158 518 302 518 518 543

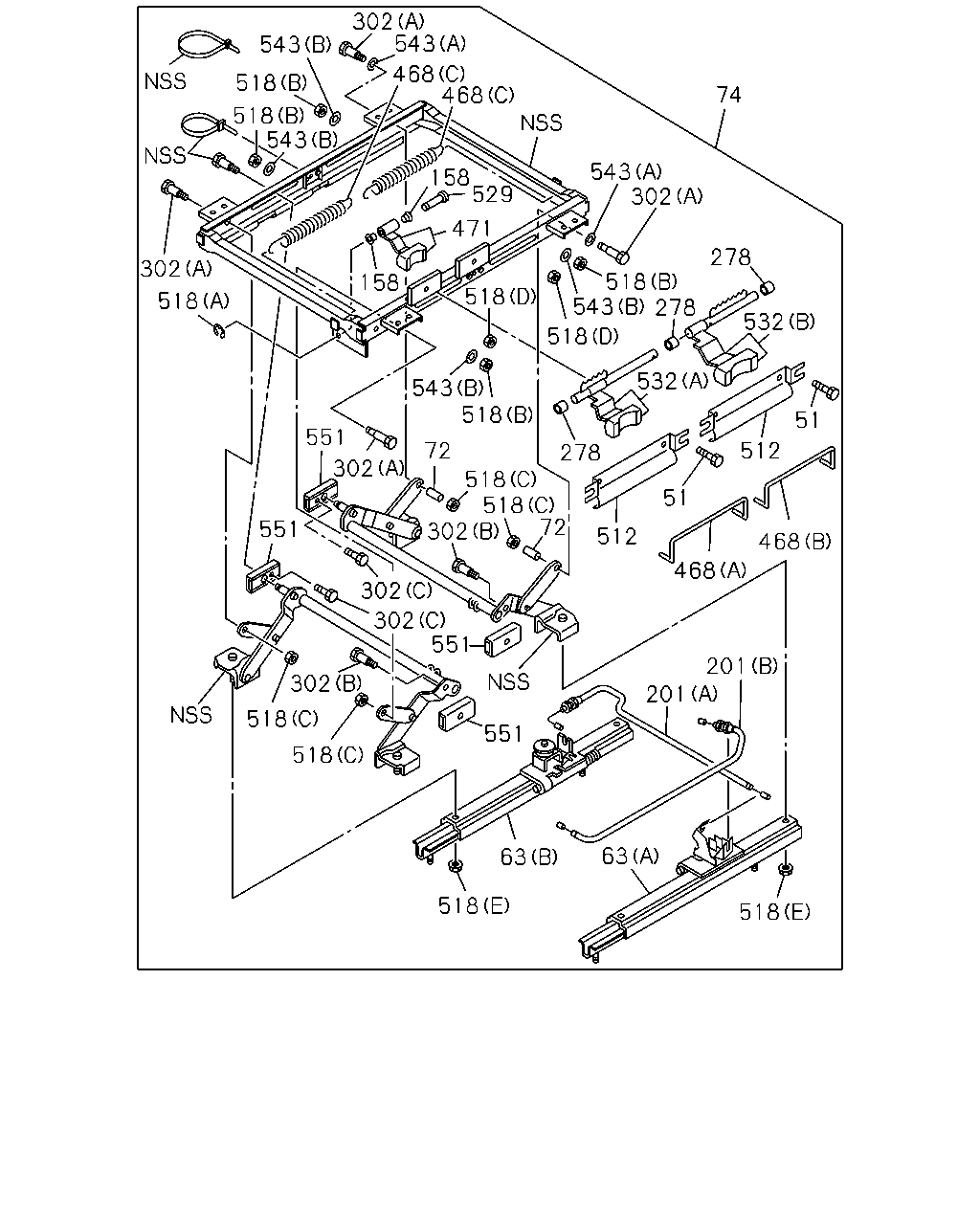

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0803-0907	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-325-1	04	1	0908-1009	●	●
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1010-	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	1008-1107	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	0803-0907	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-227-1	01	1	0908-1009	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1010-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	0803-0907	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-324-0	01	1	0908-1009	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1010-	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0803-0907	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-334-1	02	1	0908-1009	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1010-1502	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	0803-0907	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	0908-1009	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1010-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0803-0905	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	0906-0907	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	0908-0911	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0912-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0803-0905	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	0906-0907	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	0908-0911	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0912-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0803-0905	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	0906-0907	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	0908-0911	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0912-	●	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	0803-0907	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-244-0	03	1	0908-1009	●	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1010-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	0803-0907	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-266-2	02	1	0908-1009	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1010-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	0803-0907	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-270-1	04	1	0908-1009	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1010-1502	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0803-0907	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-336-1	02	1	0908-1009	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	0912-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0803-0907	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	0908-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0803-0907	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	0908-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0803-0907	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	0908-1009	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1010-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0803-0905	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0803-0905	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	0906-0907	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	0908-0911	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0912-	●	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	0803-0907	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-245-1	02	1	0908-1009	●	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-245-1	02	1	1010-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0803-0905	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	0906-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	0908-0911	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0912-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1010-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1010-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1010-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1010-	●	●
529	PIN; LINK	1-75518-262-0	01	1	0803-0905	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	0906-0907	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	0908-0911	●	●
529	PIN; LINK	1-75518-262-0	01	1	0912-	●	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-981-0	01	1	1008-1107	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	0803-0907	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-221-0	01	1	0908-1009	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-221-0	01	1	1010-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	0803-0907	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-222-1	01	1	0908-1009	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-222-1	01	1	1010-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0803-0907	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-335-0	02	1	0908-1009	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1010-1502	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0803-0907	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	0908-1009	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1010-	●	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	0803-0907	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-265-0	04	1	0908-1009	●	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1010-	●	●

359 536 360 536 537 360 360 535 359 533 365 537 536 360 534 360 360 534 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0803-0907	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0908-1006	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0908-1009	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0908-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0908-1110	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0803-0907	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0908-1009	●	●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-972-0	01	1	1008-1107	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0803-0907	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0908-	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0803-0907	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0908-1006	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0803-0907	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0908-1009	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-	●	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0803-0907	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0908-	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0803-0907	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0908-1009	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-	●	●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0803-0907	●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0908-1009	●	●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0803-0907	●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0908-1009	●	●

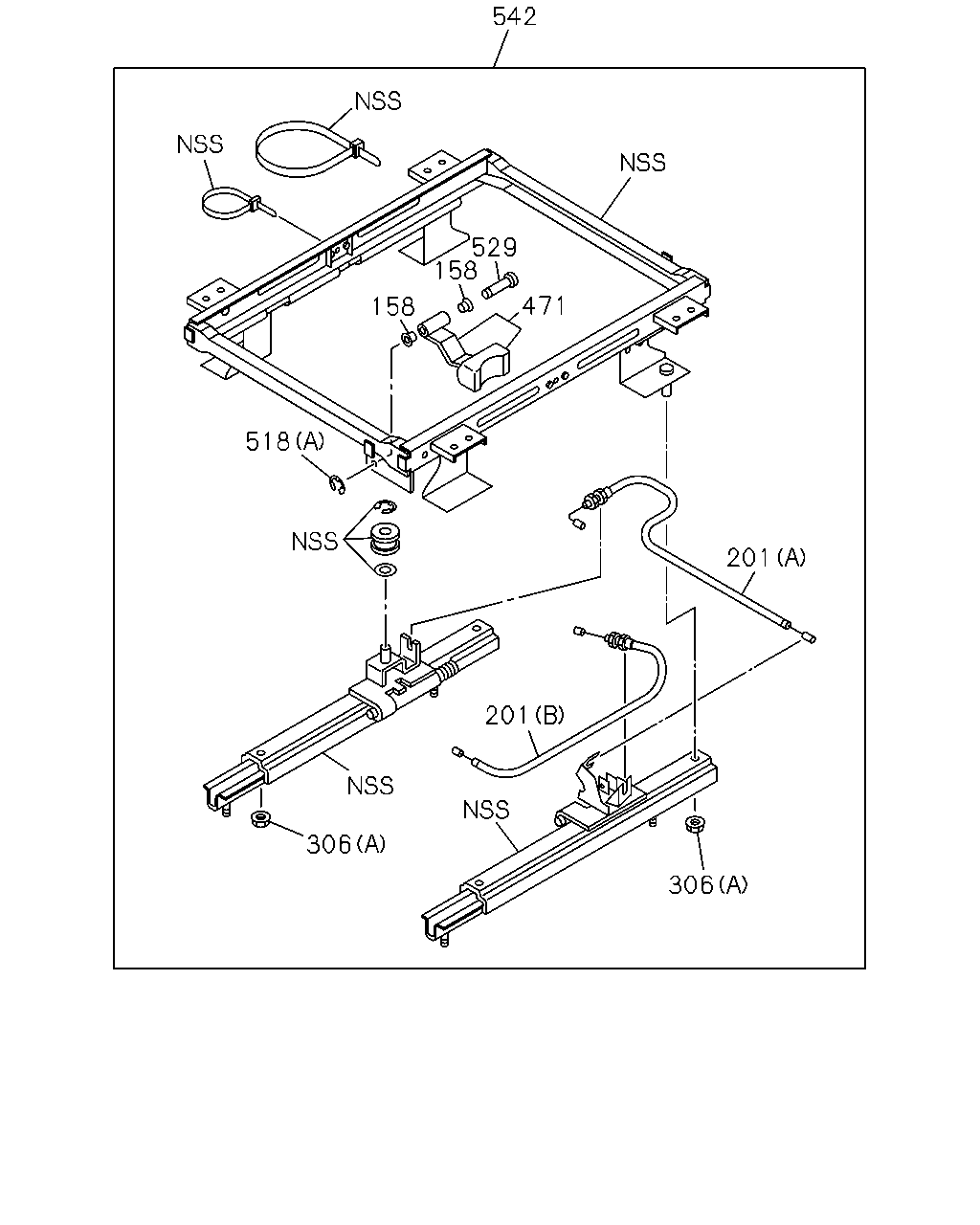

542 158 158 529 471 201 201 306 306 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0803-0905	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	0906-0907	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-209-0	02	1	0908-0911	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0912-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0803-0905	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	0906-0907	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667	1-75518-288-0	01	1	0908-0911	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0912-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0803-0905	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	0906-0907	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605	1-75518-289-1	01	1	0908-0911	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0912-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0912-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0803-0907	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	0908-1009	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1010-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0803-0905	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0803-0907	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0908-	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0803-0905	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-870-0	01	1	0906-0907	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98107-870-0	01	1	0908-0911	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0912-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0803-0905	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	0906-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-263-0	01	1	0908-0911	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0912-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	1010-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1010-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1010-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0803-0907	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	0908-1009	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1010-	●	●
529	PIN; LINK	1-75518-262-0	01	1	0803-0905	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	0906-0907	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-262-0	01	1	0908-0911	●	●
529	PIN; LINK	1-75518-262-0	01	1	0912-	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	0912-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	0803-0905	●

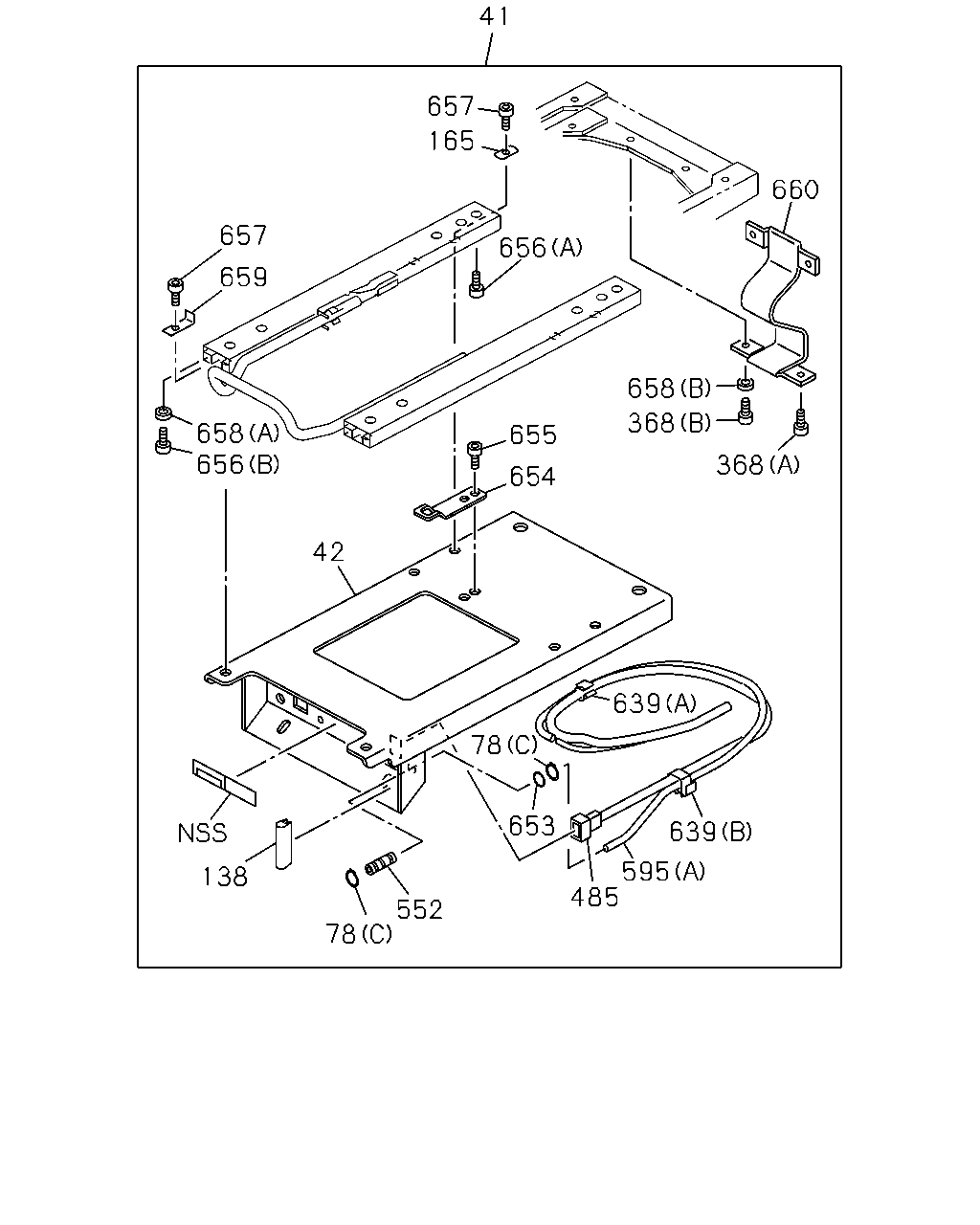

41 165 657 656 659 657 656 658 42 654 655 368 658 368 660 639 639 595 485 653 78 552 78 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	1008-1107	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-537-2	01	1	1008-1107	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0912-	●	●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	1008-1107	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-1	01	1	0803-0905	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	0912-1009	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1010-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	0912-1009	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1010-	●	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	1008-1107	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0803-0905	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0803-0905	●
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-351-0	01	1	1008-1107	●
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-086-0	04	1	1008-1107	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-353-0	03	1	1008-1107	●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-358-0	01	1	1008-1107	●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	1008-1107	●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	1008-1107	●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-902-0	01	1	1008-1107	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	1008-1107	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	0803-0907	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	0908-1007	●	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98041-300-0	01	1	1008-1107	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	1008-1107		●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	1108-	●	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-349-0	01	1	1008-1107	●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-350-0	01	1	1008-1107	●
653	GASKET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-901-0	01	1	1008-1107	●
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-352-0	01	1	1008-1107	●
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-353-0	02	1	1008-1107	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	1-75590-085-0	04	1	1008-1107	●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-354-0	02	1	1008-1107	●
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-085-0	06	1	1008-1107	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-355-0	02	1	1008-1107	●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-359-0	01	1	1008-1107	●
659	STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-356-0	02	1	1008-1107	●
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-357-0	01	1	1008-1107	●

322 81 652 76 67 41 67 69 325 327 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-985-2	01	1	1008-1107	●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-537-2	01	1	1008-1107	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	1008-1107	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	0803-0907	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-227-1	01	1	0908-1009	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-227-1	01	1	1010-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	0803-0907	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-324-0	01	1	0908-1009	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-324-0	01	1	1010-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0803-0907	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0908-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0803-0907	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0908-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-139-0	01	1	0912-1009	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	1010-	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	1008-1107	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0803-0905	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-151-2	01	1	0912-1009	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	1010-1312	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	1008-1107	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0803-0905	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-187-2	01	1	0912-1009	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-3	01	1	1010-	●	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	1008-1107	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-187-2	01	1	0803-0905	●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-003-0	01	1	1008-1107	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-004-0	01	1	1008-1107	●
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-002-0	01	1	1008-1107	●

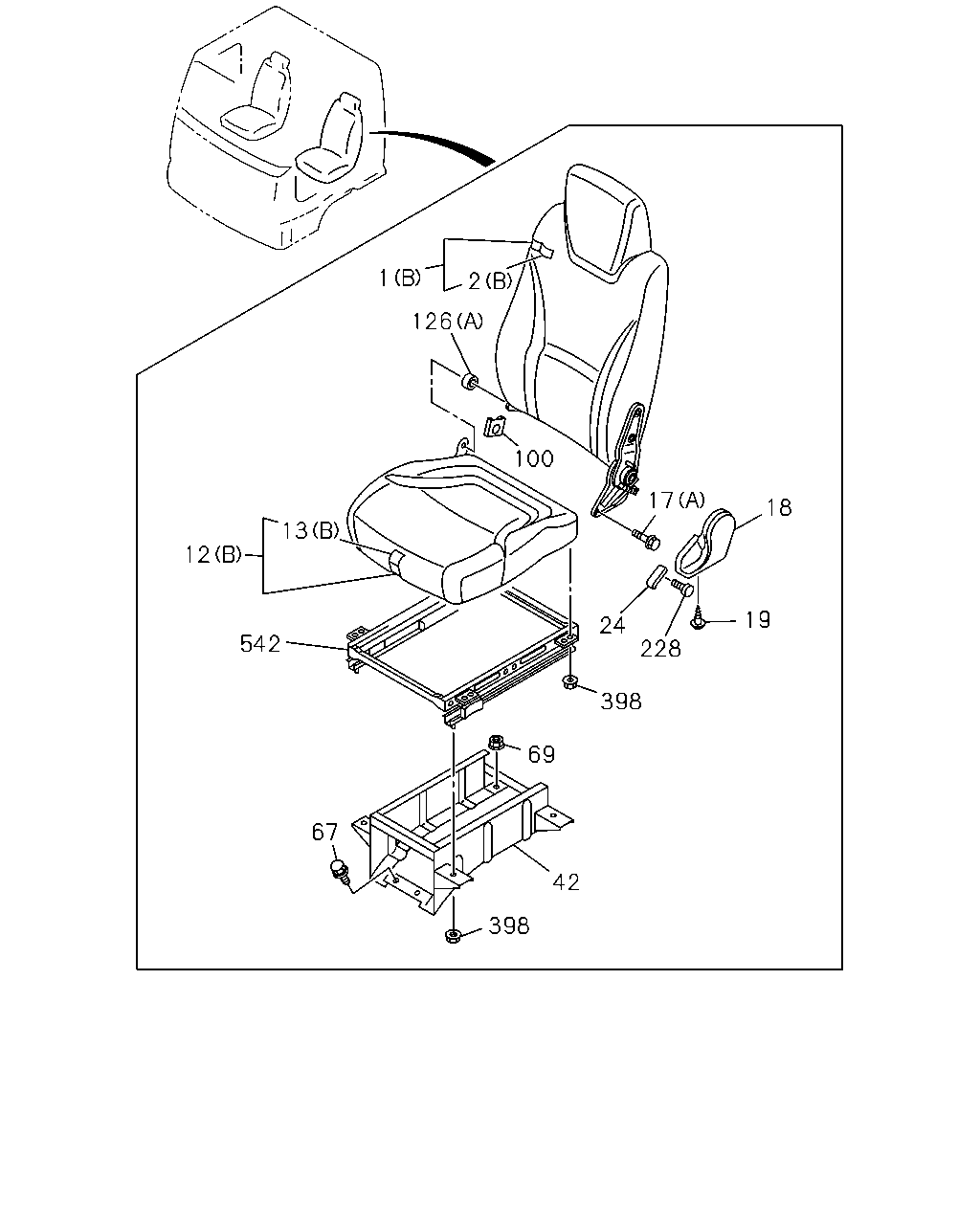

1 2 126 100 17 18 19 228 24 398 69 42 398 67 542 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-962-0	01	1	1008-1107	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-961-0	01	1	1008-1107	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-204-0	01	1	1001-1009	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-409-1	01	1	1010-	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-116-2	01	1	0803-0902	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-203-0	01	1	0903-0907	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-203-0	01	1	0908-1009	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-408-1	01	1	1010-	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-3	01	1	0803-0907	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-3	01	1	0908-1009	●	●
1	BACK ASM; SEAT VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-5	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-965-0	01	1	1008-1107	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-209-0	01	1	1001-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-414-0	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-117-1	01	1	0803-0902	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-208-0	01	1	0903-0907	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-208-0	01	1	0908-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-413-0	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-1	01	1	0803-0907	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-1	01	1	0908-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-2	01	1	1010-	●	●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-400-2	01	1	1107-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1008-1107	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-114-0	01	1	0803-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-213-1	01	1	0903-0907	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-213-1	01	1	0908-0912	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-213-1	01	1	1001-1009	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-213-1	01	1	1001-1009	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-399-0	01	1	1010-1106	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-399-0	01	1	1010-1106	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-399-2	01	1	1107-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-399-2	01	1	1107-		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-1	01	1	0803-0907	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-1	01	1	0908-1009	●	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-2	01	1	1010-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE<PR2> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-404-2	01	1	1107-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1008-1107	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-115-0	01	1	0803-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-218-0	01	1	0903-0907	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-218-0	01	1	0908-0912	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-218-0	01	1	1001-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-218-0	01	1	1001-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-403-0	01	1	1010-1106	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-403-0	01	1	1010-1106	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-403-2	01	1	1107-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-403-2	01	1	1107-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-0	01	1	0803-0907	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-0	01	1	0908-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-1	01	1	1010-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1008-1107	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0803-0905	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0906-0907	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	0908-0911	●	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0912-	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0803-0907	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0908-	●	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0803-0907	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0908-	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	0803-0905	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	0906-0907	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	0908-0911	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	0912-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0803-0907	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0908-	●	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0912-	●	●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	1008-1107	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-1	01	1	0803-0905	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0803-0907	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0908-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0803-0907	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0908-	●	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1110-	●	●
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1110-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0803-0905	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0906-0907	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	0908-0911	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0912-	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0803-0907	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0908-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0803-0905	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	0906-0907	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	0908-0911	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0912-	●	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0912-	●	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0803-0905	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	0912-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	0803-0905	●

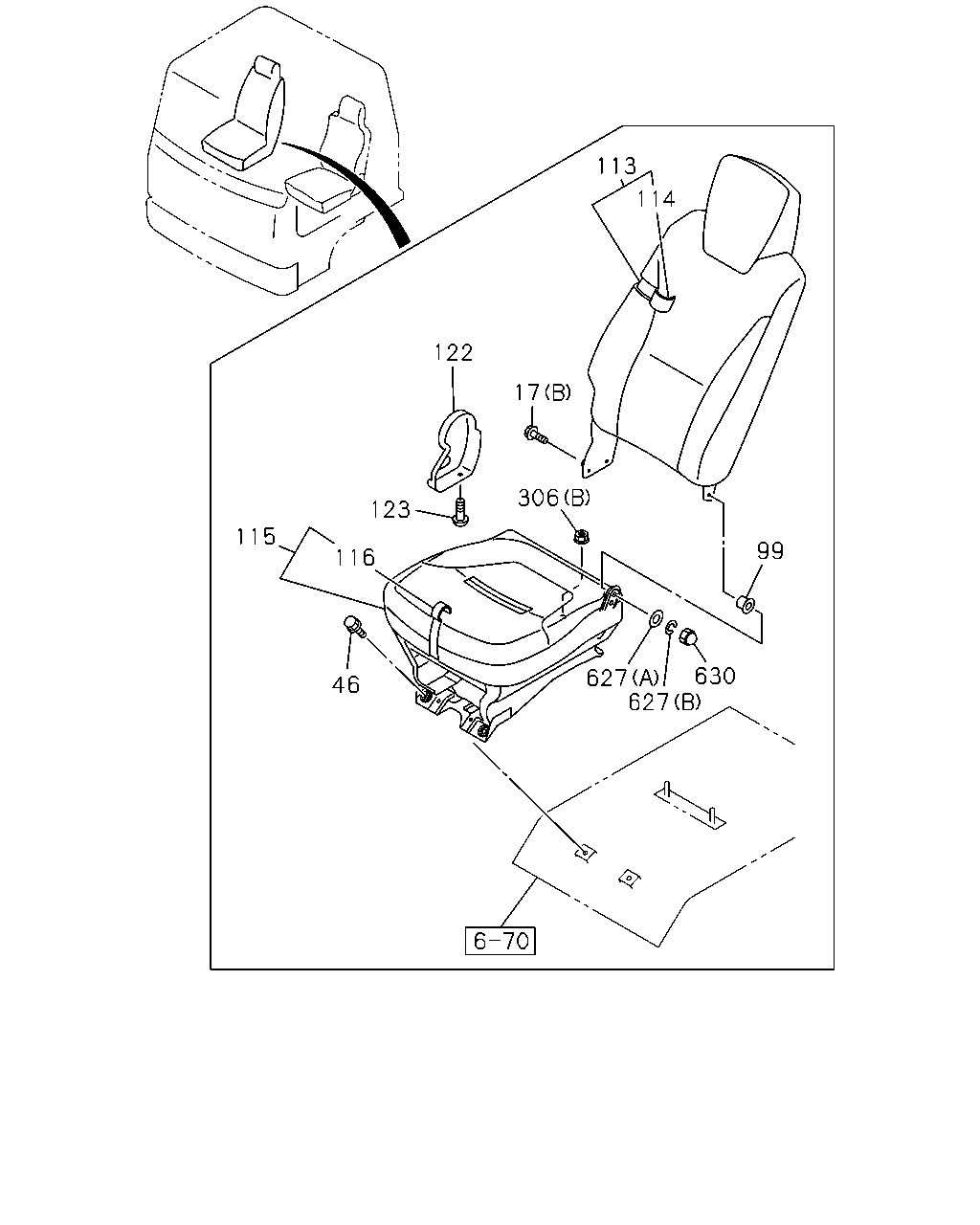

46 116 115 123 306 17 122 113 114 99 630 627 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1008-1107	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0803-0905	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0906-0907	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	0908-0911	●	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0912-	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0803-0907	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0908-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0803-0907	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0908-	●	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0803-0907	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0908-1009	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-	●	●
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-041-1	01	1	0803-0907	●
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-041-1	01	1	0908-	●	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97414-126-0	01	1	0803-0902	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-222-0	01	1	0903-0907	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-222-0	01	1	0908-1009	●	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-423-0	01	1	1010-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-042-0	01	1	0803-0907	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-042-0	01	1	0908-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97414-127-0	01	1	0803-0902	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-224-0	01	1	0903-0907	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-224-0	01	1	0908-1009	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-425-0	01	1	1010-	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97414-039-1	01	1	0803-0907	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97414-039-1	01	1	0908-	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97414-124-0	01	1	0803-0902	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-226-0	01	1	0903-0907	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-226-0	01	1	0908-1009	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-419-1	01	1	1010-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-040-0	01	1	0803-0907	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-040-0	01	1	0908-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97414-125-0	01	1	0803-0902	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-228-0	01	1	0903-0907	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-228-0	01	1	0908-1009	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-421-0	01	1	1010-	●	●
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	0803-0907	●
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	0908-	●	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0803-0907	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0908-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0912-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0803-0907	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	0908-1009	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1010-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0803-0905	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0803-0907	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0908-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0803-0907	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0908-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0803-0907	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0908-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	0803-0907	●
630	NUT; CAP M8	8-98063-225-0	01	1	0908-	●	●

1 107 2 18 19 17 24 228 306 633 69 74 12 13 126 100 62 290 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-962-0	01	1	1008-1107	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-961-0	01	1	1008-1107	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-204-0	01	1	1001-1009	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-409-1	01	1	1010-	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-116-2	01	1	0803-0902	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-203-0	01	1	0903-0907	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-203-0	01	1	0908-1009	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-408-1	01	1	1010-	●	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-3	01	1	0803-0907	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-3	01	1	0908-1009	●	●
1	BACK ASM; SEAT VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-037-5	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-965-0	01	1	1008-1107	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-209-0	01	1	1001-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-414-0	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-117-1	01	1	0803-0902	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-208-0	01	1	0903-0907	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-208-0	01	1	0908-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-413-0	01	1	1010-	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-1	01	1	0803-0907	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-1	01	1	0908-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-038-2	01	1	1010-	●	●
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-400-2	01	1	1107-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1008-1107	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-114-0	01	1	0803-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-213-1	01	1	0903-0907	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-213-1	01	1	0908-0912	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-213-1	01	1	1001-1009	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-213-1	01	1	1001-1009	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-399-0	01	1	1010-1106	●	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-399-0	01	1	1010-1106	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-399-2	01	1	1107-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-399-2	01	1	1107-		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-1	01	1	0803-0907	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-1	01	1	0908-1009	●	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-035-2	01	1	1010-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE<PR2> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-404-2	01	1	1107-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1008-1107	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-115-0	01	1	0803-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-218-0	01	1	0903-0907	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-218-0	01	1	0908-0912	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-218-0	01	1	1001-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-218-0	01	1	1001-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-403-0	01	1	1010-1106	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-403-0	01	1	1010-1106	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-403-2	01	1	1107-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-403-2	01	1	1107-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-0	01	1	0803-0907	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-0	01	1	0908-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-036-1	01	1	1010-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1008-1107	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0803-0905	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (A) M10X20	8-98062-661-0	02	1	0906-0907	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M10X20	8-98062-661-0	02	1	0908-0911	●	●
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	0912-	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0803-0907	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	0908-	●	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0803-0907	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0908-	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	0803-0905	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	0906-0907	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	0908-0911	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	0912-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0803-0907	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0908-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-185-7	01	1	0912-1009	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	1010-1403	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-7	01	1	0803-0905	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0803-0907	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0908-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0803-0907	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0908-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	0803-0907	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	0908-1009	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98093-429-0	01	1	1010-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-641-0	01	1	1503-	●	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1110-	●	●
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1110-	●	●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	0803-0907	●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	0908-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0803-0905	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0906-0907	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	0908-0911	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	0912-	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0803-0907	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0908-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0803-0905	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	0906-0907	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	0908-0911	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0912-	●	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0803-0907	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	0908-1009	●	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1010-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0912-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0803-0907	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	0908-1009	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1010-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0803-0905	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0803-0907	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0908-	●	●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	0803-0907	●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97414-118-0	01	1	0908-1009	●	●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97414-118-0	01	1	1010-	●	●

595 339 632 400 400 641 401 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	0912-1009	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1010-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0803-0907	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	0908-1007	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98014-971-0	01	1	1008-1107	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1008-1107		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1108-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0803-0905	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1107	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98098-996-0	02	1	1008-1107	●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE	0-91180-110-0	02	1	1008-1107	●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98049-532-3	01	1	1008-1107	●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	1008-1107	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	0803-0907	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	0908-1007	●	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B)	8-98041-300-0	01	1	1008-1107	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	1008-1107		●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B)	8-98041-300-0	01	1	1108-	●	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	0803-0907	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	0908-	●	●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98099-007-0	02	1	1008-1107	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
