7-43 — SUN VISOR AND ASSIST GRIP (#68051) — 159 parça

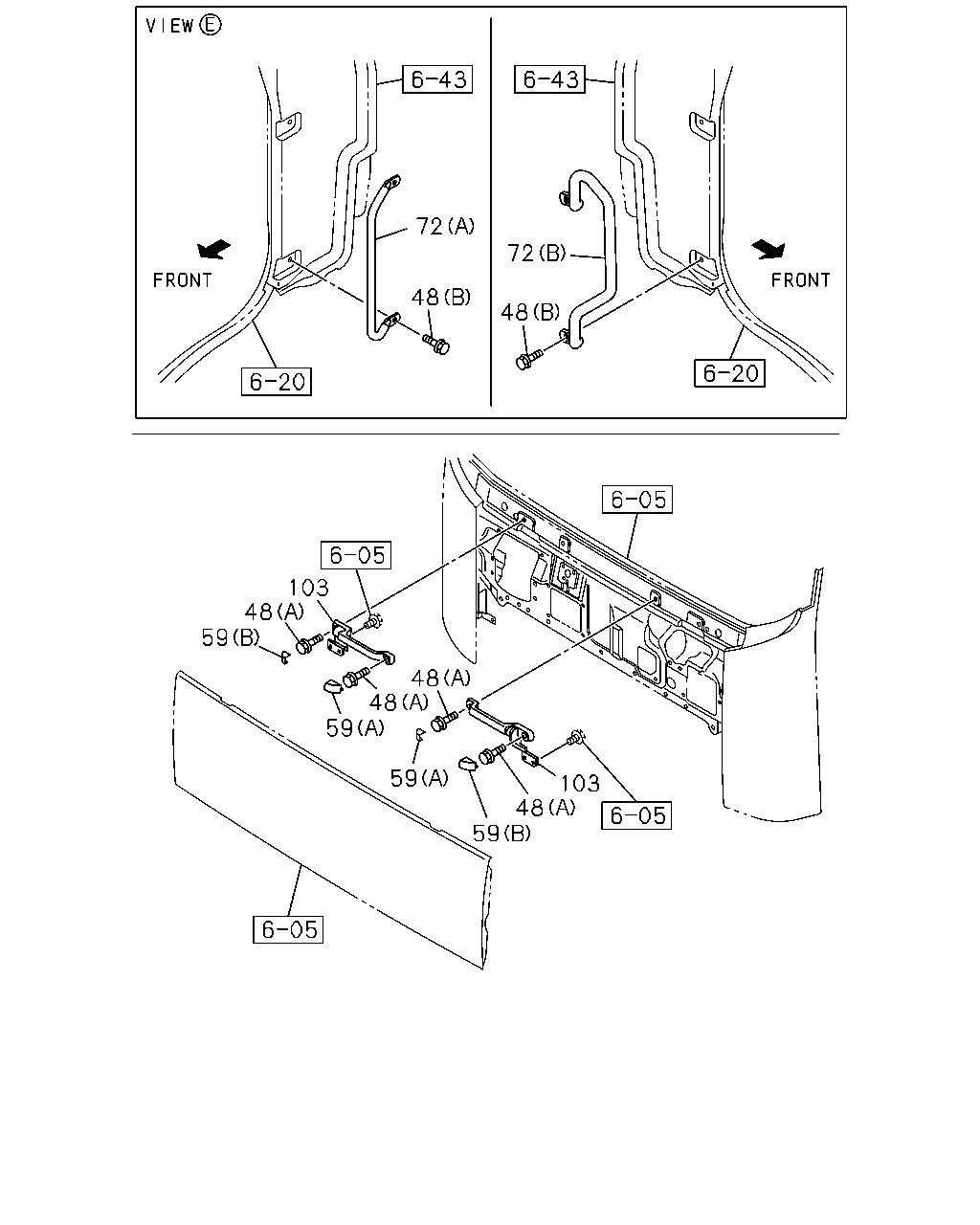

çizim 134048
48 48 72 72 103 48 59 59 59 59 103 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 0803-0907 ●
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 0908- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 0803-0907 ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 0908- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 0803-0907 ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 0908- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 0803-0907 ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 0908- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 0803-0907 ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 0908- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
IRAN EQUIPMENT(D8T) (B) 		8-98084-136-1 01 1 1010-1107 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
IRAN EQUIPMENT(D8T) (B) 		8-98084-137-1 01 1 1010-1107 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 0803-0907 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 0908-1009 ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
EXC. IRAN EQUIPMENT(D8T) (A) 		8-97386-939-0 02 1 1010-1107 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 1010-1107 ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 1108- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 0803-0907 ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 0908- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 0803-0907 ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 0908- ● ●

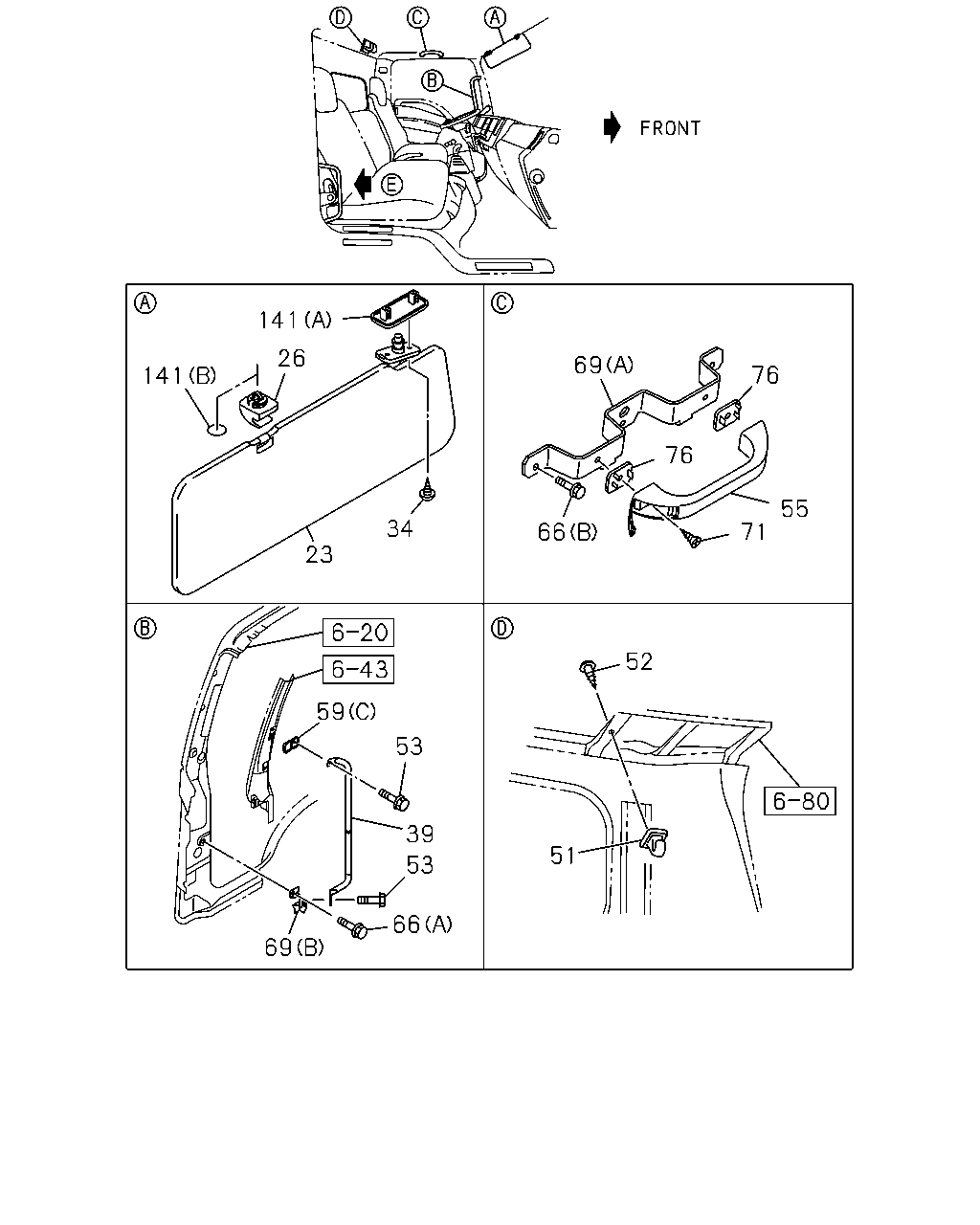

çizim 134184
141 34 23 66 71 55 76 69 51 39 53 66 69 141 26 76 52 59 53
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
EXC. EURO4 SPECIFICATION<NT4> DARK GRAY 		8-97405-170-3 01 1 0809-0907 ●
23 SUN VISOR
EXC. EURO4 SPECIFICATION<NT4> DARK GRAY 		8-97405-170-3 01 1 0908- ●
23 SUN VISOR
DARK GRAY 		8-97405-170-3 01 1 0908- ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY 		8-97407-373-2 01 1 0803-0907 ●
23 SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY 		8-97407-373-2 01 1 0908- ● ●
23 SUN VISOR
DARK GRAY 		8-97413-098-1 01 1 0803-0808 ●
23 SUN VISOR
EURO4 SPECIFICATION<NT4> DARK GRAY 		8-97413-098-2 01 1 0809- ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 0803-0907 ●
26 HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY 		8-97405-171-0 01 1 0803-0907 ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 0908- ● ●
26 HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY 		8-97405-171-0 01 1 0908- ● ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26 		8-98033-674-0 02 1 0803-0907 ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 02 1 0803-0907 ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26 		8-98033-674-0 02 1 0803-0907 ●
34 SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26 		8-98033-674-0 02 1 0908- ● ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 02 1 0908- ● ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26 		8-98033-674-0 02 1 0908- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 0803-0907 ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 0908- ● ●
39 HANDLE; ASSIST,A-POST
IRAN EQUIPMENT(D8T) DARK GRAY 		8-97412-923-1 01 1 1010-1107 ●
39 HANDLE; ASSIST,A-POST
IRAN EQUIPMENT(D8T) DARK GRAY 		8-97412-924-1 01 1 1010-1107 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-942-2 01 1 0803-0907 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-942-2 01 1 0908-1009 ● ●
39 HANDLE; ASSIST,A-POST
EXC. IRAN EQUIPMENT(D8T) DARK GRAY 		8-97407-942-2 01 1 1010-1107 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-942-2 01 1 1010-1107 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-942-2 01 1 1108- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-943-2 01 1 0803-0907 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-943-2 01 1 0908-1009 ● ●
39 HANDLE; ASSIST,A-POST
EXC. IRAN EQUIPMENT(D8T) DARK GRAY 		8-97407-943-2 01 1 1010-1107 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-943-2 01 1 1010-1107 ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-943-2 01 1 1108- ● ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 0803-0907 ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 0908- ● ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0803-0907 ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 0908- ● ●
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 0803-0907 ●
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 0908- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 0803-0907 ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 0908- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 0803-0907 ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 0908- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 0803-0907 ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 0908- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 0803-0907 ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 0908- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		0-28450-612-0 06 1 0803-0810 ●
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 0811-0907 ●
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 0908- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0803-0907 ●
66 BOLT; ASSIST GRIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0908-1108 ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1109- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 0803-0907 ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 0908- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-973-3 01 1 0803-0907 ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-973-3 01 1 0908- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-974-3 01 1 0803-0907 ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-974-3 01 1 0908- ● ●
71 SCREW
M6X28 		8-98004-344-0 02 1 0803-0907 ●
71 SCREW
M6X28 		8-98004-344-0 02 1 0908- ● ●
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 0803-0907 ●
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 0908- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1402- ● ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0803-0907 ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0803-0907 ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0803-0907 ●
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0908- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0908- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0908- ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0803-0907 ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0803-0907 ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0803-0907 ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0908-1401 ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0908-1401 ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0908-1401 ● ●
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402- ● ●
çizim 193685
356 344 356 356 356 344 356 356 356 344 344 344 359 364 340 330 341 336 355 354 344 344 356 344 344 344 356 344 344 354 364 340 330 341 355 336 344 359 344 356
BalonParca AdiParca NoAdetTipApplied Date A B
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 0810-0907 ●
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 01 1 0810-0907 ●
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 0908- ● ●
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 01 1 0908- ● ●
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 02 1 0803-0809 ●
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 02 1 0803-0809 ●
336 STAY; LID 1-72448-379-3 02 1 0803-0907 ●
336 STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-379-3 02 1 0803-0907 ●
336 STAY; LID 1-72448-379-3 02 1 0908- ● ●
336 STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-379-3 02 1 0908- ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 0803-0907 ●
340 LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-376-0 01 1 0803-0907 ●
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 0908- ● ●
340 LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-376-0 01 1 0908- ● ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 0803-0907 ●
341 HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98025-428-2 02 1 0803-0907 ●
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 0908- ● ●
341 HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98025-428-2 02 1 0908- ● ●
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE 		0-28450-612-0 08 1 0803-0810 ●
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE 		8-97108-669-0 08 1 0811-0907 ●
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE 		8-97108-669-0 08 1 0908- ● ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		0-28450-612-0 12 1 0803-0810 ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 12 1 0811-0907 ●
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 12 1 0908- ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 0803-0907 ●
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-386-5 01 1 0803-0907 ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 0908-1401 ● ●
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-386-5 01 1 0908-1401 ● ●
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402- ● ●
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97428-821-0 01 1 1402- ● ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0803-0907 ●
355 SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0803-0907 ●
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0908- ● ●
355 SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0908- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98014-088-3 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98014-088-3 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98023-257-2 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98023-257-2 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-97386-874-1 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-97386-874-1 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) 		8-98010-059-0 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) 		8-98010-059-0 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
(C) 		8-98016-871-3 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
(C) 		8-98016-871-3 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
(D) 		8-98042-009-2 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
(D) 		8-98042-009-2 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 0908- ● ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-016-3 01 1 0803-0907 ●
356 BRACKET; ROOF OUTER
(E) 		8-98042-016-3 01 1 0908- ● ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 0803-0907 ●
359 HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98041-754-0 04 1 0803-0907 ●
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 0908- ● ●
359 HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98041-754-0 04 1 0908- ● ●
364 STOPPER; LID 8-98010-867-1 03 1 0803-0907 ●
364 STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98010-867-1 03 1 0803-0907 ●
364 STOPPER; LID 8-98010-867-1 03 1 0908- ● ●
364 STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98010-867-1 03 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
