7-40 — INSTRUMENT PANEL AND BOX (#68049) — 370 parça

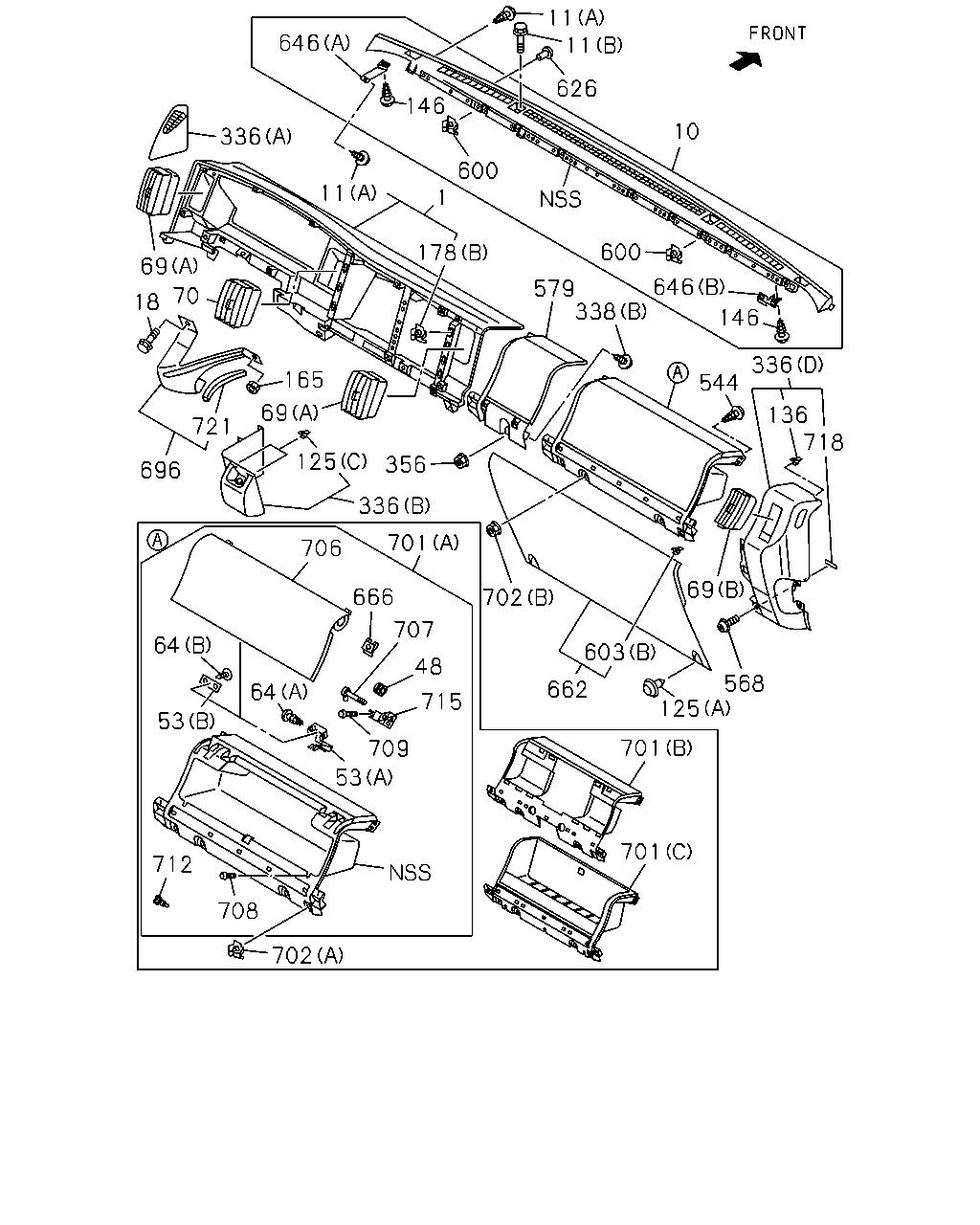

çizim 132843
10 11 626 11 646 146 600 600 146 336 544 718 136 646 69 568 125 603 662 702 338 579 178 1 11 336 69 18 70 165 69 721 696 125 356 336 706 701 701 701 702 708 712 53 715 48 707 666 64 709 53 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0803-0907 ●
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0908- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97411-559-6 01 1 0803-0907 ●
10 PANEL ASM; GARNISH
GRAY 		8-97411-559-6 01 1 0908-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1009- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0803-0907 ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0908- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0803-0907 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0908- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0803-0907 ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0908- ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0803-0907 ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0908-1007 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1008-1011 ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1008-1011 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0803-0907 ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0908-1007 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1008-1011 ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1008-1011 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1012-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406- ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0805-0907 ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0908-1007 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1008-1011 ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1008-1011 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1012-1405 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1012-1405 ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406- ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0805-0907 ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0908-1007 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1008-1011 ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1008-1011 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1012-1405 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1012-1405 ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406- ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0803-0907 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0908- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0803-0907 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0908- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0803-0907 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0908- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0803-0907 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0908-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0803-0907 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0908- ● ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0803-0907 ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0908- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0803-0907 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0908- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803-0907 ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0908- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0803-0907 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0908- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0803-0907 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0908- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0803-0907 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0908- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0908- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0908- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0908-1208 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0908- ● ●
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0805 ●
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> (A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1108- ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803-0907 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0908- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0803-0907 ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0908- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803-0907 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0908- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0907 ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908- ● ●
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 0803-0907 ●
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 0908- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0803-0907 ●
600 NUT; PANEL 8-98037-629-0 02 1 0908-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0803-0907 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0908- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0803-0907 ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0908- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0803-0907 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0908- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0803-0907 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0908- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0803-0907 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0908- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0803-0907 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0908- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0803-0907 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0908- ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 0803-0907 ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 0908-1007 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1008-1011 ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1008-1011 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1012-1311 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1012-1311 ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312- ●
696 BRACKET; KNEE 8-98057-569-0 01 1 0803-0907 ●
696 BRACKET; KNEE 8-98057-569-0 01 1 0908-1109 ● ●
696 BRACKET; KNEE 8-98098-126-1 01 1 1110- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER(AK5) (C) GRAY 		8-97421-976-1 01 1 1012- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (C) GRAY 		8-97421-976-1 01 1 1012- ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1008-1011 ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97417-196-2 01 1 1012- ●
701 TRAY; INST
(A) GRAY 		8-97412-913-0 01 1 0803-0804 ●
701 TRAY; INST
(A) GRAY 		8-97415-540-4 01 1 0805-0907 ●
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 0908-1007 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1008-1011 ●
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 1008-1011 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1012-1405 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1012-1405 ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406- ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406- ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0803-0907 ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0908- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0803-0907 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0908- ● ●
706 LID; TRAY INST
GRAY 		8-97405-372-2 01 1 0803-0804 ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0805-0907 ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0908-1007 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1008-1011 ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1008-1011 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1012-1405 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1012-1405 ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406- ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0803-0907 ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0908-1007 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1008-1011 ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1008-1011 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1012-1311 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1012-1311 ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312- ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0803-0907 ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0908-1007 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1008-1011 ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1008-1011 ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1012- ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1012- ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0803-0907 ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0908-1007 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1008-1011 ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1008-1011 ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1012- ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0803-0907 ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0908-1007 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1008-1011 ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1008-1011 ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1012- ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1012- ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0803-0907 ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0908-1007 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1008-1011 ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1008-1011 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0803-0907 ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0908-1007 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1008-1011 ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1008-1011 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1012-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312- ●
718 SEAL; COVER 8-98185-153-0 01 1 1209- ● ●
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0803-0907 ●
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0908-1109 ● ●

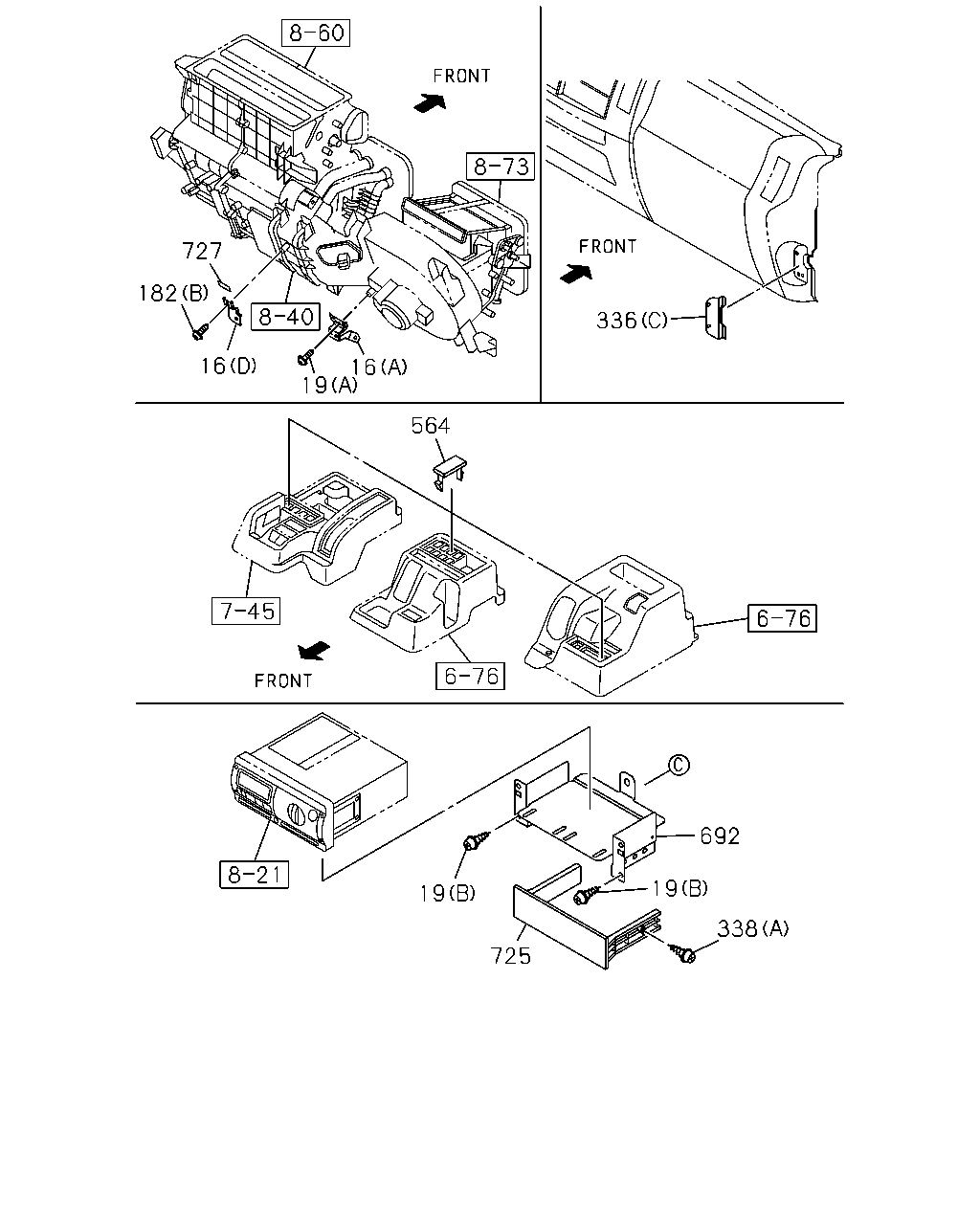

çizim 132940
727 182 16 19 16 336 564 19 725 338 19 692
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0803-0808 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0809-0907 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0908- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0803-0907 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0908- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0803-0907 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0908- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-0 01 1 0803-0808 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0809-0907 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0908- ● ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0803-0907 ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0908- ● ●
19 SCREW; BRKT
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0803-0805 ●
19 SCREW; BRKT
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1108- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0808 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-0907 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0803-0907 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0908- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0803-0907 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0908-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0808 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-0907 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0803-0907 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0908- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0908- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0908- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0908-1208 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0803-0907 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0908- ● ●
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0805 ●
338 SCREW; COVER
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> (A) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1108- ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803-0907 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0908- ● ●
564 COVER; SW 8-97043-732-1 04 1 0908-1004 ●
564 COVER; SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 04 1 1005- ●
564 COVER; SW 8-97043-732-1 04 1 1005- ●
564 COVER; SW 8-97043-732-1 06 1 0803-1004 ●
564 COVER; SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 06 1 1005- ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 1108- ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> 		8-98094-272-0 01 1 0803-0805 ●
725 COVER; TACHOGRAPH
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-2 01 1 1108- ●
725 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-1 01 1 0803-0805 ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1209- ● ●

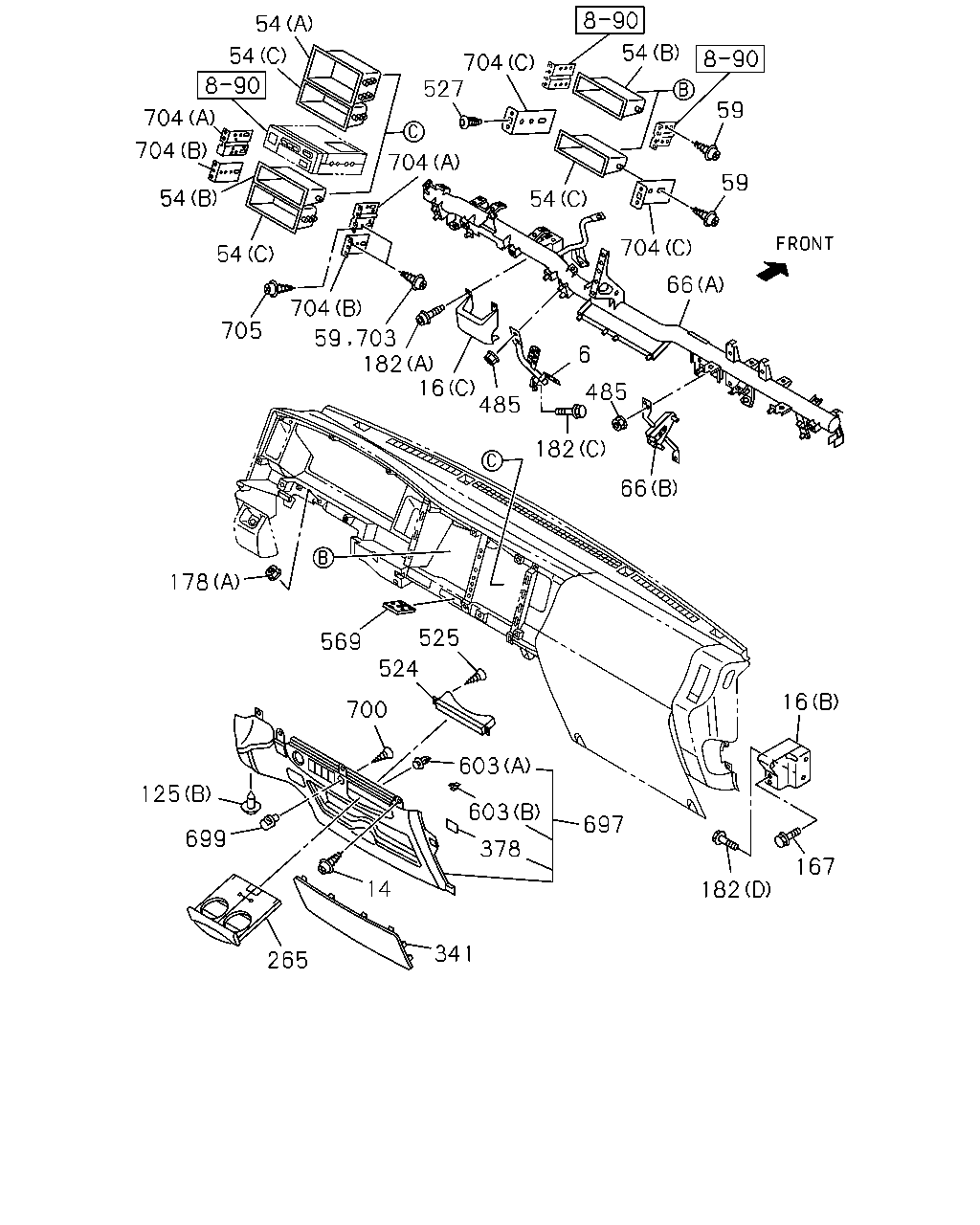

çizim 193683
54 54 704 704 54 54 705 704 59 703 704 527 704 54 59 59 704 66 66 485 182 6 485 16 182 54 178 569 525 524 700 125 699 14 265 341 378 603 603 697 16 167 182
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0803-0907 ●
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0908- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803-0907 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0908- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0803-0808 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0809-0907 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0908- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0803-0907 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0908- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0803-0907 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0908- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-0 01 1 0803-0808 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0809-0907 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0908- ● ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0803-0907 ●
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0908- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0803-0907 ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0803-0907 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0908- ● ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0908- ● ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0803-0907 ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0908- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0803-0808 ●
54 POCKET; CENTER CLUSTER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) H=69.8 BLACK 		8-97408-865-2 01 1 0803-0808 ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-0907 ●
54 POCKET; CENTER CLUSTER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-0907 ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0908- ● ●
54 POCKET; CENTER CLUSTER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) H=69.8 BLACK 		8-97408-865-3 01 1 0908- ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0908- ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0808 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0808 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0808 ●
59 SCREW; CLUSTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0808 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-0907 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-0907 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-0907 ●
59 SCREW; CLUSTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-0907 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0908- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0908- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0908- ● ●
59 SCREW; CLUSTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0908- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0908- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-420-7 01 1 1008-1406 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98241-975-0 01 1 1407- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 1008-1206 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 1207-1211 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 1212- ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-98082-466-1 01 1 1212- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 0803-0907 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 0908-1007 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 1008-1206 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1008-1206 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 1207-1211 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1207-1211 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 1212- ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-97585-581-1 01 1 1212- ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 0803-0907 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 0908-1007 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-419-7 01 1 1008-1406 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 1008-1406 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-611-0 01 1 1407- ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1407- ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0803-0907 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0908-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0803-0907 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0908- ● ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0803-0907 ●
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0908- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0803-0907 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0908- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0803-0907 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0908- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0803-0907 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0908- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0803-0907 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0908- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0803-0907 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0908-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0808 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-0907 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0803-0907 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0908- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0803-0907 ●
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0908-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0803-0907 ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0908-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0803-0907 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0908- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0803-0907 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0908- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0803-0907 ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0908- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0803-0808 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0809-0907 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0908- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0803-0907 ●
569 HOLDER; CARD 8-97410-276-1 01 1 0908- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0803-0907 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0908- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0803-0907 ●
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0908- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0803-0907 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0908- ● ●
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0803-0907 ●
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0908-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0803-0907 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0908- ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803-0907 ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0908- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0803-0907 ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0908- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 0803-0808 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0809-0907 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0908- ● ●
704 BRACKET; CENTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-97585-616-2 02 1 0803-0907 ●
704 BRACKET; CENTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-97585-616-2 02 1 0908- ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0908- ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0803-0907 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0908- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0803-0907 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0908- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0803-0808 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0809-0907 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
