◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#68048) — 35 parça

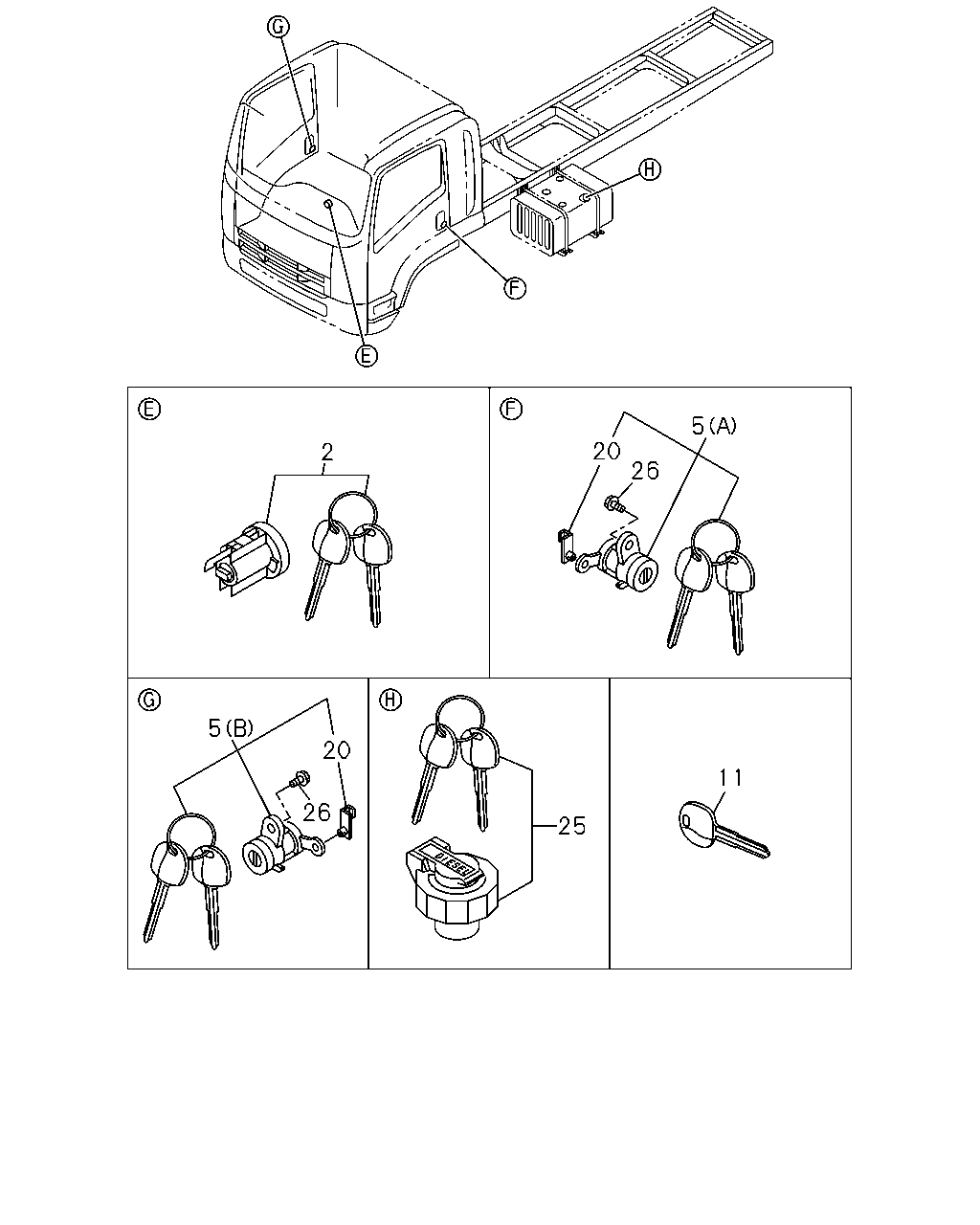

çizim 132841
20 26 5 26 20 25 11 2 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 0803-0907 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 0908-1203 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1204- ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0803-0907 ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0908- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0803-0907 ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0908- ● ●
11 KEY; BLANK 8-98055-170-0 AR 1 0803-0907 ●
11 KEY; BLANK 8-98055-170-0 AR 1 0908- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0803-0907 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0908- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0803-0907 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0908- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98033-157-0 01 1 0803-0804 ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98088-982-0 01 1 0805-0911 ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98146-010-0 01 1 0912- ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0803-0907 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0908- ● ●

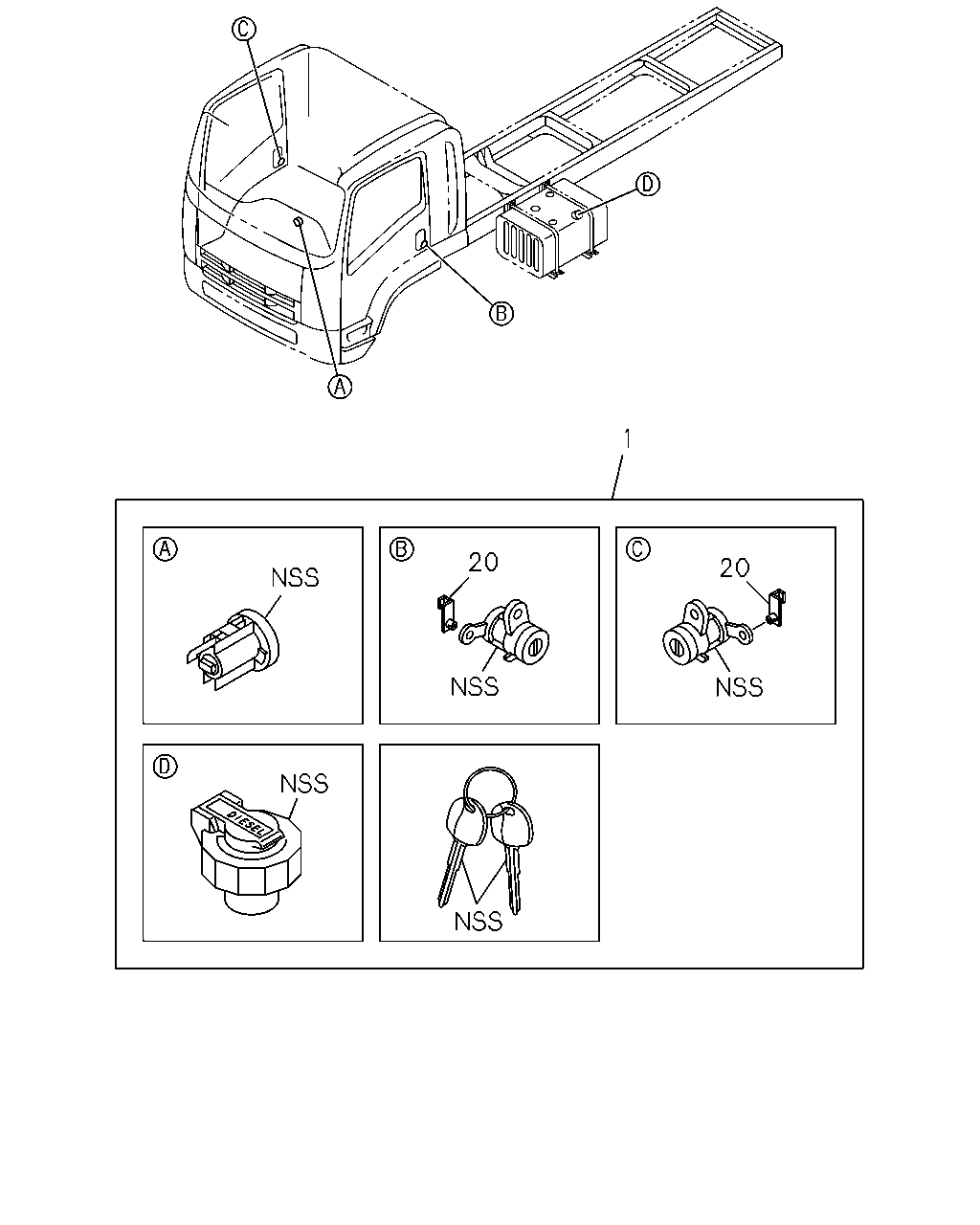

çizim 193678
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98064-874-0 01 1 0803-0804 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98088-954-0 01 1 0805-0911 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98145-979-0 01 1 0912-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> 		8-98201-216-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-98056-003-0 01 1 0803-0809 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> 		8-98056-003-0 01 1 0810-0907 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05> 		8-98056-003-0 01 1 0810-0907 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> 		8-98056-003-0 01 1 0908-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05> 		8-98056-003-0 01 1 0908-1203 ●
1 CYLINDER SET; CAR LOCK 8-98056-003-0 01 1 0908-1203 ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> 		8-98201-161-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05> 		8-98201-161-0 01 1 1204- ●
1 CYLINDER SET; CAR LOCK 8-98201-161-0 01 1 1204- ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0803-0907 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0908- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0803-0907 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
